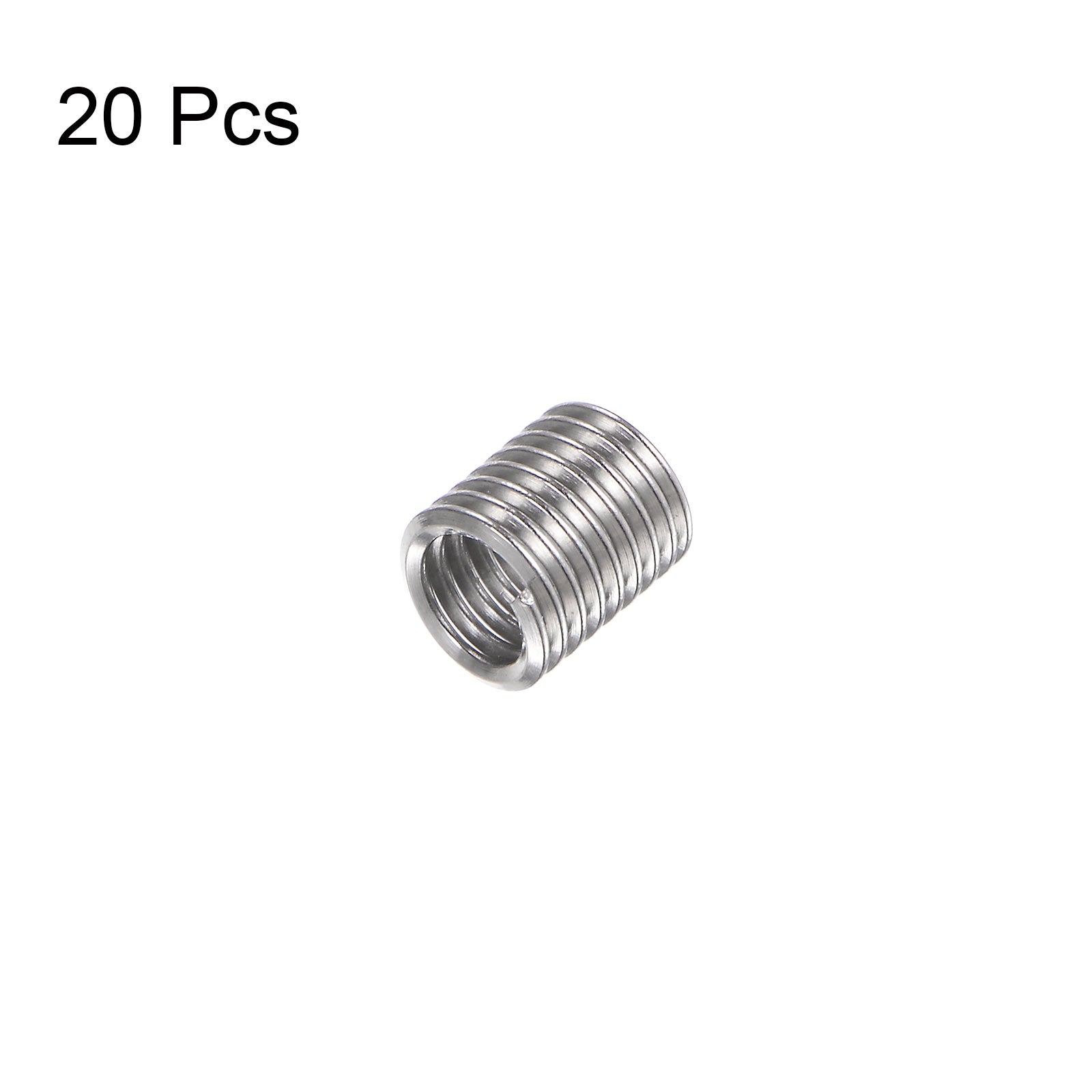

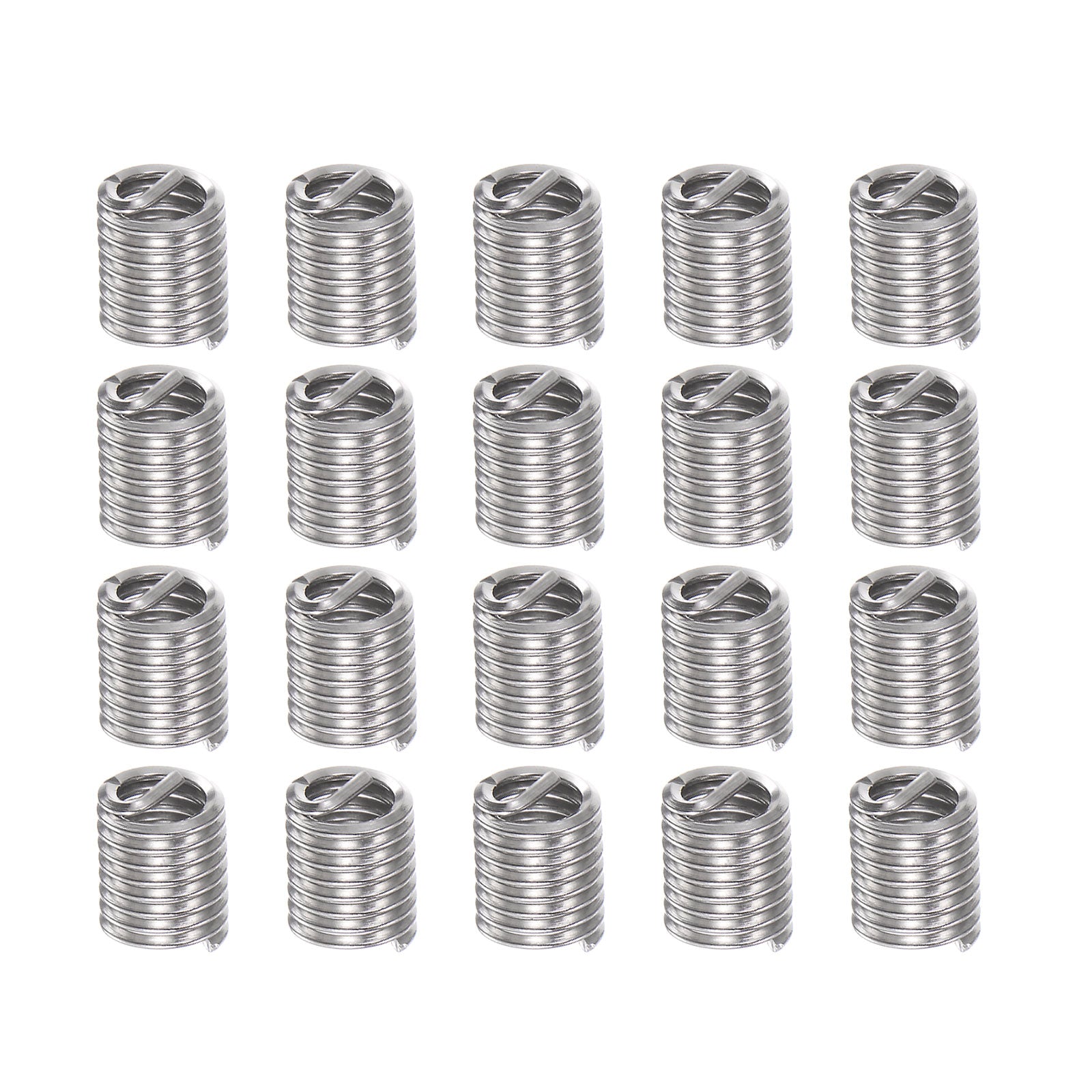

Harfington 20pcs 8#-32 UNC 2D 8.4mm 304 Stainless Steel Helical Wire Threaded Inserts

20pcs 8#-32 UNC 2D 8.4mm 304 Stainless Steel Helical Wire Threaded Inserts

ID:
£6.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

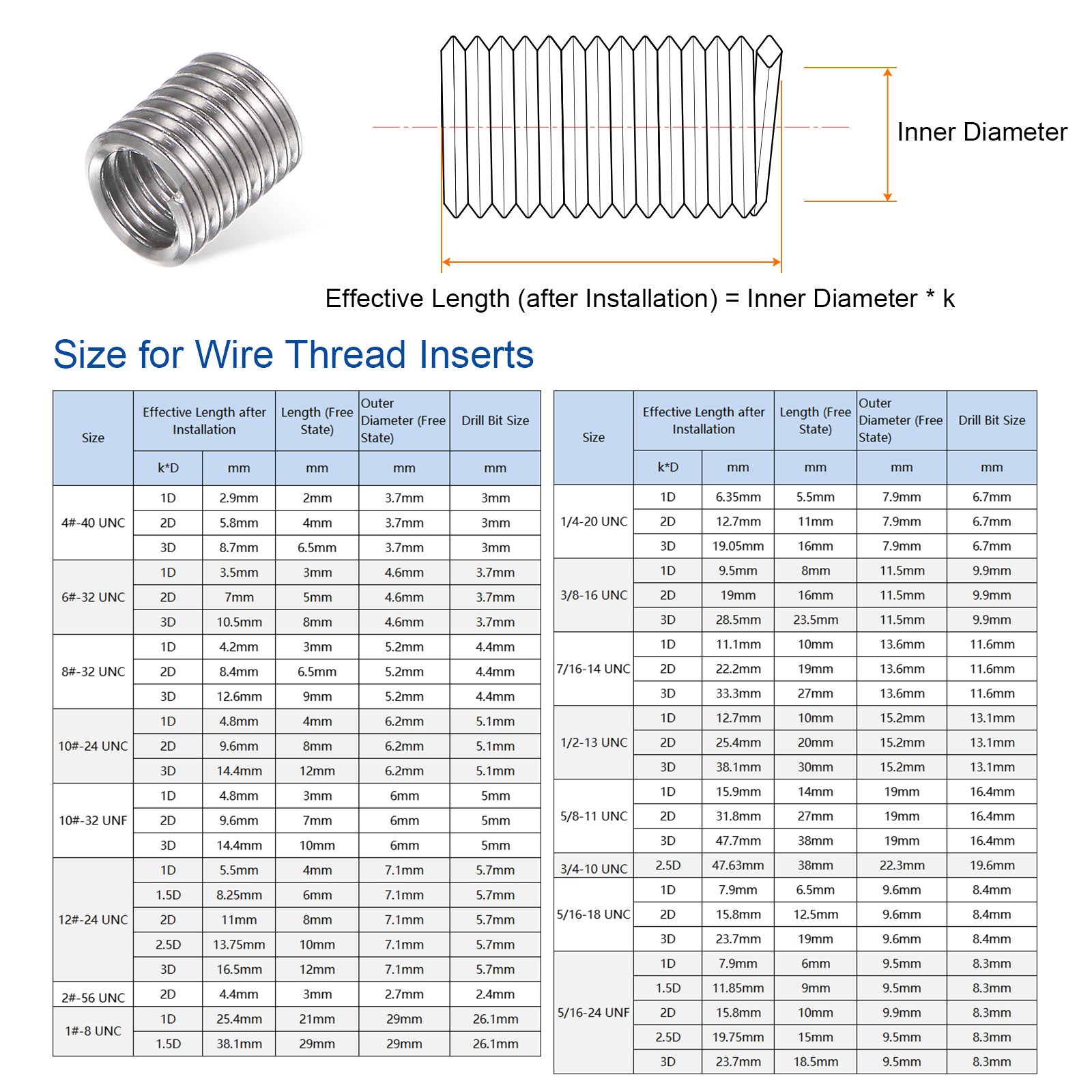

  • Size - Thread size: 8#-32 UNC; effective length (after Installation): 2D = 8.4mm / 0.33"; free state length: 6.5mm / 0.26"; free state outer diameter: 5.2mm / 0.2"; type: helical; surface treatment: white washing.

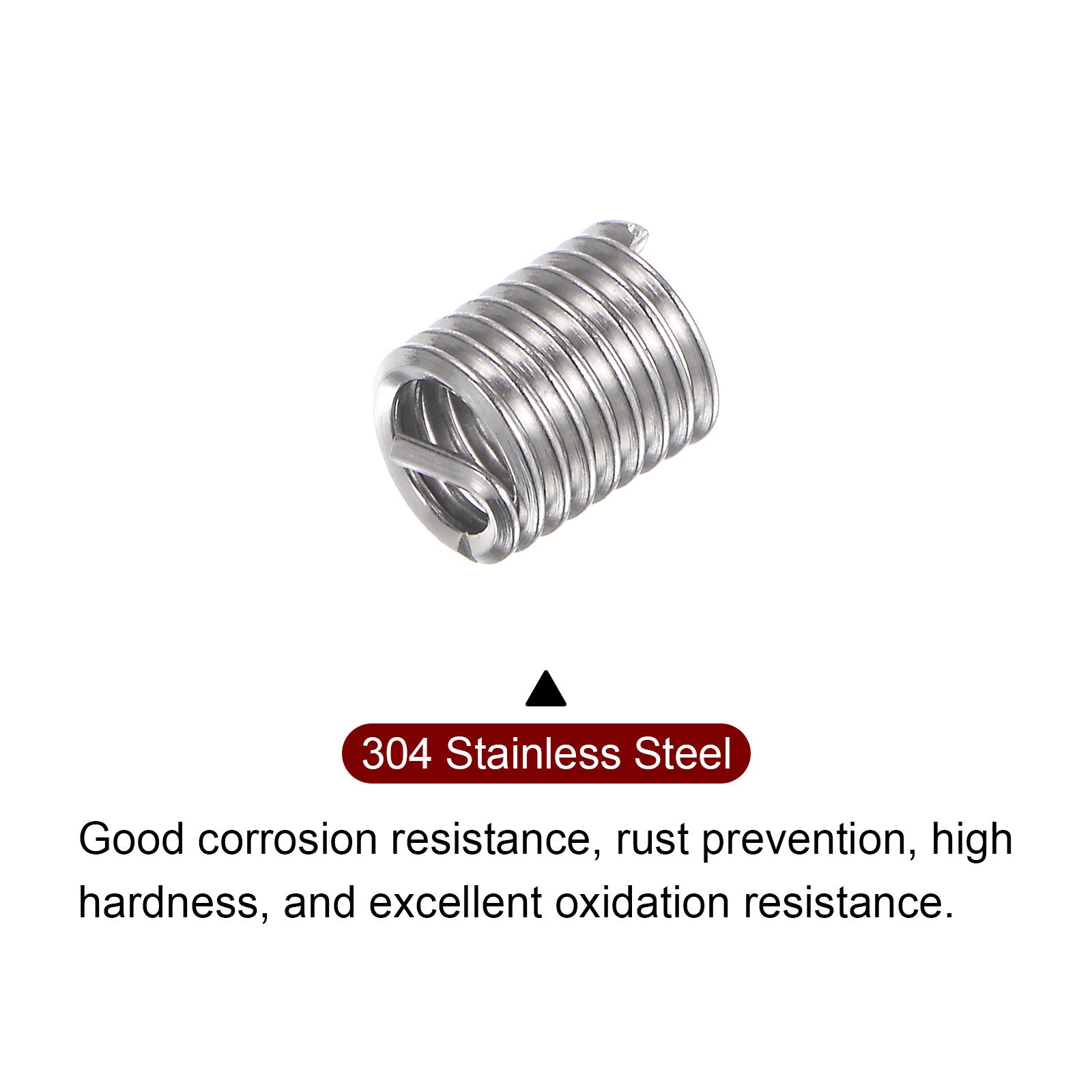

  • Material - 304 stainless steel has good corrosion resistance, rust prevention, high hardness, and excellent oxidation resistance. It is austenitic stainless steel, which is non-magnetic or slightly magnetic.
  • Features - Designed with a certain of elastic, and provides an even load. Wire thread inserts have self-tapping capability without pre-tapping the base metal. Large contact surface with finished products, strong tensile force. Strong resistance to vibration, no deformation.

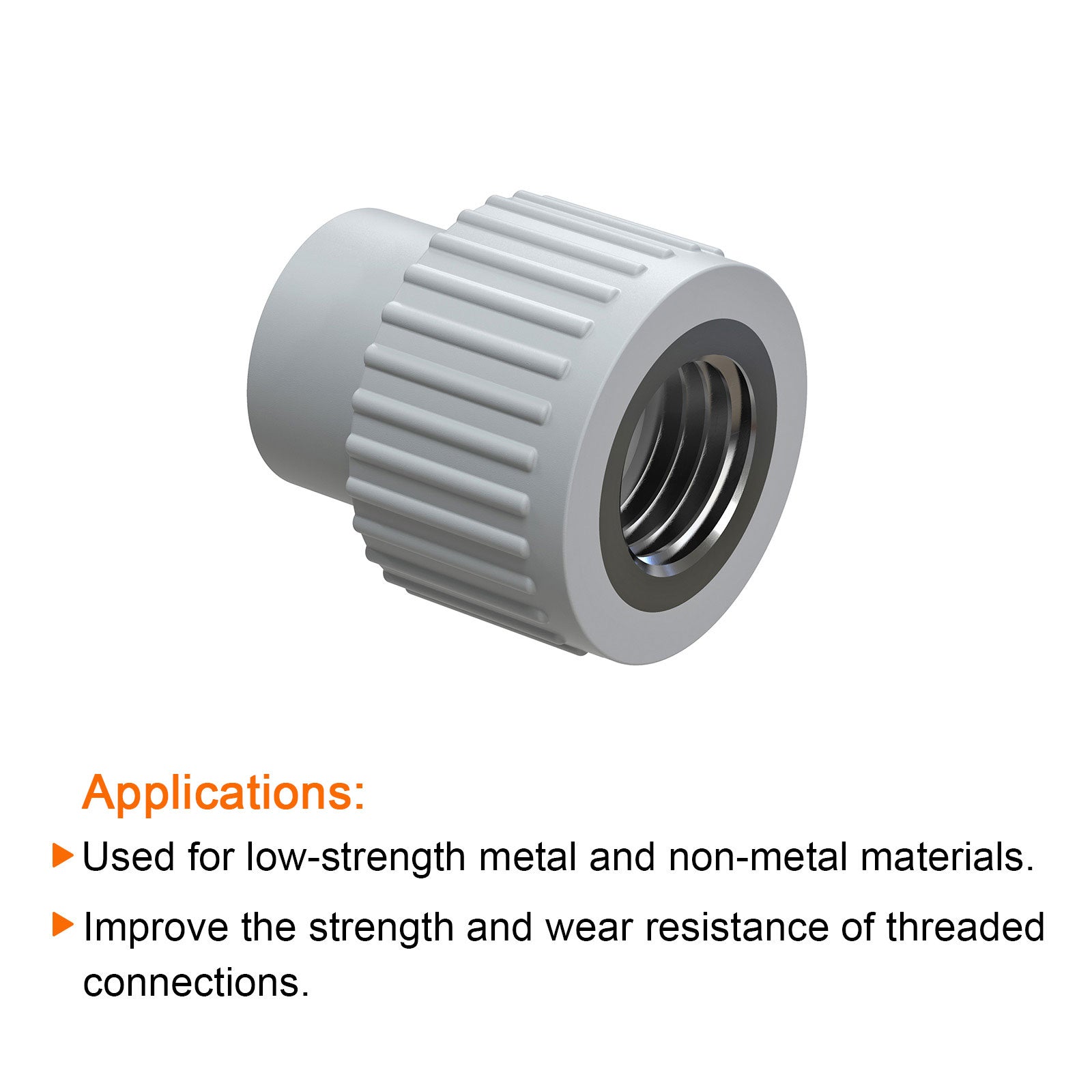

  • Applications - Mainly used for various low-strength metal and non-metal materials, such as aluminum, magnesium, cast iron, plastic, rubber, MDF, ceramics, fiberglass, wood. Improve the strength and wear resistance of threaded connections, prevent thread loosening and slippage
  • Note - When the installation amount is small, take the corresponding bolts + nuts, fix the thread insert on the screw and fix it with the same type of nut to make the three in one. Use a wrench to screw the threaded insert into the bottom hole and remove the screw.
  • In stock, ready to ship
Cart
Cart
About this item
  • Size - Thread size: 8#-32 UNC; effective length (after Installation): 2D = 8.4mm / 0.33"; free state length: 6.5mm / 0.26"; free state outer diameter: 5.2mm / 0.2"; type: helical; surface treatment: white washing.
  • Material - 304 stainless steel has good corrosion resistance, rust prevention, high hardness, and excellent oxidation resistance. It is austenitic stainless steel, which is non-magnetic or slightly magnetic.
  • Features - Designed with a certain of elastic, and provides an even load. Wire thread inserts have self-tapping capability without pre-tapping the base metal. Large contact surface with finished products, strong tensile force. Strong resistance to vibration, no deformation.
  • Applications - Mainly used for various low-strength metal and non-metal materials, such as aluminum, magnesium, cast iron, plastic, rubber, MDF, ceramics, fiberglass, wood. Improve the strength and wear resistance of threaded connections, prevent thread loosening and slippage
  • Note - When the installation amount is small, take the corresponding bolts + nuts, fix the thread insert on the screw and fix it with the same type of nut to make the three in one. Use a wrench to screw the threaded insert into the bottom hole and remove the screw.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
  1. 304 stainless steel has good corrosion resistance, rust prevention, high hardness, and excellent oxidation resistance. It is austenitic stainless steel, which is non-magnetic or slightly magnetic. With self-tapping sleeves, the same screw can be used continuously.
  2. Features a certain of elastic, and provides an even load on the thread. Wire thread inserts have self-tapping capability without pre-tapping the base metal. Large contact surface with finished products, strong tensile force. Strong resistance to vibration, no deformation.
  3. Greatly improve the strength and wear resistance of threaded connections, prevent thread loosening and slippage, and repair damaged internal threaded holes. Mainly used for various low-strength metal and non-metal materials, such as aluminum, magnesium, cast iron, plastic, rubber, MDF, ceramics, fiberglass, wood.
  4. When the installation amount is small, take the corresponding bolts + nuts, fix the thread insert on the screw and fix it with the same type of nut to make the three in one. Use a wrench to screw the threaded insert into the bottom hole and remove the screw.
  5. When the installation amount is large, use special installation tools to install. Drill holes with the appropriate size drill bit, then tap with the same size tap as the bolt. Put the screw sleeve on the installation tool and adjust the height of the pipe position. Gently screw the screw sleeve into the hole until the end of the screw sleeve is between 1/2 and 1/4 of the plane of the screw hole. Twist the crossed wires with the break tool instead of the installation tool.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
