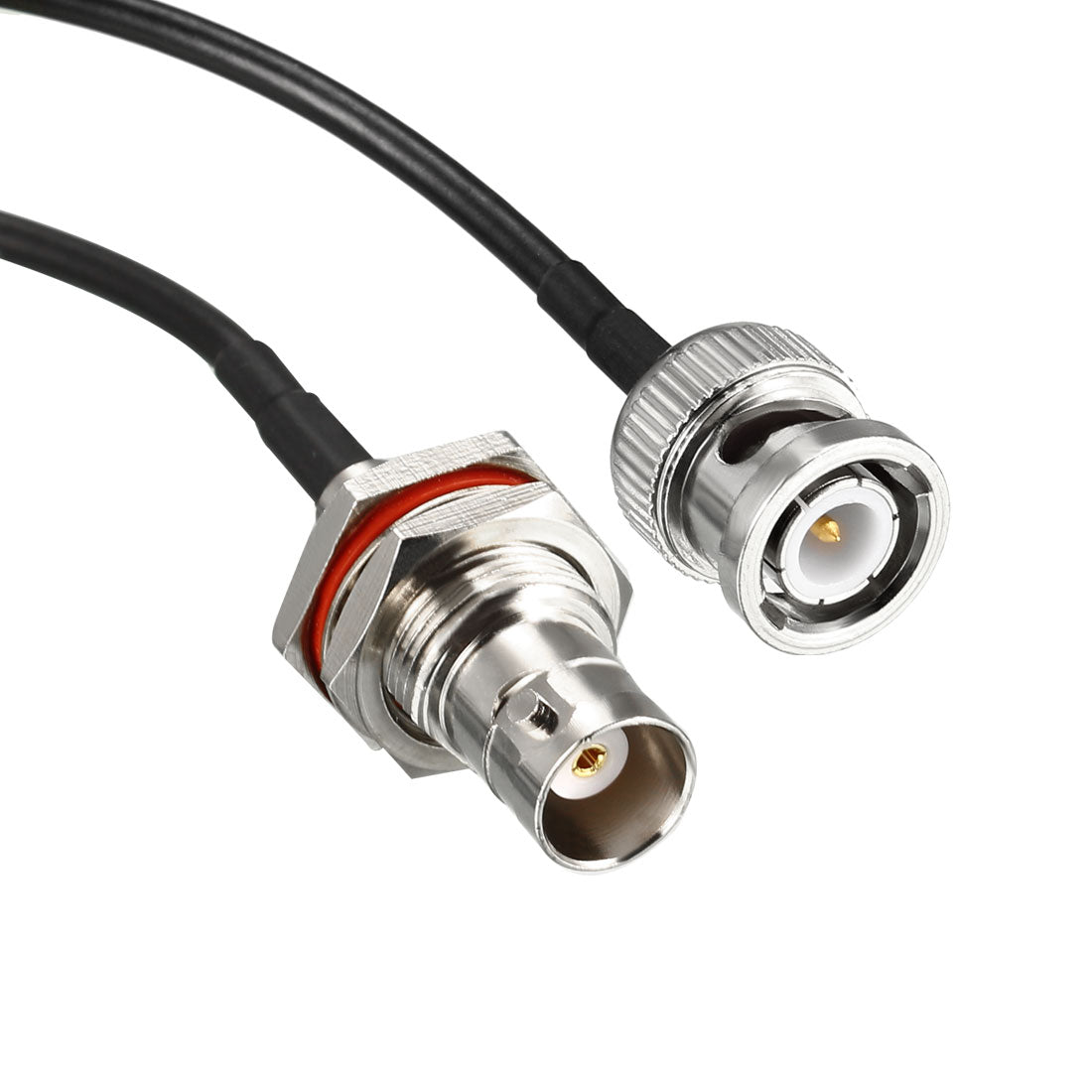

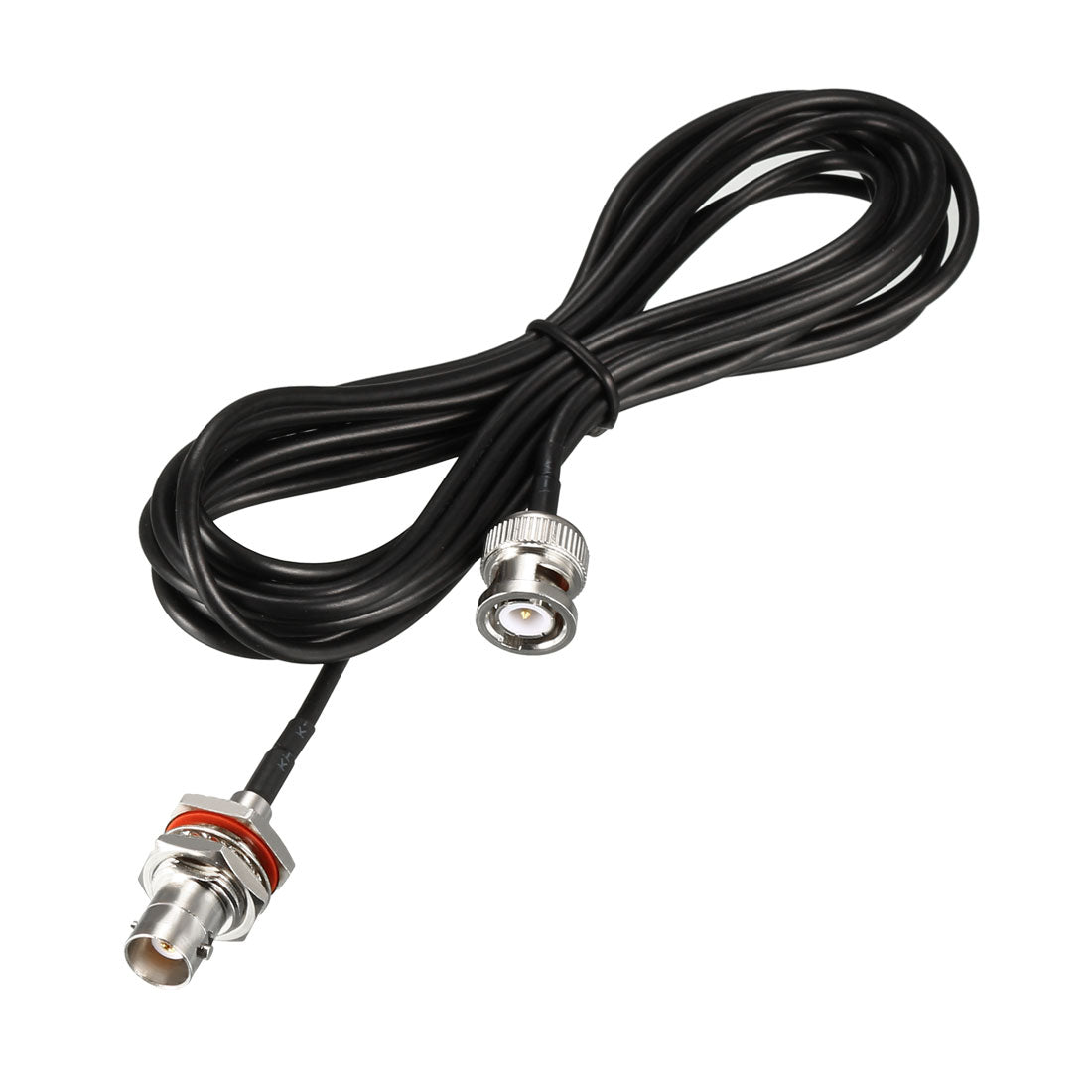

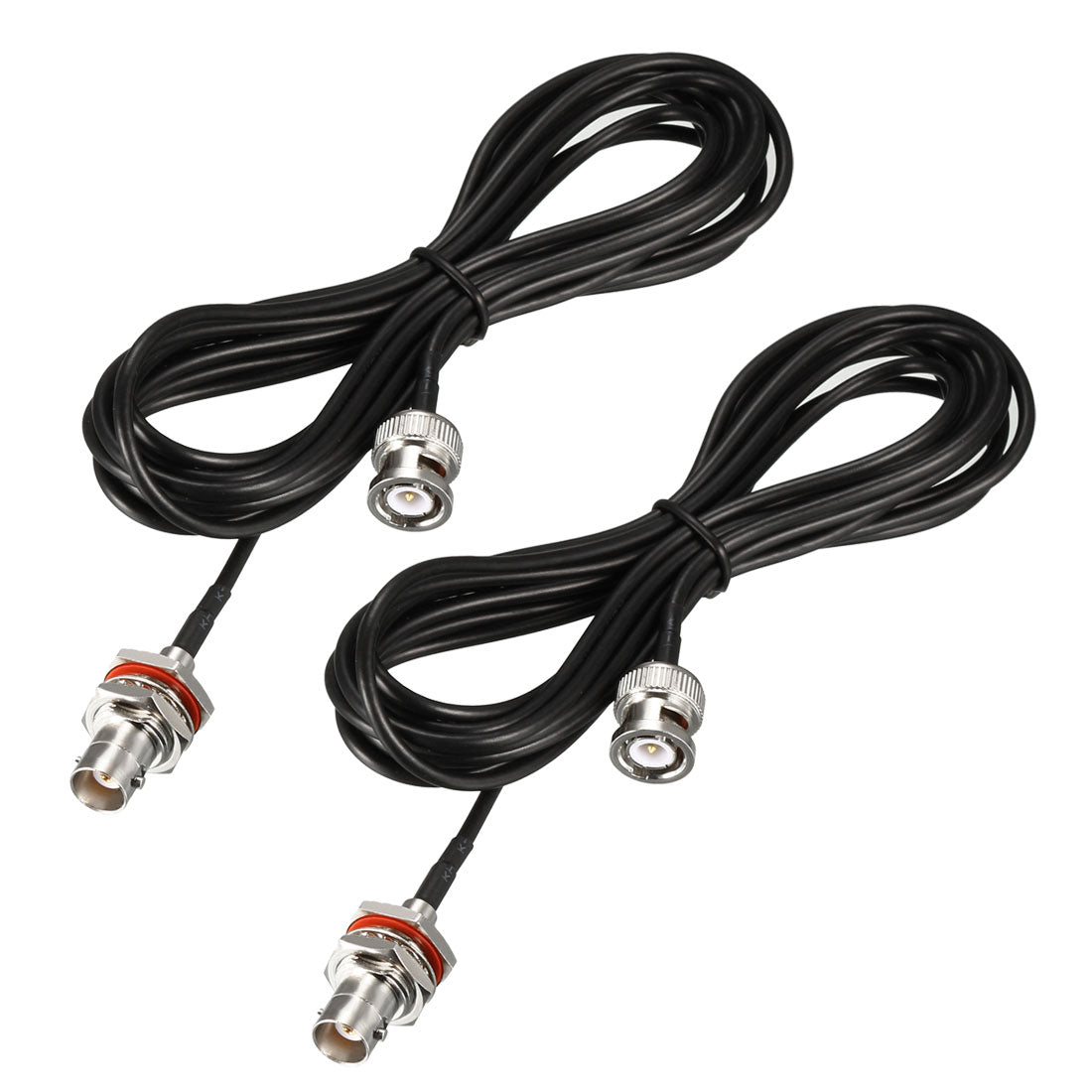

Harfington Coaxial Jumper Cable for Video Signal,CCTV, Camera

Coaxial Jumper Cable for Video Signal,CCTV, Camera

ID:
£9.00 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
1
NumberOfItems
About this item

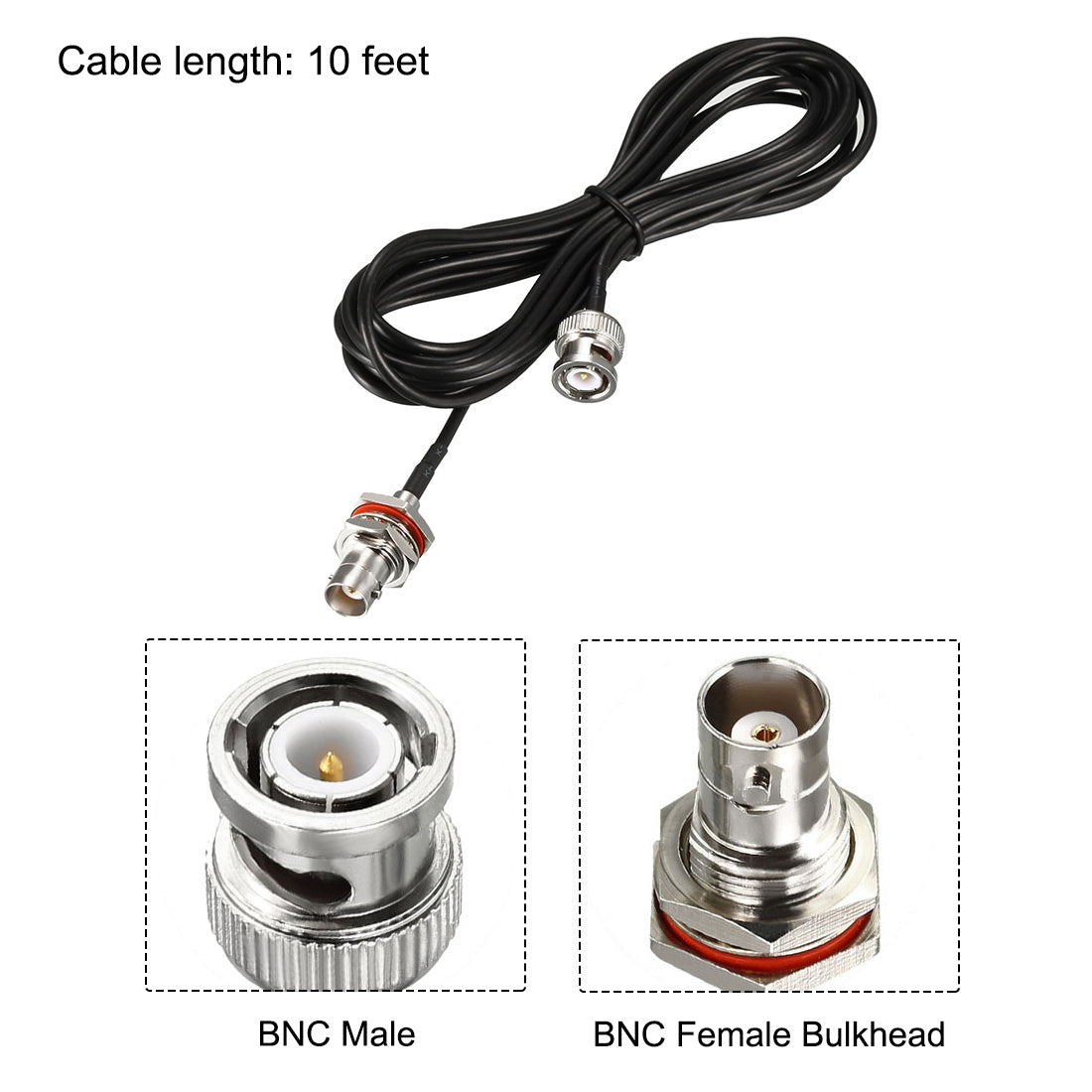

  • 【BASE INFO】Cable Type: RG174; Cable Length: 10ft/3.048meter; Connector 1: BNC Male; Connector 2: BNC Female Bulkhead; Impedance: 50 ohm.
  • 【MATERIAL】With nickel plated connector body and gold plated brass contacts,great connectivity.
  • 【APPLICATION】Widely used for RF applications or broadcast, video transmission and video surveillance,etc..
  • 【FEATURES】High frequency and low transmission loss, low voltage standing wave rate, physical foaming flame-retardant, good weather resistant, durable use indoors and outdoors.
  • 【ADVANTAGE】RG174 coaxial cable has good anti-electromagnetic interference, with the characteristics of high temperature resistance, moisture resistance, corrosion resistance, etc. Shielding, attenuation, standing wave and other indicators have excellent electrical properties.
  • In stock, ready to ship
Cart
Cart
About this item
  • 【BASE INFO】Cable Type: RG174; Cable Length: 10ft/3.048meter; Connector 1: BNC Male; Connector 2: BNC Female Bulkhead; Impedance: 50 ohm.
  • 【MATERIAL】With nickel plated connector body and gold plated brass contacts,great connectivity.
  • 【APPLICATION】Widely used for RF applications or broadcast, video transmission and video surveillance,etc..
  • 【FEATURES】High frequency and low transmission loss, low voltage standing wave rate, physical foaming flame-retardant, good weather resistant, durable use indoors and outdoors.
  • 【ADVANTAGE】RG174 coaxial cable has good anti-electromagnetic interference, with the characteristics of high temperature resistance, moisture resistance, corrosion resistance, etc. Shielding, attenuation, standing wave and other indicators have excellent electrical properties.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

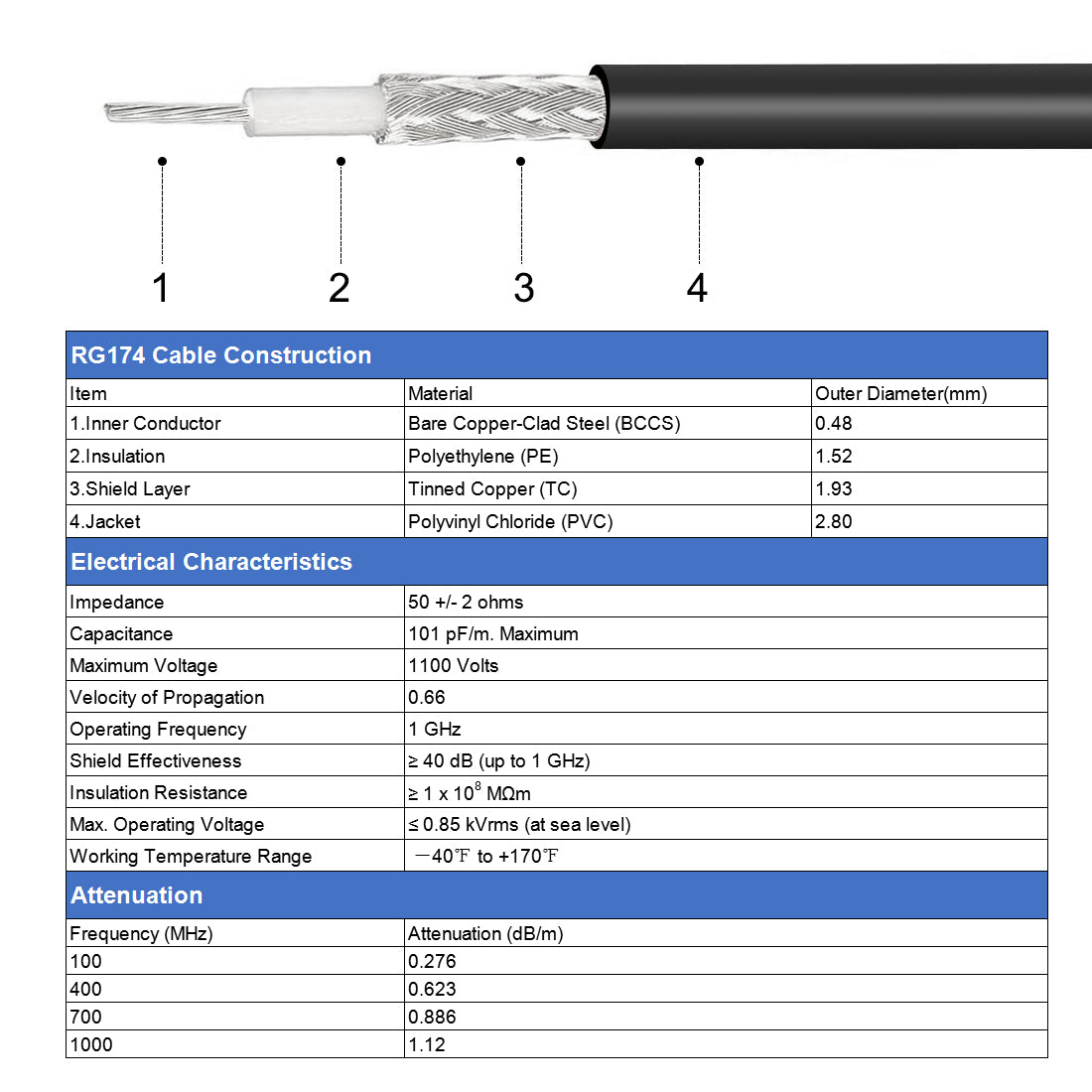

Attenuation parameter:

Normal. Attenuation(dB/m):0.276 (100MHz)

Normal. Attenuation(dB/m):0.623(400MHz)

Normal. Attenuation(dB/m):1.12(1000MHz)



Description:

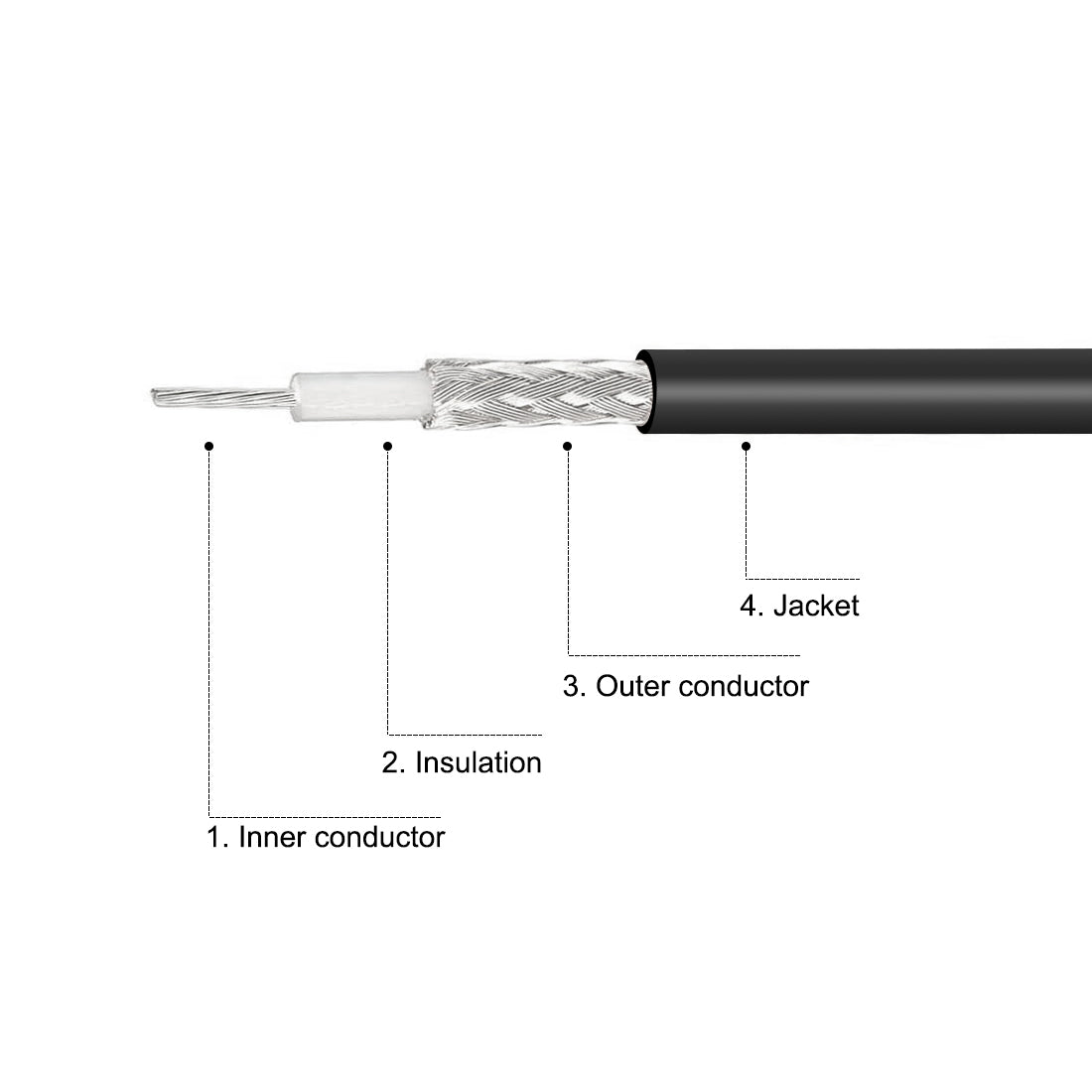

Solid center conductor, dielectric insulation, and tinned copper braid shielding; durable and flexible PVC outer layer. Perfect for broadcast, video transmission and video surveillance.



Specification:

  • Type: BNC male to BNC female extension Cable
  • Impedance: 50 ohm
  • Cable length: 10 feet
  • Cable diameter: 0.11 inch
  • Nickel plated connector body
  • Gold plated brass contacts



Package Includes:

1 x BNC to BNC cable

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£9.00 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Attenuation parameter:

Normal. Attenuation(dB/m):0.276 (100MHz)

Normal. Attenuation(dB/m):0.623(400MHz)

Normal. Attenuation(dB/m):1.12(1000MHz)



Description:

Solid center conductor, dielectric insulation, and tinned copper braid shielding; durable and flexible PVC outer layer. Perfect for broadcast, video transmission and video surveillance.



Specification:

  • Type: BNC male to BNC female extension Cable
  • Impedance: 50 ohm
  • Cable length: 10 feet
  • Cable diameter: 0.11 inch
  • Nickel plated connector body
  • Gold plated brass contacts



Package Includes:

1 x BNC to BNC cable

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
