Harfington Round Die Stock Handle Wrench Set Threading Die and Die Holder

Round Die Stock Handle Wrench Set Threading Die and Die Holder

ID:
£10.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
1set
Package Content
#6-32
Size
About this item

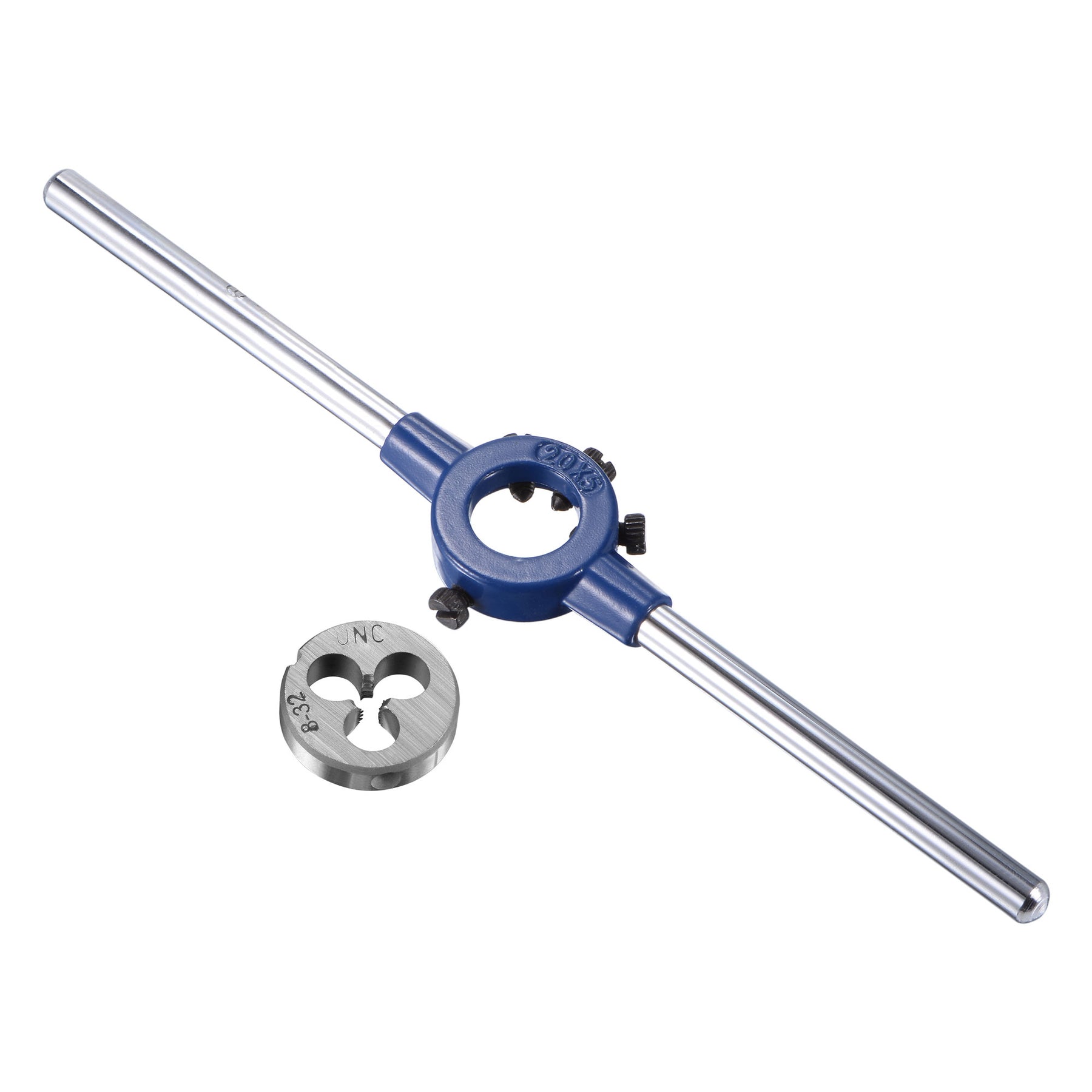

  • Die & Wrench Set: Die Wrench: 20mm x 5mm die stock fits 11mm-20mm outside diameter die / M3-M4 thread die, with 4 adjustable screws Round Die: #6-32 UNC threading die with 20mm outside diameter. Die stock, also called die handle or die wrench, are use in round dies only.
  • Application: The die handle wrench set can help to process, correct, clean male threads, or repair damaged bolts and threads, or just remove bolts and threaded rod. Great for re-threading existing threads in hard materials like metal, or making new threads in soft material like plastic.
  • Features: The die holder provides good wear resistance for long service life. With 4 adjustable screws, the die stock can securely hold round dies and is easy to operate. The alloy tool steel die is not loose for conical locking hole and strong locking, with hardness, high torque, good toughness and wear-resistance.

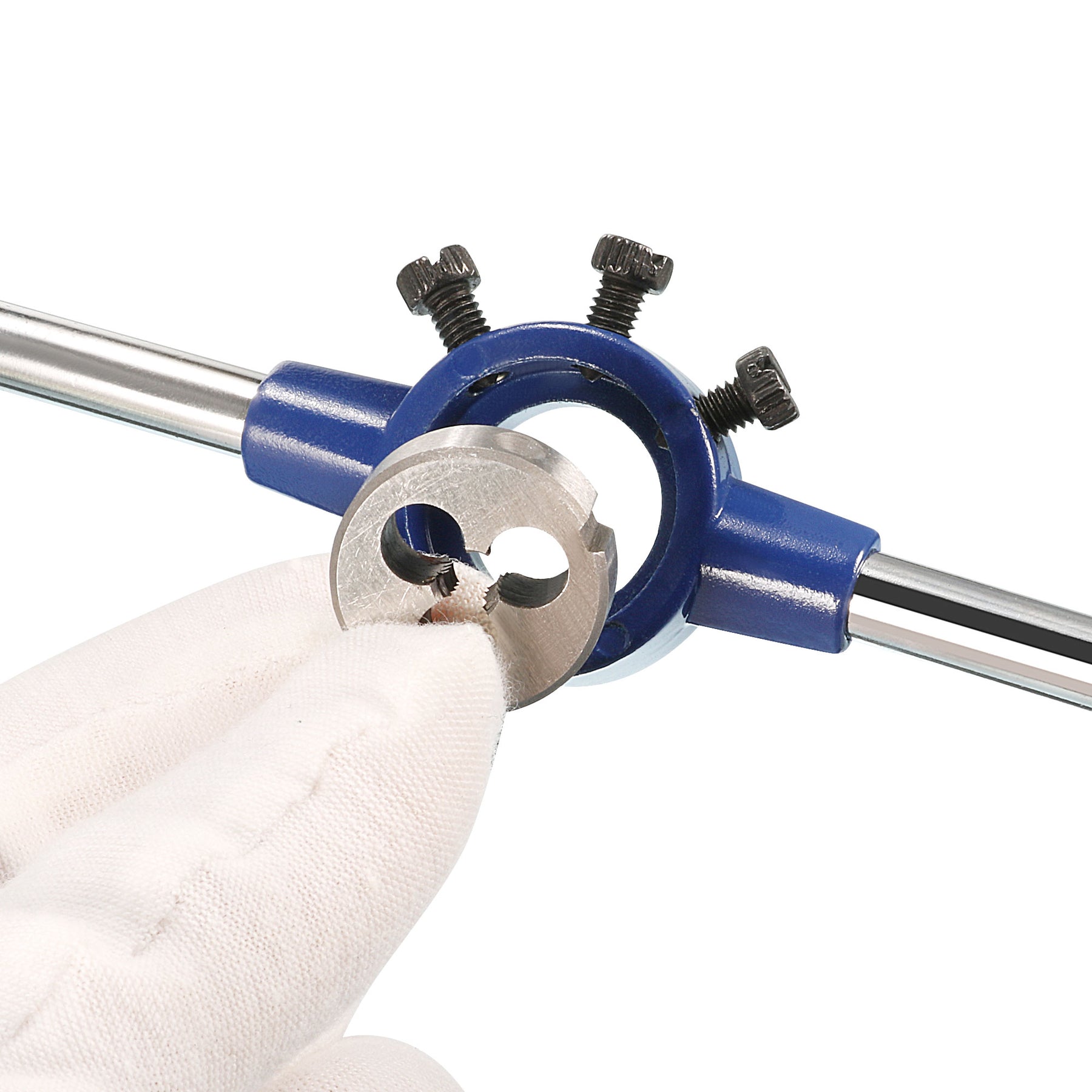

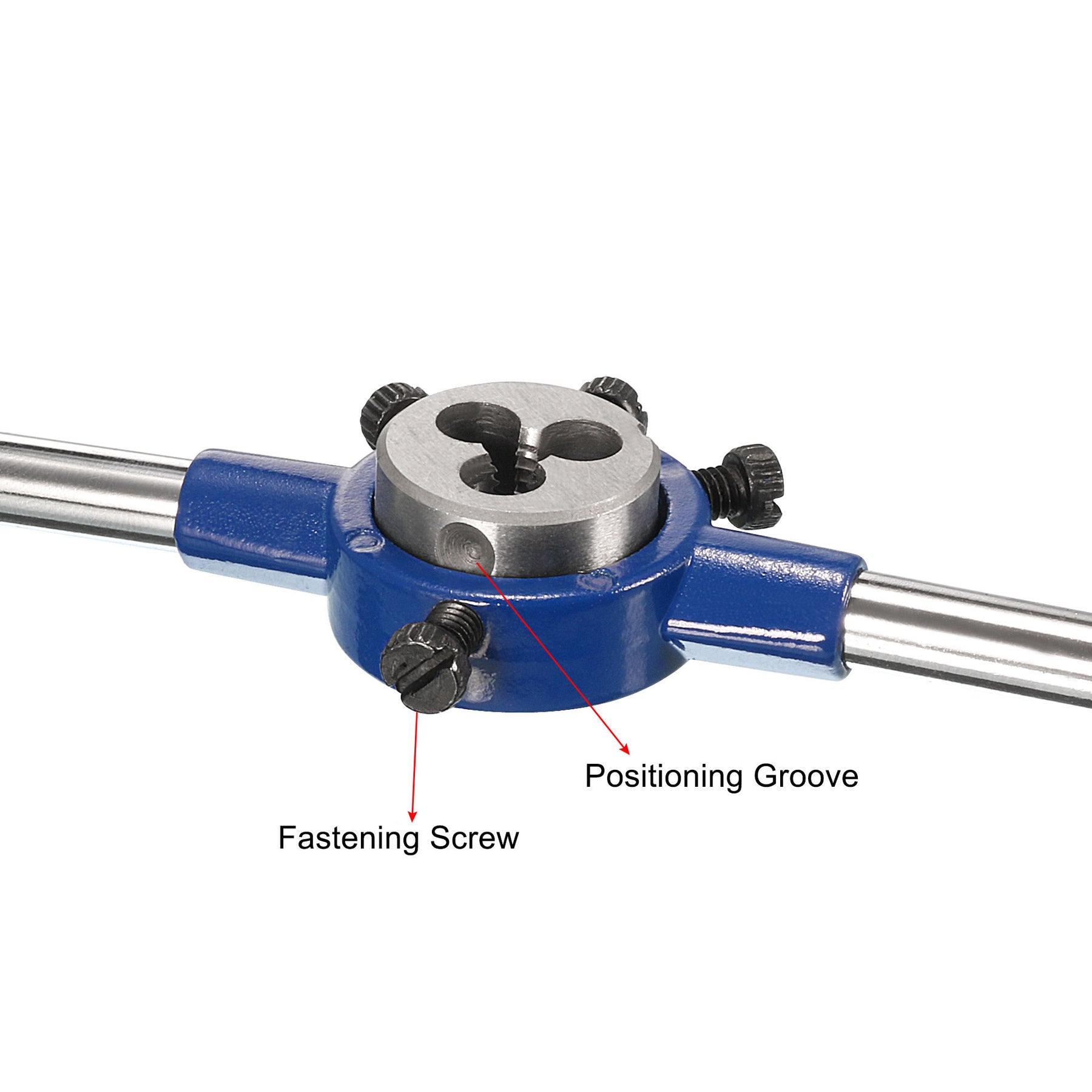

  • Easy to Use: The positioning groove of the die should be aligned with the fastening screw in the middle of the die wrench, and the screw should be inserted into the slot of the die and tightened.The die surface is lubricated with grease to prevent rust.
  • Tips: It needs to be reversed every 1/4~1/2 turn to facilitate the chip discharge from the chip hole. Suitable lubricating oil should be added to the cutting edge of the die when tapping the thread. The bar diameter should be smaller ( about 0.05mm-0.15mm) than the nominal diameter of the required thread.
  • In stock, ready to ship
Cart
Cart
About this item
  • Die & Wrench Set: Die Wrench: 20mm x 5mm die stock fits 11mm-20mm outside diameter die / M3-M4 thread die, with 4 adjustable screws Round Die: #6-32 UNC threading die with 20mm outside diameter. Die stock, also called die handle or die wrench, are use in round dies only.
  • Application: The die handle wrench set can help to process, correct, clean male threads, or repair damaged bolts and threads, or just remove bolts and threaded rod. Great for re-threading existing threads in hard materials like metal, or making new threads in soft material like plastic.
  • Features: The die holder provides good wear resistance for long service life. With 4 adjustable screws, the die stock can securely hold round dies and is easy to operate. The alloy tool steel die is not loose for conical locking hole and strong locking, with hardness, high torque, good toughness and wear-resistance.
  • Easy to Use: The positioning groove of the die should be aligned with the fastening screw in the middle of the die wrench, and the screw should be inserted into the slot of the die and tightened.The die surface is lubricated with grease to prevent rust.
  • Tips: It needs to be reversed every 1/4~1/2 turn to facilitate the chip discharge from the chip hole. Suitable lubricating oil should be added to the cutting edge of the die when tapping the thread. The bar diameter should be smaller ( about 0.05mm-0.15mm) than the nominal diameter of the required thread.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Specifications:

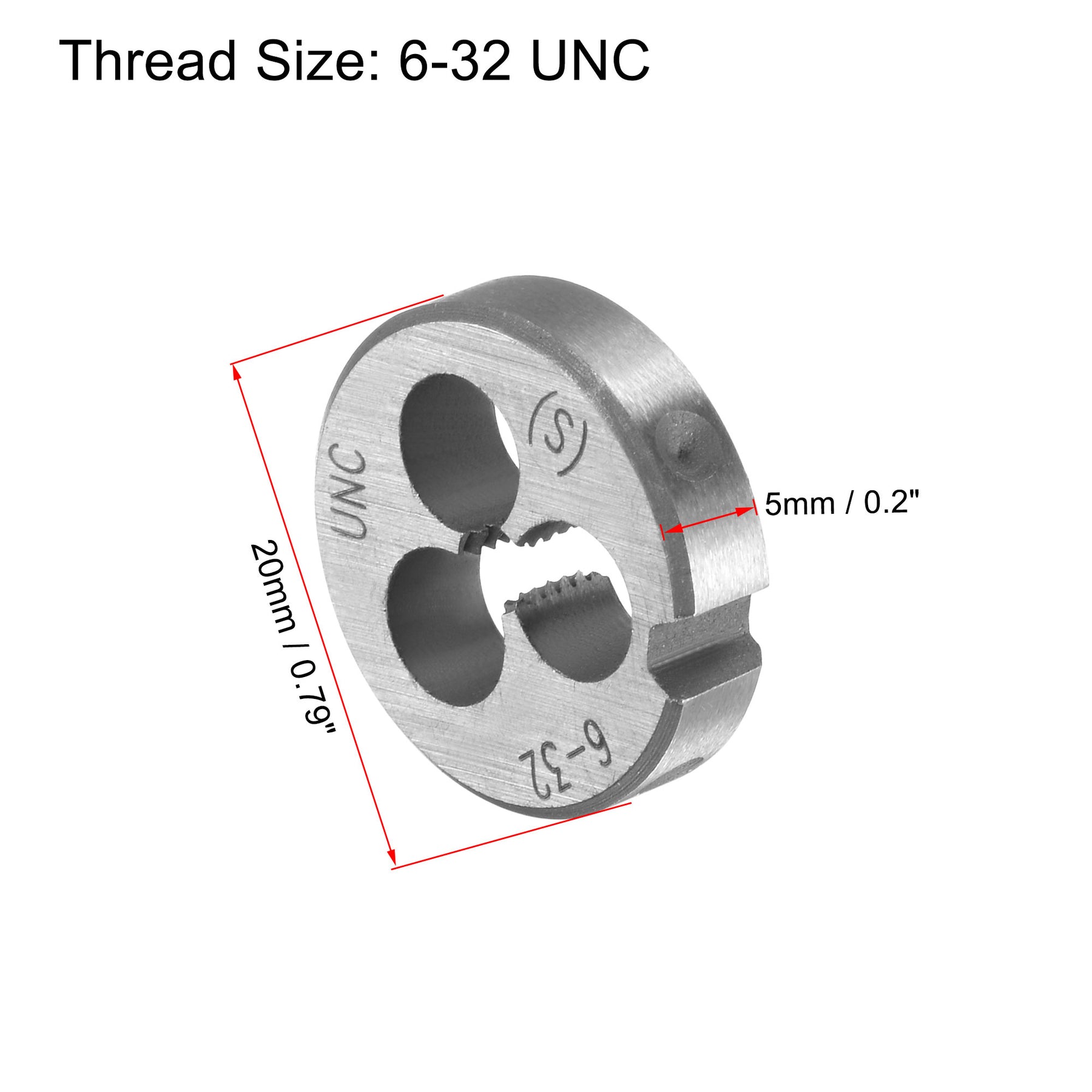

Round Die: Thread Size: 6-32 UNC; Outside Diameter (OD): 20mm / 0.79"; Thickness: 5mm / 0.2"; Accuracy class: 6g; Material: Alloy Tool Steel

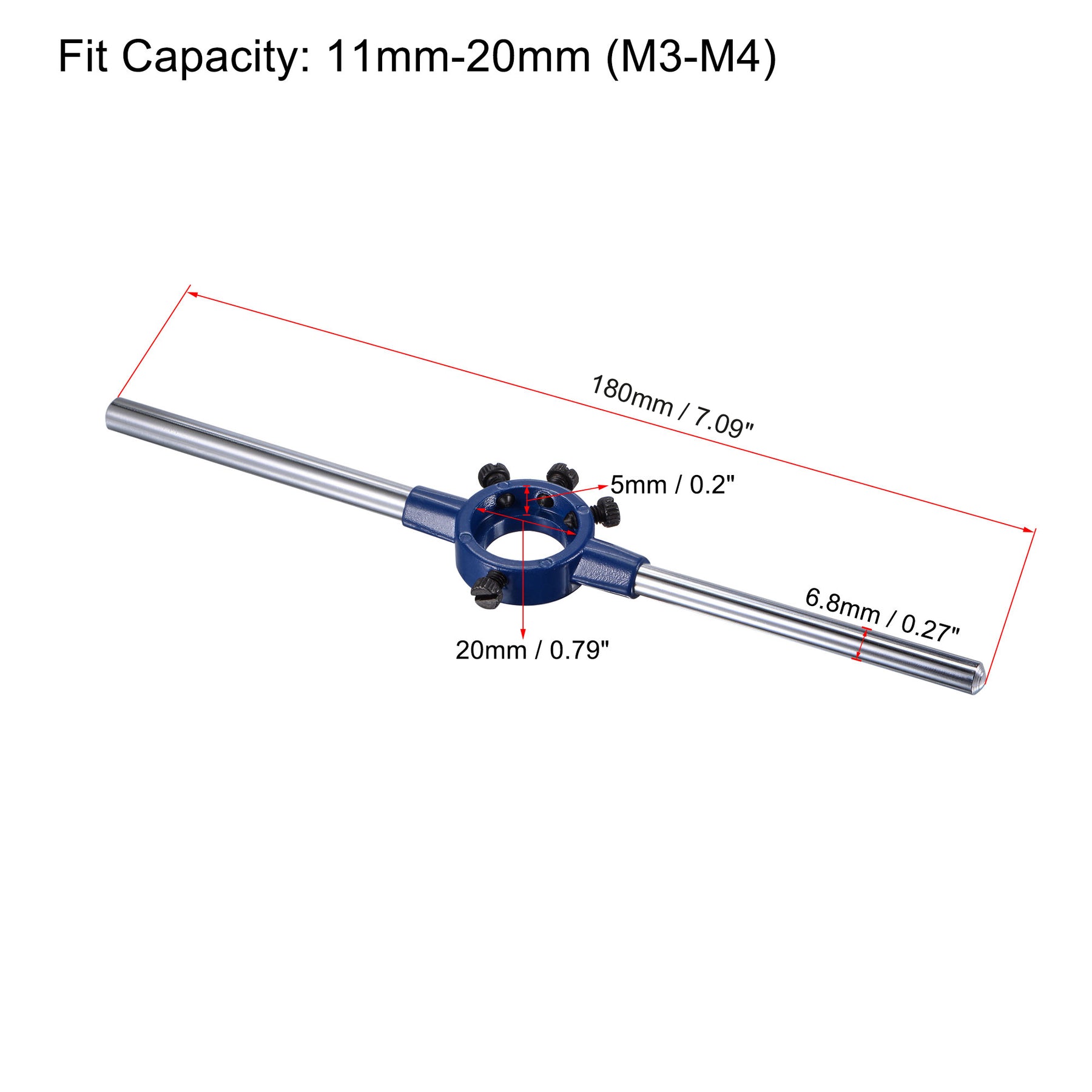

Die Stock: Size: 20mm x 5mm / 0.79" x 0.2" (D*H); Fit Capacity: 11mm-20mm (M3-M4); Overall Length: 180mm / 7.09"; Handle Diameter: 6.8mm / 0.27"; Material: Cast Iron

Descriptions:
Round dies are suitable for general purpose threading. Great for re-threading existing threads in hard materials like metal, or making new threads in soft material like plastic. Suitable for mild steel, aluminum, stainless steel, iron, cast iron, alloy steel and carbon steel. Good for maintenance and repair work.
The die stock is suited for 20mm outside diameter round dies. Provides good wear resistance for long service life. With four adjustable screws, the die stock can securely hold round dies and is easy to operate.
The die and wrench set can improve the efficiency of processing threads, and is a necessary tool for hand tapping operation.

Package Included:

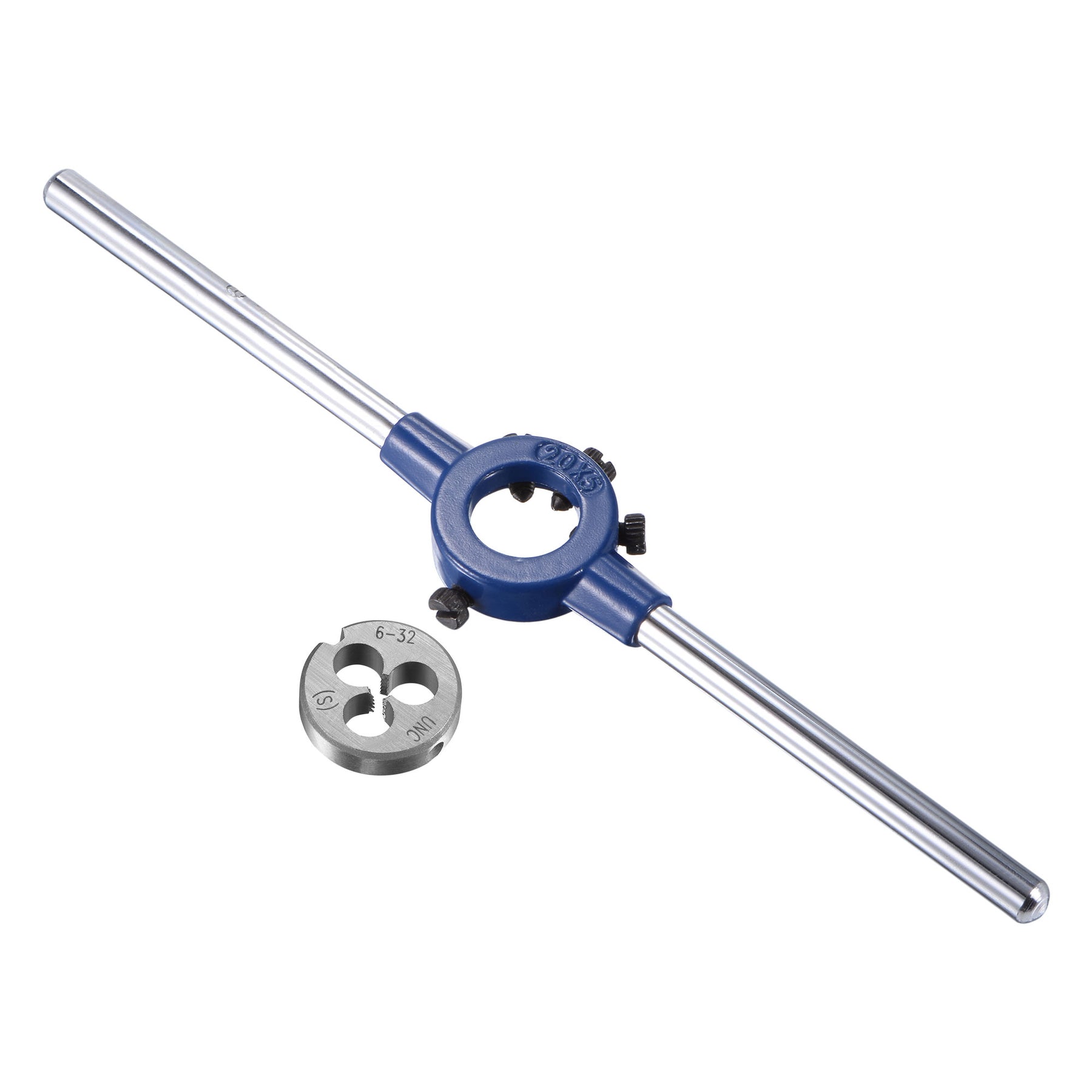

1 x Die Stock Handle Wrench, 1 x Round Die
