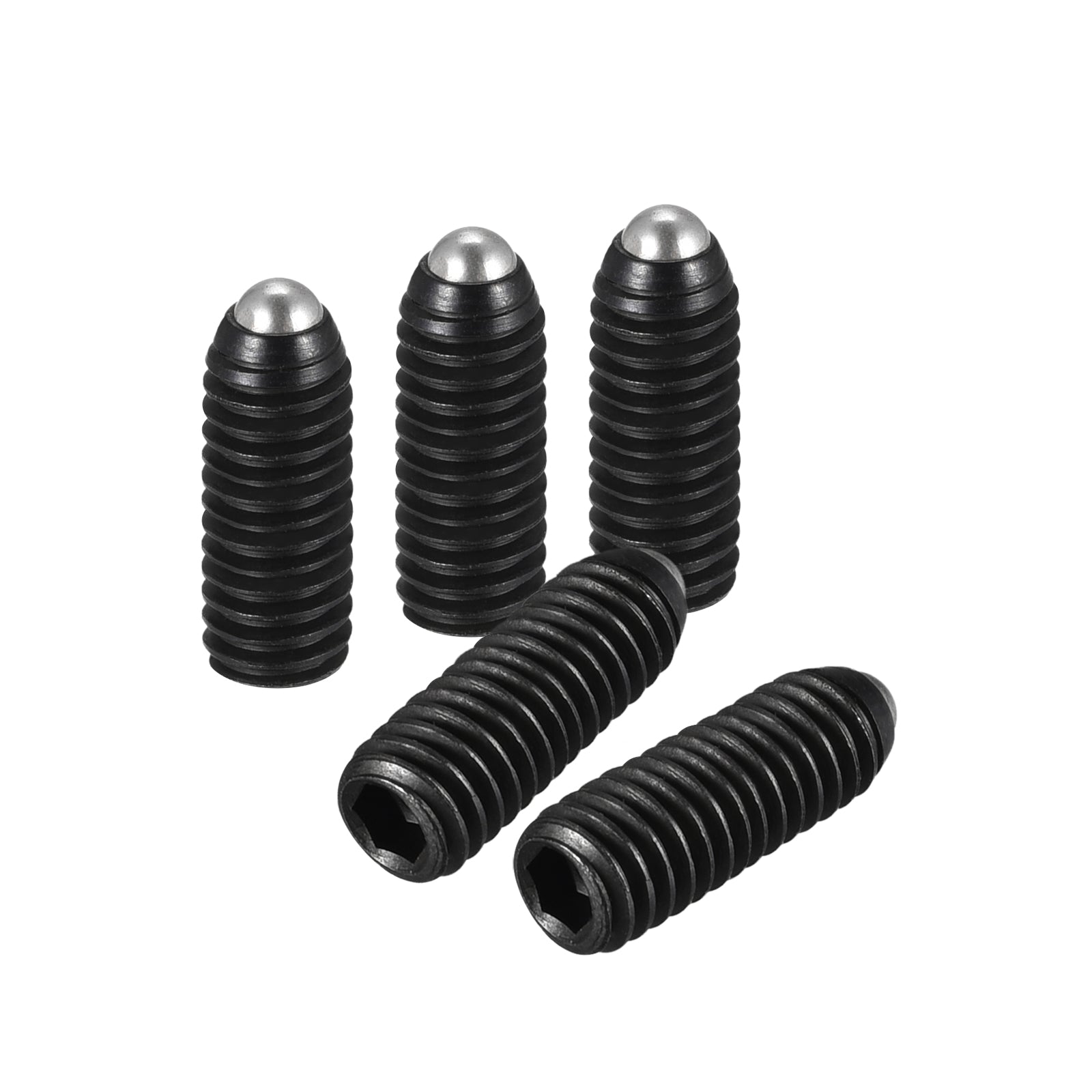

Harfington Ball Point Set Screws, 20pcs M4 x 12mm High Carbon Steel Spring Hex Socket Screw

Ball Point Set Screws, 20pcs M4 x 12mm High Carbon Steel Spring Hex Socket Screw

ID:
£8.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Thread Size: M4 x 12mm; Spring Force: 3.0 - 15N; Ball Plunger Stroke: 0.8mm / 0.03"
  • Made of high carbon steel with high strength, high hardness and wear resistance. Hexagon socket drive, uniform force, good locking effect, not easy to slip. Compact size and concealed installation.
  • The ball point set screw is composed of spring, ball plunger and shell. It is mainly used to fix on mechanical equipment that does not require protruding ends.
  • The ball point set screw is slightly elastic, allowing slight adjustments without loosening the screws, reducing surface wear. Even if the load is unbalanced, the internal spring can receive the load evenly.
  • When two non-parallel surfaces or materials need to be firmly clamped together, a ball point set screw is useful. It is mainly used in fixtures and machinery for fixing and positioning workpieces.
  • In stock, ready to ship
Cart
Cart
About this item
  • Thread Size: M4 x 12mm; Spring Force: 3.0 - 15N; Ball Plunger Stroke: 0.8mm / 0.03"
  • Made of high carbon steel with high strength, high hardness and wear resistance. Hexagon socket drive, uniform force, good locking effect, not easy to slip. Compact size and concealed installation.
  • The ball point set screw is composed of spring, ball plunger and shell. It is mainly used to fix on mechanical equipment that does not require protruding ends.
  • The ball point set screw is slightly elastic, allowing slight adjustments without loosening the screws, reducing surface wear. Even if the load is unbalanced, the internal spring can receive the load evenly.
  • When two non-parallel surfaces or materials need to be firmly clamped together, a ball point set screw is useful. It is mainly used in fixtures and machinery for fixing and positioning workpieces.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
- Made of high carbon steel with high strength, high hardness and wear resistance. Hexagon socket drive, uniform force, good locking effect, not easy to slip. Compact size and concealed installation.
- The ball point set screw is composed of spring, ball plunger and shell. It is mainly used to fix on mechanical equipment that does not require protruding ends.
- The ball point set screw is slightly elastic, allowing slight adjustments without loosening the screws, reducing surface wear. Even if the load is unbalanced, the internal spring can receive the load evenly.
- When two non-parallel surfaces or materials need to be firmly clamped together, a ball point set screw is useful. It is mainly used in fixtures and machinery for fixing and positioning workpieces.

Specification:
Material: High Carbon Steel
Finish: Black Oxide
Drive Type: Hex Socket

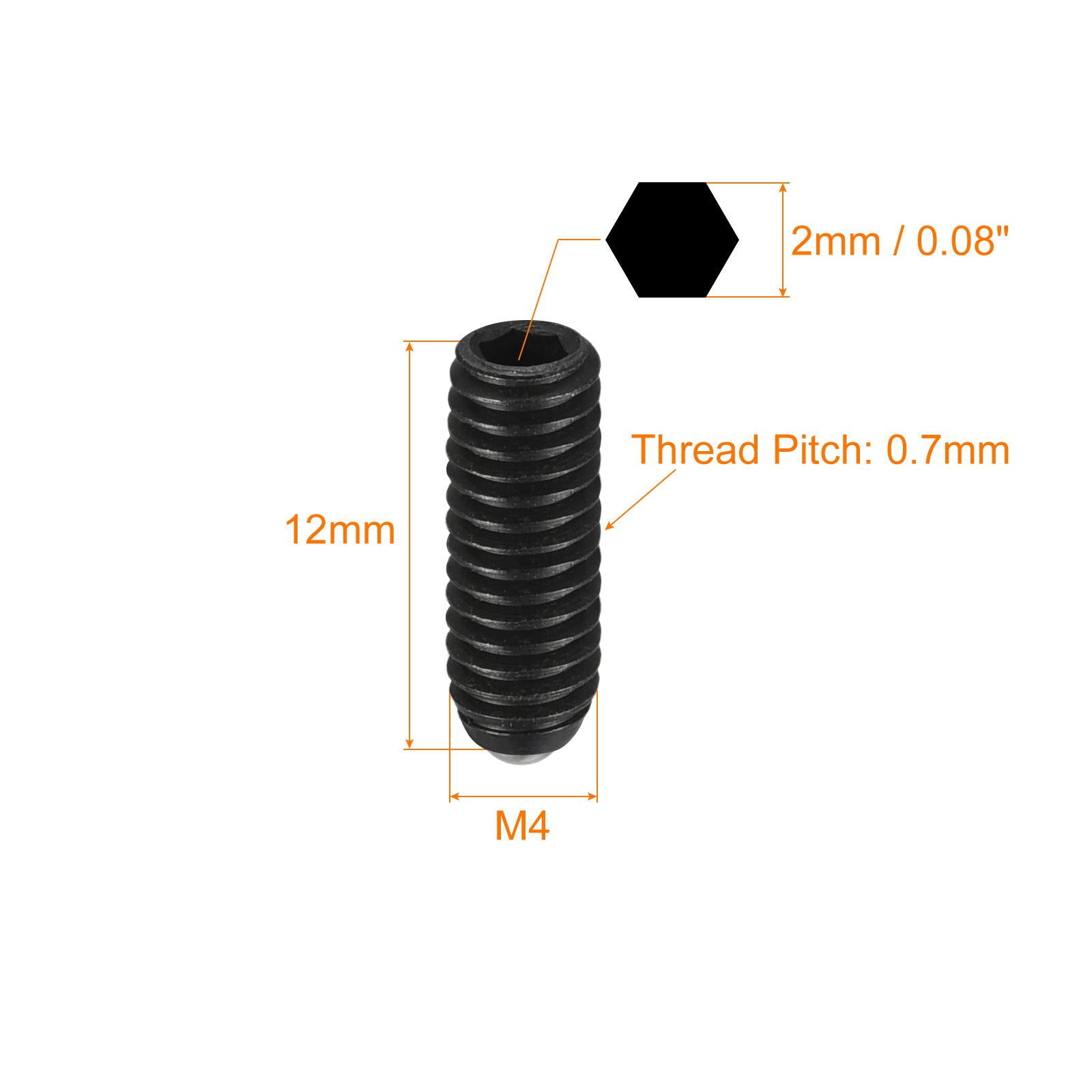

Thread Size: M4 x 12mm
Thread Pitch: 0.7mm

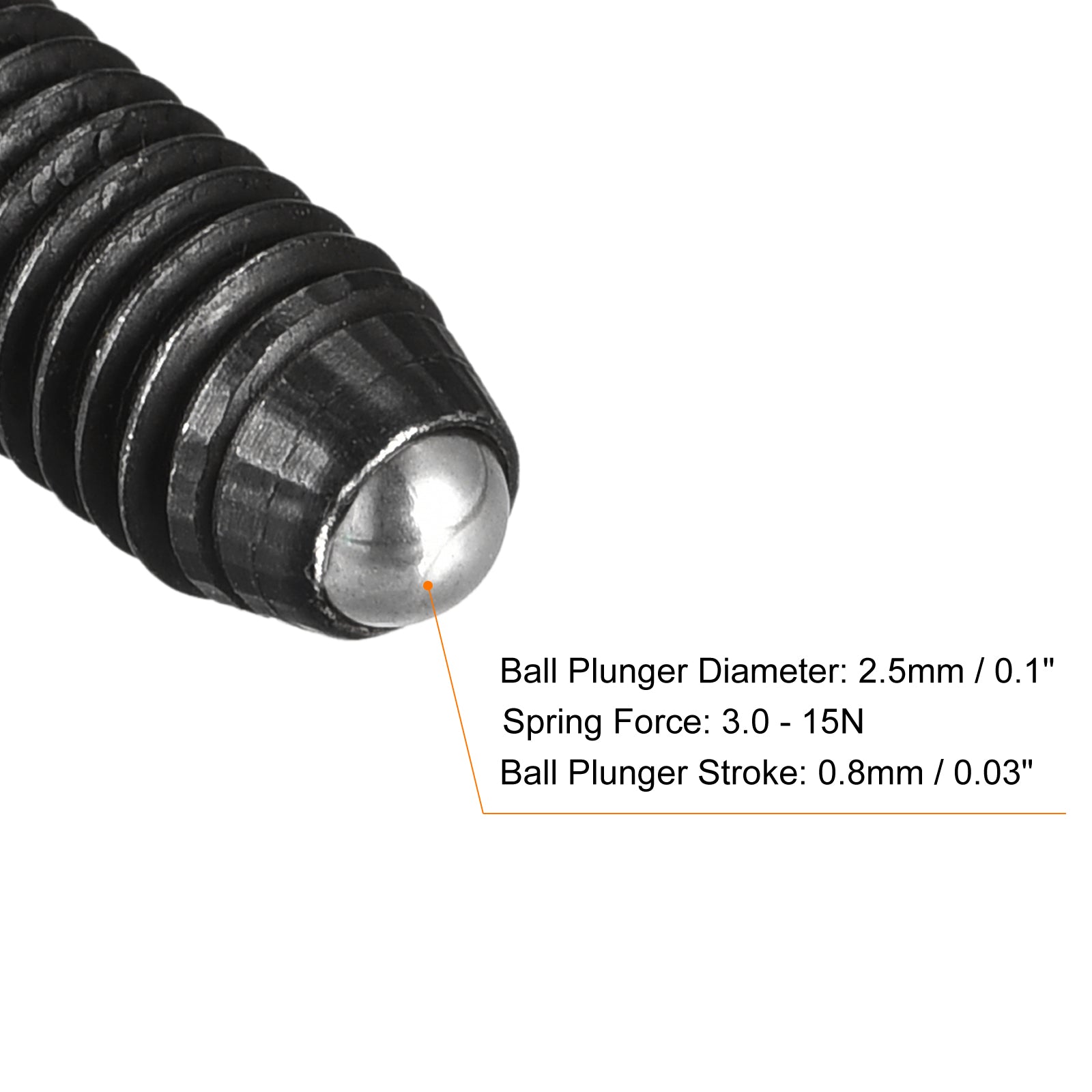

Ball Plunger Diameter: 2.5mm / 0.1"
Hex Socket Width: 2mm / 0.08"
Spring Force: 3.0 - 15N
Ball Plunger Stroke: 0.8mm / 0.03"

Package Content:

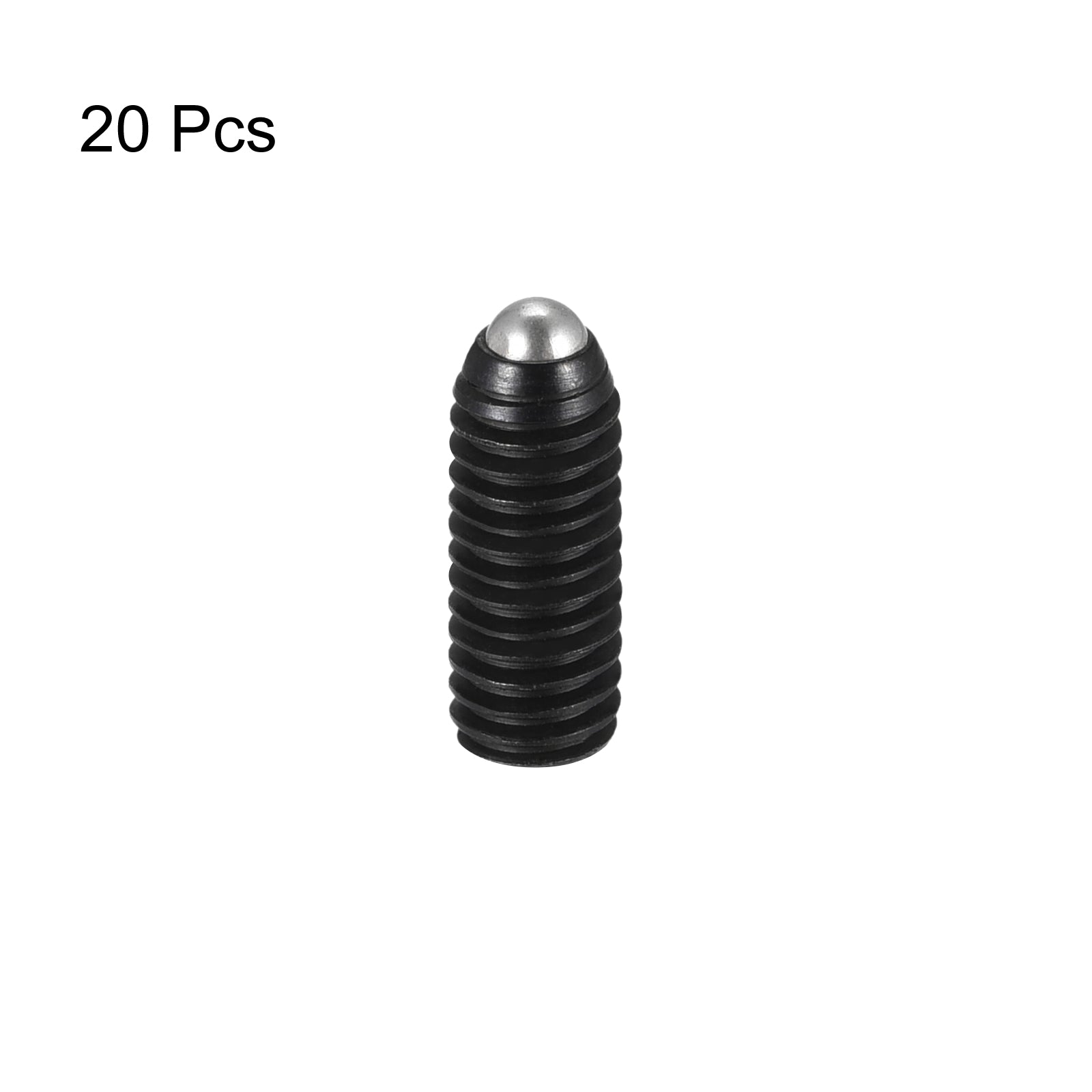

20pcs x Ball Point Set Screws
