Harfington 12 Teeth Sprocket Single Strand 3/8" Pitch, 8mm Bore Carbon Steel

12 Teeth Sprocket Single Strand 3/8" Pitch, 8mm Bore Carbon Steel

ID:
£8.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Notice: This product is in its raw form and cannot be fixed. It requires secondary processing before it can be used. (Key slots and screw holes need to be manually processed.)
  • Chain Sprockets are normally mounted in a fixed position on a fixed shaft. This sprocket has a hub extension on one side to provide stability. The shaft can be fixed well, which is convenient to use.
  • The chain sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. Every roller chain sprocket comes with strong teeth that can latch onto the chain. It is suggested that chain sprockets have at least three teeth in mesh with the chain.
  • The product is made of A3 carbon steel, the tooth part high temperature quenching heat treatment, high hardness, wear resistance, long service life, easy to use.
  • Widely used in industrial transmission and transportation or other transmission occasions such as go-kart and mini bike.
  • In stock, ready to ship
Cart
Cart
About this item
  • Notice: This product is in its raw form and cannot be fixed. It requires secondary processing before it can be used. (Key slots and screw holes need to be manually processed.)
  • Chain Sprockets are normally mounted in a fixed position on a fixed shaft. This sprocket has a hub extension on one side to provide stability. The shaft can be fixed well, which is convenient to use.
  • The chain sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. Every roller chain sprocket comes with strong teeth that can latch onto the chain. It is suggested that chain sprockets have at least three teeth in mesh with the chain.
  • The product is made of A3 carbon steel, the tooth part high temperature quenching heat treatment, high hardness, wear resistance, long service life, easy to use.
  • Widely used in industrial transmission and transportation or other transmission occasions such as go-kart and mini bike.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Features:
1. Chain Sprockets are normally mounted in a fixed position on a fixed shaft. This sprocket has a hub extension on one side to provide stability. The shaft can be fixed well, which is convenient to use.
2. The chain sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. Every roller chain sprocket comes with strong teeth that can latch onto the chain. It is suggested that chain sprockets have at least three teeth in mesh with the chain.

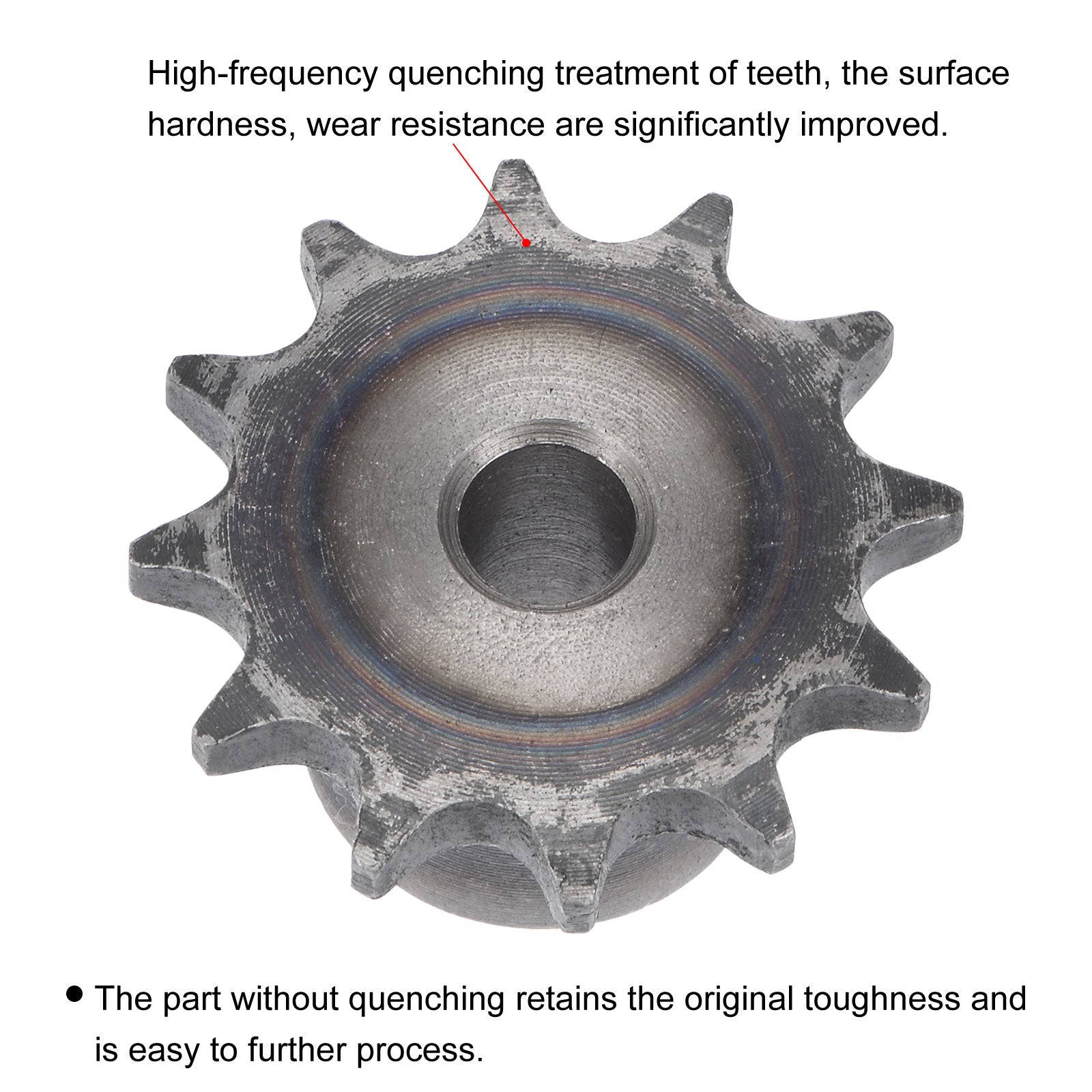

3. The product is made of A3 carbon steel, the tooth part high temperature quenching heat treatment, high hardness, wear resistance, long service life, easy to use.
4. Widely used in milling machine, drilling machine or other machinery transmission occasions.

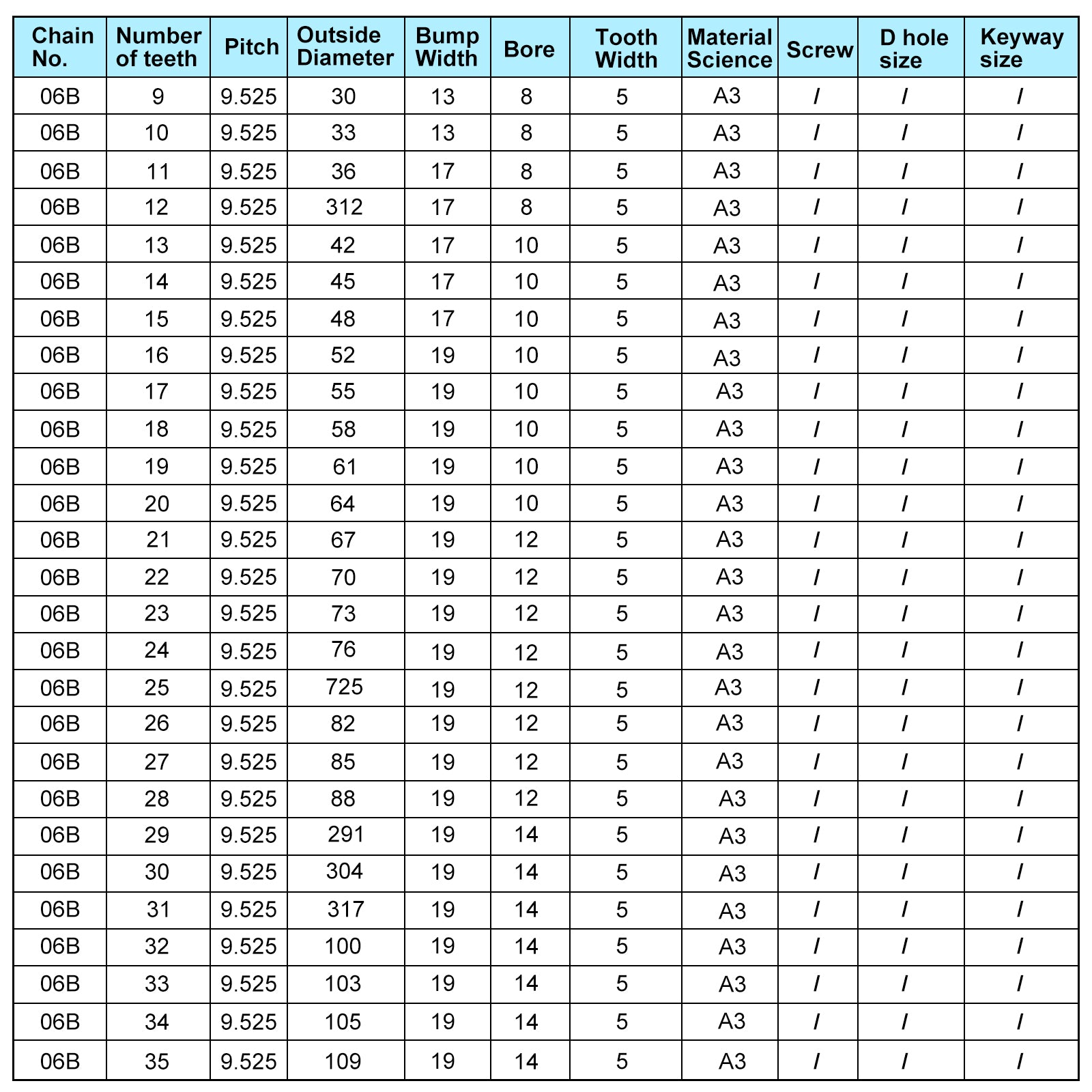

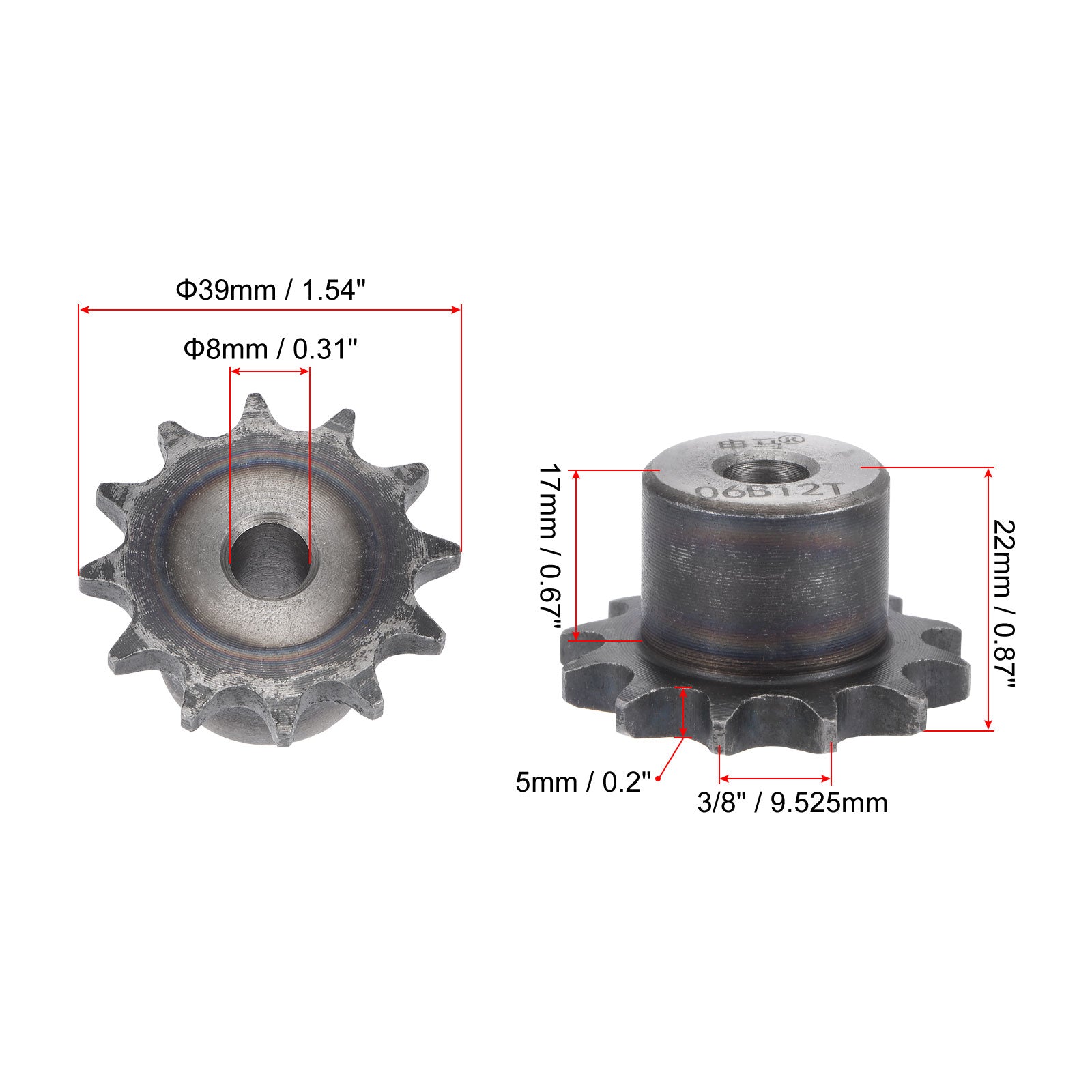

Specifications:
Material: A3 carbon steel
Number of Teeth: 12
Outside Diameter: 39mm / 1.54-inch
Bump Width: 17mm / 0.67-inch
Total Width: 22mm / 0.87-inch
Bore Diameter: 8mm / 0.31-inch
Pitch: 3/8-inch / 9.525mm
Tooth Width: 5mm / 0.2-inch

Package Content:
1 x Chain Sprocket
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£8.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Features:
1. Chain Sprockets are normally mounted in a fixed position on a fixed shaft. This sprocket has a hub extension on one side to provide stability. The shaft can be fixed well, which is convenient to use.
2. The chain sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. Every roller chain sprocket comes with strong teeth that can latch onto the chain. It is suggested that chain sprockets have at least three teeth in mesh with the chain.
3. The product is made of A3 carbon steel, the tooth part high temperature quenching heat treatment, high hardness, wear resistance, long service life, easy to use.
4. Widely used in milling machine, drilling machine or other machinery transmission occasions.

Specifications:
Material: A3 carbon steel
Number of Teeth: 12
Outside Diameter: 39mm / 1.54-inch
Bump Width: 17mm / 0.67-inch
Total Width: 22mm / 0.87-inch
Bore Diameter: 8mm / 0.31-inch
Pitch: 3/8-inch / 9.525mm
Tooth Width: 5mm / 0.2-inch

Package Content:
1 x Chain Sprocket
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
