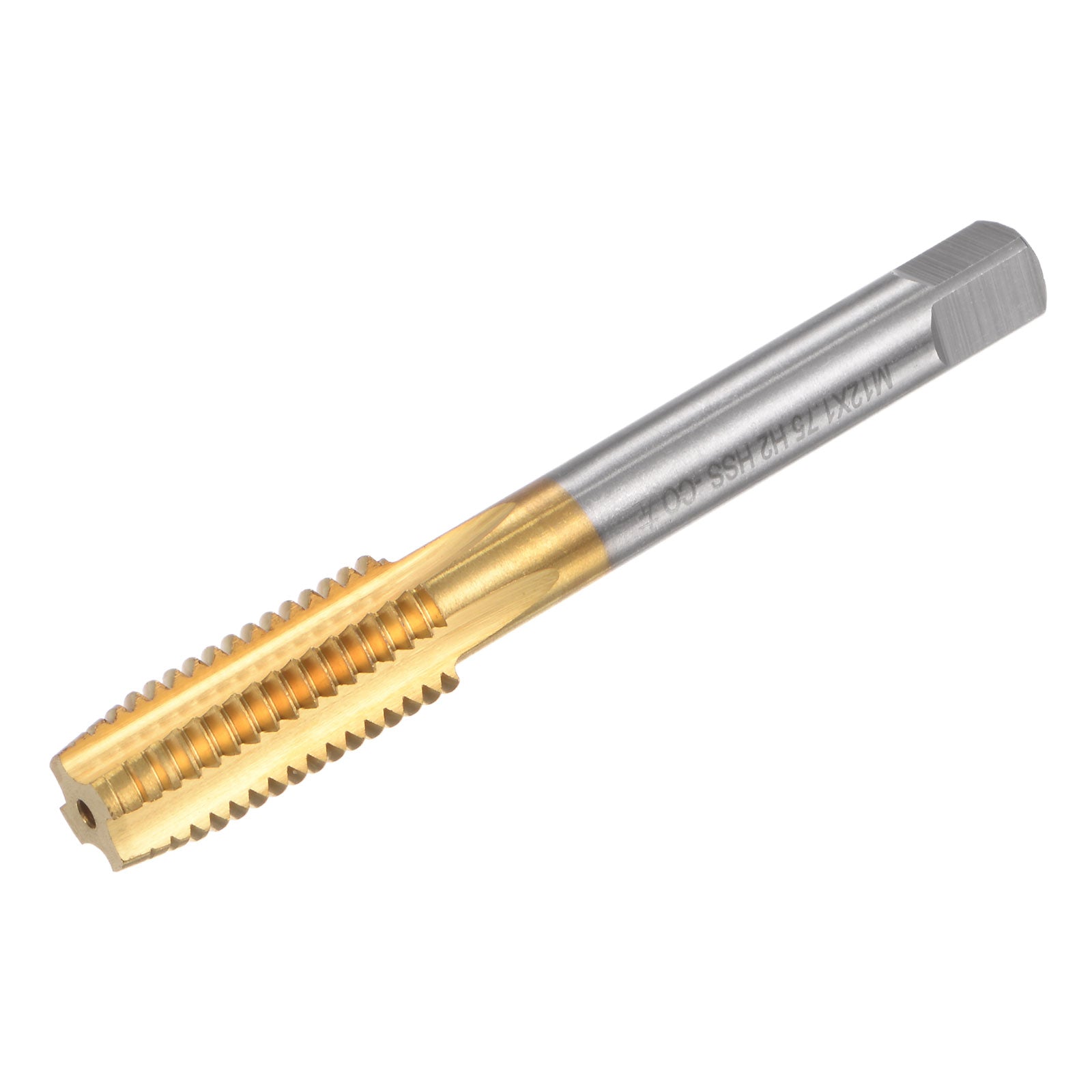

Harfington M12 x 1.75 Left Hand Titanium Coated High Speed Steel Machine Straight Flute Tap

M12 x 1.75 Left Hand Titanium Coated High Speed Steel Machine Straight Flute Tap

ID:
£13.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

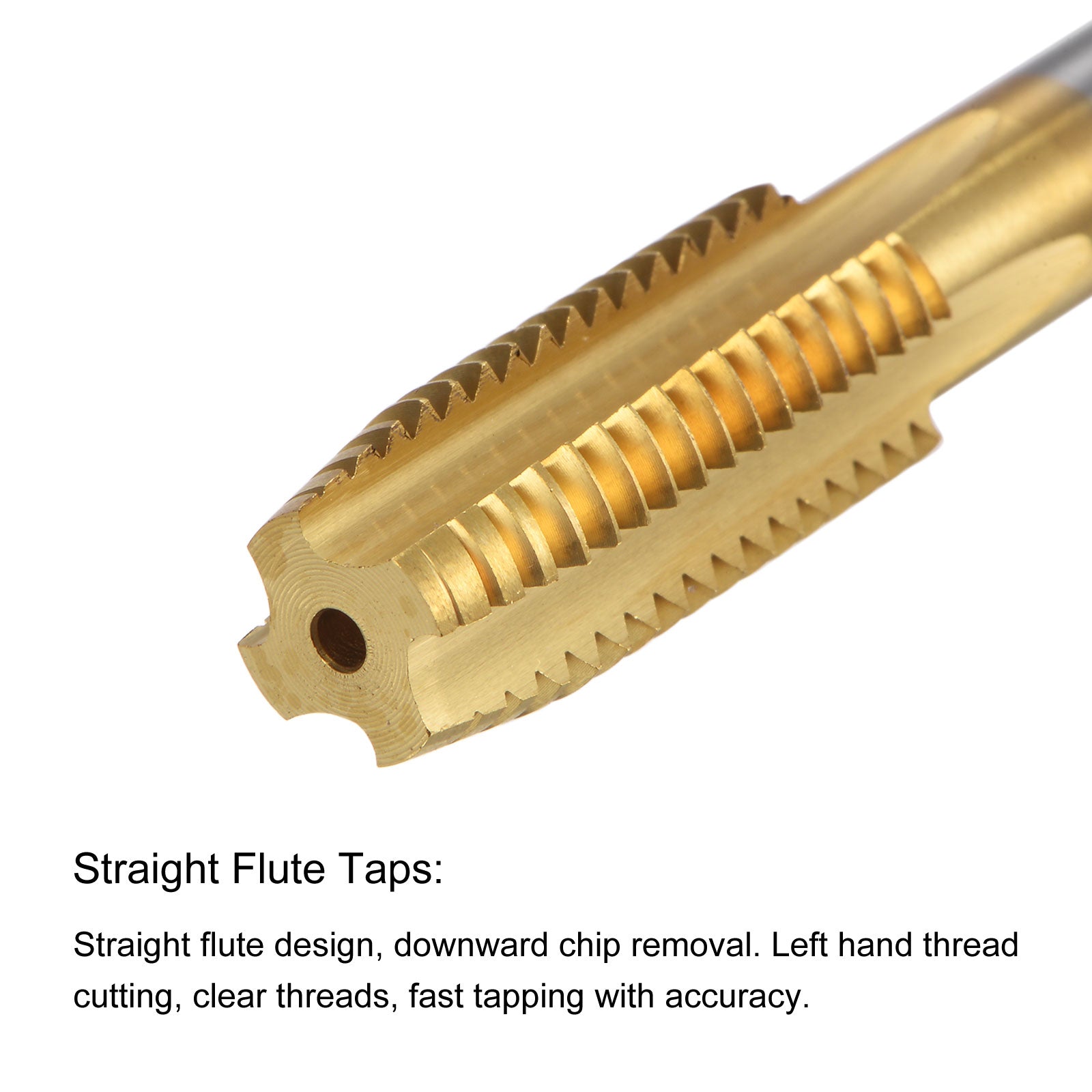

  • Straight Flute Taps: Thread size: M12 x 1.75; thread length: 30mm / 1.18"; square end size: 7mm / 0.28"; cutting direction: left hand (reverse). Straight flute design, downward chip removal, clear threads, fast tapping with accuracy.
  • Wide Applications: Suitable for processing through holes. Used for drilling and tapping stainless steel, aluminum, die steel, bronze, hard plastics, etc.. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.

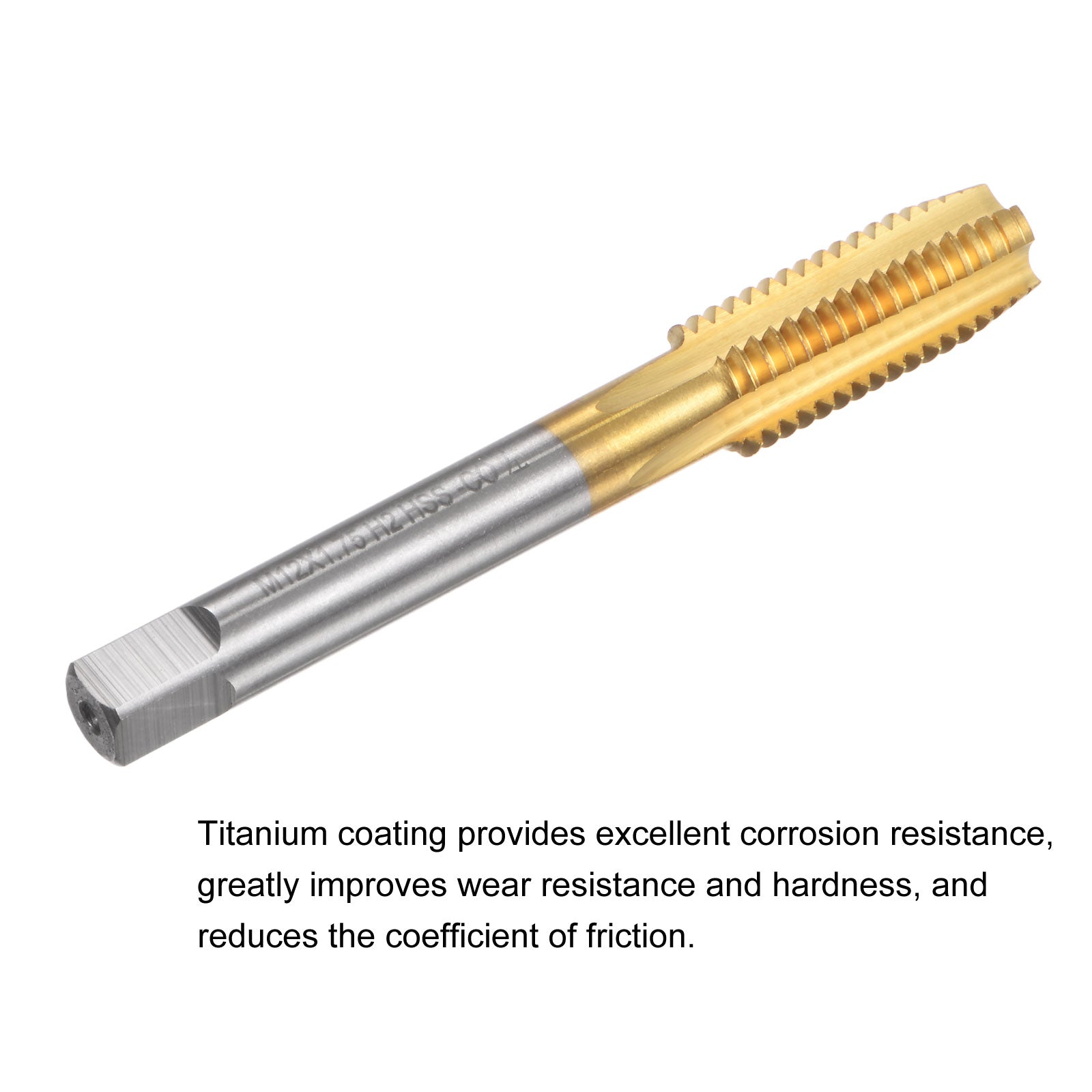

  • Titanium Coating: Titanium coating provides excellent corrosion resistance, greatly improves wear resistance and hardness, and reduces the coefficient of friction. M35 Cobalt high speed steel tool features high hardness (HRC65-66), high red hardness, high wear resistance, good toughness.

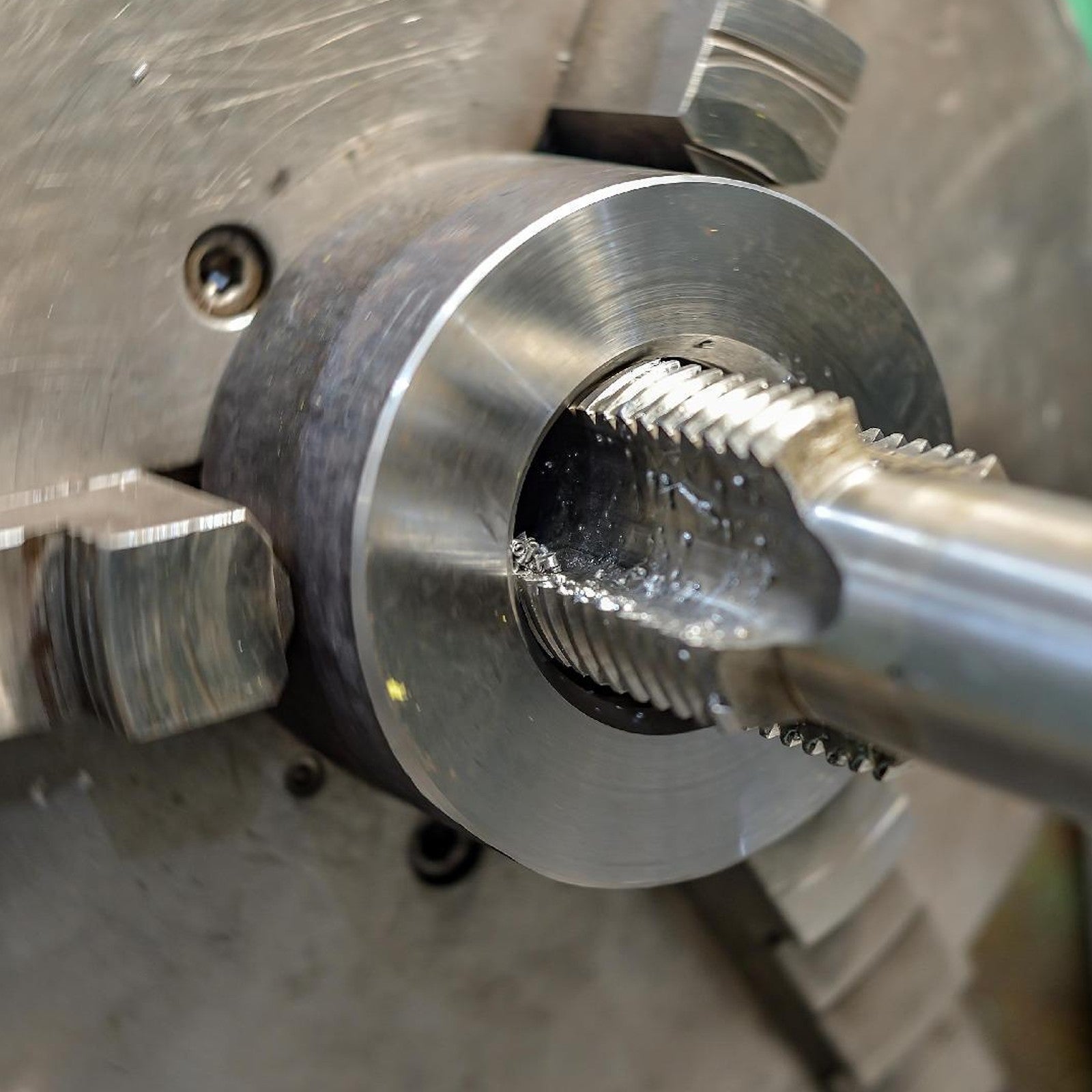

  • Easy to Use: The thread tap is used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps.
  • Tips: Machine taps are suggested to be used with tap collets with overload protection. Hand use or electric drill use is easy to cause breakage to the tap, so it is not recommended. Prone to chipping or breaking due to speed overload or non-vertical tapping.
  • In stock, ready to ship
Cart
Cart
About this item
  • Straight Flute Taps: Thread size: M12 x 1.75; thread length: 30mm / 1.18"; square end size: 7mm / 0.28"; cutting direction: left hand (reverse). Straight flute design, downward chip removal, clear threads, fast tapping with accuracy.
  • Wide Applications: Suitable for processing through holes. Used for drilling and tapping stainless steel, aluminum, die steel, bronze, hard plastics, etc.. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.
  • Titanium Coating: Titanium coating provides excellent corrosion resistance, greatly improves wear resistance and hardness, and reduces the coefficient of friction. M35 Cobalt high speed steel tool features high hardness (HRC65-66), high red hardness, high wear resistance, good toughness.
  • Easy to Use: The thread tap is used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps.
  • Tips: Machine taps are suggested to be used with tap collets with overload protection. Hand use or electric drill use is easy to cause breakage to the tap, so it is not recommended. Prone to chipping or breaking due to speed overload or non-vertical tapping.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Specifications:

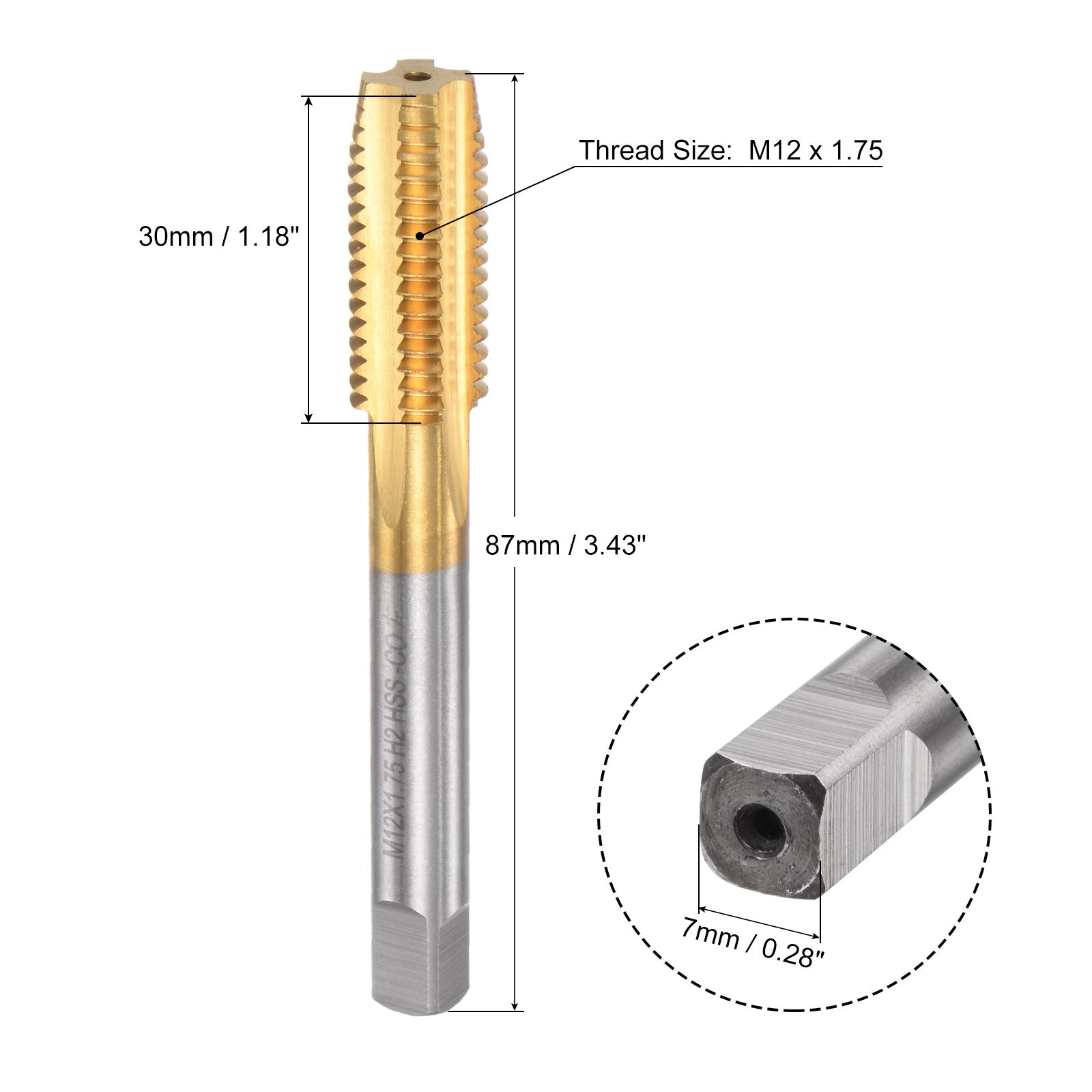

  • Thread Size: M12 x 1.75
  • Thread Length: 30mm / 1.18"
  • Square End Size: 7mm / 0.28"
  • Total Length: 87mm / 3.43"
  • Cutting Direction: Left Hand
  • Material: M35 Cobalt High Speed Steel (HSS-CO)
  • Finish: Titanium Coated
  • Numbers of Flutes: 4 Flutes
  • Package Content: 1pcs x Straight Flute Tap

Descriptions:
  1. Straight flute design, downward chip removal. Left hand thread cutting, clear threads, fast tapping with accuracy. M35 Cobalt high speed steel tool features high hardness (HRC65-66), high red hardness, high wear resistance, good toughness.
  2. Suitable for processing through holes. Used for drilling and tapping stainless steel,  aluminum, die steel, bronze, hard plastics, etc.. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break
  3.  Titanium coating provides excellent corrosion resistance, greatly improves wear resistance and hardness, and reduces the coefficient of friction. Use with tapping oil to get higher quality threads and more durable taps.
  4. Used on drilling and tapping machines, CNC and milling machines. Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause breakage to the tap due to uneven force.
  5.  Taps are prone to chipping or breaking due to speed overload or non-vertical tapping. Use the correct tapping tools, such as tap wrench, tapping machine. Micro taps (such as M1-M3.5) are mainly used in clocks and watches, tapping wood and soft metals with lower hardness.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£13.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specifications:
  • Thread Size: M12 x 1.75
  • Thread Length: 30mm / 1.18"
  • Square End Size: 7mm / 0.28"
  • Total Length: 87mm / 3.43"
  • Cutting Direction: Left Hand
  • Material: M35 Cobalt High Speed Steel (HSS-CO)
  • Finish: Titanium Coated
  • Numbers of Flutes: 4 Flutes
  • Package Content: 1pcs x Straight Flute Tap

Descriptions:
  1. Straight flute design, downward chip removal. Left hand thread cutting, clear threads, fast tapping with accuracy. M35 Cobalt high speed steel tool features high hardness (HRC65-66), high red hardness, high wear resistance, good toughness.
  2. Suitable for processing through holes. Used for drilling and tapping stainless steel,  aluminum, die steel, bronze, hard plastics, etc.. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break
  3.  Titanium coating provides excellent corrosion resistance, greatly improves wear resistance and hardness, and reduces the coefficient of friction. Use with tapping oil to get higher quality threads and more durable taps.
  4. Used on drilling and tapping machines, CNC and milling machines. Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause breakage to the tap due to uneven force.
  5.  Taps are prone to chipping or breaking due to speed overload or non-vertical tapping. Use the correct tapping tools, such as tap wrench, tapping machine. Micro taps (such as M1-M3.5) are mainly used in clocks and watches, tapping wood and soft metals with lower hardness.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
