Harfington Aviation Connector, 21mm 10P 10A Y2M-10 Waterproof Male Wire Panel Power Chassis Metal Fittings Connector Aviation Olive Drab

Aviation Connector, 21mm 10P 10A Y2M-10 Waterproof Male Wire Panel Power Chassis Metal Fittings Connector Aviation Olive Drab

ID:
£11.00 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Terminal Number: 10 Terminals; Rated Current: 10A; Contact Material: Brass with gold plating;Thread Size: M21;Pitch:0.75mm; Color: Olive Drab; Qualification: CE
  • Model: Y2M-10; Contact Resistance: <0.01ohm; Insulation Resistance: >500Mohm
  • Temperature Range: -25~80C; Total Size: 2.4" x 1.2";Net Weight: 56g

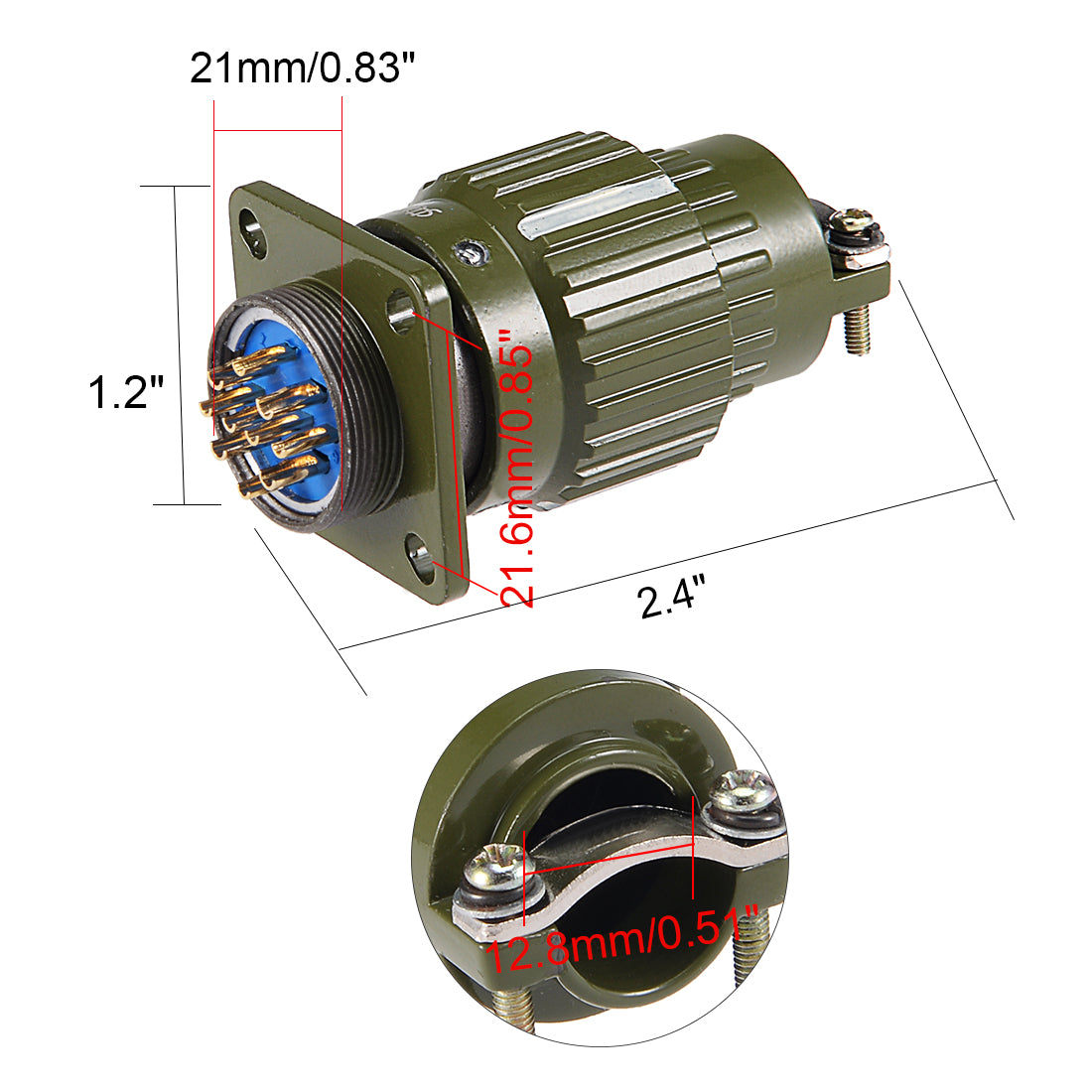

  • The Wire Hole Diameter: 12.8mm/0.51"; Terminal Diameter: 2.3mm/0.09"; Mounting Hole Distance: 22mm/0.85"
  • The Aviation connector is widely used in signal and electronic connector of aviation, space light, post and telecommunications, computer, navigation and various kinds of instruments, CNC machine etc
  • In stock, ready to ship
Cart
Cart
About this item
  • Terminal Number: 10 Terminals; Rated Current: 10A; Contact Material: Brass with gold plating;Thread Size: M21;Pitch:0.75mm; Color: Olive Drab; Qualification: CE
  • Model: Y2M-10; Contact Resistance: <0.01ohm; Insulation Resistance: >500Mohm
  • Temperature Range: -25~80C; Total Size: 2.4" x 1.2";Net Weight: 56g
  • The Wire Hole Diameter: 12.8mm/0.51"; Terminal Diameter: 2.3mm/0.09"; Mounting Hole Distance: 22mm/0.85"
  • The Aviation connector is widely used in signal and electronic connector of aviation, space light, post and telecommunications, computer, navigation and various kinds of instruments, CNC machine etc
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:

Widely used in aviation, navigation, construction site, port, dock, and some other sealing electronic equipment.

Design with a black short rubber tube on the end, mainly used for the electronical connection between the cables.

Waterproof and really a great apparatus electronic connector.

Specification:

Product Name:Aviation Connector

Model:Y2M-10

Terminal Number: 10 Terminals

Thread Size: M21;

Pitch:0.75mm;

Rated Current: 10A

Net Weight:56g

Coupling: Thread coupling

Shell Material: Zinc alloy with chrome plating

Contact Material: Brass with gold plating

Color: Olive Drab

Contact Resistance: 500Mohm

Temperature Range: -25~80C

Qualification: CE

Package Include:

Package Content: 1 x Aviation Connector

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£11.00 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description:

Widely used in aviation, navigation, construction site, port, dock, and some other sealing electronic equipment.

Design with a black short rubber tube on the end, mainly used for the electronical connection between the cables.

Waterproof and really a great apparatus electronic connector.

Specification:

Product Name:Aviation Connector

Model:Y2M-10

Terminal Number: 10 Terminals

Thread Size: M21;

Pitch:0.75mm;

Rated Current: 10A

Net Weight:56g

Coupling: Thread coupling

Shell Material: Zinc alloy with chrome plating

Contact Material: Brass with gold plating

Color: Olive Drab

Contact Resistance: 500Mohm

Temperature Range: -25~80C

Qualification: CE

Package Include:

Package Content: 1 x Aviation Connector

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
