Harfington TEC1-12710 Thermoelectric Cooler Heat Sink Cooling Peltier 12 Volt 120 Watt

TEC1-12710 Thermoelectric Cooler Heat Sink Cooling Peltier 12 Volt 120 Watt

ID:
£14.00 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Model : TEC1-12710
  • QMax (W) : 120W; Resistance: 1.2-1.5Ω
  • Voltage(V): 12V; Umax (V): 15.5V; Max Current (A): 10A
  • Dimensions : 40mm x 40mm x 3.4mm
  • Thermoelectric Cooler
  • In stock, ready to ship
Cart
Cart
About this item
  • Model : TEC1-12710
  • QMax (W) : 120W; Resistance: 1.2-1.5Ω
  • Voltage(V): 12V; Umax (V): 15.5V; Max Current (A): 10A
  • Dimensions : 40mm x 40mm x 3.4mm
  • Thermoelectric Cooler
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

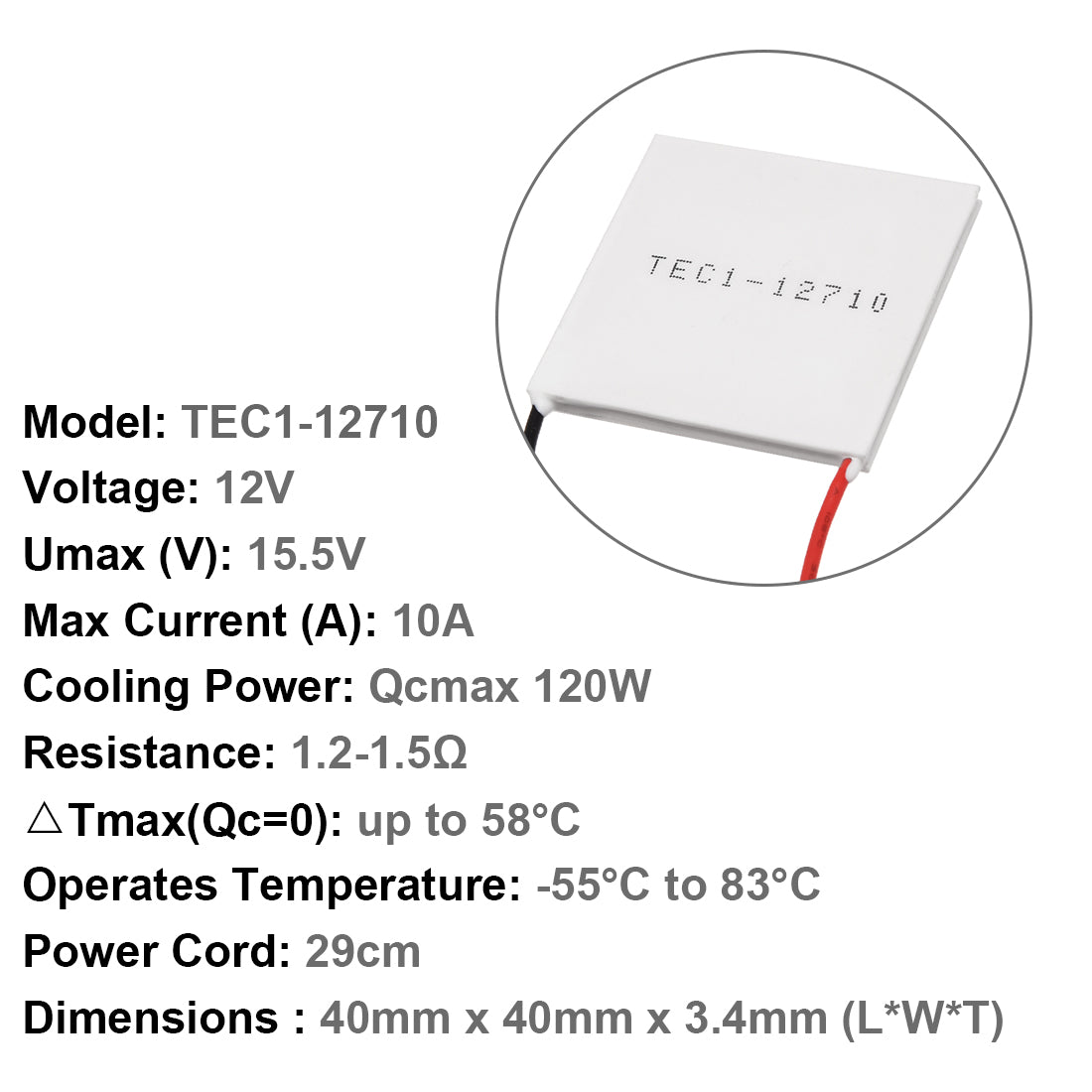

Specifications:

Model: TEC1-12710

Voltage: 12V

Umax (V): 15.5V

Max Current (A): 10A

Cooling Power: Qcmax 120W

Resistance: 1.2-1.5

Tmax(Qc=0): up to 58°C

Operates Temperature: -55°C to 83°C

Power Cord: 29cm

Dimensions : 40mm x 40mm x 3.4mm (L*W*T)

Package Content: 1 x Thermoelectric Cooler



Description:

1.Get ice cold in minutes or heat to boiling by simply reversing the polarity.

2.Used for numerous applications from CPU coolers to alternate power sources.

3.Since they consist primarily of semiconductor material sandwiched between ceramic plates and have no moving parts.

4.Must be used in conjunction with a heat sink to avoid burned. Hot side needs heat sink all the time.



Please Note:

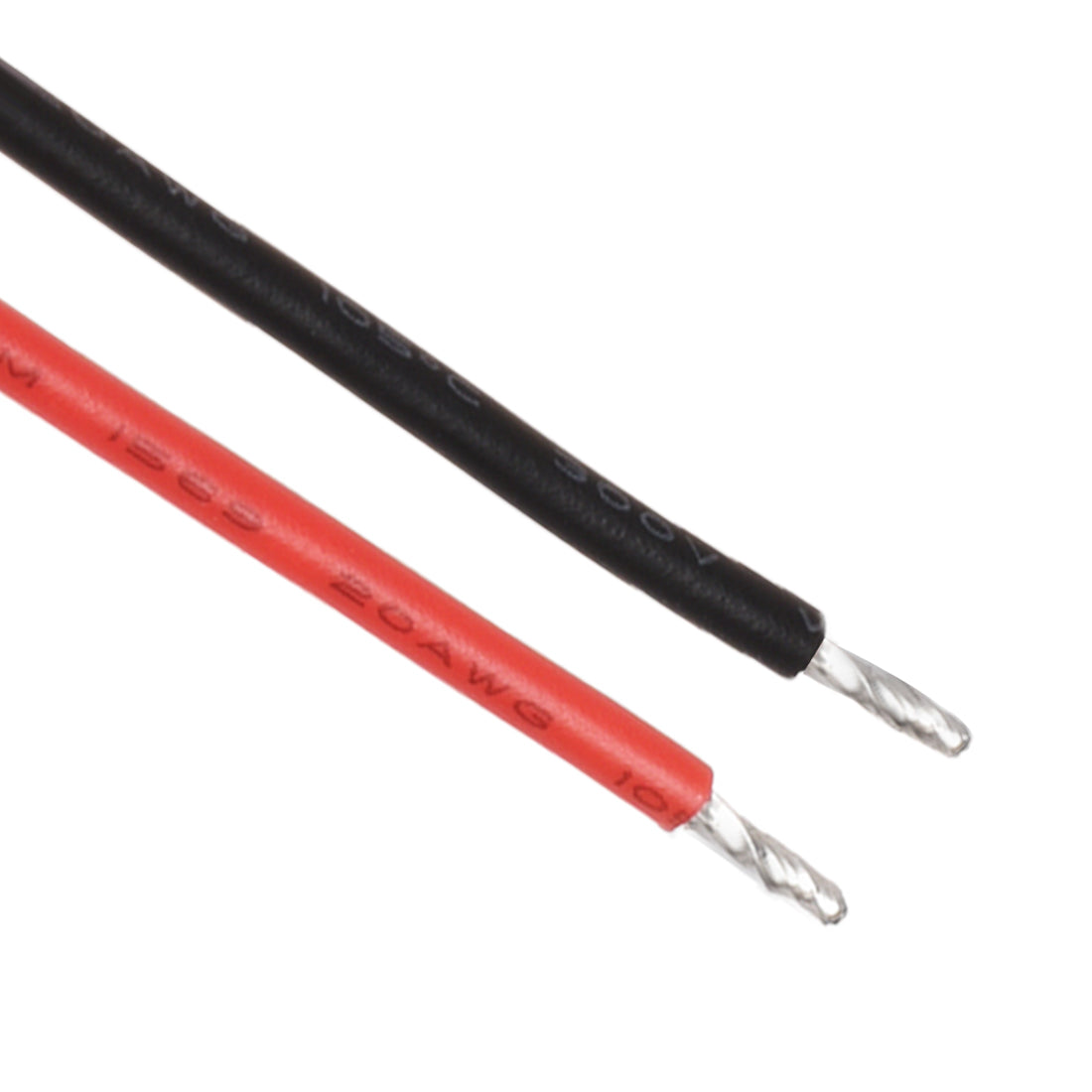

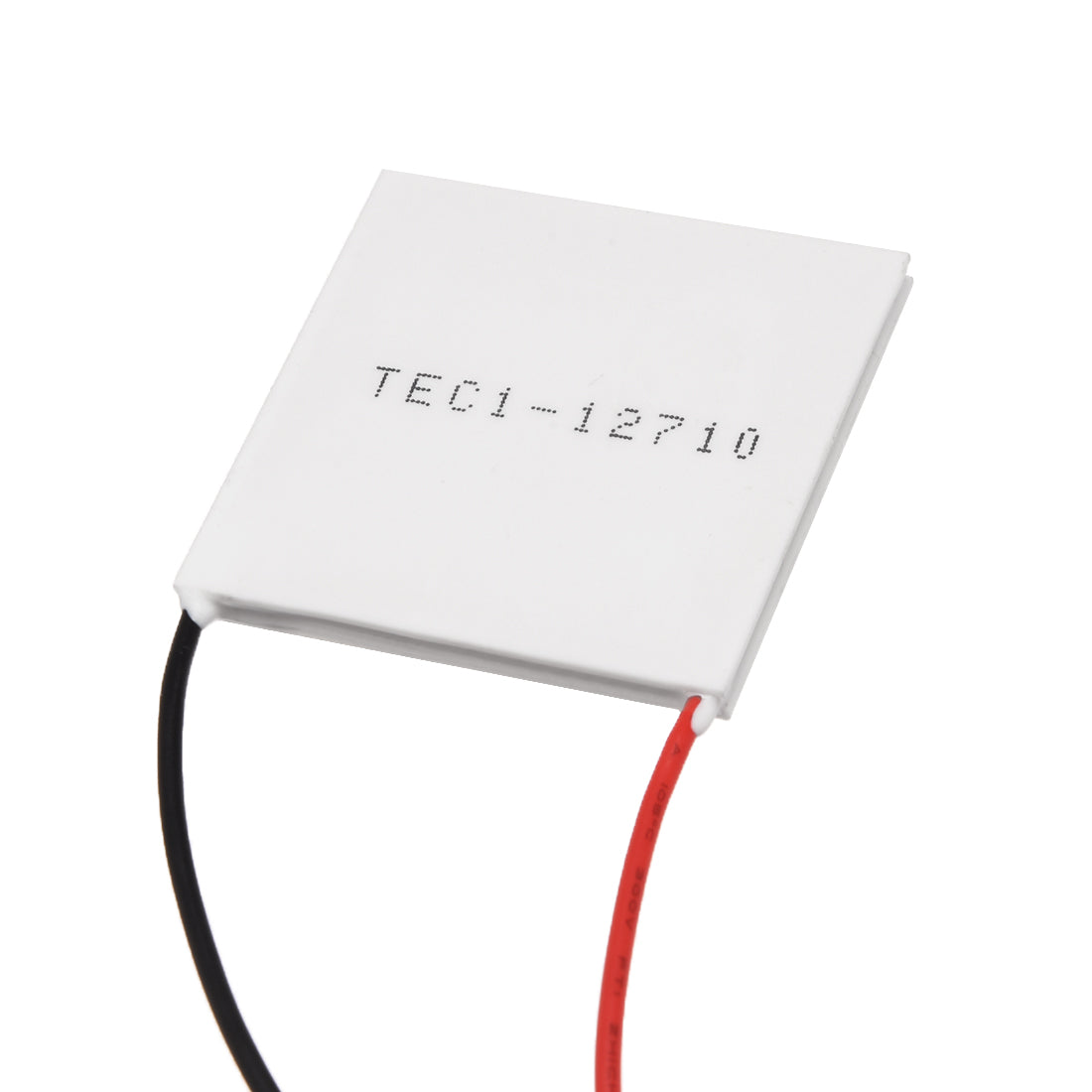

1.Under cooling mode: Red wire to positive, black wire to negative. the surface with model number is cooling side.

2.When heating, just need to change the current polarity; when cooling, switching power supply is needed.

3.During installation, keep thermoelectric cooler clean, and apply the heat-conducting silicone grease evenly over both heating and cooling surfaces.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£14.00 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specifications:

Model: TEC1-12710

Voltage: 12V

Umax (V): 15.5V

Max Current (A): 10A

Cooling Power: Qcmax 120W

Resistance: 1.2-1.5

Tmax(Qc=0): up to 58°C

Operates Temperature: -55°C to 83°C

Power Cord: 29cm

Dimensions : 40mm x 40mm x 3.4mm (L*W*T)

Package Content: 1 x Thermoelectric Cooler



Description:

1.Get ice cold in minutes or heat to boiling by simply reversing the polarity.

2.Used for numerous applications from CPU coolers to alternate power sources.

3.Since they consist primarily of semiconductor material sandwiched between ceramic plates and have no moving parts.

4.Must be used in conjunction with a heat sink to avoid burned. Hot side needs heat sink all the time.



Please Note:

1.Under cooling mode: Red wire to positive, black wire to negative. the surface with model number is cooling side.

2.When heating, just need to change the current polarity; when cooling, switching power supply is needed.

3.During installation, keep thermoelectric cooler clean, and apply the heat-conducting silicone grease evenly over both heating and cooling surfaces.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
