Harfington G3/4 Hall Effect Liquid Water Flow Sensor Switch Flowmeter Meter Counter DC 5V 1-30L/min YF-B5

G3/4 Hall Effect Liquid Water Flow Sensor Switch Flowmeter Meter Counter DC 5V 1-30L/min YF-B5

ID:
£13.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Stable, high temperature, low water pressure start.
  • Brass material, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.
  • Three wire connection: Red for positive, black for negative, yellow for pulse signal.
  • The water flow sensor is applied for water heater, and can be used as flow switch.
  • Maximum water pressure: 1.75MPa, flow range: 1-30L/min.
  • In stock, ready to ship
Cart
Cart
About this item
  • Stable, high temperature, low water pressure start.
  • Brass material, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.
  • Three wire connection: Red for positive, black for negative, yellow for pulse signal.
  • The water flow sensor is applied for water heater, and can be used as flow switch.
  • Maximum water pressure: 1.75MPa, flow range: 1-30L/min.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

1.Water Flow Switch adopts a Magnetic Reed Switch, G3/4 male threaded ports each end. Equipped with filter water entry.

2.Mainly used for water heater, boiler, water dispensers, coffee machines, hot card machines, steam equipment, water system, the campus card sales, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation.

3. Three wire connection: Red for positive, black for negative, yellow for pulse signal.



Specifications:

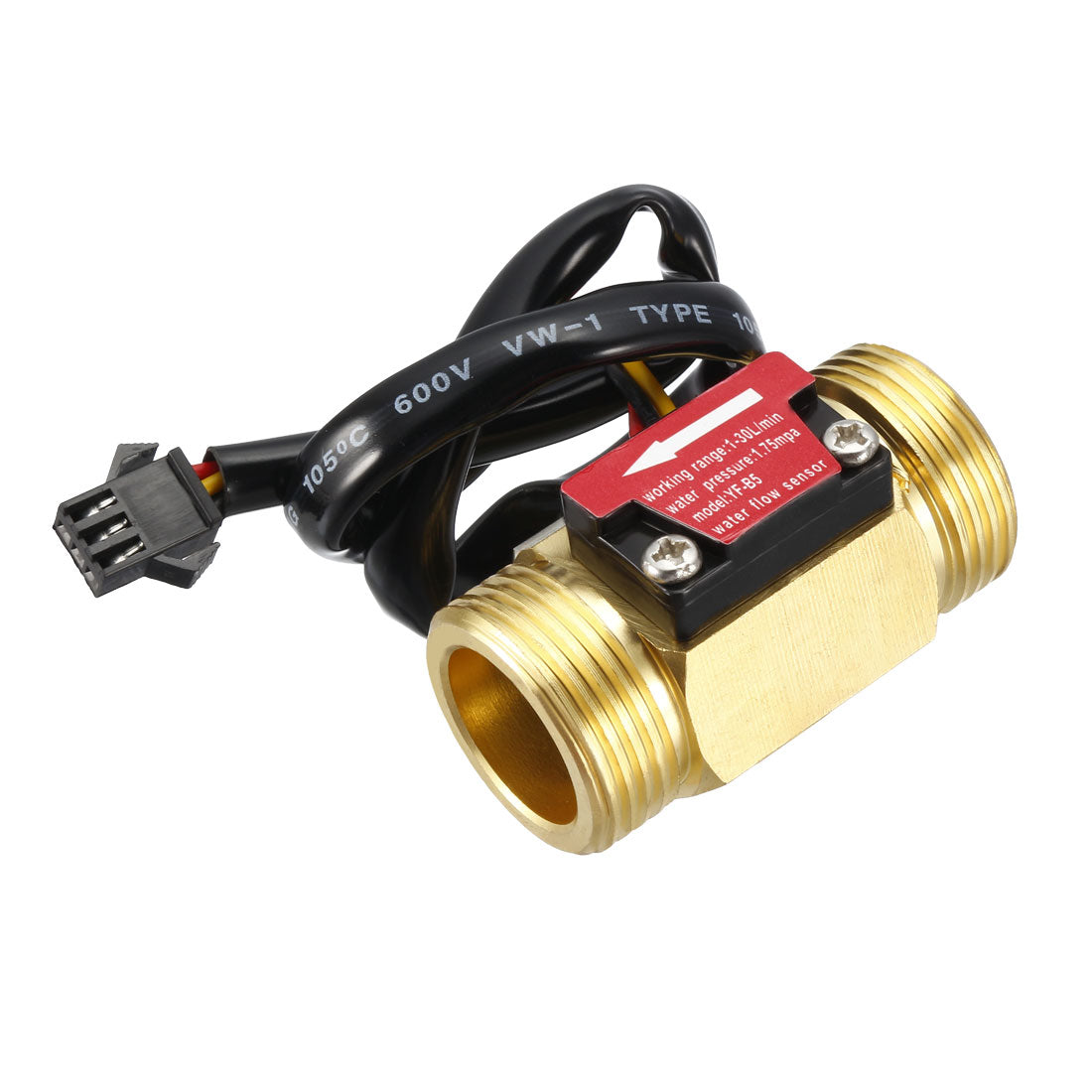

Product Name: Water Flow Sensor

Material: Brass(Shell)

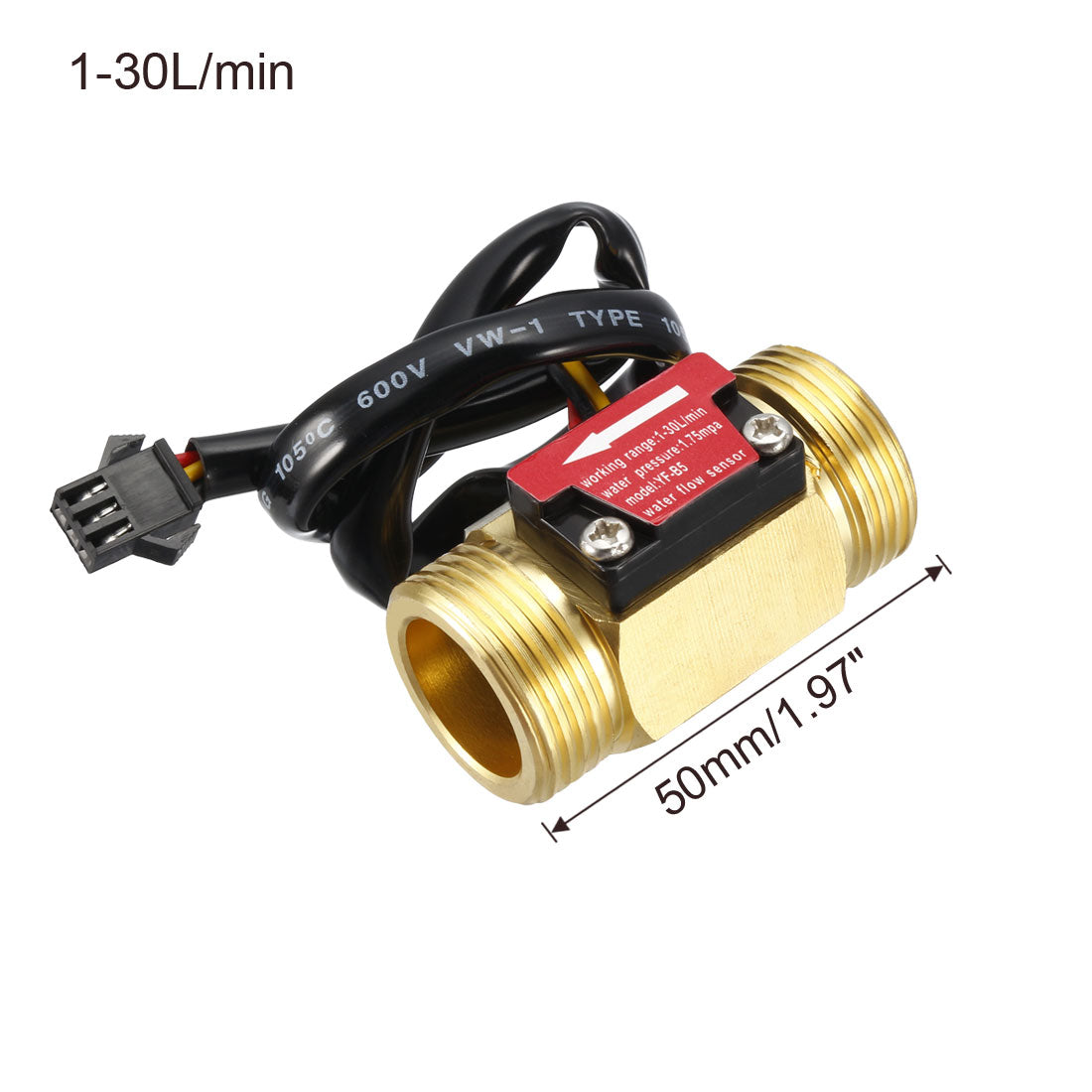

Size: 50mm x 30mm x 33mm / 1.97" x 1.18" x 1.3"(L*W*H)

Cable Length: 300mm / 11.81"

Liquid Temperature: Not More Than 60C

Rated Voltage: DC 5V

Max Current: 10mA(DC 5V)

Maximum water pressure: 1.75MPa

Flow range: 1-30L/min

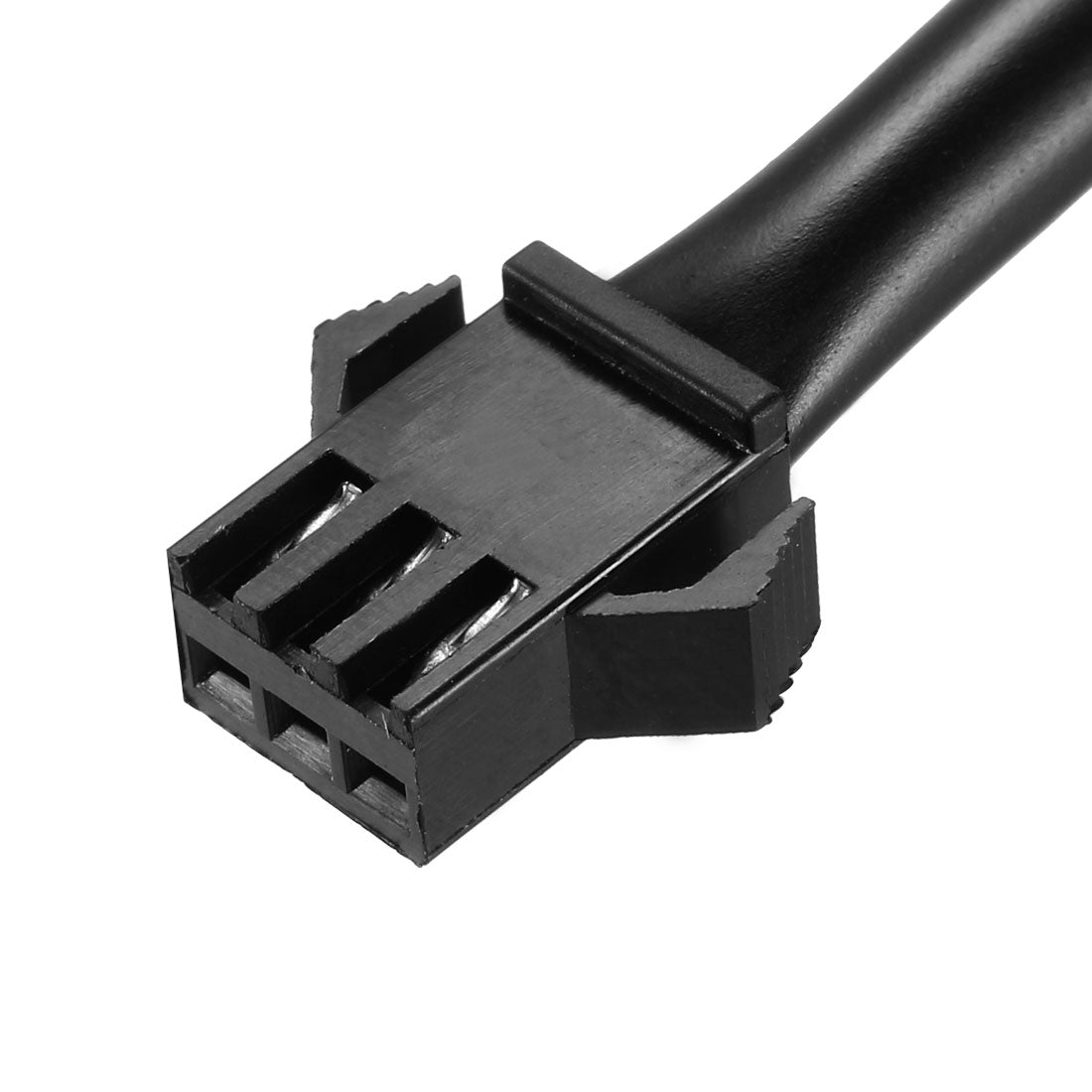

Connector: Male SM-3P

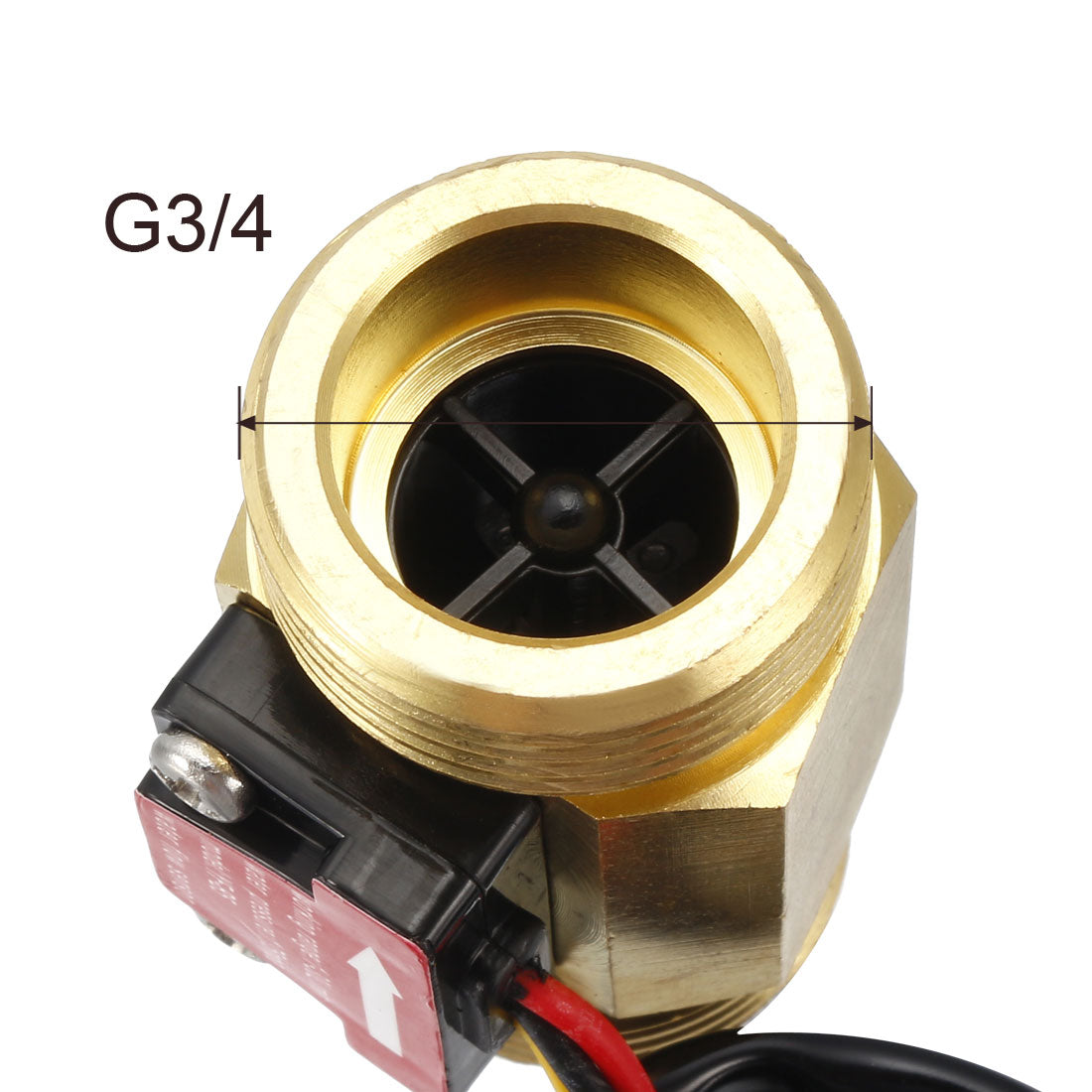

External Thread Diameter: G3/4

Ingress Protection Rating: IP65

Color: Brass Tone

Net Weight: 128g



Package Included:

1 x Water Flow Sensor



Note:



1. Installed in accordance with flow direction in the product, otherwise there is no signal output.

2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
