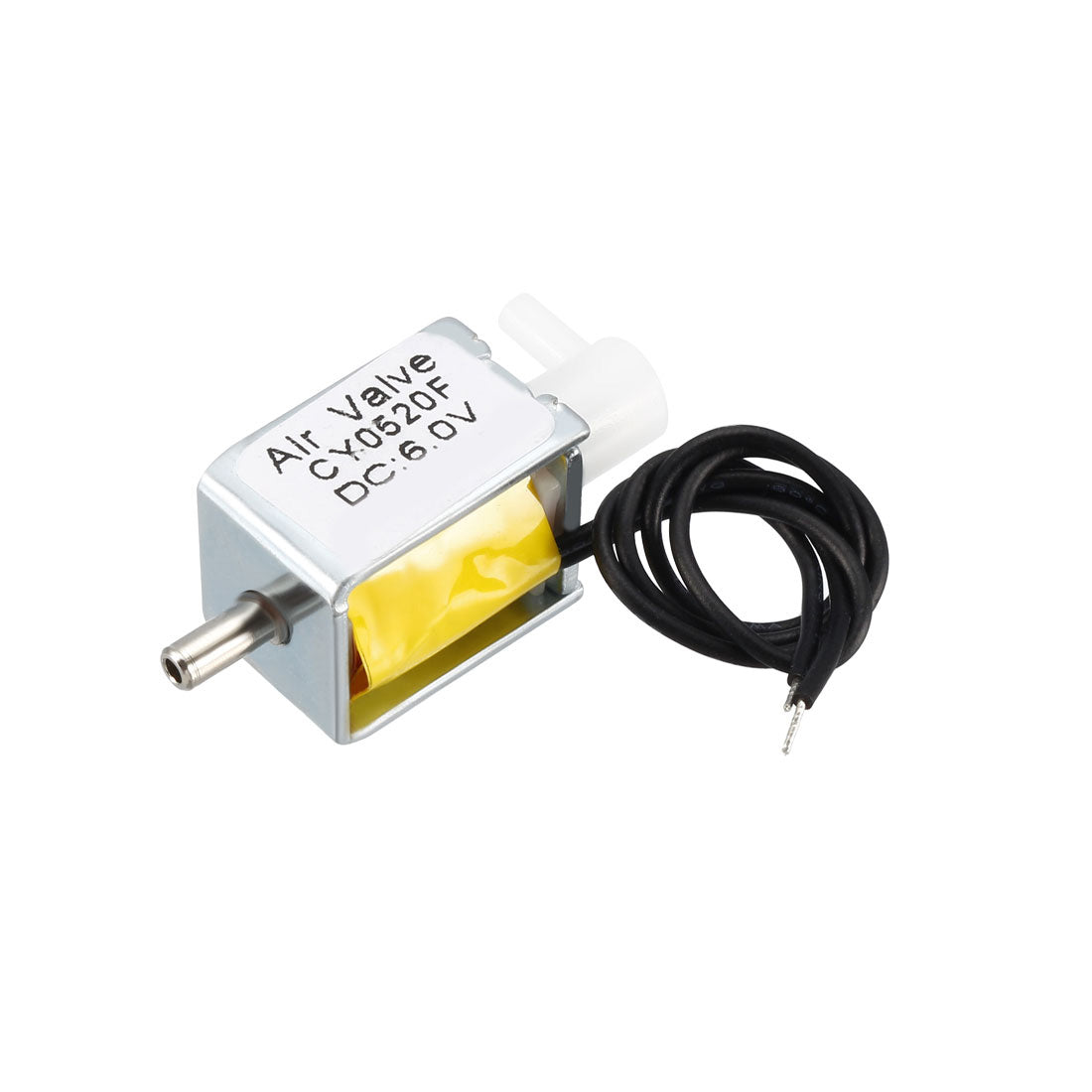

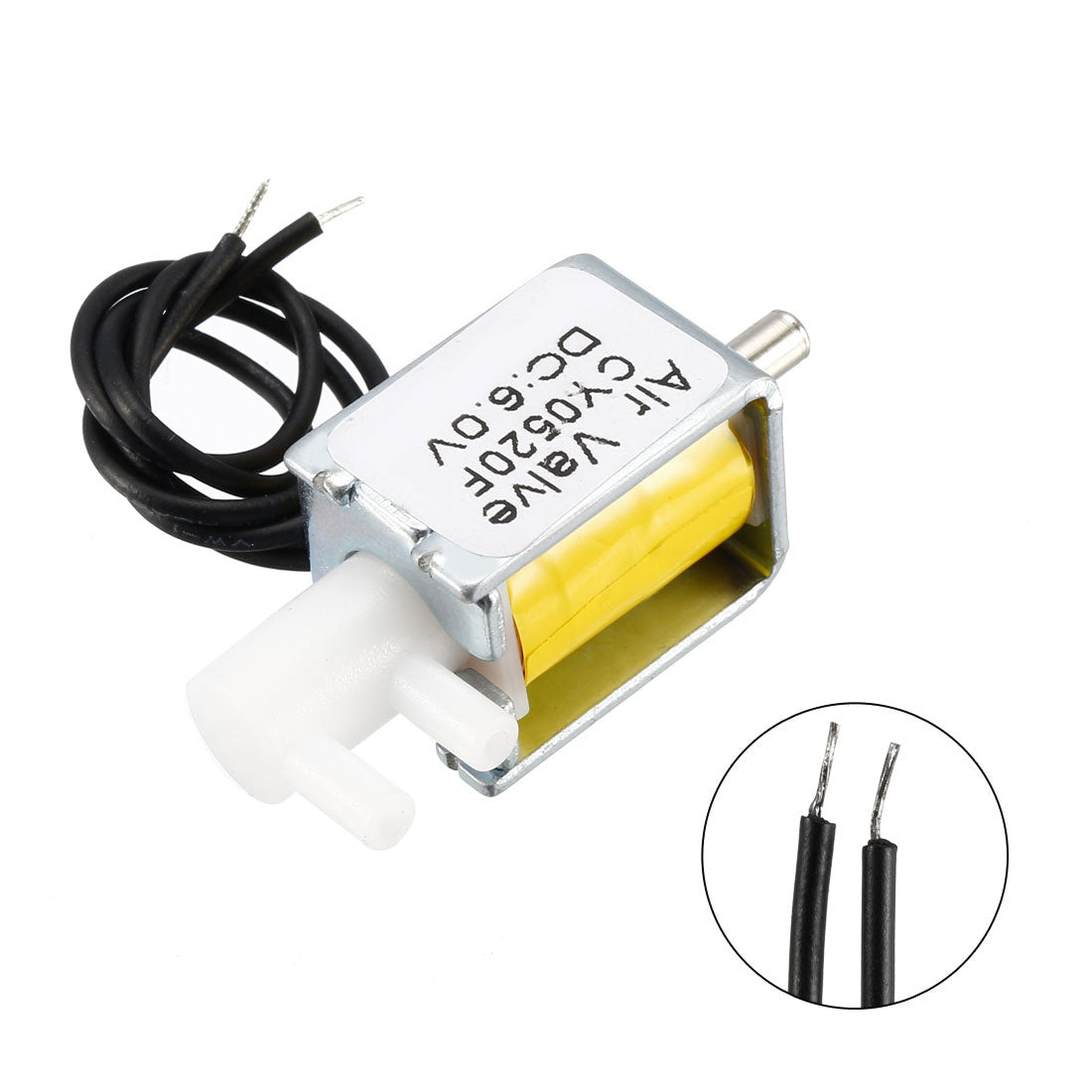

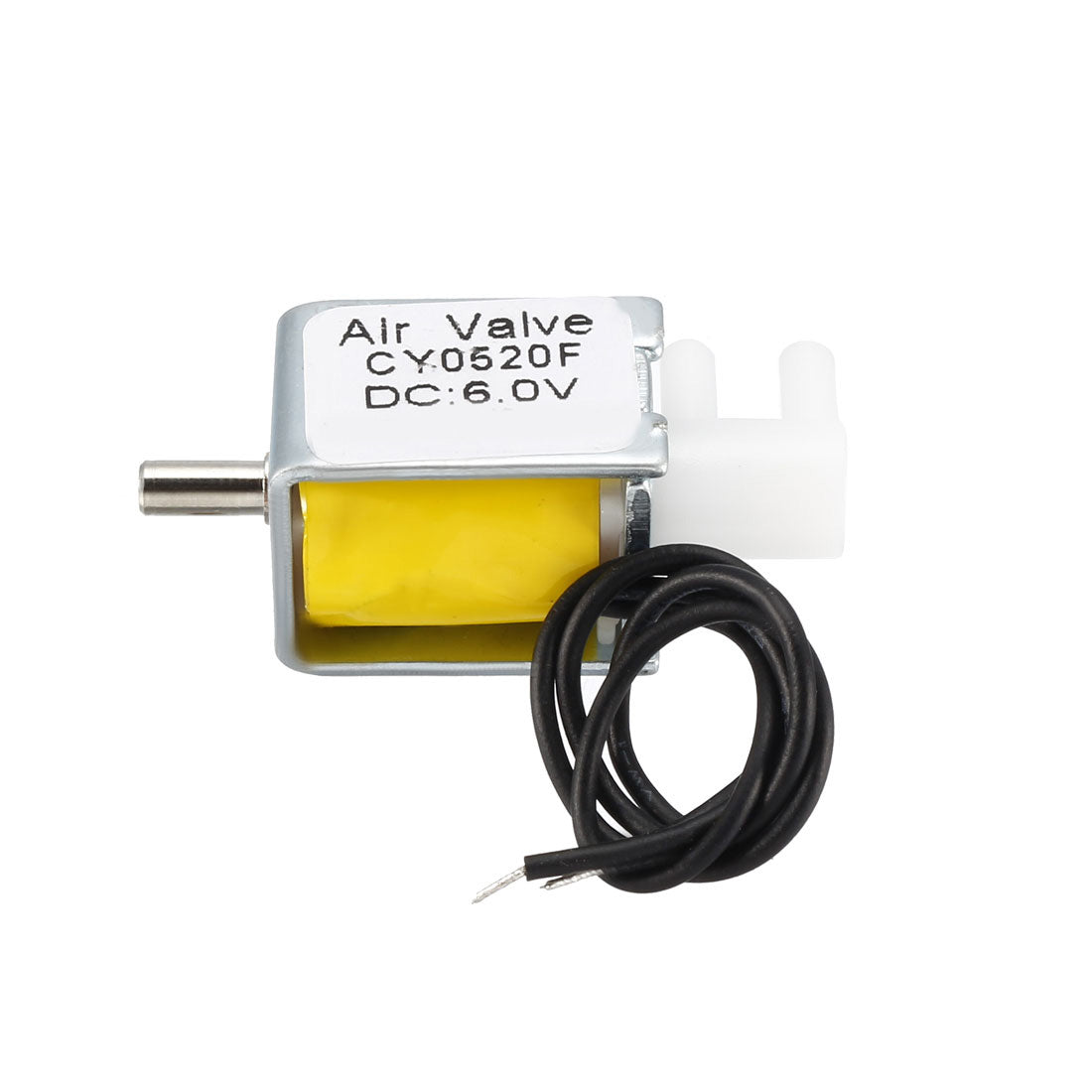

Harfington Miniature Solenoid Valve 2 Positions 3 Ways DC6V 0.38A Air Solenoid Valve

Miniature Solenoid Valve 2 Positions 3 Ways DC6V 0.38A Air Solenoid Valve

ID:
£8.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Wire Length: 11cm / 4.3inch ; Package Content: 1 x Solenoid Valve
  • Port 1 2 3 Outer DIameter: 3mm ; Air Pressure Range:0-350mmHg
  • Rated voltage: DC 6V ; Rated Current: 0.38A ; Type: 2 Position 3 Way
  • Power off : Port 2-3 pass , 1 is blocked ; Power on : Port 1-2 pass, 3 is blocked.
  • Can be used for gas valve and pump.Widely used in automatic control equipment.
  • In stock, ready to ship
Cart
Cart
About this item
  • Wire Length: 11cm / 4.3inch ; Package Content: 1 x Solenoid Valve
  • Port 1 2 3 Outer DIameter: 3mm ; Air Pressure Range:0-350mmHg
  • Rated voltage: DC 6V ; Rated Current: 0.38A ; Type: 2 Position 3 Way
  • Power off : Port 2-3 pass , 1 is blocked ; Power on : Port 1-2 pass, 3 is blocked.
  • Can be used for gas valve and pump.Widely used in automatic control equipment.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:

It has low vibration and low power consumption.Reliable, compact, and simple to install.

Can be used for gas valve and pump.Widely used in automatic control equipment.

It will become hot when it works because there are so many coils inside. It's normal phenomenon.





Features:

Rated voltage: DC 6V

Rated Current: 0.38A

Type: 2 Position 3 Way

Port 1 2 3 Outer DIameter: 3mm

Wire Length: 11cm / 4.3inch

Air Pressure Range:0-350mmHg

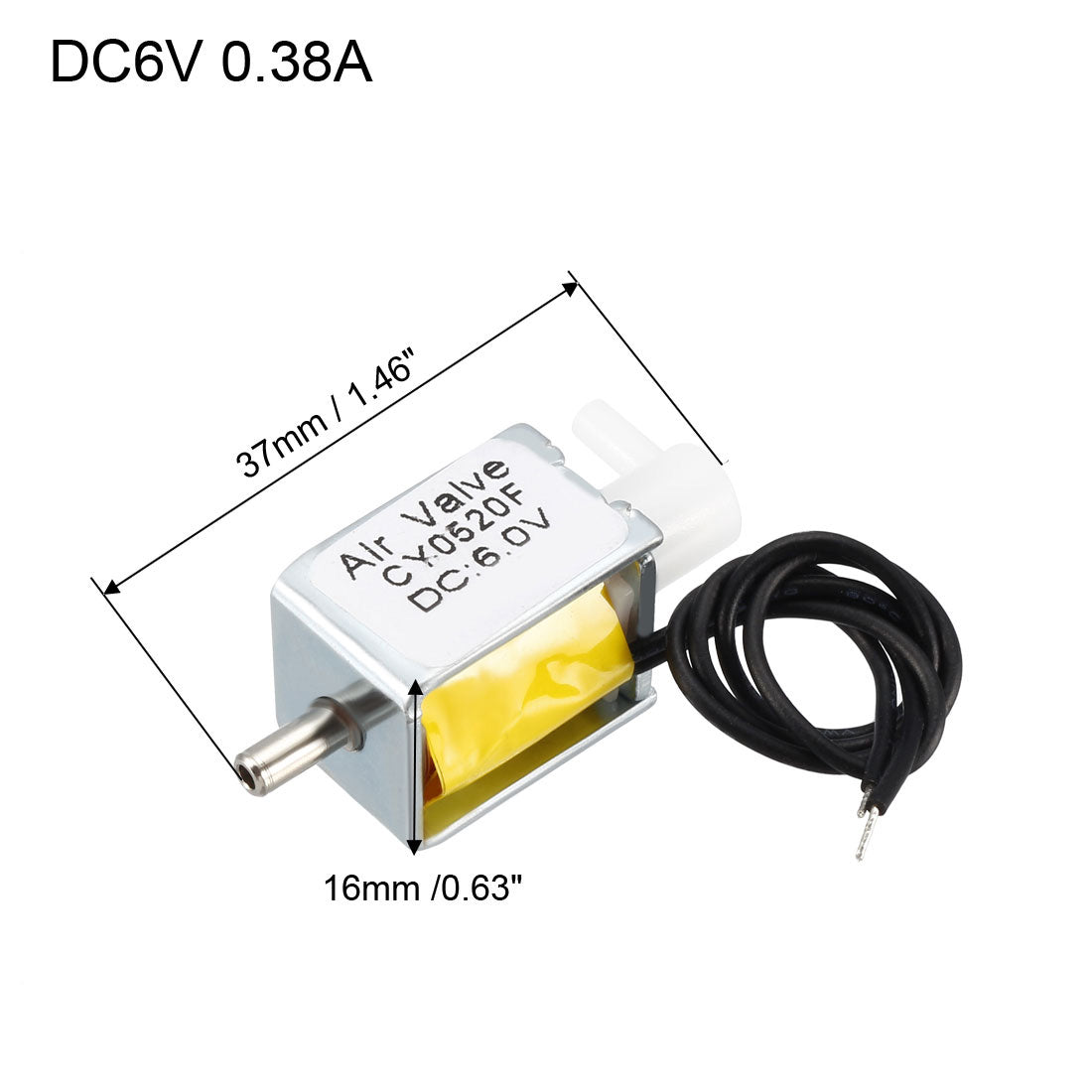

Total Size: 37 x 16 x 15mm / 1.46 x 0.63 x 0.59inch(L*W*H)



Solenoid operating instructions:

Power off : 2-3 pass , 1 is blocked ; Power on : 1-2 pass, 3 is blocked.

Note : Wires are not divided for +/- connecting , both can do.







Package Content:

1 x Solenoid Valve



Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
