Harfington 12mm to 14mm Bore One Diaphragm Motor Wheel Flexible Coupling Joint

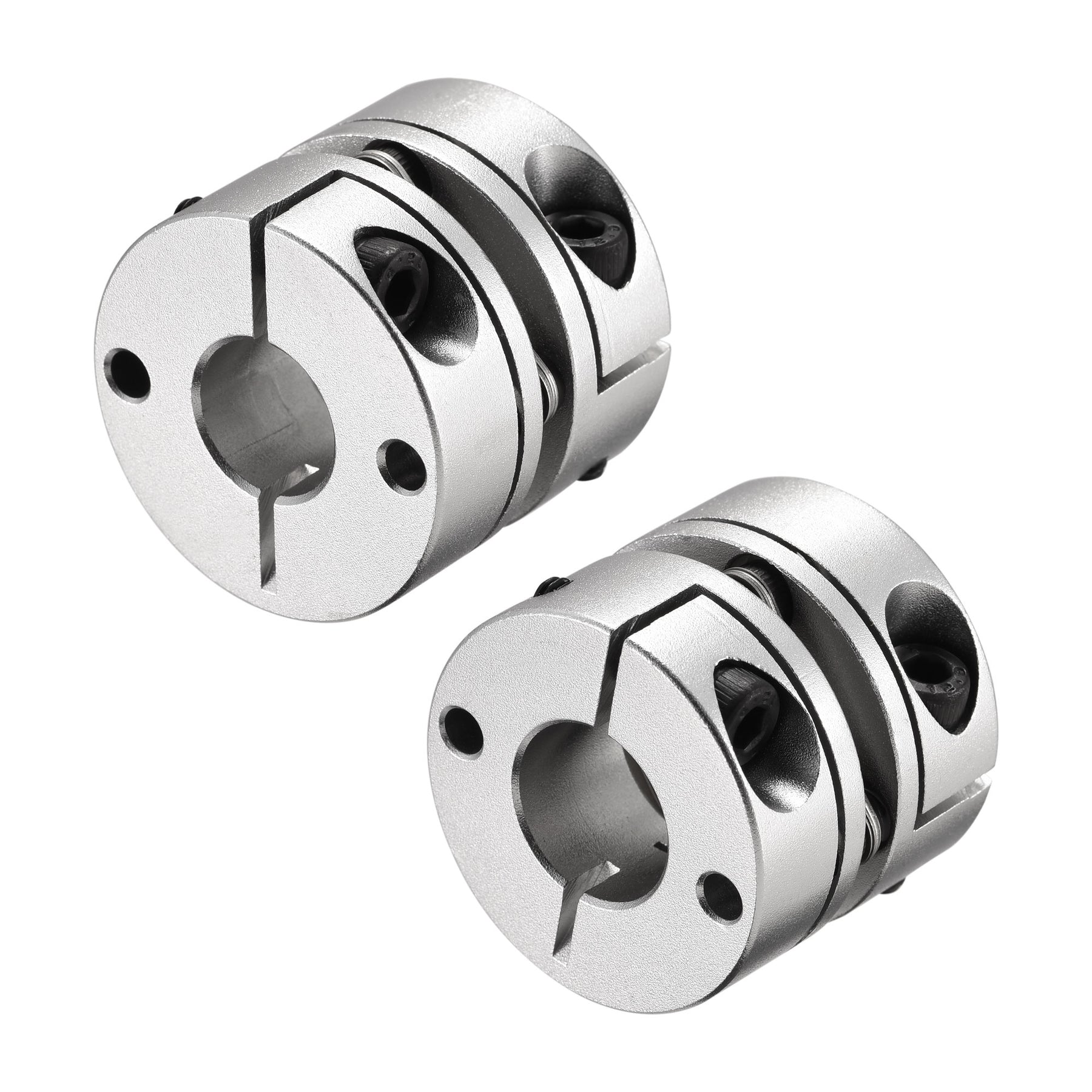

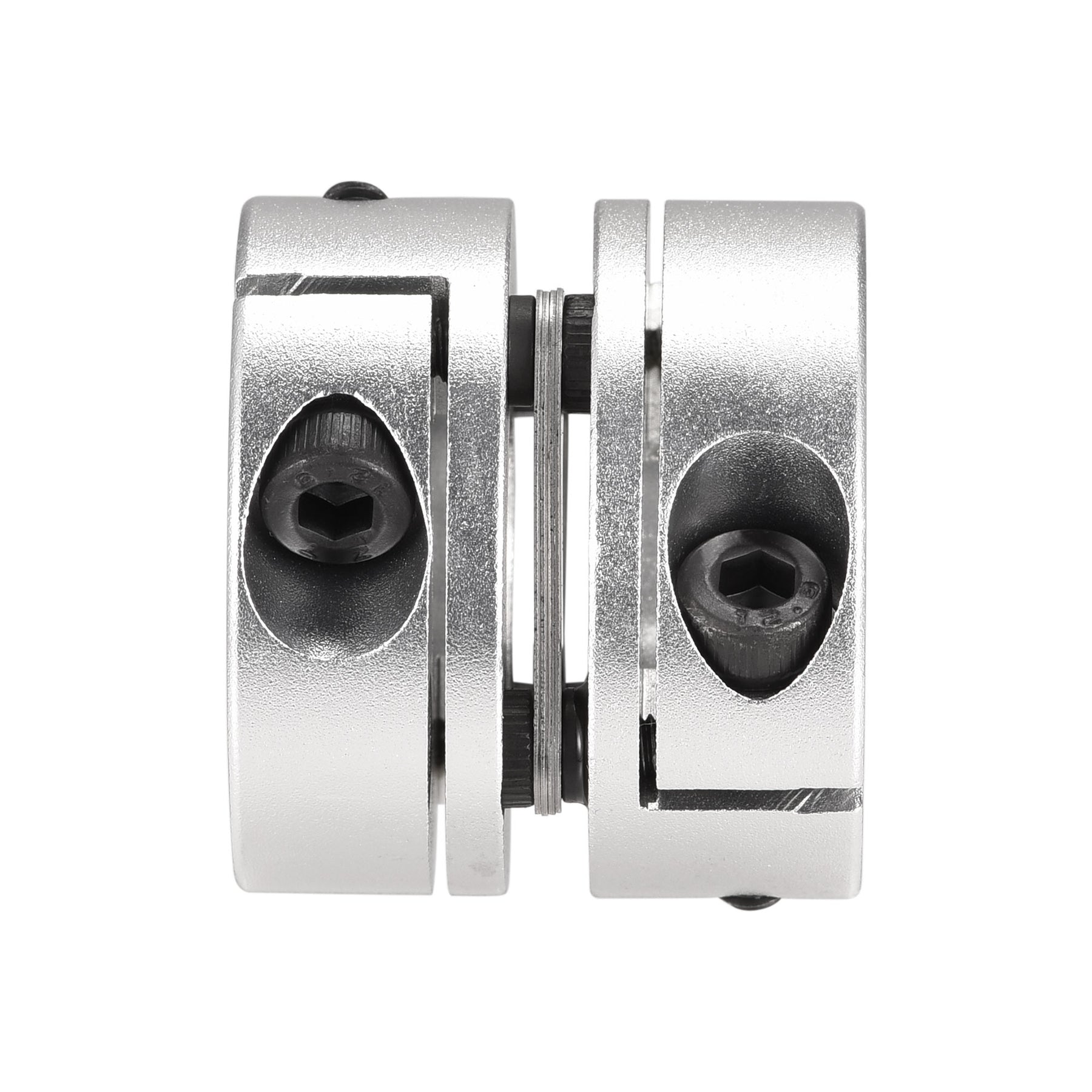

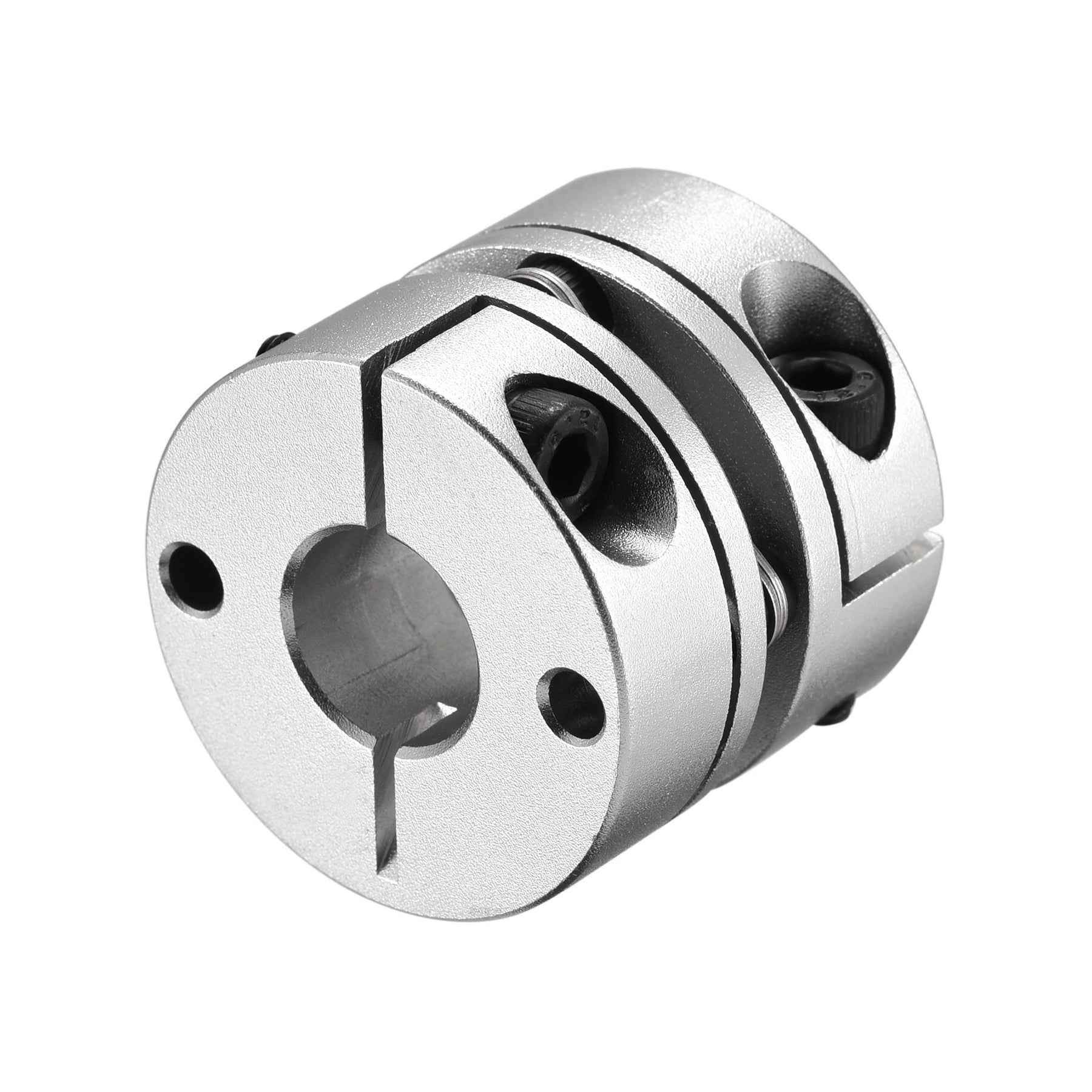

12mm to 14mm Bore One Diaphragm Motor Wheel Flexible Coupling Joint

ID:
£12.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

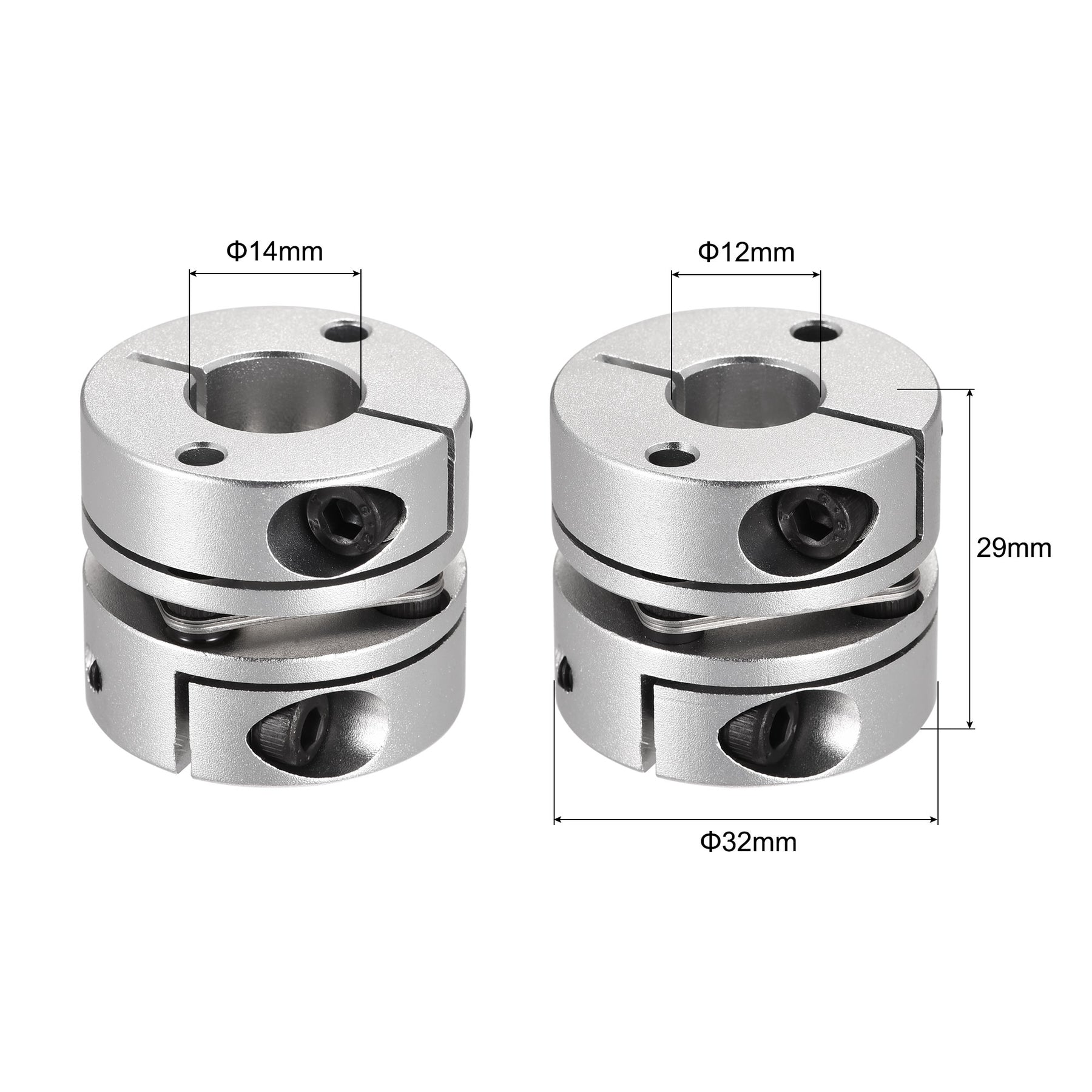

  • 32mm Diameter X 29mm Length; 10000RPM rotational speed.
  • The diaphragm coupling adapt to high temperature (- 80 degrees celsius + 300 degrees celsius) and can operate safely under shock and vibration conditions.
  • Shaft couplers suitable for connect servo motor, stepper motor, encoder, screw driving, machine platform, etc.
  • Large flexibility, accommodates angular and parallel misalignment.
  • Aluminum hubs for light weight, stainless steel discs for strength, simple structure, assembly and disassembly is convenient.
  • In stock, ready to ship
Cart
Cart
About this item
  • 32mm Diameter X 29mm Length; 10000RPM rotational speed.
  • The diaphragm coupling adapt to high temperature (- 80 degrees celsius + 300 degrees celsius) and can operate safely under shock and vibration conditions.
  • Shaft couplers suitable for connect servo motor, stepper motor, encoder, screw driving, machine platform, etc.
  • Large flexibility, accommodates angular and parallel misalignment.
  • Aluminum hubs for light weight, stainless steel discs for strength, simple structure, assembly and disassembly is convenient.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:
1. The diaphragm coupling has obvious shock absorption, no noise and no wear.
2. The transmission efficiency of diaphragm coupling is high, up to 99.86%, especially suitable for medium and high-speed high-power transmission.
3. Flexible couplings also are simple structure, light weight and small size, which it is convenient to assembly and disassembly.
4. It can accurately transmit the speed without slip, and can be used for the transmission of precision machinery.

Note: The adapted shaft diameter tolerance is +0~-0.04mm

Specification:
Color: Silver
Length: 29mm
Outside Diameter: 32mm

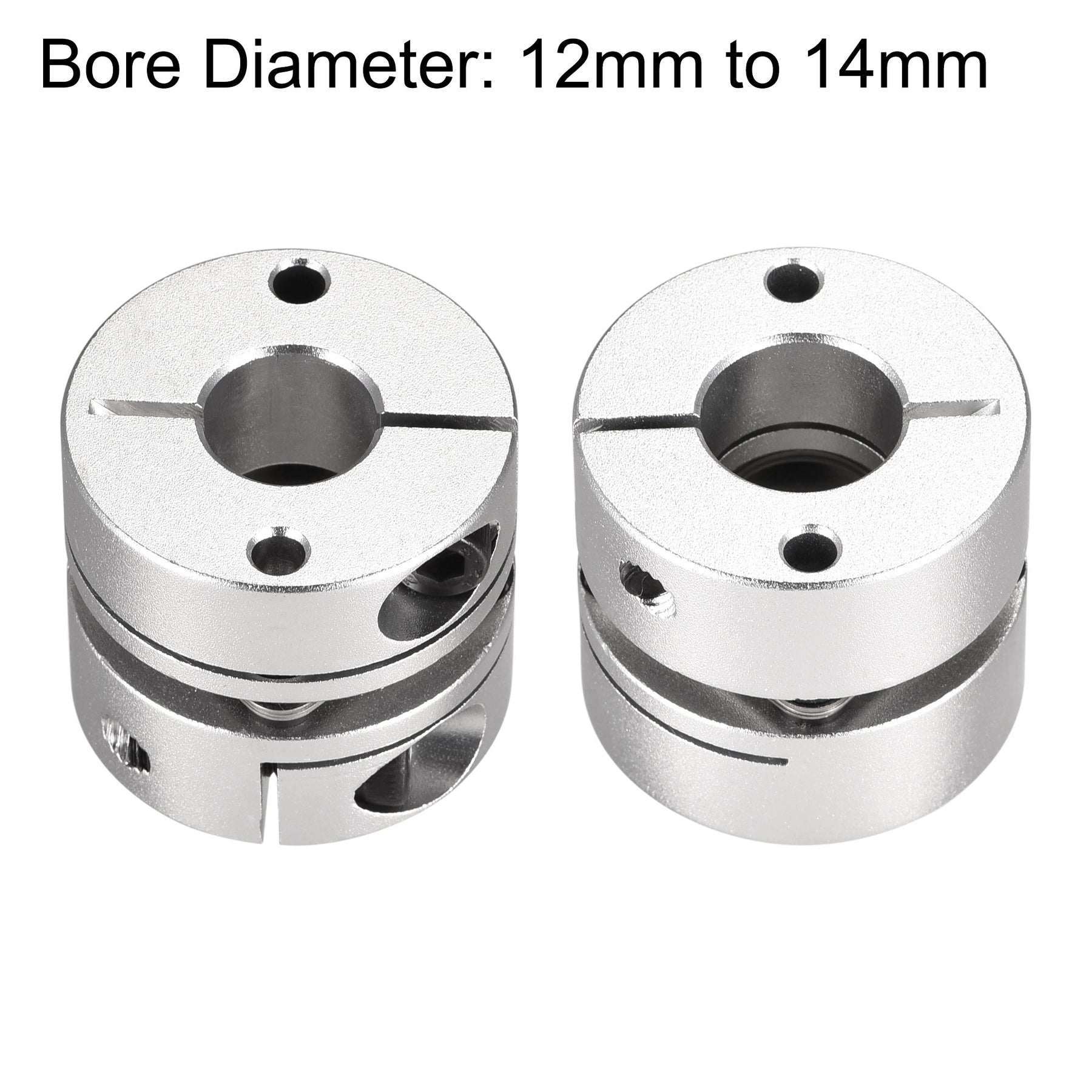

Bore Diameter: 12mm to 14mm
Max. Torque Range: 2.8N.m
Maximum Rotation Speed: 10000 RPM
Material: Aluminium Alloy and Stainless Steel

Package Content:
1 x Diaphragm Coupling

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
