Harfington M6 x 0.75mm Metric Left Hand Tap and Die Set Machine Thread Tap with Round Die

M6 x 0.75mm Metric Left Hand Tap and Die Set Machine Thread Tap with Round Die

ID:
£11.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Applications: The round die can process, correct or clean the external threads. The thread tap is suitable for processing through hole or shallow hole female threads. Suitable for tapping stainless steel, aluminum alloy, cast iron, copper, iron, aluminum, plastic in maintenance and repair work.
  • Features: High speed steel straight flute tap provides rapid downward chip removal for efficient threading, with combination of hardness and toughness for wear resistance. Alloy tool steel die is with conical locking hole, strong locking, not loose, hardness, high torque, good toughness and wear resistance.
  • Easy to Use: Round dies can be used with die wrench (not included). The fastening screw in the middle of the wrench should be inserted into the slot of the die and tightened. Machine taps are used on drill presses, tapping machines, CNC and milling machines.
  • Tips: Used with tapping oil can get higher quality threads and make taps and dies more durable. Suitable lubricating oil should be added to the cutting edge of dies and taps when tapping. It needs to be reversed every 1/4~1/2 turn to facilitate the chip discharge from the die chip hole.
  • Tap & Die Set: M6 x 0.75 metric tap and die set can make new threads or re-thread damaged or jammed threads, good for general purpose applications. Clear threads without burrs, left hand (reverse) tapping direction.
  • In stock, ready to ship
Cart
Cart
About this item
  • Applications: The round die can process, correct or clean the external threads. The thread tap is suitable for processing through hole or shallow hole female threads. Suitable for tapping stainless steel, aluminum alloy, cast iron, copper, iron, aluminum, plastic in maintenance and repair work.
  • Features: High speed steel straight flute tap provides rapid downward chip removal for efficient threading, with combination of hardness and toughness for wear resistance. Alloy tool steel die is with conical locking hole, strong locking, not loose, hardness, high torque, good toughness and wear resistance.
  • Easy to Use: Round dies can be used with die wrench (not included). The fastening screw in the middle of the wrench should be inserted into the slot of the die and tightened. Machine taps are used on drill presses, tapping machines, CNC and milling machines.
  • Tips: Used with tapping oil can get higher quality threads and make taps and dies more durable. Suitable lubricating oil should be added to the cutting edge of dies and taps when tapping. It needs to be reversed every 1/4~1/2 turn to facilitate the chip discharge from the die chip hole.
  • Tap & Die Set: M6 x 0.75 metric tap and die set can make new threads or re-thread damaged or jammed threads, good for general purpose applications. Clear threads without burrs, left hand (reverse) tapping direction.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Specifications:
Machine Tap:

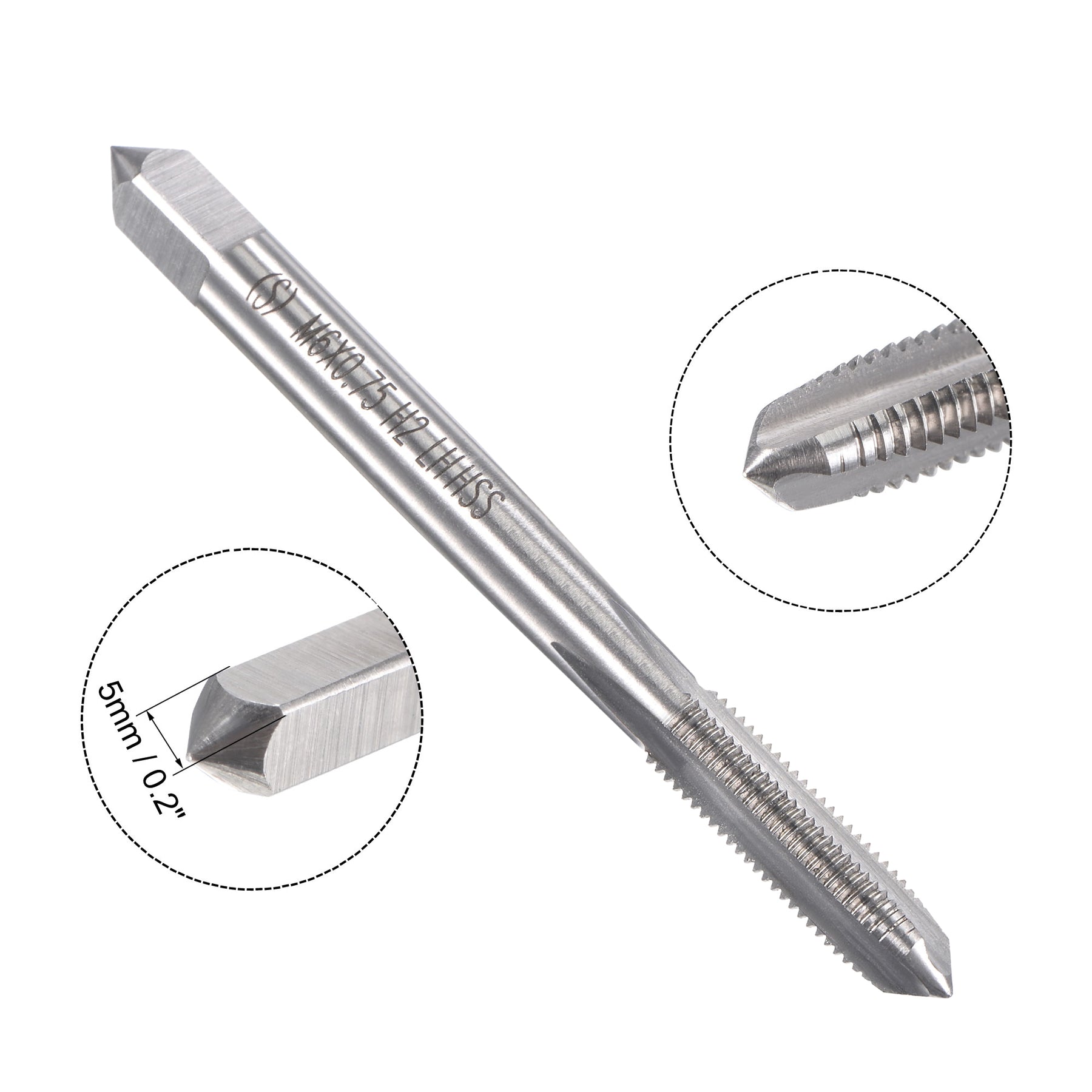

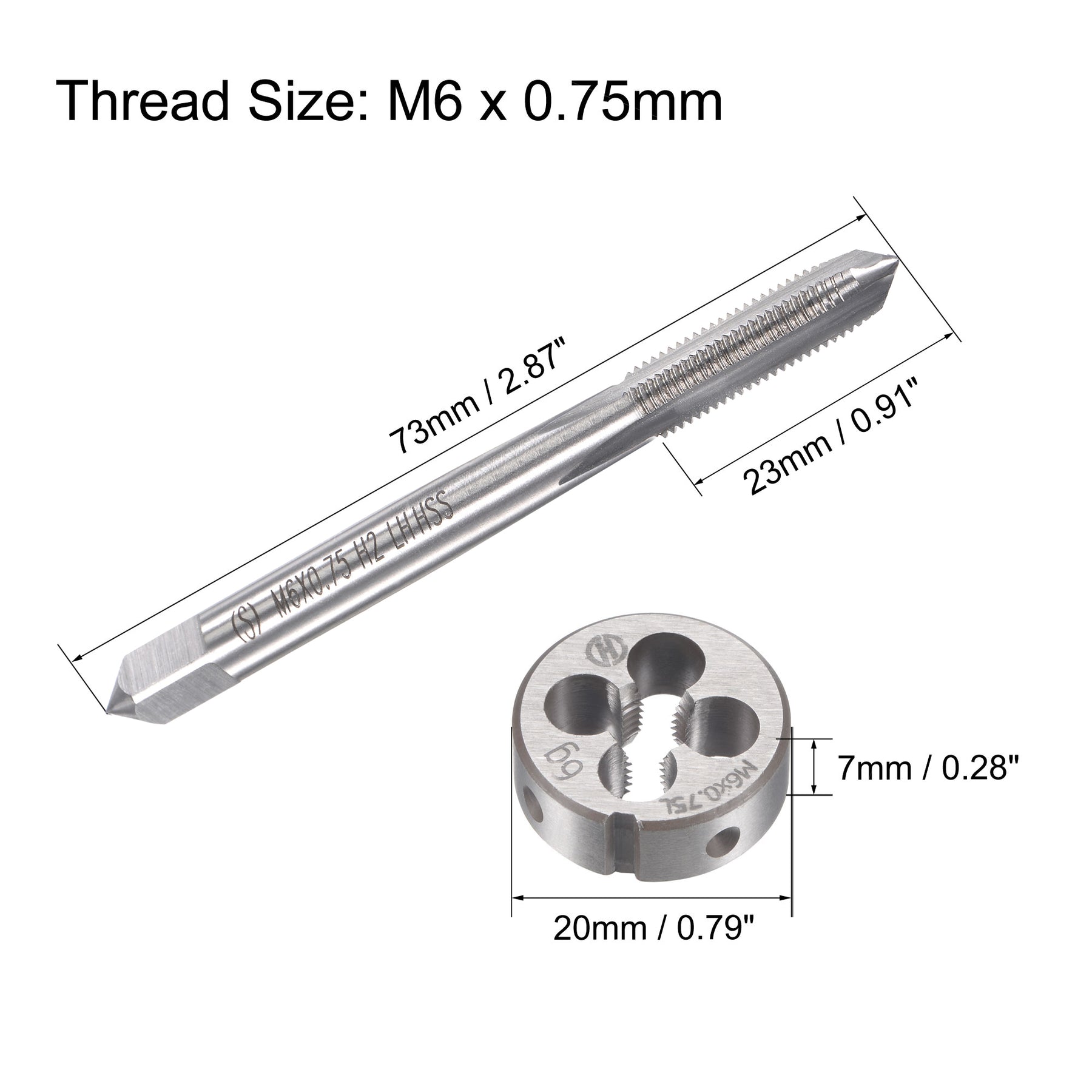

Thread Size: M6 x 0.75mm; Thread Style: Left Hand; Thread Length: 23mm / 0.91"; Overall Length: 73mm / 2.87"; Square Shank Size: 5mm / 0.2"; Material: High Speed Steel (HSS); Accuracy: H2
Round Die:

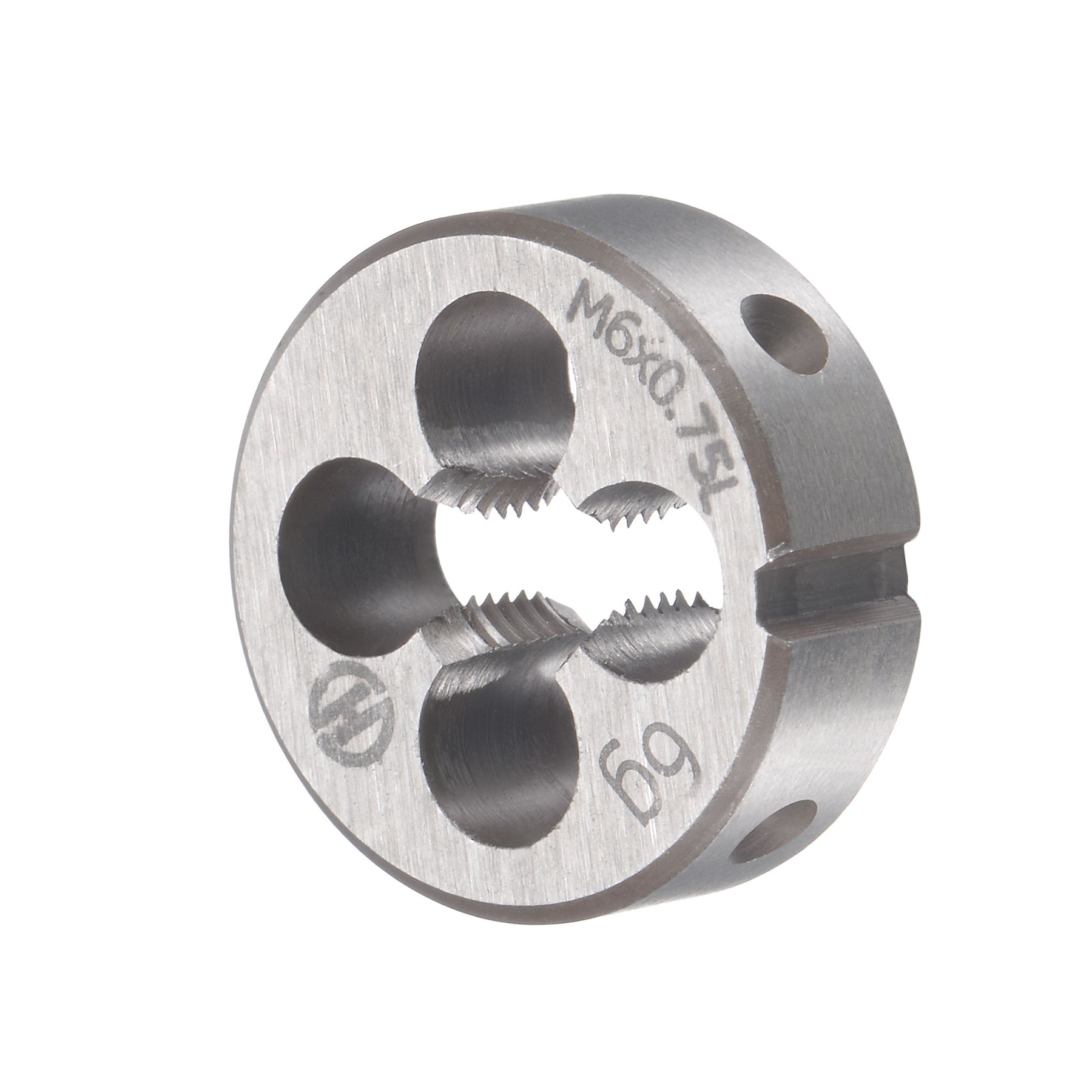

Thread Size: M6 x 0.75mm; Thread Style: Left Hand; Outside Diameter (OD): 20mm / 0.79"; Thickness: 7mm / 0.28", Material: Alloy Tool Steel (9CrSi); Accuracy: 6G
Package Included:

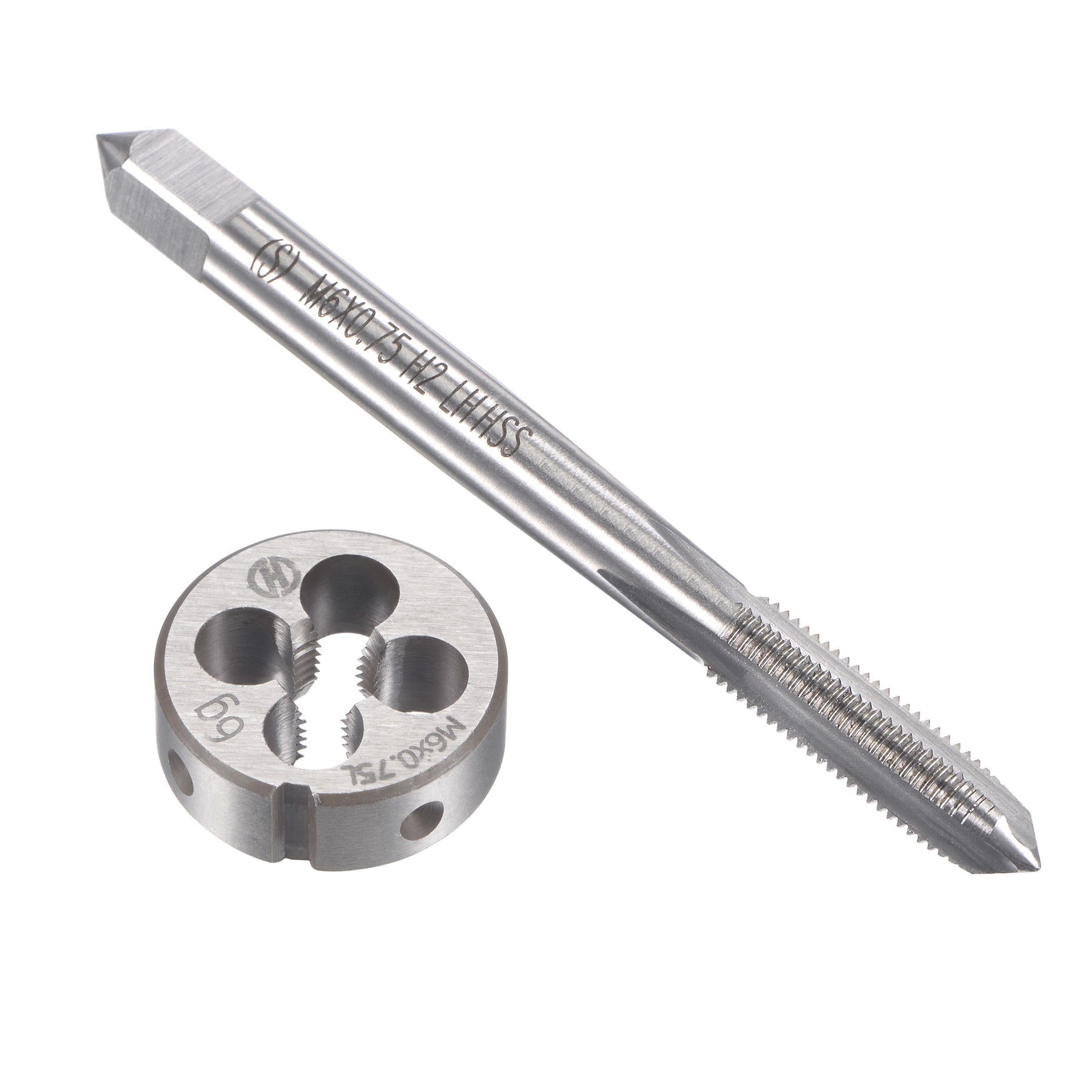

1 x Left Hand Tap and Die Set (1 x Machine Tap, 1 x Round Die)

Descriptions:

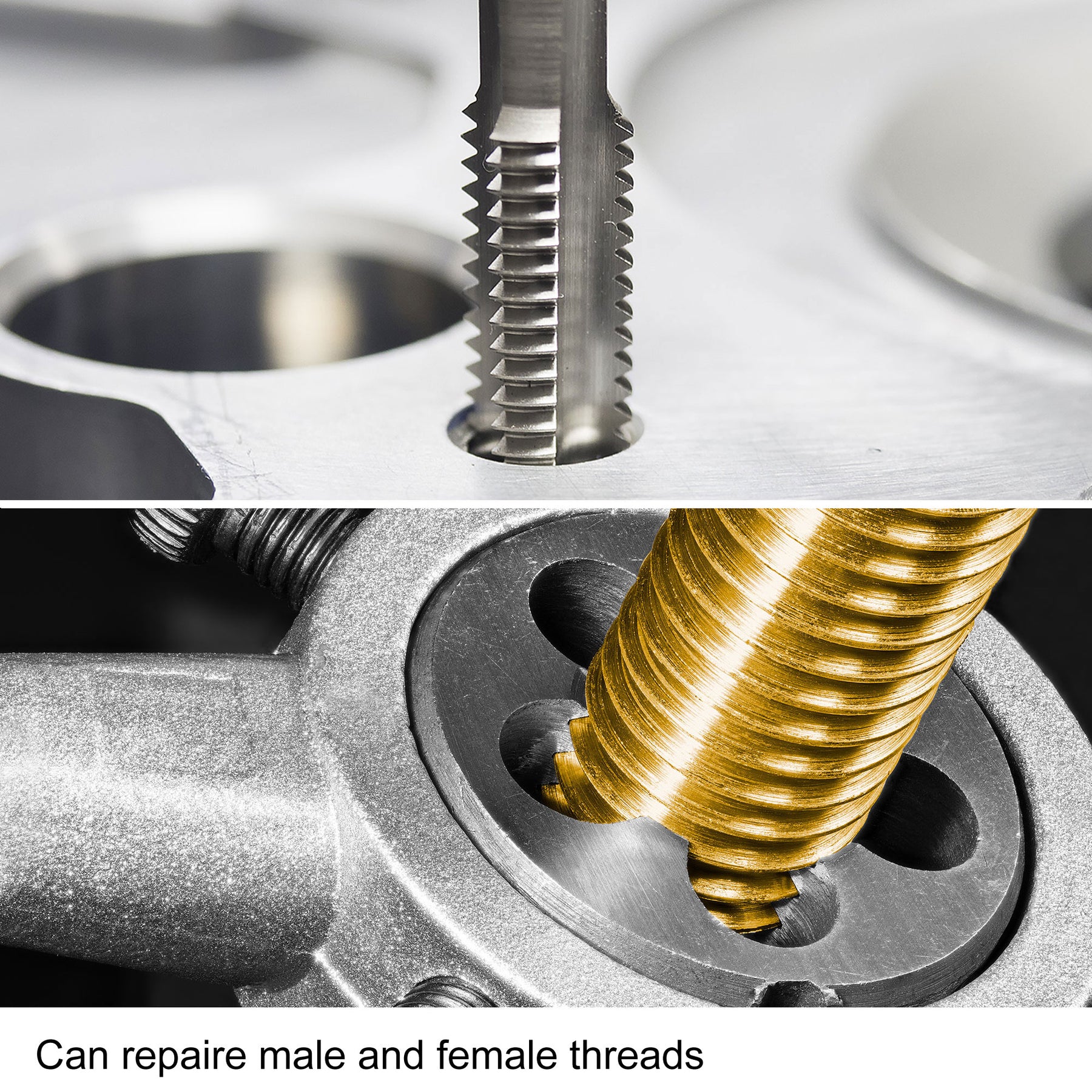

1. Tap and die set are suitable for making or repairing male and female threads, good for general purpose applications. Tap and die are both right hand thread.
2. Can be used to process through holes in maintenance and repair work. Great for drilling and tapping alloy steel , die steel, cast iron, ferrous and non-ferrous materials etc..
3. High speed steel machine screw tap provides combination of hardness and toughness for wear resistance. Alloy tool steel round die features good abrasion resistance. Tap and die set are sharp and durable, and with clear threads to meet the processing requirements.
4. Round dies can be used with die wrench (not included). The fastening screw in the middle of the wrench should be inserted into the slot of the die and tightened. Machine taps are used on drill presses, tapping machines, CNC and milling machines.
5. Used with tapping oil can get threads and make taps and dies more durable. Suitable lubricating oil should be added to the cutting edge of dies and taps when tapping.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£11.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specifications:
Machine Tap:
Thread Size: M6 x 0.75mm; Thread Style: Left Hand; Thread Length: 23mm / 0.91"; Overall Length: 73mm / 2.87"; Square Shank Size: 5mm / 0.2"; Material: High Speed Steel (HSS); Accuracy: H2
Round Die:
Thread Size: M6 x 0.75mm; Thread Style: Left Hand; Outside Diameter (OD): 20mm / 0.79"; Thickness: 7mm / 0.28", Material: Alloy Tool Steel (9CrSi); Accuracy: 6G
Package Included:
1 x Left Hand Tap and Die Set (1 x Machine Tap, 1 x Round Die)

Descriptions:
1. Tap and die set are suitable for making or repairing male and female threads, good for general purpose applications. Tap and die are both right hand thread.
2. Can be used to process through holes in maintenance and repair work. Great for drilling and tapping alloy steel , die steel, cast iron, ferrous and non-ferrous materials etc..
3. High speed steel machine screw tap provides combination of hardness and toughness for wear resistance. Alloy tool steel round die features good abrasion resistance. Tap and die set are sharp and durable, and with clear threads to meet the processing requirements.
4. Round dies can be used with die wrench (not included). The fastening screw in the middle of the wrench should be inserted into the slot of the die and tightened. Machine taps are used on drill presses, tapping machines, CNC and milling machines.
5. Used with tapping oil can get threads and make taps and dies more durable. Suitable lubricating oil should be added to the cutting edge of dies and taps when tapping.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
