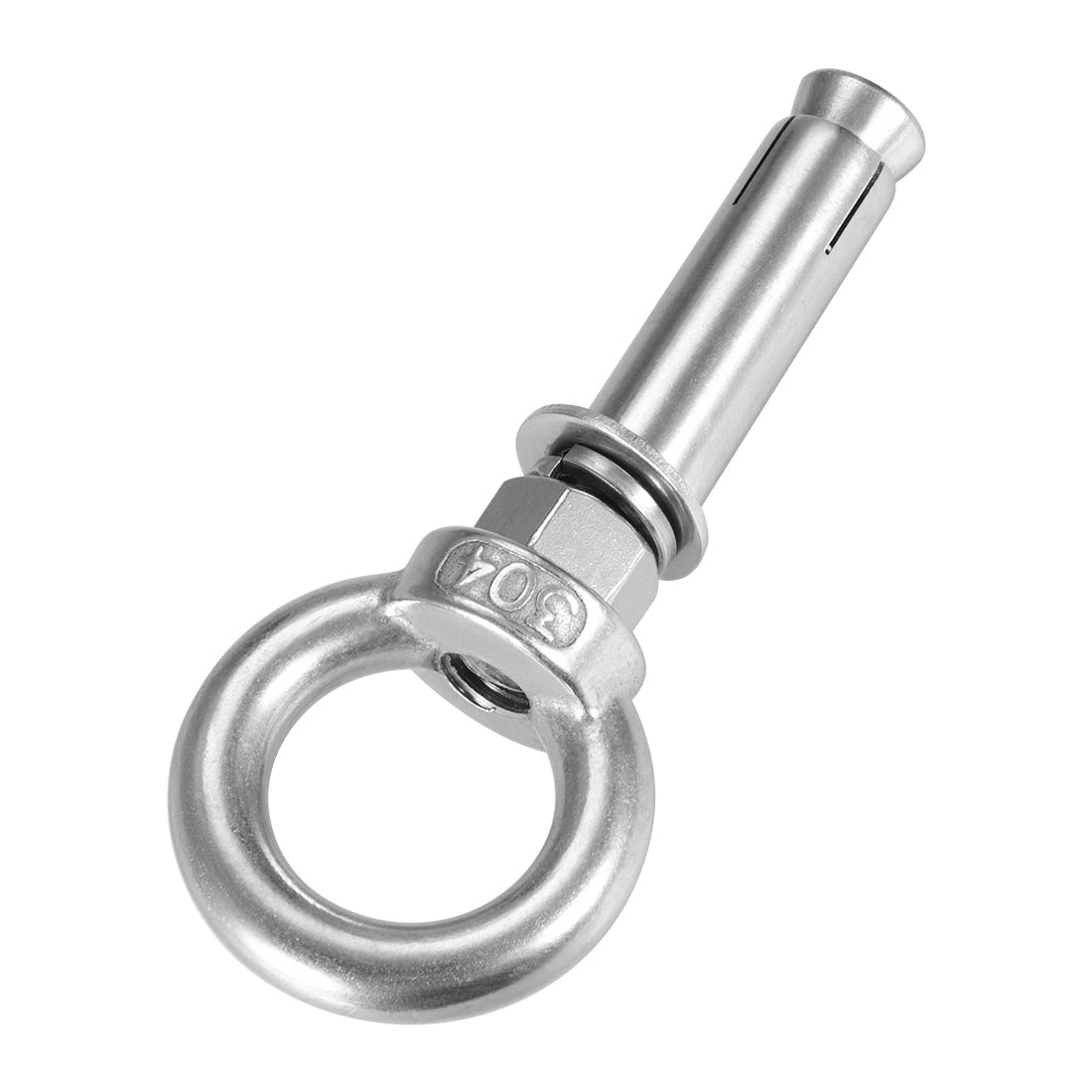

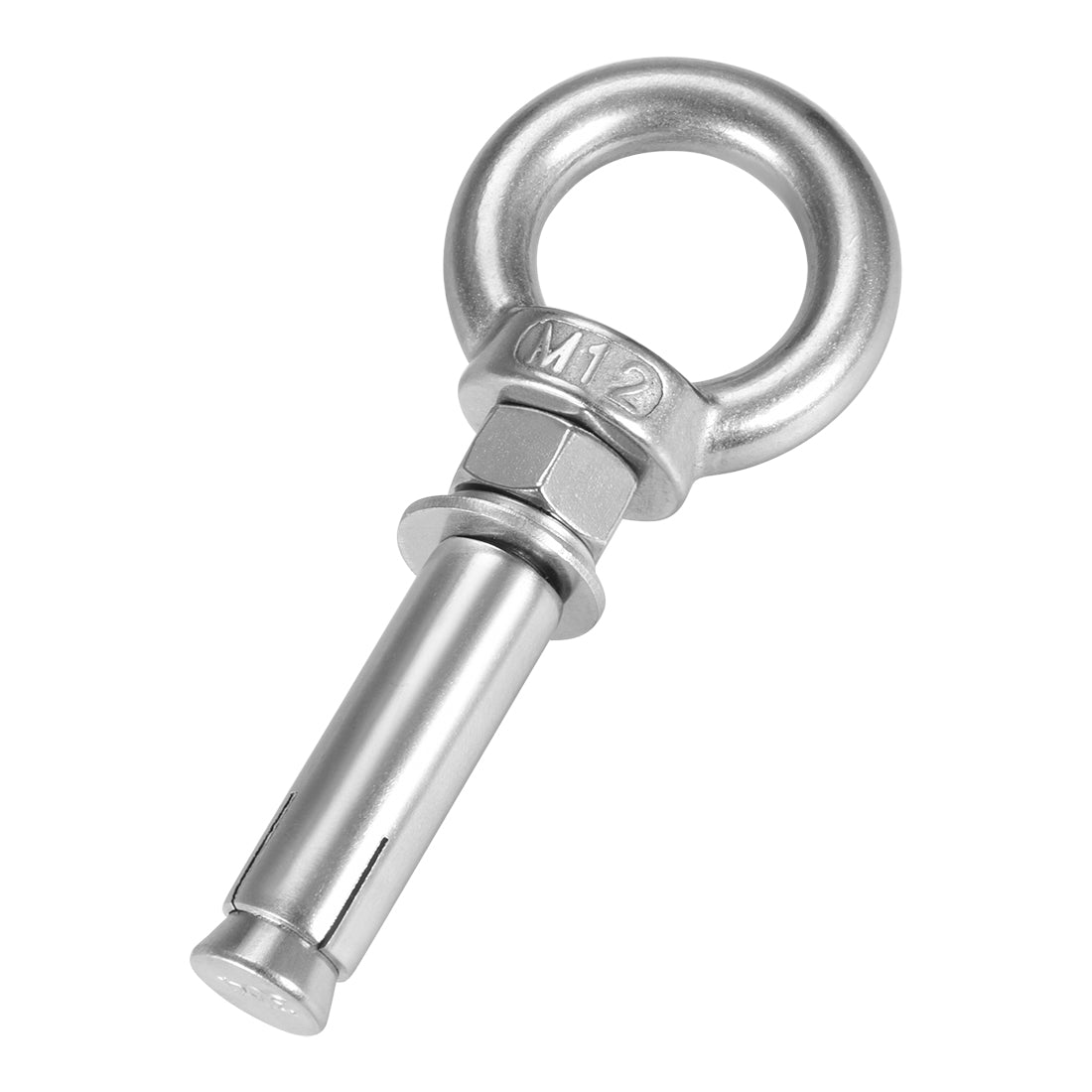

Harfington M12 x 80 Expansion Eyebolt Eye Nut Screw with Ring 304 Stainless Steel Anchor Raw Bolts 1 Pcs

M12 x 80 Expansion Eyebolt Eye Nut Screw with Ring 304 Stainless Steel Anchor Raw Bolts 1 Pcs

ID:
£12.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Main Size. Standard M12 expansion bolts with 120mm length, and the ring Inner Diameter is 29mm.
  • Materials. Made of premium 304 stainless steel, provides a rust protection and precise size.
  • Installation. Suggested a 16mm Dia. hole for drilling, and tight the anchor bolt with a wrench after putting the screw. The bolt transfers forces to the sleeve, with the expansion of sleeve, a solid connection has been built between a concrete wall and the wedge anchor nut.
  • Application. Fit the concrete wall or masonry, for hanging or lefting the super heavy things like a big shelf. It's durable and reliable.
  • Details. The eye type is drop forged eye, such eye bolts are designed to attach a securing eye to a structure and then tie to ropers or cables.
  • In stock, ready to ship
Cart
Cart
About this item
  • Main Size. Standard M12 expansion bolts with 120mm length, and the ring Inner Diameter is 29mm.
  • Materials. Made of premium 304 stainless steel, provides a rust protection and precise size.
  • Installation. Suggested a 16mm Dia. hole for drilling, and tight the anchor bolt with a wrench after putting the screw. The bolt transfers forces to the sleeve, with the expansion of sleeve, a solid connection has been built between a concrete wall and the wedge anchor nut.
  • Application. Fit the concrete wall or masonry, for hanging or lefting the super heavy things like a big shelf. It's durable and reliable.
  • Details. The eye type is drop forged eye, such eye bolts are designed to attach a securing eye to a structure and then tie to ropers or cables.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

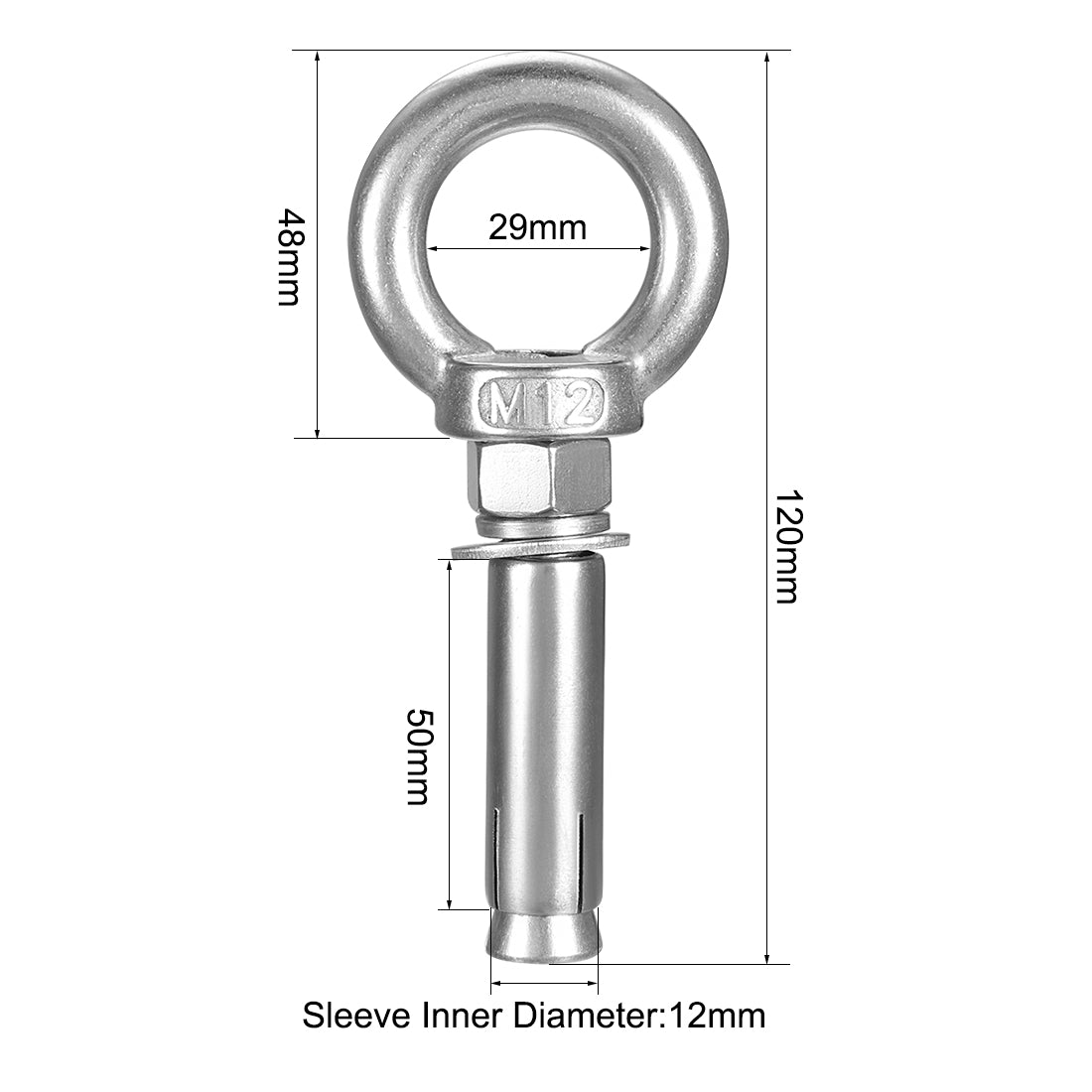

Screw Size: M12

Overall Length: 120mm

Eye Nut Height: 48mm

Inner diameter of the ring: 29mm

Sleeve Inner Diameter: 12mm

Sleeve Length: 50mm

Suggested Hole Size: 16mm Dia.

Total Weight: 196g

Materials: 304 Stainless Steel

Application: Concrete and masonry

Package Content:

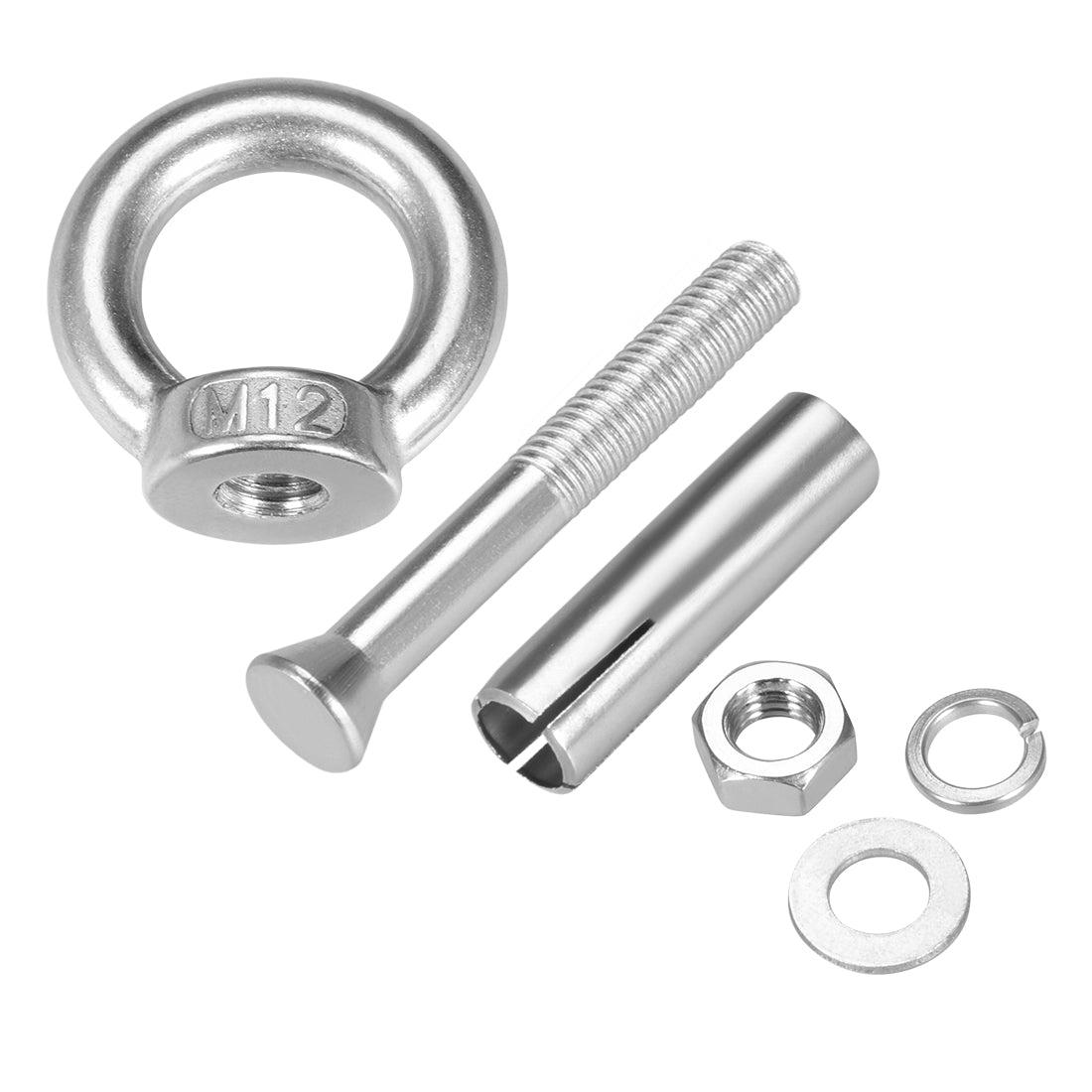

1 x pcs M12 x 80 Expansion Eye Bolt

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£12.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Screw Size: M12

Overall Length: 120mm

Eye Nut Height: 48mm

Inner diameter of the ring: 29mm

Sleeve Inner Diameter: 12mm

Sleeve Length: 50mm

Suggested Hole Size: 16mm Dia.

Total Weight: 196g

Materials: 304 Stainless Steel

Application: Concrete and masonry

Package Content:

1 x pcs M12 x 80 Expansion Eye Bolt

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
