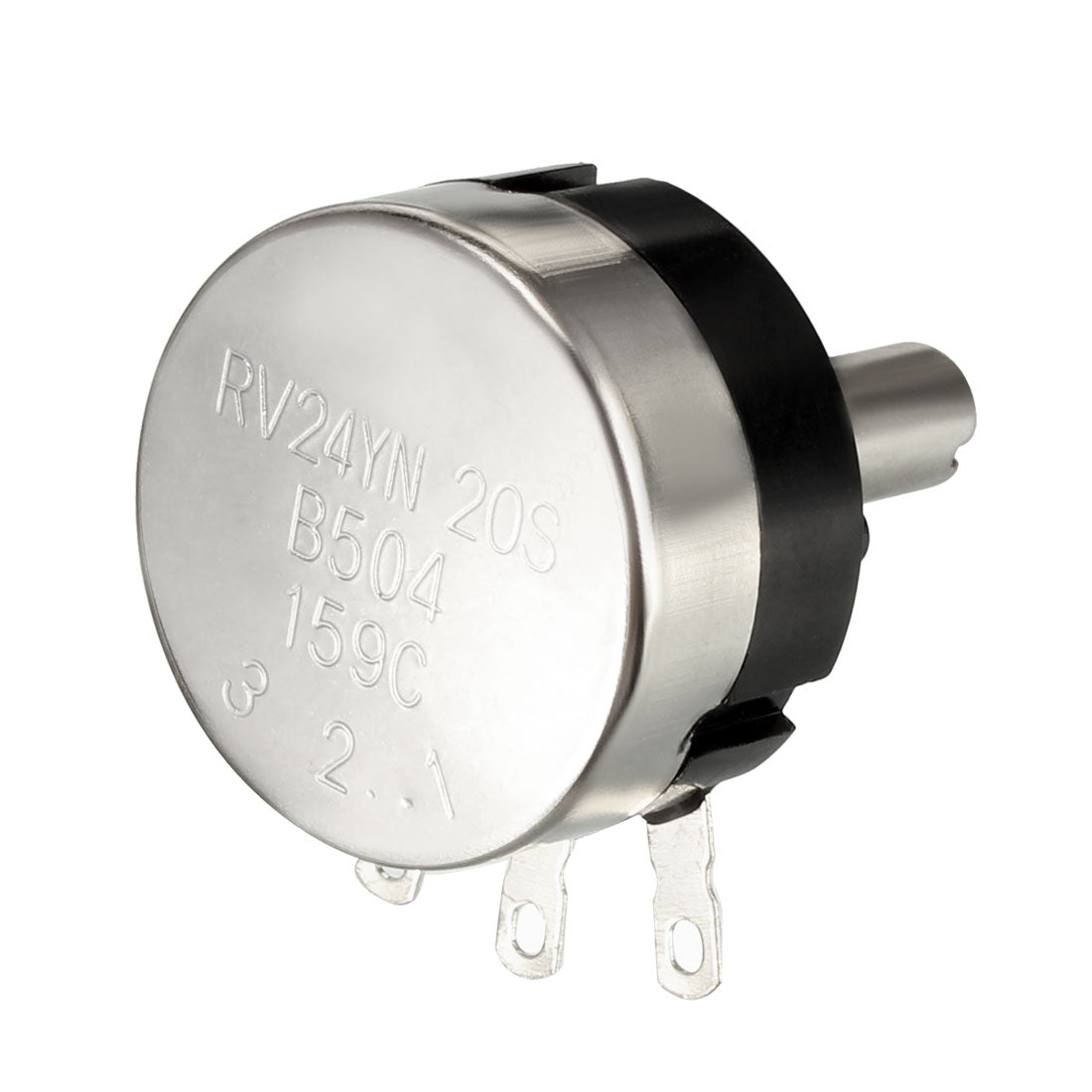

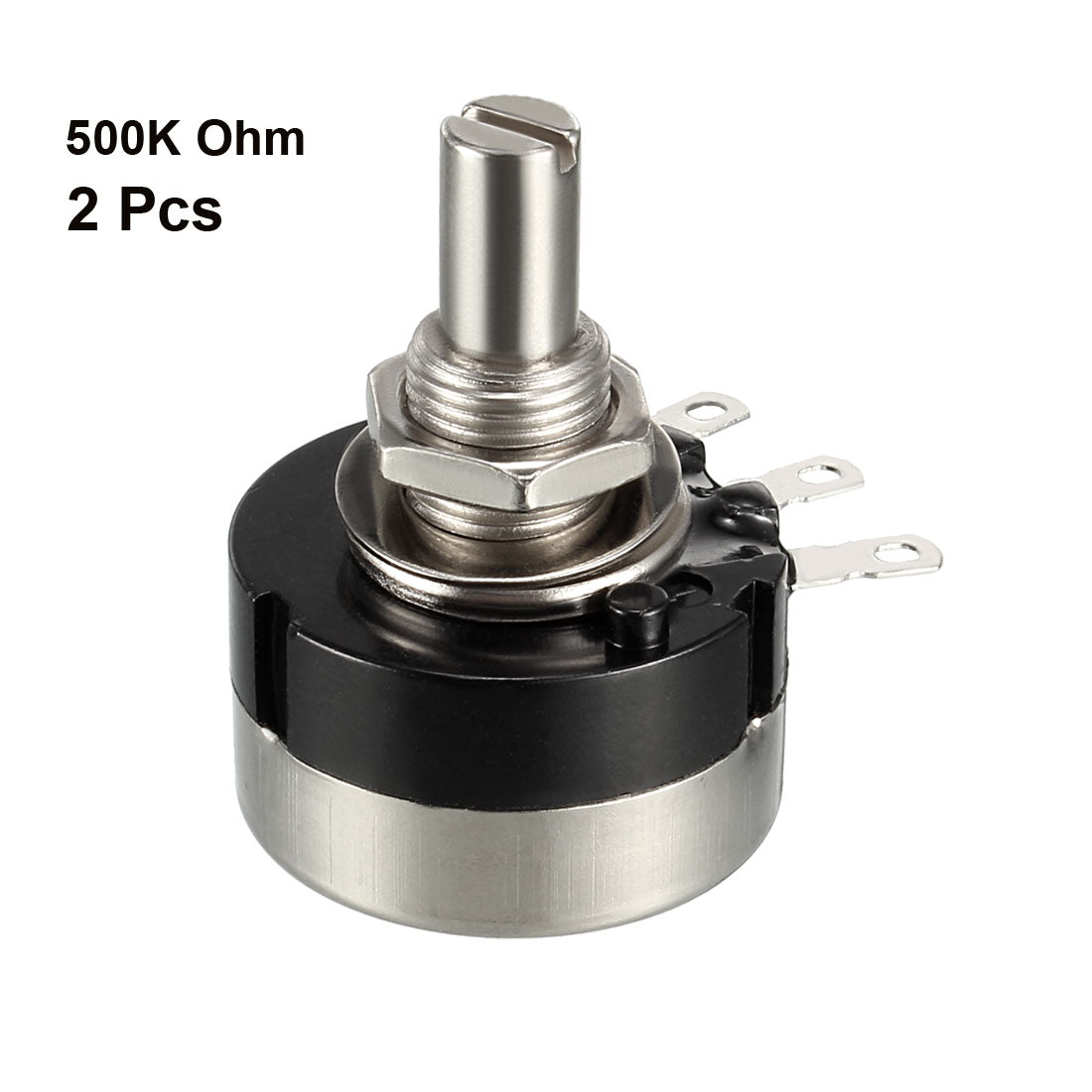

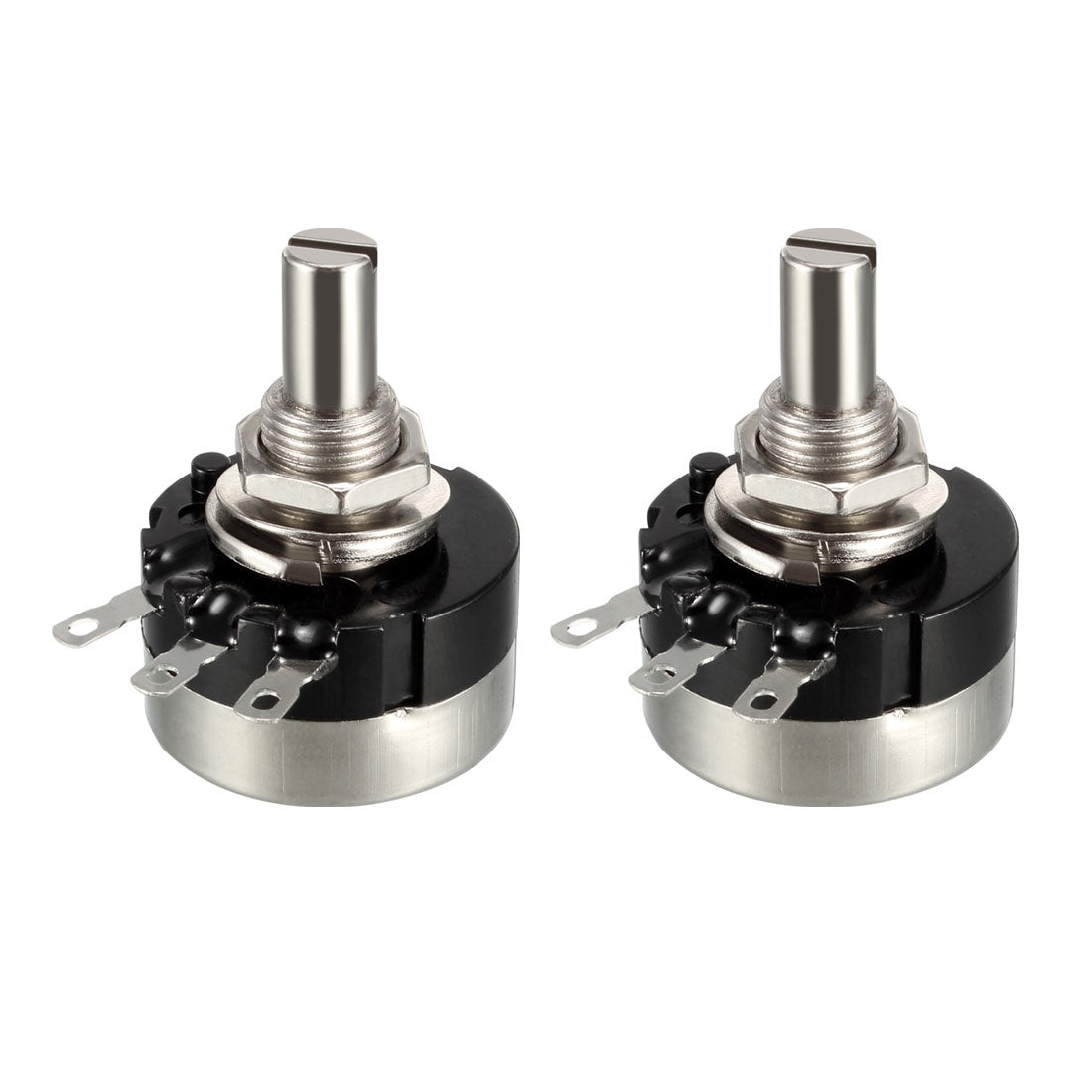

Harfington RV24YN20S 500K Ohm Variable Resistors Single Turn Rotary Carbon Film Potentiometer 2pcs

RV24YN20S 500K Ohm Variable Resistors Single Turn Rotary Carbon Film Potentiometer 2pcs

ID:
£9.00 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Model: RV24YN 20S/B504,, metal corrosion resistant, high mechanical strength
  • Resistance Value: 500K Ohm Tolerance:+/-10%
  • Generally used in mixers,audio, amplifiers, radios, DVD/VCD, televisions, electronic message devices, headsets, lamps and other electronic digital and electronic equipment
  • Product advantages, strong conductivity, long service life, adjustable resistance, high resistance range
  • Top adjustment type and knurled shaft for easy operate in daily use.
  • In stock, ready to ship
Cart
Cart
About this item
  • Model: RV24YN 20S/B504,, metal corrosion resistant, high mechanical strength
  • Resistance Value: 500K Ohm Tolerance:+/-10%
  • Generally used in mixers,audio, amplifiers, radios, DVD/VCD, televisions, electronic message devices, headsets, lamps and other electronic digital and electronic equipment
  • Product advantages, strong conductivity, long service life, adjustable resistance, high resistance range
  • Top adjustment type and knurled shaft for easy operate in daily use.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
  • Product Name: Carbon Film Potentiometer
  • Model: RV24YN 20S/B504
  • Material: Carbon film Metal
  • Resistance Value: 500k ohm
  • Power: 2W
  • Tolerance: +/-10%
  • Turn Number: Single Turn
  • Terminals Number: 3
  • Features: Round Shaft
  • Total Size: 33.4mm x 24.4mm/1.31 x 0.96 inch (H * D)
  • Screw Thread Dia.: 8.7mm/0.34 inch
  • Shaft Diameter: 6mm / 0.24 inch
  • Shaft Length(do not include the Screw Thread parts): 10mm / 0.4 inch
  • Shaft Total Length 20.5mm/0.8 inch
  • Color: Black, Silver Tone
  • Package Content: 2 x Carbon Film Potentiometer
  • Features: 500K ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.(this item do not include Knobs)
  • Top adjustment type and knurled shaft for easy operate in daily use.
  • Main used to control electrical devices such as volume controls on audio equipment.
  • Knurled shaft with split design for push-on knob.



Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£9.00 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

  • Product Name: Carbon Film Potentiometer
  • Model: RV24YN 20S/B504
  • Material: Carbon film Metal
  • Resistance Value: 500k ohm
  • Power: 2W
  • Tolerance: +/-10%
  • Turn Number: Single Turn
  • Terminals Number: 3
  • Features: Round Shaft
  • Total Size: 33.4mm x 24.4mm/1.31 x 0.96 inch (H * D)
  • Screw Thread Dia.: 8.7mm/0.34 inch
  • Shaft Diameter: 6mm / 0.24 inch
  • Shaft Length(do not include the Screw Thread parts): 10mm / 0.4 inch
  • Shaft Total Length 20.5mm/0.8 inch
  • Color: Black, Silver Tone
  • Package Content: 2 x Carbon Film Potentiometer
  • Features: 500K ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.(this item do not include Knobs)
  • Top adjustment type and knurled shaft for easy operate in daily use.
  • Main used to control electrical devices such as volume controls on audio equipment.
  • Knurled shaft with split design for push-on knob.



Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
