Harfington NK12/12 Needle Bearing 12mm Bore Dia, 19mm OD, 12mm Width 5Pcs

NK12/12 Needle Bearing 12mm Bore Dia, 19mm OD, 12mm Width 5Pcs

ID:
£9.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

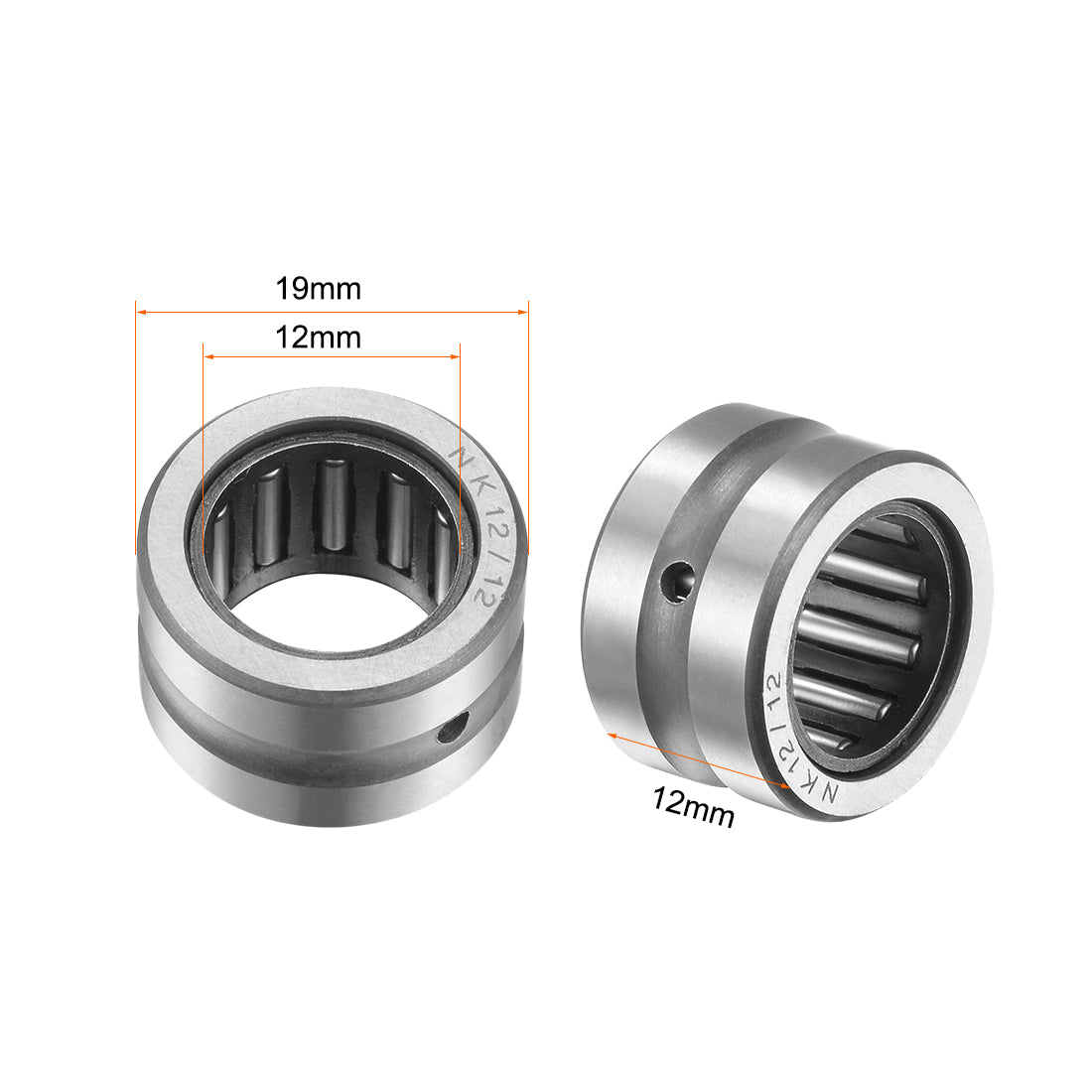

  • Model: NK12/12 (I.D. (Fw)=12mm, O.D. (D)=19mm, Width (C)=12mm)
  • With no inner ring, accommodate axial displacement
  • Good heat tolerance, high load carrying capacity and stiffness
  • Low cross section, enable downsizing and suit for use in restricted mounting spaces
  • Pre-Lubricated. Good running properties
  • In stock, ready to ship
Cart
Cart
About this item
  • Model: NK12/12 (I.D. (Fw)=12mm, O.D. (D)=19mm, Width (C)=12mm)
  • With no inner ring, accommodate axial displacement
  • Good heat tolerance, high load carrying capacity and stiffness
  • Low cross section, enable downsizing and suit for use in restricted mounting spaces
  • Pre-Lubricated. Good running properties
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Specification:

Model: NK12/12

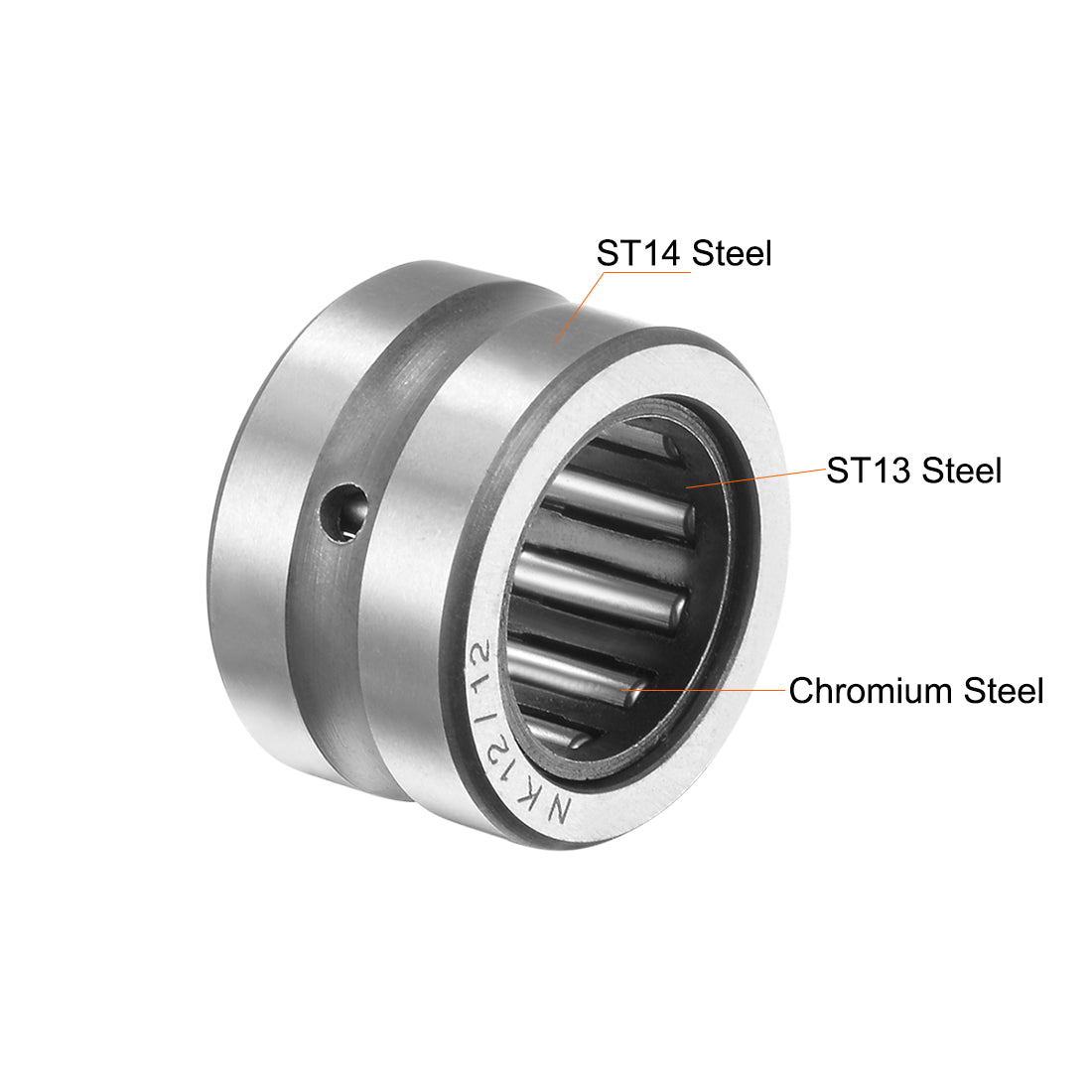

Inner and Outer Ring Material: Chromium Steel (GCr15)

Cage Material: ST13 Steel

Needle Roller Material: Chromium Steel (GCr15)

Bore Diameter (d): 12mm

Outside Diameter (D): 19mm

Width (B): 12mm

Static Load Capacity (Cor): 6400N

Dynamic Load Capacity (Cr): 6050N

Maximum Rotational Speed (Oil): 25000rpm



Package Content:

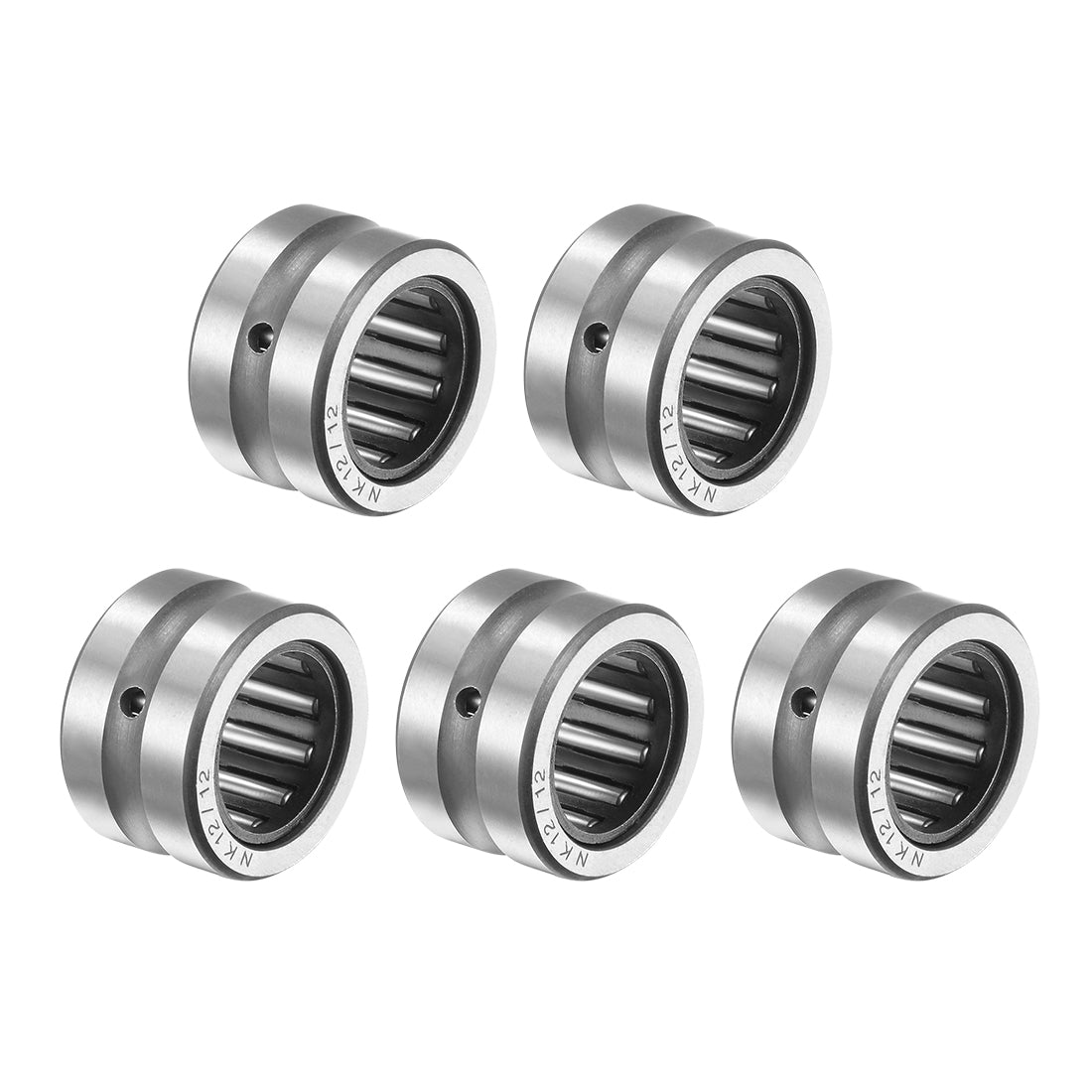

5 x Needle Roller Bearing



Description:

-Needle Roller Bearings with Machined Rings are bearings with high load carrying capacity and stiffness.

-These bearings are especially suitable for high dynamic loads or radial-limited installation.

-Assembling inner and outer rings separately permits interference fits for shaft and housing.

-For various applications such as agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.

-NOTE: Install with press machine or special tools instead of hammers because beating may lead to local deformation.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£9.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specification:

Model: NK12/12

Inner and Outer Ring Material: Chromium Steel (GCr15)

Cage Material: ST13 Steel

Needle Roller Material: Chromium Steel (GCr15)

Bore Diameter (d): 12mm

Outside Diameter (D): 19mm

Width (B): 12mm

Static Load Capacity (Cor): 6400N

Dynamic Load Capacity (Cr): 6050N

Maximum Rotational Speed (Oil): 25000rpm



Package Content:

5 x Needle Roller Bearing



Description:

-Needle Roller Bearings with Machined Rings are bearings with high load carrying capacity and stiffness.

-These bearings are especially suitable for high dynamic loads or radial-limited installation.

-Assembling inner and outer rings separately permits interference fits for shaft and housing.

-For various applications such as agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.

-NOTE: Install with press machine or special tools instead of hammers because beating may lead to local deformation.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
