Harfington Aviation Connector, 12.8mm 2P 10A 380V SD13-2 Waterproof Male Wire Panel Power Chassis Metal Fittings Connector Aviation Gold plated

Aviation Connector, 12.8mm 2P 10A 380V SD13-2 Waterproof Male Wire Panel Power Chassis Metal Fittings Connector Aviation Gold plated

ID:
£9.00 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Pin Number: 2 pins; Pin Diameter: 2.2mm; Shell Material: Thermoplastic PA66, PA6; Rated Voltage: 380V
  • Isert Material: PPS; Rated Current: 10A; Package Content: 1 x Aviation Connector; Contact Material: Brass
  • Net Weight: 16g; Thread Dia: 12.8mm / 0.5"; Color: Blue, Black; Qualification: CE
  • Model: SD13-2; Contact Resistance: 2Mohm; Insulation Resistance: 2000Mohm

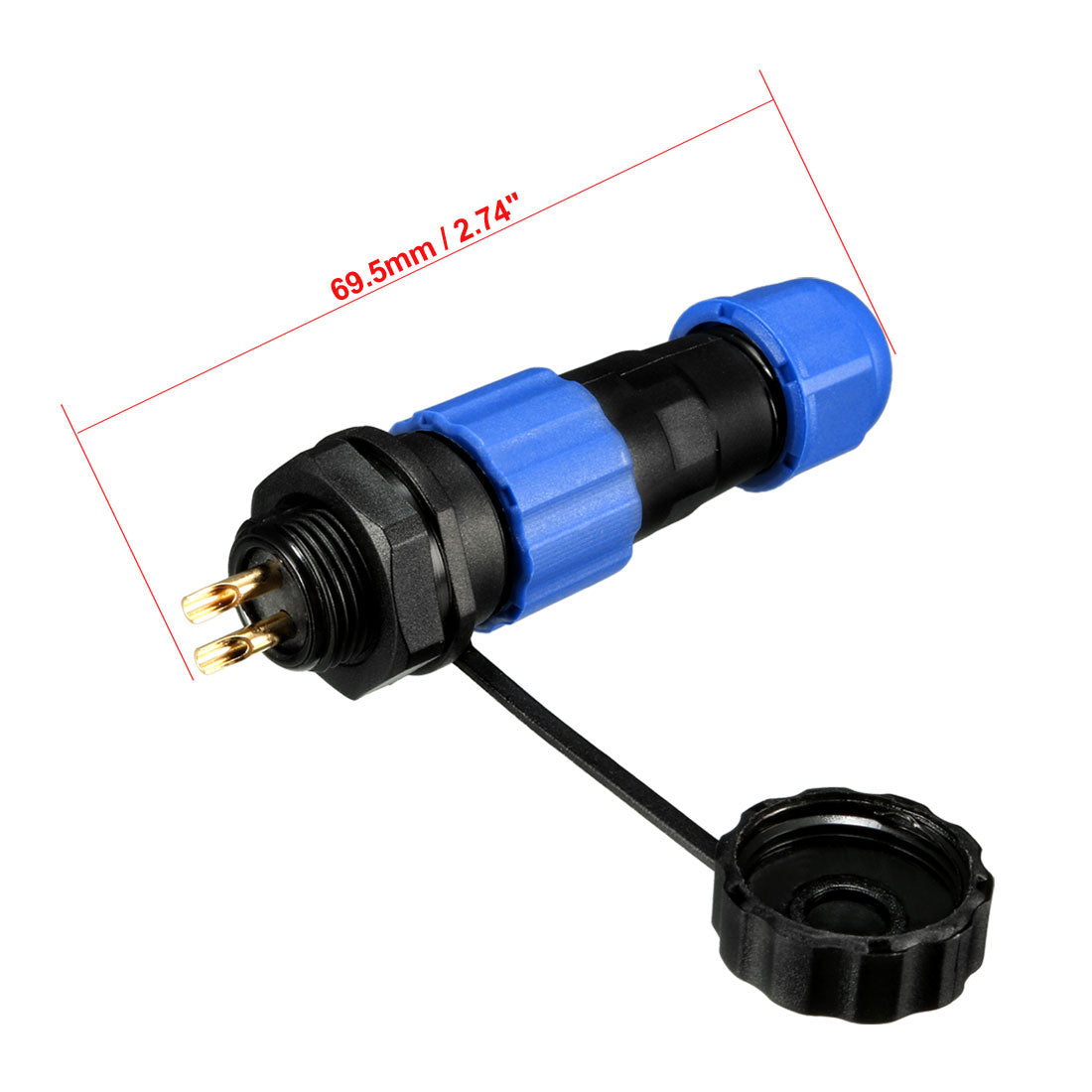

  • Temprtature Range: -25~85C; Wire Hole Diameter: 6.5mm; Total Size: 69.5 x 18mm / 2.74" x 0.71" (L*D)
  • In stock, ready to ship
Cart
Cart
About this item
  • Pin Number: 2 pins; Pin Diameter: 2.2mm; Shell Material: Thermoplastic PA66, PA6; Rated Voltage: 380V
  • Isert Material: PPS; Rated Current: 10A; Package Content: 1 x Aviation Connector; Contact Material: Brass
  • Net Weight: 16g; Thread Dia: 12.8mm / 0.5"; Color: Blue, Black; Qualification: CE
  • Model: SD13-2; Contact Resistance: 2Mohm; Insulation Resistance: 2000Mohm
  • Temprtature Range: -25~85C; Wire Hole Diameter: 6.5mm; Total Size: 69.5 x 18mm / 2.74" x 0.71" (L*D)
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Widely used in aviation, navigation, construction site, port, dock, and some other sealing electronic equipments.
Design with a black short rubber tube on the end, mainly used for the electronical connection between the cables.
Waterproof and really a great apparatus electronic connector.

Specifications:
Product Name: Aviation Connector
Model: SD13-2
Pin Number: 2 pins

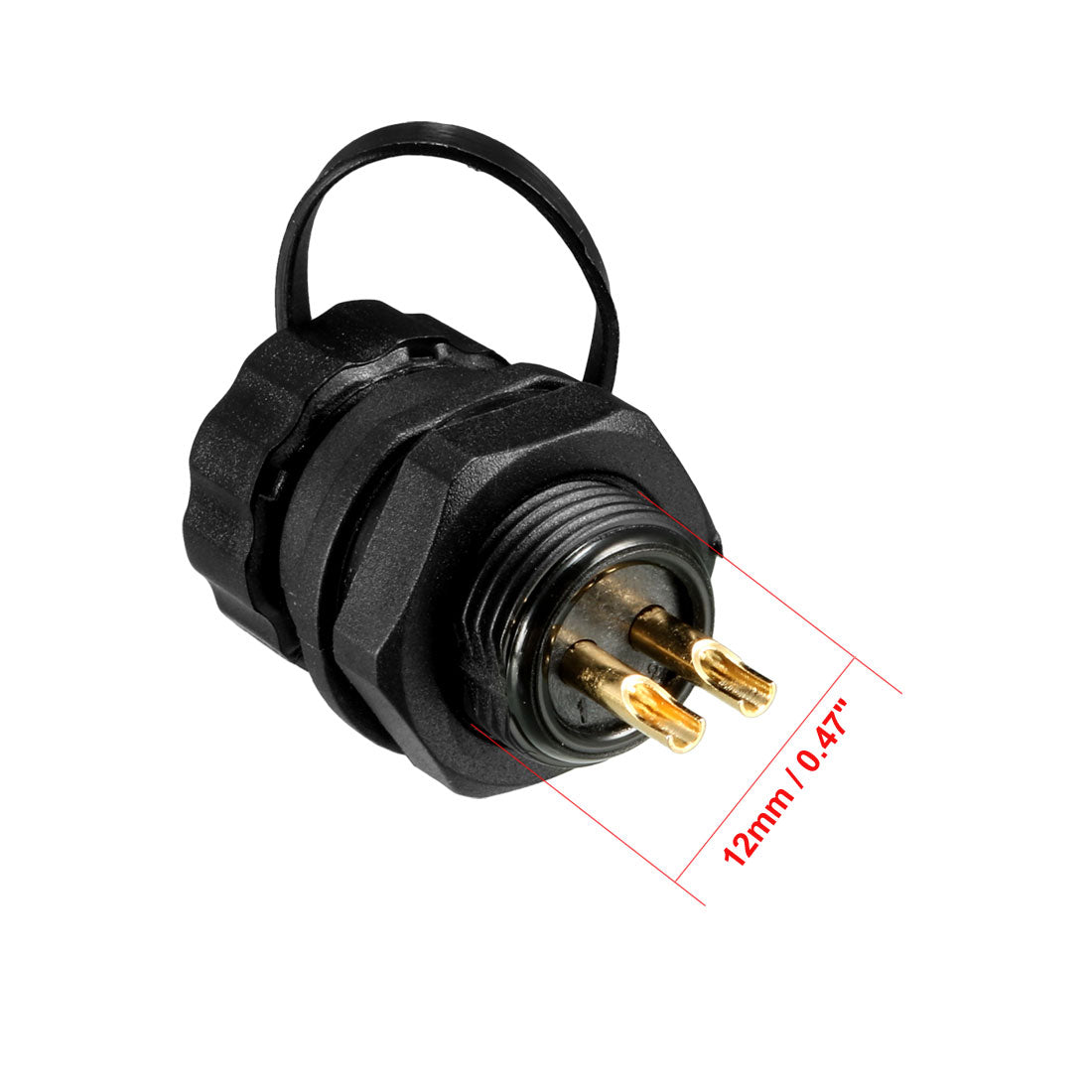

Thread Dia: 12.8mm / 0.5inch
Rated Voltage: 380V
Rated Current: 10A
Net Weight: 16g
Coupling: Thread couping
Shell Material: Thermoplastic PA66, PA6
Contact Material: Barss (Gold plated)
Color: Blue, Black
Contact Resistance: 2Mohm
Insulation Resistance: 2000Mohm
Temprtature Range: -25~85C
Qualification: CE

Package Included:
Package Content: 1 x Aviation Connector
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£9.00 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Widely used in aviation, navigation, construction site, port, dock, and some other sealing electronic equipments.
Design with a black short rubber tube on the end, mainly used for the electronical connection between the cables.
Waterproof and really a great apparatus electronic connector.

Specifications:
Product Name: Aviation Connector
Model: SD13-2
Pin Number: 2 pins
Thread Dia: 12.8mm / 0.5inch
Rated Voltage: 380V
Rated Current: 10A
Net Weight: 16g
Coupling: Thread couping
Shell Material: Thermoplastic PA66, PA6
Contact Material: Barss (Gold plated)
Color: Blue, Black
Contact Resistance: 2Mohm
Insulation Resistance: 2000Mohm
Temprtature Range: -25~85C
Qualification: CE

Package Included:
Package Content: 1 x Aviation Connector
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
