Harfington Sleeve (Plain) Bearings 12mm Bore 15mm OD 12mm L Wrapped Oilless Bushings 4pcs

Sleeve (Plain) Bearings 12mm Bore 15mm OD 12mm L Wrapped Oilless Bushings 4pcs

ID:
£6.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

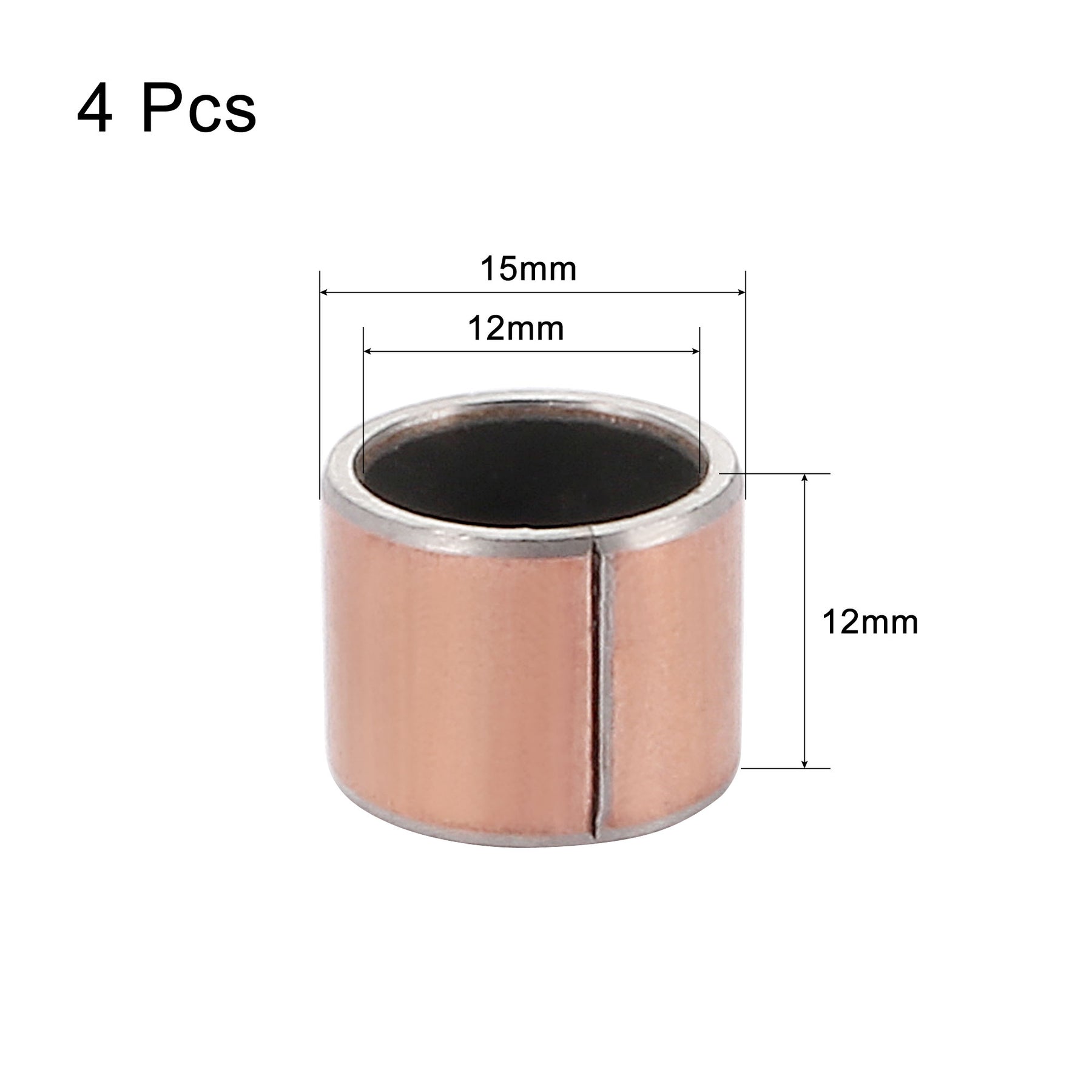

  • Bore: 12mm, Outside Diameter: 15mm, Length: 12mm
  • Oilless, maintenance-free, good frictional property
  • Carbon steel base with Bronze Sintered and composite coating. Suitable for sliding movements
  • Featured with good load capacity and wear resistance performance
  • Wide application such as textile machine, printing machine, hydraulic loader, fitness equipment and agricultural machinery
  • In stock, ready to ship
Cart
Cart
About this item
  • Bore: 12mm, Outside Diameter: 15mm, Length: 12mm
  • Oilless, maintenance-free, good frictional property
  • Carbon steel base with Bronze Sintered and composite coating. Suitable for sliding movements
  • Featured with good load capacity and wear resistance performance
  • Wide application such as textile machine, printing machine, hydraulic loader, fitness equipment and agricultural machinery
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:

  • Plain Bearings are constructed with carbon steel as base, sintered porous bronze as its interlayer, rolled with PTFE and Lead compound as inner surface, and copper-plated on the outer surface.
  • Wrapped Bushing is self-lubricating. It offers good frictional property, wear resistance and low noise.
  • Solid friction Oilless Bushing can operating during wide temperature rang. Suitable for applications with sliding movements.
  • Oilless Sleeve Bearings are most suitable for place where self-lubricating properties of the material are required.
  • Note: Split Line can not be used for bearing.





Specification:

Material: Carbon Steel Base with Porous Bronze Sintered

Finish: PTFE and Lead Rolling, Copper Plating

Friction Factor (Dry Friction): 0.04-0.2

Friction Factor (Oil Lubrication): 0.02-0.07

Bore Diameter: 12mm

Outside Diameter: 15mm

Length: 12mm

Number of Item: 4 Pack

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£6.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description:

  • Plain Bearings are constructed with carbon steel as base, sintered porous bronze as its interlayer, rolled with PTFE and Lead compound as inner surface, and copper-plated on the outer surface.
  • Wrapped Bushing is self-lubricating. It offers good frictional property, wear resistance and low noise.
  • Solid friction Oilless Bushing can operating during wide temperature rang. Suitable for applications with sliding movements.
  • Oilless Sleeve Bearings are most suitable for place where self-lubricating properties of the material are required.
  • Note: Split Line can not be used for bearing.





Specification:

Material: Carbon Steel Base with Porous Bronze Sintered

Finish: PTFE and Lead Rolling, Copper Plating

Friction Factor (Dry Friction): 0.04-0.2

Friction Factor (Oil Lubrication): 0.02-0.07

Bore Diameter: 12mm

Outside Diameter: 15mm

Length: 12mm

Number of Item: 4 Pack

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
