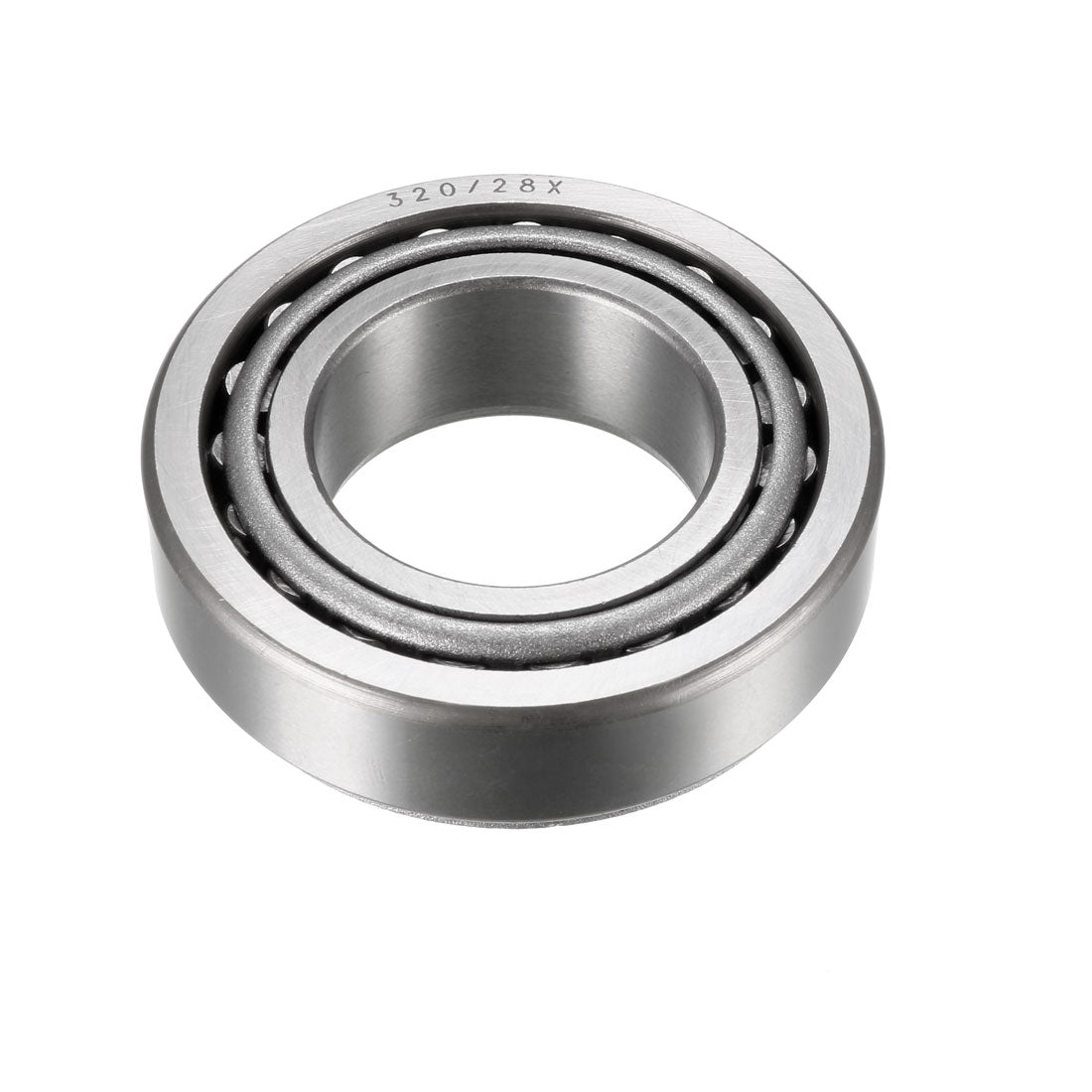

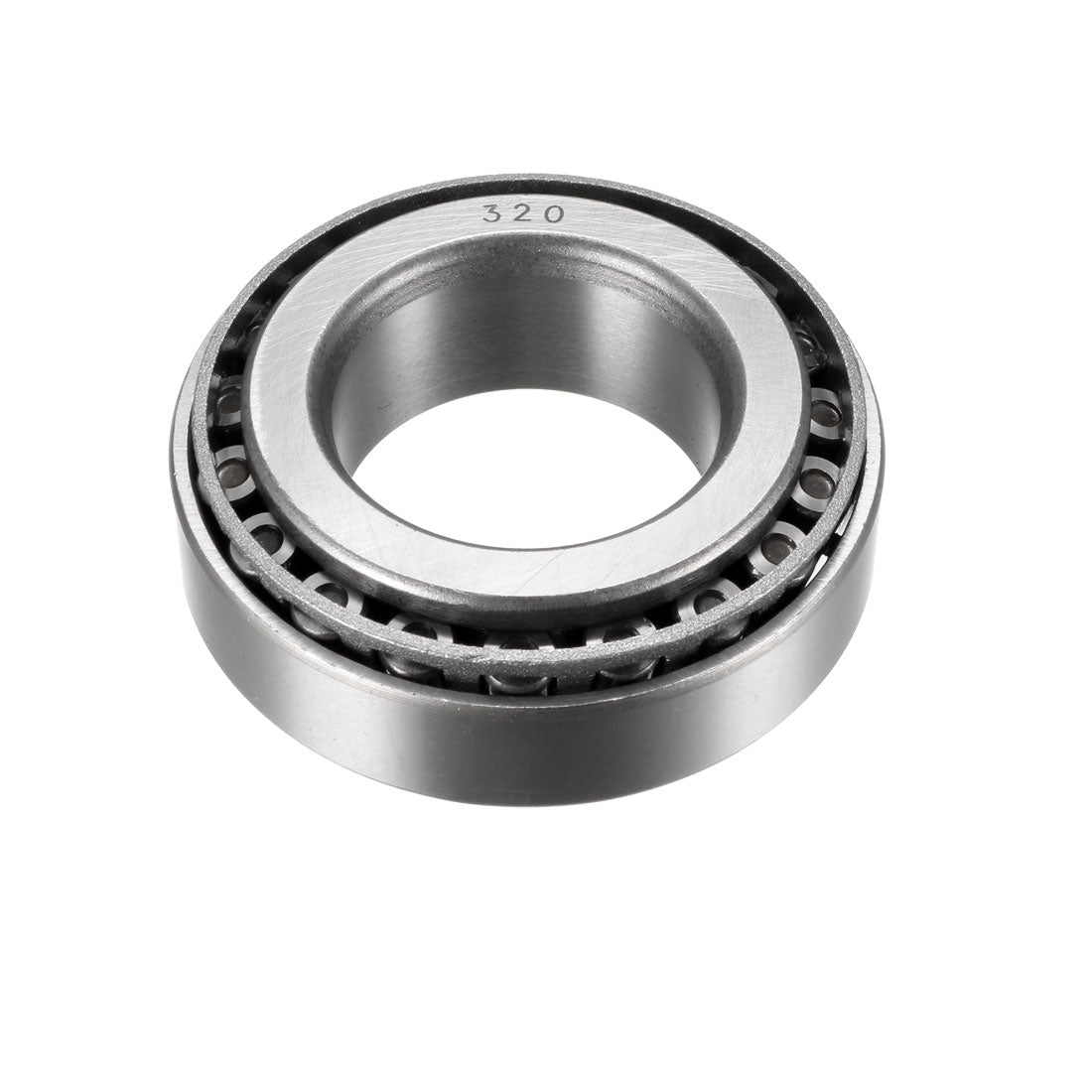

Harfington 320/28X Tapered Roller Bearing Cone and Cup Set 28mm Bore 52mm O.D. 16mm Width

320/28X Tapered Roller Bearing Cone and Cup Set 28mm Bore 52mm O.D. 16mm Width

ID:
£10.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Model: 320/28X (Bore: 28mm, Outer Diameter: 52mm, Width: 16mm)
  • Single row tapered roller bearings must be used either with a second bearing or as a matched pair
  • Components are separable and interchangeable that easy for maintenance
  • Features low friction and low noise that provide operational reliability
  • Static Load Rating of 40.5kN and Dynamic Load Rating of 31.5kN
  • In stock, ready to ship
Cart
Cart
About this item
  • Model: 320/28X (Bore: 28mm, Outer Diameter: 52mm, Width: 16mm)
  • Single row tapered roller bearings must be used either with a second bearing or as a matched pair
  • Components are separable and interchangeable that easy for maintenance
  • Features low friction and low noise that provide operational reliability
  • Static Load Rating of 40.5kN and Dynamic Load Rating of 31.5kN
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:

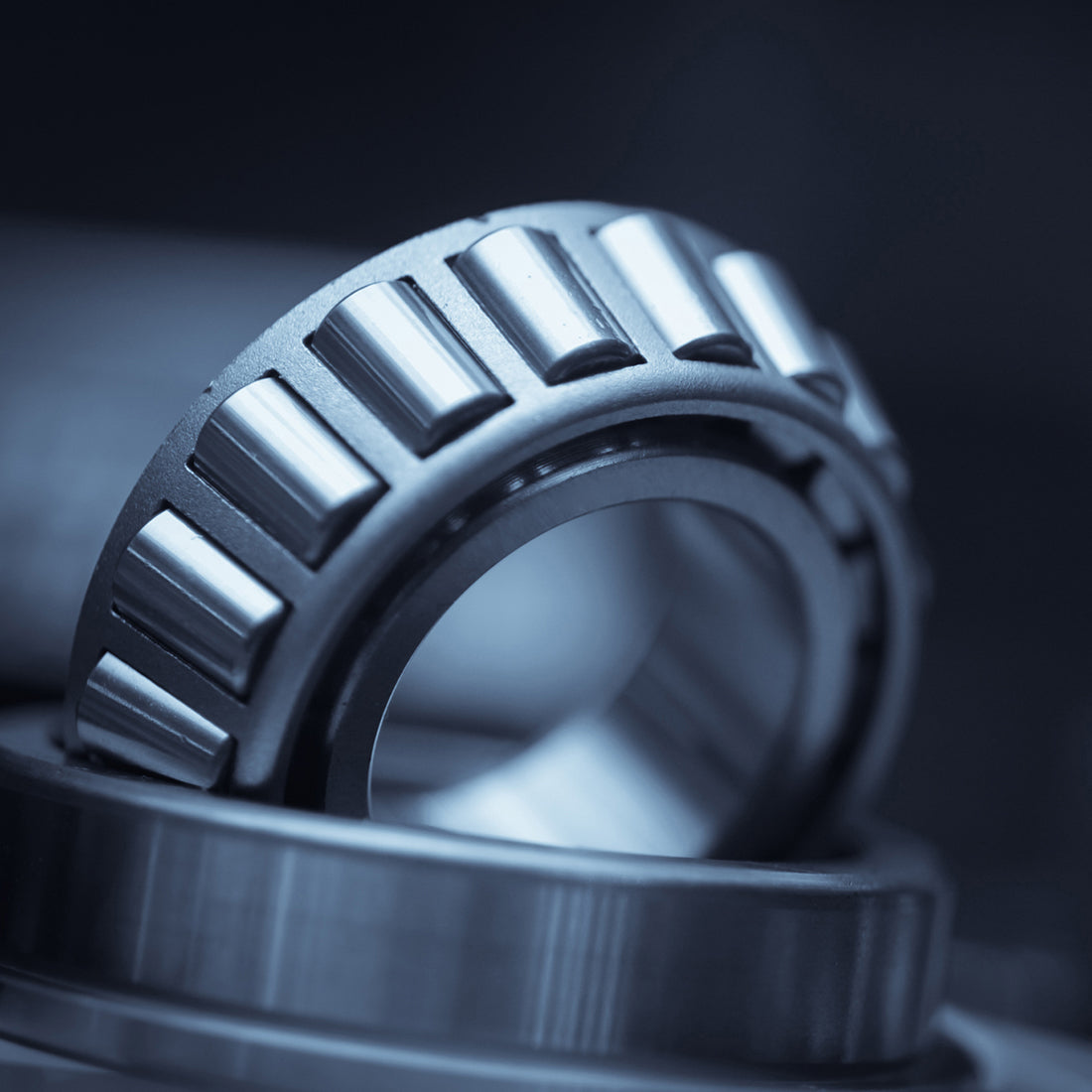

  • Single Row Tapered Roller Bearings are designed to accommodate combined loads.
  • These bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which distributes radial and loads evenly across the roller.

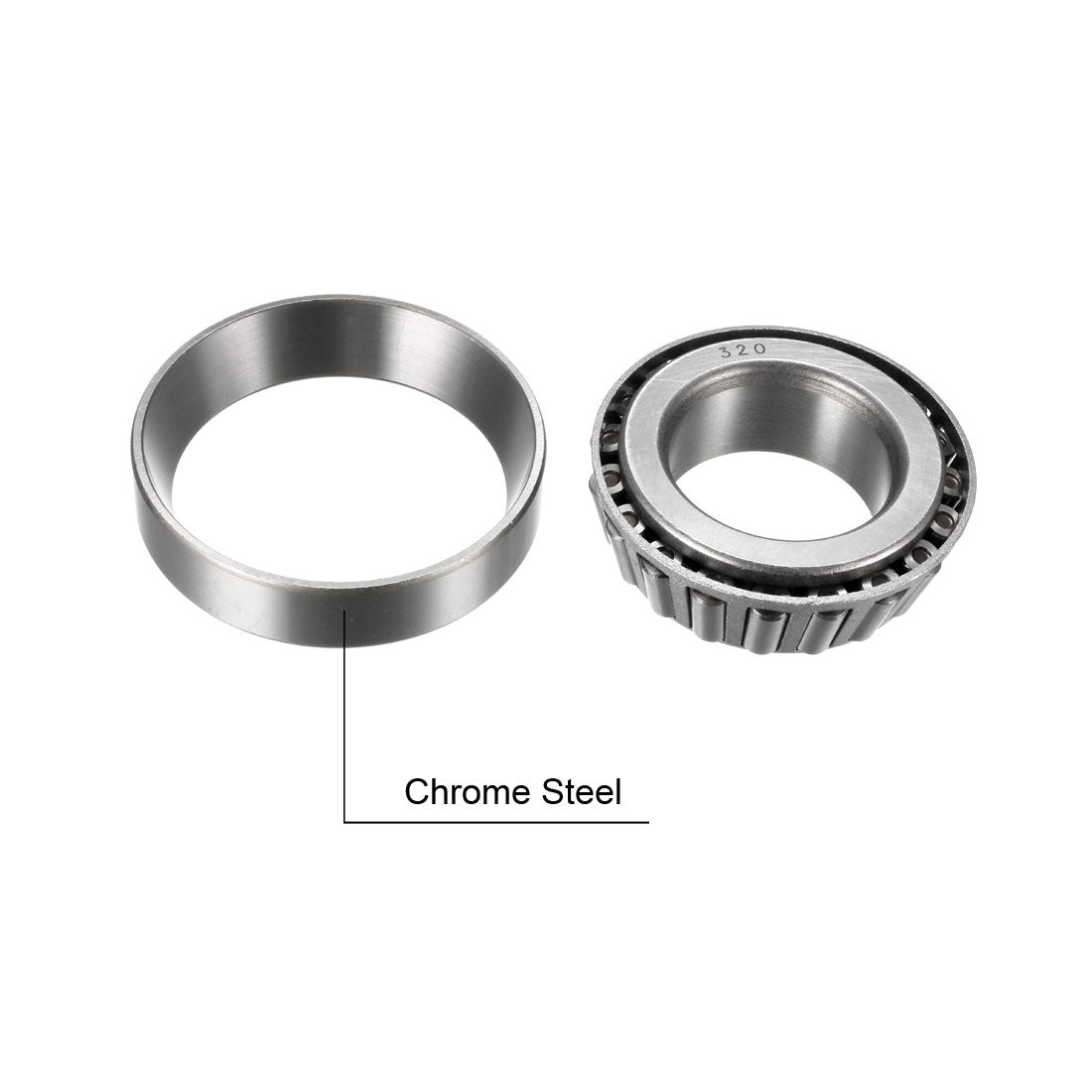

  • The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).
  • The separable components are interchangeable, which facilitate mounting, dismounting and also maintenance inspection routines.
  • This single tapered roller bearing is for use in high-load, moderate-speed applications that include conveyor systems.





Specification:

Cone Model: 320

Cup Model: 28X

Material: Chrome Steel

Bore Diameter: 28mm

Outside Diameter: 52mm

Total Thickness: 16mm

Dynamic Load Rating (Cr): 31500N

Static Load Rating (Cor): 40500N

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£10.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description:

  • Single Row Tapered Roller Bearings are designed to accommodate combined loads.
  • These bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which distributes radial and loads evenly across the roller.
  • The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).
  • The separable components are interchangeable, which facilitate mounting, dismounting and also maintenance inspection routines.
  • This single tapered roller bearing is for use in high-load, moderate-speed applications that include conveyor systems.





Specification:

Cone Model: 320

Cup Model: 28X

Material: Chrome Steel

Bore Diameter: 28mm

Outside Diameter: 52mm

Total Thickness: 16mm

Dynamic Load Rating (Cr): 31500N

Static Load Rating (Cor): 40500N

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
