Harfington Metric Taps M18 x 2.5mm Pitch Thread Plug Tap HSS for Router Electric Drill

Metric Taps M18 x 2.5mm Pitch Thread Plug Tap HSS for Router Electric Drill

ID:
£18.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Thread Size: M18 x 2.5. High-speed steel metric taps offer high hardness and good toughness for wear resistance, fast cutting speed and long service life, well suited for general purpose applications.
  • The thread tap can make new threads or re-thread damaged or jammed threads. Ti-coated taps provide capability, durability and long service life. Fits a wide range of applications.
  • Suitable for processing through holes or shallow holes on most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc.. Add appropriate tapping oil for higher quality internal threads and more durable taps.
  • Straight flute design, rapid downward chip removal for efficient threading, clear threads without burrs, right hand tapping direction.
  • Machine taps used with drilling machines, tapping machines, automatic machines, machining centers, CNC, milling machines, not recommended for hand and electric drill tapping. Recommended feed speed: ordinary steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.
  • In stock, ready to ship
Cart
Cart
About this item
  • Thread Size: M18 x 2.5. High-speed steel metric taps offer high hardness and good toughness for wear resistance, fast cutting speed and long service life, well suited for general purpose applications.
  • The thread tap can make new threads or re-thread damaged or jammed threads. Ti-coated taps provide capability, durability and long service life. Fits a wide range of applications.
  • Suitable for processing through holes or shallow holes on most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc.. Add appropriate tapping oil for higher quality internal threads and more durable taps.
  • Straight flute design, rapid downward chip removal for efficient threading, clear threads without burrs, right hand tapping direction.
  • Machine taps used with drilling machines, tapping machines, automatic machines, machining centers, CNC, milling machines, not recommended for hand and electric drill tapping. Recommended feed speed: ordinary steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

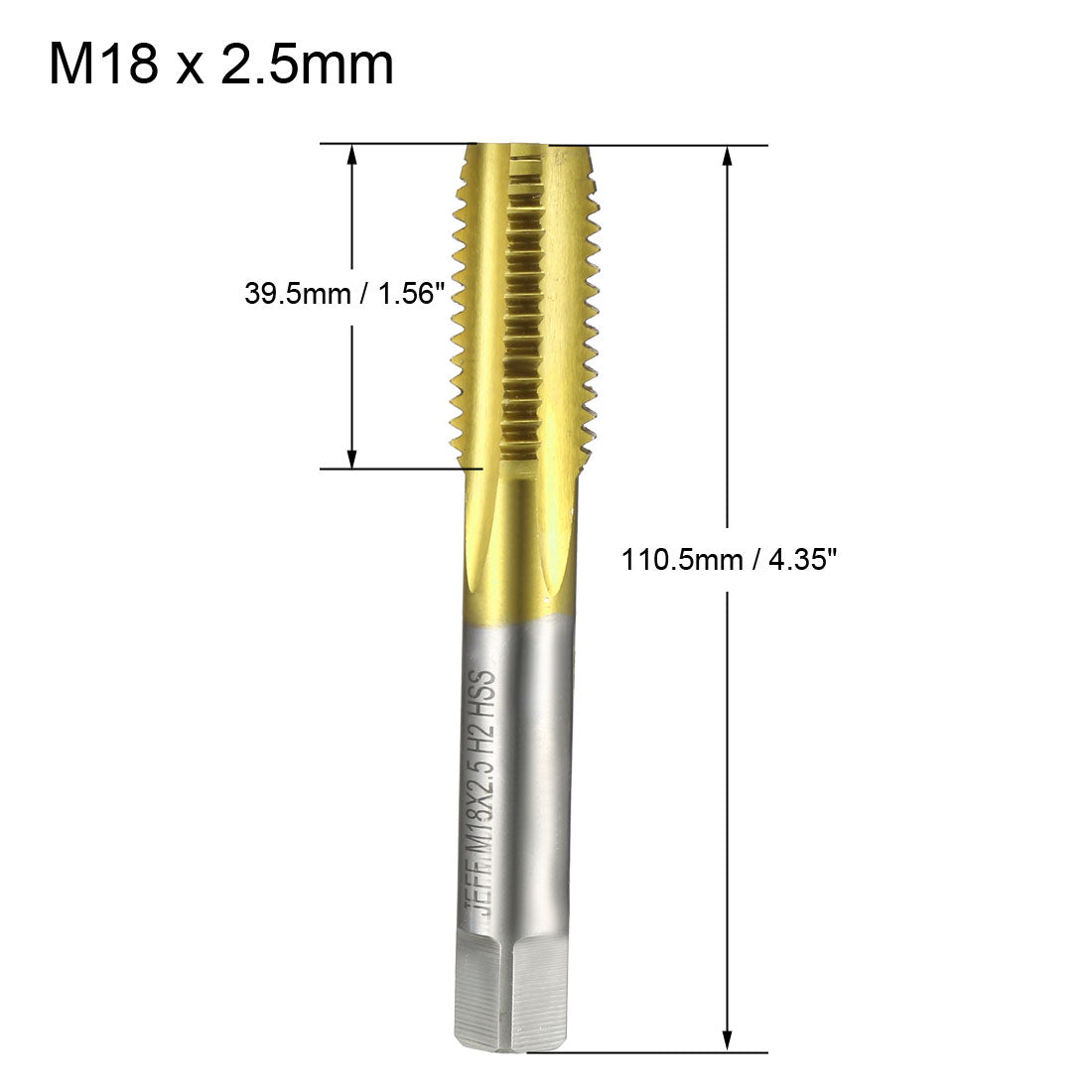

Specifications:

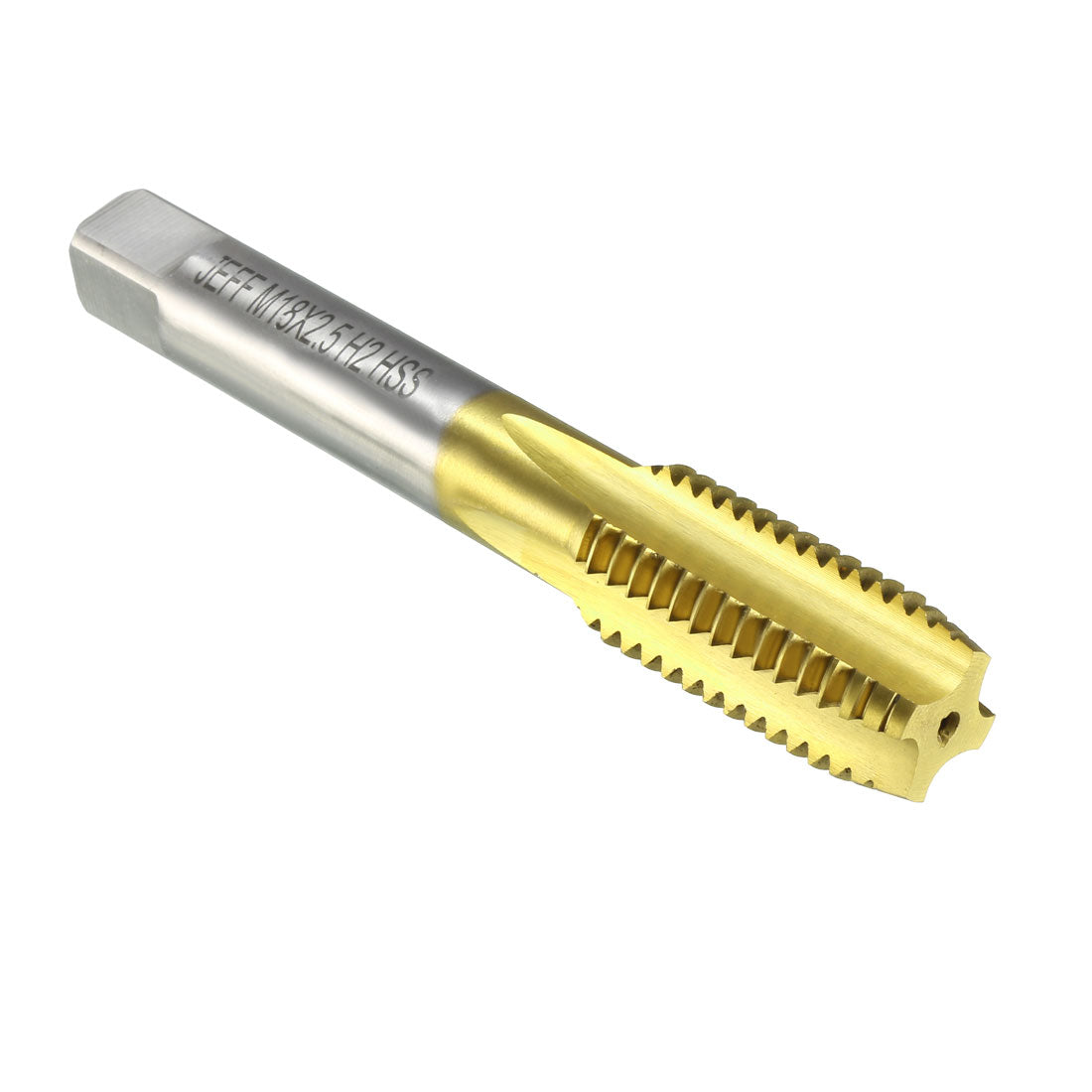

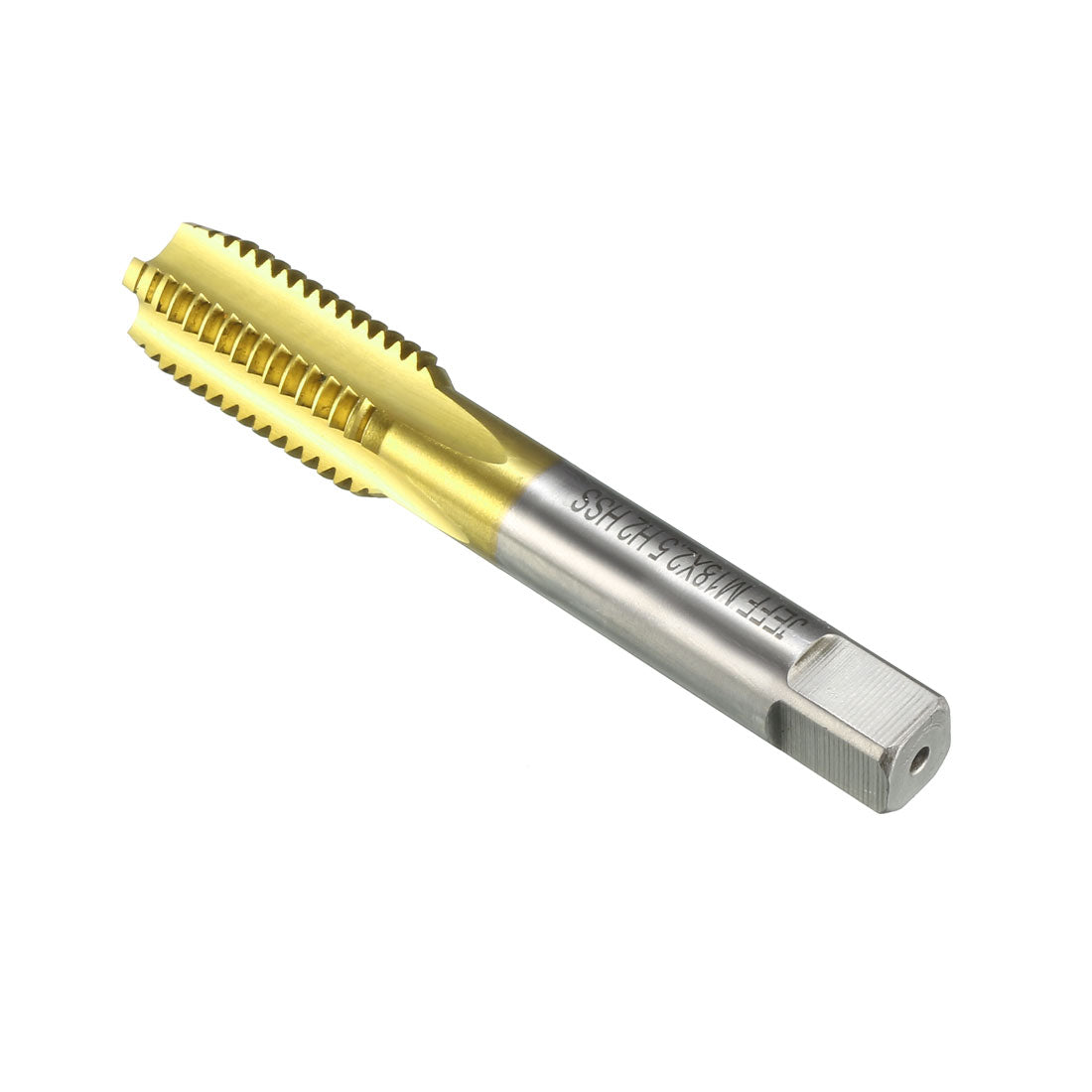

Thread Size: M18 x 2.5
Accuracy: H2
Shank Width: 11mm / 0.43 inch
Thread Length: 39.5mm / 1.56 inch
Total Length: 110.5mm / 4.35 inch
Material: HSS (High-Speed Steel)
Finish: Titanium Coated
Package Contents: 1 x Metric Machine Tap

Descriptions:

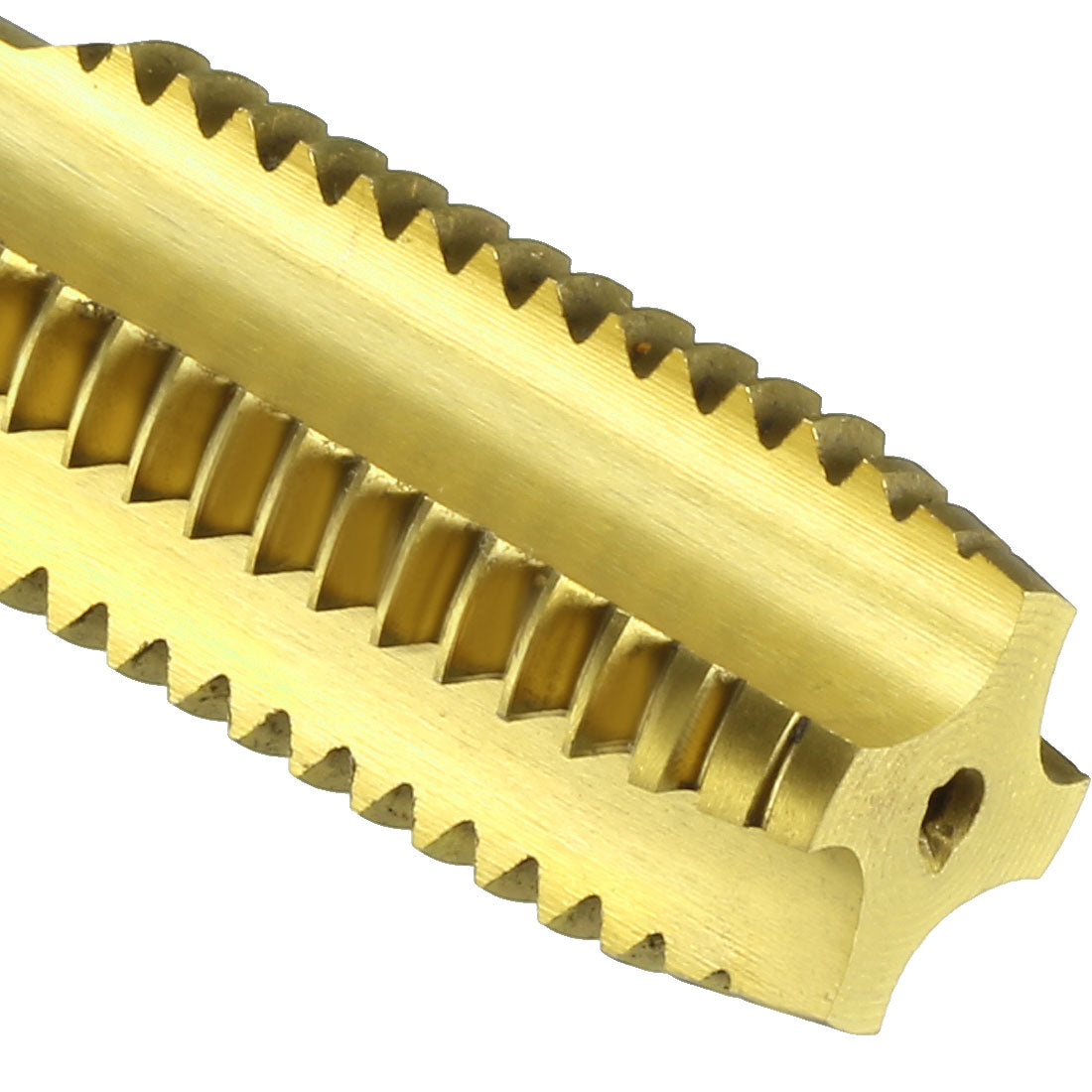

1. Straight flute tap, clear threads without burrs, right hand tapping direction. Provides rapid downward chip removal to achieve efficient thread cutting, suitable for processing through holes or shallow holes.
2. Thread taps create new threads or re-thread damaged or jammed threads. Widely used for most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc.. Add proper tapping oil for higher quality internal threads and more durable taps.
3. 6542 high-speed steel metric taps offer high hardness, good toughness, wear resistance, and excellent cutting. Titanium coating provides excellent corrosion resistance, improves wear resistance and hardness, and reduces the coefficient of friction for smoother tapping.
4. Machine taps are used with tapping machines, drilling machines, milling machines, CNC. Recommended feed speed: ordinary steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. NOT recommended for hand and electric drill tapping.

Tips:
1. Control speed according to material hardness. The higher the hardness, the slower the speed. Fast speed with small torque; slow speed with high torque. The force must be uniform in tapping operations.

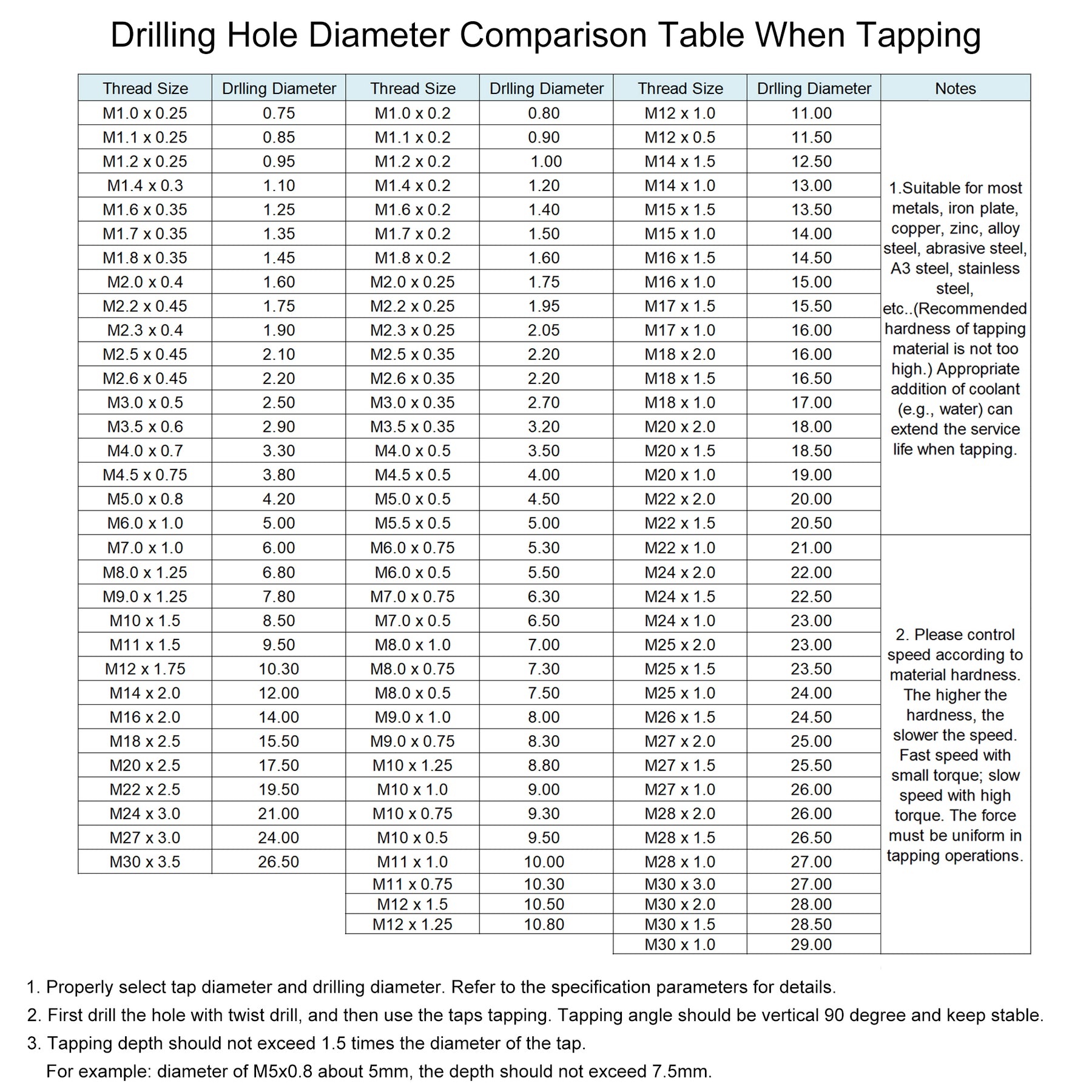

2. Drill the holes with a twist drill bit first, then tap with a thread tap. The tapping angle should be 90 degrees vertical and stable.
3. The tapping depth should not exceed 1.5 times the diameter of the tap (for example, the diameter M5x0.8 is about 5mm, and the depth should not exceed 7.5mm.)
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£18.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specifications:
Thread Size: M18 x 2.5
Accuracy: H2
Shank Width: 11mm / 0.43 inch
Thread Length: 39.5mm / 1.56 inch
Total Length: 110.5mm / 4.35 inch
Material: HSS (High-Speed Steel)
Finish: Titanium Coated
Package Contents: 1 x Metric Machine Tap

Descriptions:
1. Straight flute tap, clear threads without burrs, right hand tapping direction. Provides rapid downward chip removal to achieve efficient thread cutting, suitable for processing through holes or shallow holes.
2. Thread taps create new threads or re-thread damaged or jammed threads. Widely used for most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc.. Add proper tapping oil for higher quality internal threads and more durable taps.
3. 6542 high-speed steel metric taps offer high hardness, good toughness, wear resistance, and excellent cutting. Titanium coating provides excellent corrosion resistance, improves wear resistance and hardness, and reduces the coefficient of friction for smoother tapping.
4. Machine taps are used with tapping machines, drilling machines, milling machines, CNC. Recommended feed speed: ordinary steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. NOT recommended for hand and electric drill tapping.

Tips:
1. Control speed according to material hardness. The higher the hardness, the slower the speed. Fast speed with small torque; slow speed with high torque. The force must be uniform in tapping operations.
2. Drill the holes with a twist drill bit first, then tap with a thread tap. The tapping angle should be 90 degrees vertical and stable.
3. The tapping depth should not exceed 1.5 times the diameter of the tap (for example, the diameter M5x0.8 is about 5mm, and the depth should not exceed 7.5mm.)
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
