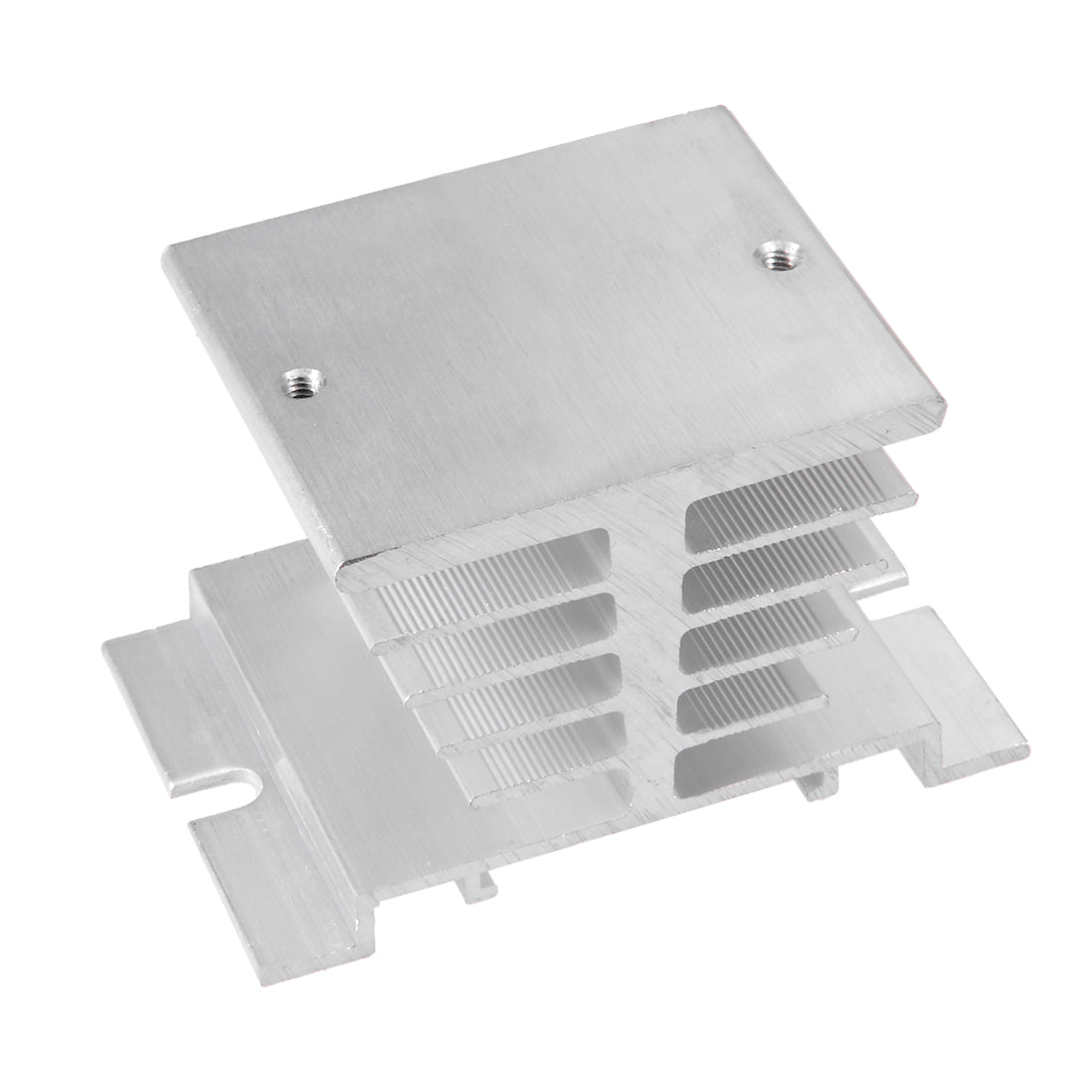

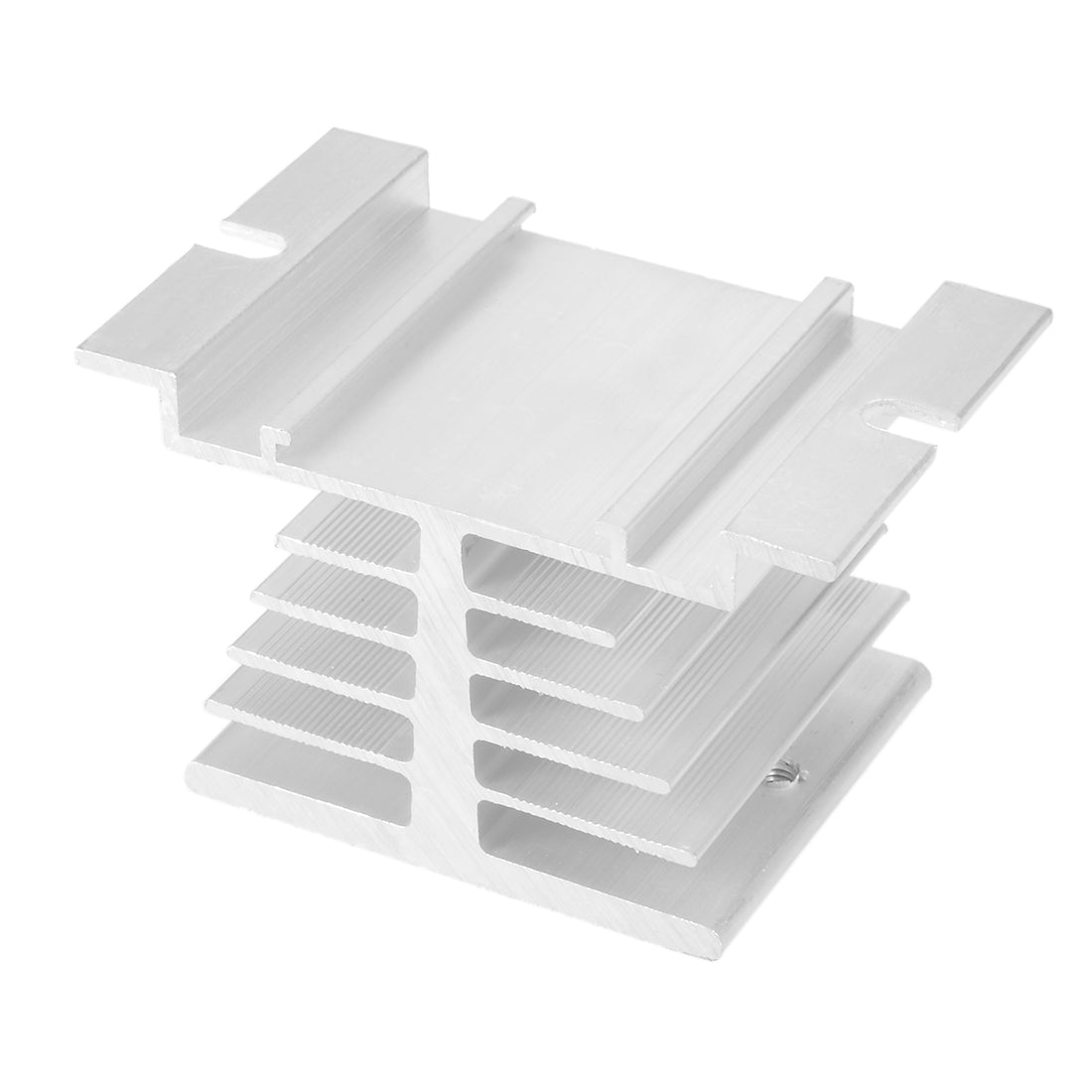

Harfington Aluminum Heat Sink SSR Dissipation for Single Phase Solid State Relay 10A-40A

Aluminum Heat Sink SSR Dissipation for Single Phase Solid State Relay 10A-40A

ID:
£10.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Model: AI-50W;Fit for: Single Phase SSR;Total Size (Approx.): 8 x 5 x 5cm / 3.1-inch x 2-inch x 2-inch (L*W*H);Mounting Hole Diameter (Approx.): M4;Threaded Hole Distance: 48mm / 1.88-inch;Base Mounting Hole Diameter: 9 x 5mm / 0.4" x 0.2"(L*W);Size Roof (Approx.): 60 x 50mm / 2.36-inch x 1.97-inch (L*W);Size Foot (Approx.): 80 x 50mm / 3.15-inch x 1.97-inch (L*W);Package Content: 1 x Aluminum Heat Sink
  • Made of durable aluminum material, mountable heatsink design, compact size, easy to install.
  • It has good thermal conductivity, large heat dissipation, fast heat dissipation, high metal heat intensity, lightweight and corrosion resistance. It is helpful to dissipate the heat and protect your relay,
  • The Heat Sink is specially designed for single phase SSR solid state relay, which currently less than 15A.Widely used in machinery, wind power generation, construction machinery, air compressors, household appliances and other industries.
  • Heat Sink ONLY, Solid State Relay NOT INCLUDED here.
  • In stock, ready to ship
Cart
Cart
About this item
  • Model: AI-50W;Fit for: Single Phase SSR;Total Size (Approx.): 8 x 5 x 5cm / 3.1-inch x 2-inch x 2-inch (L*W*H);Mounting Hole Diameter (Approx.): M4;Threaded Hole Distance: 48mm / 1.88-inch;Base Mounting Hole Diameter: 9 x 5mm / 0.4" x 0.2"(L*W);Size Roof (Approx.): 60 x 50mm / 2.36-inch x 1.97-inch (L*W);Size Foot (Approx.): 80 x 50mm / 3.15-inch x 1.97-inch (L*W);Package Content: 1 x Aluminum Heat Sink
  • Made of durable aluminum material, mountable heatsink design, compact size, easy to install.
  • It has good thermal conductivity, large heat dissipation, fast heat dissipation, high metal heat intensity, lightweight and corrosion resistance. It is helpful to dissipate the heat and protect your relay,
  • The Heat Sink is specially designed for single phase SSR solid state relay, which currently less than 15A.Widely used in machinery, wind power generation, construction machinery, air compressors, household appliances and other industries.
  • Heat Sink ONLY, Solid State Relay NOT INCLUDED here.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

1.Made of durable aluminum material, mountable heatsink design, compact size, easy to install. It has good thermal conductivity, large heat dissipation, fast heat dissipation, high metal heat intensity, lightweight and corrosion resistance. It is helpful to dissipate the heat and protect your relay,

2.The Heat Sink is specially designed for single phase SSR solid state relay, which currently less than 15A. Widely used in machinery, wind power generation, construction machinery, air compressors, household appliances and other industries.

3.Heat Sink ONLY, Solid State Relay NOT INCLUDED here.



Specification:

*Product Name: Aluminum Heat Sink

*Package Content: 1 x Aluminum Heat Sink

*Model: AI-50W

*Fit for: Single Phase SSR

*Material: Aluminum

*Main Color: Silver Tone

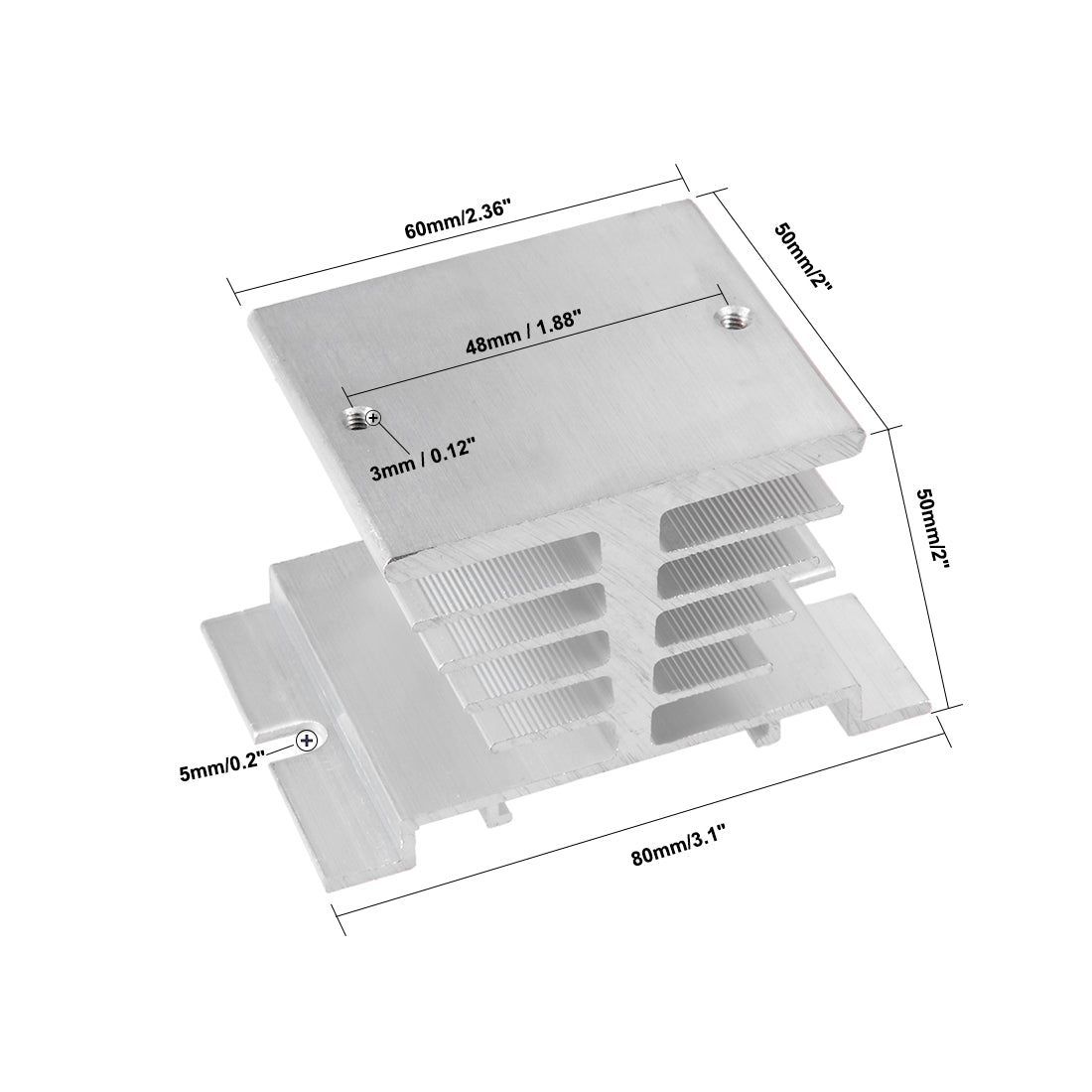

*Total Size (Approx.): 8 x 5 x 5cm / 3.1-inch x 2-inch x 2-inch (L*W*H)

*Mounting Hole Diameter (Approx.): M4

*Threaded Hole Distance: 48mm / 1.88-inch

*Base Mounting Hole Diameter: 9 x 5mm / 0.4" x 0.2"(L*W)

*Size Roof (Approx.): 60 x 50mm / 2.36-inch x 1.97-inch (L*W)

*Size Foot (Approx.): 80 x 50mm / 3.15-inch x 1.97-inch (L*W)
