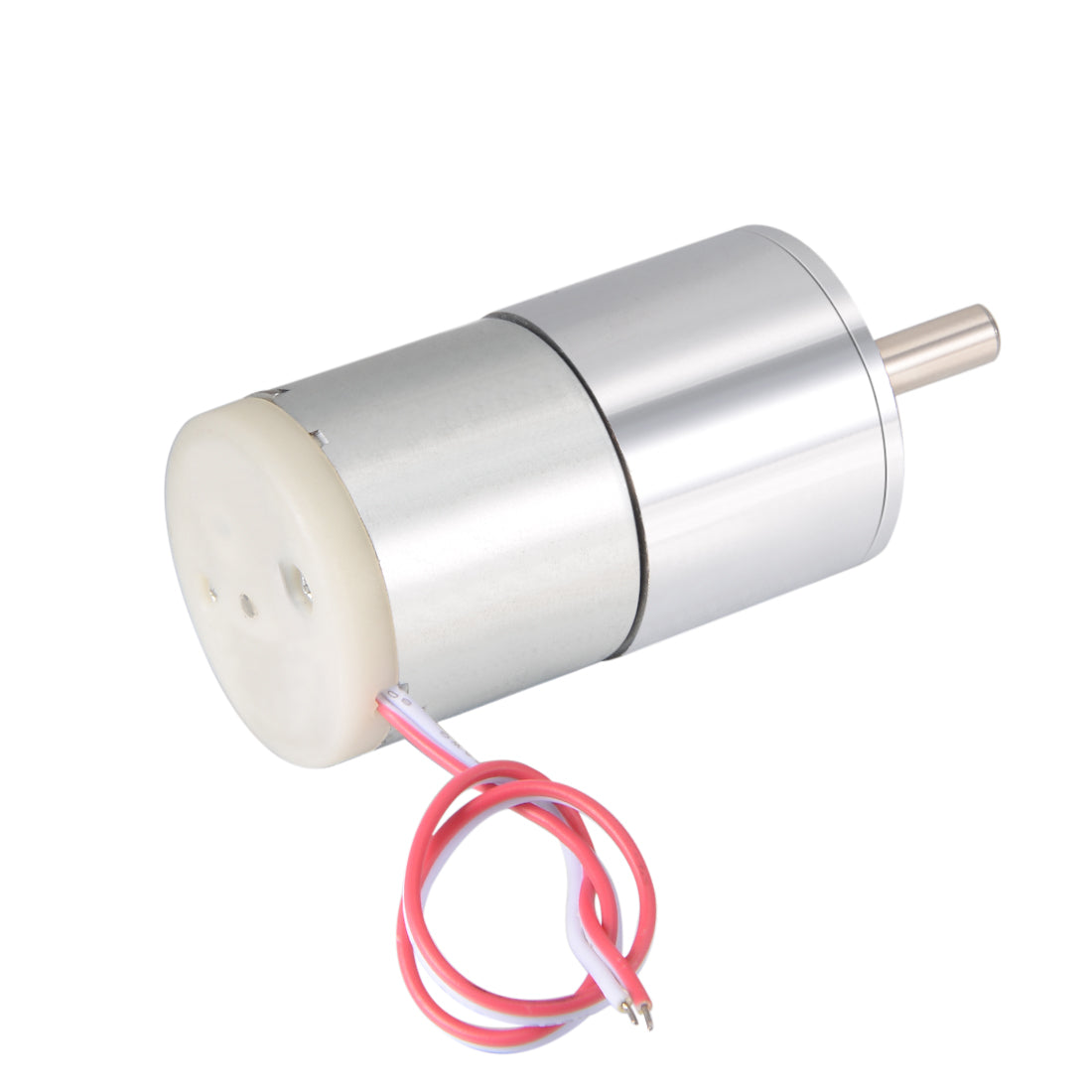

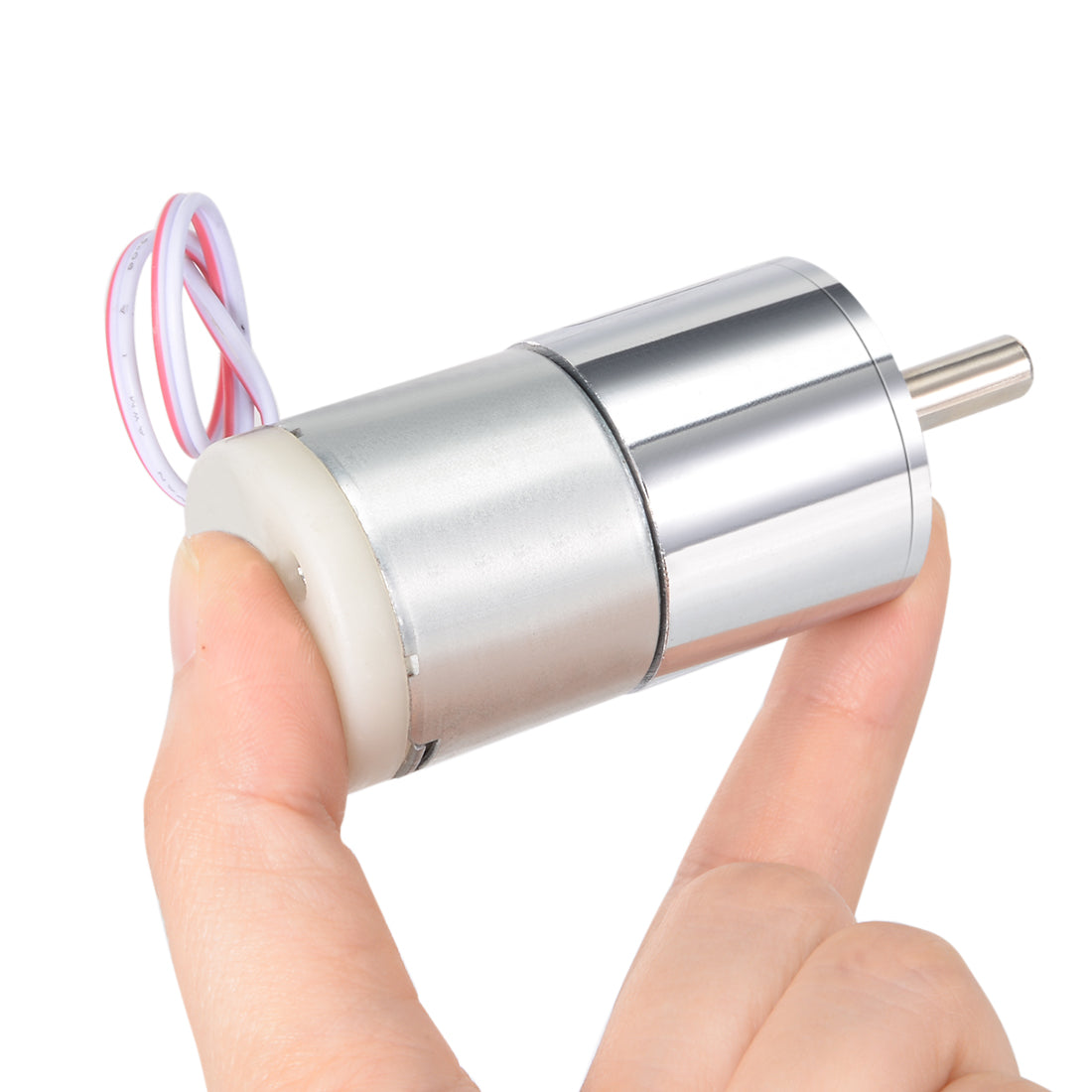

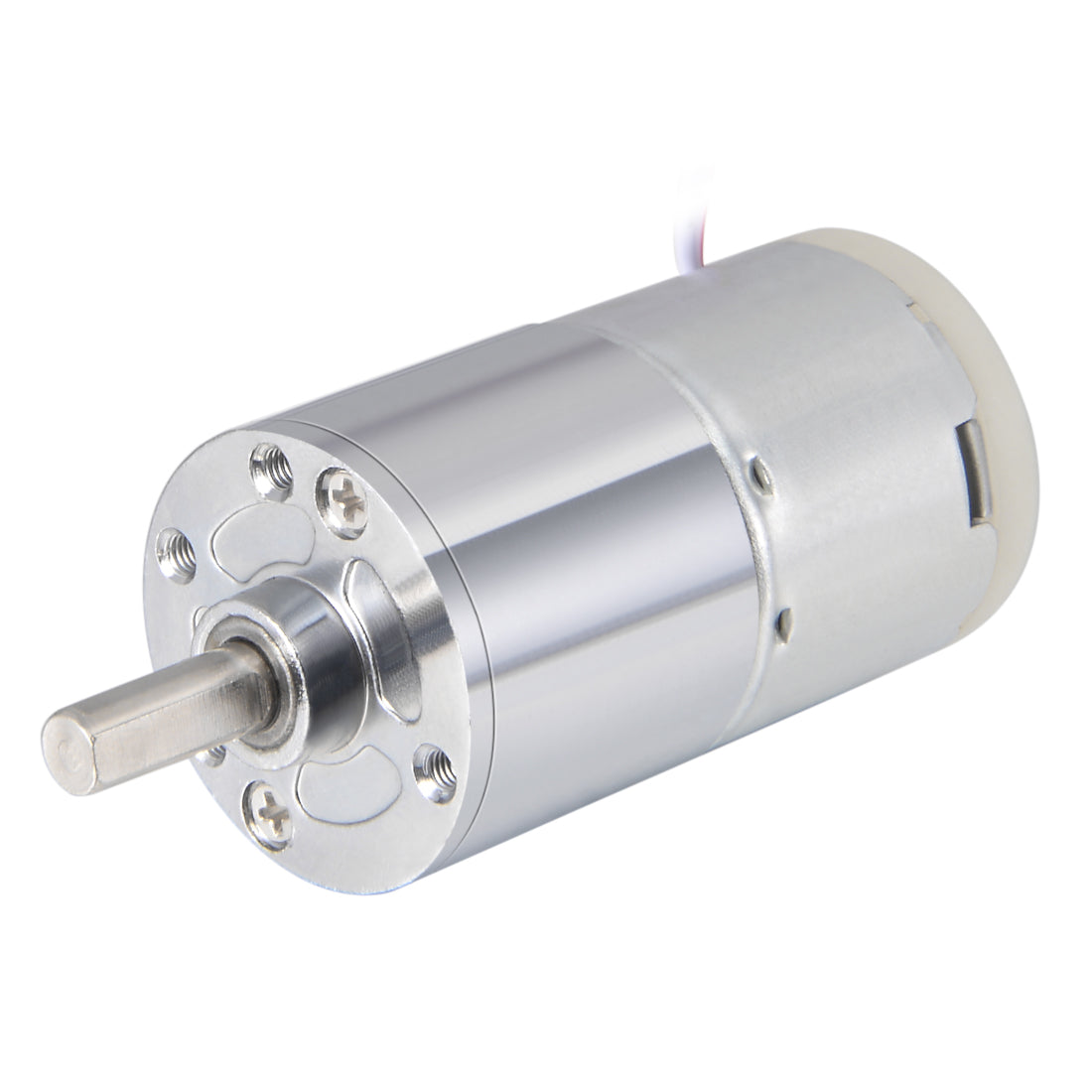

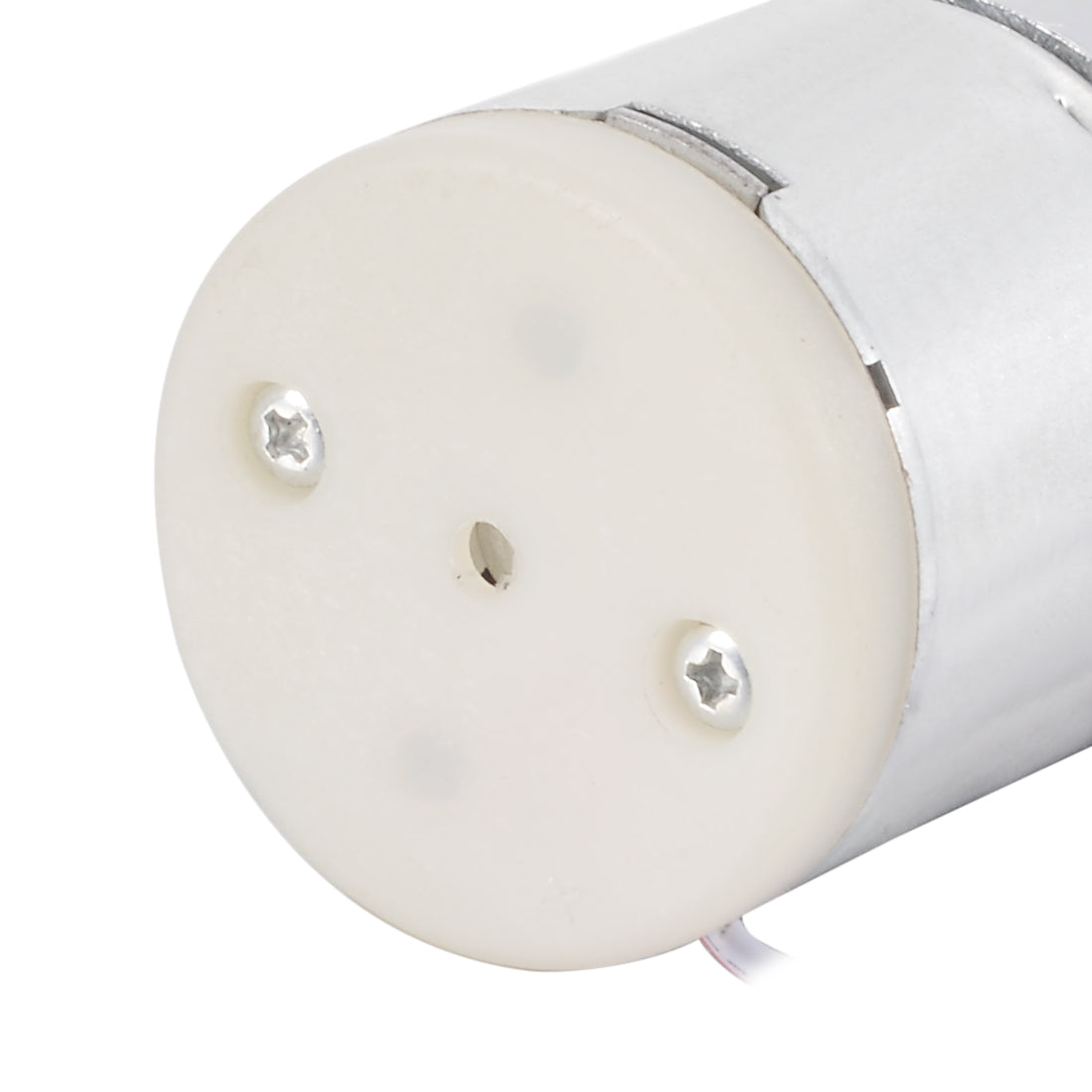

Harfington 24V DC 15 RPM Gear Motor High Torque Electric Reduction Gearbox Centric Output Shaft

24V DC 15 RPM Gear Motor High Torque Electric Reduction Gearbox Centric Output Shaft

ID:
£15.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • THIRD GENERATION UPGRADE VERSION - Our company will launch third generation motors in 2018, and you will receive second or third generation motors at random. Introducing our third generation motor, using materials and processes, 3rd generation products will be more !
  • Specification: No-load Speed: 15RPM at 24 Volts; kg.cm: 10 Power: 7.2W; No-load Current: 0.1A; Load Current: 0.3A; Reduction rate: 1: 24 D Shaft Size: 15mm x 6mm/0.59 x 0.24 inches (L*D); Gearbox Size: 26mm x 32.2mm/ 1.02 x 1.27 inches (L*D); Motor Size: 29mm x 31.5mm/1.14 x 1.14 inches (L*D); Wire Length:17cm/6.69"
  • GREAT LITTLE MOTOR - Small size dc gear motor with low noise and high torque, give your DIY projects a new lease of life! This motor is solidly constructed and ready to install in numerous applications.
  • SPEED ADJUSTABLE - The speed can be adjusted by dc motor speed controller, but if you need a lower or higher speed motor, pls choose the right rpms meets your needs. This motor is reversible so that you can switch positive and negative.
  • WHAT YOU GET - A pretty small little motor, has gear reduction box and motor in one small but very well built package.
  • In stock, ready to ship
Cart
Cart
About this item
  • THIRD GENERATION UPGRADE VERSION - Our company will launch third generation motors in 2018, and you will receive second or third generation motors at random. Introducing our third generation motor, using materials and processes, 3rd generation products will be more !
  • Specification: No-load Speed: 15RPM at 24 Volts; kg.cm: 10 Power: 7.2W; No-load Current: 0.1A; Load Current: 0.3A; Reduction rate: 1: 24 D Shaft Size: 15mm x 6mm/0.59 x 0.24 inches (L*D); Gearbox Size: 26mm x 32.2mm/ 1.02 x 1.27 inches (L*D); Motor Size: 29mm x 31.5mm/1.14 x 1.14 inches (L*D); Wire Length:17cm/6.69"
  • GREAT LITTLE MOTOR - Small size dc gear motor with low noise and high torque, give your DIY projects a new lease of life! This motor is solidly constructed and ready to install in numerous applications.
  • SPEED ADJUSTABLE - The speed can be adjusted by dc motor speed controller, but if you need a lower or higher speed motor, pls choose the right rpms meets your needs. This motor is reversible so that you can switch positive and negative.
  • WHAT YOU GET - A pretty small little motor, has gear reduction box and motor in one small but very well built package.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
This is our new low cost, but extremely DC Gear Motor.

Specification:
No-load Speed: 15RPM at 24 Volts;
kg.cm: 10
Power: 7.2W;
No-load Current: 0.1A;
Load Current: 0.3A;
Reduction rate: 1: 24

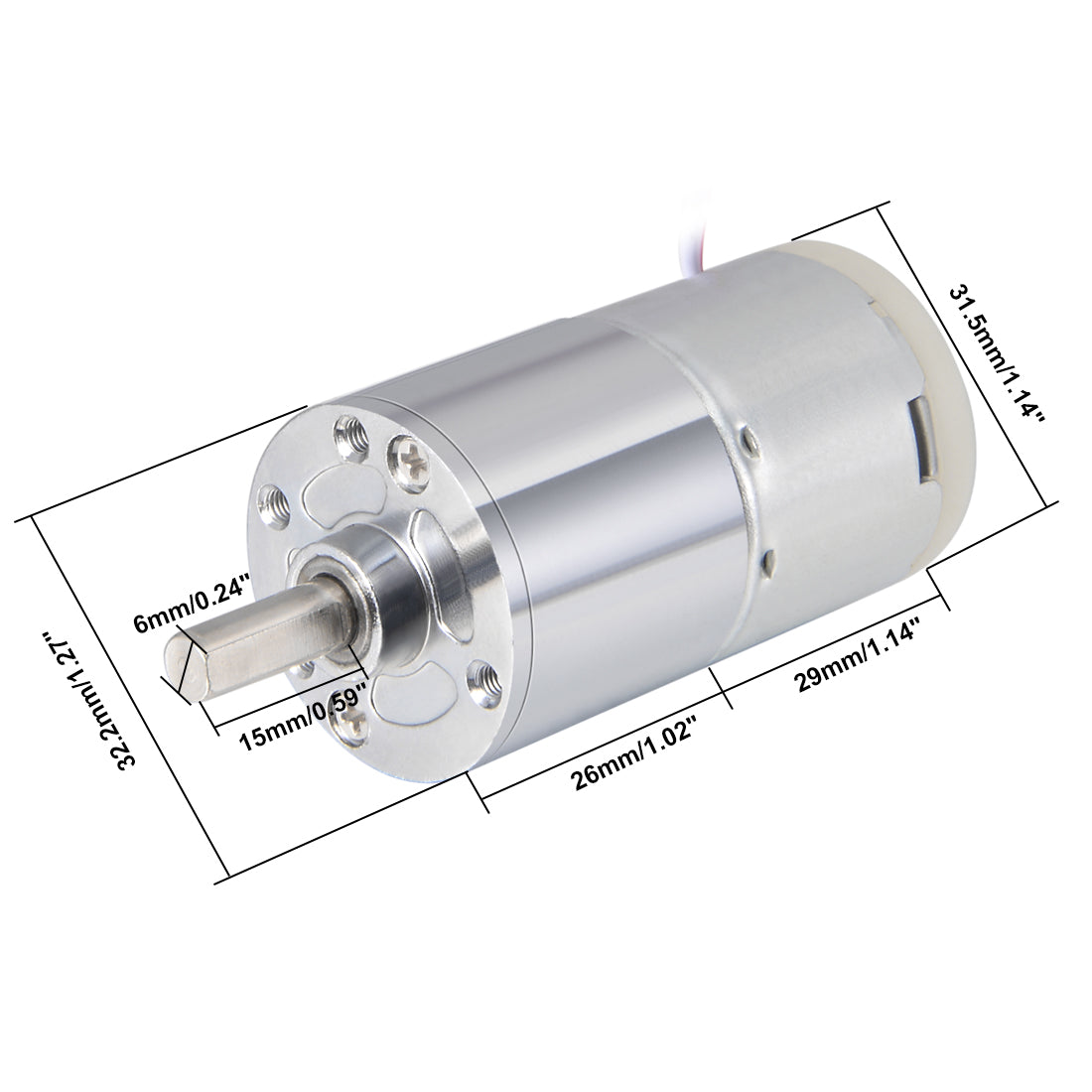

D Shaft Size: 15mm x 6mm/0.59 x 0.24 inches (L*D);
Gearbox Size: 26mm x 32.2mm/ 1.02 x 1.27 inches (L*D);
Motor Size: 29mm x 31.5mm/1.14 x 1.14 inches (L*D);
Wire Length:17cm/6.69inch
