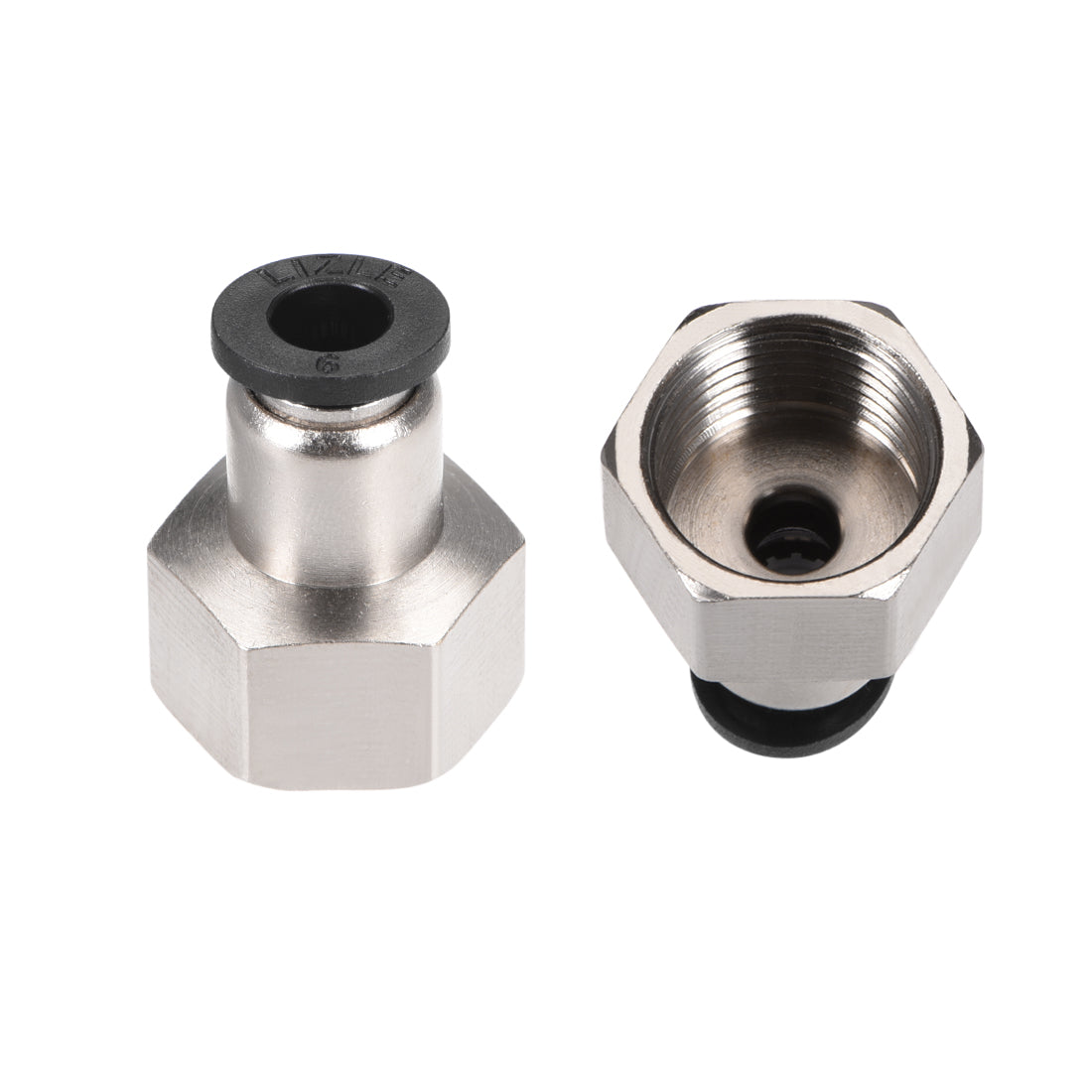

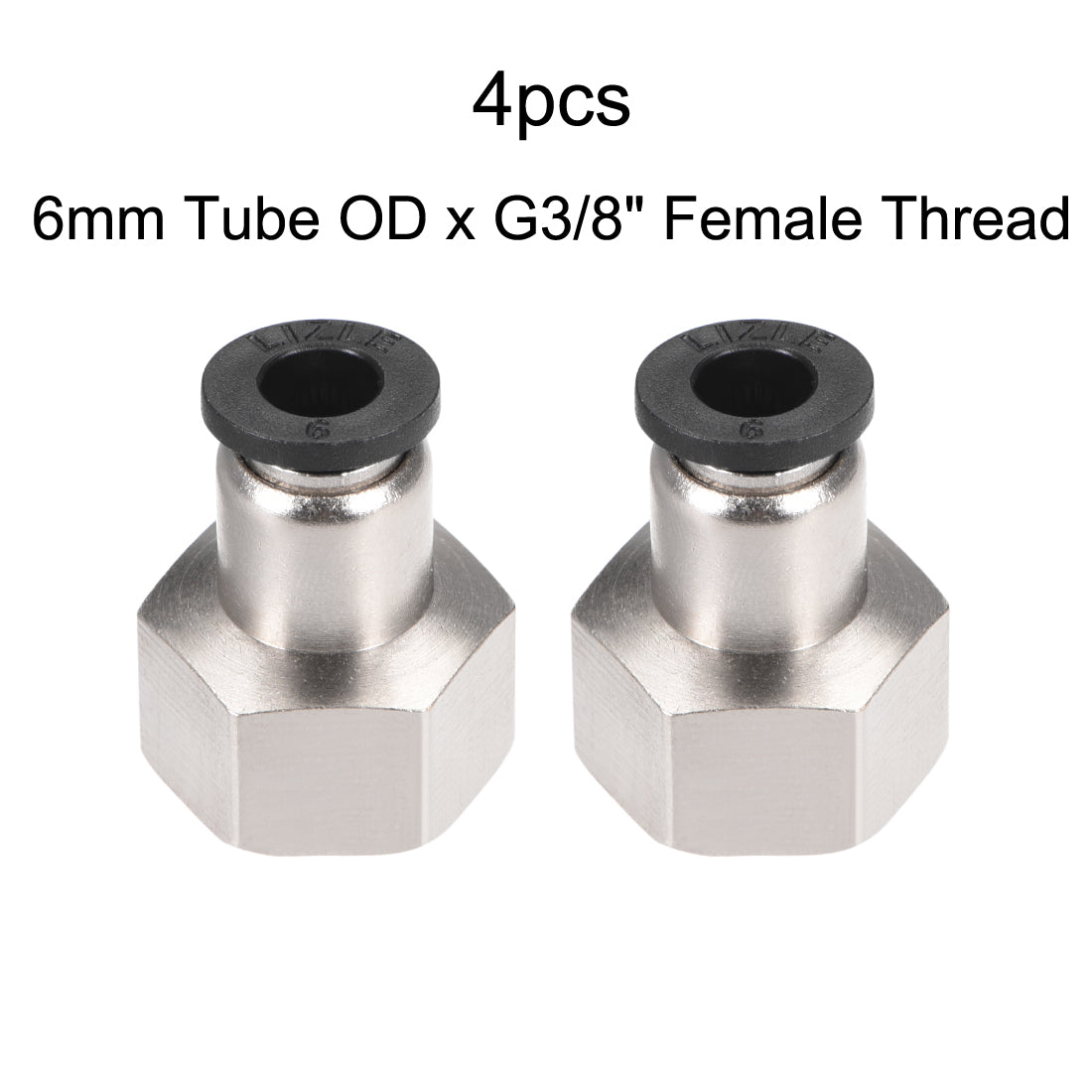

Harfington Push to Connect Tube Fitting Adapter 6mm Tube OD x 3/8BSPT Inch Female Straight Pneumatic Connecter Connect Pipe Fitting Silver Tone 4pcs

Push to Connect Tube Fitting Adapter 6mm Tube OD x 3/8BSPT Inch Female Straight Pneumatic Connecter Connect Pipe Fitting Silver Tone 4pcs

ID:
£9.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • 【UNIVERSAL DESIGN】- Product Name : push to connect fittings ; Tube and Thread Size : 6mm Tube OD x BSPT 3/8" Female Thread
  • Operating Pressure : 0-1MPa ; Operating temperature:0 - 60 Degree Celsius;
  • 【GOOD DESIGN】- Push-to-connect tube connection on one end and female G threads on the other end. A good release cap can withstand greater and stronger pressure without tripping.
  • 【ADVANTAGE】- Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
  • 【APPLICATION】-Designed for using to connect with polyethylene, nylon and PU tubing.Quick and simple installation.
  • In stock, ready to ship
Cart
Cart
About this item
  • 【UNIVERSAL DESIGN】- Product Name : push to connect fittings ; Tube and Thread Size : 6mm Tube OD x BSPT 3/8" Female Thread
  • Operating Pressure : 0-1MPa ; Operating temperature:0 - 60 Degree Celsius;
  • 【GOOD DESIGN】- Push-to-connect tube connection on one end and female G threads on the other end. A good release cap can withstand greater and stronger pressure without tripping.
  • 【ADVANTAGE】- Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
  • 【APPLICATION】-Designed for using to connect with polyethylene, nylon and PU tubing.Quick and simple installation.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Product Features:

Product Name : push to connect fittings

Model : PCF6-03

Net Weight : 75g

Color : Silver Tone,Black

Material : Plastic,Brass

Operating Pressure : 0-1MPa

Operating temperature:0 - 60 Degree Celsius;

Female Thread Type : BSPT Type

Type: Female Straight Thread Connector

Thread Tube Inner Hole Type : Round

Thread Size : BSPT 3/8"

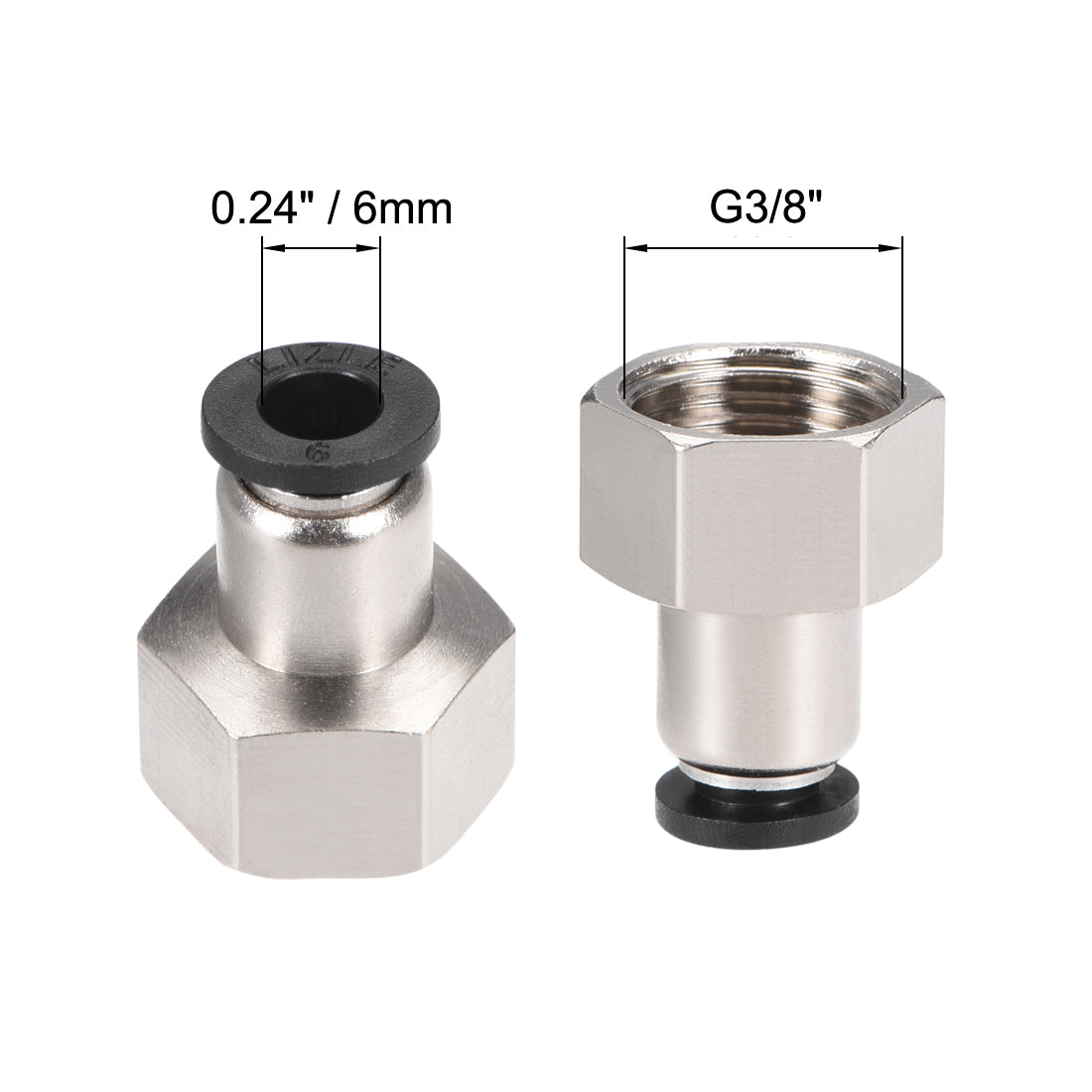

Tube Size (OD): 0.24" / 6mm

Dimension : 26mm x21.3mm / 1.02-inch x 0.84-inch (L x W)



Package Content:

4pcs x fittings



Description:

1.The fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.

2.Push-to-connect tube connection on one end and Female G threads on the other end.

3.A good release cap can withstand greater and stronger pressure without tripping.

4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

5.Elliptical release ring help to connect tube easily by manual, no special tools required.



Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£9.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Product Features:

Product Name : push to connect fittings

Model : PCF6-03

Net Weight : 75g

Color : Silver Tone,Black

Material : Plastic,Brass

Operating Pressure : 0-1MPa

Operating temperature:0 - 60 Degree Celsius;

Female Thread Type : BSPT Type

Type: Female Straight Thread Connector

Thread Tube Inner Hole Type : Round

Thread Size : BSPT 3/8"

Tube Size (OD): 0.24" / 6mm

Dimension : 26mm x21.3mm / 1.02-inch x 0.84-inch (L x W)



Package Content:

4pcs x fittings



Description:

1.The fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.

2.Push-to-connect tube connection on one end and Female G threads on the other end.

3.A good release cap can withstand greater and stronger pressure without tripping.

4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

5.Elliptical release ring help to connect tube easily by manual, no special tools required.



Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
