Harfington Push Button Switch Station Momentary NC Red, NO Green, 380V 10A

Push Button Switch Station Momentary NC Red, NO Green, 380V 10A

ID:
£11.00 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Operation Type: Momentary; Terminals Quantity: 4; Ui: 380V; Ith: 10A
  • Screw Hole Dia: 4mm / 0.16"; Button Diameter: 25mm / 0.98"

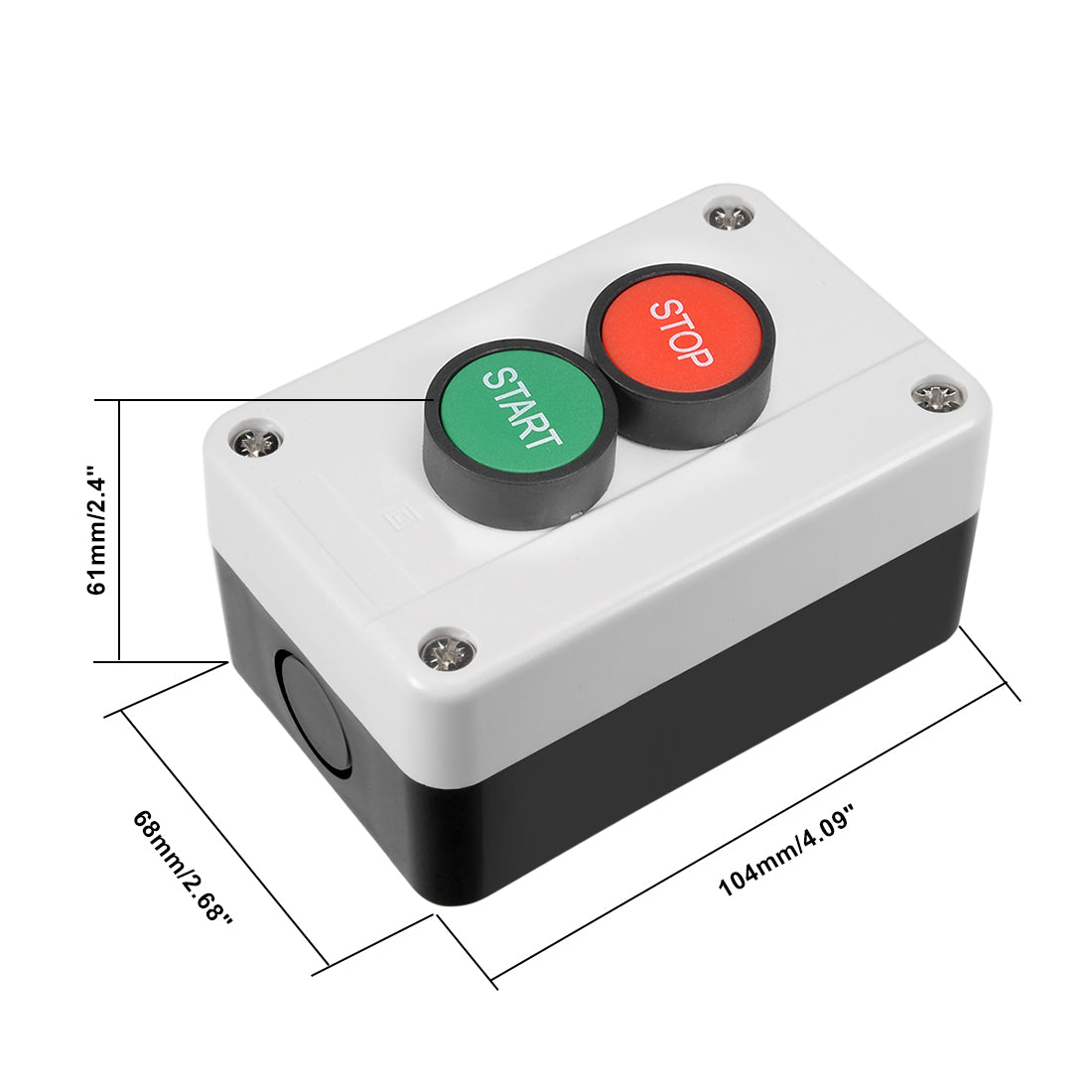

  • Total Size (Approx.): 104 x 68 x 61mm / 4.09" x 2.68" x 2.4" (L*W*H);Package Content: 1 x Push Button Switch Station
  • Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.

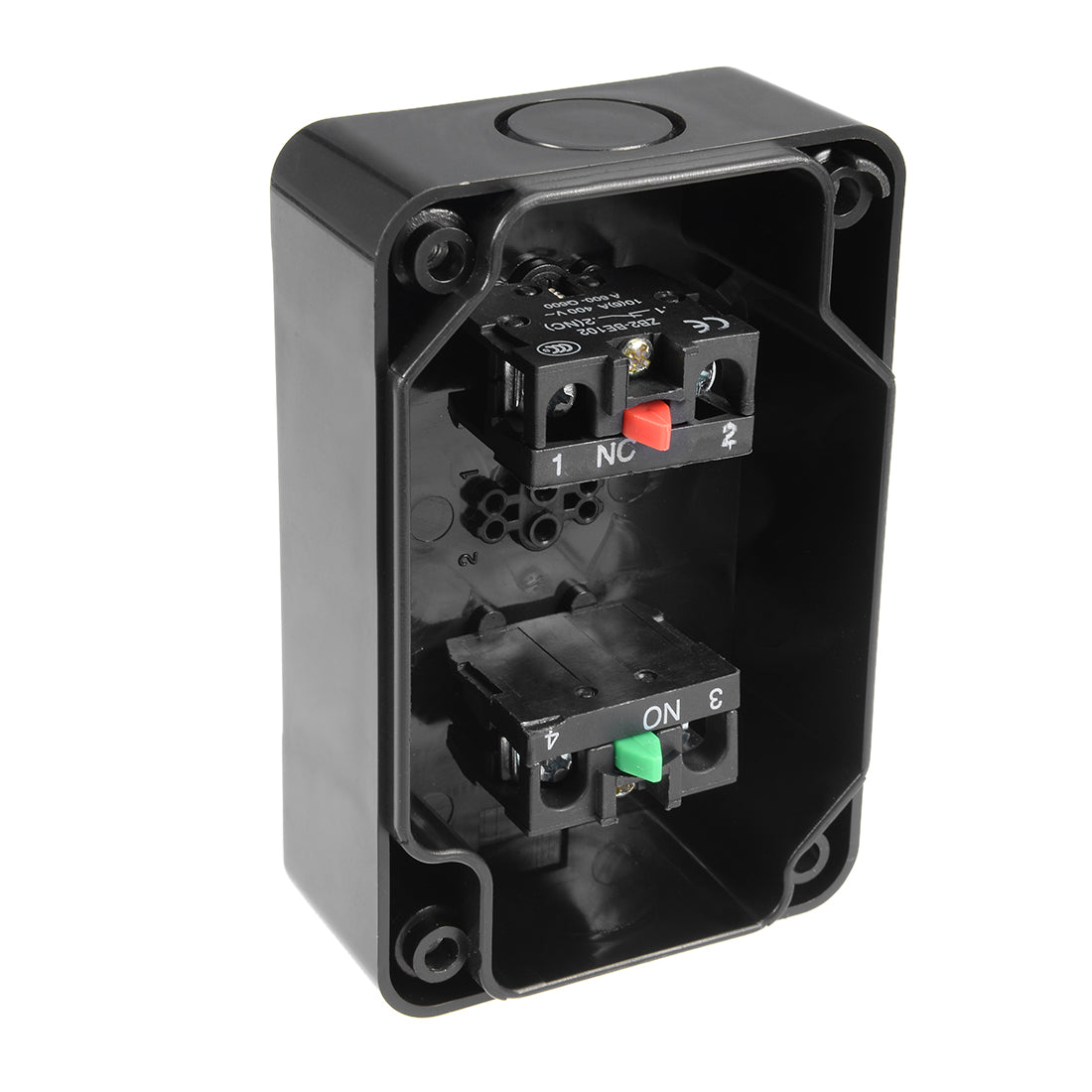

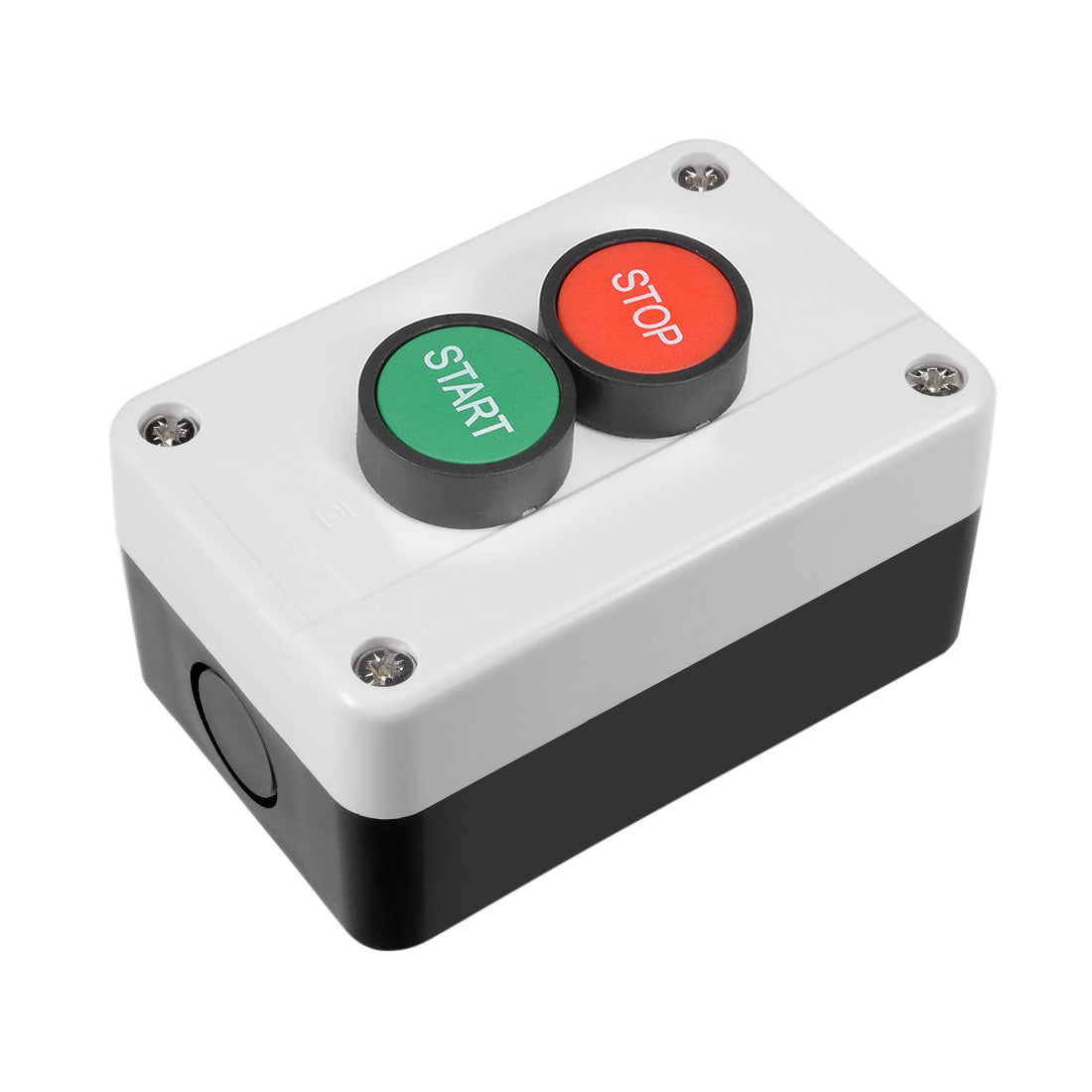

  • The push button switch station consists of two switches, one is a 1 NC momentary Red push button switch, one is a 1 NO momentary Green push button switch.
  • In stock, ready to ship
Cart
Cart
About this item
  • Operation Type: Momentary; Terminals Quantity: 4; Ui: 380V; Ith: 10A
  • Screw Hole Dia: 4mm / 0.16"; Button Diameter: 25mm / 0.98"
  • Total Size (Approx.): 104 x 68 x 61mm / 4.09" x 2.68" x 2.4" (L*W*H);Package Content: 1 x Push Button Switch Station
  • Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.
  • The push button switch station consists of two switches, one is a 1 NC momentary Red push button switch, one is a 1 NO momentary Green push button switch.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Specification:

Material: PC

Action Type: Momentary

Contact Type:

Red Push Button: 1NC

Green Push Button: 1 NO

Ith: 10A; Ui: 380V

Screw Hole Dia: 4mm / 0.16inch

Button Diameter: 25mm / 0.98inch

Hole Distance(Center to Center) : 68 x 54mm/ 2.68 x 2.13inch (L x W)

Total Size (Approx.): 104 x 68 x 61m / 4.09-inch x 2.68-inch x 2.40inch (L*W*T)

Package Content: 1 x Push Button Switch Station



Description:

The push button switch station consists of two switches, one is a 1 NC momentary Red push button switch, one is a 1 NO momentary Green push button switch.

Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.

Comes with quick connect terminals to allow for fast connections.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£11.00 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specification:

Material: PC

Action Type: Momentary

Contact Type:

Red Push Button: 1NC

Green Push Button: 1 NO

Ith: 10A; Ui: 380V

Screw Hole Dia: 4mm / 0.16inch

Button Diameter: 25mm / 0.98inch

Hole Distance(Center to Center) : 68 x 54mm/ 2.68 x 2.13inch (L x W)

Total Size (Approx.): 104 x 68 x 61m / 4.09-inch x 2.68-inch x 2.40inch (L*W*T)

Package Content: 1 x Push Button Switch Station



Description:

The push button switch station consists of two switches, one is a 1 NC momentary Red push button switch, one is a 1 NO momentary Green push button switch.

Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.

Comes with quick connect terminals to allow for fast connections.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
