Harfington 2pcs Fader Variable Resistors Mixer 75mm Straight Slide Potentiometer A103 10K Ohm Exponential double Potentiometers For Dimming Tuning

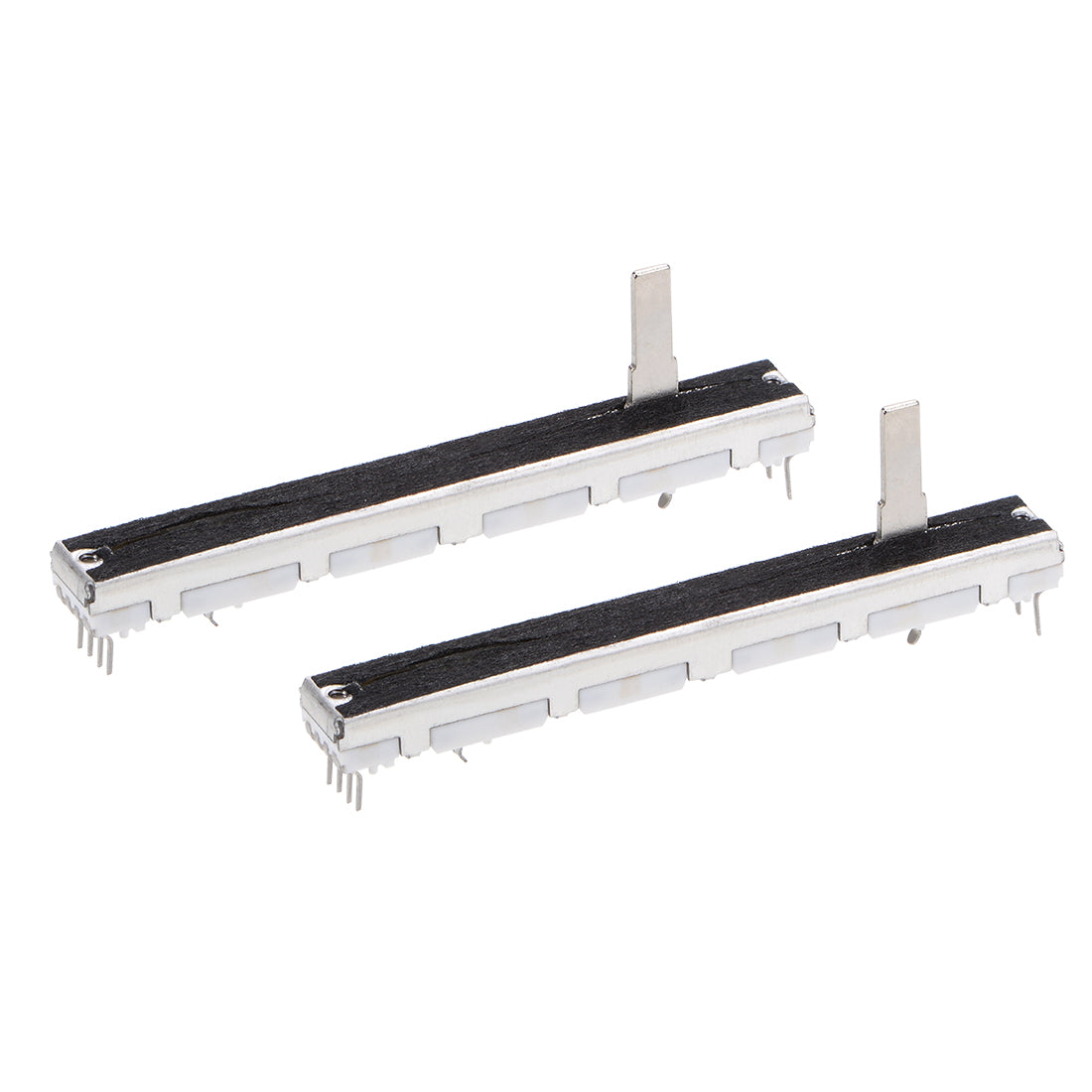

2pcs Fader Variable Resistors Mixer 75mm Straight Slide Potentiometer A103 10K Ohm Exponential double Potentiometers For Dimming Tuning

ID:
£8.00 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Model: A103 (A type Exponential Potentiometers ), Can be used in Dimming Tuning
  • Double Connection, Double Channel, Body Size: 75*9*6.5mm (L*W * H);Shaft Size: 15*4*1.2mm (L* W*T)
  • Feature: In the first half, the resistance changes slowly, and the resistance in the second half changes quickly, which is beneficial to control the volume.
  • Resistance Value: 10K ohm, Tolerance: +/-10%
  • Suitable for mixer, electronic organ, guitar, etc. Mainly use to adjust the volume, tone, balance and light etc.
  • In stock, ready to ship
Cart
Cart
About this item
  • Model: A103 (A type Exponential Potentiometers ), Can be used in Dimming Tuning
  • Double Connection, Double Channel, Body Size: 75*9*6.5mm (L*W * H);Shaft Size: 15*4*1.2mm (L* W*T)
  • Feature: In the first half, the resistance changes slowly, and the resistance in the second half changes quickly, which is beneficial to control the volume.
  • Resistance Value: 10K ohm, Tolerance: +/-10%
  • Suitable for mixer, electronic organ, guitar, etc. Mainly use to adjust the volume, tone, balance and light etc.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:

1.Double Connection, Double Channel

2. In the first half, the resistance changes slowly, and the resistance in the second half changes quickly, which is beneficial to control the volume.



Specifications:

Product Name: Potentiometer

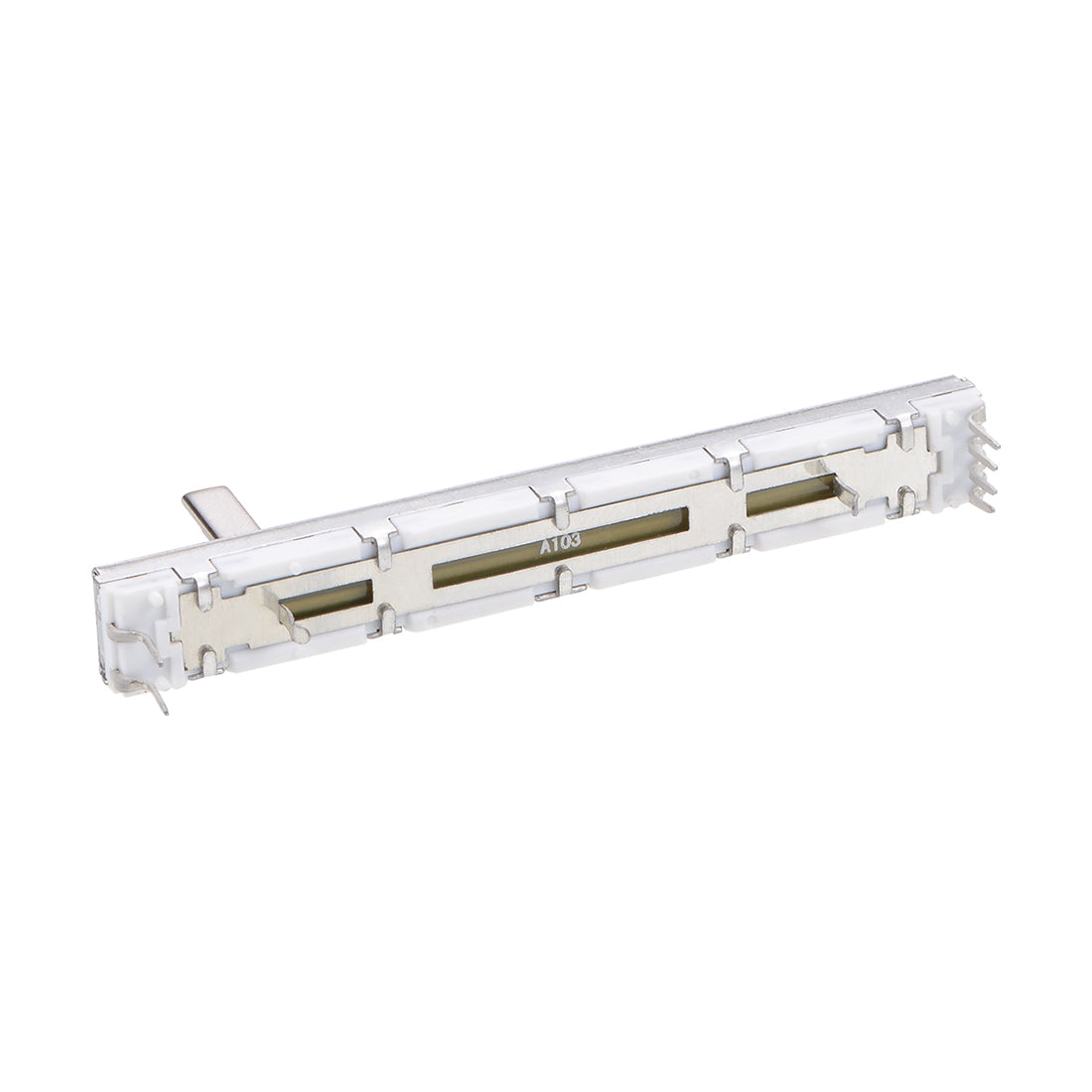

Model: A103 (A type Exponential Potentiometers )

Resistance Value: 10K ohm

Channel: Double Channel

Tolerance: +/-10%

Terminals Number: 6

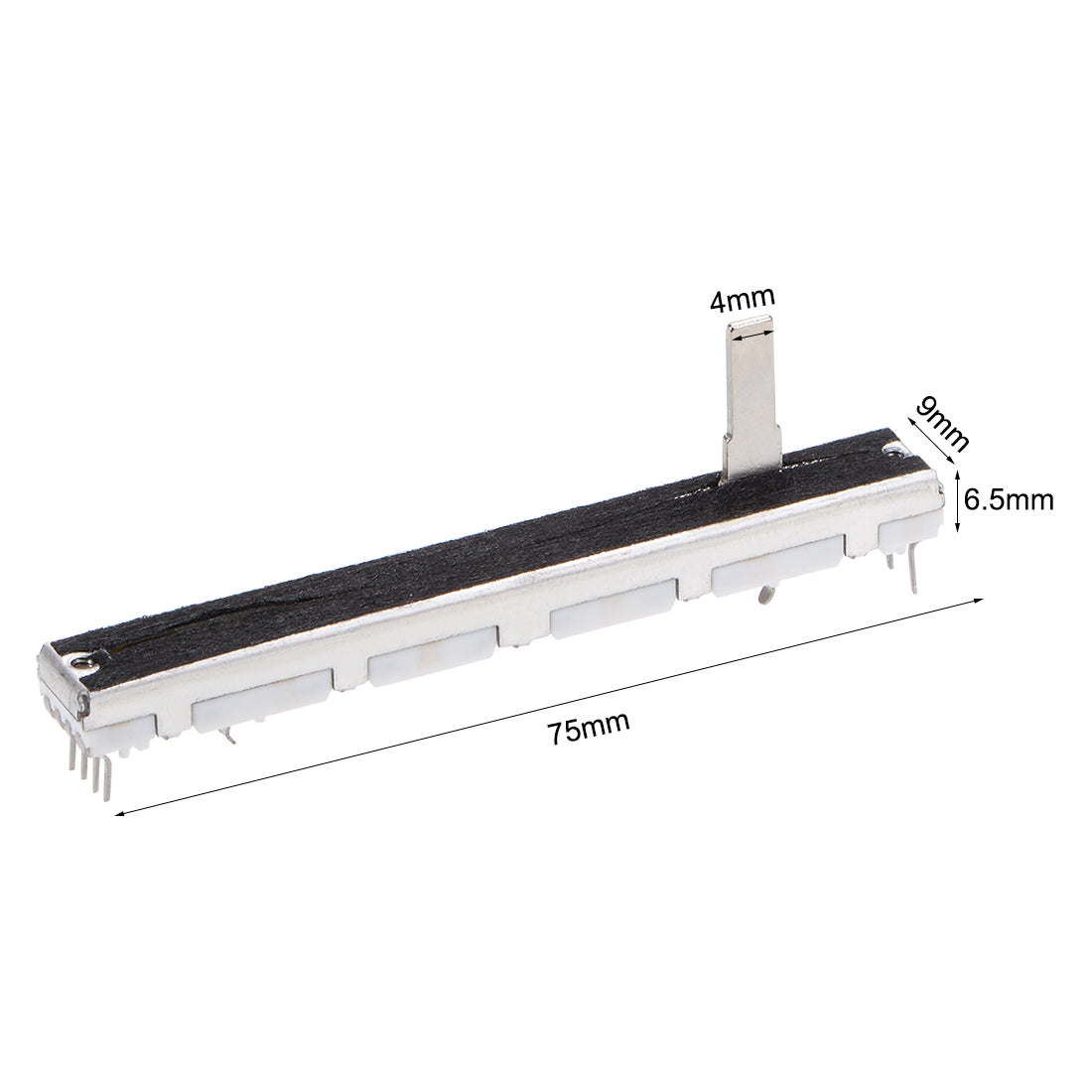

Body Size: 75*9*6.5mm (L*W * H)

Shaft Size: 15*4*1.2mm (L* W*T)

Mounting hole diameter : M2



Package Content :

2 x Straight Slide Potentiometer



Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£8.00 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description:

1.Double Connection, Double Channel

2. In the first half, the resistance changes slowly, and the resistance in the second half changes quickly, which is beneficial to control the volume.



Specifications:

Product Name: Potentiometer

Model: A103 (A type Exponential Potentiometers )

Resistance Value: 10K ohm

Channel: Double Channel

Tolerance: +/-10%

Terminals Number: 6

Body Size: 75*9*6.5mm (L*W * H)

Shaft Size: 15*4*1.2mm (L* W*T)

Mounting hole diameter : M2



Package Content :

2 x Straight Slide Potentiometer



Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
