Harfington Uxcell Linear Ball Bearing Motion Slide Block Units

Uxcell Linear Ball Bearing Motion Slide Block Units

ID:
£8.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
1pcs
Package Content
6mm
Size
About this item
  • Model: SCS6UU, 6mm Nominal Shaft Diameter
  • Aluminium Alloy Linear Ball Bearing Slide Block Units
  • Light-weight housing and Chromium Steel bearing ball, good abrasion resistance, high precision and good strength
  • Smooth moving, low friction, high rigidity and long working life
  • Suitable for kinds of electronic equipment/guide bar, and pillar
  • In stock, ready to ship
Cart
Cart
About this item
  • Model: SCS6UU, 6mm Nominal Shaft Diameter
  • Aluminium Alloy Linear Ball Bearing Slide Block Units
  • Light-weight housing and Chromium Steel bearing ball, good abrasion resistance, high precision and good strength
  • Smooth moving, low friction, high rigidity and long working life
  • Suitable for kinds of electronic equipment/guide bar, and pillar
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:

-SCSUU series Linear Ball Bearing Slide Block Units are complementary to linear ball bearings.

-They usually consist of a light-weight, aluminium housing to provide high strength and stiffness.

-Compact design with High load carrying capacity, Linear Motion Bearing Unit is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.

-Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.

-It is great for 3D printer, CNC, and other applications.

Specification:

Unit No.: SCS6UU

Bearing No.: LM6UU

Slide Block Material: Aluminium Alloy

Bearing Ball Material: Chromium Steel

Cage Material: Nylon

Nominal Shaft Diameter (dr): 6mm

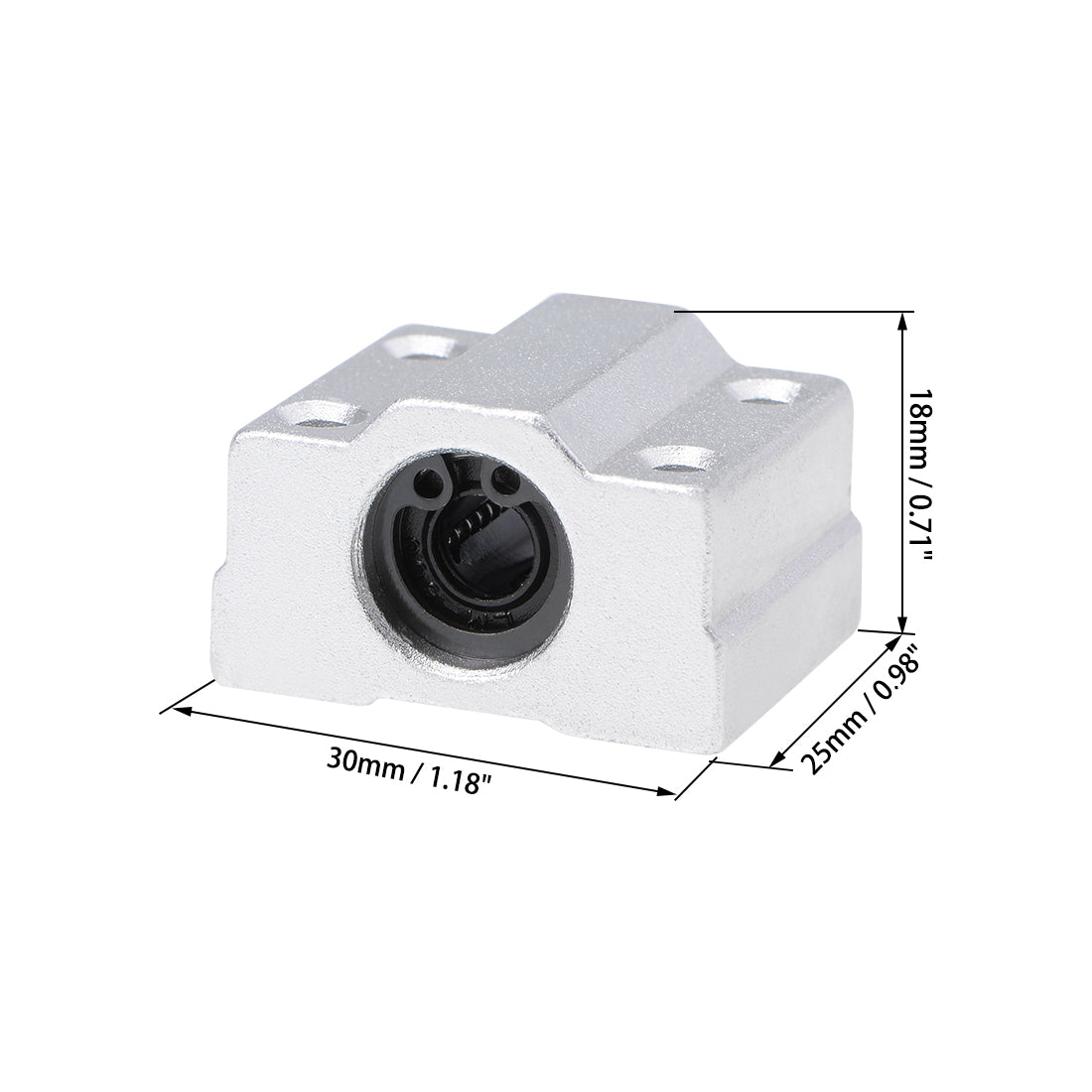

Slide Block Size: 30 x 25 x 18mm / 1.18" x 0.98" x 0.71" (L*W*H)

Mounting Hole Size: M4

Mounting Hole Distance: 20 x 15mm / 0.79" x 0.59" (B*C)

Static Load Capacity (Cor): 0.265kN

Dynamic Load Capacity (Cr): 0.206kN

Package Content:

1 x Linear Ball Bearing
