Harfington Uxcell Thrust Needle Roller Bearings with Washers Metric Chrome Steel

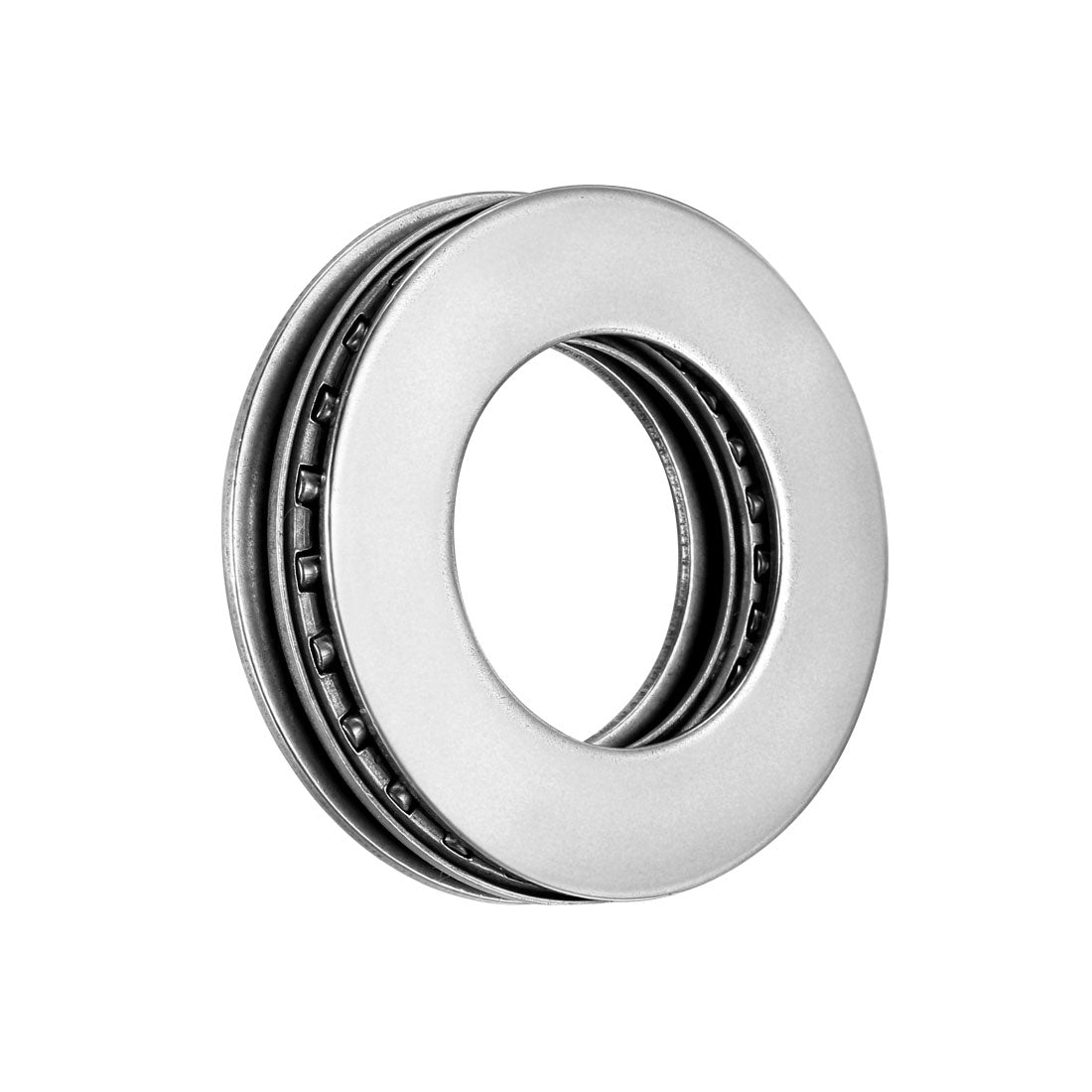

Uxcell Thrust Needle Roller Bearings with Washers Metric Chrome Steel

ID:
£6.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
1pcs
Package Content
15mmx28mmx2mm
Size
About this item
  • [MODLE] - Bearing Model: AXK1528 (I.D.=15mm, O.D.=28mm, Thickness=2mm); Washer Model: AS1528
  • [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
  • [FEATURES] - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
  • [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
  • [CAPABILITY] - 35.5kN Static Load Capacity, 11.2kN Dynamic Load Capacity, 11000RPM Maximum Rotational Speed
  • In stock, ready to ship
Cart
Cart
About this item
  • [MODLE] - Bearing Model: AXK1528 (I.D.=15mm, O.D.=28mm, Thickness=2mm); Washer Model: AS1528
  • [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
  • [FEATURES] - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
  • [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
  • [CAPABILITY] - 35.5kN Static Load Capacity, 11.2kN Dynamic Load Capacity, 11000RPM Maximum Rotational Speed
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
1.This Uxcell Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
2.These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.
3.AXK Thrust Bearings can be combined with washers in the AS series in applications where adjacent components cannot serve as raceways.
4.Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.
5.Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.


Specification:
Bearing No.: AXK1528
Bearing Washer No.: AS1528

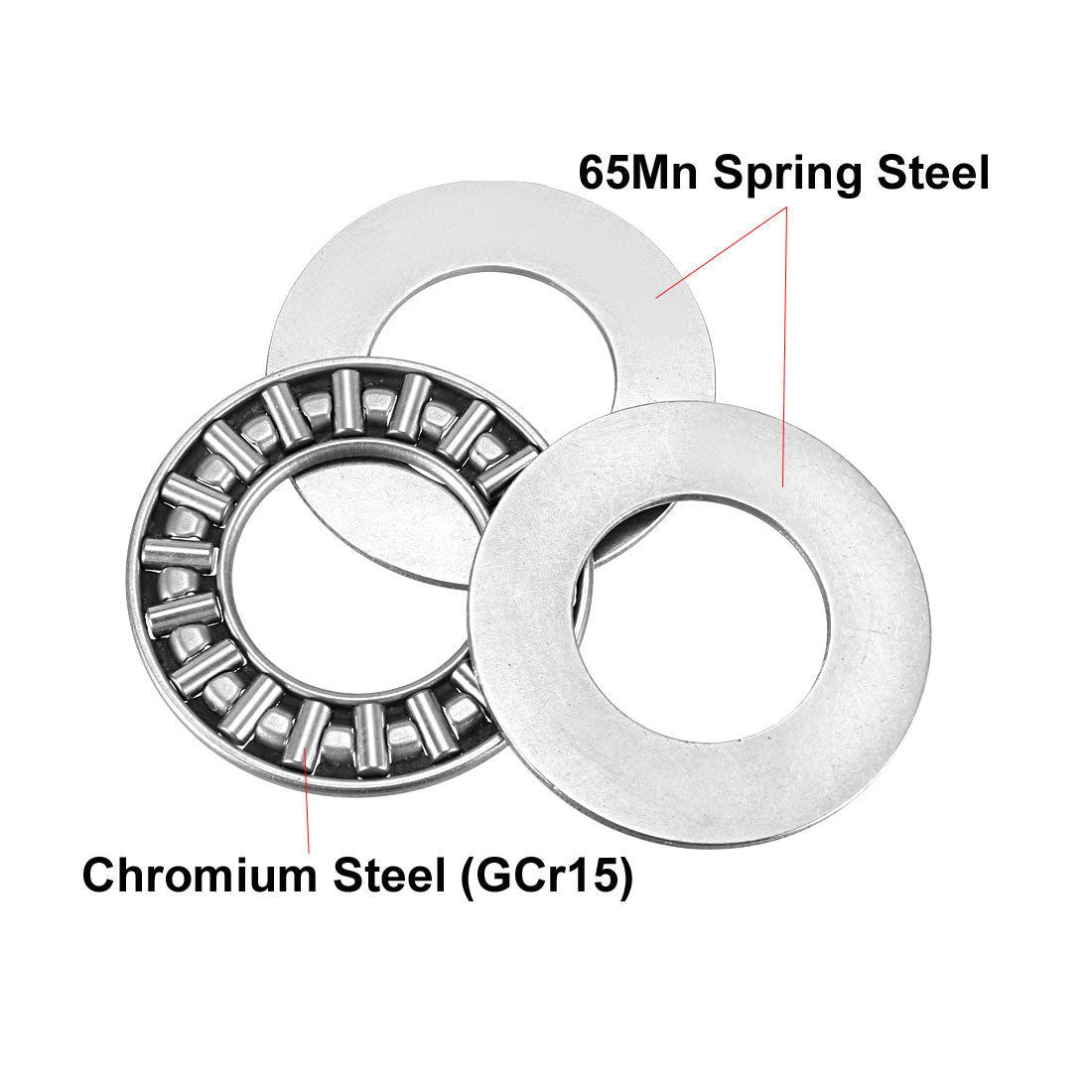

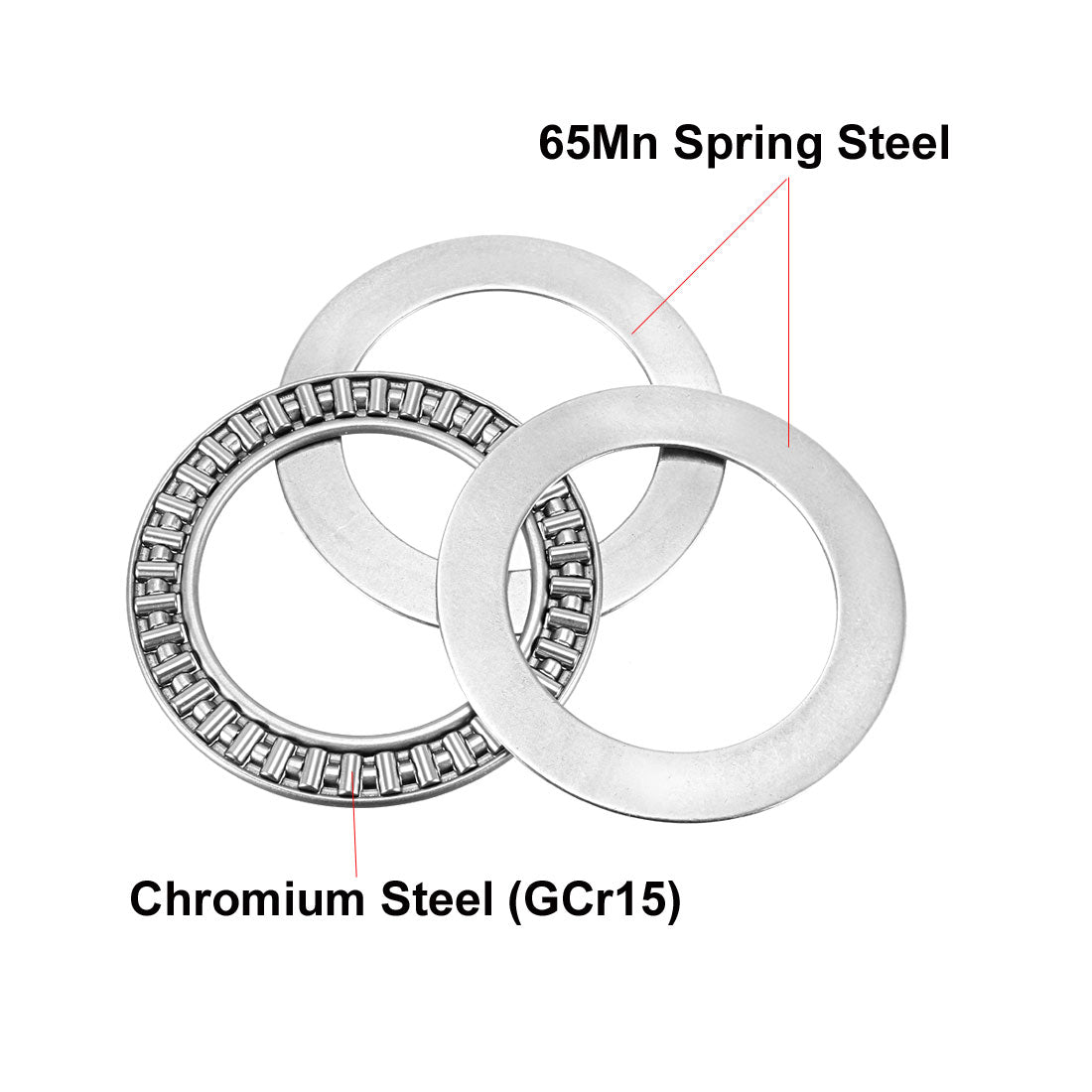

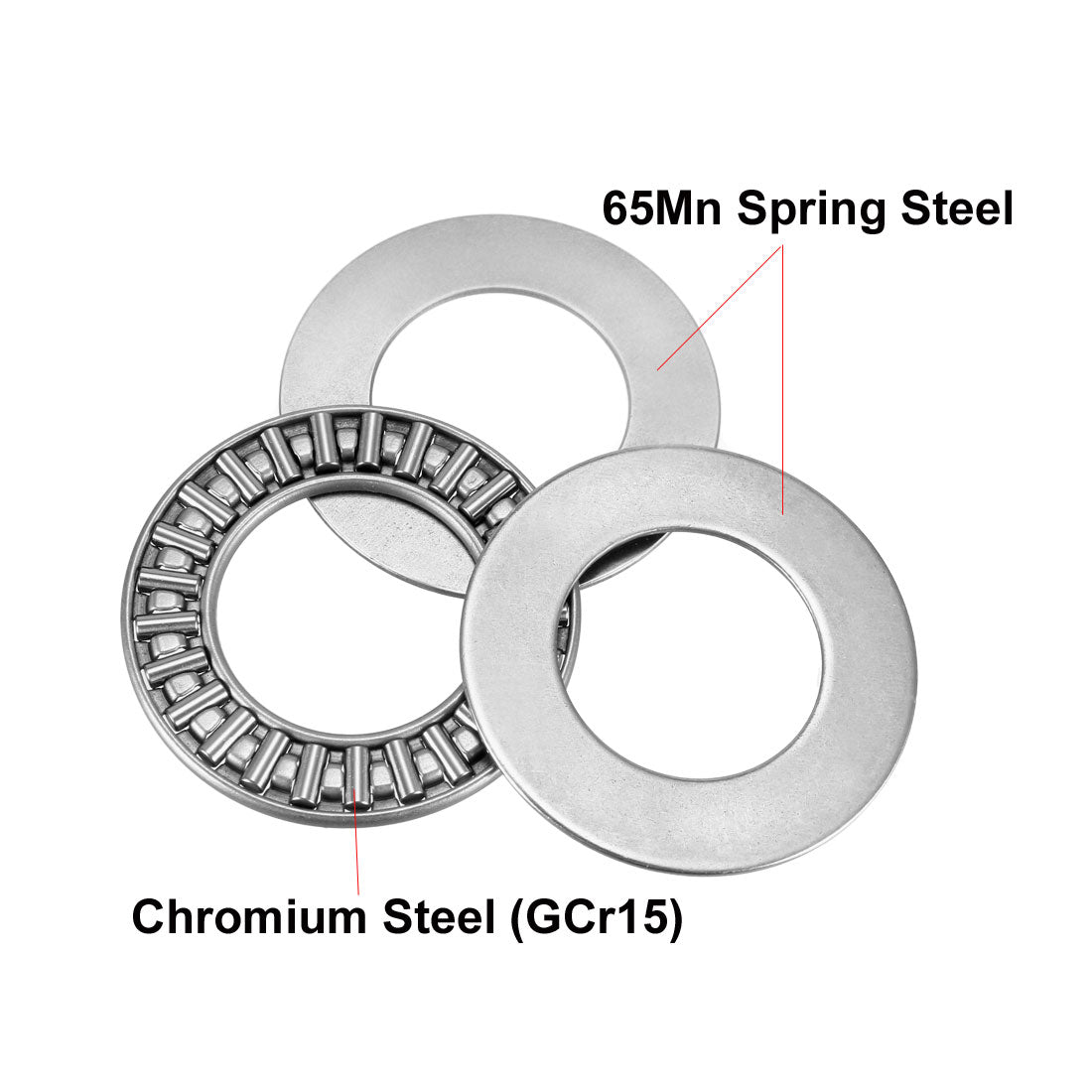

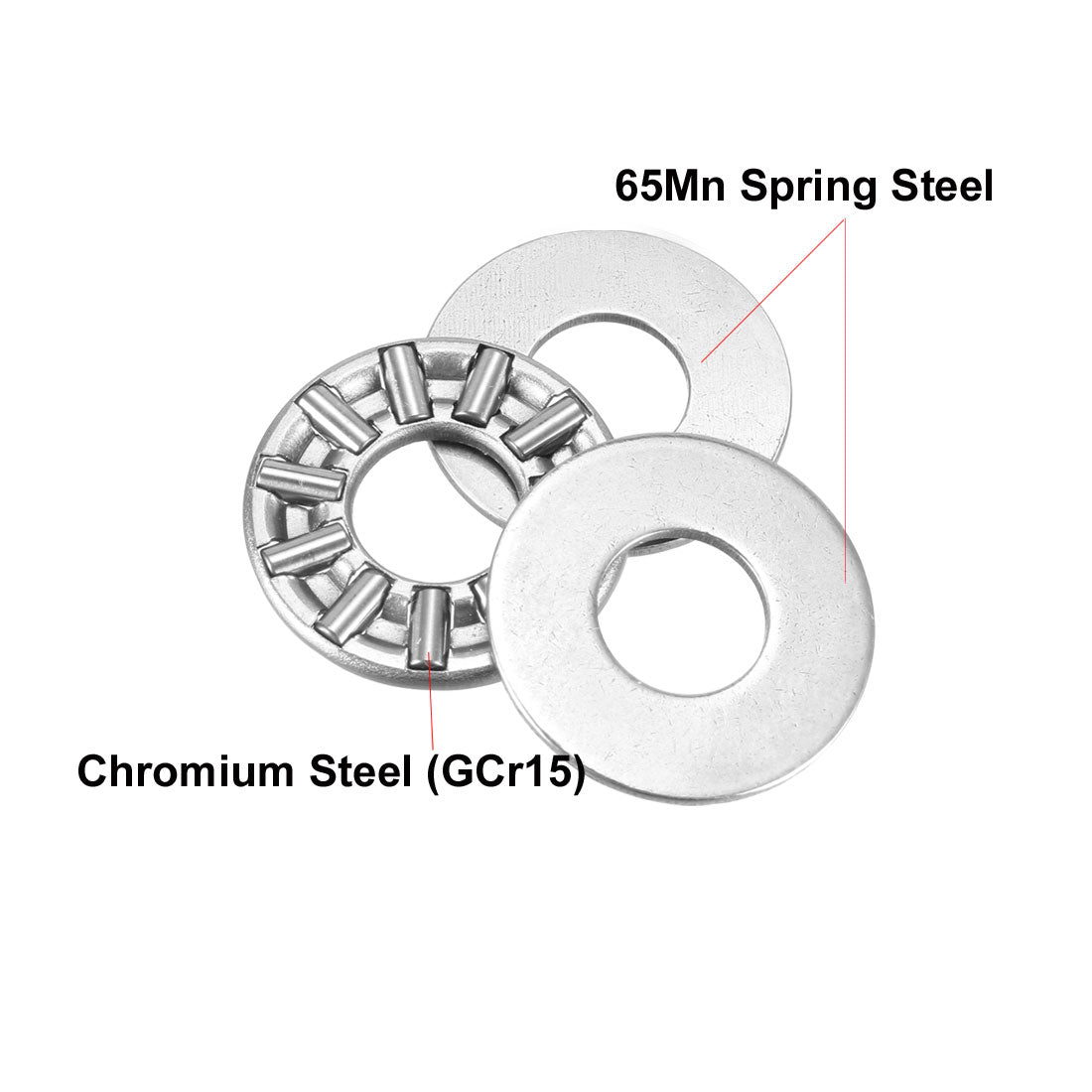

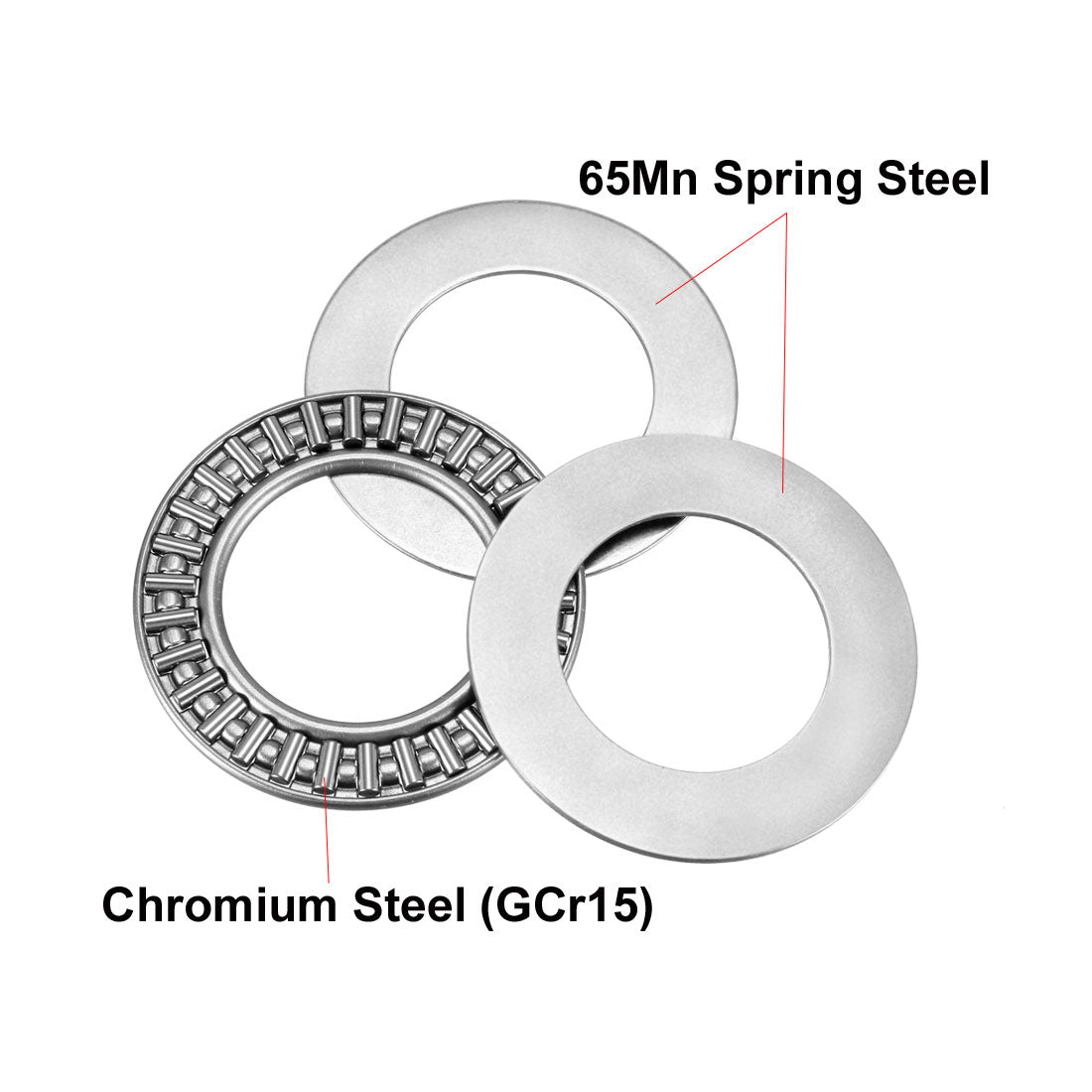

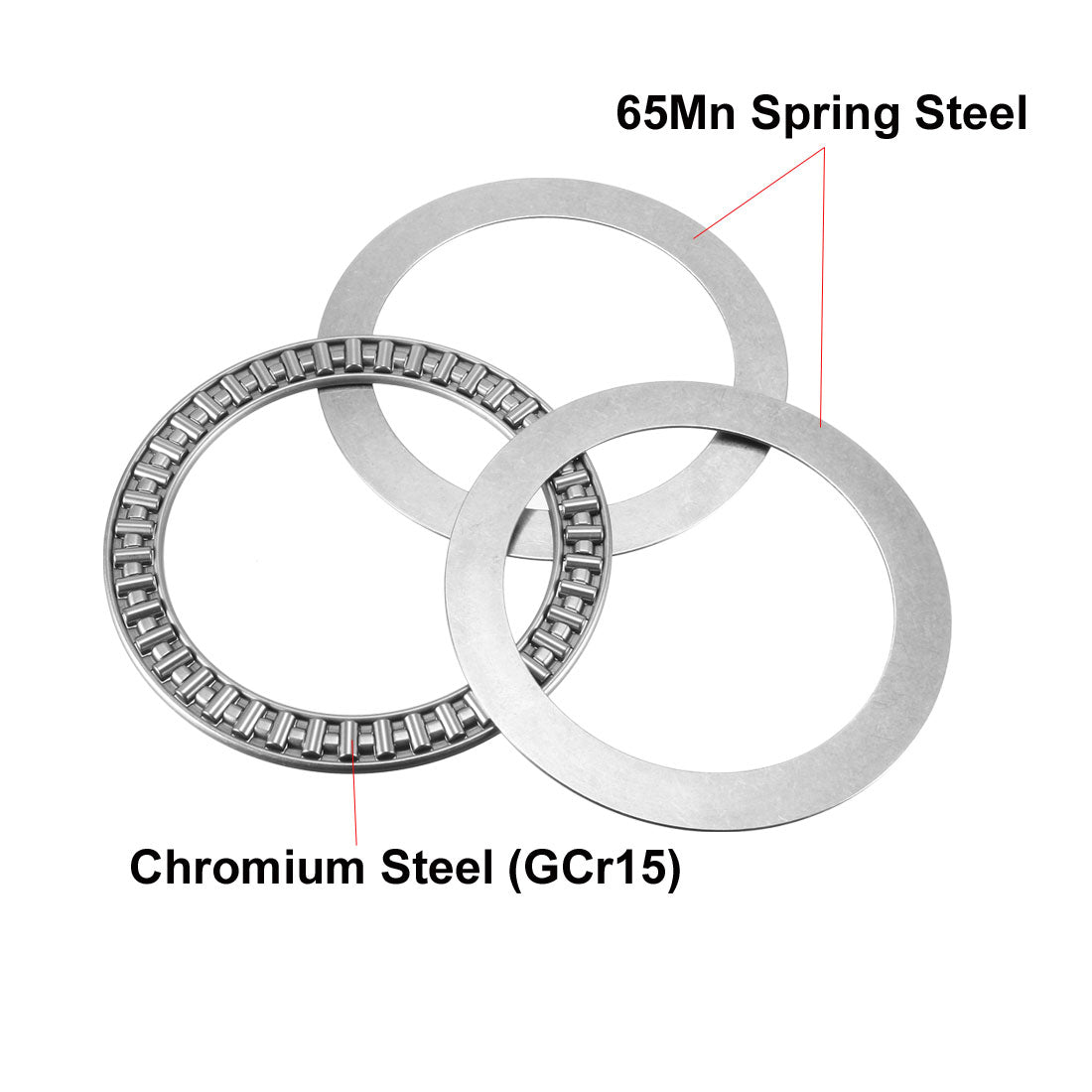

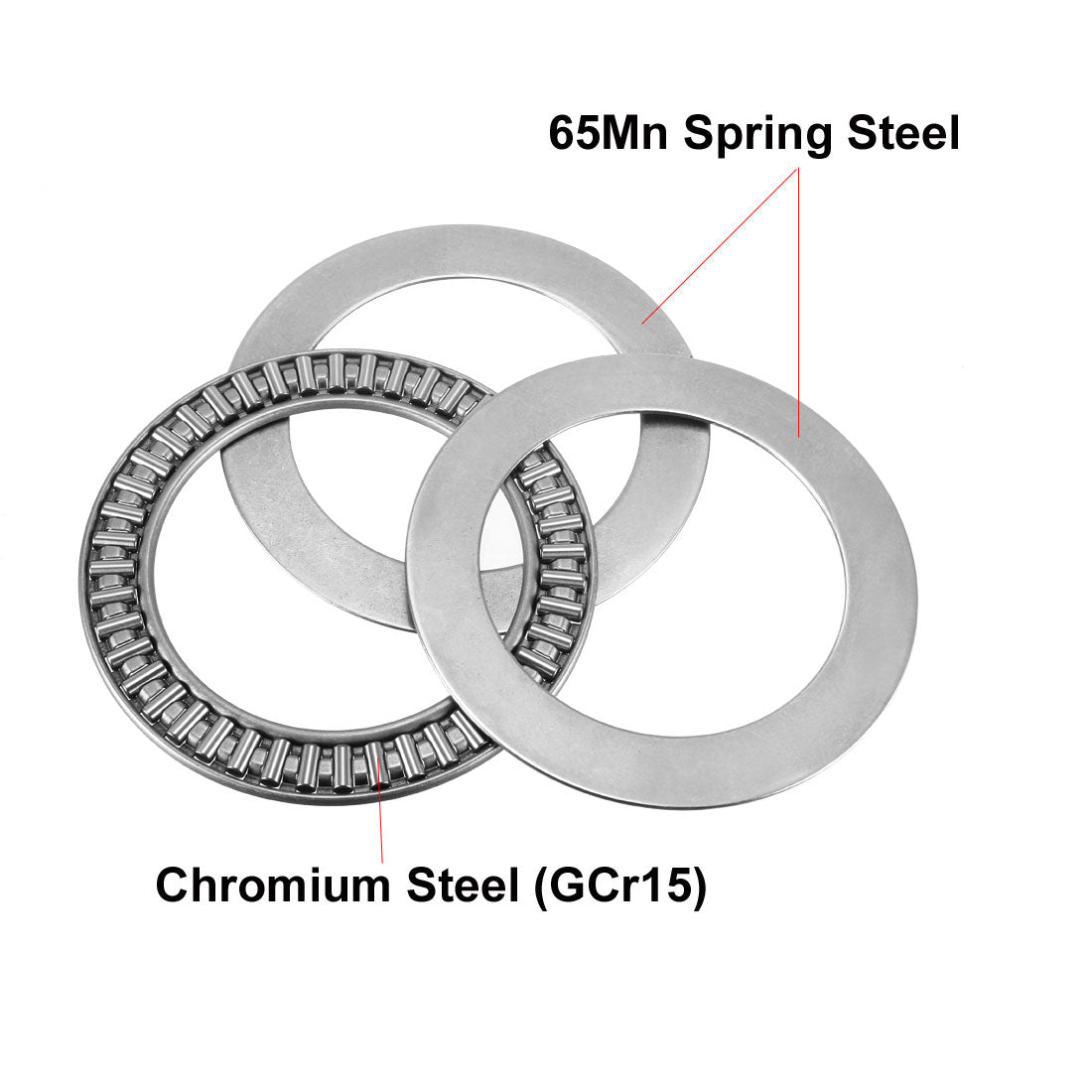

Needle Roller Meterial: Chromium Steel (GCr15)
Cage Meterial: ST13 Steel
Bearing Washer Meterial: 65Mn Spring Steel

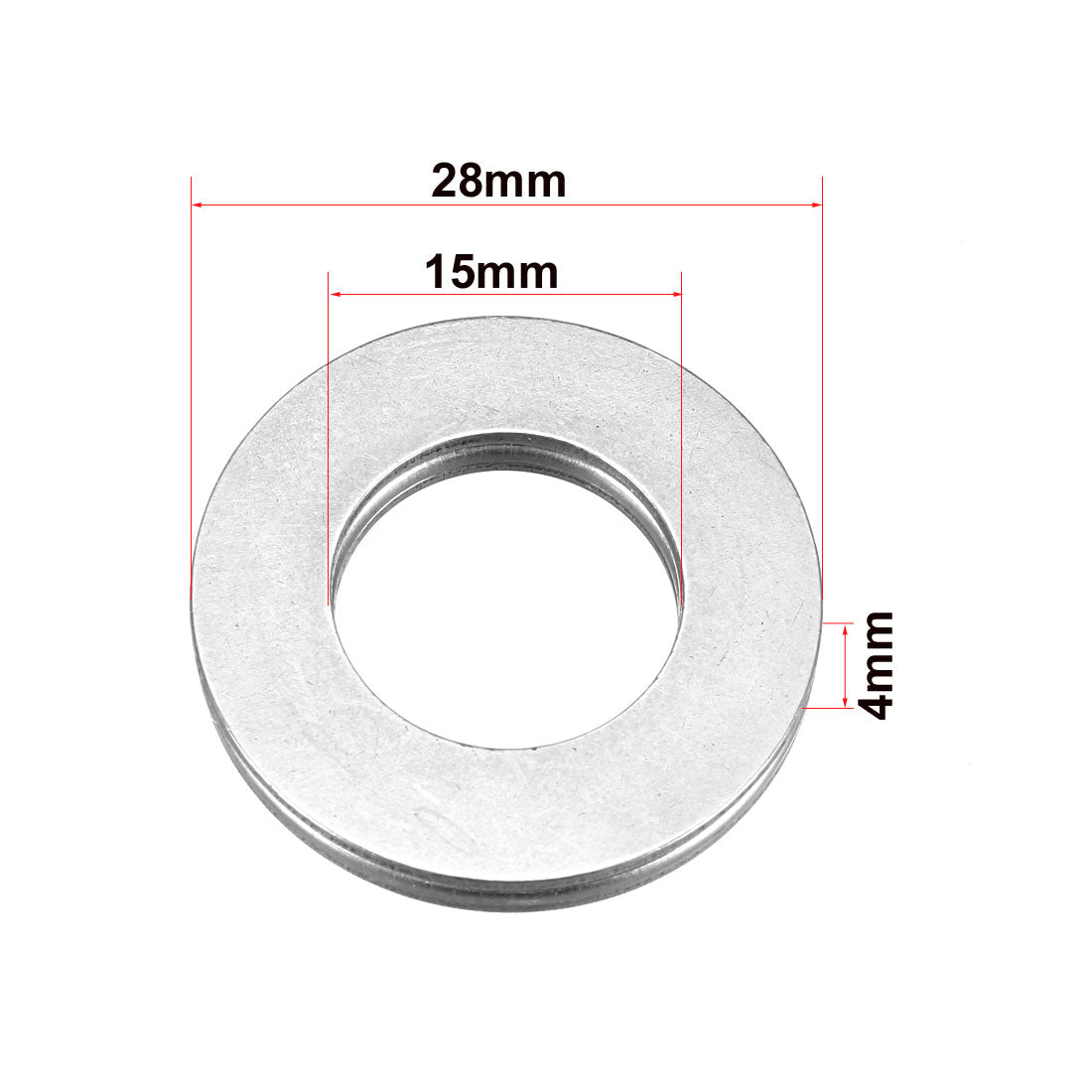

Bore Diameter (d): 15mm
Outside Diameter (D): 28mm
Bearing Thickness (T1): 2mm
Washer Thickness (T2): 1mm
Total Thickness: 4mm
Dynamic Load Capacity (Cr): 11.2kN
Static Load Capacity (Cor): 35.5kN
Maximum Rotational Speed (Oil): 11000rpm
Number of Pack: 1 Pcs
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£6.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

1.This Uxcell Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
2.These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.
3.AXK Thrust Bearings can be combined with washers in the AS series in applications where adjacent components cannot serve as raceways.
4.Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.
5.Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.


Specification:
Bearing No.: AXK1528
Bearing Washer No.: AS1528
Needle Roller Meterial: Chromium Steel (GCr15)
Cage Meterial: ST13 Steel
Bearing Washer Meterial: 65Mn Spring Steel
Bore Diameter (d): 15mm
Outside Diameter (D): 28mm
Bearing Thickness (T1): 2mm
Washer Thickness (T2): 1mm
Total Thickness: 4mm
Dynamic Load Capacity (Cr): 11.2kN
Static Load Capacity (Cor): 35.5kN
Maximum Rotational Speed (Oil): 11000rpm
Number of Pack: 1 Pcs
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
