Harfington 5PCS OV-15-1C25 15A 125/250V AC 3 Terminals Snap Button Type Micro Limit Switch

5PCS OV-15-1C25 15A 125/250V AC 3 Terminals Snap Button Type Micro Limit Switch

ID:
£7.00 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Rating Load: 15A 1/2HP 125/250VAC. And the contact type is SPDT NO+NC
  • 3 pins, applicable to AC DC control circuits.Reliable for years
  • High precision design, use easily.Designed to control the movement of a mechanical part.
  • IP 62 Protection Degree. This means this switch is available for total dust ingress protection and water spray < 15 degrees from vertical.
  • Widely used in appliances, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool, etc.
  • In stock, ready to ship
Cart
Cart
About this item
  • Rating Load: 15A 1/2HP 125/250VAC. And the contact type is SPDT NO+NC
  • 3 pins, applicable to AC DC control circuits.Reliable for years
  • High precision design, use easily.Designed to control the movement of a mechanical part.
  • IP 62 Protection Degree. This means this switch is available for total dust ingress protection and water spray < 15 degrees from vertical.
  • Widely used in appliances, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool, etc.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Features

Offers long service and operations life.

Small contact gap, snap action, high sensitivity, and small operating travel

Widely used in appliances, electronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool, etc.



Specification

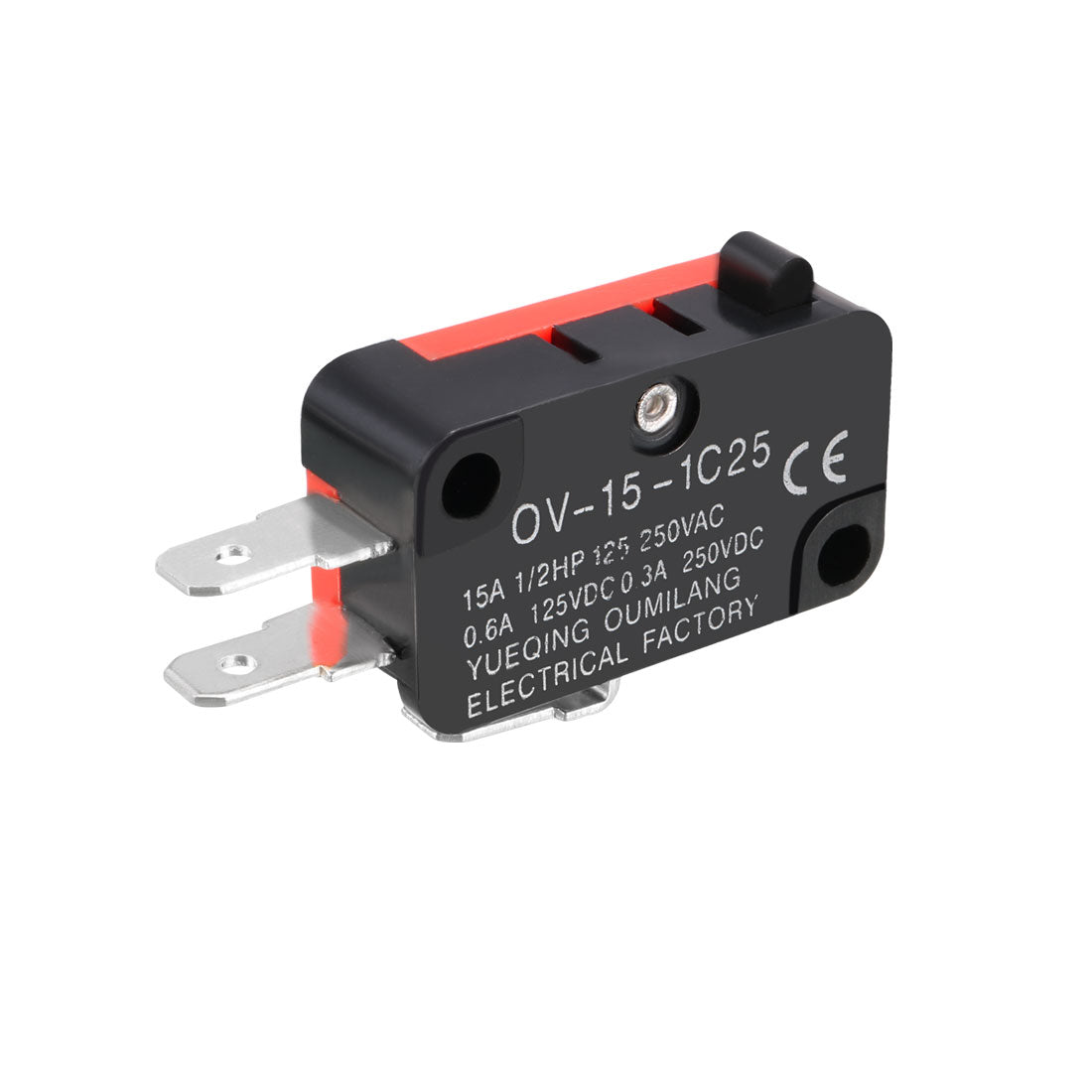

Rating Load: 15A 1/2HP 125/250VAC; 0.6A/125VDC, 0.3A/250VDC

Operation speed: 0.1mm-1m/s

Contact resistance: 15m Ohm max. (initial)

Insulation resistance: 100m Ohm min. (at DC500V)

Dielectric strength: 1,000 VAC 50/60 Hz for 1minute

Life: 100,000 operations min. full load (Electrical); 10,000,000 operations min.(Mechanical)

Operating temperature: -25~+80°C

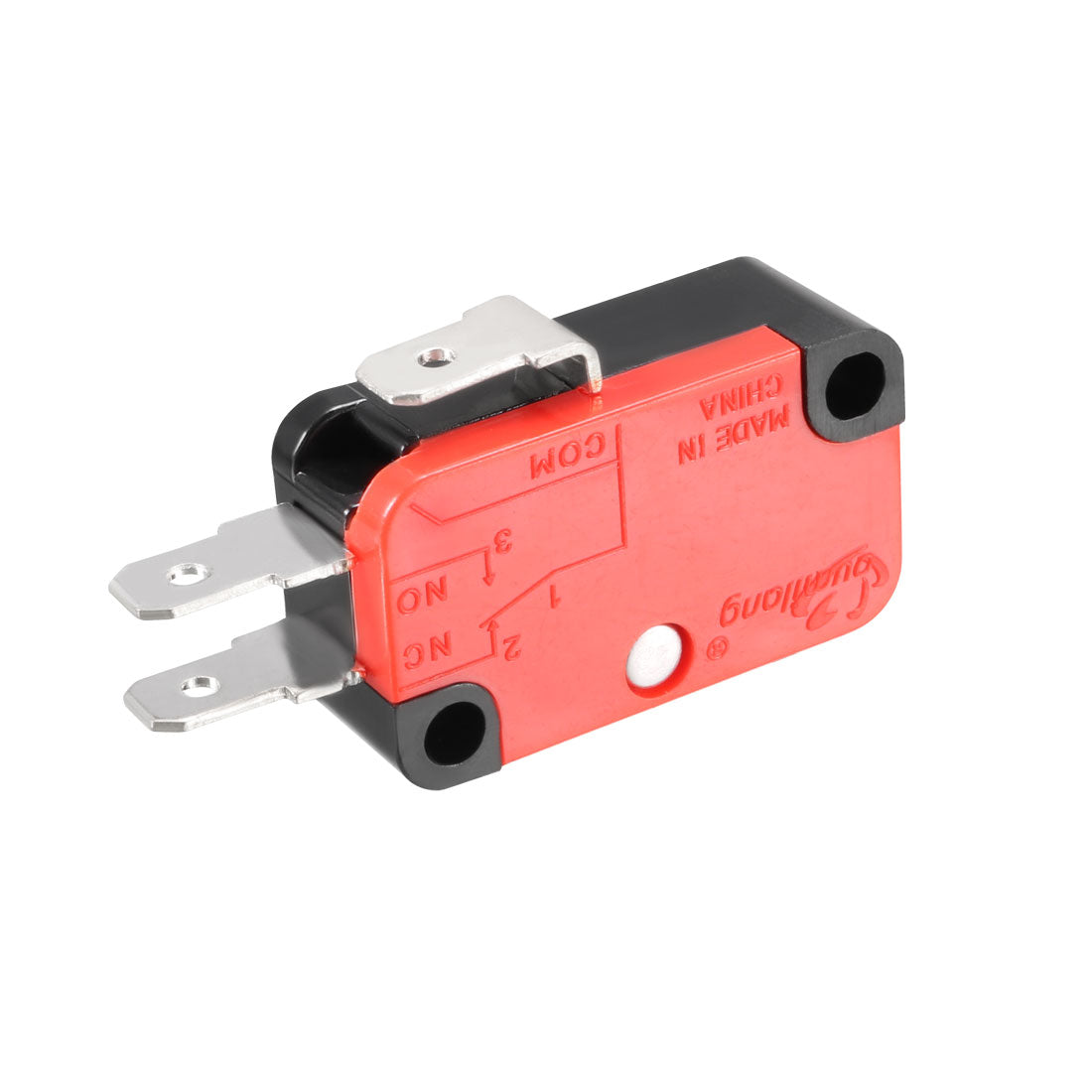

Contact Form: SPDT NO+NC

Pin number: 3

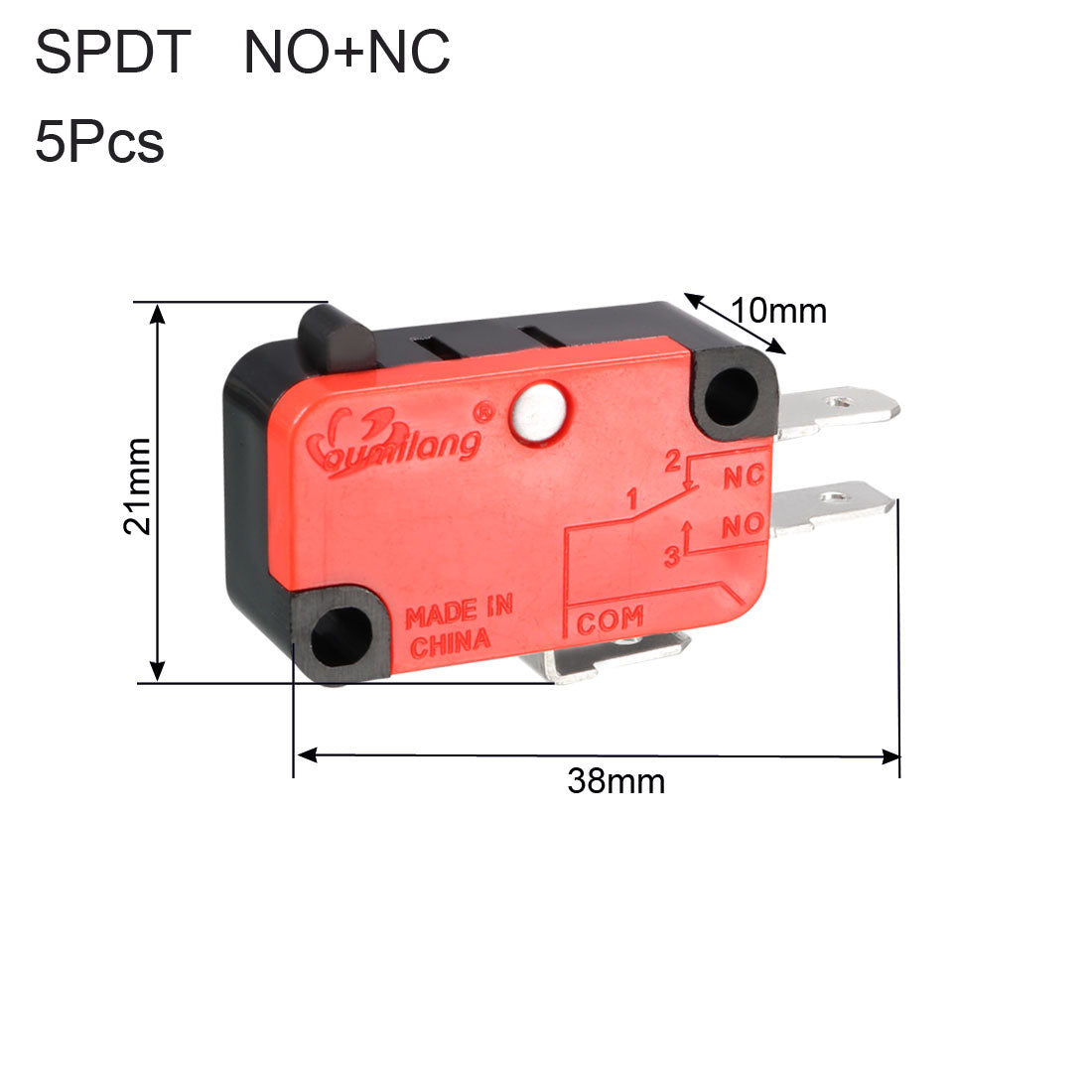

Overall size: 38x21x10mm/1.5x0.83x0.39inch(L*W*H)

Total weight: 30g



Package Content

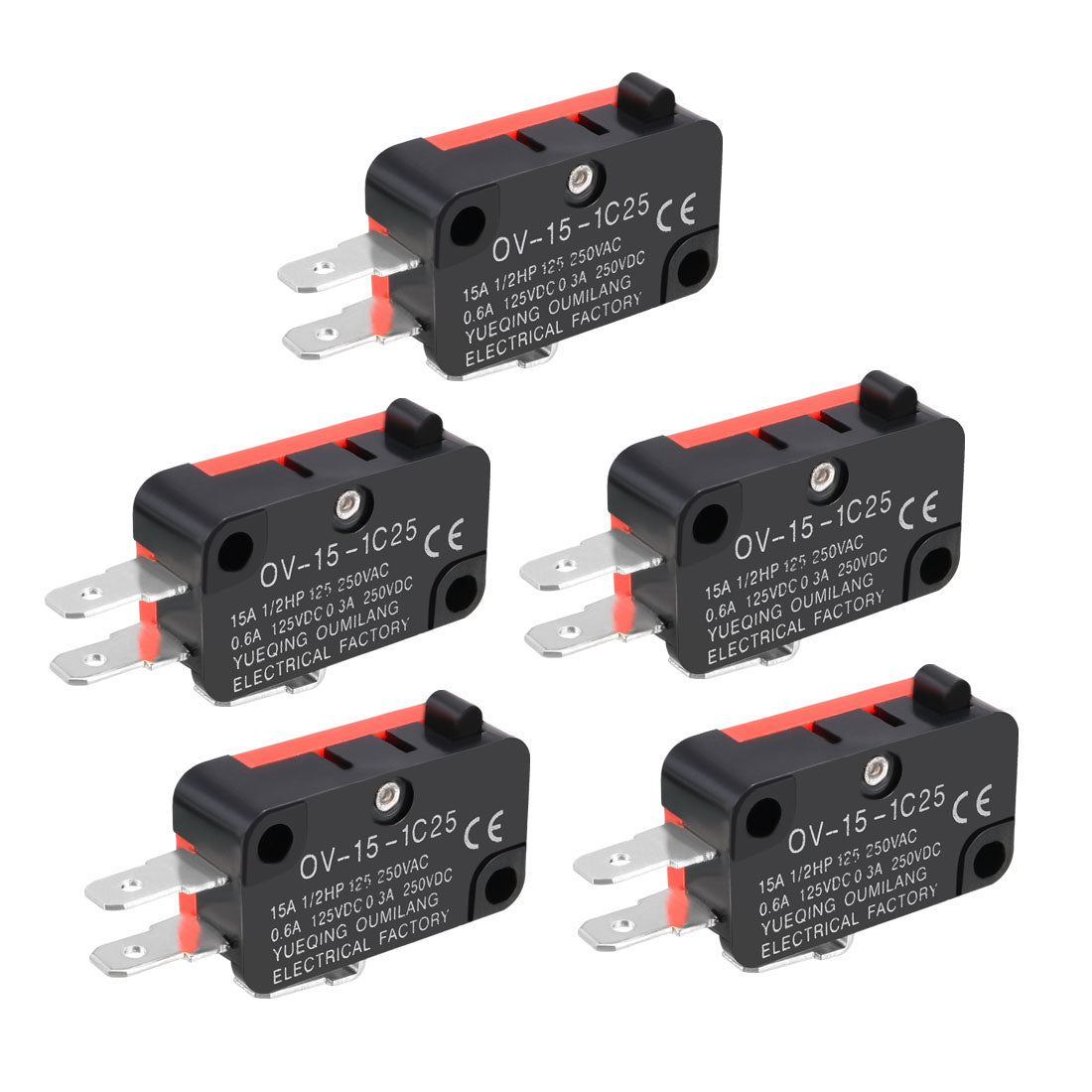

5 x Micro switch



Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
