Harfington Pneumatic Air Cylinder 16mm Bore 25mm Stroke with Y Connector and Quick Fittings, MAL 16x25, for Automatic Equipment

Pneumatic Air Cylinder 16mm Bore 25mm Stroke with Y Connector and Quick Fittings, MAL 16x25, for Automatic Equipment

ID:
£12.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Model: MAL 16x25; Bore: 16mm / 0.63"; Stroke: 25mm / 0.98".
  • Made of Aluminum alloy, corrosion, and rust resistance, more durable, and suitable for long-term use.
  • Correctly connect the joint and air pipe to the air source and control unit, and connect the screw end to the component that needs to be driven.
  • Widely use for used in pneumatic systems, such as automatic equipment, punching machine, pneumatic system maintenance, etc.
  • Single Rod, Double Acting, Includes Y Connector and 6pcs Quick Fittings.
  • In stock, ready to ship
Cart
Cart
About this item
  • Model: MAL 16x25; Bore: 16mm / 0.63"; Stroke: 25mm / 0.98".
  • Made of Aluminum alloy, corrosion, and rust resistance, more durable, and suitable for long-term use.
  • Correctly connect the joint and air pipe to the air source and control unit, and connect the screw end to the component that needs to be driven.
  • Widely use for used in pneumatic systems, such as automatic equipment, punching machine, pneumatic system maintenance, etc.
  • Single Rod, Double Acting, Includes Y Connector and 6pcs Quick Fittings.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Features:
Air cylinders (also called pneumatic cylinders), the most common type of linear actuators, use pressurized air to pull and push piston rods in and out of the cylinder tub.
The cylinder block is made of high-strength aluminum alloy, which is non-deformable, impact-resistant and wear-resistant. The surface is hard oxidized, anti-rust, more durable, suitable for long-term use.
The sealing piston adopts a special-shaped two-way sealing structure. Improved sealing structure, good sealing, lubrication, and guiding performance.
Correctly connect the joint and air pipe to the air source and control unit, and connect the screw end to the component that needs to be driven.  Convenient installation, and stable operation.
Widely used in the drive of pneumatic and hydraulic systems, such as automation equipment, punching machines, pneumatic system maintenance, etc.

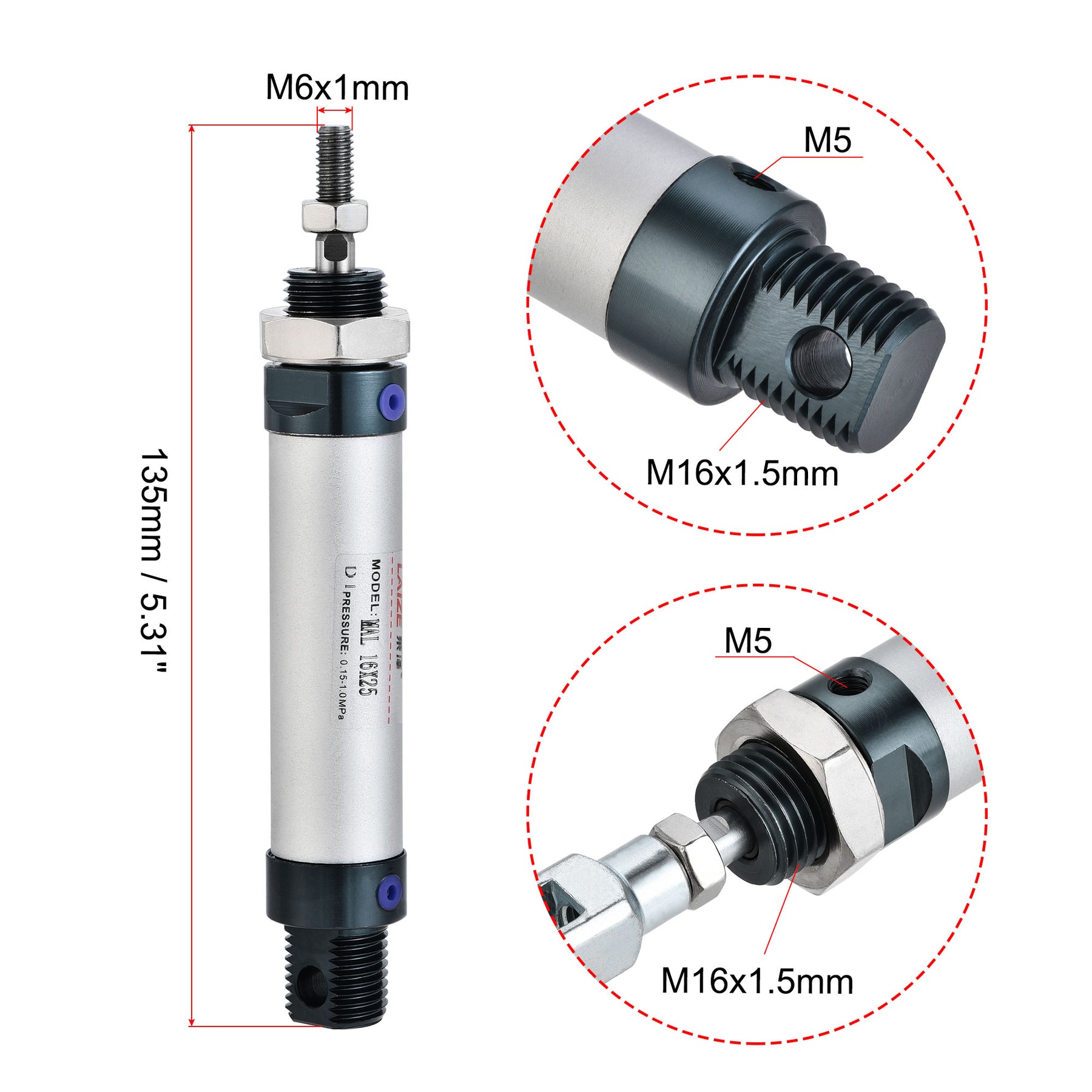

Specifications:
Model: MAL 16x25
Action Type: Double Acting
Rod Type: Single Rod
Material: Aluminum Alloy
Bore: 16mm / 0.63"
Stroke: 25mm / 0.98"
Port Size: M5
Piston Rod Thread: M6x1mm
Rod Two End Thread Size: M16x1.5mm
Total Length: 135mm / 5.31"
Working Pressure: 0.15~1.0 MPa / 22~145 Psi

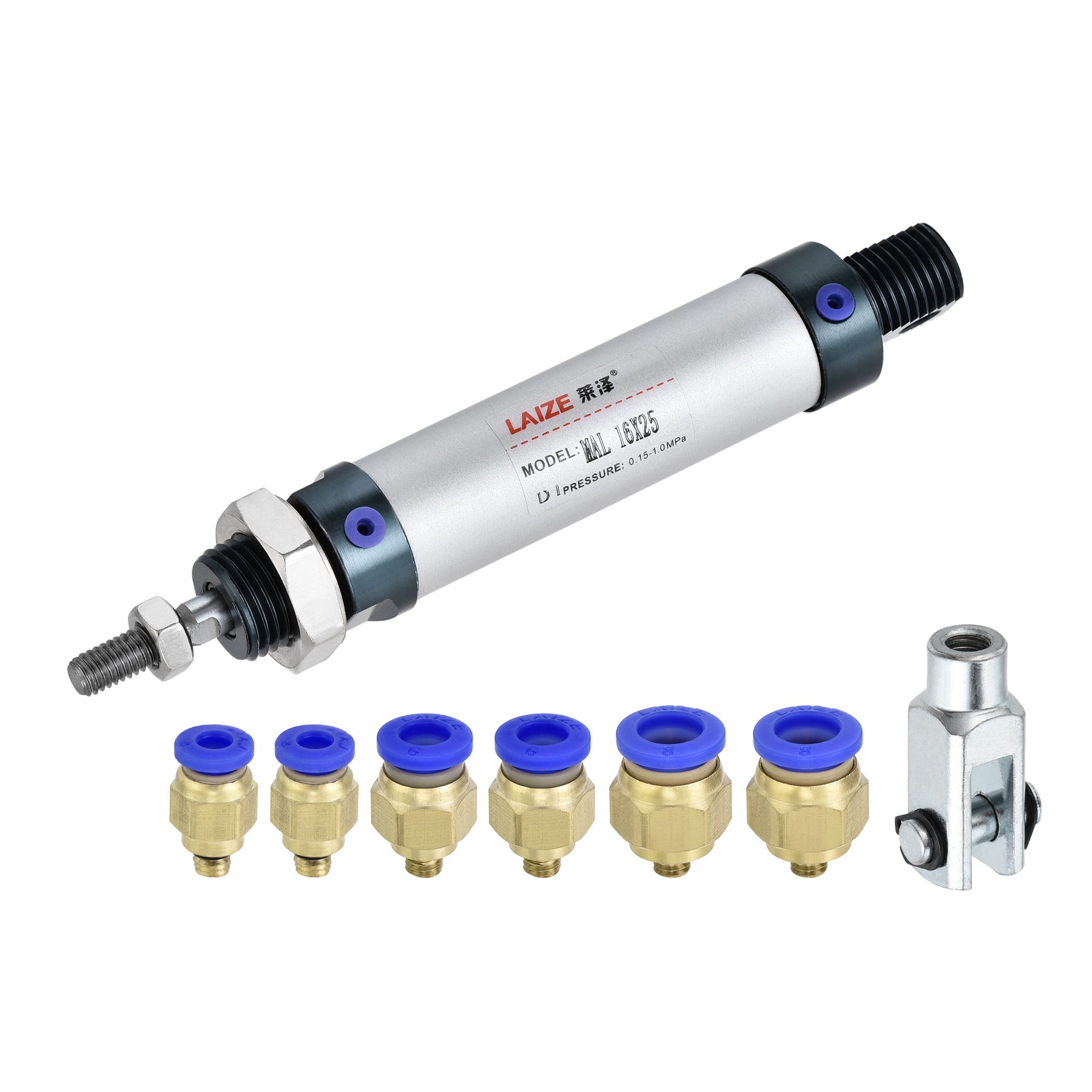

Package Content:
1 x Air Cylinder

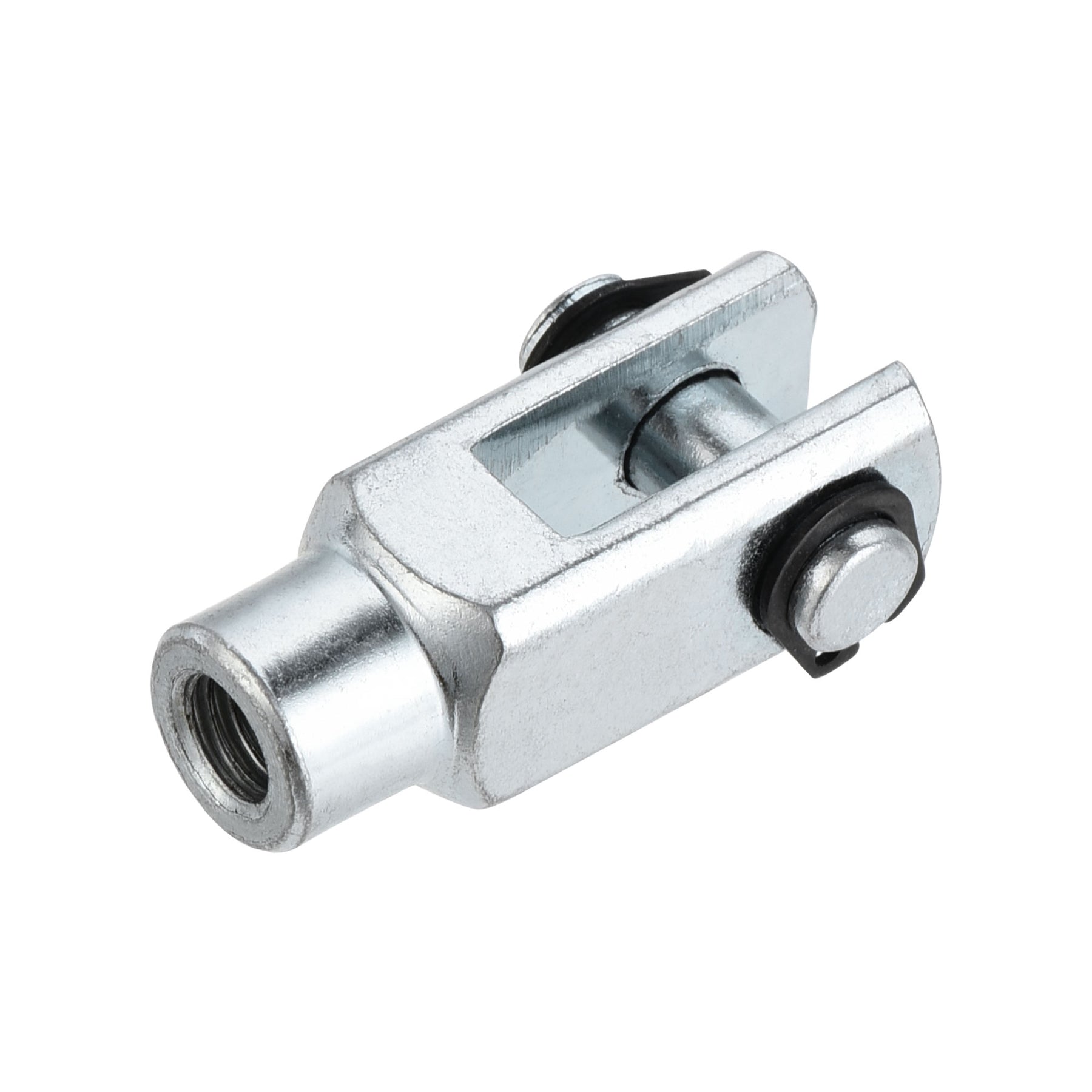

1 x Y Connector

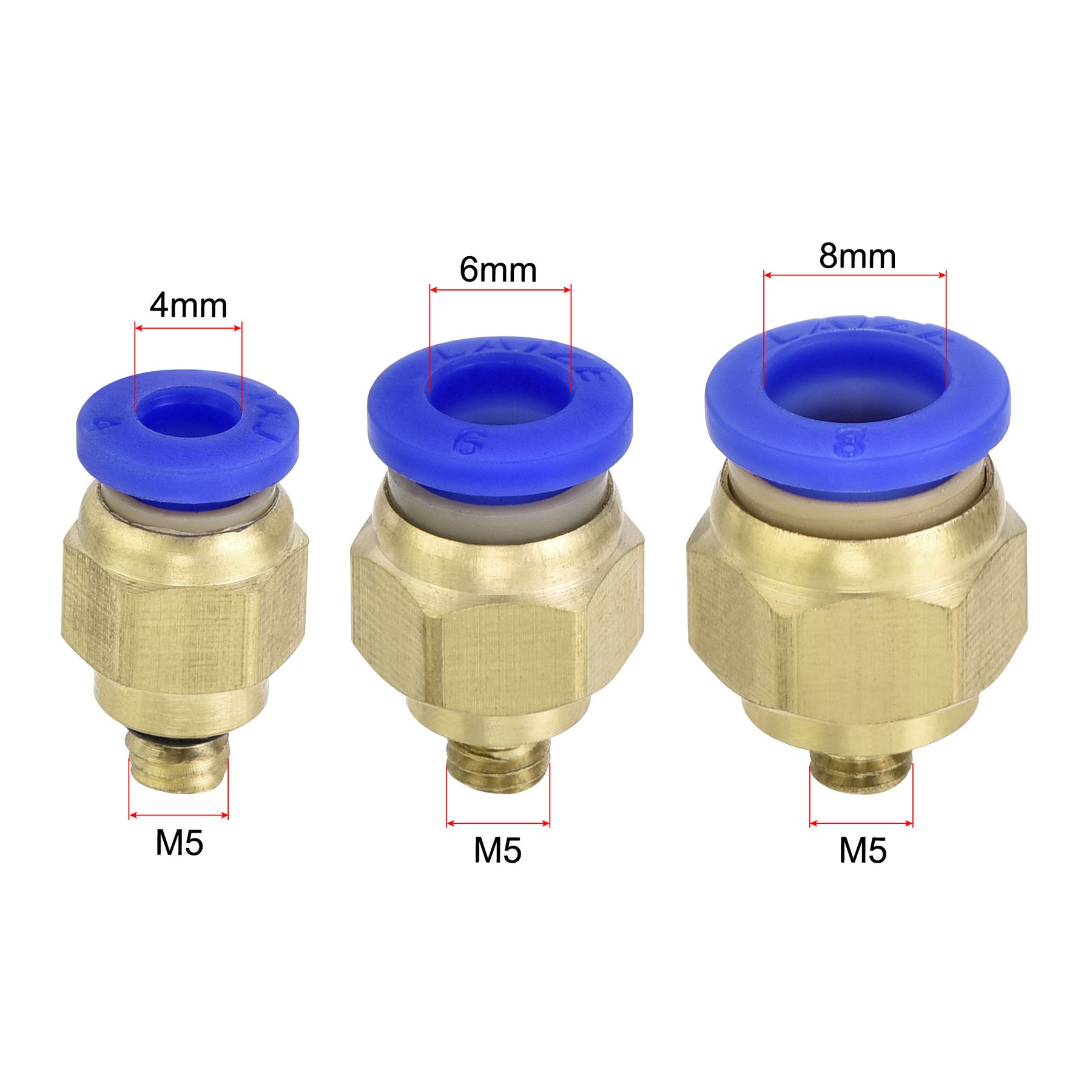

2Pcs x M5 to 4mm Quick Fitting
2Pcs x M5 to 6mm Quick Fitting
2Pcs x M5 to 8mm Quick Fitting
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
