Harfington AXK3552+2AS Needle Roller Thrust Bearing Washers 35mm Bore Diameter 52mm OD

AXK3552+2AS Needle Roller Thrust Bearing Washers 35mm Bore Diameter 52mm OD

ID:
£6.00 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • [MODLE] - Bearing Model: AXK3552 (I.D.=35mm, O.D.=52mm, Thickness=2mm, Thickness with Washers: 4mm); Washer Model: AS3552
  • [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
  • [FEATURES] - Needle Roller Thrust Bearings can accommodate axially loads in one direction only
  • [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
  • [CAPABILITY] - 80.1kN Static Load Capacity, 16.9kN Dynamic Load Capacity, 5500RPM Maximum Rotational Speed
  • In stock, ready to ship
Cart
Cart
About this item
  • [MODLE] - Bearing Model: AXK3552 (I.D.=35mm, O.D.=52mm, Thickness=2mm, Thickness with Washers: 4mm); Washer Model: AS3552
  • [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
  • [FEATURES] - Needle Roller Thrust Bearings can accommodate axially loads in one direction only
  • [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
  • [CAPABILITY] - 80.1kN Static Load Capacity, 16.9kN Dynamic Load Capacity, 5500RPM Maximum Rotational Speed
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:

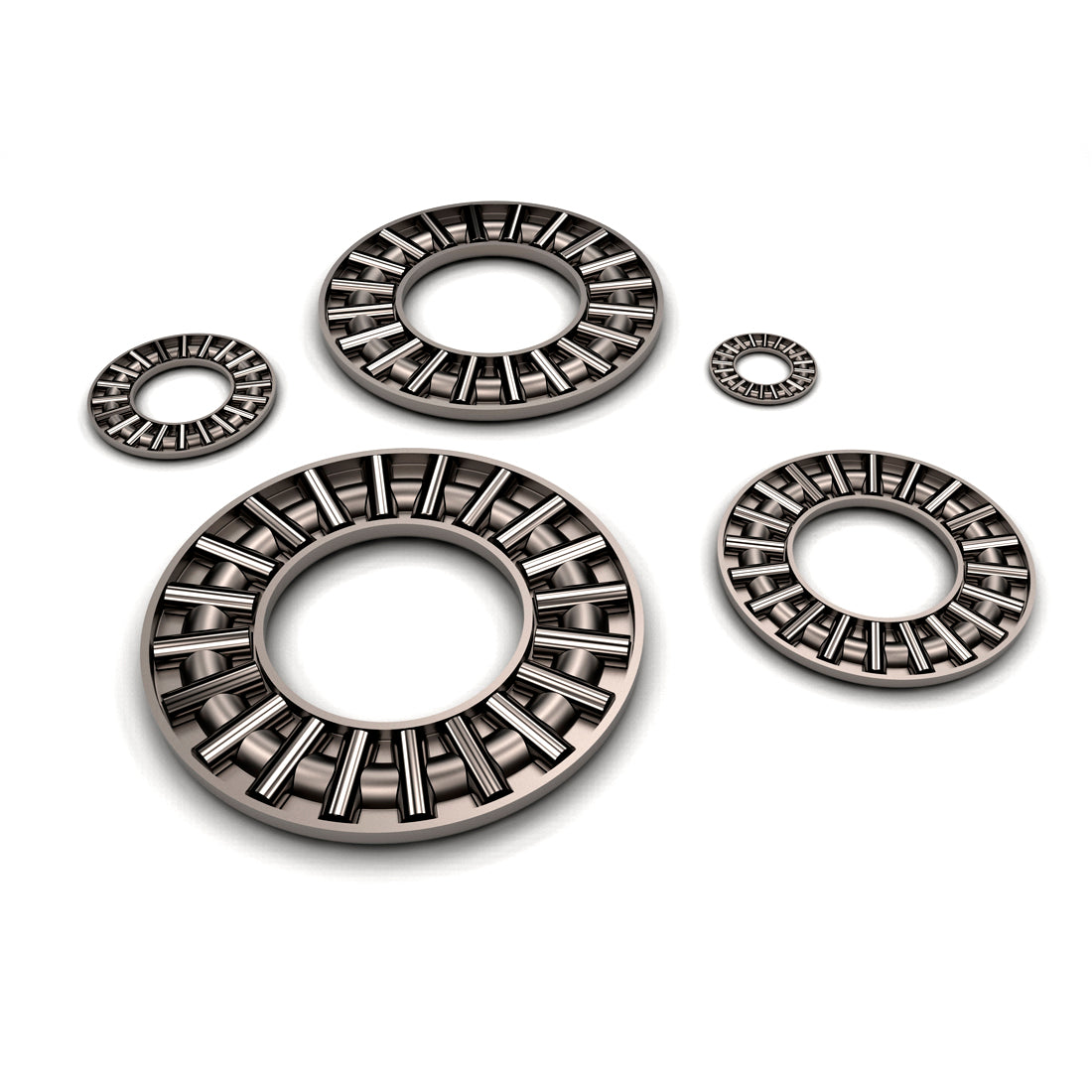

  • These Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
  • These bearings accommodate heavy peak loads due to the small diameter deviation of the rollers within one assembly.

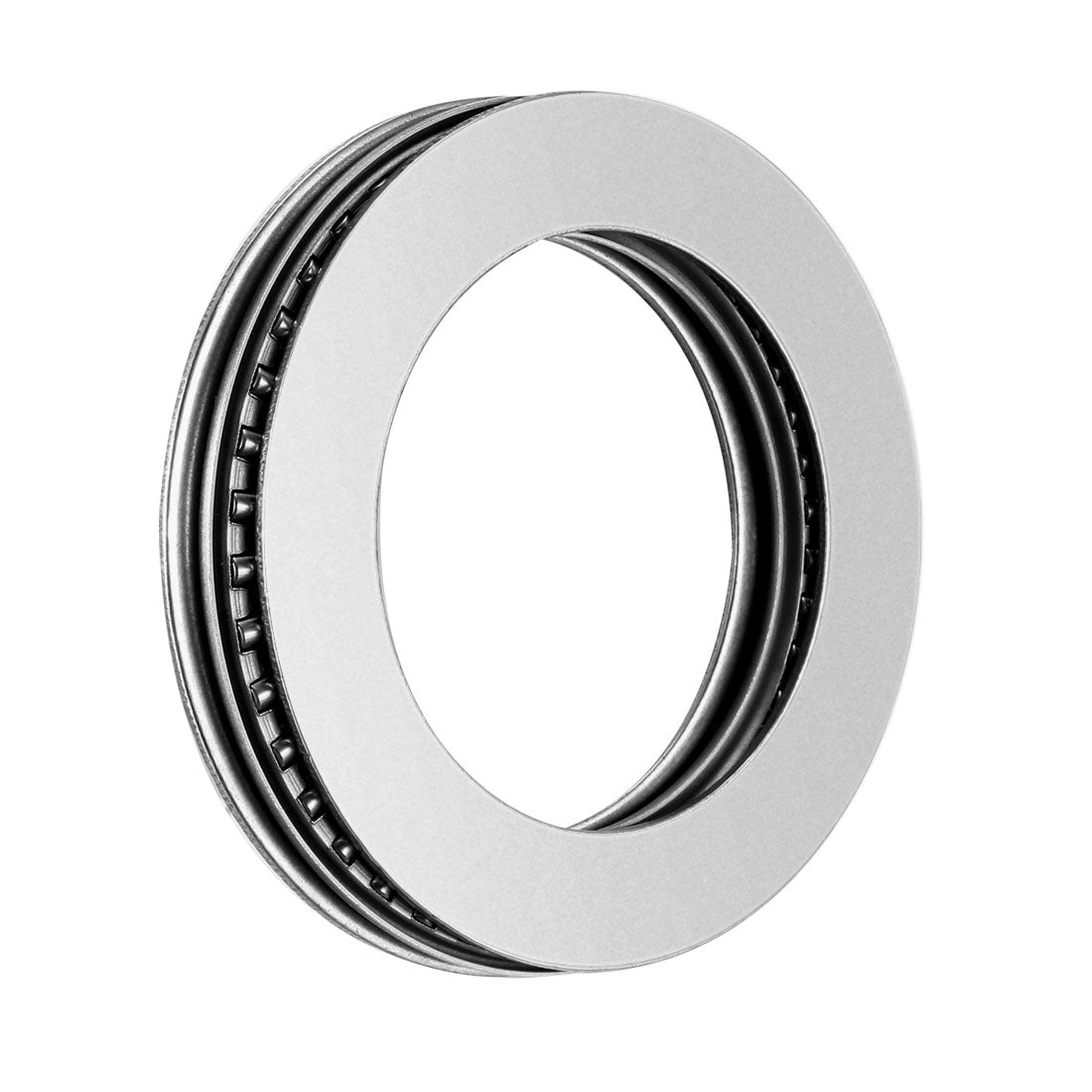

  • Thrust Bearings can be combined with washers in applications where adjacent components cannot serve as raceways.
  • Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.
  • Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

Specification:

  • Bearing No.: AXK3552
  • Bearing Washer No.: AS3552

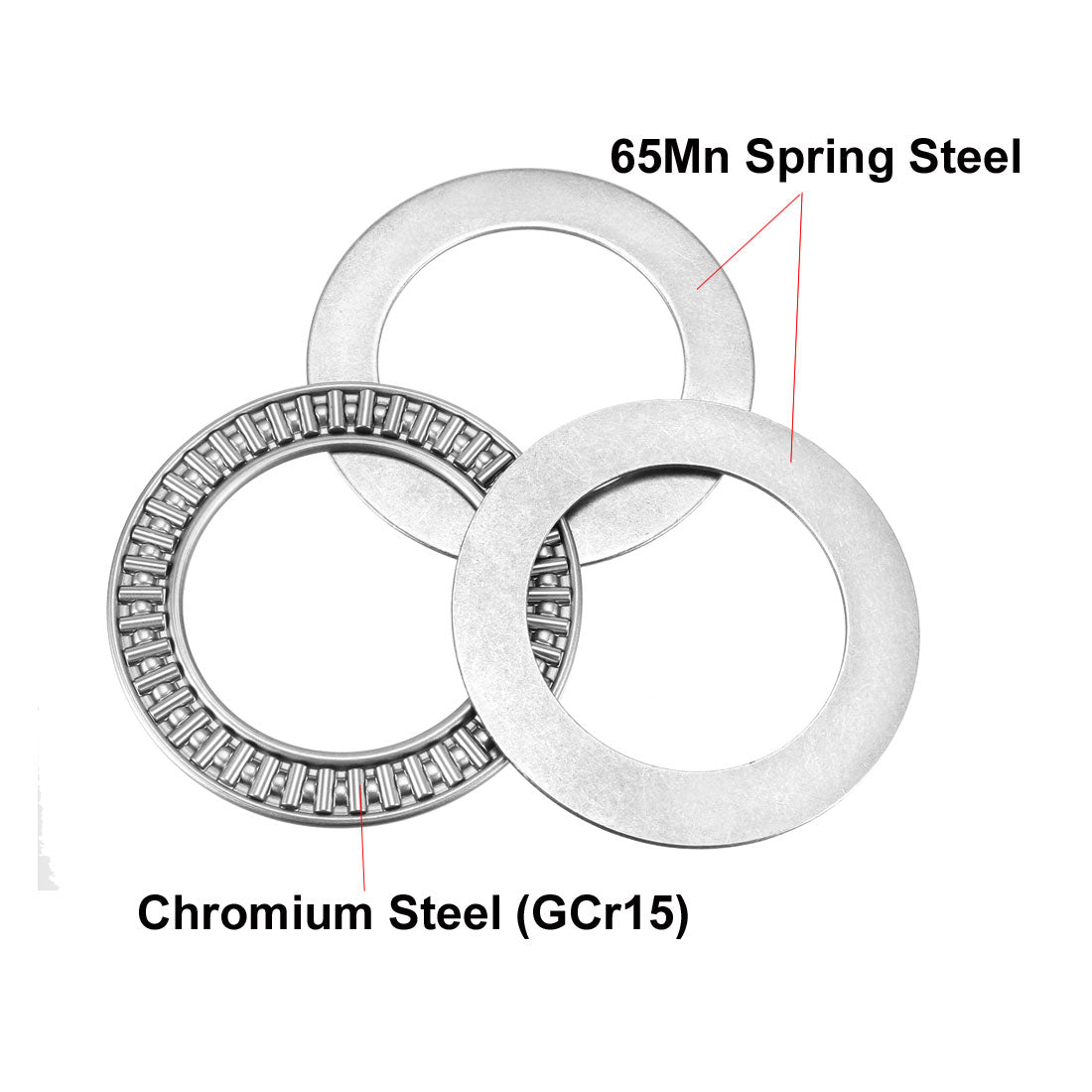

  • Needle Roller Material: Chromium Steel (GCr15)
  • Cage Material: ST13 Steel
  • Bearing Washer Material: 65Mn Spring Steel

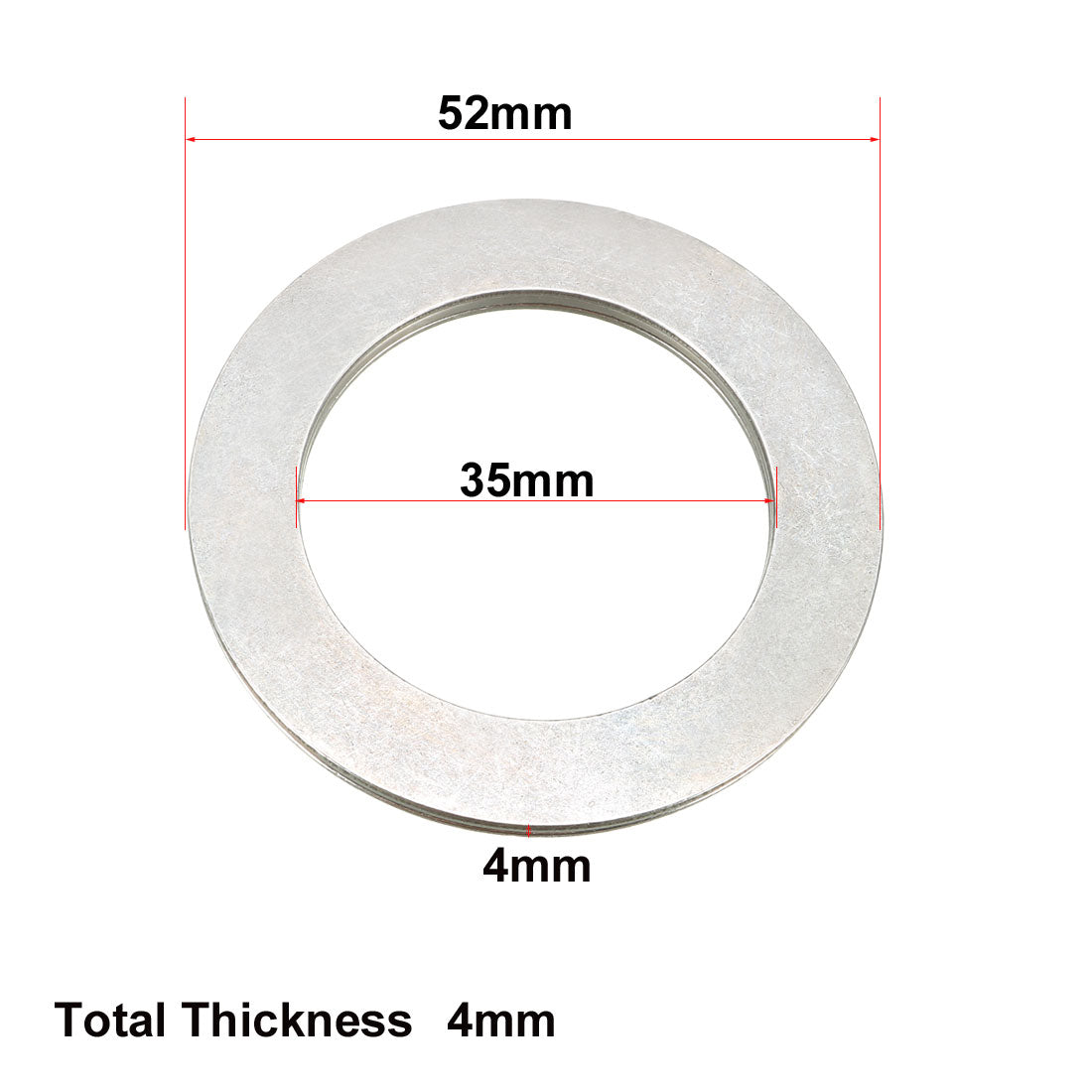

  • Bore Diameter: 35mm
  • Outside Diameter: 52mm
  • Bearing Thickness: 2mm
  • Washer Thickness: 1mm
  • Total Thickness: 4mm
  • Dynamic Load Capacity (Cr): 16.9kN
  • Static Load Capacity (Cor): 80.1kN
  • Maximum Rotational Speed (Oil): 5500rpm
  • Number of Pack: 1 Pcs
