Harfington 10Set M3x35mm 304 Stainless Steel Cylindrical Shaft Snap Ring Locating Pin

10Set M3x35mm 304 Stainless Steel Cylindrical Shaft Snap Ring Locating Pin

ID:
€6,80 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • [SIZE & PACKAGING]: The groove width of this circlip positioning cylindrical pin is 0.6mm/0.02", the groove diameter is 2.5mm/0.1", the head thickness is 1.5mm/0.06", the effective length is 32mm/1.26", the head diameter is 6mm/0.24", the total length is 36.5mm/1.44", the diameter is 3mm/0.12", the specification is M3x35mm, and the packaging includes 10 cylindrical pins and 10 blocking plates.
  • [MATERIAL]: These snap ring positioning cylindrical pins are made of 304 stainless steel, which has good hardness, load-bearing capacity, corrosion resistance, reliability, and durability. They are anti-corrosion and rust-proof and can be used to fix parts of different materials. Durable and sturdy, with a long service life.

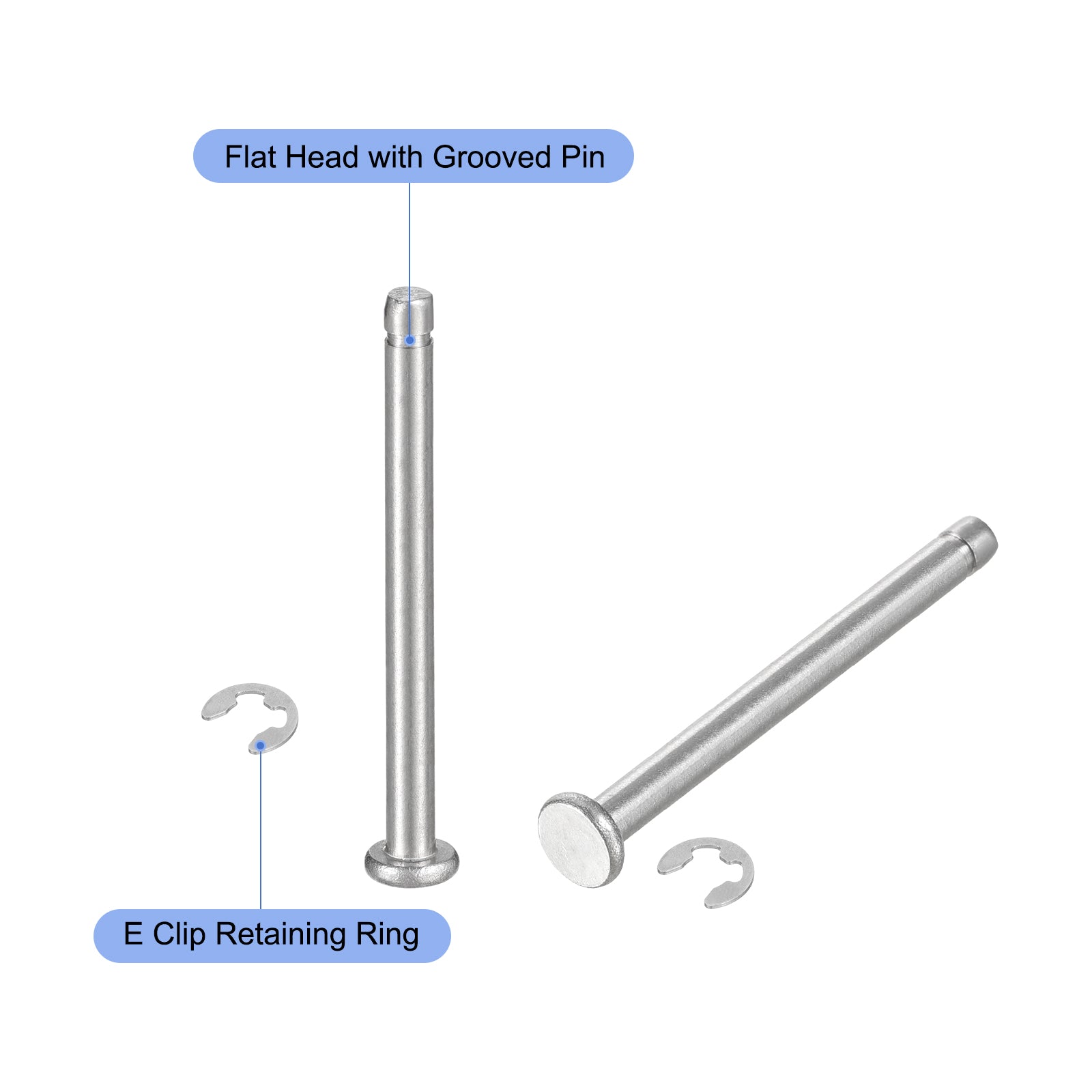

  • [DESIGN]: Our cylindrical pins are designed with flat ends and grooves, which have a delicate appearance. The cylindrical design makes the pin more stable, easy to install, and quick to disassemble. These cylindrical pins can be used in conjunction with stainless steel pipes, solid wood pipes, aluminum alloy pipes, etc.
  • [EASY TO INSTALL]: These snap ring positioning cylindrical pins are equipped with adjustable blocking plates and can be installed by simply fixing the cylindrical pins in the pipe holes. The clamp pin has precise dimensions and a smooth surface. It can be easily installed and disassembled even in narrow spaces, reducing your time and effort.
  • [WIDELY APPLICABLE]: Our products must be used with split pins and are widely used in mechanical manufacturing, industry, furniture installation, small home DIY engineering, and more.
  • In stock, ready to ship
Cart
Cart
About this item
  • [SIZE & PACKAGING]: The groove width of this circlip positioning cylindrical pin is 0.6mm/0.02", the groove diameter is 2.5mm/0.1", the head thickness is 1.5mm/0.06", the effective length is 32mm/1.26", the head diameter is 6mm/0.24", the total length is 36.5mm/1.44", the diameter is 3mm/0.12", the specification is M3x35mm, and the packaging includes 10 cylindrical pins and 10 blocking plates.
  • [MATERIAL]: These snap ring positioning cylindrical pins are made of 304 stainless steel, which has good hardness, load-bearing capacity, corrosion resistance, reliability, and durability. They are anti-corrosion and rust-proof and can be used to fix parts of different materials. Durable and sturdy, with a long service life.
  • [DESIGN]: Our cylindrical pins are designed with flat ends and grooves, which have a delicate appearance. The cylindrical design makes the pin more stable, easy to install, and quick to disassemble. These cylindrical pins can be used in conjunction with stainless steel pipes, solid wood pipes, aluminum alloy pipes, etc.
  • [EASY TO INSTALL]: These snap ring positioning cylindrical pins are equipped with adjustable blocking plates and can be installed by simply fixing the cylindrical pins in the pipe holes. The clamp pin has precise dimensions and a smooth surface. It can be easily installed and disassembled even in narrow spaces, reducing your time and effort.
  • [WIDELY APPLICABLE]: Our products must be used with split pins and are widely used in mechanical manufacturing, industry, furniture installation, small home DIY engineering, and more.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Description:
  • Material - These snap ring positioning cylindrical pins are made of 304 stainless steel, which has good hardness, load-bearing capacity, corrosion resistance, reliability, and durability. They are anti-corrosion and rust-proof and can be used to fix parts of different materials. Durable and sturdy, with a long service life.
  • Design - Our cylindrical pins are designed with flat ends and grooves, which have a delicate appearance. The cylindrical design makes the pin more stable, easy to install, and quick to disassemble. These cylindrical pins can be used in conjunction with stainless steel pipes, solid wood pipes, aluminum alloy pipes, etc.
  • Easy to Install - These snap ring positioning cylindrical pins are equipped with adjustable blocking plates and can be installed by simply fixing the cylindrical pins in the pipe holes. The clamp pin has precise dimensions and a smooth surface. It can be easily installed and disassembled even in narrow spaces, reducing your time and effort.
  • Widely Applicable - Our products must be used with split pins and are widely used in mechanical manufacturing, industry, furniture installation, small home DIY engineering, and more.

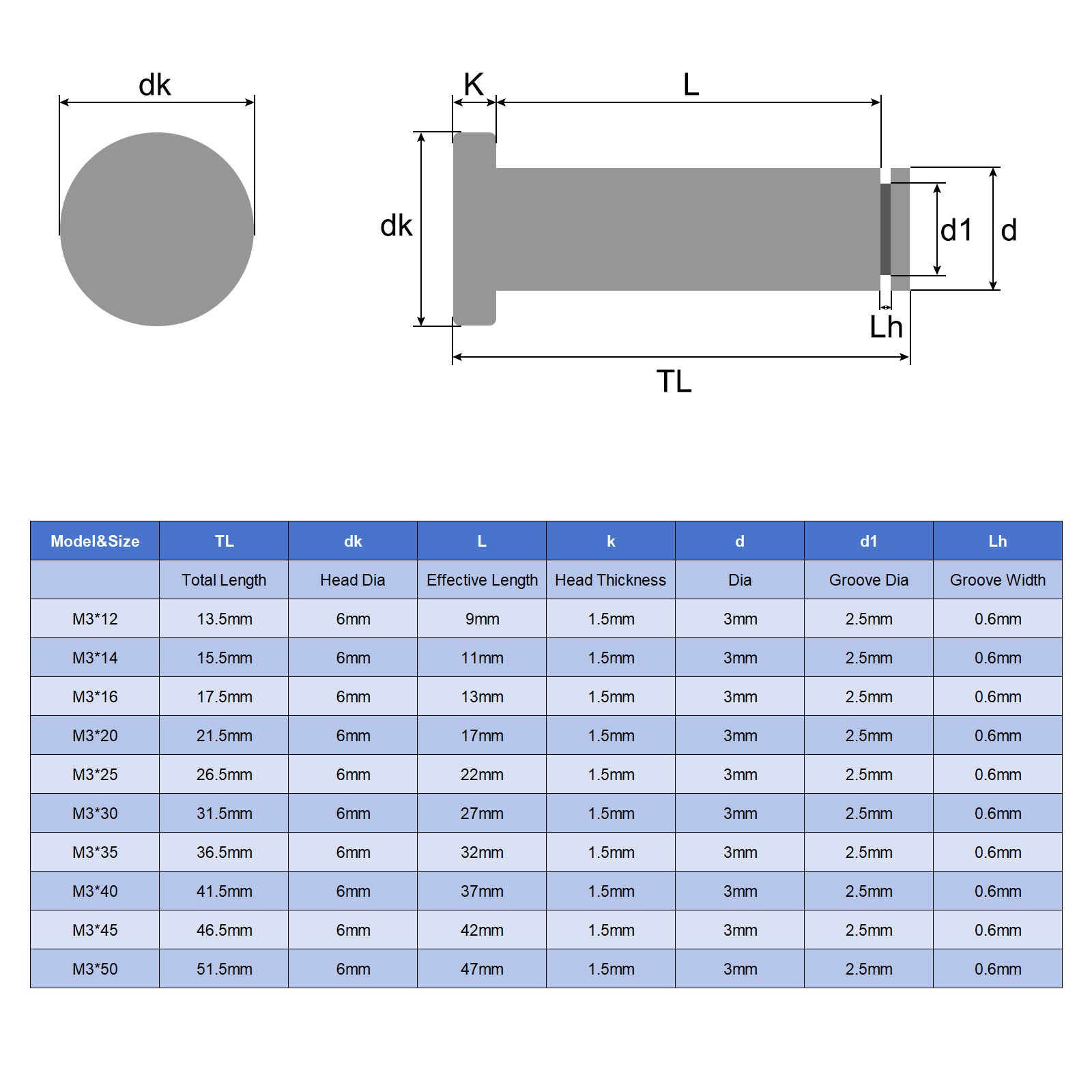

Specification:
  • Color: Silver
  • Materials: 304 Stainless Steel
  • Groove Width: 0.6mm/0.02"
  • Groove Dia: 2.5mm/0.1"
  • Head Thickness: 1.5mm/0.06"
  • Effective Length: 32mm/1.26"
  • Head Dia: 6mm/0.24"
  • Total Length: 36.5mm/1.44"
  • Rod Length:35mm/1.38"
  • Dia: 3mm/0.12"
  • Specification: M3x35mm

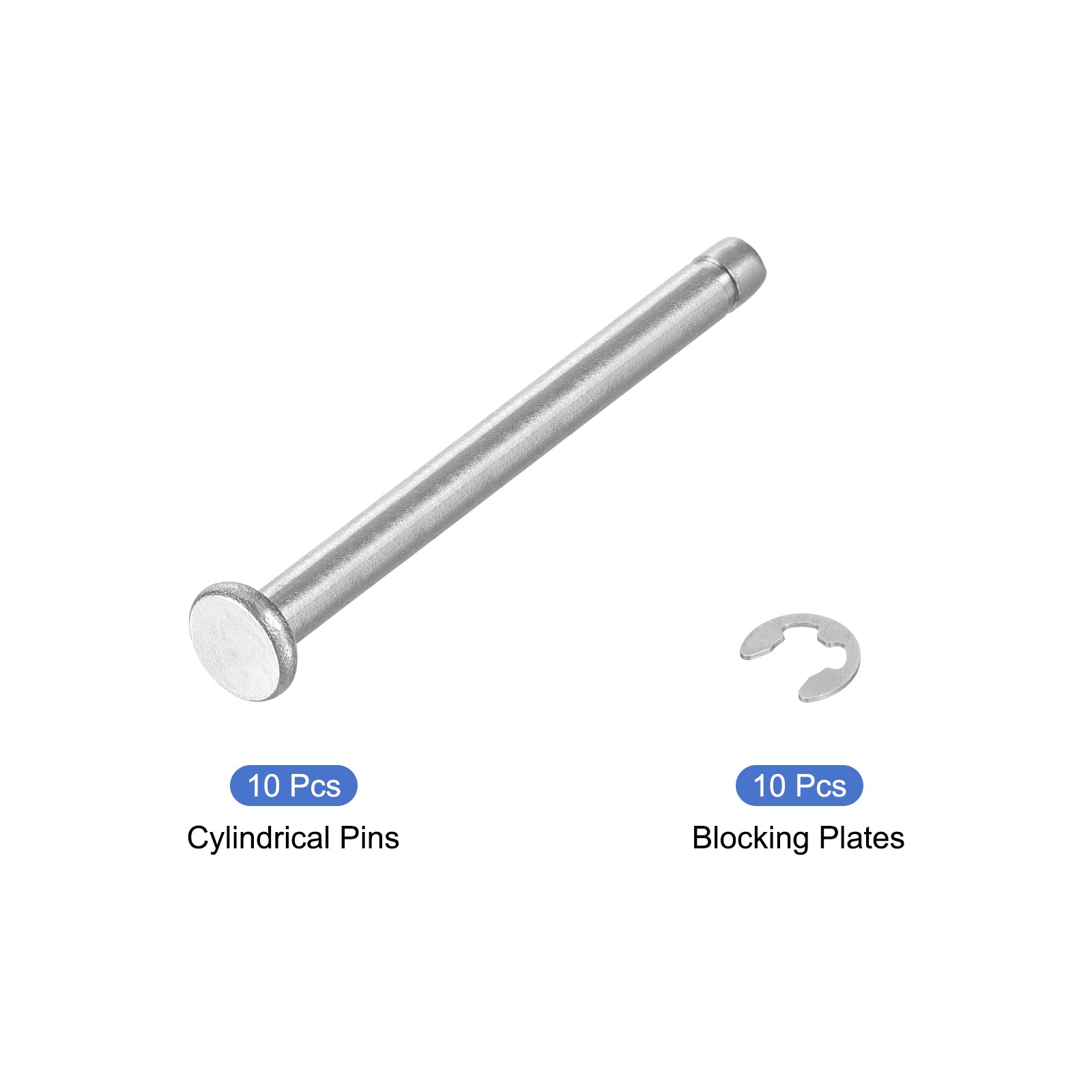

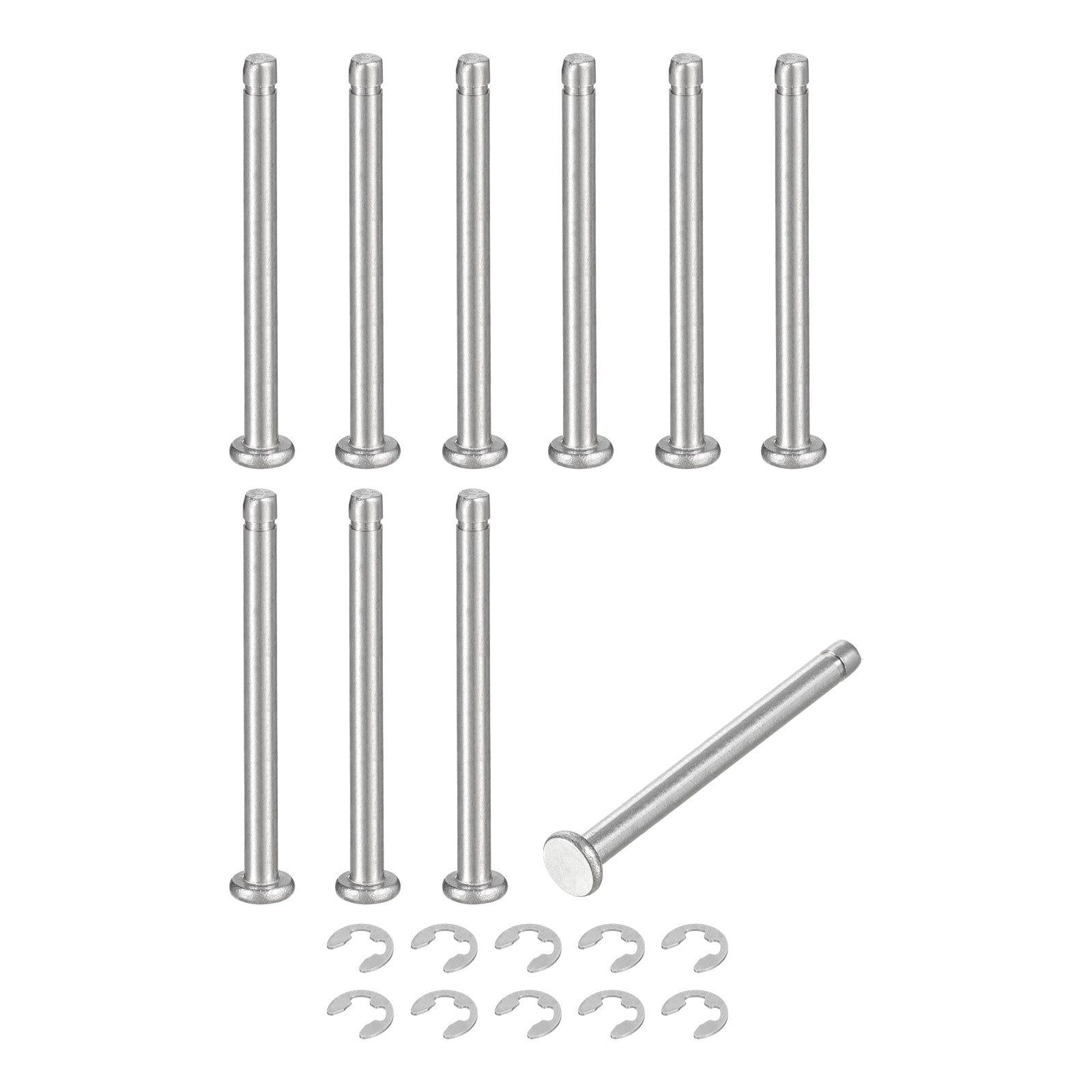

  • Packaging: 10Pcs Cylindrical Pins &10Pcs Blocking Plates
