Harfington 1 Set Front Alignment Camber Caster Adjusting Bolt Kit fit for Toyota Tacoma 4WD

1 Set Front Alignment Camber Caster Adjusting Bolt Kit fit for Toyota Tacoma 4WD

ID:
€74,95 Regular price
/
About this item
  • Fitment: for Toyota 4Runner 2WD 4WD 2003-2009;for Toyota FJ Cruiser 2WD 4WD 2007-2009;for Toyota Tacoma 4WD 2005-2014;for Lexus GX470 2003-2009.
  • Front Camber Degree of Correction: ± 1.50°
  • Package Includes: 2 Set Alignment Camber Adjusting Bolt.(Kit includes 2 set of camber adjusting kit, 2x small bolts with top screws, 2x large bolts with top screws, 2x sleeves for lager bolts, 2x small bushings, 2x large bushings, 4x small gaskets, 4x large gaskets).

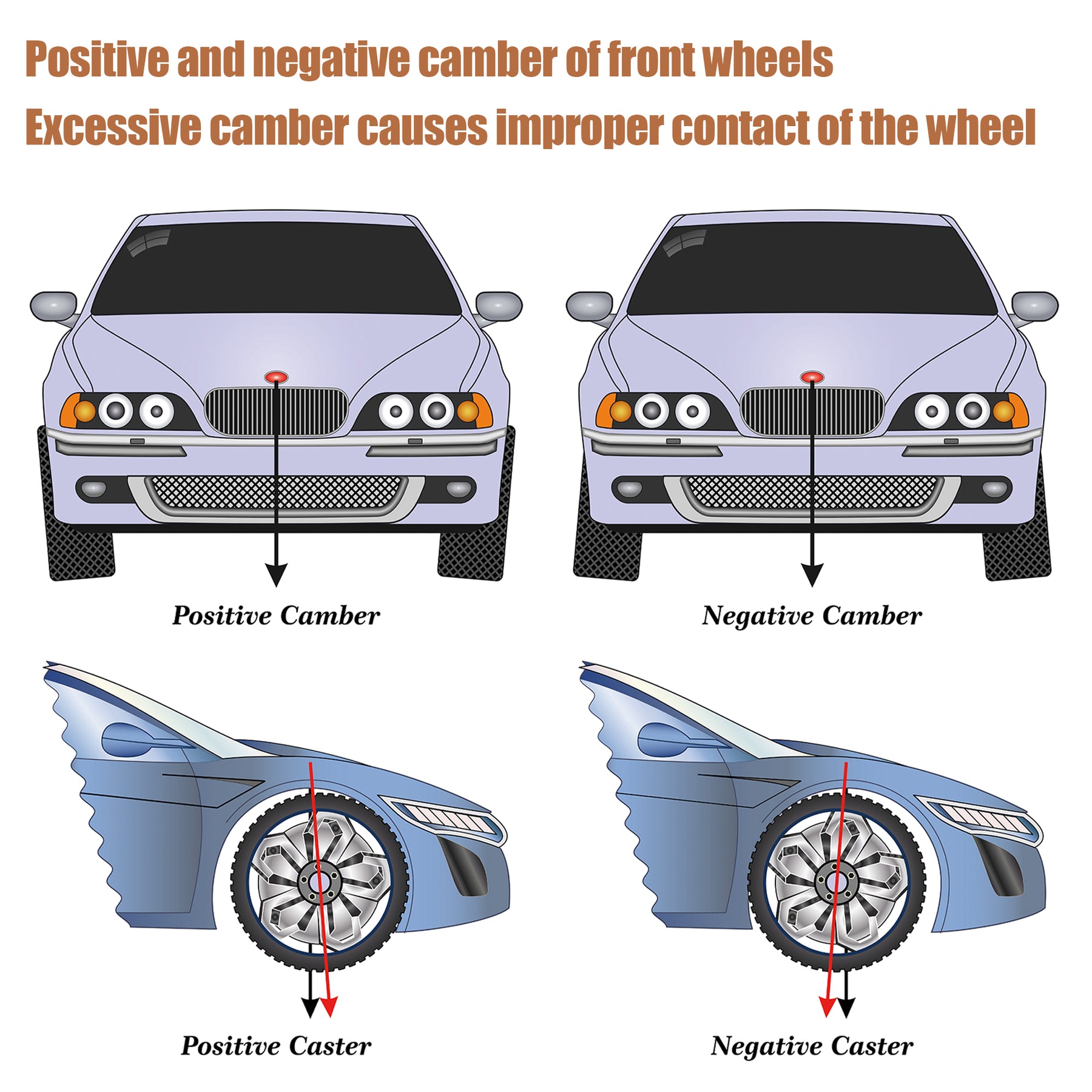

  • Function:This cam bolt kit allows you to adjust the camber of the truck +/- 1.5 degrees, which allows you to adjust the vertical angle correctly, solving excessive tire wear and steering problems, spacers and bushings provide accurate camber, caster and toe adjustment.
  • Place one vehicle:Place on front upper control arm for both driver side(LH) and passenger side(RH).
  • In stock, ready to ship
Cart
Cart
About this item
  • Fitment: for Toyota 4Runner 2WD 4WD 2003-2009;for Toyota FJ Cruiser 2WD 4WD 2007-2009;for Toyota Tacoma 4WD 2005-2014;for Lexus GX470 2003-2009.
  • Front Camber Degree of Correction: ± 1.50°
  • Package Includes: 2 Set Alignment Camber Adjusting Bolt.(Kit includes 2 set of camber adjusting kit, 2x small bolts with top screws, 2x large bolts with top screws, 2x sleeves for lager bolts, 2x small bushings, 2x large bushings, 4x small gaskets, 4x large gaskets).
  • Function:This cam bolt kit allows you to adjust the camber of the truck +/- 1.5 degrees, which allows you to adjust the vertical angle correctly, solving excessive tire wear and steering problems, spacers and bushings provide accurate camber, caster and toe adjustment.
  • Place one vehicle:Place on front upper control arm for both driver side(LH) and passenger side(RH).
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Feature:
  • Camber adjustment kit that can be used for vehicle calibration without drilling or modification.
  • This is a non-OEM product, accessory only!

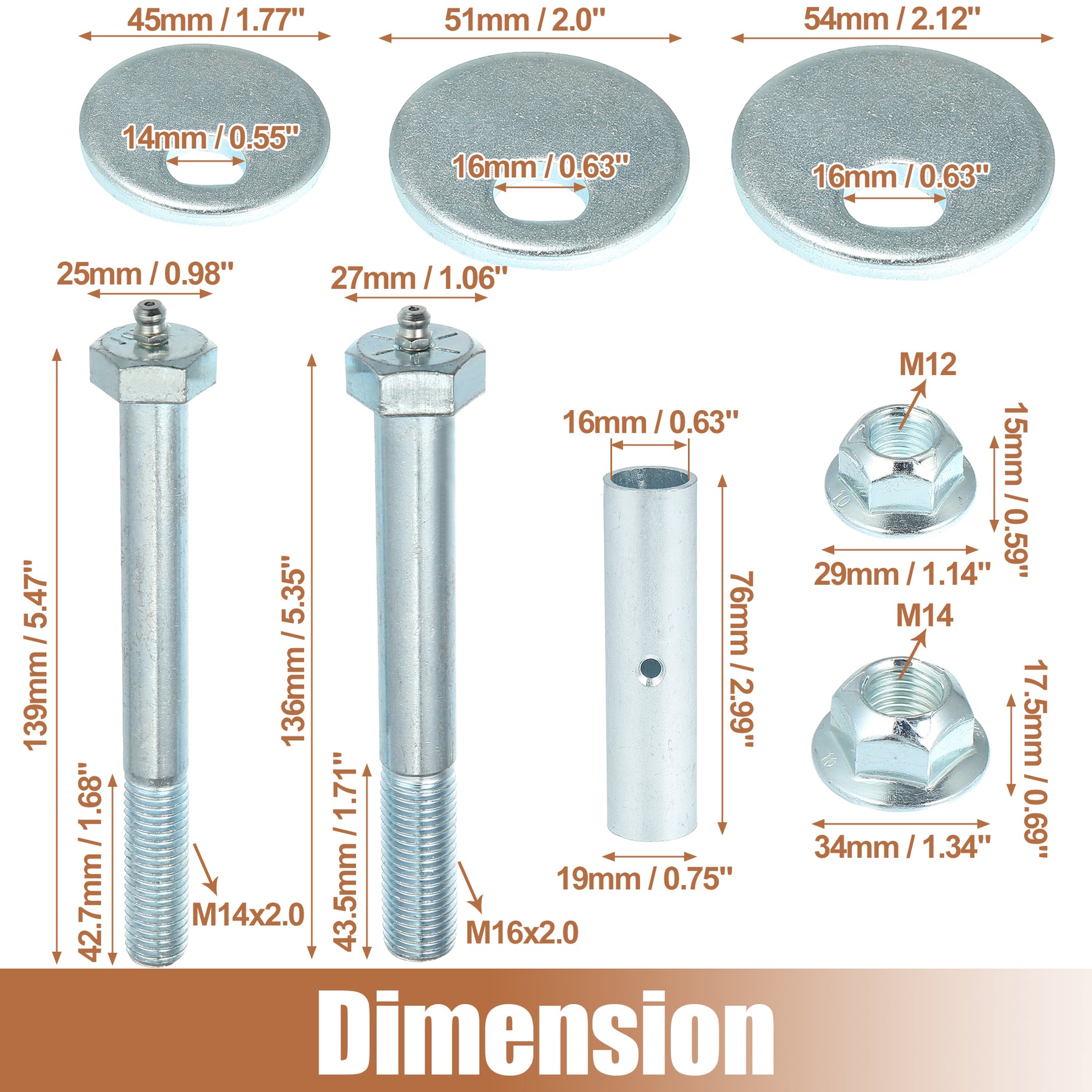

Specification:
  • Type:Camber adjusting Kit
  • Place On Vehicle: Front upper control arm
  • Front Camber Degree of Correction: ± 1.50°
  • Material: Metal
  • Large Bolt Size: 27x136mm / 1.06"x5.35"(D*H)
  • Small Bolt Size: 25x139mm/0.98"x5.47""(D*H)
  • Large Nut Size: 34x17.5mm / 1.34"x0.71"(D*H)
  • Large Nut Internal Thread:M14
  • Small Nut Size:29x15mm/1.14"x0.59"(D*H)
  • Small Nut Internal Thread:M12
  • Large Gasket Inner Diameter: 16mm / 0.63"
  • Large Gasket Outer Diameter: 54mm / 2.13"
  • Middle Gasket Inner Diameter:16mm/0.63"
  • Middle Gasket Outer Diameter:51mm/2.0"
  • Small Gasket Inner Diameter: 14mm / 0.55"
  • Small Gasket Outer Diameter: 45mm/1.77"
  • Tube Length: 76mm / 2.99"
  • Tube Inner Diameter: 16mm / 0.63"
  • Tube Outer Diameter: 19mm / 0.75'
Fitment:
  • for Toyota 4Runner 2WD 4WD 2003-2009;
  • for Toyota FJ Cruiser 2WD 4WD 2007-2009;
  • for Toyota Tacoma 4WD 2005-2014;
  • for Lexus GX470 2003-2009;
Package Includes:

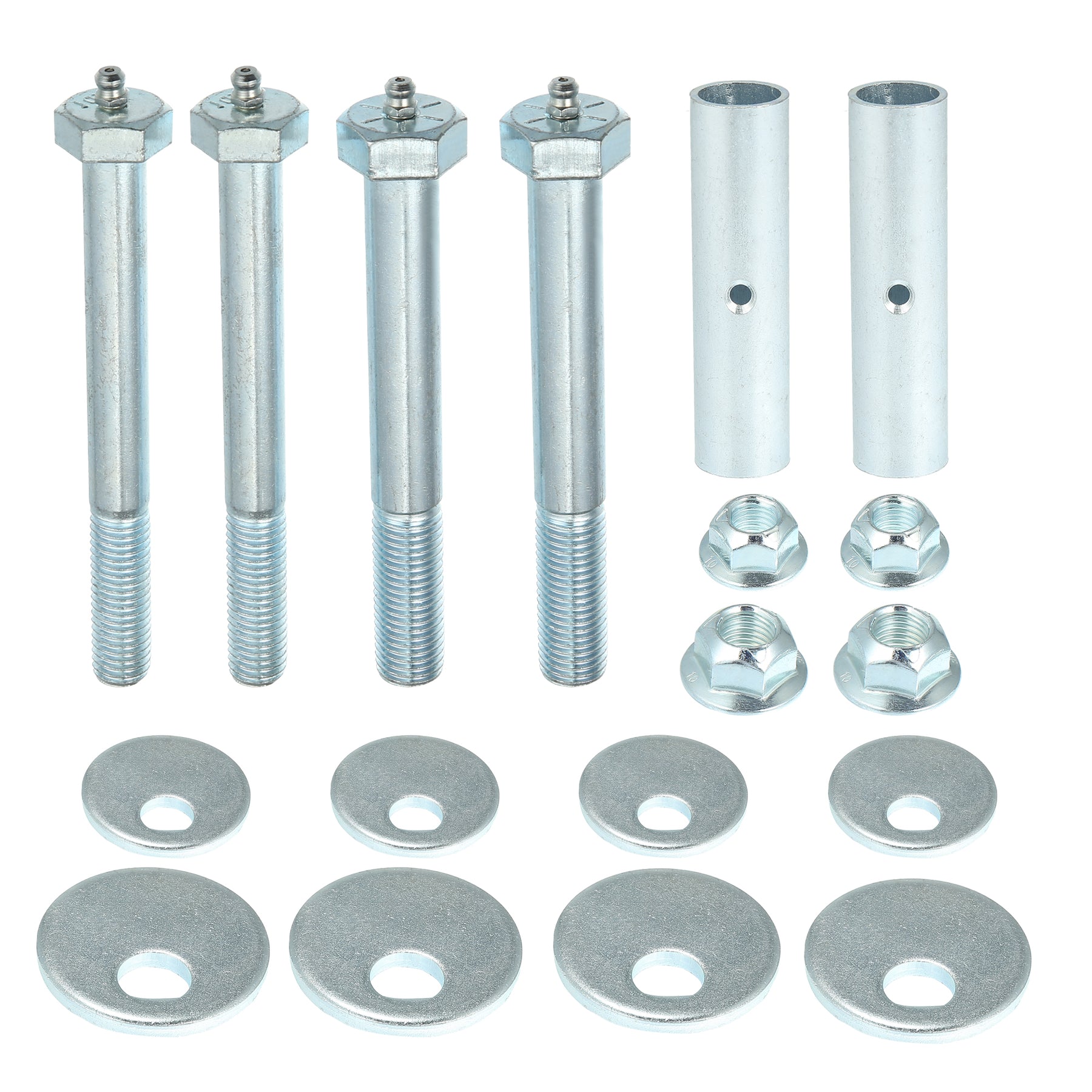

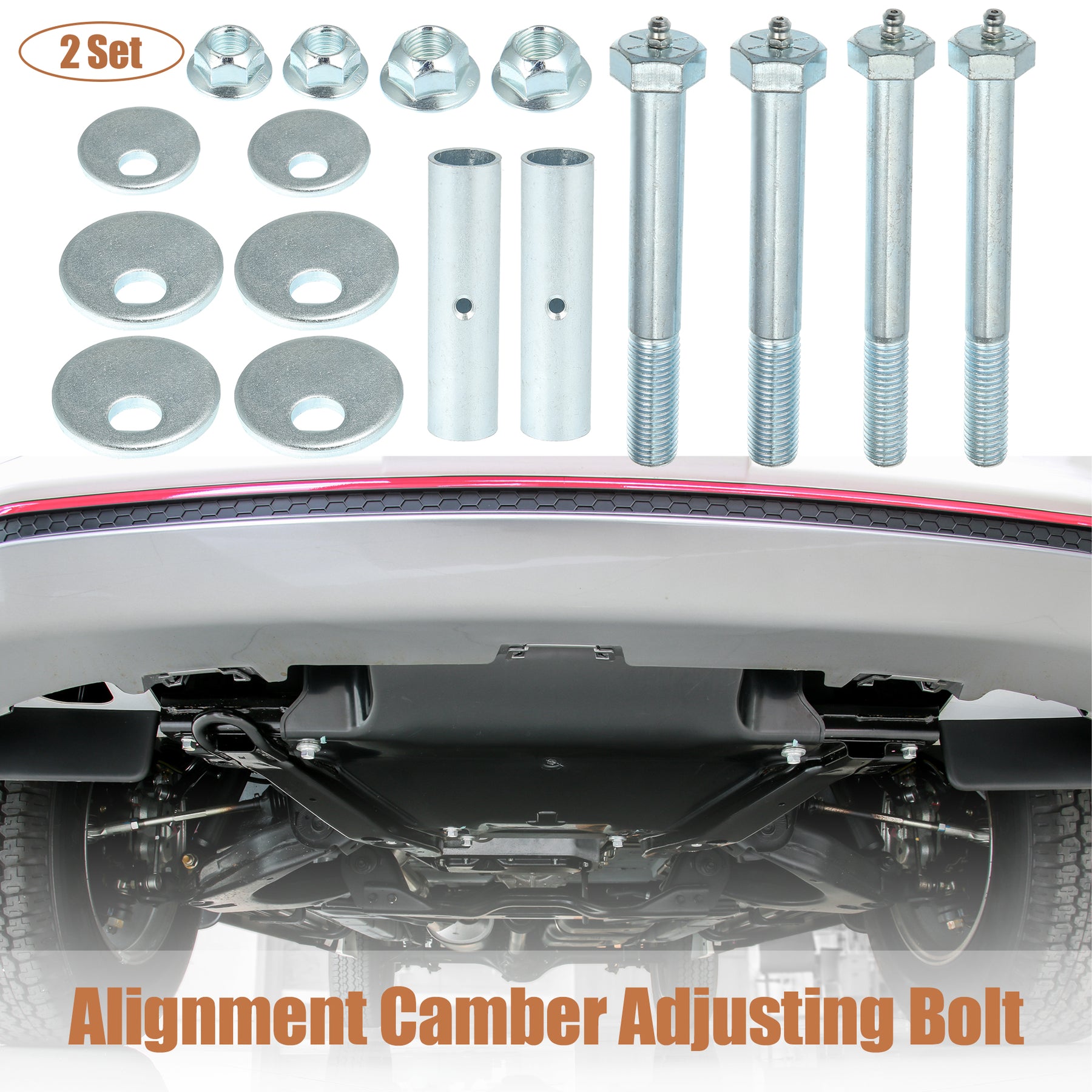

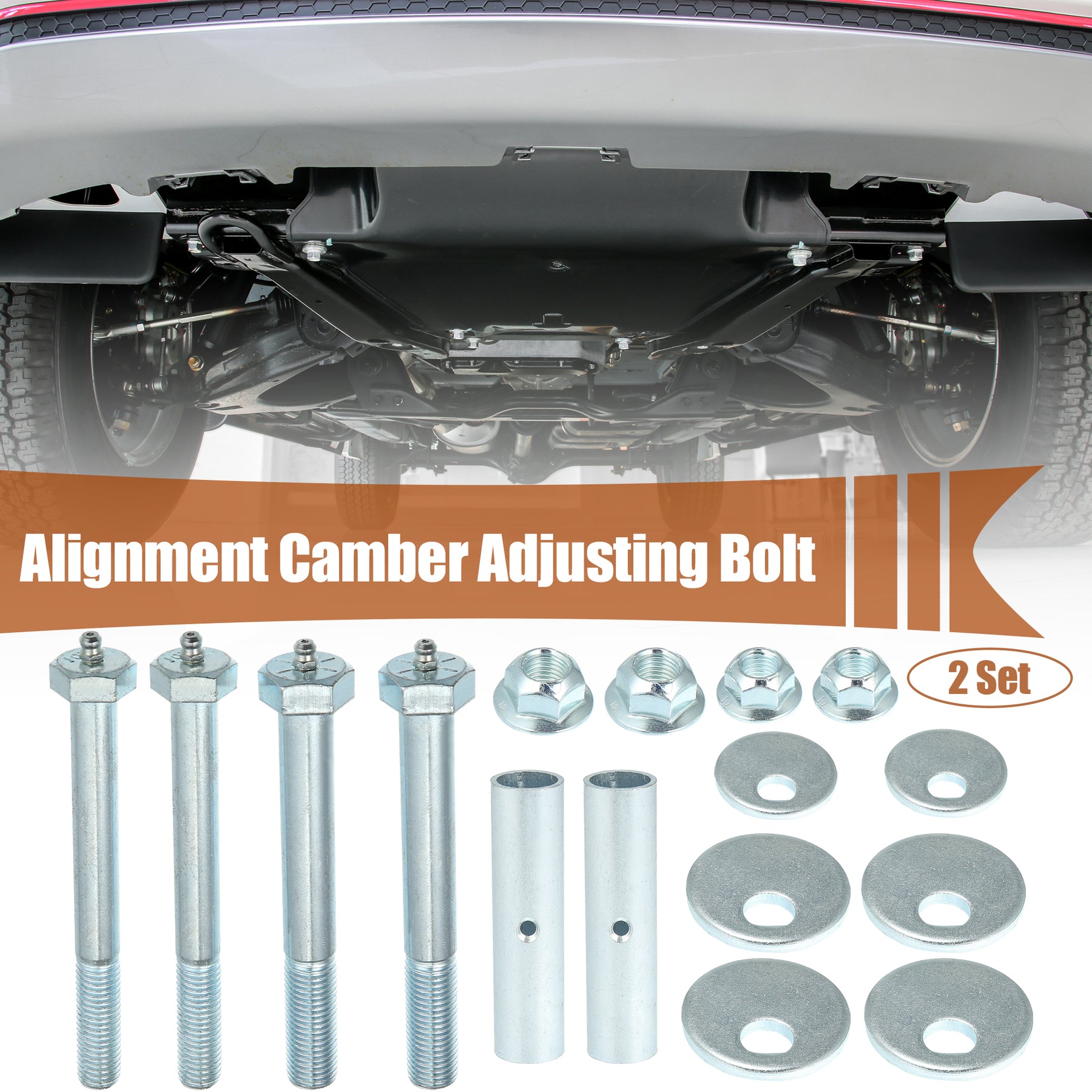

  • 1 Set Alignment Camber Adjusting Bolt.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
