Harfington 2pcs ISO/DIN 06B-1 Roller Chain Sprocket B Type 20mm Bore, Hardened 17 Tooth

2pcs ISO/DIN 06B-1 Roller Chain Sprocket B Type 20mm Bore, Hardened 17 Tooth

ID:
€15,69 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 25%OFF
    Order $5000+
  • 20%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

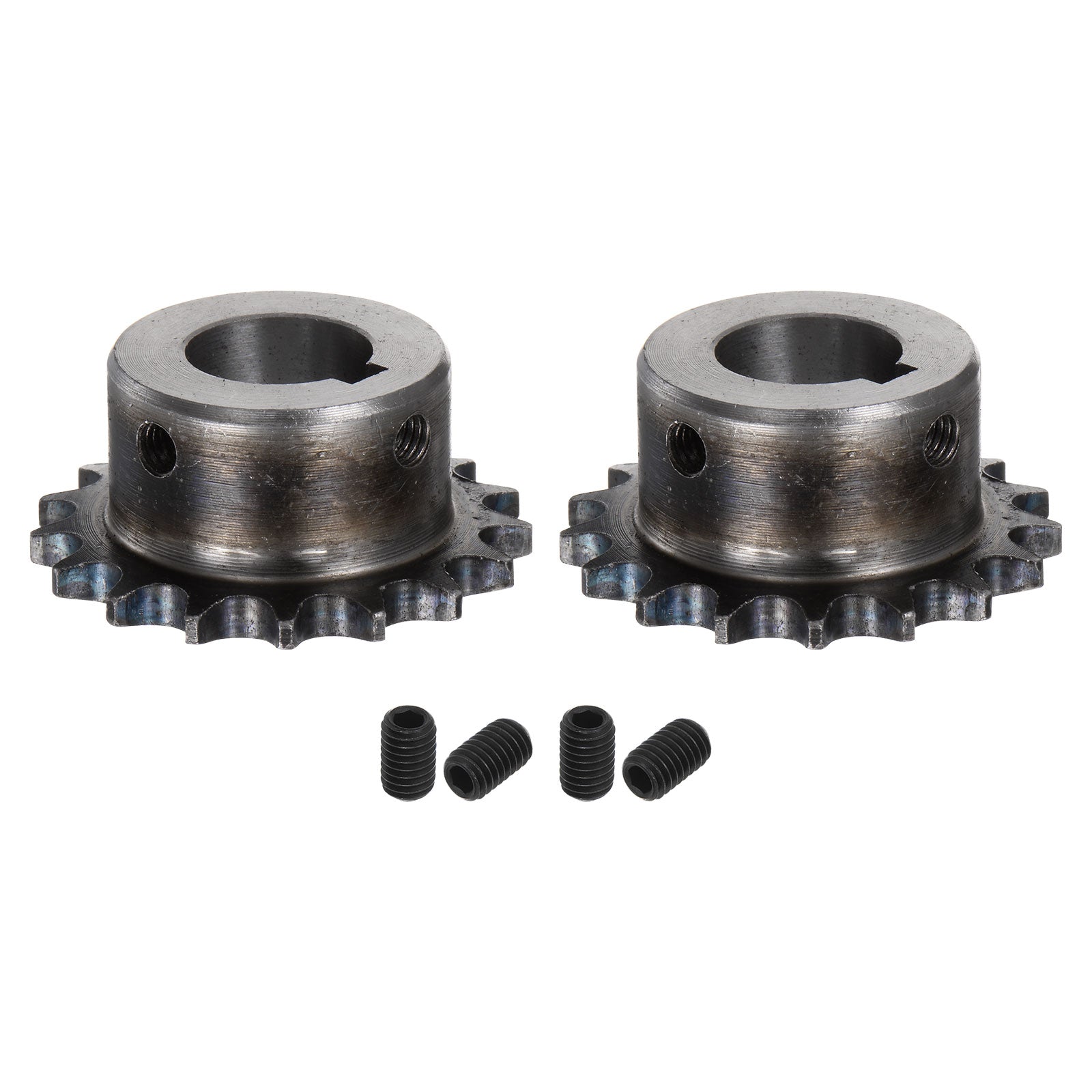

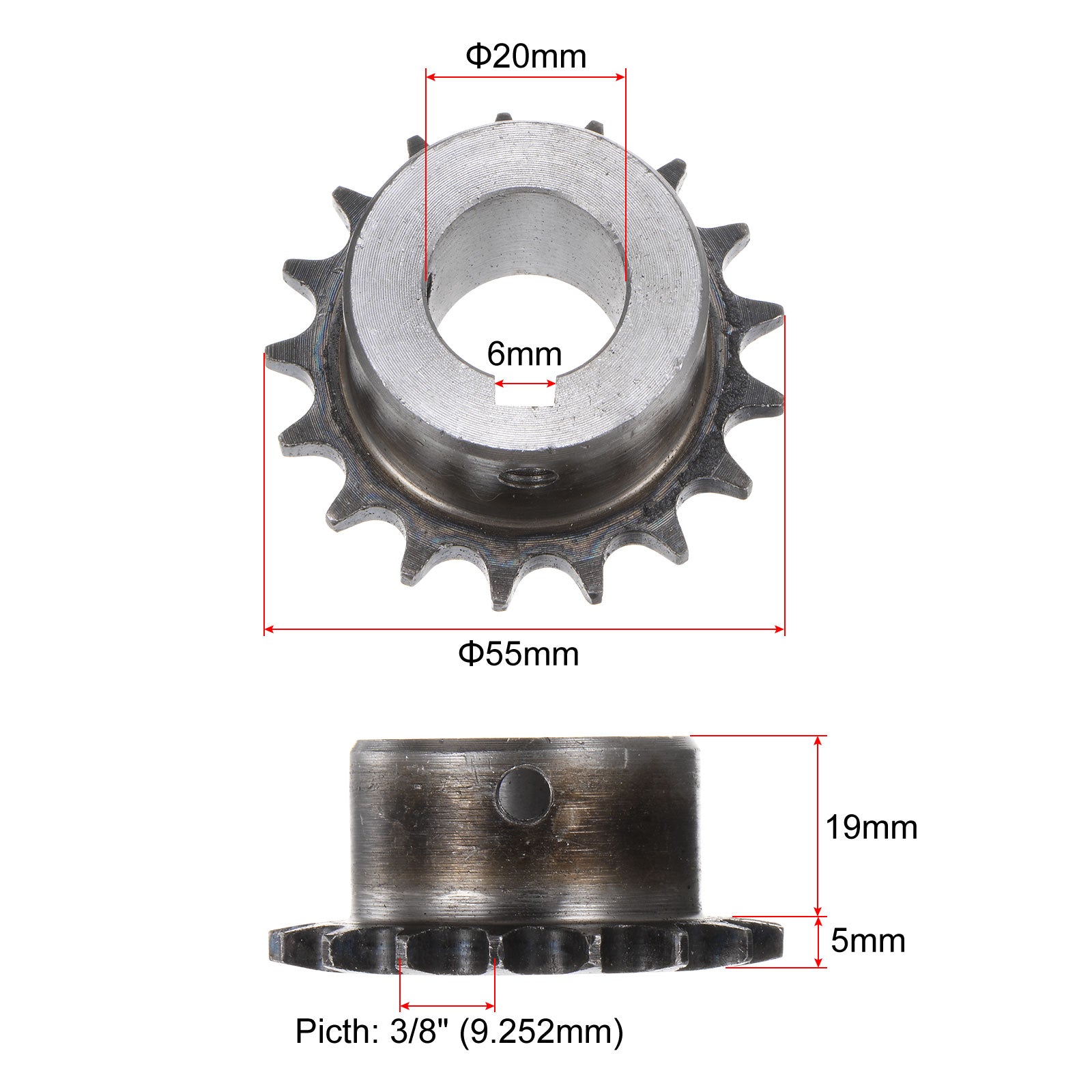

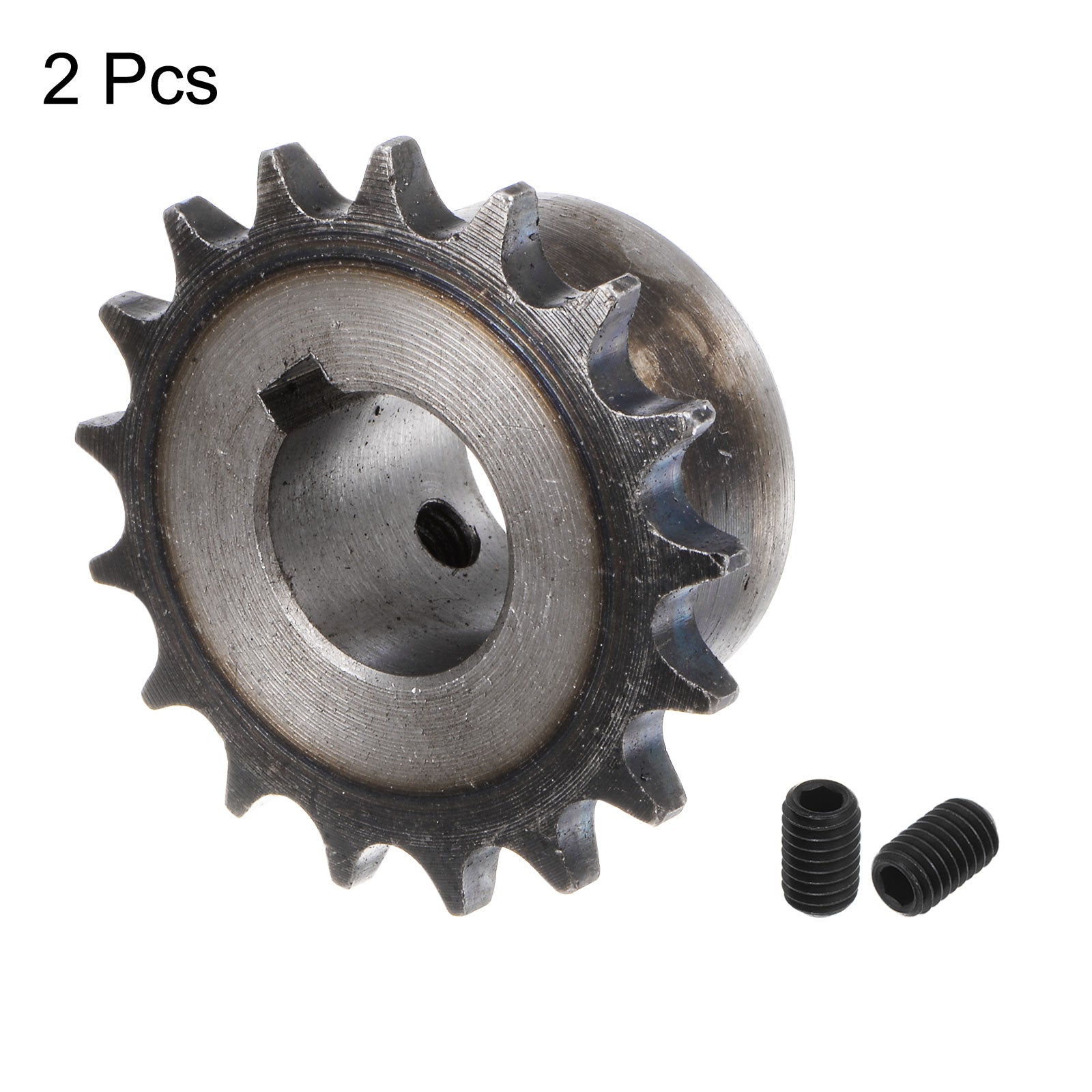

  • Size: 2pcs B type mechanical chain sprockets 17 teeth, 20mm bore, 3/8" (9.252mm) pitch, 6mm keyway. Each sprocket with 2pcs set screws at 90 degrees.
  • Material: The sprocket is made of A3-steel, and the teeth are high-frequency quenched, which exhibits high hardness and wear resistance.
  • Application: The sprocket is applied in various industrial circumstances, such as milling machines, drill presses, and other machinery transmission operations
  • Feature: The B-type sprocket is equipped with a set of teeth on its circumference, connected to other gears through a fasten. On the opposite side, there is a hub that can accommodate different types of bushings. It ensures high transmission efficiency when transferring energy
  • Installation: Chain sprockets are typically mounted in a fixed position on a stationary shaft. They are secured using a keyway and 2pcs set screws positioned at 90-degree intervals, ensuring a secure and convenient installation of the sprocket onto the shaft.
  • In stock, ready to ship
Cart
Cart
About this item
  • Size: 2pcs B type mechanical chain sprockets 17 teeth, 20mm bore, 3/8" (9.252mm) pitch, 6mm keyway. Each sprocket with 2pcs set screws at 90 degrees.
  • Material: The sprocket is made of A3-steel, and the teeth are high-frequency quenched, which exhibits high hardness and wear resistance.
  • Application: The sprocket is applied in various industrial circumstances, such as milling machines, drill presses, and other machinery transmission operations
  • Feature: The B-type sprocket is equipped with a set of teeth on its circumference, connected to other gears through a fasten. On the opposite side, there is a hub that can accommodate different types of bushings. It ensures high transmission efficiency when transferring energy
  • Installation: Chain sprockets are typically mounted in a fixed position on a stationary shaft. They are secured using a keyway and 2pcs set screws positioned at 90-degree intervals, ensuring a secure and convenient installation of the sprocket onto the shaft.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
  1. Material: The sprocket is made of A3-steel, and the teeth are high-frequency quenched, which exhibits high hardness and wear resistance.
  2. Application: The sprocket is applied in various industrial circumstances, such as milling machines, drill presses, and other machinery transmission operations
  3. Feature: The B-type sprocket is equipped with a set of teeth on its circumference, connected to other gears through a fasten. On the opposite side, there is a hub that can accommodate different types of bushings. It ensures high transmission efficiency when transferring energy
  4. Installation: Chain sprockets are typically mounted in a fixed position on a stationary shaft. They are secured using a keyway and 2pcs set screws positioned at 90-degree intervals, ensuring a secure and convenient installation of the sprocket onto the shaft.
  5. Note: The speed of the sprocket should not over that allowed by a drive sprocket of the same size. Each roller sprocket has strong teeth that latch onto the chain. It is suggested that the sprocket has at least three teeth meshed with the chain.
