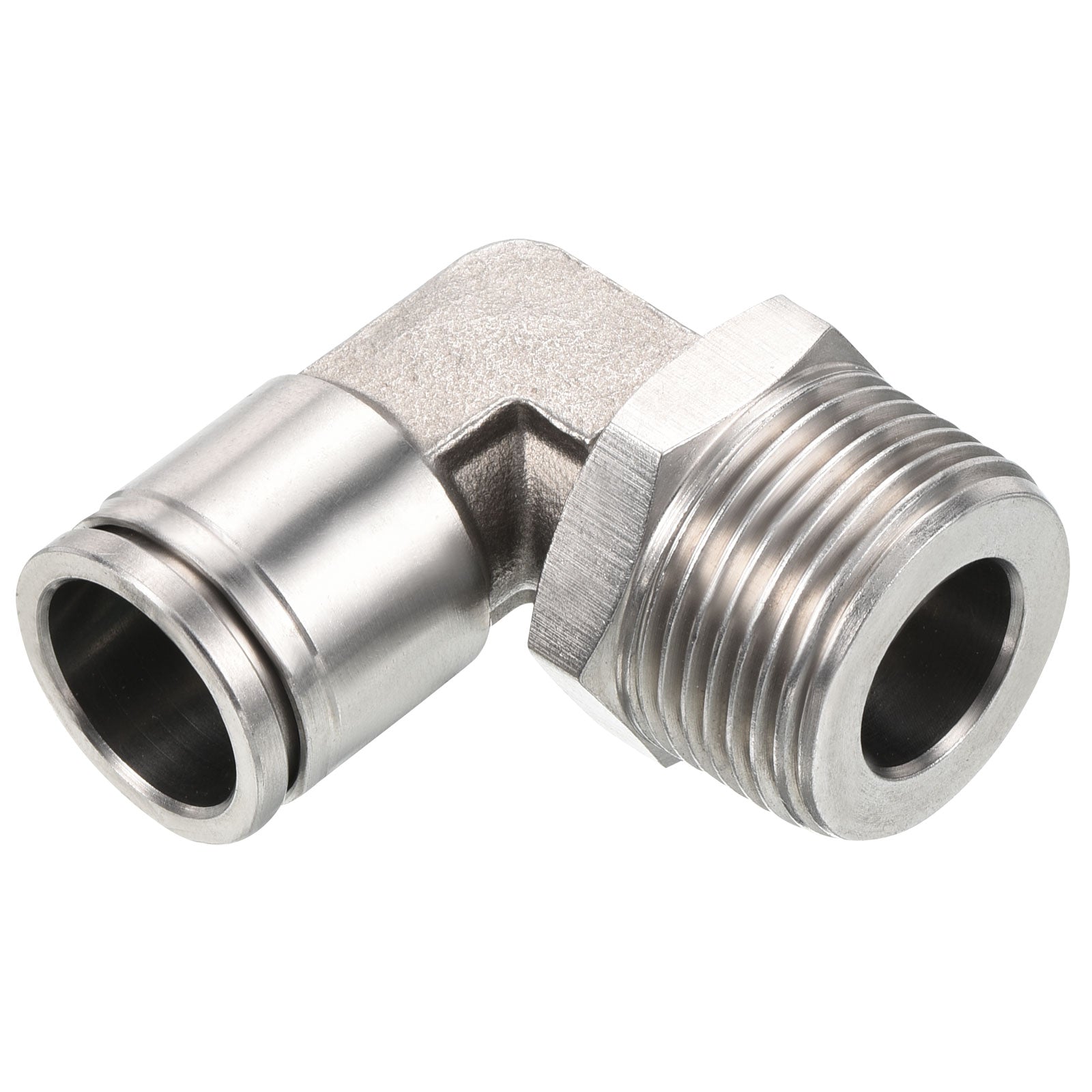

Harfington Push to Connect Fitting Elbow 5/8 Inch Tube OD 3/4 NPT Male Thread, 304 Stainless Steel Right Angle Hose Pipe Connector, Silver

Push to Connect Fitting Elbow 5/8 Inch Tube OD 3/4 NPT Male Thread, 304 Stainless Steel Right Angle Hose Pipe Connector, Silver

ID:
€14,89 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Max Pressure: 2MPa; Operating Temperature: -30~250°C / -22~482°F; Thread Size: 3/4 NPT Male; Fit for Tube Outer Diameter: 4mm / 0.63 inch
  • Advantage: 304 stainless steel material features anti-rust, corrosion, pressure, oxidation resistance, and high-temperature resistance performance. Built-in fluorine rubber O-ring and circlip, good sealing, stable and not loose
  • Instruction: With the quick-connect design, air tubes can be rotated 360 degrees for quick installation and easy disassembly without tools. Great for laboratory gas pipelines, factory pneumatic components, etc.
  • Application: Push-to-connect fitting is a type of easily removed compression fitting that allows an airline to be attached. Can be used with PU, nylon, and PTFE tubing in industrial environments. Only for air, and vacuum
  • Notice: NOT suggested to use in places with excessive dust or particles. When inserting the air hose, please make sure its cross-section is perpendicular to itself and is inserted into the bottom
  • In stock, ready to ship
Cart
Cart
About this item
  • Max Pressure: 2MPa; Operating Temperature: -30~250°C / -22~482°F; Thread Size: 3/4 NPT Male; Fit for Tube Outer Diameter: 4mm / 0.63 inch
  • Advantage: 304 stainless steel material features anti-rust, corrosion, pressure, oxidation resistance, and high-temperature resistance performance. Built-in fluorine rubber O-ring and circlip, good sealing, stable and not loose
  • Instruction: With the quick-connect design, air tubes can be rotated 360 degrees for quick installation and easy disassembly without tools. Great for laboratory gas pipelines, factory pneumatic components, etc.
  • Application: Push-to-connect fitting is a type of easily removed compression fitting that allows an airline to be attached. Can be used with PU, nylon, and PTFE tubing in industrial environments. Only for air, and vacuum
  • Notice: NOT suggested to use in places with excessive dust or particles. When inserting the air hose, please make sure its cross-section is perpendicular to itself and is inserted into the bottom
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Push-to-connect fitting is a type of easily removed compression fitting that allows an airline to be attached. Can be used with PU, nylon, and PTFE tubing in industrial environments, only for air, and vacuum.

Specification:
Color: Silver
Shape: Elbow

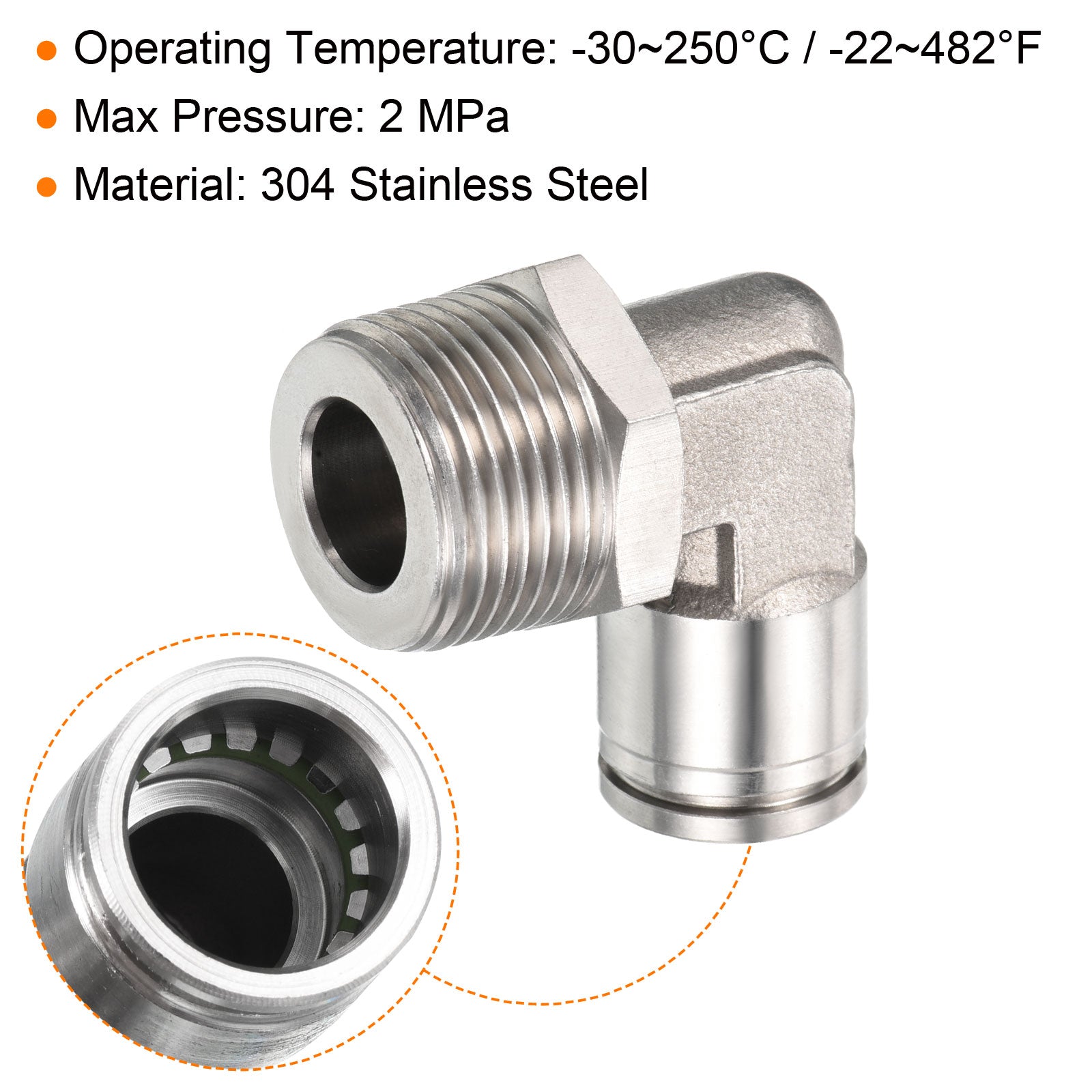

Material: 304 Stainless Steel
Max Pressure: 2 MPa
Operating Temperature: -30~250°C / -22~482°F

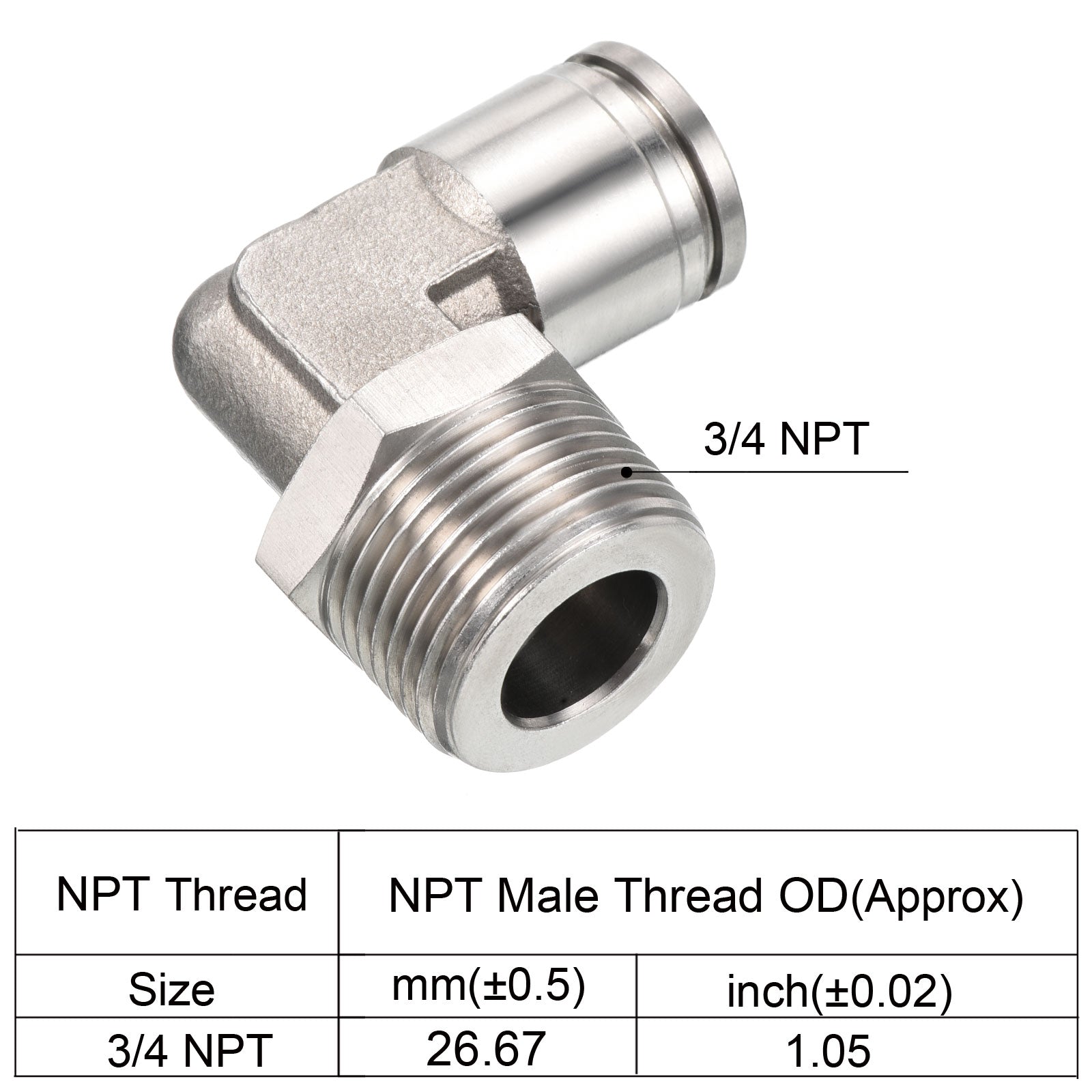

Thread Size: 3/4 NPT Male

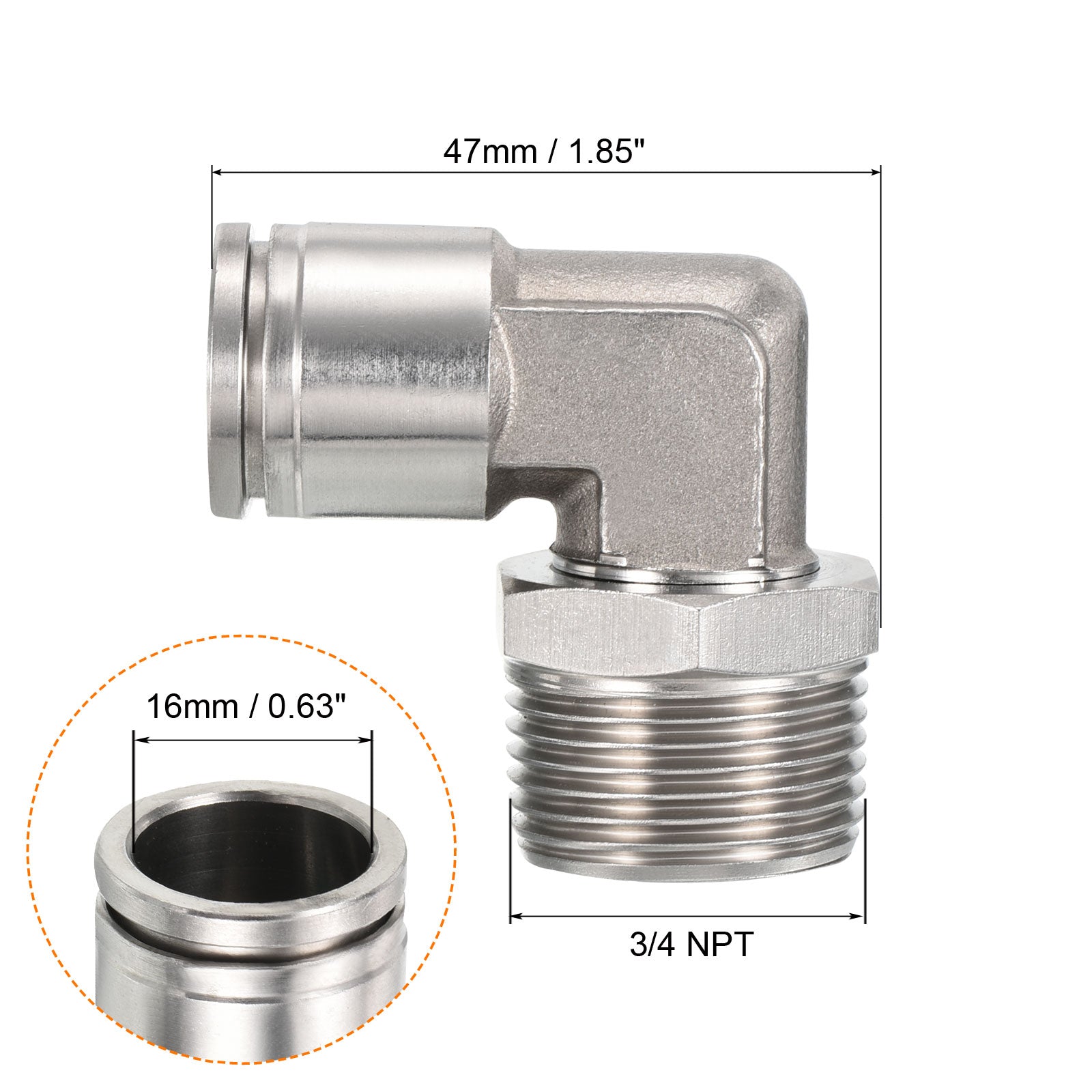

Fit for Tube Outer Diameter: 16mm / 0.63 inch
Overall Size: 47x47mm / 1.85x1.85 inch (L*W)
Package Content: 1 x Quick Connector

Advantage:
304 stainless steel material features anti-rust, corrosion, pressure, oxidation resistance, and high-temperature resistance performance. Built-in fluorine rubber O-ring and circlip, good sealing, stable and not loose.

Instruction:

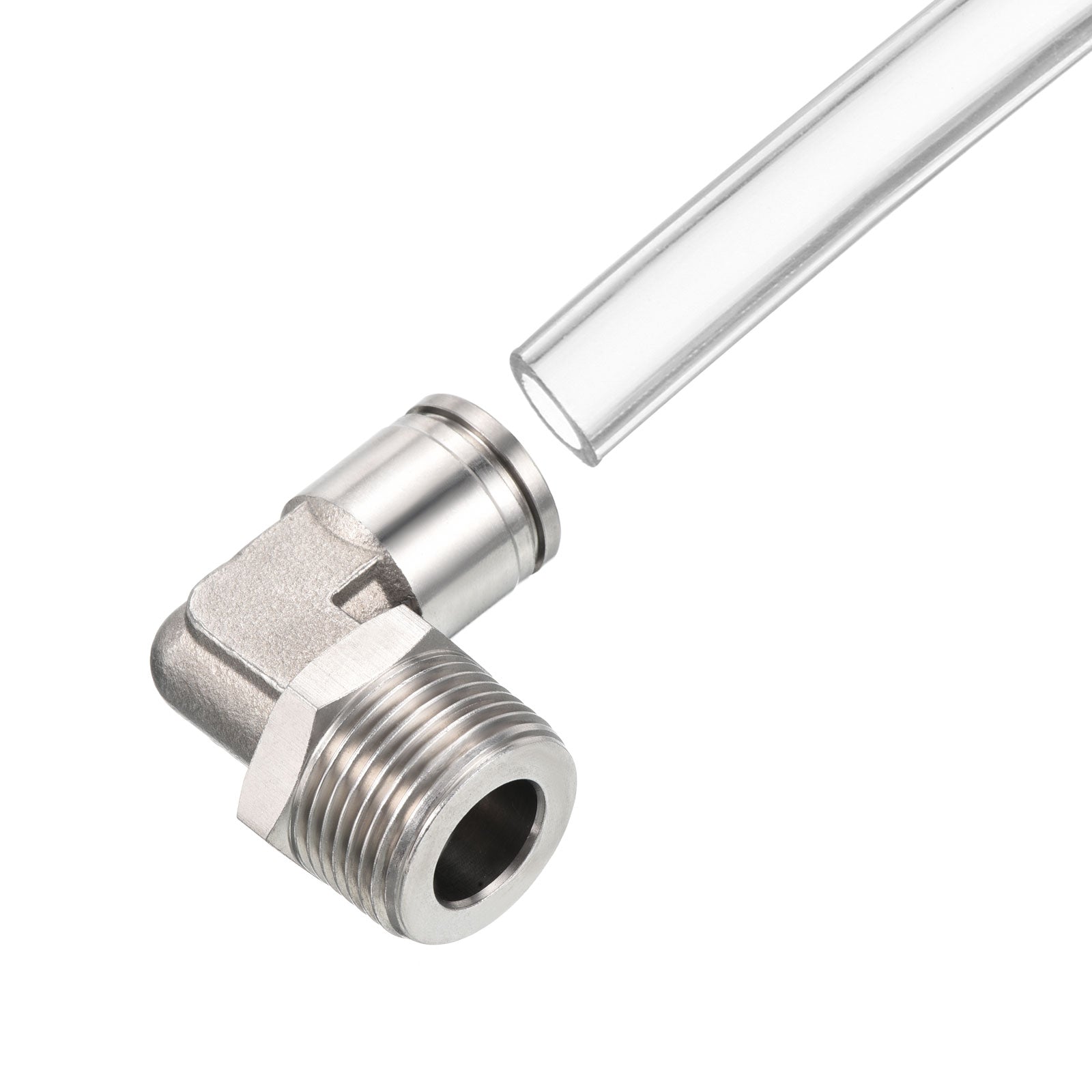

With the quick-connect design, air tubes can be rotated 360 degrees for quick installation and easy disassembly without tools. Great for laboratory gas pipelines, factory pneumatic components, etc.

Notice: Please confirm the correct size before ordering
It is NOT suggested to use in places with excessive dust or particles. When inserting the air hose, please make sure its cross-section is perpendicular to itself and is inserted into the bottom.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
€14,89 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Push-to-connect fitting is a type of easily removed compression fitting that allows an airline to be attached. Can be used with PU, nylon, and PTFE tubing in industrial environments, only for air, and vacuum.

Specification:
Color: Silver
Shape: Elbow
Material: 304 Stainless Steel
Max Pressure: 2 MPa
Operating Temperature: -30~250°C / -22~482°F
Thread Size: 3/4 NPT Male
Fit for Tube Outer Diameter: 16mm / 0.63 inch
Overall Size: 47x47mm / 1.85x1.85 inch (L*W)
Package Content: 1 x Quick Connector

Advantage:
304 stainless steel material features anti-rust, corrosion, pressure, oxidation resistance, and high-temperature resistance performance. Built-in fluorine rubber O-ring and circlip, good sealing, stable and not loose.

Instruction:
With the quick-connect design, air tubes can be rotated 360 degrees for quick installation and easy disassembly without tools. Great for laboratory gas pipelines, factory pneumatic components, etc.

Notice: Please confirm the correct size before ordering
It is NOT suggested to use in places with excessive dust or particles. When inserting the air hose, please make sure its cross-section is perpendicular to itself and is inserted into the bottom.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
