Harfington Needle Roller and Cage Assembly

Needle Roller and Cage Assembly

ID:
€8,55 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
2
NumberOfItems
About this item

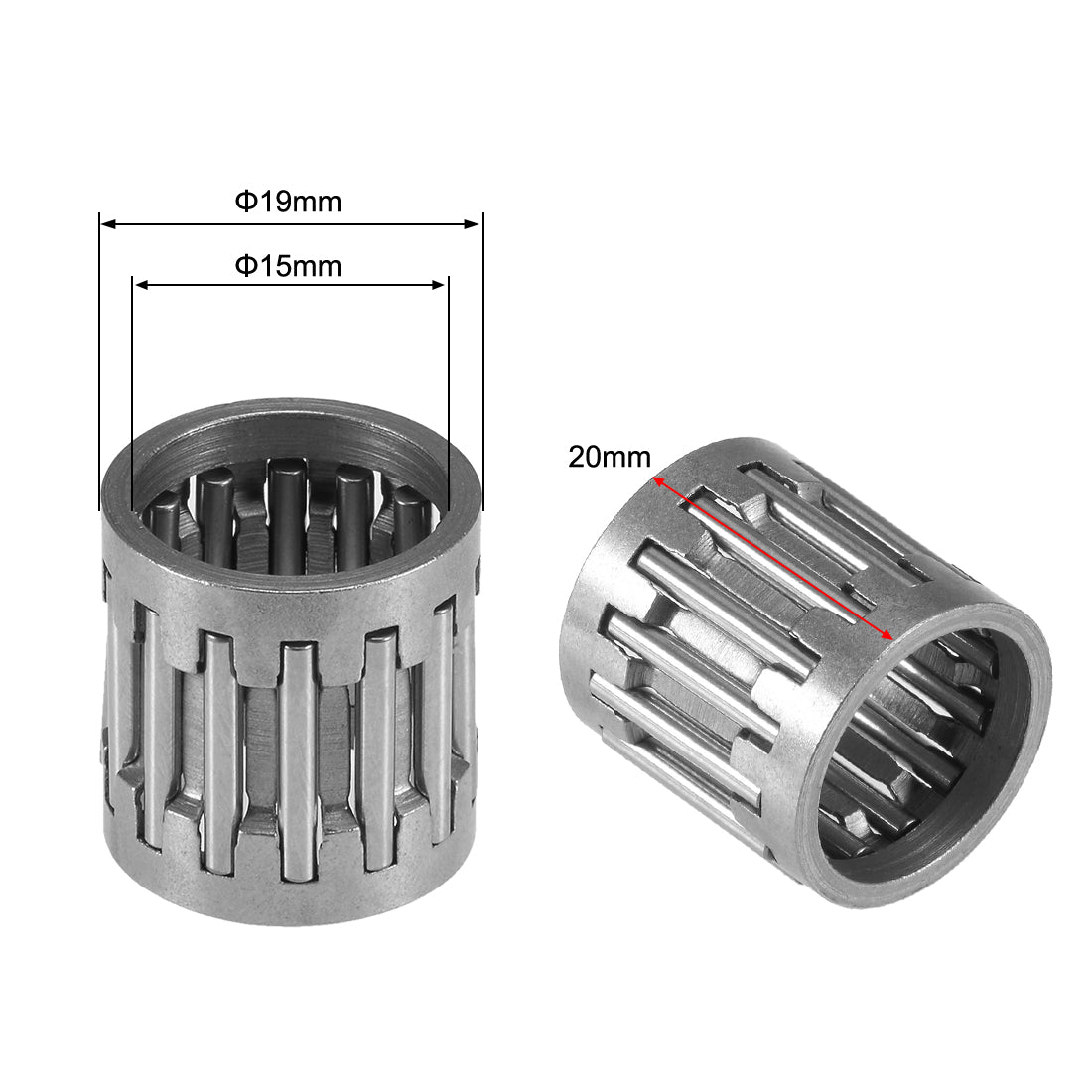

  • [SIZE] - Model: K151920 (I.D. (Fw)= 15mm, O.D. (D)= 19mm, Width (C)= 20mm)

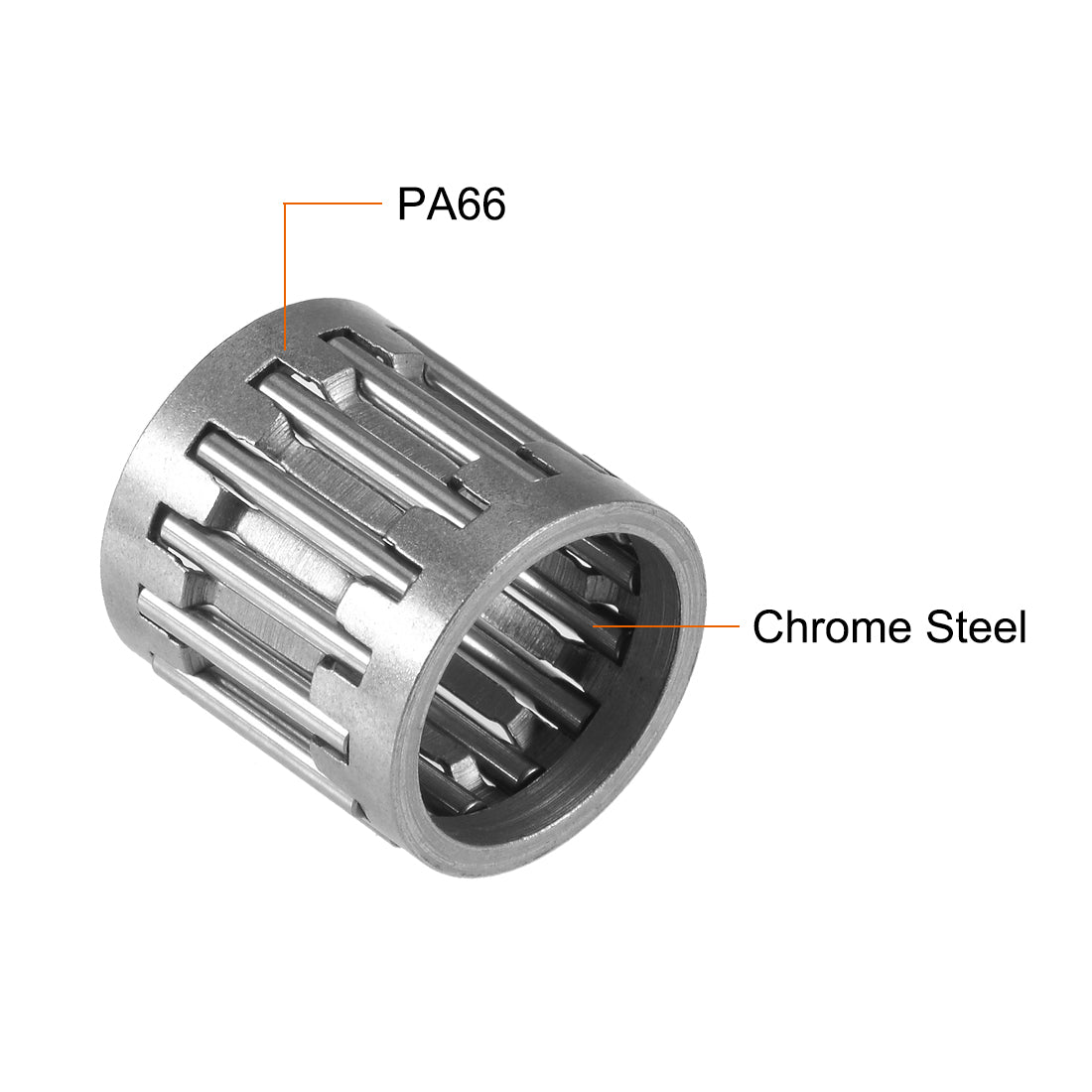

  • [MATERIAL] - Steel Cage, Chrome Steel Needle Rollers
  • [FEATURES] - GCr15 Needle Rollers Assembly, High Load Carrying Capacity and Stiffness
  • [CAPABILITY] - Dynamic Load Rating: 11300N, Static Load Rating: 16000N, Limit Speed: 22000RPM
  • [APPLICATIONS] - They are suitable for applications where the installation space is restricted and the housing bore can be used as a raceway
  • In stock, ready to ship
Cart
Cart
About this item
  • [SIZE] - Model: K151920 (I.D. (Fw)= 15mm, O.D. (D)= 19mm, Width (C)= 20mm)
  • [MATERIAL] - Steel Cage, Chrome Steel Needle Rollers
  • [FEATURES] - GCr15 Needle Rollers Assembly, High Load Carrying Capacity and Stiffness
  • [CAPABILITY] - Dynamic Load Rating: 11300N, Static Load Rating: 16000N, Limit Speed: 22000RPM
  • [APPLICATIONS] - They are suitable for applications where the installation space is restricted and the housing bore can be used as a raceway
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:



  1. Needle roller and cage assemblies are self­-contained, ready-­to­-mount bearings.
  2. In applications where the shaft and housing bore can serve as raceways, the assemblies can be used to create bearing arrangements that require minimal radial space.



Specification:

Model: K151920

Needle Roller Material: Chromium Steel (GCr15)

Drawn Cup Material: Steel

Bore Diameter (Fw): 15mm

Outside Diameter (D): 19mm

Width: 20mm

Dynamic Load Capacity (Cr): 11300N

Static Load Capacity (Cor): 16000N

Limiting Speed: 22000RPM

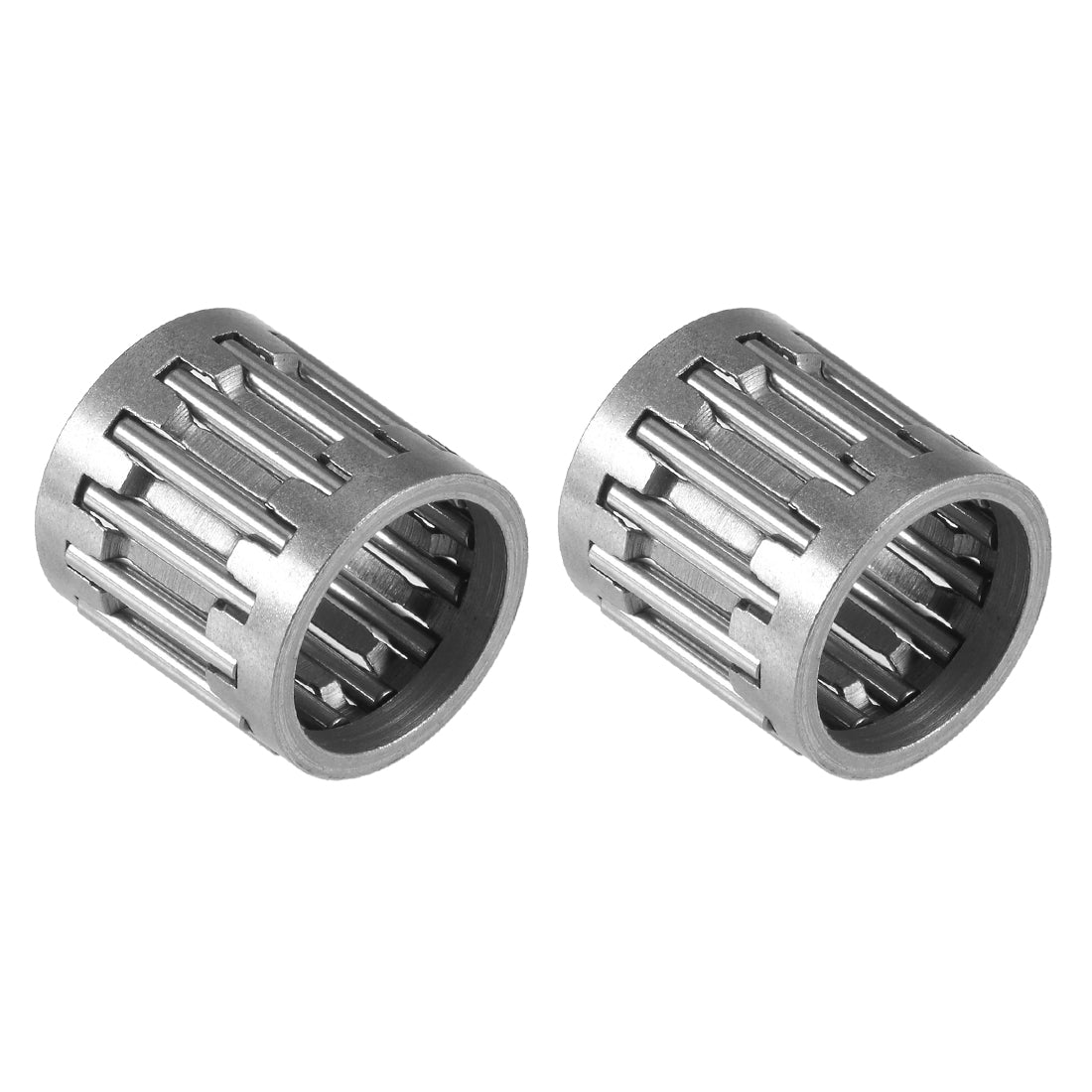

Number of Pack: 2 Pcs

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
€8,55 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description:



  1. Needle roller and cage assemblies are self­-contained, ready-­to­-mount bearings.
  2. In applications where the shaft and housing bore can serve as raceways, the assemblies can be used to create bearing arrangements that require minimal radial space.



Specification:

Model: K151920

Needle Roller Material: Chromium Steel (GCr15)

Drawn Cup Material: Steel

Bore Diameter (Fw): 15mm

Outside Diameter (D): 19mm

Width: 20mm

Dynamic Load Capacity (Cr): 11300N

Static Load Capacity (Cor): 16000N

Limiting Speed: 22000RPM

Number of Pack: 2 Pcs

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
