Harfington DC 6V 10RPM High Torque Worm Geared Motor JGY-370 Motor with Bracket Screws

DC 6V 10RPM High Torque Worm Geared Motor JGY-370 Motor with Bracket Screws

ID:
CA$22.00 Regular price
CA/
Wholesale Price
20%OFF
Order $5000+
  • 25%OFF
    Order $5000+
  • 20%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Self-Locking Design for Secure Positioning: Thanks to the 1:600 reduction ratio worm gear mechanism, the output shaft locks automatically when power is off, preventing external reversing. This brings reliable load suspension to engineers developing electric curtains or vending machine dispensers, eliminating the need for extra brakes. The motor has a compact design, strong load capacity, and wide range of uses, from label printers and remote-controlled curtains to barbecue grills and ovens
  • Compact Vertical Layout for Tight Spaces: Featuring a solid D-shaped shaft (8mm/0.32" diameter, 25mm/0.98" length) and the gearbox (32mm/1.26" wide, 46mm/1.81" long, 22mm/0.87" high). The total width of 32mm/1.26", length of 76.8mm/3.02" and height of 22mm/0.87". This simplifies power transmission for manufacturers designing smart locks or robotic joints in confined mechanical structures
  • Metal Gears for Extended Durability: The internal gears are constructed from metal material, combined with the robust worm gear structure, effectively resisting wear and tooth stripping under long-term high-load operation. This brings a longer service life and lower maintenance to DIY enthusiasts seeking reliable dc gear motor performance
  • Ultra-Low Speed, High Torque Output: This worm geared motor with a rated voltage of DC6V and a 1:600 reduction ratio, this JGY370 motor delivers a no-load speed of only 10RPM. This eliminates the need for additional gearboxes for engineers building coffee machines or coin counters, simplifying system design and reducing costs
  • Complete Kit for Hassle-Free Installation:The package includes 1 silver motor mounting bracket and 8 mounting screws, so nothing extra needs to be purchased. This provides a convenient setup experience for hobbyists making model projects or slow rotating motor applications, getting their builds done quickly
  • In stock, ready to ship
Cart
Cart
About this item
  • Self-Locking Design for Secure Positioning: Thanks to the 1:600 reduction ratio worm gear mechanism, the output shaft locks automatically when power is off, preventing external reversing. This brings reliable load suspension to engineers developing electric curtains or vending machine dispensers, eliminating the need for extra brakes. The motor has a compact design, strong load capacity, and wide range of uses, from label printers and remote-controlled curtains to barbecue grills and ovens
  • Compact Vertical Layout for Tight Spaces: Featuring a solid D-shaped shaft (8mm/0.32" diameter, 25mm/0.98" length) and the gearbox (32mm/1.26" wide, 46mm/1.81" long, 22mm/0.87" high). The total width of 32mm/1.26", length of 76.8mm/3.02" and height of 22mm/0.87". This simplifies power transmission for manufacturers designing smart locks or robotic joints in confined mechanical structures
  • Metal Gears for Extended Durability: The internal gears are constructed from metal material, combined with the robust worm gear structure, effectively resisting wear and tooth stripping under long-term high-load operation. This brings a longer service life and lower maintenance to DIY enthusiasts seeking reliable dc gear motor performance
  • Ultra-Low Speed, High Torque Output: This worm geared motor with a rated voltage of DC6V and a 1:600 reduction ratio, this JGY370 motor delivers a no-load speed of only 10RPM. This eliminates the need for additional gearboxes for engineers building coffee machines or coin counters, simplifying system design and reducing costs
  • Complete Kit for Hassle-Free Installation:The package includes 1 silver motor mounting bracket and 8 mounting screws, so nothing extra needs to be purchased. This provides a convenient setup experience for hobbyists making model projects or slow rotating motor applications, getting their builds done quickly
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Self-Locking Safety:
Thanks to the Worm Gear Motor design with a 1:600 reduction ratio, it brings reliable self-locking to R&D engineers developing vending machines or electric curtains, preventing the load from falling after power-off without needing extra brakes. The motor has a compact design, strong load capacity, and wide range of uses, from label printers and remote-controlled curtains to barbecue grills and ovens

Compact Structure:
This worm geared motor with a solid D-shaft (8mm/0.32" diameter, 25mm/0.98" length) and the gearbox (32mm/1.26" wide, 46mm/1.81" long, 22mm/0.87" high). The total width of 32mm/1.26", length of 76.8mm/3.02" and height of 22mm/0.87", allows Self-Locking Worm Gear Motor to fit easily into tight spaces, simplifying mechanical design for smart lock manufacturers

Durable Metal Gears:
The internal metal gears ensure high wear resistance, providing long-lasting performance for DIY enthusiasts who need a JGY370 Motor that won't wear out or strip under continuous high-load operation, reducing maintenance costs

Low Speed, High Torque:
Rated at DC6V with a no-load speed of 10RPM and a 1:600 reduction ratio, this Worm Gear Motor delivers high torque directly, allowing hobbyists building electric curtains to drive heavy loads without needing an extra gearbox

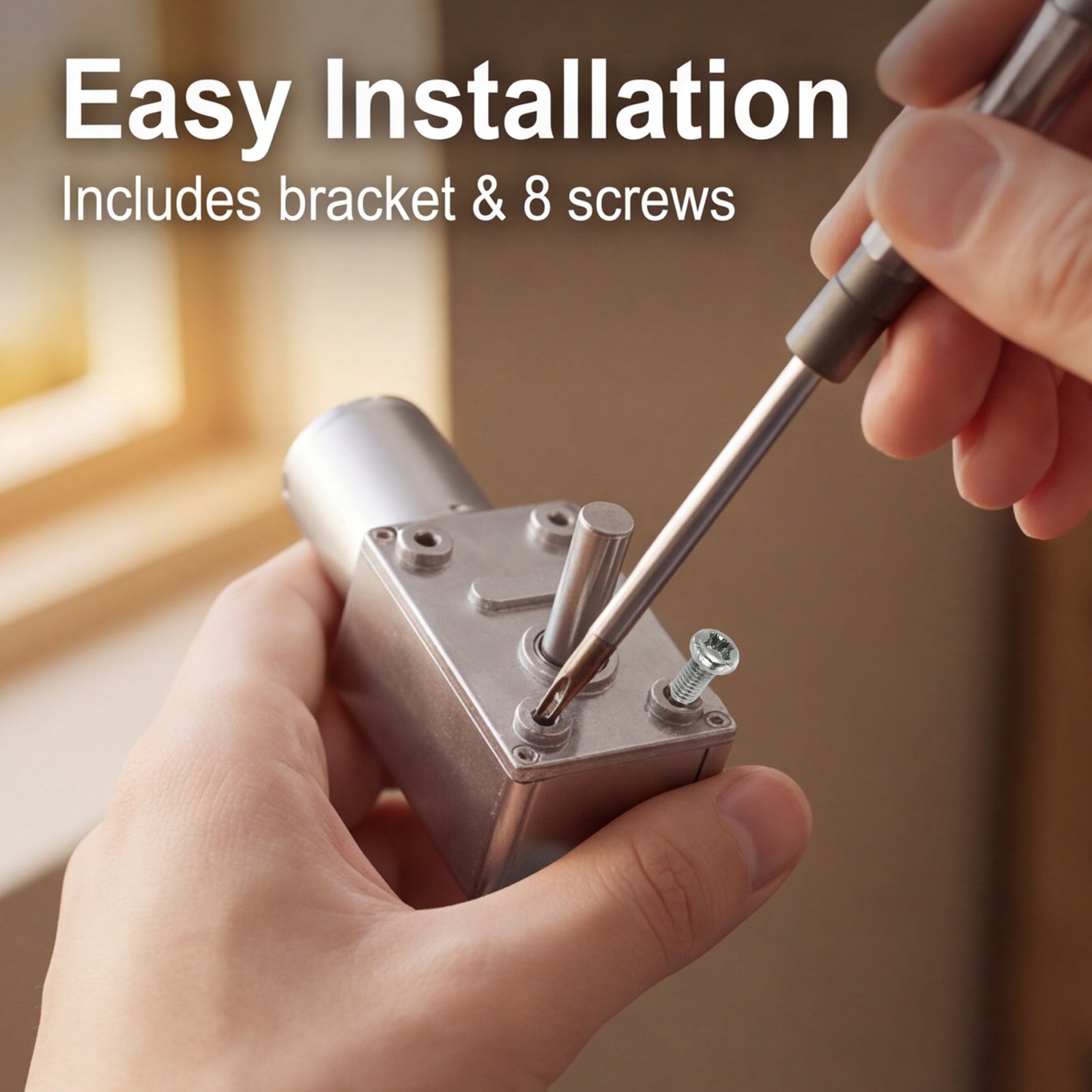

Easy Installation:
Comes with 1 silver motor bracket and 8 screws, offering a hassle-free setup for makers working on model projects, so you can mount the JGY370 Motor directly without searching for additional hardware, saving time and effort
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
CA$22.00 Regular price
CA/
Wholesale Price
20%OFF
Order $5000+
  • 25%OFF
    Order $5000+
  • 20%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Self-Locking Safety:
Thanks to the Worm Gear Motor design with a 1:600 reduction ratio, it brings reliable self-locking to R&D engineers developing vending machines or electric curtains, preventing the load from falling after power-off without needing extra brakes. The motor has a compact design, strong load capacity, and wide range of uses, from label printers and remote-controlled curtains to barbecue grills and ovens

Compact Structure:
This worm geared motor with a solid D-shaft (8mm/0.32" diameter, 25mm/0.98" length) and the gearbox (32mm/1.26" wide, 46mm/1.81" long, 22mm/0.87" high). The total width of 32mm/1.26", length of 76.8mm/3.02" and height of 22mm/0.87", allows Self-Locking Worm Gear Motor to fit easily into tight spaces, simplifying mechanical design for smart lock manufacturers

Durable Metal Gears:
The internal metal gears ensure high wear resistance, providing long-lasting performance for DIY enthusiasts who need a JGY370 Motor that won't wear out or strip under continuous high-load operation, reducing maintenance costs

Low Speed, High Torque:
Rated at DC6V with a no-load speed of 10RPM and a 1:600 reduction ratio, this Worm Gear Motor delivers high torque directly, allowing hobbyists building electric curtains to drive heavy loads without needing an extra gearbox

Easy Installation:
Comes with 1 silver motor bracket and 8 screws, offering a hassle-free setup for makers working on model projects, so you can mount the JGY370 Motor directly without searching for additional hardware, saving time and effort
