Harfington Dual Electric Fan Relay Kit with Thermostatic Sensor Switch 185 On 175 Off 60A

Dual Electric Fan Relay Kit with Thermostatic Sensor Switch 185 On 175 Off 60A

ID:
CA$61.00 Regular price
CA/
About this item
  • [Compatible of dual electric fan relay kit] Fit for 10", 12",14" and 16" fans include dual fans, provide good performance on vehicle’s cooling system, help to provide efficient cooling and preventing engine from overheating. We recommend to using separate relay wiring kit for each fan to get better performance on the various vehicles like cars, pickups, trucks, boats, UTV, ATV etc.
  • [Function of waterproof fan relay kit] 60 amp relay. It comes with a 185°F on / 175°F off thermostat switch, it shall turn your cooling fans on when the engine reaches the preset temperature of the thermostatic switch mounted in the engine head or when the A/C is turned on. It ensures the fan only works when needed, enhancing cost efficiency.
  • [Installatio of electric cooling fan thermostat kit] Connet the color-coded wires refer wiring diagram. red to +12VDC(10 Feet 12 Gauge ), blue to the electric fan relay(6 Feet 12 Gauge), yellow to ignition or cooling fan switch(6 Feet 18 Gauge), gray to the Thermostat Switch Sending Unit(6 Feet 18 Gauge). Please folllow the user manual during installation or you can search online operation video when you install it in doubt.
  • [Package of fan relay kit] Include 1x Wiring Diagram, 2x 60A relay with wiring harness, 1x 185'F on-175'F off temperature switch, 1x 3/8" Thread-In Probe, 1x 3/8" to 1/2" adapter, 2x inline fuse holder, 4x 20 amp fuse, 8x ring terminals, 4x fan pigtail connectors, 1x spade connector for temp sensor, 2x Relay Mount Screws.
  • [Notice of radiator fan mounting kit] It is enough to run two medium or low profile cooling fans, Please crimp or solder bigger wires to it If you intend to mount high-profile fans. ( 12 Gauge - 20Amps, 10 Gauge - 30Amps, 8 Gauge - 40 Amps). Please ensure the inlet voltage is under or equal 12V, avoid excessive voltage to blow the fuse or cables.
  • In stock, ready to ship
Cart
Cart
About this item
  • [Compatible of dual electric fan relay kit] Fit for 10", 12",14" and 16" fans include dual fans, provide good performance on vehicle’s cooling system, help to provide efficient cooling and preventing engine from overheating. We recommend to using separate relay wiring kit for each fan to get better performance on the various vehicles like cars, pickups, trucks, boats, UTV, ATV etc.
  • [Function of waterproof fan relay kit] 60 amp relay. It comes with a 185°F on / 175°F off thermostat switch, it shall turn your cooling fans on when the engine reaches the preset temperature of the thermostatic switch mounted in the engine head or when the A/C is turned on. It ensures the fan only works when needed, enhancing cost efficiency.
  • [Installatio of electric cooling fan thermostat kit] Connet the color-coded wires refer wiring diagram. red to +12VDC(10 Feet 12 Gauge ), blue to the electric fan relay(6 Feet 12 Gauge), yellow to ignition or cooling fan switch(6 Feet 18 Gauge), gray to the Thermostat Switch Sending Unit(6 Feet 18 Gauge). Please folllow the user manual during installation or you can search online operation video when you install it in doubt.
  • [Package of fan relay kit] Include 1x Wiring Diagram, 2x 60A relay with wiring harness, 1x 185'F on-175'F off temperature switch, 1x 3/8" Thread-In Probe, 1x 3/8" to 1/2" adapter, 2x inline fuse holder, 4x 20 amp fuse, 8x ring terminals, 4x fan pigtail connectors, 1x spade connector for temp sensor, 2x Relay Mount Screws.
  • [Notice of radiator fan mounting kit] It is enough to run two medium or low profile cooling fans, Please crimp or solder bigger wires to it If you intend to mount high-profile fans. ( 12 Gauge - 20Amps, 10 Gauge - 30Amps, 8 Gauge - 40 Amps). Please ensure the inlet voltage is under or equal 12V, avoid excessive voltage to blow the fuse or cables.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

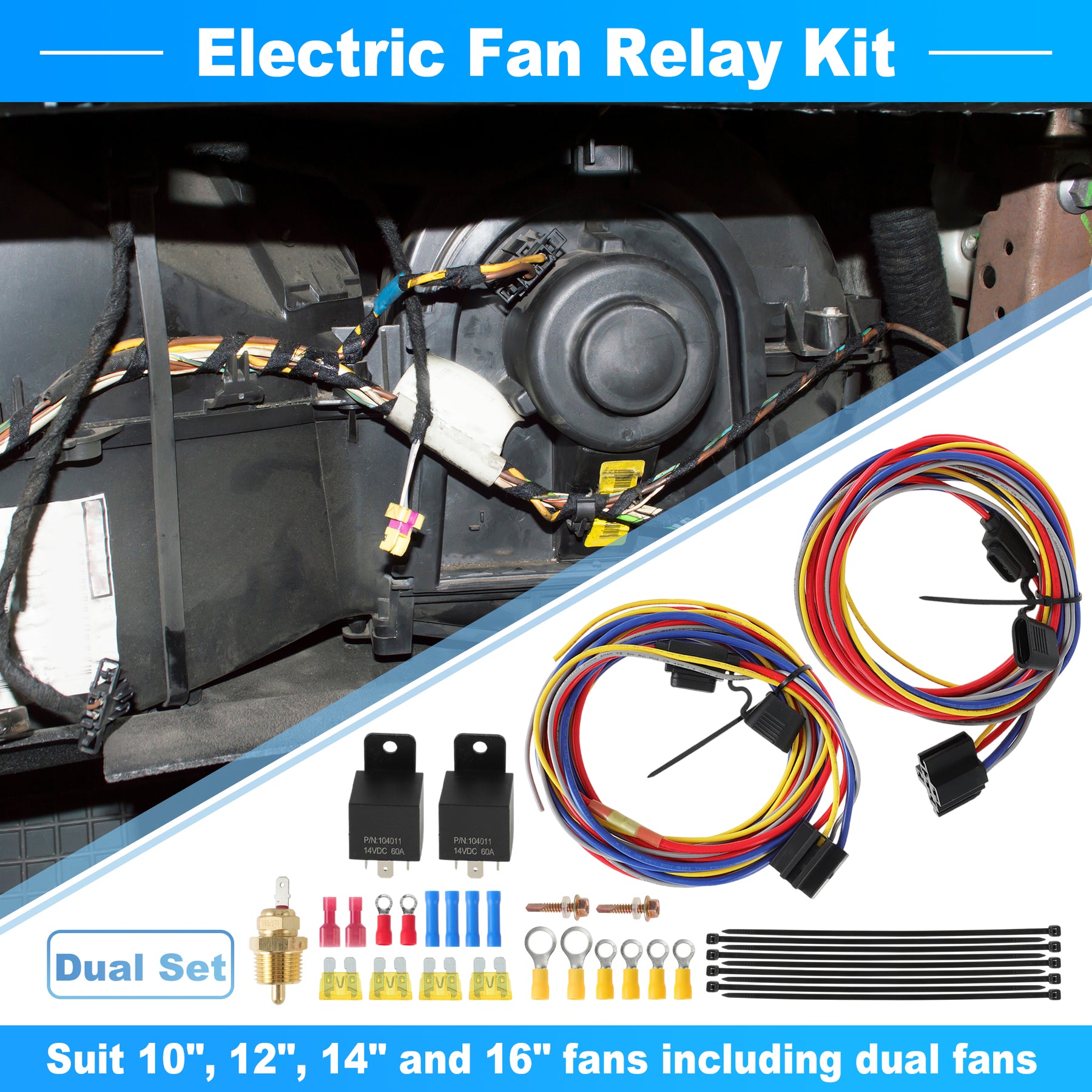

Widely Compatibility
  • Suit 10", 12", 14" and 16" fans including dual fans. We suggest using one separate relay wiring kit for each fan
  • Suit on various vehicles like cars, pickups, trucks, boats, UTV, ATV etc
Specification
  • Length of wire: 185cm/72.8in
  • Length of Red wire: 306cm/120.5in
  • Please allow a measurement error of about 0.5-1cm

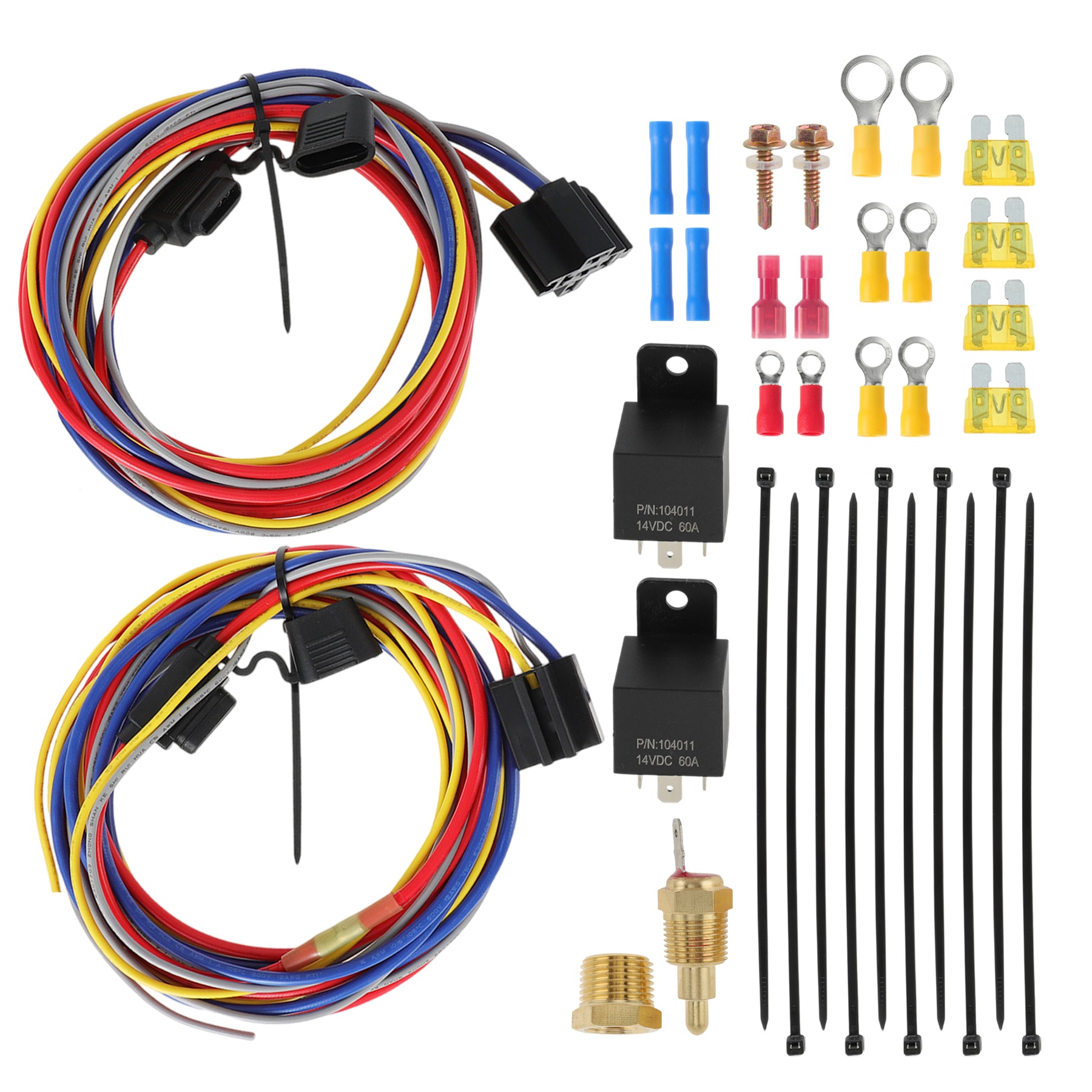

Include:
  • 1x Wiring Diagram

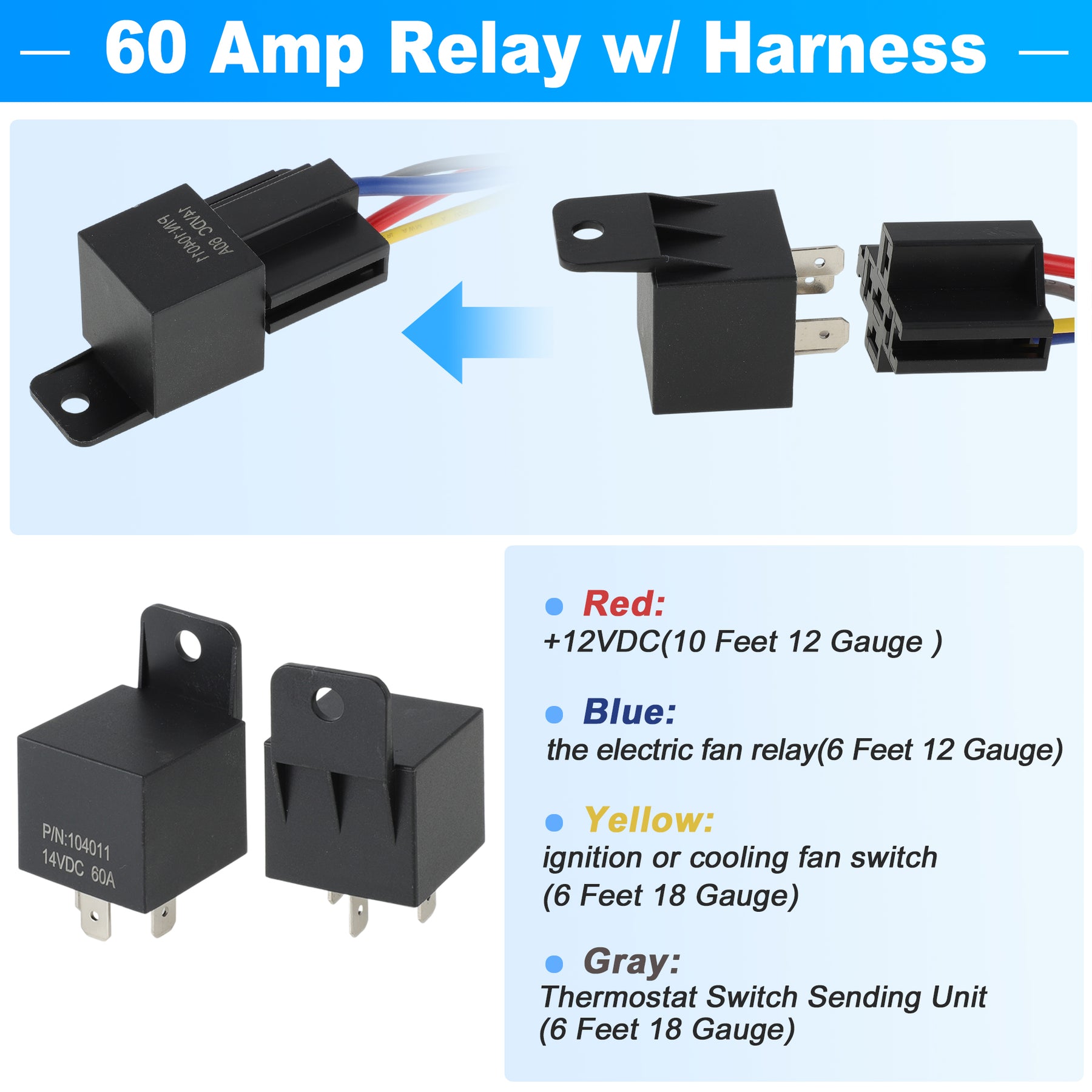

  • 2x 60A relay with wiring harness

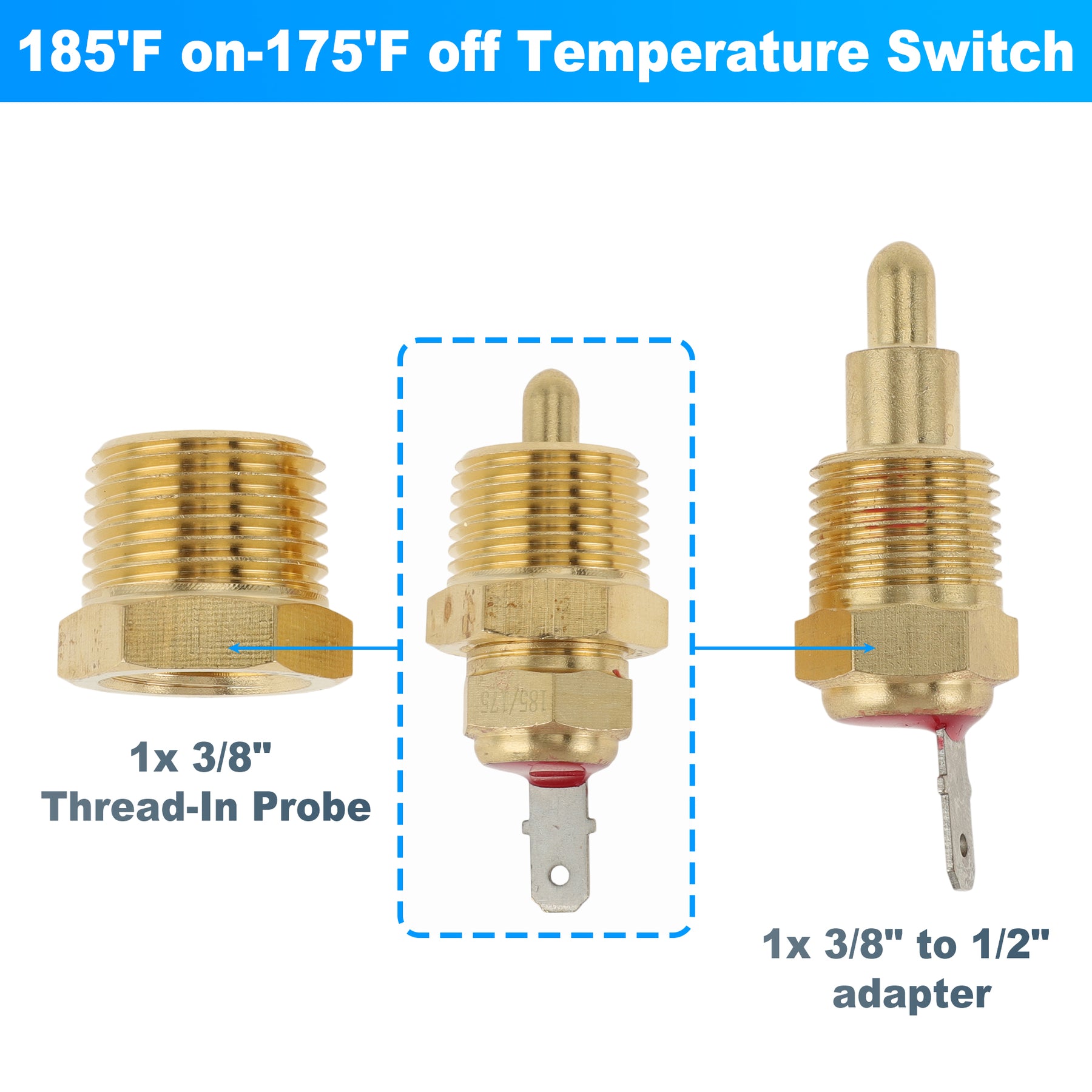

  • 1x 185'F on-175'F off temperature switch
  • 1x 3/8" Thread-In Probe
  • 1x 3/8" to 1/2" adapter

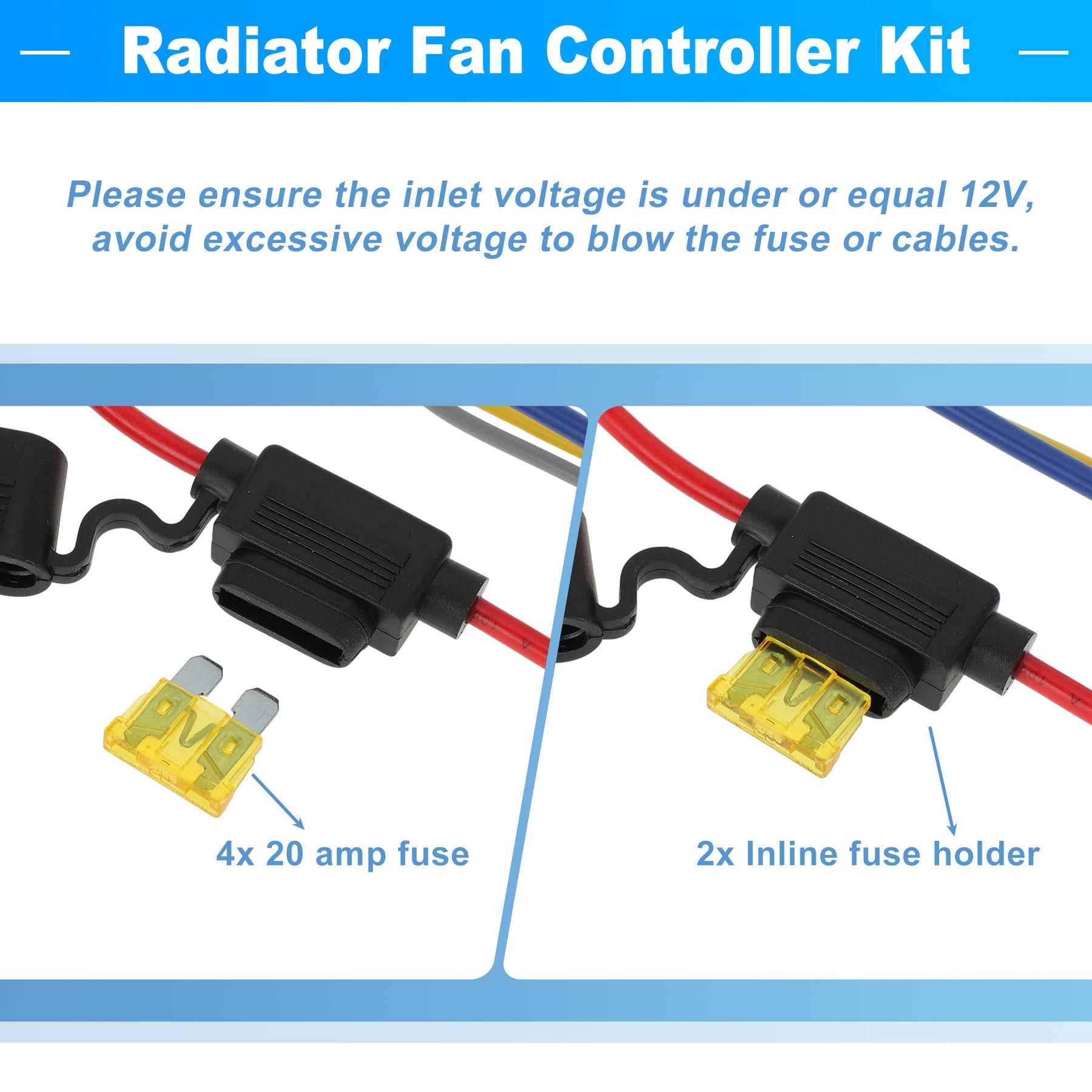

  • 2x inline fuse holder
  • 4x 20 amp fuse
  • 8x ring terminals
  • 4x fan pigtail connectors,
  • 1x spade connector for temp sensor
  • 2x Relay Mount Screws.
How to connect:

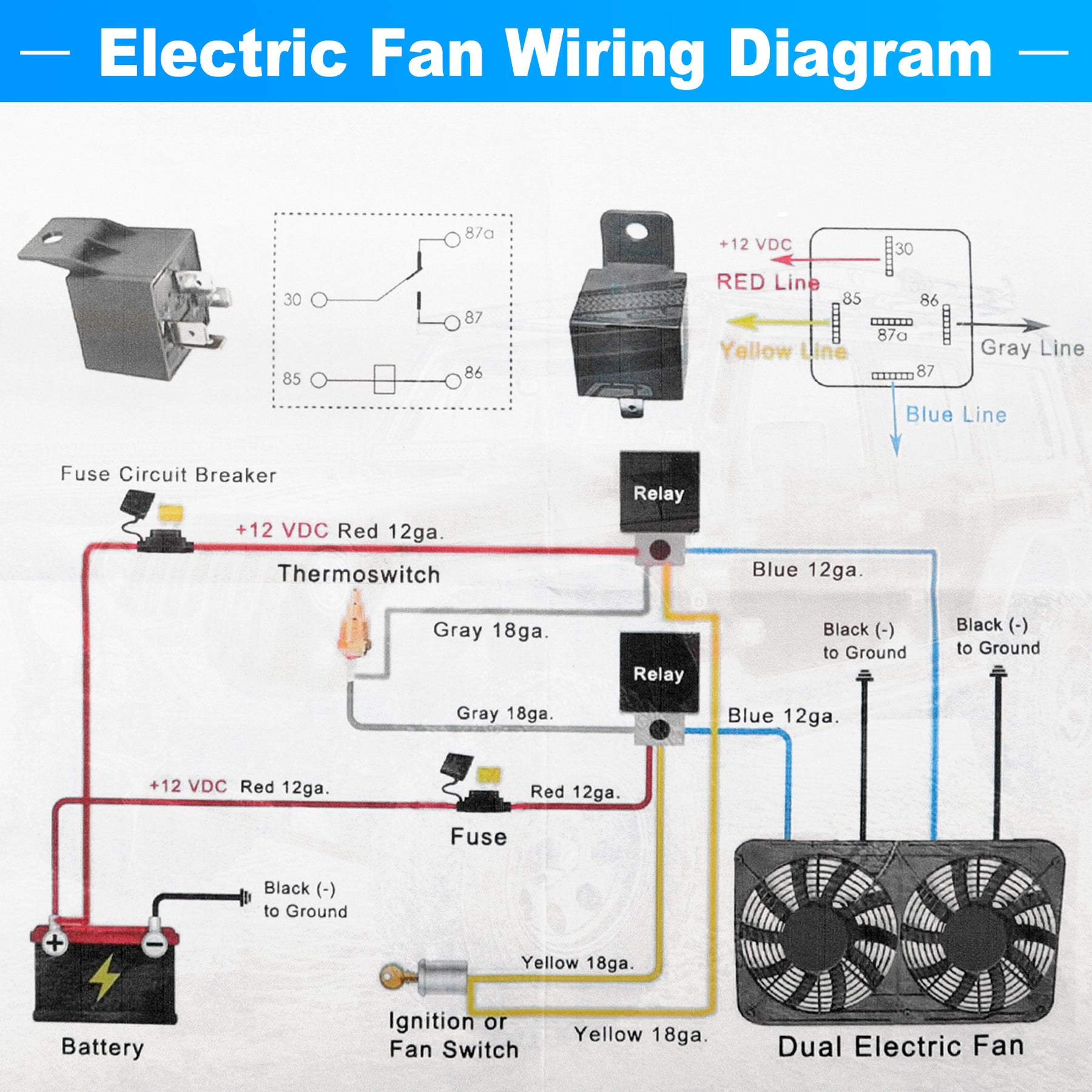

  • Connect the color-coded wires, refer wiring diagram on package.
  • Red to +12VDC(10 Feet 12 Gauge )
  • Blue to the electric fan relay(6 Feet 12 Gauge)
  • Yellow to ignition or cooling fan switch(6 Feet 18 Gauge)
  • Gray to the Thermostat Switch Sending Unit(6 Feet 18 Gauge)
Notice
  • Please ensure the inlet voltage is under or equal 12V, avoid excessive voltage to blow the fuse or cables.
  • The thermostat supplied with this kit is suit to mount in the cylinder head of the engine or any water jacket.
  • Do not use tape on the sensor for may cause poor electrical contact or incorrect temperature readings.
  • You can crimp bigger wires to it If you intend to mount high-profile cooling fans: 12 Gauge - 20Amps, 10 Gauge - 30Amps, 8 Gauge - 40 Amps
  • It shall turn cooling fans on when the engine reaches the preset temperature of the thermostatic switch mounted in the engine head or when the A/C is turned on.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
CA$61.00 Regular price
CA/
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Widely Compatibility
  • Suit 10", 12", 14" and 16" fans including dual fans. We suggest using one separate relay wiring kit for each fan
  • Suit on various vehicles like cars, pickups, trucks, boats, UTV, ATV etc
Specification
  • Length of wire: 185cm/72.8in
  • Length of Red wire: 306cm/120.5in
  • Please allow a measurement error of about 0.5-1cm
Include:
  • 1x Wiring Diagram
  • 2x 60A relay with wiring harness
  • 1x 185'F on-175'F off temperature switch
  • 1x 3/8" Thread-In Probe
  • 1x 3/8" to 1/2" adapter
  • 2x inline fuse holder
  • 4x 20 amp fuse
  • 8x ring terminals
  • 4x fan pigtail connectors,
  • 1x spade connector for temp sensor
  • 2x Relay Mount Screws.
How to connect:
  • Connect the color-coded wires, refer wiring diagram on package.
  • Red to +12VDC(10 Feet 12 Gauge )
  • Blue to the electric fan relay(6 Feet 12 Gauge)
  • Yellow to ignition or cooling fan switch(6 Feet 18 Gauge)
  • Gray to the Thermostat Switch Sending Unit(6 Feet 18 Gauge)
Notice
  • Please ensure the inlet voltage is under or equal 12V, avoid excessive voltage to blow the fuse or cables.
  • The thermostat supplied with this kit is suit to mount in the cylinder head of the engine or any water jacket.
  • Do not use tape on the sensor for may cause poor electrical contact or incorrect temperature readings.
  • You can crimp bigger wires to it If you intend to mount high-profile cooling fans: 12 Gauge - 20Amps, 10 Gauge - 30Amps, 8 Gauge - 40 Amps
  • It shall turn cooling fans on when the engine reaches the preset temperature of the thermostatic switch mounted in the engine head or when the A/C is turned on.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
