Harfington No.5033310AC Manifold Pressure Sensor with Connector for Chrysler for Dodge

No.5033310AC Manifold Pressure Sensor with Connector for Chrysler for Dodge

ID:
CA$12.00 Regular price
CA/
About this item
  • [Part Number] OE Number:5033310AC/5149091AA/56028562AA/56028562AB/68199324AA/7B0906052/2MAP0303/2251049/225-1049/MAP3002/MAP1040/AS321/MP114/5S2564/SU3352/MA0182/V3372006.
  • [Fitment] Fits for Chrysler 200 2015-2017, for Chrysler 300 2017-2018, for Dodge Challenger 2016-2018, for Dodge Charger 2016-2018, for Dodge Dart 2016, for Dodge Durango 2016-2018, for Jeep Cherokee 2016-2021, for Jeep Compass 2018-2021, for Jeep Grand Cherokee 2015-2018, for Jeep Renegade 2015-2018,2020, for Ram 1500 2016-2019, for Ram 2500 2015-2018, for Ram 3500 2015-2018, for Ram ProMaster City 2016-2020.
  • [Function] MAP sensor is to detect the absolute pressure within the engine's intake manifold (indirectly reflecting the intake air volume) and convert the pressure signal into an electrical signal (typically a voltage signal, such as 0.5-4.5V). The Wiring Harness Connector Pigtail Plug, a key component connecting the sensor to the ECU wiring harness, physically connects the sensor's pins to the ECU's signal lines, ensuring that the sensor's output signal is transmitted to the ECU without interfe

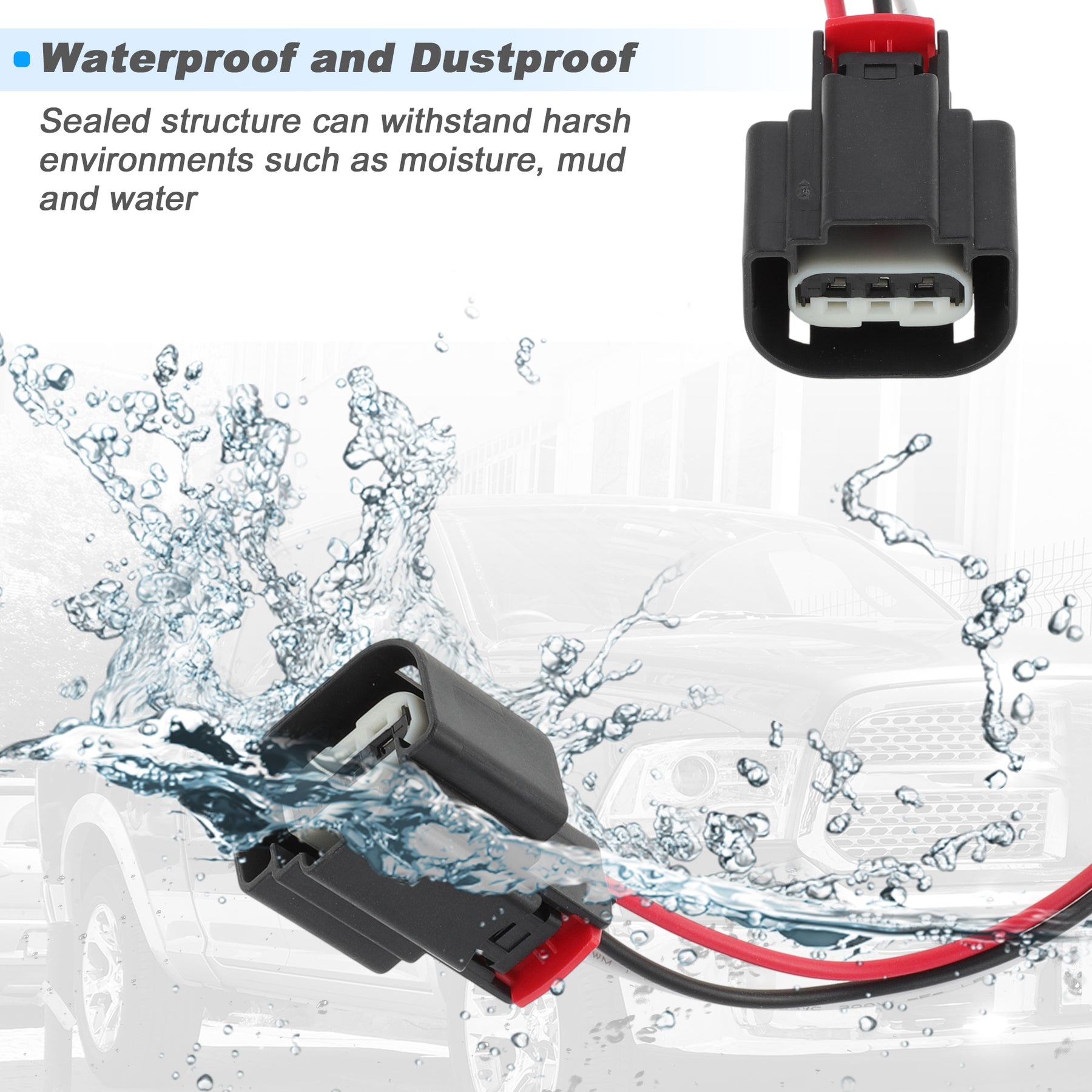

  • [Feature of Manifold Absolute Pressure MAP Sensor Wiring Harness] Made of quality tinned copper strands, provides proper fit and steady performance, reinforced plastic plug provides a long last life, wear-resistant and corrosion-resistant, making your car operate effectively.

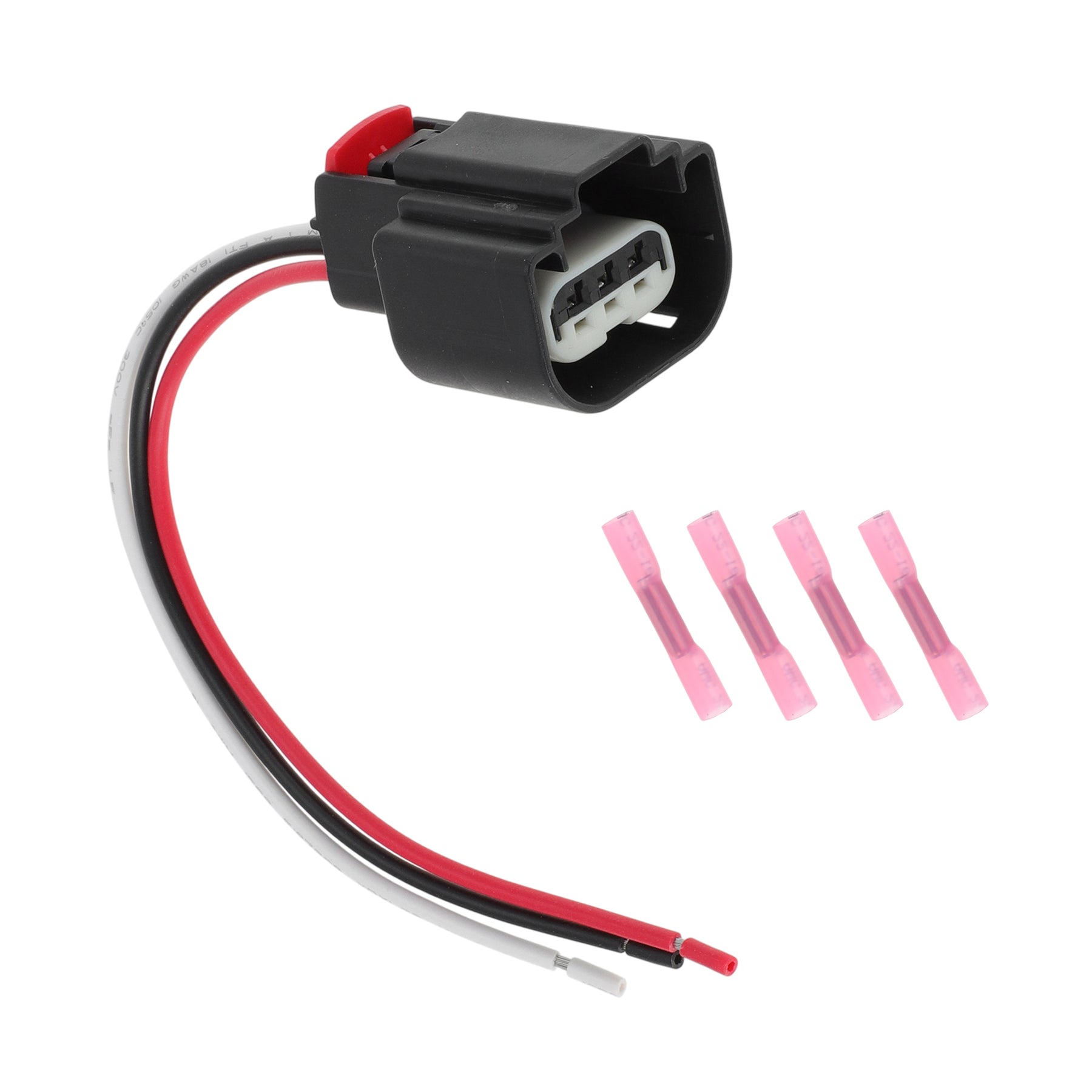

  • [Package] Include 1x Connector Harness Pigtail of Manifold Absolute Pressure Sensor; 1x Heat Shrink Connectors.
  • In stock, ready to ship
Cart
Cart
About this item
  • [Part Number] OE Number:5033310AC/5149091AA/56028562AA/56028562AB/68199324AA/7B0906052/2MAP0303/2251049/225-1049/MAP3002/MAP1040/AS321/MP114/5S2564/SU3352/MA0182/V3372006.
  • [Fitment] Fits for Chrysler 200 2015-2017, for Chrysler 300 2017-2018, for Dodge Challenger 2016-2018, for Dodge Charger 2016-2018, for Dodge Dart 2016, for Dodge Durango 2016-2018, for Jeep Cherokee 2016-2021, for Jeep Compass 2018-2021, for Jeep Grand Cherokee 2015-2018, for Jeep Renegade 2015-2018,2020, for Ram 1500 2016-2019, for Ram 2500 2015-2018, for Ram 3500 2015-2018, for Ram ProMaster City 2016-2020.
  • [Function] MAP sensor is to detect the absolute pressure within the engine's intake manifold (indirectly reflecting the intake air volume) and convert the pressure signal into an electrical signal (typically a voltage signal, such as 0.5-4.5V). The Wiring Harness Connector Pigtail Plug, a key component connecting the sensor to the ECU wiring harness, physically connects the sensor's pins to the ECU's signal lines, ensuring that the sensor's output signal is transmitted to the ECU without interfe
  • [Feature of Manifold Absolute Pressure MAP Sensor Wiring Harness] Made of quality tinned copper strands, provides proper fit and steady performance, reinforced plastic plug provides a long last life, wear-resistant and corrosion-resistant, making your car operate effectively.
  • [Package] Include 1x Connector Harness Pigtail of Manifold Absolute Pressure Sensor; 1x Heat Shrink Connectors.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Connector Harness Pigtail of Manifold Absolute Pressure Sensor

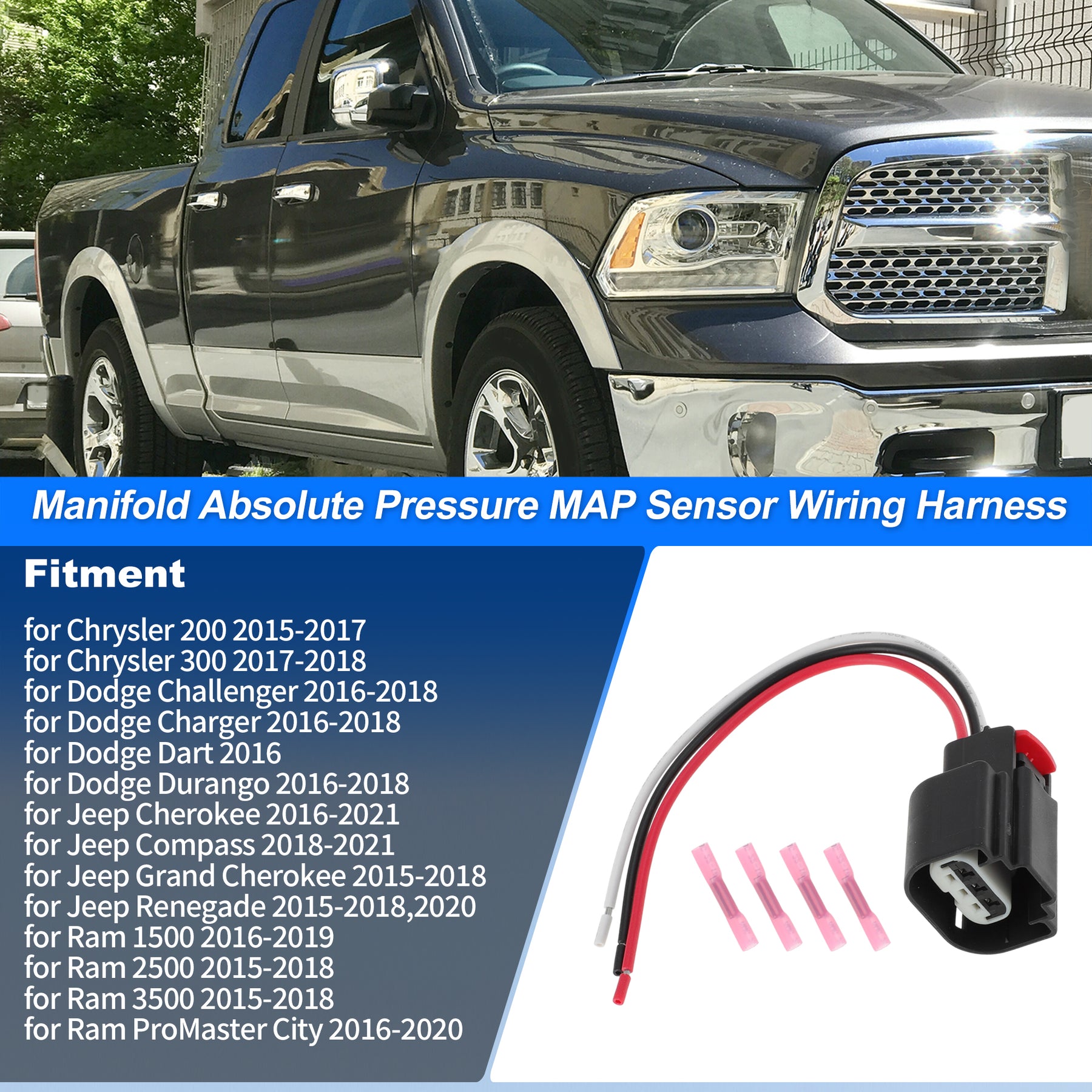

Fitment:
  • for Chrysler 200 300 2015-2017
  • for Dodge Challenger Charger 2016-2018
  • for Dodge Dart 2016
  • for Dodge Durango 2016-2018
  • for Jeep Cherokee 2016-2021
  • for Jeep Compass 2018-2021
  • for Jeep Grand Cherokee 2015-2018
  • for Jeep Renegade 2015-2018,2020
  • for Ram 1500 2016-2019
  • for Ram 2500 2015-2018
  • for Ram 3500 2015-2018
  • for Ram ProMaster City 2016-2020

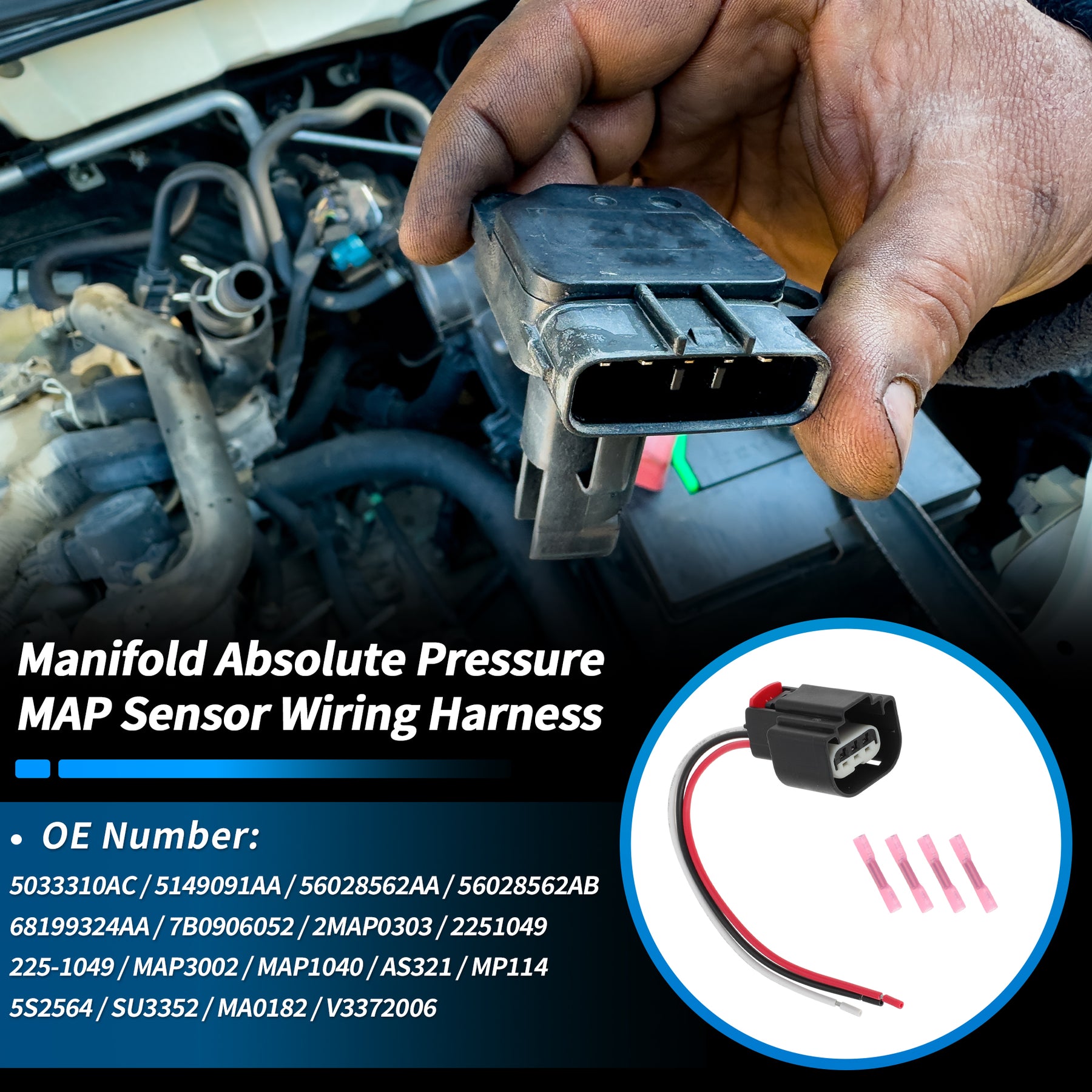

OE Number:
  • 5033310AC/5149091AA/56028562AA/56028562AB/68199324AA/7B0906052/2MAP0303/2251049/225-1049/MAP3002/MAP1040/AS321/MP114/5S2564/SU3352/MA0182/V3372006

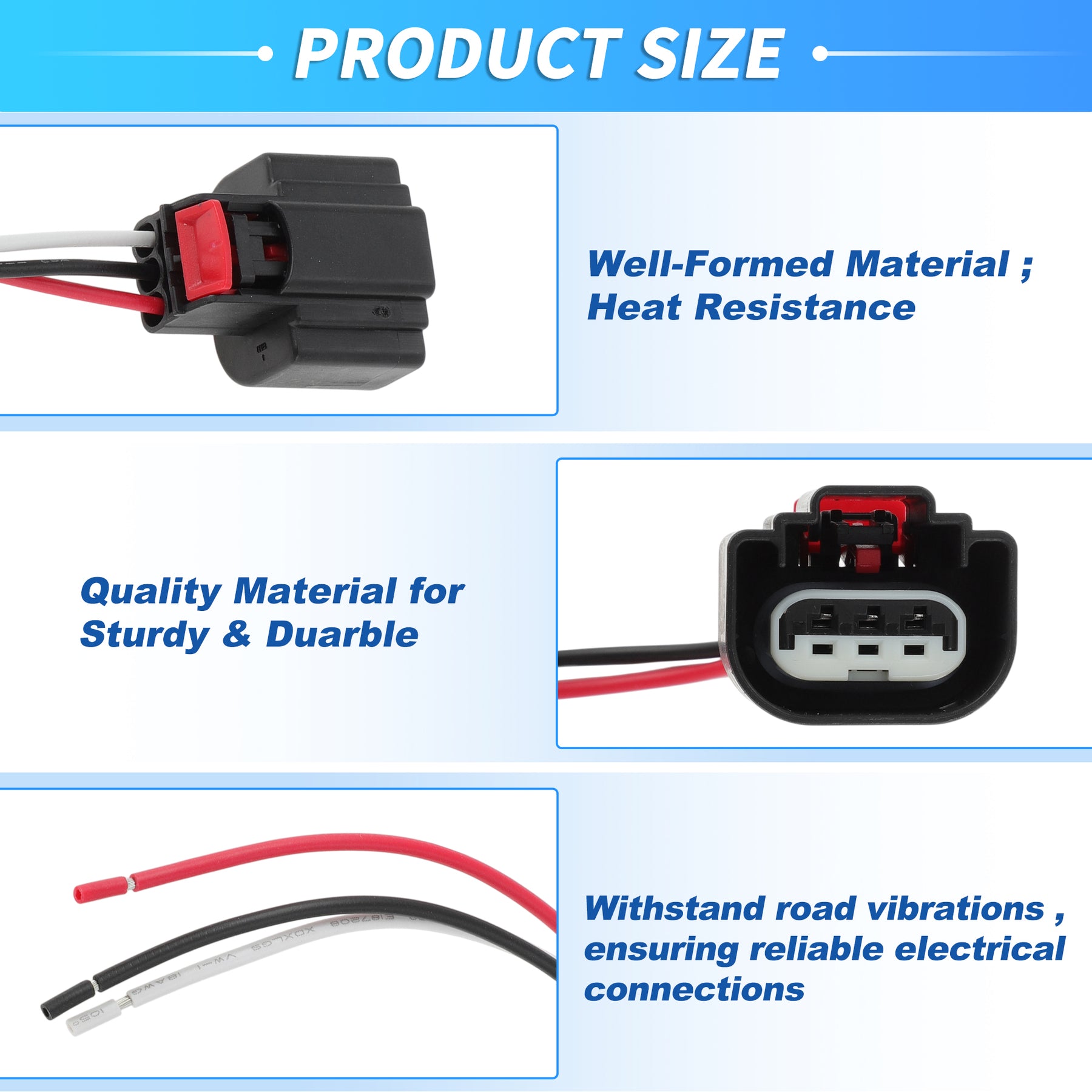

Wiring Harness Specifications:
  • Wire Harness Length: 14cm/5.5in
  • Number of Pins: 3

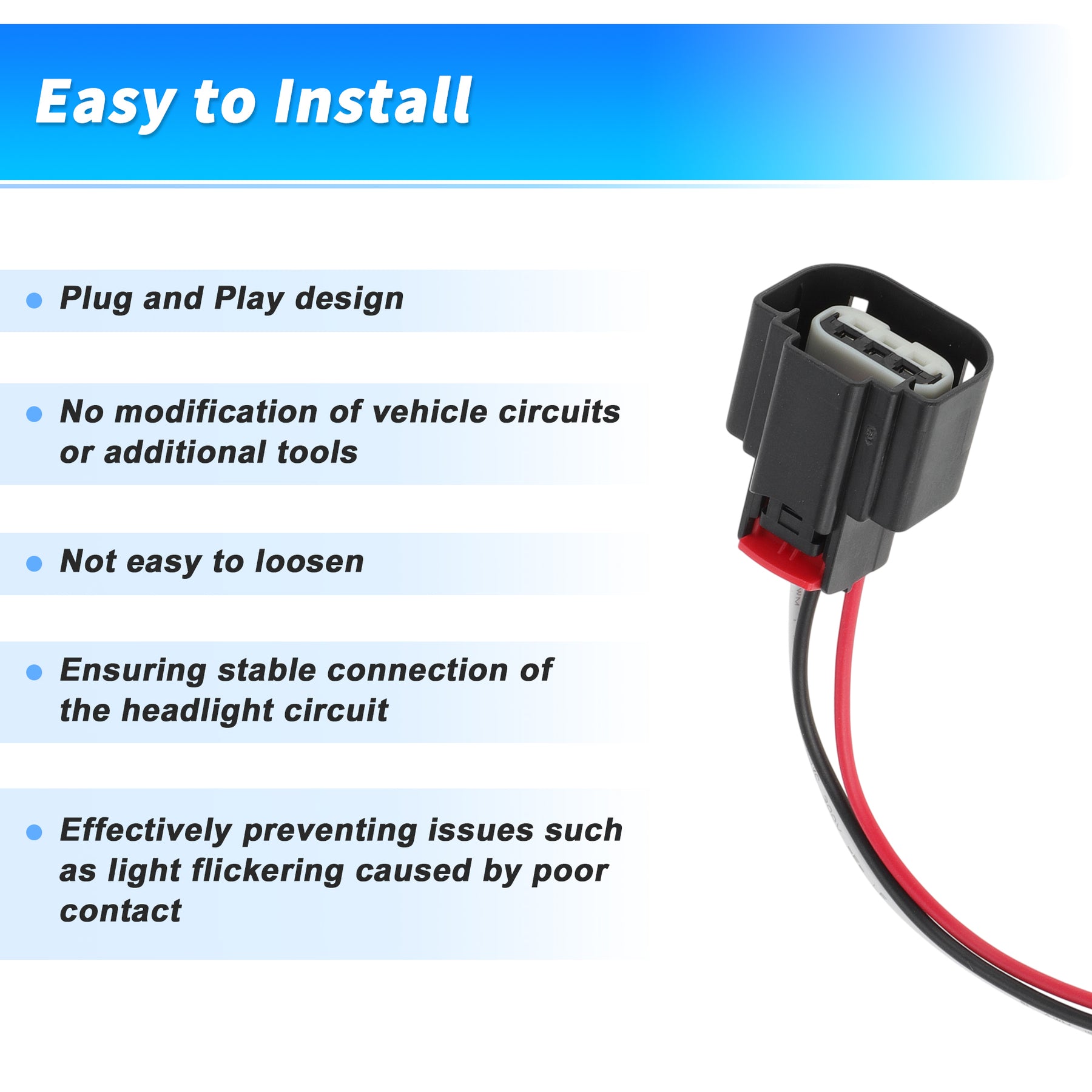

How To Replace it?
  • 1. Preparation: Ensure the plug is compatible, disconnect the negative battery terminal, and prepare tools like wire strippers and crimping pliers.
  • 2. Remove the old one: Unplug the old connector, cut the connecting wires (leaving 10-15cm), strip the wires, and clean any oxidized parts.
  • 3. Wiring: Identify the power, signal, and ground pins using the manual, connect them to the new plug terminals (by crimping or soldering), and insulate/seal the connections properly.
  • 4. Assemble and secure: Insert the terminals into the housing, lock the plug, and secure the wiring harness (away from high temperatures and vibration).
  • 5. Testing: Reconnect the battery, start the engine, check if the fault light is off, and use a multimeter to verify the signal voltage is normal (0.9-1.5V at idle, rising during acceleration).
Please Note:
  • Correct pin alignment, firm connections, proper insulation/sealing, and ensuring normal signal transmission.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
CA$12.00 Regular price
CA/
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Connector Harness Pigtail of Manifold Absolute Pressure Sensor
Fitment:
  • for Chrysler 200 300 2015-2017
  • for Dodge Challenger Charger 2016-2018
  • for Dodge Dart 2016
  • for Dodge Durango 2016-2018
  • for Jeep Cherokee 2016-2021
  • for Jeep Compass 2018-2021
  • for Jeep Grand Cherokee 2015-2018
  • for Jeep Renegade 2015-2018,2020
  • for Ram 1500 2016-2019
  • for Ram 2500 2015-2018
  • for Ram 3500 2015-2018
  • for Ram ProMaster City 2016-2020
OE Number:
  • 5033310AC/5149091AA/56028562AA/56028562AB/68199324AA/7B0906052/2MAP0303/2251049/225-1049/MAP3002/MAP1040/AS321/MP114/5S2564/SU3352/MA0182/V3372006
Wiring Harness Specifications:
  • Wire Harness Length: 14cm/5.5in
  • Number of Pins: 3
How To Replace it?
  • 1. Preparation: Ensure the plug is compatible, disconnect the negative battery terminal, and prepare tools like wire strippers and crimping pliers.
  • 2. Remove the old one: Unplug the old connector, cut the connecting wires (leaving 10-15cm), strip the wires, and clean any oxidized parts.
  • 3. Wiring: Identify the power, signal, and ground pins using the manual, connect them to the new plug terminals (by crimping or soldering), and insulate/seal the connections properly.
  • 4. Assemble and secure: Insert the terminals into the housing, lock the plug, and secure the wiring harness (away from high temperatures and vibration).
  • 5. Testing: Reconnect the battery, start the engine, check if the fault light is off, and use a multimeter to verify the signal voltage is normal (0.9-1.5V at idle, rising during acceleration).
Please Note:
  • Correct pin alignment, firm connections, proper insulation/sealing, and ensuring normal signal transmission.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
