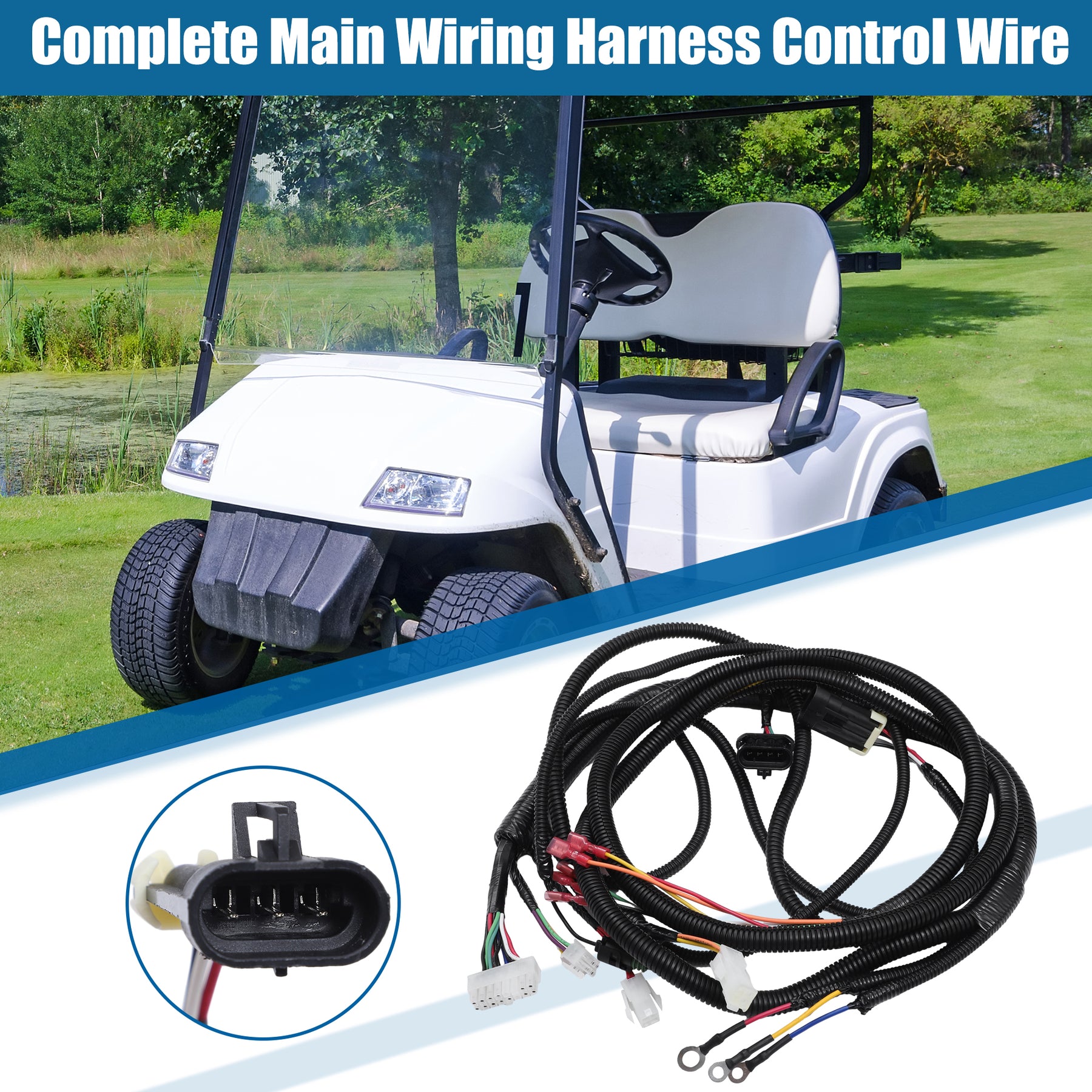

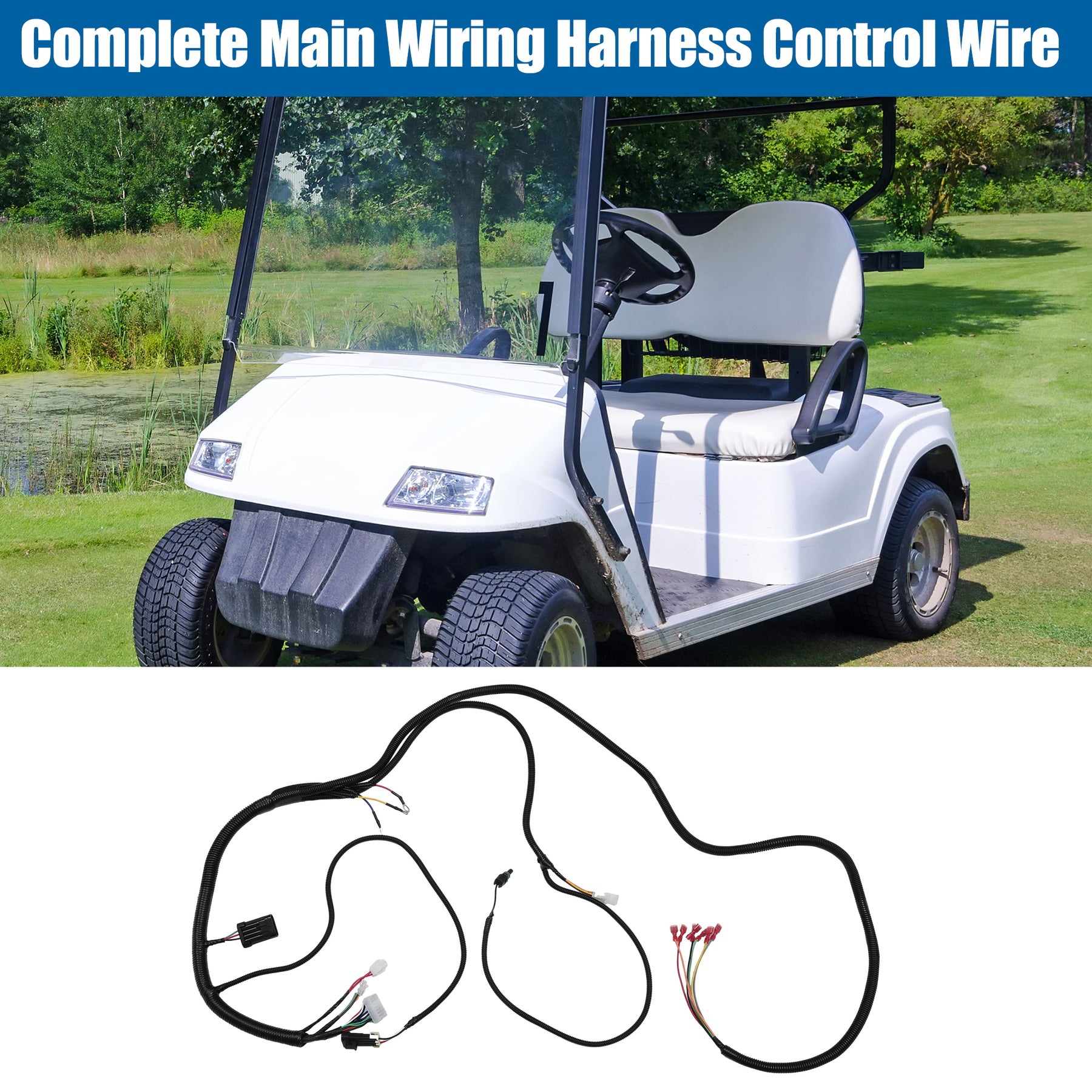

Complete Main Wiring Harness Control Wire for Golf Cart for EZGO TXT48 Freedom TXT 48V 2010-2022 Electronic Speed Control Harness W/ Port Connector Replacement

45414221381881
Questions & Answers |
CA$69.60 Regular price
CA/
About this item
  • [Fitmen of Main Wiring Harness Control Wire] Usde for Golf Cart, include for EZGO TXT48 TXT Fleet 48V 2010-2022 , for EZGO TXT48 Freedom TXT 48V 2010-2022 , for EZGO TXT48 TXT 2+2 48V 2010-2022. Please check car make, model, year and pin number before purchase.
  • [Function for Golf Cart Main Harness] Help to maintan the electrical connections for golf cart, connect the components and let them to work efficientively.
  • [Complete Wire Plug & Harness] This harness have equipped complete plug and connectors, to connect like Foward&Reverse Switch, Reverse Buzzer, Key Switch, Tow/Run Switch, Main Controller, Factory Controller, ITS throttle, Factory Speed Sensor etc. Each Plug have played it's role correctly. Please check pictures to check each plugs connection.
  • [Features & Noice of Electronic Speed Control Harness] Adopt with durable plastic case and reliable plastic connector for longer service life. The Main Harness allows you to connect other 48V controllers which special for TXT48 system. Also able to upgrade for Navitas AC controller/motor combination package (All Not Include)
  • [Package] Included 1 × 48V Complete Main Wiring Harness Control Wire. Please double check our pictures or search online to get correct connection diagram. For different version, There have Forward & Reverse switch wiring stay on the rear body or dash, you can keep same length or extend the length as you need when installation.
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20
About this item
  • [Fitmen of Main Wiring Harness Control Wire] Usde for Golf Cart, include for EZGO TXT48 TXT Fleet 48V 2010-2022 , for EZGO TXT48 Freedom TXT 48V 2010-2022 , for EZGO TXT48 TXT 2+2 48V 2010-2022. Please check car make, model, year and pin number before purchase.
  • [Function for Golf Cart Main Harness] Help to maintan the electrical connections for golf cart, connect the components and let them to work efficientively.
  • [Complete Wire Plug & Harness] This harness have equipped complete plug and connectors, to connect like Foward&Reverse Switch, Reverse Buzzer, Key Switch, Tow/Run Switch, Main Controller, Factory Controller, ITS throttle, Factory Speed Sensor etc. Each Plug have played it's role correctly. Please check pictures to check each plugs connection.
  • [Features & Noice of Electronic Speed Control Harness] Adopt with durable plastic case and reliable plastic connector for longer service life. The Main Harness allows you to connect other 48V controllers which special for TXT48 system. Also able to upgrade for Navitas AC controller/motor combination package (All Not Include)
  • [Package] Included 1 × 48V Complete Main Wiring Harness Control Wire. Please double check our pictures or search online to get correct connection diagram. For different version, There have Forward & Reverse switch wiring stay on the rear body or dash, you can keep same length or extend the length as you need when installation.
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Fitment for Golf Cart:
  • for EZGO TXT48 TXT Fleet 48V 2010-2022
  • for EZGO TXT48 Freedom TXT 48V 2010-2022
  • for EZGO TXT48 TXT 2+2 48V 2010-2022
Specifications:
  • Color: Black
  • Material: Plastic
  • Length: 222cm / 87.40"

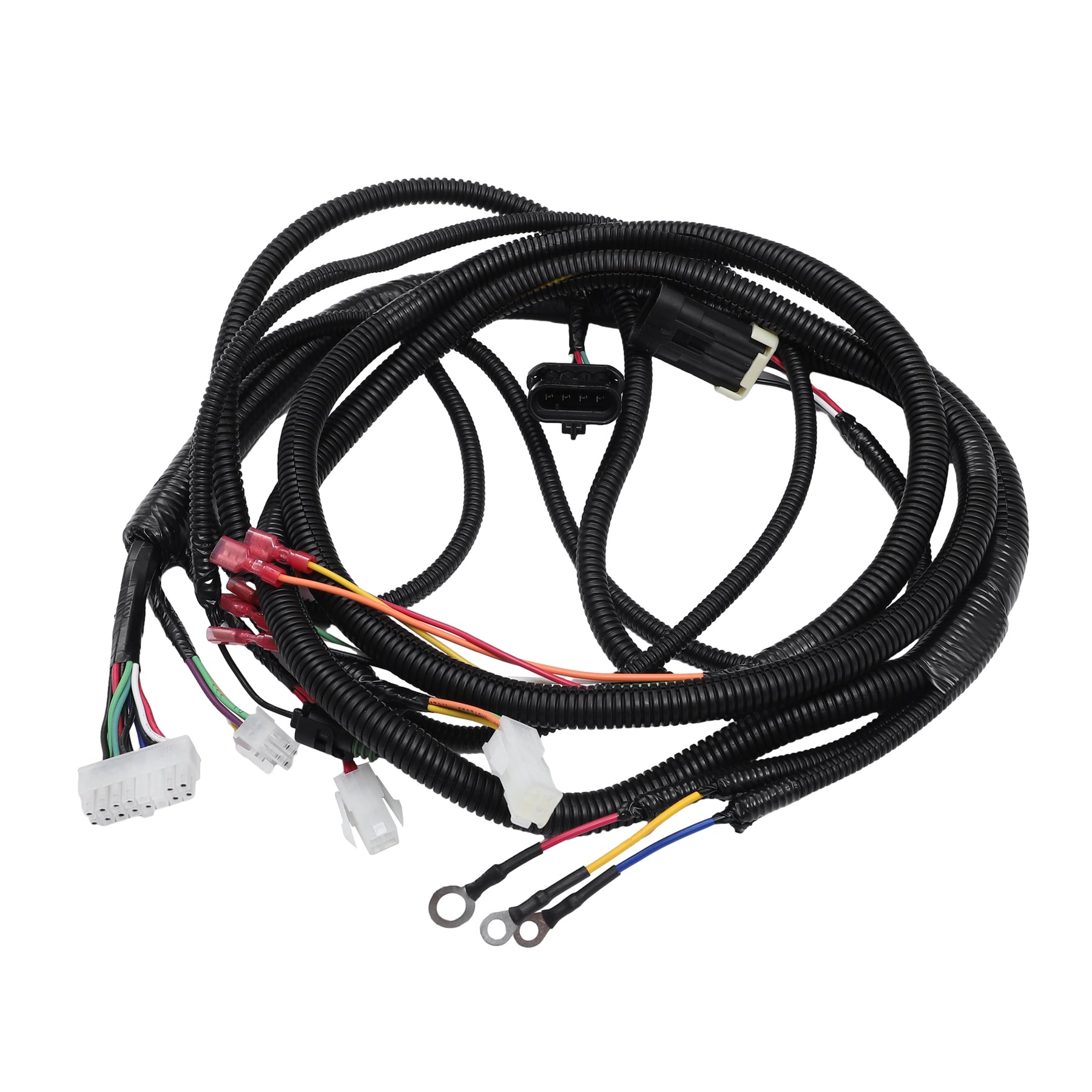

  • Included 1 × 48V Complete Main Wiring Harness Control Wire
Connection Diagram

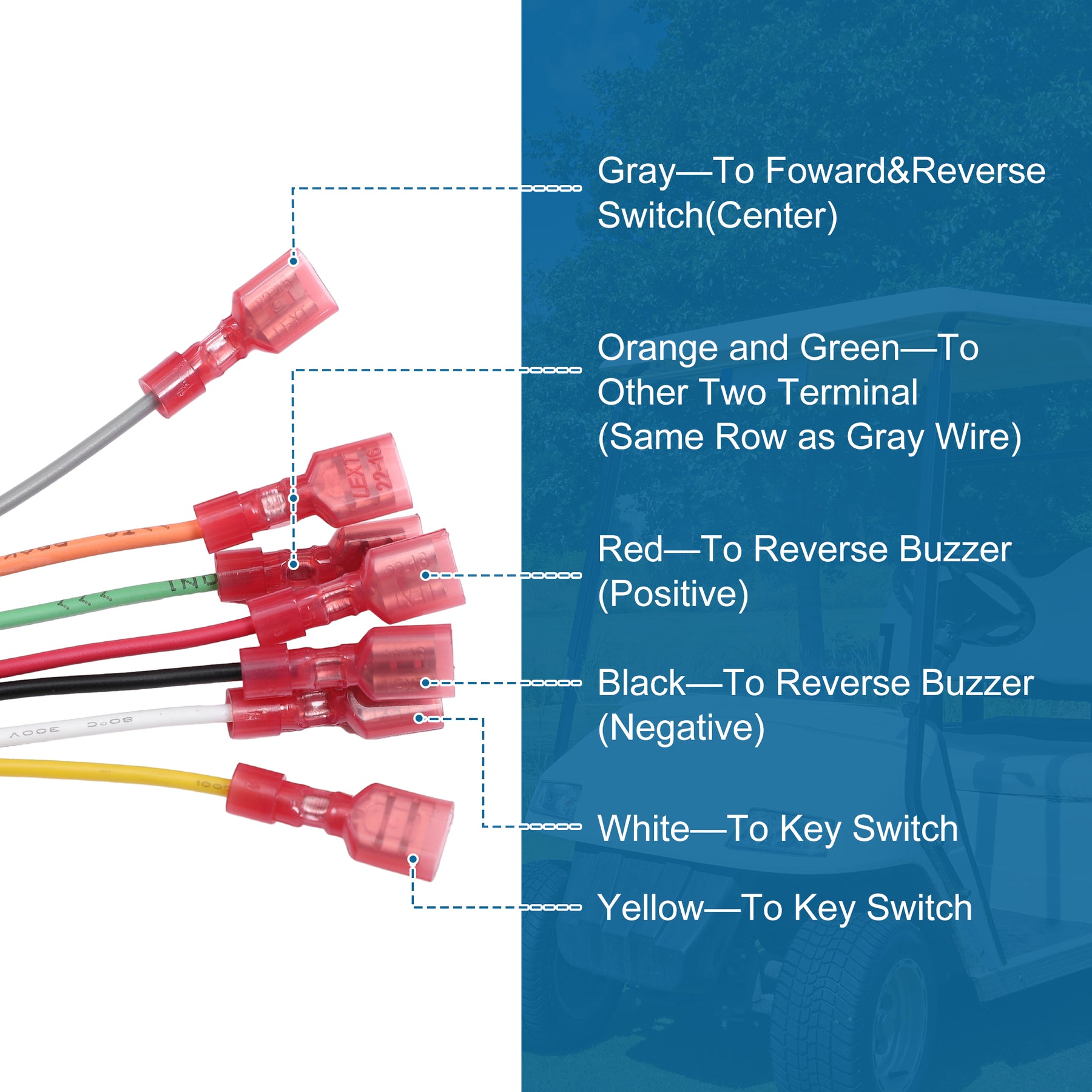

  • 7 Wire Connection with blade terminals
  • Gray—To Foward&Reverse Switch(Center)
  • Orange and Green—To Other Two Terminal(Same Row as Gray Wire)
  • Red—To Reverse Buzzer(Positive)
  • Black—To Reverse Buzzer(Negative)
  • White—To Key Switch
  • Yellow—To Key Switch

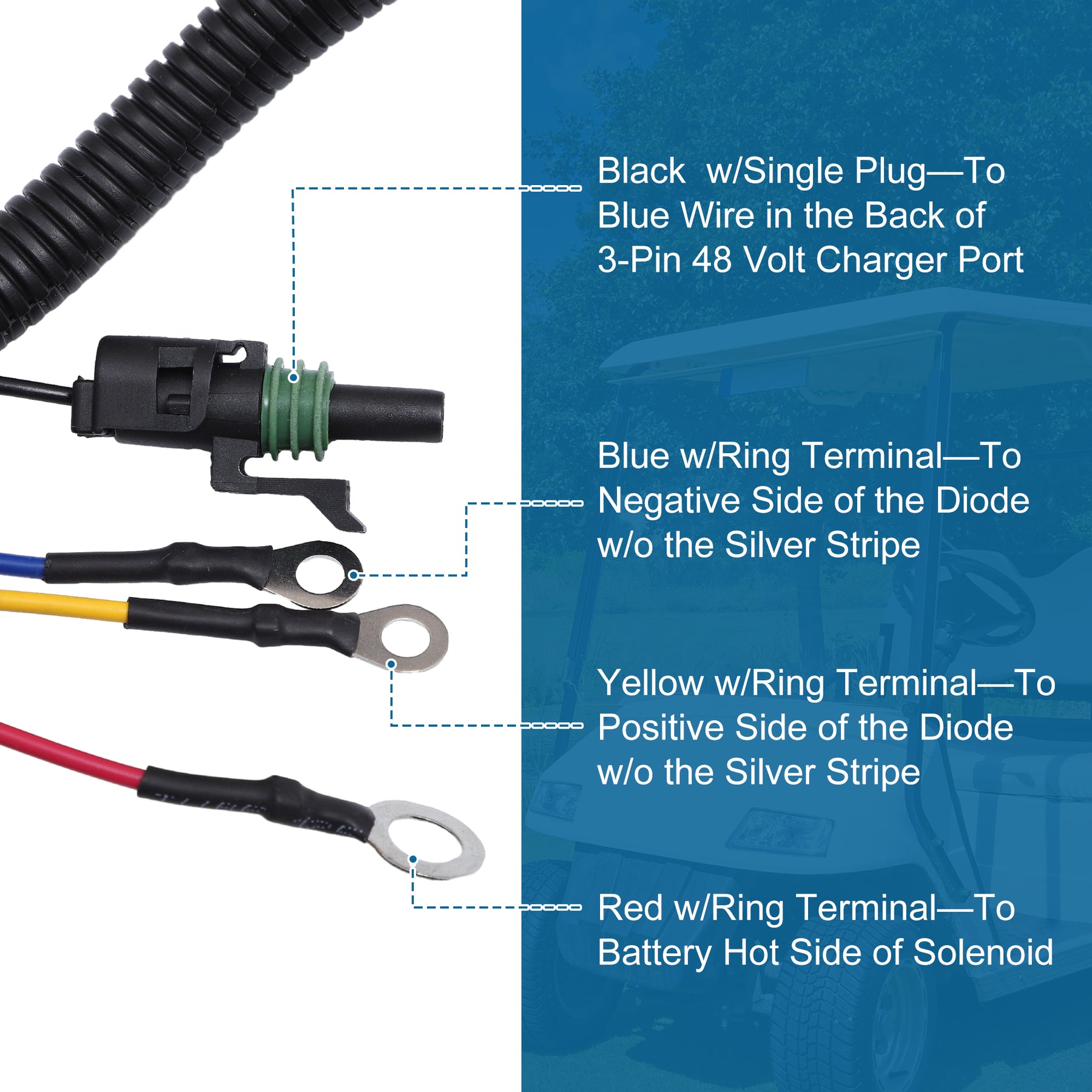

  • Black w/Single Plug—To Blue Wire in the Back of 3-Pin 48 Volt Charger Port
  • Blue w/Ring Terminal—To Negative Side of the Diode w/o the Silver Stripe
  • Yellow w/Ring Terminal—To Positive Side of the Diode w/o the Silver Stripe
  • Red w/Ring Terminal—To Battery Hot Side of Solenoid

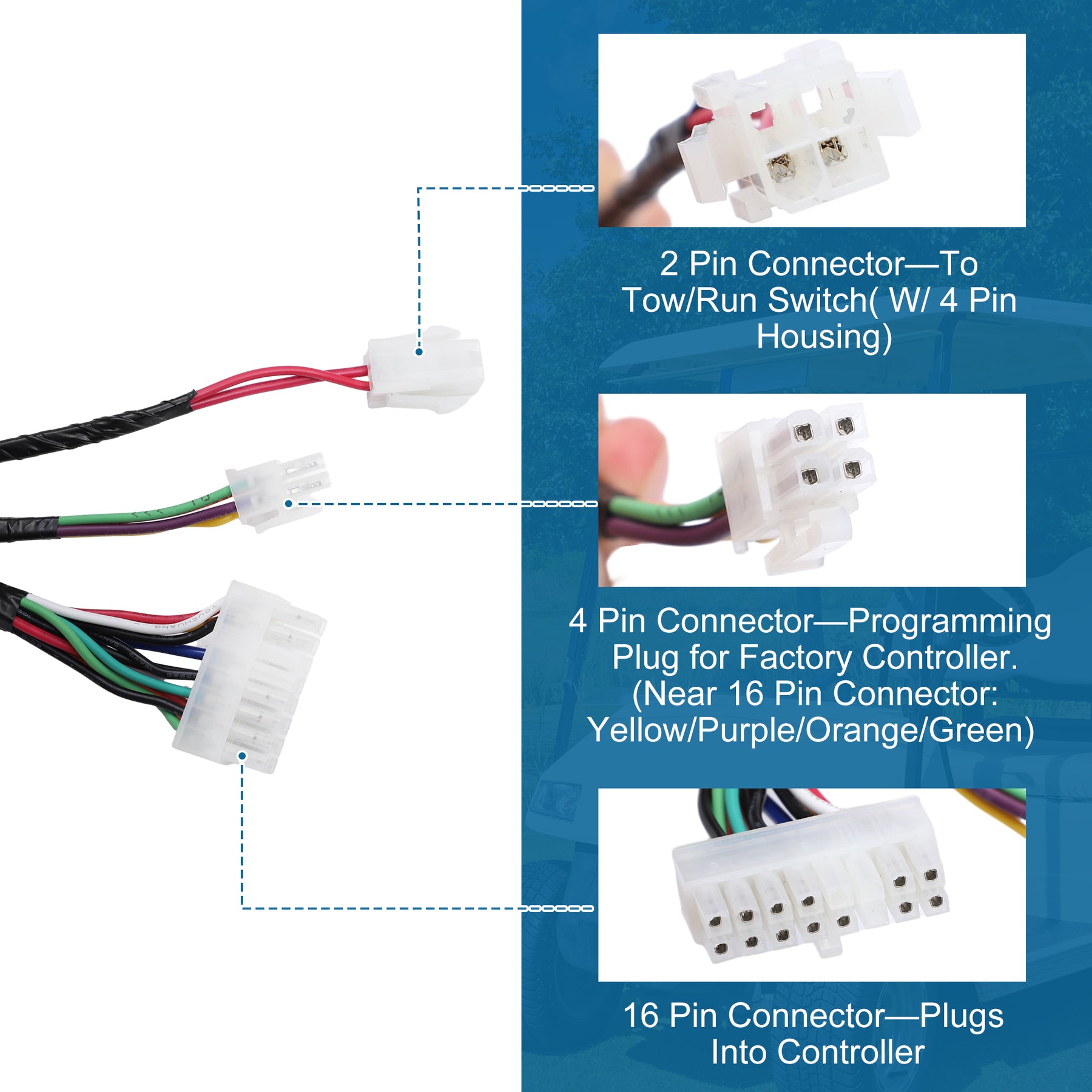

  • 16 Pin Connector—Plugs Into Controller
  • 4 Pin Connector—Programming Plug for Factory Controller (Near 16 Pin Connector: Yellow/Purple/Orange/Green)
  • 2 Pin Connector—To Tow/Run Switch( W/ 4 Pin Housing)

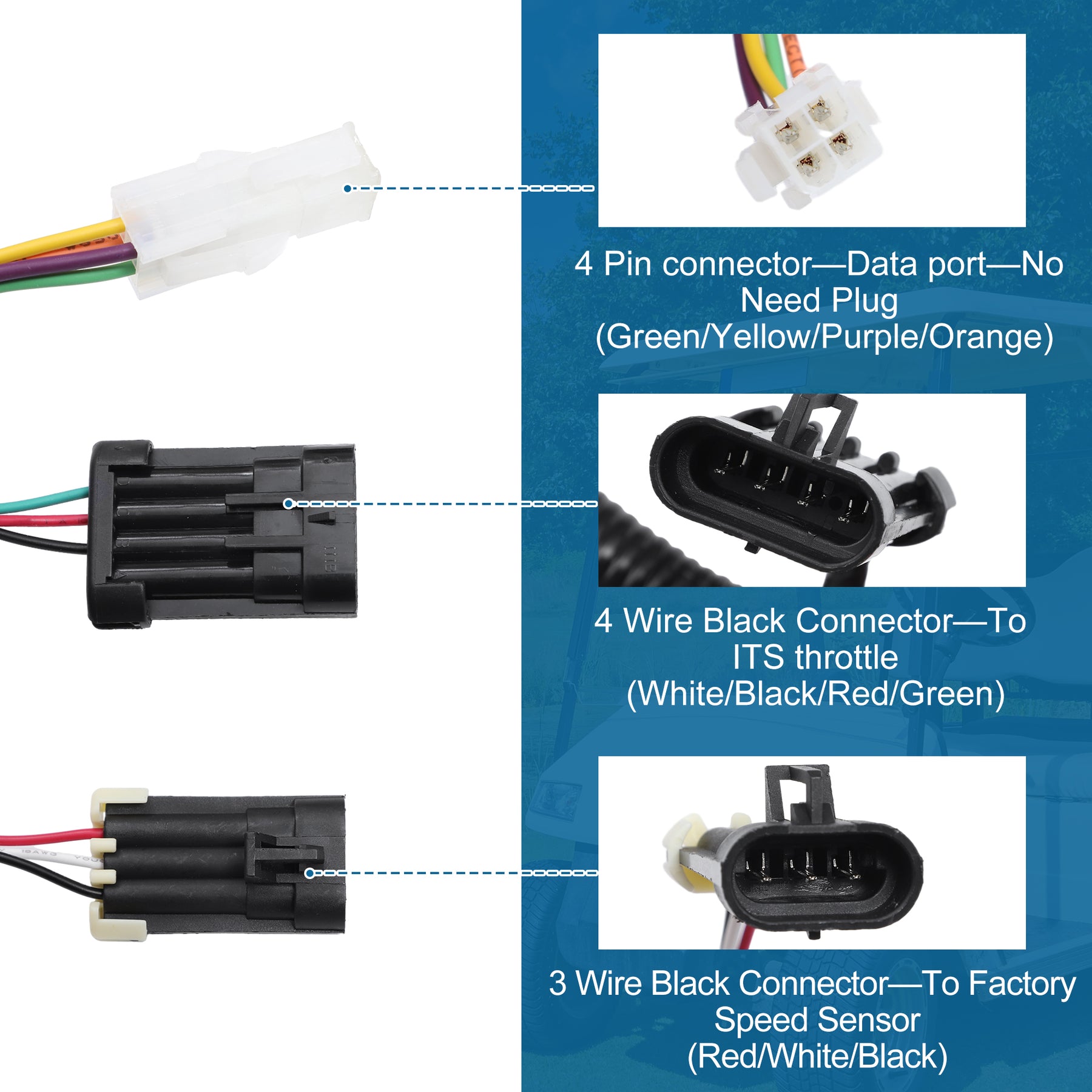

  • 4 Pin connector—Data port—No Need Plug (Green/Yellow/Purple/Orange)
  • 4 Wire Black Connector—To ITS throttle (White/Black/Red/Green)
  • 3 Wire Black Connector—To Factory Speed Sensor (Red/White/Black)
Notice
  • Double check our pictures or search online to get correct connection diagram.
  • The Main Harness allows you to connect other 48V controllers which special for TXT48 system. Also able to upgrade for Navitas AC controller/motor combination package (All Not Include)
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Description

Description

Fitment for Golf Cart:
  • for EZGO TXT48 TXT Fleet 48V 2010-2022
  • for EZGO TXT48 Freedom TXT 48V 2010-2022
  • for EZGO TXT48 TXT 2+2 48V 2010-2022
Specifications:
  • Color: Black
  • Material: Plastic
  • Length: 222cm / 87.40"
  • Included 1 × 48V Complete Main Wiring Harness Control Wire
Connection Diagram
  • 7 Wire Connection with blade terminals
  • Gray—To Foward&Reverse Switch(Center)
  • Orange and Green—To Other Two Terminal(Same Row as Gray Wire)
  • Red—To Reverse Buzzer(Positive)
  • Black—To Reverse Buzzer(Negative)
  • White—To Key Switch
  • Yellow—To Key Switch
  • Black w/Single Plug—To Blue Wire in the Back of 3-Pin 48 Volt Charger Port
  • Blue w/Ring Terminal—To Negative Side of the Diode w/o the Silver Stripe
  • Yellow w/Ring Terminal—To Positive Side of the Diode w/o the Silver Stripe
  • Red w/Ring Terminal—To Battery Hot Side of Solenoid
  • 16 Pin Connector—Plugs Into Controller
  • 4 Pin Connector—Programming Plug for Factory Controller (Near 16 Pin Connector: Yellow/Purple/Orange/Green)
  • 2 Pin Connector—To Tow/Run Switch( W/ 4 Pin Housing)
  • 4 Pin connector—Data port—No Need Plug (Green/Yellow/Purple/Orange)
  • 4 Wire Black Connector—To ITS throttle (White/Black/Red/Green)
  • 3 Wire Black Connector—To Factory Speed Sensor (Red/White/Black)
Notice
  • Double check our pictures or search online to get correct connection diagram.
  • The Main Harness allows you to connect other 48V controllers which special for TXT48 system. Also able to upgrade for Navitas AC controller/motor combination package (All Not Include)
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
