Harfington 16mm Bore 100mm Stroke Pneumatic Air Cylinder, Single Rod Double Action with Y Connector and 2Pcs Quick Fittings

16mm Bore 100mm Stroke Pneumatic Air Cylinder, Single Rod Double Action with Y Connector and 2Pcs Quick Fittings

ID:
CA$22.00 Regular price
CA/
Wholesale Price
20%OFF
Order $5000+
  • 25%OFF
    Order $5000+
  • 20%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

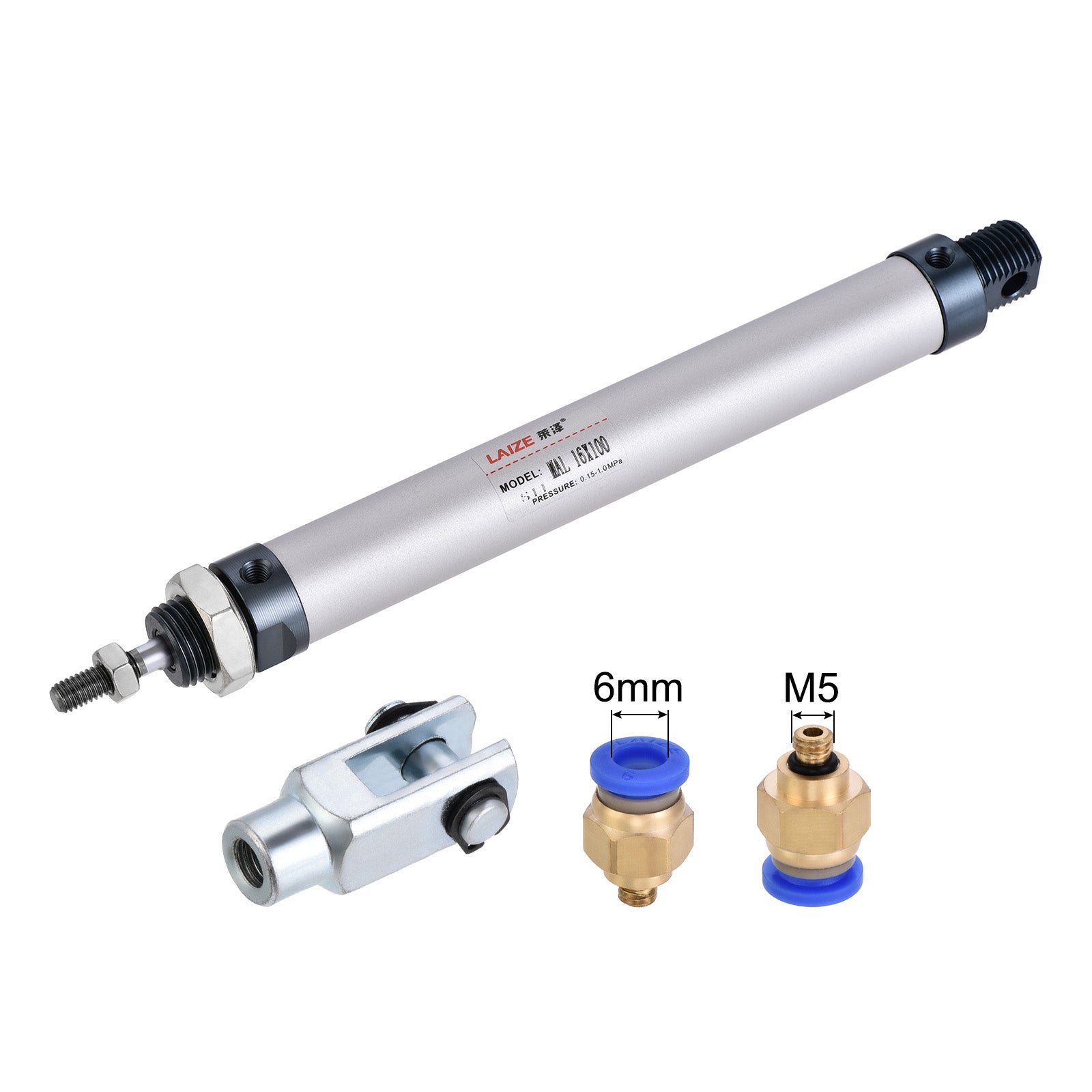

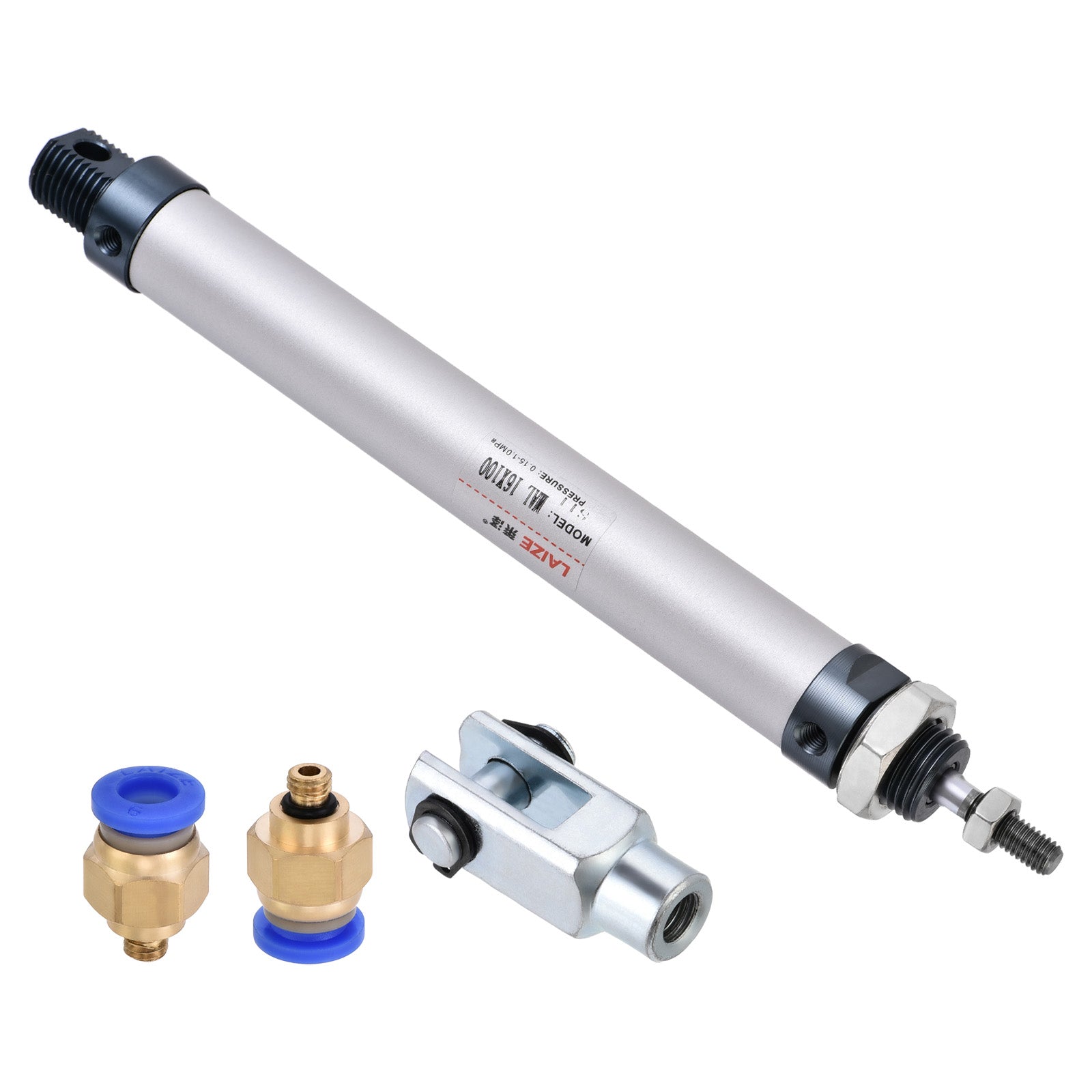

  • Bore: 16mm / 0.63"; Stroke: 100mm / 3.94"; Working Pressure: 0.1-1.0 MPa / 14-145 psi; Package List: 1 x Air Cylinder, 1 x Y Connector, 2Pcs x M5 to 6mm fitting
  • Advantage: 1. Made of aluminum alloy material, this air cylinder is resistant to corrosion, wear and tear, and can withstand high pressure. 2. With a double action single rod design, this air cylinder provides linear motion in both directions, can control various mechanical devices precisely and efficiently.
  • Instruction: Easy to install, connect the cylinder and fitting, and connect the screw end to the part that needs to be driven.
  • Application: Suitable for use in pneumatic system, automation control, punch, and other pneumatic systems, this air cylinder is reliable in many industrial occasions.
  • NOTE: Please check the right size before ordering.
  • In stock, ready to ship
Cart
Cart
About this item
  • Bore: 16mm / 0.63"; Stroke: 100mm / 3.94"; Working Pressure: 0.1-1.0 MPa / 14-145 psi; Package List: 1 x Air Cylinder, 1 x Y Connector, 2Pcs x M5 to 6mm fitting
  • Advantage: 1. Made of aluminum alloy material, this air cylinder is resistant to corrosion, wear and tear, and can withstand high pressure. 2. With a double action single rod design, this air cylinder provides linear motion in both directions, can control various mechanical devices precisely and efficiently.
  • Instruction: Easy to install, connect the cylinder and fitting, and connect the screw end to the part that needs to be driven.
  • Application: Suitable for use in pneumatic system, automation control, punch, and other pneumatic systems, this air cylinder is reliable in many industrial occasions.
  • NOTE: Please check the right size before ordering.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Suitable for use in pneumatic system, automation control, punch, and other pneumatic systems, this air cylinder is reliable in many industrial occasions.

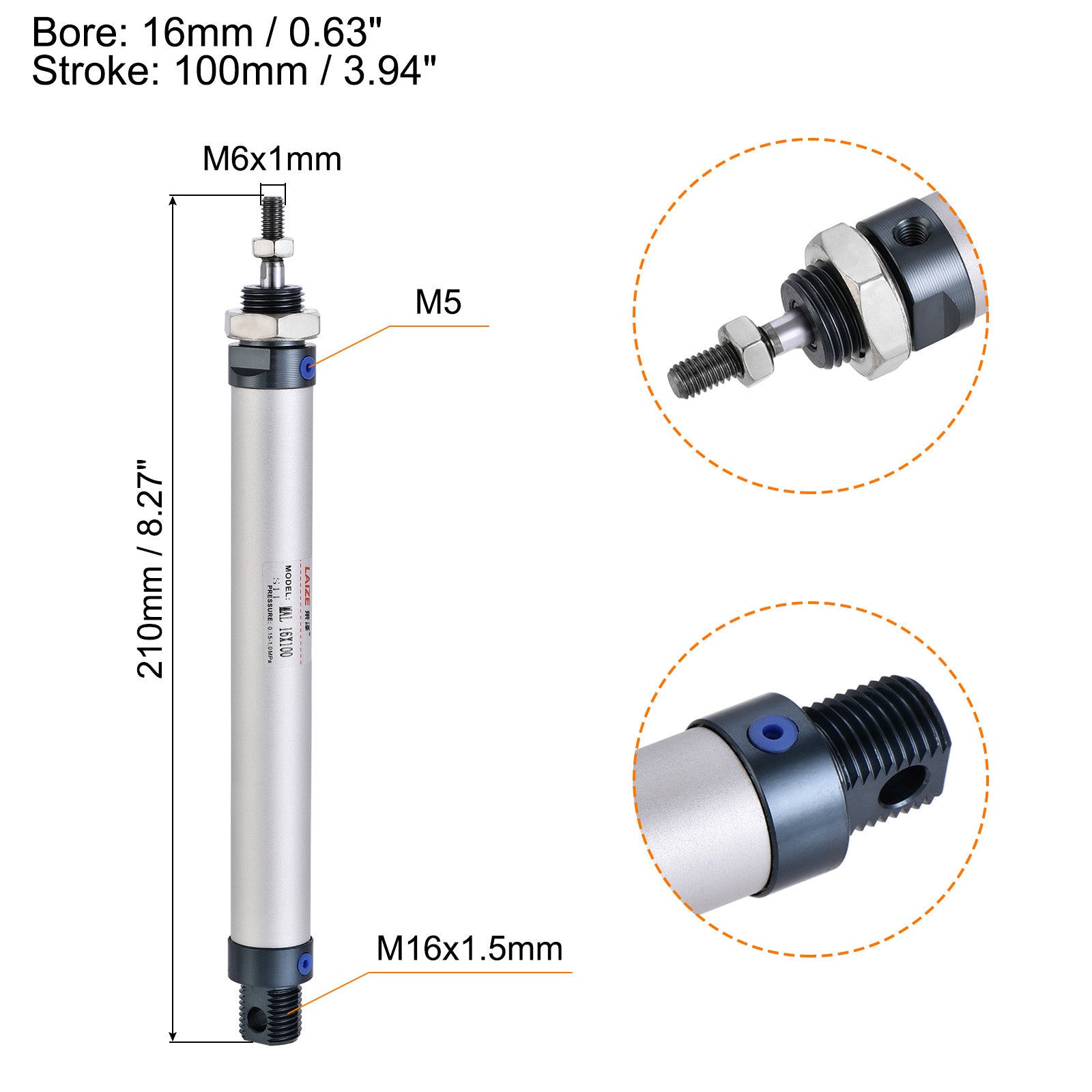

Specification
Material: Aluminum Alloy
Rod Type: Single Rod
Action Type: Double Acting
Bore: 16mm / 0.63"
Stroke: 100mm / 3.94"
Port Size: M5
Piston Rod Thread: M6x1mm
Rod Two End Thread Size: M16x1.5mm
Total Length: 210mm / 8.27"
Working Pressure: 0.1-1.0 MPa / 14-145 psi
Package List: 1 x Air Cylinder, 1 x Y Connector, 2Pcs x M5 to 6mm Quick Fitting

Advantage
1. Made of aluminum alloy material, this air cylinder is resistant to corrosion, wear and tear, and can withstand high pressure.
2. With a double action single rod design, this air cylinder provides linear motion in both directions, can control various mechanical devices precisely and efficiently.

Instruction
Easy to install, connect the cylinder and fitting, and connect the screw end to the part that needs to be driven.

NOTE: Please check the right size before ordering.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
CA$22.00 Regular price
CA/
Wholesale Price
20%OFF
Order $5000+
  • 25%OFF
    Order $5000+
  • 20%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Suitable for use in pneumatic system, automation control, punch, and other pneumatic systems, this air cylinder is reliable in many industrial occasions.

Specification
Material: Aluminum Alloy
Rod Type: Single Rod
Action Type: Double Acting
Bore: 16mm / 0.63"
Stroke: 100mm / 3.94"
Port Size: M5
Piston Rod Thread: M6x1mm
Rod Two End Thread Size: M16x1.5mm
Total Length: 210mm / 8.27"
Working Pressure: 0.1-1.0 MPa / 14-145 psi
Package List: 1 x Air Cylinder, 1 x Y Connector, 2Pcs x M5 to 6mm Quick Fitting

Advantage
1. Made of aluminum alloy material, this air cylinder is resistant to corrosion, wear and tear, and can withstand high pressure.
2. With a double action single rod design, this air cylinder provides linear motion in both directions, can control various mechanical devices precisely and efficiently.

Instruction
Easy to install, connect the cylinder and fitting, and connect the screw end to the part that needs to be driven.

NOTE: Please check the right size before ordering.
