Harfington AGU Fuse Holder Inline with Fast Blow Fuses Amplifier

AGU Fuse Holder Inline with Fast Blow Fuses Amplifier

ID:
CA$12.21 Regular price
CA/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
1set
Package Content
50A
Style
About this item
  • Fuse: Rated Current: 50; Rated Voltage: 32 Volt; Body Size: 38 x 10mm (L*D)
  • Fuse Holder: Mounting Hole Dia.: 5mm / 0.2"; Mounting Hole Distance: 32mm / 1.25"
  • Inline Diameter: 6mm / 0.23 inch; 3 AWG in to 3 AWG out wire.
  • The AGU fuse block is widely applied to inverter, audio Amplifier and other high current applications.
  • The glass fuse tube is mainly used for protecting the electrical circuit against overload and short circuit, it also derive for protecting the semiconductor objects.
  • In stock, ready to ship
Cart
Cart
About this item
  • Fuse: Rated Current: 50; Rated Voltage: 32 Volt; Body Size: 38 x 10mm (L*D)
  • Fuse Holder: Mounting Hole Dia.: 5mm / 0.2"; Mounting Hole Distance: 32mm / 1.25"
  • Inline Diameter: 6mm / 0.23 inch; 3 AWG in to 3 AWG out wire.
  • The AGU fuse block is widely applied to inverter, audio Amplifier and other high current applications.
  • The glass fuse tube is mainly used for protecting the electrical circuit against overload and short circuit, it also derive for protecting the semiconductor objects.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Feature:

3 AWG in to 3 AWG out wire.

The AGU fuse block is widely applied to inverter, audio Amplifier and other high current applications.

The glass fuse tube is mainly used for protecting the electrical circuit against overload and short circuit, it also derive for protecting the semiconductor objects.



NOTE:

1. Shut down power before your replacement.

2. Check your original size of fuse before buying: body diameter, body length, rated current, rated voltage.



Specifications:

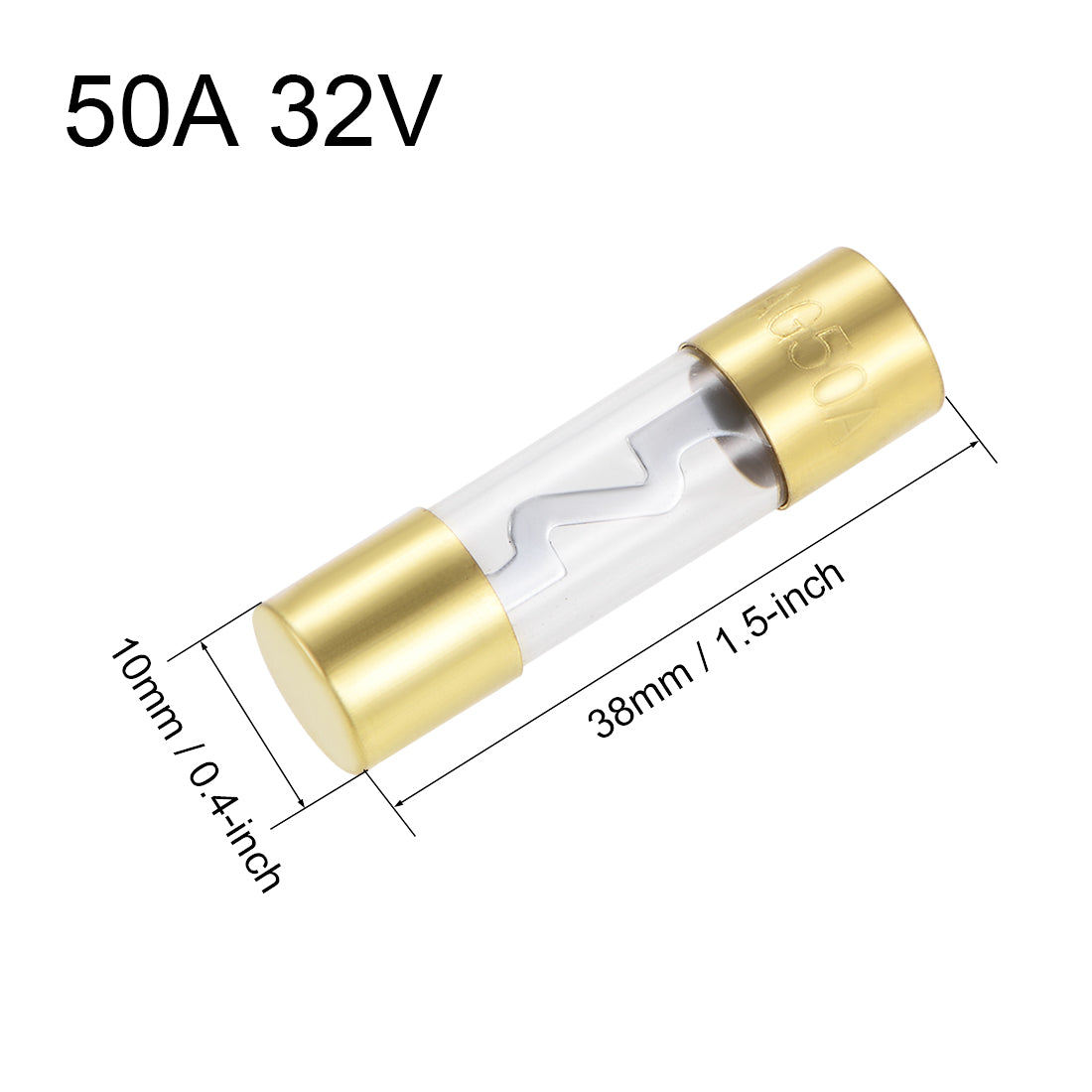

Fuse:

Rated Current: 50

Rated Voltage: 32 Volt

Body Size: 38 x 10mm / 1.5 x 0.4 inch (L*D)

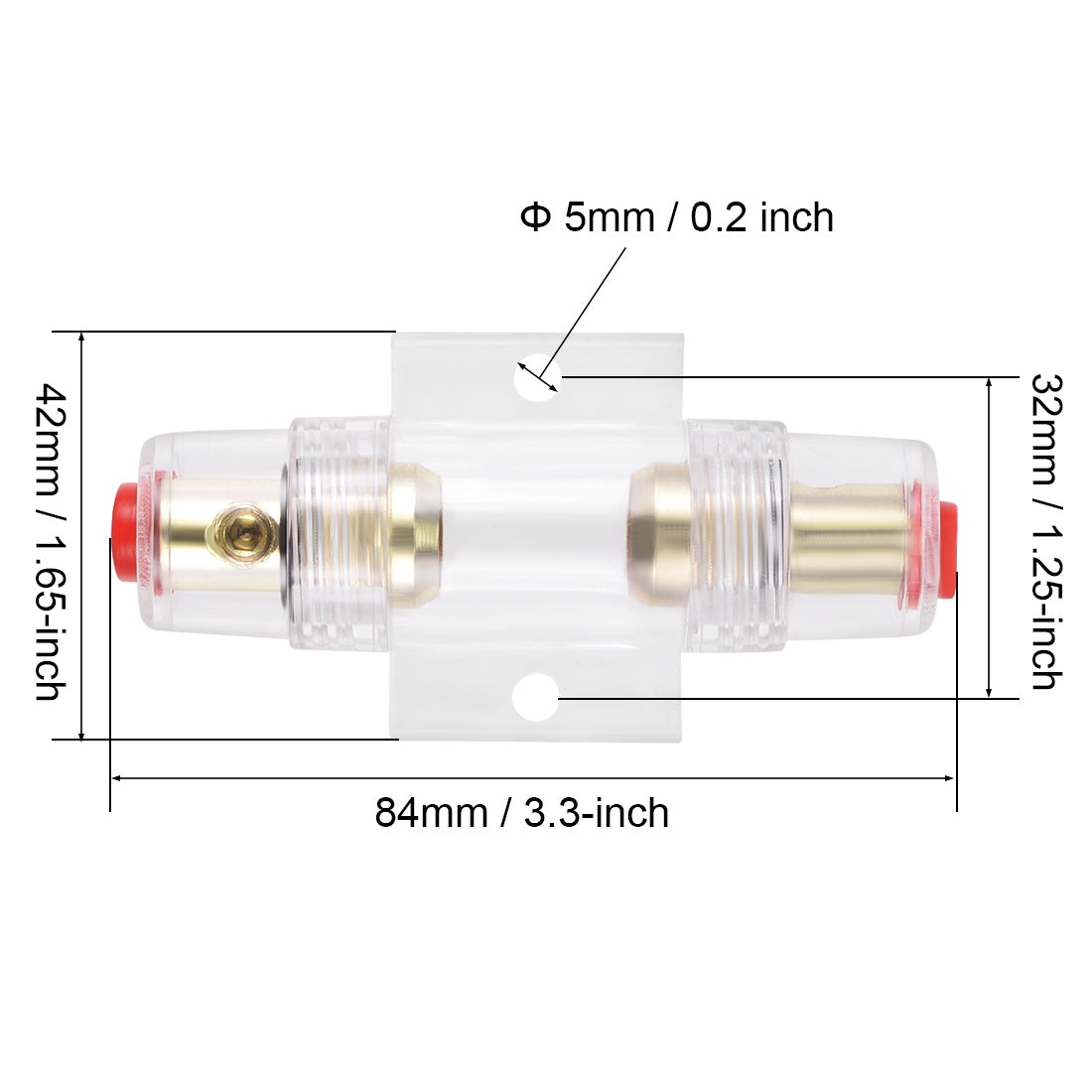

Fuse Holder:

Inline Diameter: 6mm / 0.23 inch

Mounting Hole Diameter: 5mm / 0.2 inch

Mounting Hole Distance: 32mm / 1.25 inch

Panel Size: 42 x 30mm / 1.65 x 1.2 inch (L*W)

Overall Size: 84 x 42 x 26mm / 3.3 x 1.65 x 1 inch (L*W*H)

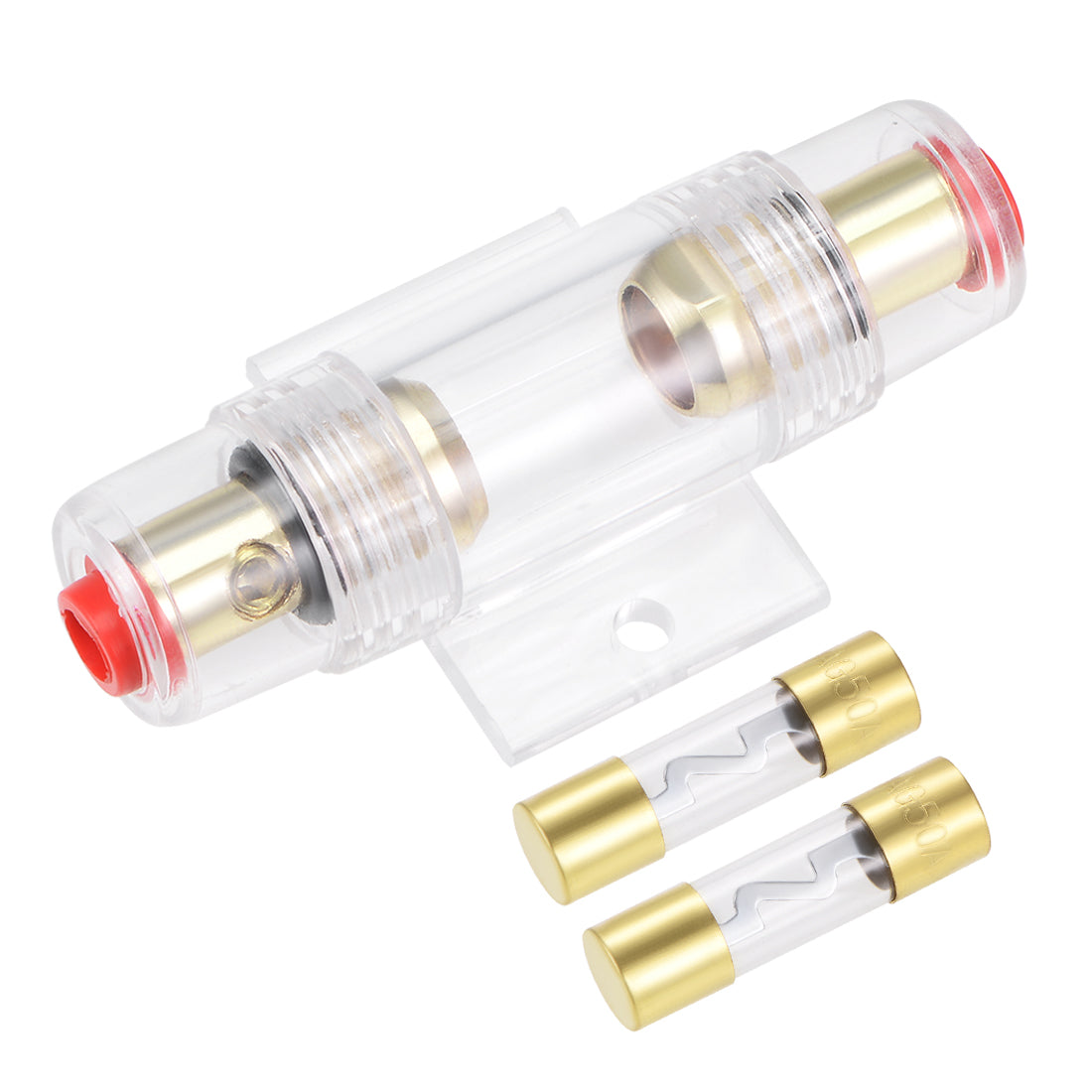

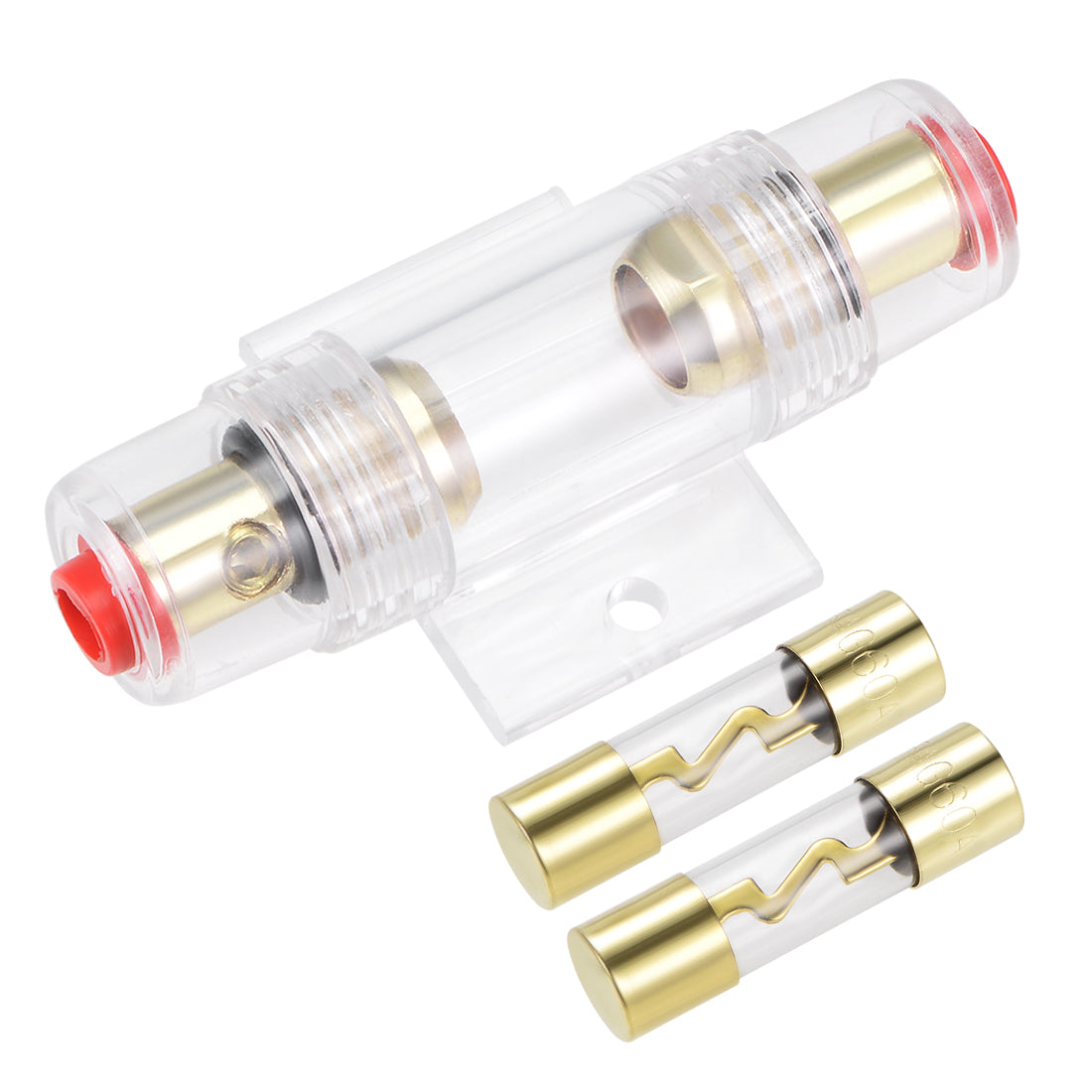

Package Contents:

1 x AGU Fuse Holder

2 x Fuses

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
CA$12.21 Regular price
CA/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Feature:

3 AWG in to 3 AWG out wire.

The AGU fuse block is widely applied to inverter, audio Amplifier and other high current applications.

The glass fuse tube is mainly used for protecting the electrical circuit against overload and short circuit, it also derive for protecting the semiconductor objects.



NOTE:

1. Shut down power before your replacement.

2. Check your original size of fuse before buying: body diameter, body length, rated current, rated voltage.



Specifications:

Fuse:

Rated Current: 50

Rated Voltage: 32 Volt

Body Size: 38 x 10mm / 1.5 x 0.4 inch (L*D)

Fuse Holder:

Inline Diameter: 6mm / 0.23 inch

Mounting Hole Diameter: 5mm / 0.2 inch

Mounting Hole Distance: 32mm / 1.25 inch

Panel Size: 42 x 30mm / 1.65 x 1.2 inch (L*W)

Overall Size: 84 x 42 x 26mm / 3.3 x 1.65 x 1 inch (L*W*H)



Package Contents:

1 x AGU Fuse Holder

2 x Fuses

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
