Harfington Uxcell Aluminum Radial Electrolytic Capacitor Low ESR Green with 22UF 50V 105 Celsius Life 3000H 5 x 11 mm High Ripple Current,Low Impedance 70pcs

Uxcell Aluminum Radial Electrolytic Capacitor Low ESR Green with 22UF 50V 105 Celsius Life 3000H 5 x 11 mm High Ripple Current,Low Impedance 70pcs

ID:
CA$10.00 Regular price
CA/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

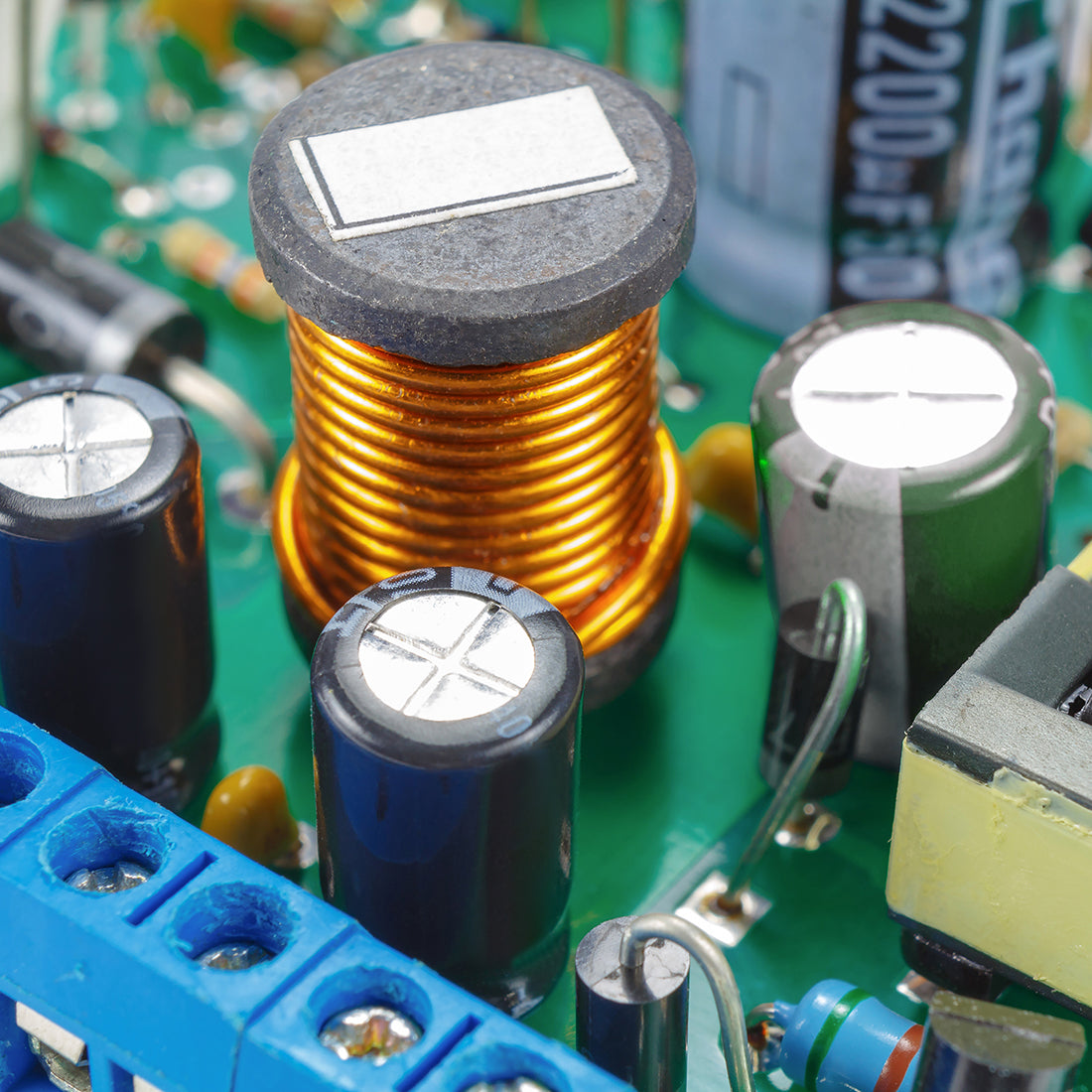

  • Application : Widely used in electronics, such as computer motherboard, TV, speaker, digital camera, etc.
  • Product Name : Aluminum Electrolytic Capacitor;Maximum Operating Temperature : 105 Celsius.
  • Body Size: 5 x 11mm/0.2" x 0.43"(D*L); Lead Length: 24mm/0.94", 20mm/0.79"; Lead Pitch : 2mm/0.08"
  • Rated Voltage: 50V; Capacitance: 22uF; Capacitance Tolerance: ±20%(120Hz,+20 Celsius); Max Ripple Current at 105 Celsius 120Hz: 180mA; Maximum Impedance(ohm) at 20℃ 100KHZ: 1.3; Standard Load Life: 3000hrs

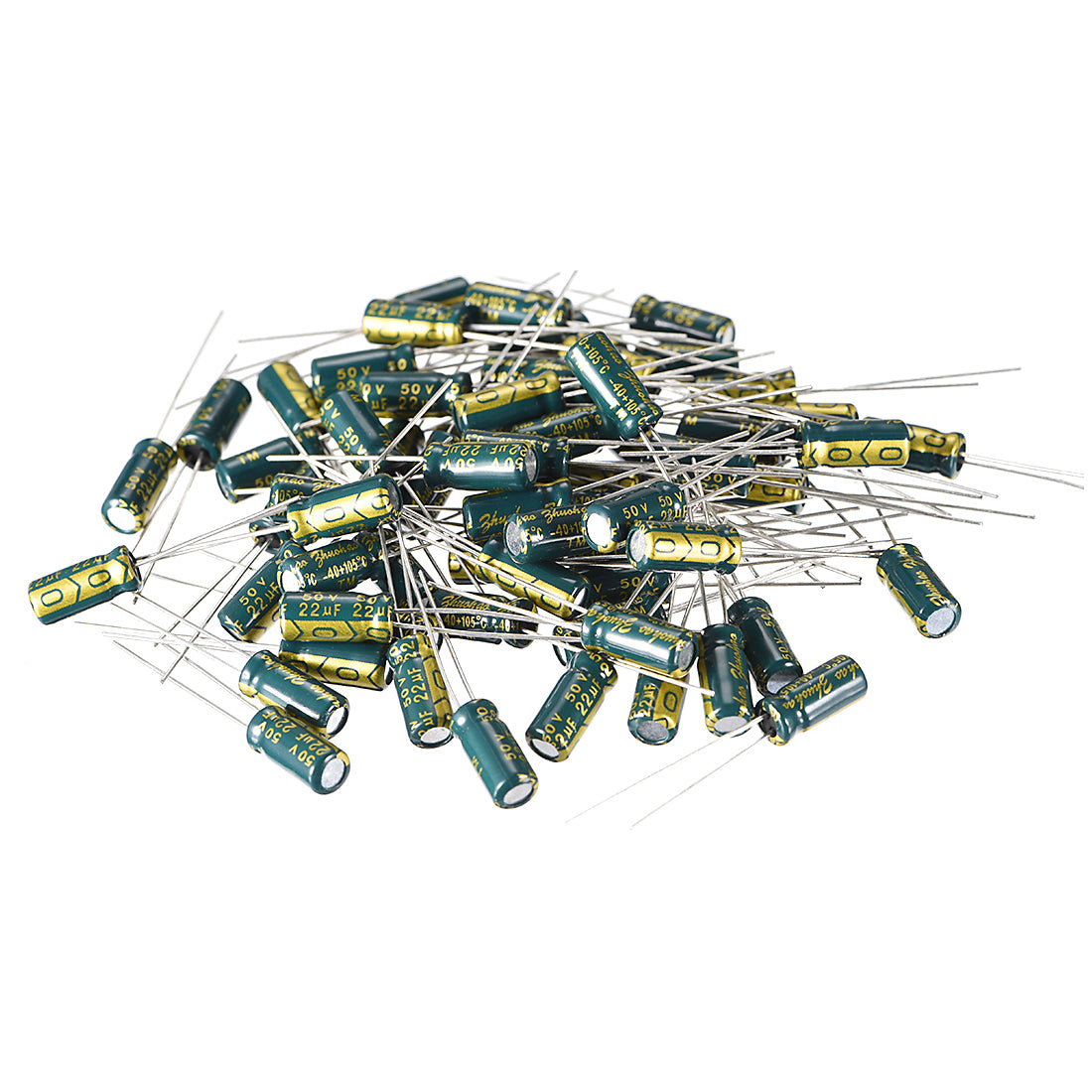

  • Package Content : 70(+/-2%) x Electrolytic Capacitors
  • In stock, ready to ship
Cart
Cart
About this item
  • Application : Widely used in electronics, such as computer motherboard, TV, speaker, digital camera, etc.
  • Product Name : Aluminum Electrolytic Capacitor;Maximum Operating Temperature : 105 Celsius.
  • Body Size: 5 x 11mm/0.2" x 0.43"(D*L); Lead Length: 24mm/0.94", 20mm/0.79"; Lead Pitch : 2mm/0.08"
  • Rated Voltage: 50V; Capacitance: 22uF; Capacitance Tolerance: ±20%(120Hz,+20 Celsius); Max Ripple Current at 105 Celsius 120Hz: 180mA; Maximum Impedance(ohm) at 20℃ 100KHZ: 1.3; Standard Load Life: 3000hrs
  • Package Content : 70(+/-2%) x Electrolytic Capacitors
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Features:

High Ripple Current,Low Impedance.

Radial lead, aluminum electrolytic capacitor.

The longer lead is positive electrode and the shorter one is negative electrode.



Notice:

1.Capacitance: Don't change the capacitance.

2.Voltage: You can go higher, but don't go lower.

3.Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing.

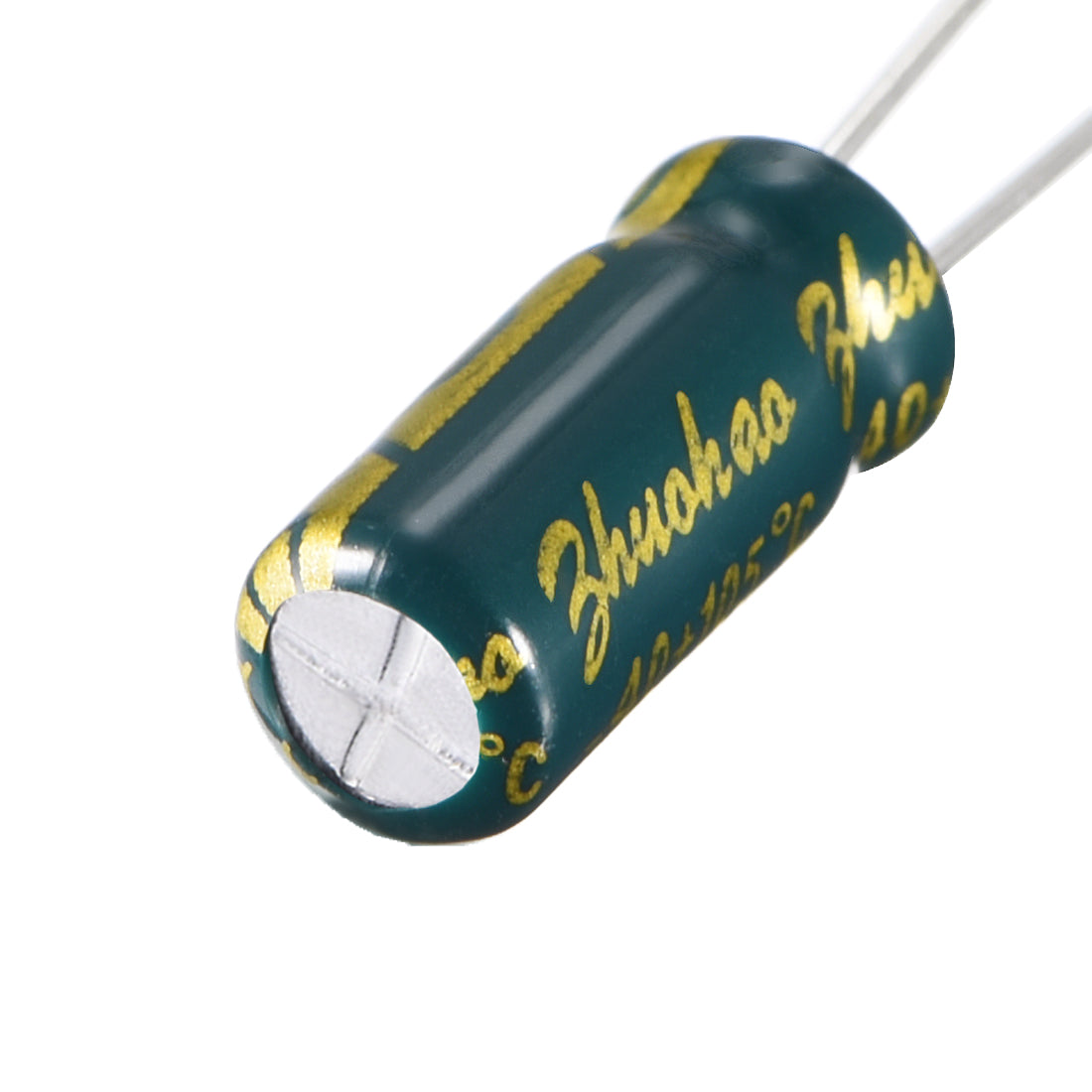

Product Name : Aluminum Electrolytic Capacitor

Type: Radial Lead

Feature: High Ripple Current,Low Impedance.

Category Temperature Range: -40 ~ + 105 Celsius(6.3~100V)

Rated Voltage: 50V;

Capacitance: 22uF;

Capacitance Tolerance: 20%(120Hz,+20 Celsius);

Max Ripple Current at 105 Celsius 120Hz: 180mA;

Maximum Impedance(ohm) at 20 100KHZ: 1.3;

Standard Load Life: 3000hrs

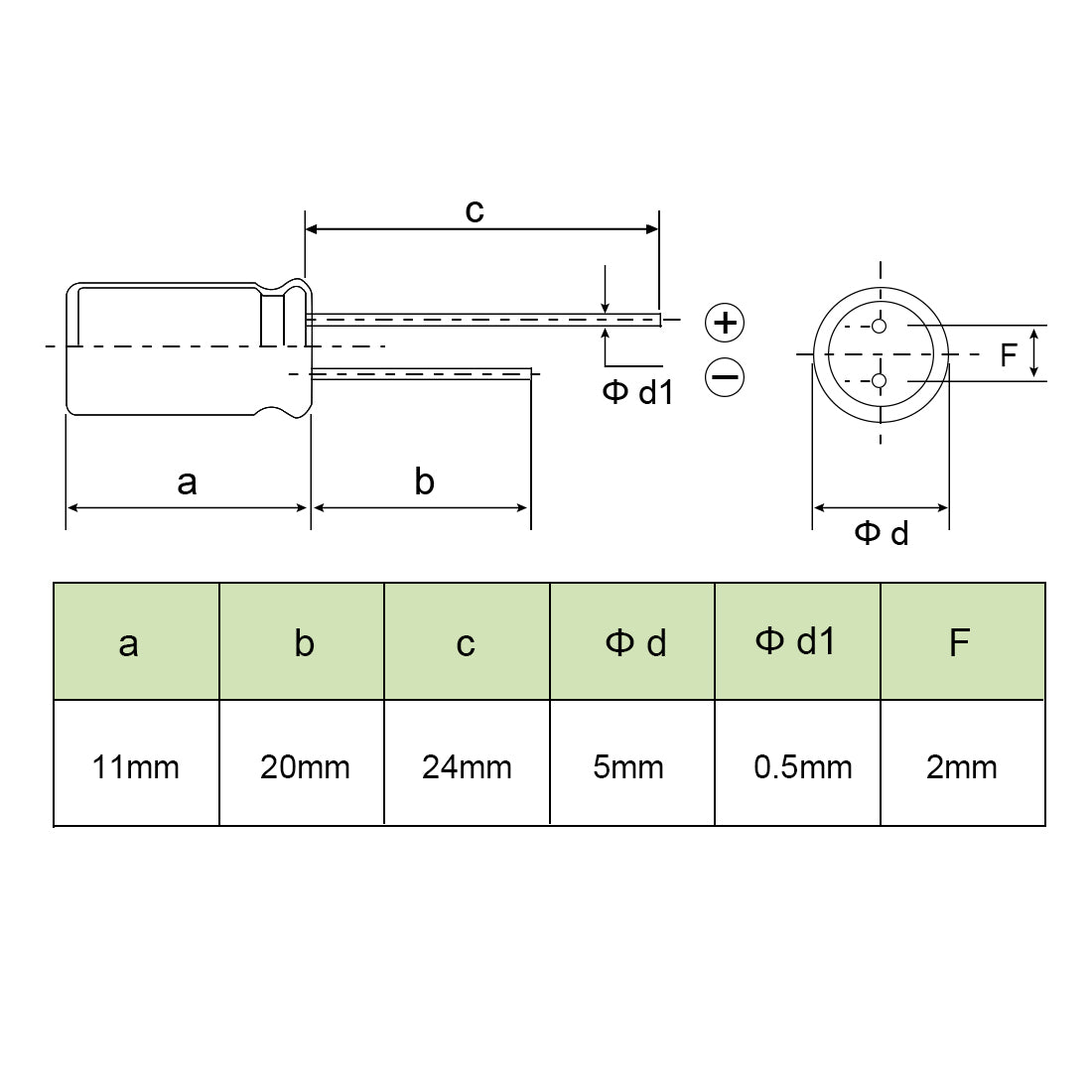

Body Size: 5 x 11mm/0.2" x 0.43"(D*L);

Lead Length: 24mm/0.94", 20mm/0.79";

Lead Pitch : 2mm/0.08"

Lead Diameter :0.5mm

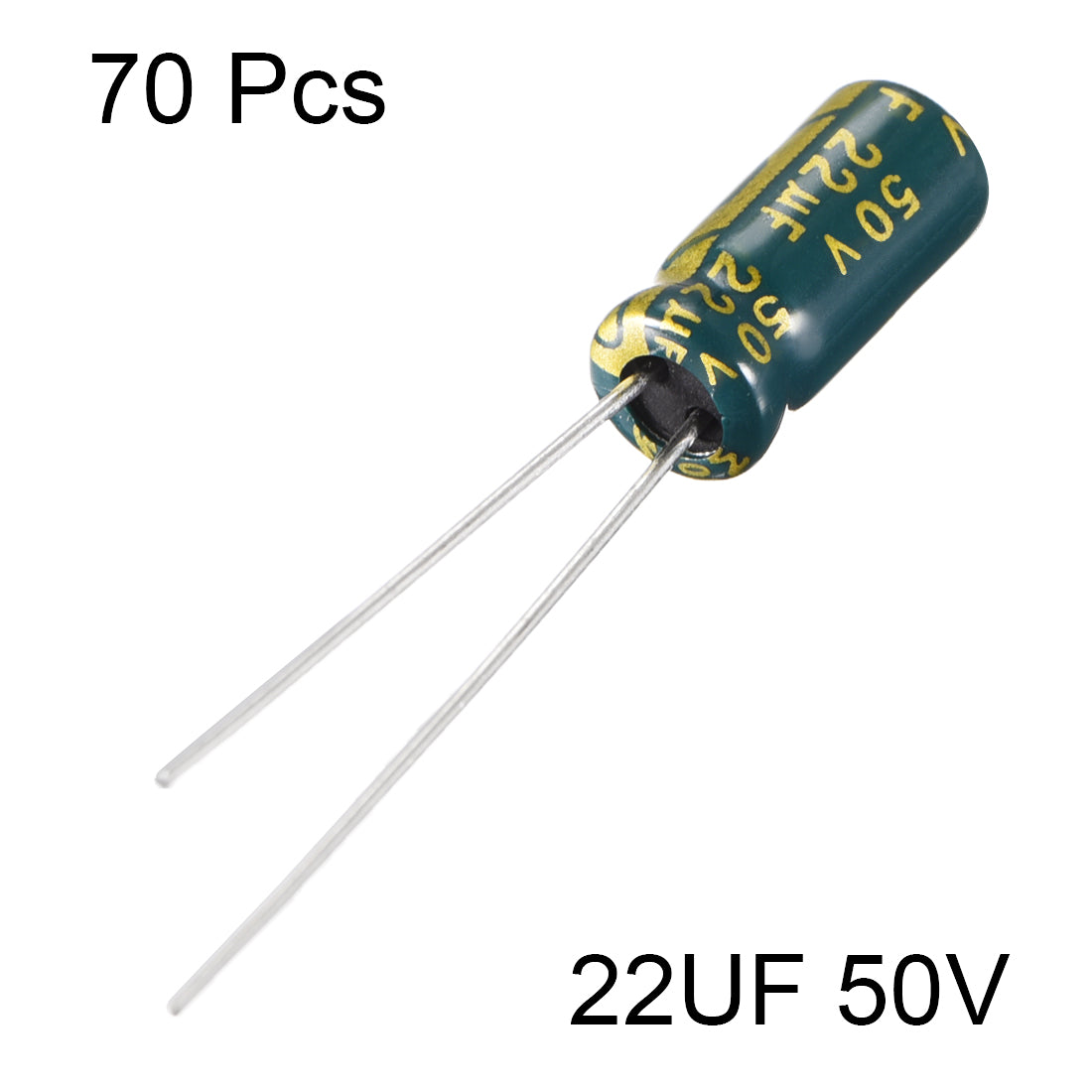

Size : 70pcs 22UF 50V 5x11mm

Package Content : 70(+/-2%) x Electrolytic Capacitors
