Harfington Die Stock Handle Wrench 20mmx5mm M3-M4 Metric Round Die Holder

Die Stock Handle Wrench 20mmx5mm M3-M4 Metric Round Die Holder

ID:
CA$13.00 Regular price
CA/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Die Stock: Fit capacity size: M3-M4 / 11.5mm-20mm. Die stock, also called die handle or die wrench, are use in round dies only. Made of zinc alloy and carbon steel, it has high hardness and wear resistance.
  • Applications: The die handle wrench can help to repair damaged bolts and threads or just remove bolts and threaded rod when used with round dies (not included). Create uniform threads on different types of screws, bolts, and pipes.
  • Tips: It needs to be reversed every 1/4~1/2 turn to facilitate the chip discharge from the chip hole. Suitable lubricating oil should be added to the cutting edge of the die when tapping threads.

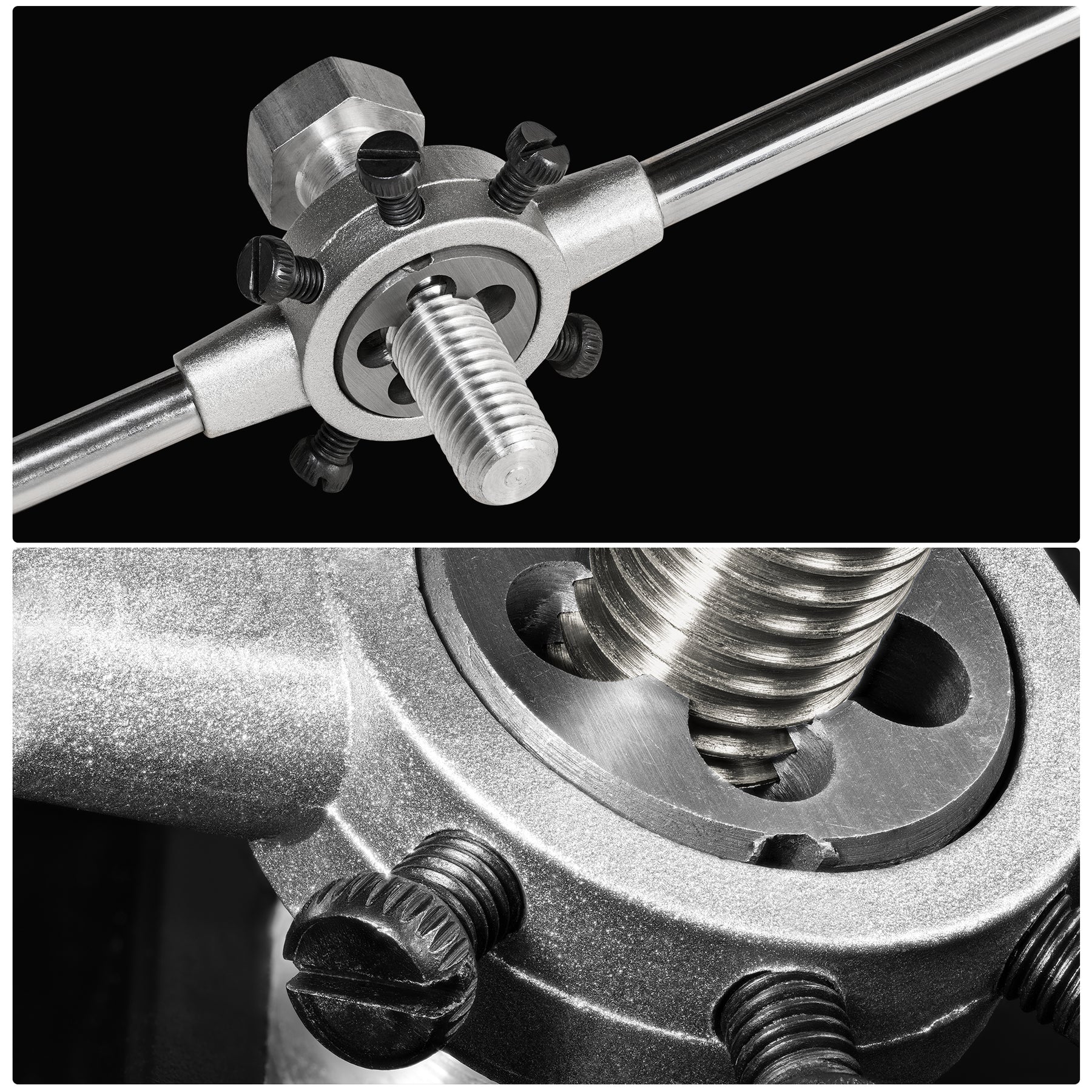

  • Easy to Use: The positioning groove of the die (not included) should be aligned with the fastening screw in the middle of the die wrench, and the screws should be inserted into the slot of the die and tightened.
  • Features: Round die holder is featured with 4 adjustable screws to fix the dies. The die stock can securely hold round dies and is easy to operate. The frame helps to keep the cutting tools in alignment. Can ensure that the threads are evenly spaced and are cut to the specifications required.
  • In stock, ready to ship
Cart
Cart
About this item
  • Die Stock: Fit capacity size: M3-M4 / 11.5mm-20mm. Die stock, also called die handle or die wrench, are use in round dies only. Made of zinc alloy and carbon steel, it has high hardness and wear resistance.
  • Applications: The die handle wrench can help to repair damaged bolts and threads or just remove bolts and threaded rod when used with round dies (not included). Create uniform threads on different types of screws, bolts, and pipes.
  • Tips: It needs to be reversed every 1/4~1/2 turn to facilitate the chip discharge from the chip hole. Suitable lubricating oil should be added to the cutting edge of the die when tapping threads.
  • Easy to Use: The positioning groove of the die (not included) should be aligned with the fastening screw in the middle of the die wrench, and the screws should be inserted into the slot of the die and tightened.
  • Features: Round die holder is featured with 4 adjustable screws to fix the dies. The die stock can securely hold round dies and is easy to operate. The frame helps to keep the cutting tools in alignment. Can ensure that the threads are evenly spaced and are cut to the specifications required.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

This die stock helps you overcome damaged bolts and threads.

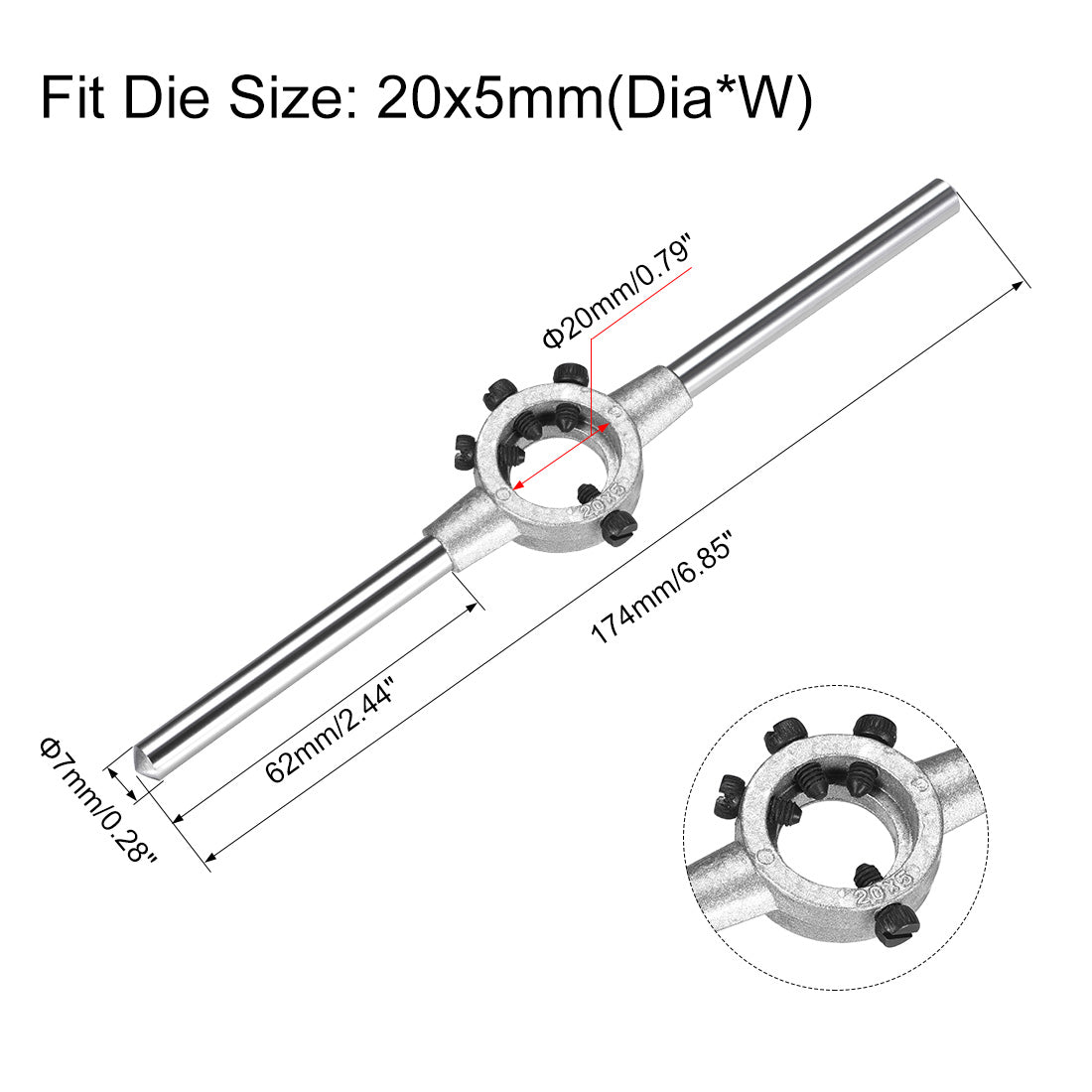

Specifications:

Material: Zinc Alloy&Carbon Steel

Fit Capacity Size: M3-M4 / 11.5mm-20mm

Fit Die Size: 20x5mm/0.79x0.2 inch(Dia*W)

Overall Length: 174mm/6.85 inch

Handle Length: 62mm/2.44 inch

Handle Diameter: 7mm/0.28 inch



Features:

4-screw design to fix the dies.

Die Stock, also called die handle is for use in round dies only.

This die stock is for using with a 20mm outside diameter split die. It features screws that allow you to compress the die to take off more material (if the thread is too tight) and alternatively a screw that allows the die to spread open, which allows you to cut unthreaded or damaged bar.



Package Includes:

1 X Round Die Stock

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
