Harfington DC12V Step-Up to DC 24V 5A 120W Waterproof Power Supply Module Voltage Booster Converter Regulator Transformer

DC12V Step-Up to DC 24V 5A 120W Waterproof Power Supply Module Voltage Booster Converter Regulator Transformer

ID:
CA$24.69 Regular price
CA/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Convert unstable voltage DC 12V to stable DC 24V 5A 120W output.
  • Si-Fe Cores magnetic loop, high temperature resistance and super stability.
  • IP67 Protection grade, waterproof, moisture-proof and anti-shock protection.
  • Built-in over/under voltage input, overload, overheat, and short circuit protection. The new and Old label is being changed, but the products are same.
  • Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.
  • In stock, ready to ship
Cart
Cart
About this item
  • Convert unstable voltage DC 12V to stable DC 24V 5A 120W output.
  • Si-Fe Cores magnetic loop, high temperature resistance and super stability.
  • IP67 Protection grade, waterproof, moisture-proof and anti-shock protection.
  • Built-in over/under voltage input, overload, overheat, and short circuit protection. The new and Old label is being changed, but the products are same.
  • Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Descriptions:
-Our Waterproof Power Converter Regulator adopts synchronous voltage regulator technology, fully import original components, can convert unstable voltage DC 12V to stable DC 24V 5A output.
-The import high heat conduction organic silica gel filling and sealing technology
-Widely used in LED screen, GPS navigation, MP3, MP4, DVD, hard disk player, stereo.
-Aluminium alloy shell with good heat conduction, waterproof.
-IP67 Protection grade, waterproof and anti-shock protection.
-More than 96% power conversion efficiency.
-Si-Fe Cores magnetic loop, high-temperature resistance and super stability.

Instructional Manual
1. The load connected to the output end of the power regulator should not be more than MAX LISTED LOAD POWER, any higher rated load will cause damage to the power regulator.
2. Can not used long time Under the MAX. LISTED LOAD POWER

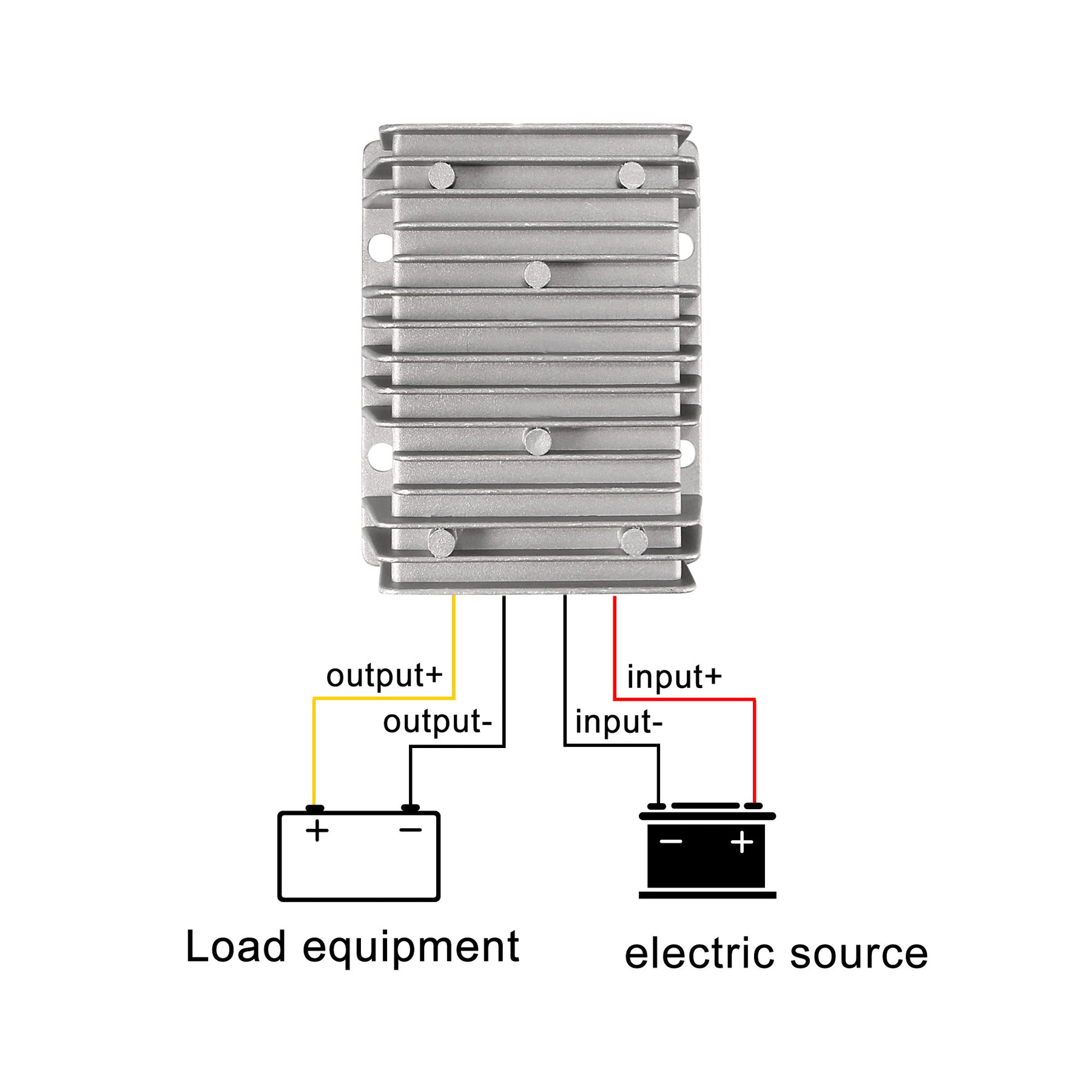

3. Please connect the converter and your device as the wiring diagram provided on above picture

Specifications:
Product Name: Waterproof Power Converter Regulator
Input: DC 12V
Output: DC 24V 5A 120W
Conversion Efficiency: More Than 96%
Overtemperature Protection: 150C
Protection Grade: IP67

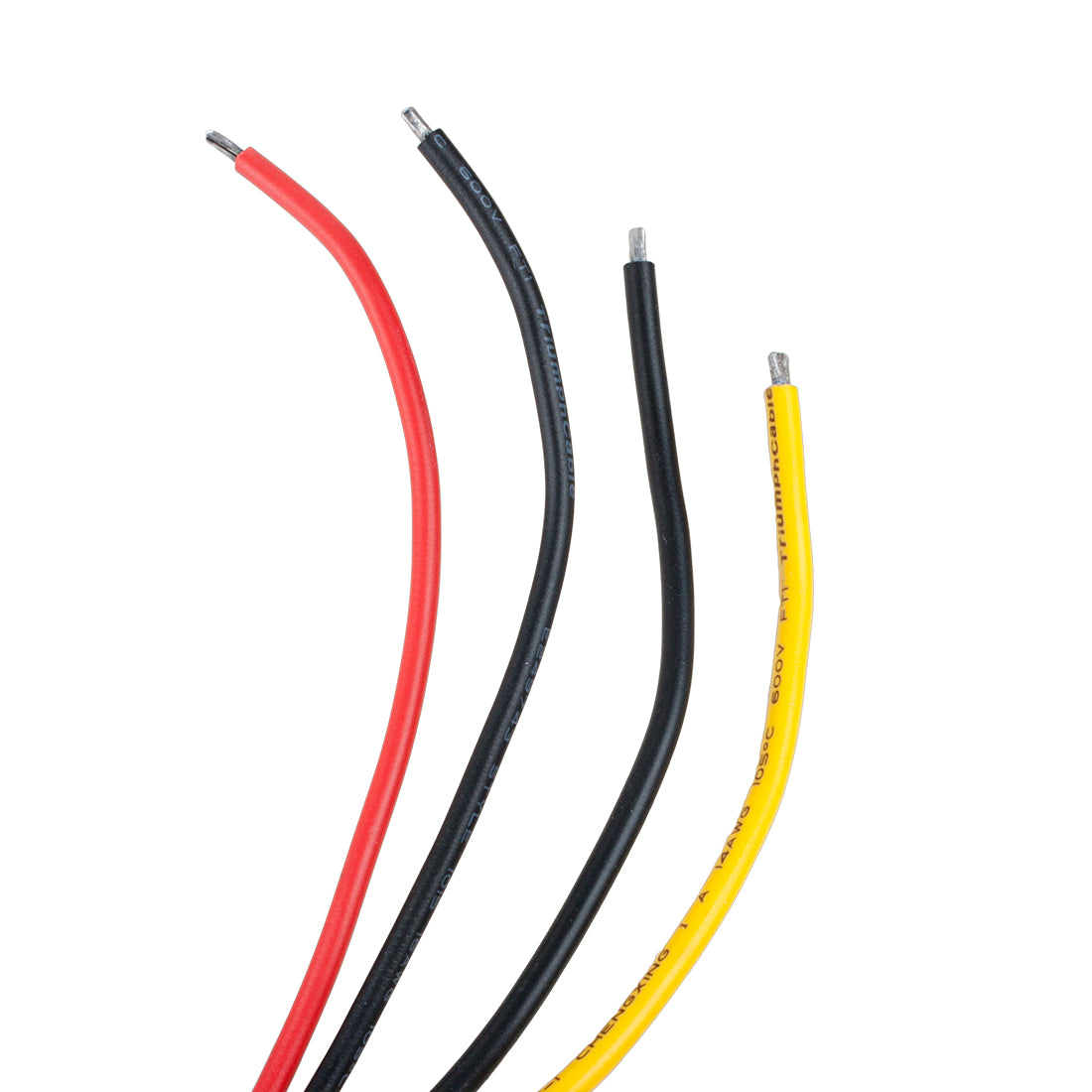

Connection Wire Length: 12cm(4.7 inches)
Mounting Hole Diameter: 5mm(0.2 inch)
Mounting Hole Distance: 65mm(2.56 inches)

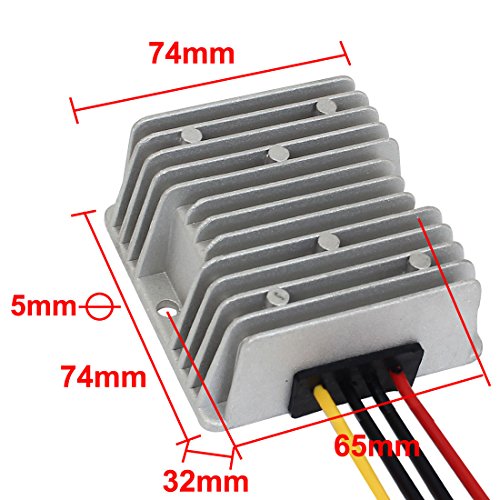

Body Size: 74mm x 74mm x 32mm(L*W*H)
Net Weight: 227g

Package Content:
1 x Waterproof Power Converter Regulator
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
CA$24.69 Regular price
CA/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Descriptions:
-Our Waterproof Power Converter Regulator adopts synchronous voltage regulator technology, fully import original components, can convert unstable voltage DC 12V to stable DC 24V 5A output.
-The import high heat conduction organic silica gel filling and sealing technology
-Widely used in LED screen, GPS navigation, MP3, MP4, DVD, hard disk player, stereo.
-Aluminium alloy shell with good heat conduction, waterproof.
-IP67 Protection grade, waterproof and anti-shock protection.
-More than 96% power conversion efficiency.
-Si-Fe Cores magnetic loop, high-temperature resistance and super stability.

Instructional Manual
1. The load connected to the output end of the power regulator should not be more than MAX LISTED LOAD POWER, any higher rated load will cause damage to the power regulator.
2. Can not used long time Under the MAX. LISTED LOAD POWER
3. Please connect the converter and your device as the wiring diagram provided on above picture

Specifications:
Product Name: Waterproof Power Converter Regulator
Input: DC 12V
Output: DC 24V 5A 120W
Conversion Efficiency: More Than 96%
Overtemperature Protection: 150C
Protection Grade: IP67
Connection Wire Length: 12cm(4.7 inches)
Mounting Hole Diameter: 5mm(0.2 inch)
Mounting Hole Distance: 65mm(2.56 inches)
Body Size: 74mm x 74mm x 32mm(L*W*H)
Net Weight: 227g

Package Content:
1 x Waterproof Power Converter Regulator
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
