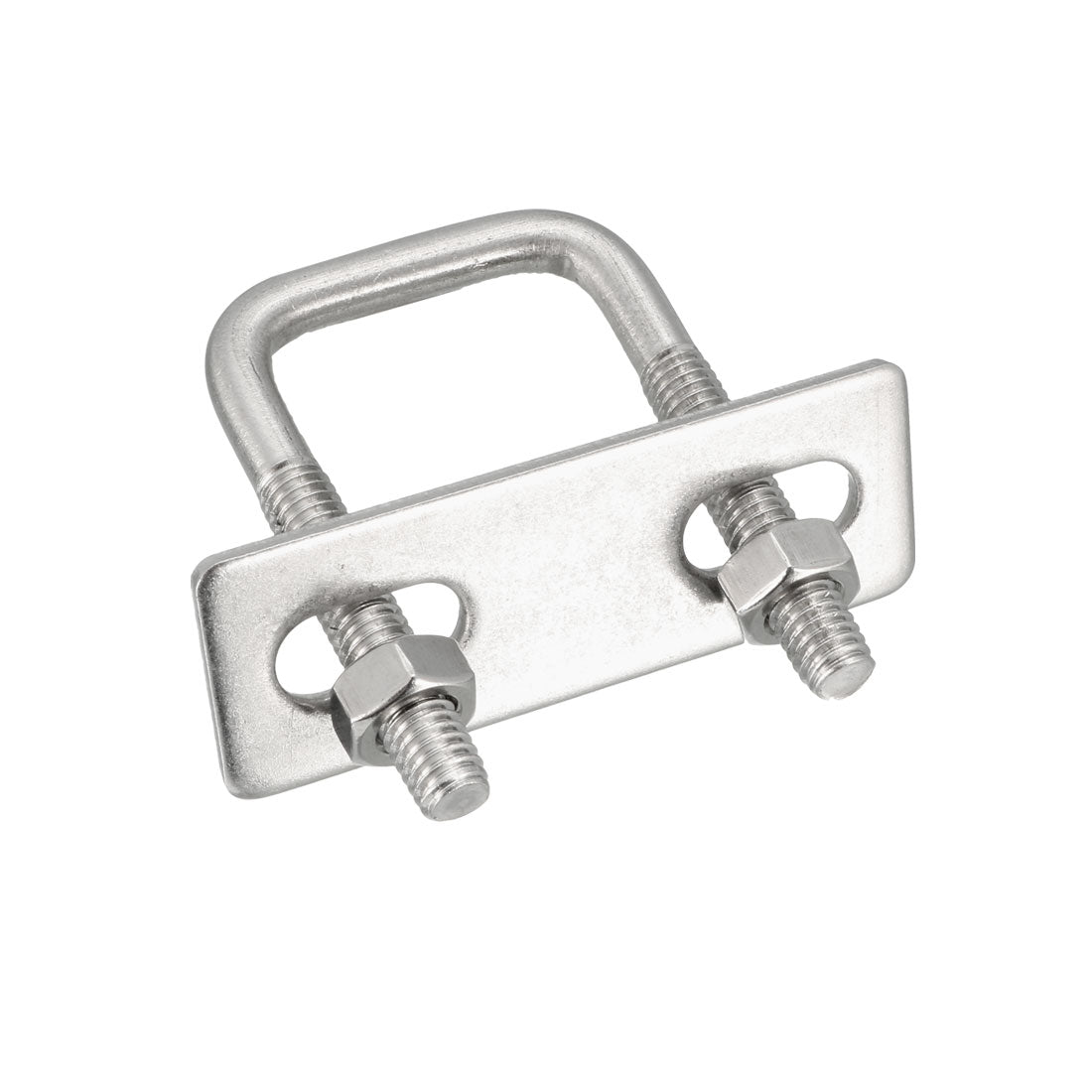

Harfington Square U-Bolts 1"(25mm) Inner Width 304 Stainless Steel M6 with Nuts Frame Straps 2Pcs

Square U-Bolts 1"(25mm) Inner Width 304 Stainless Steel M6 with Nuts Frame Straps 2Pcs

ID:
CA$14.33 Regular price
CA/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

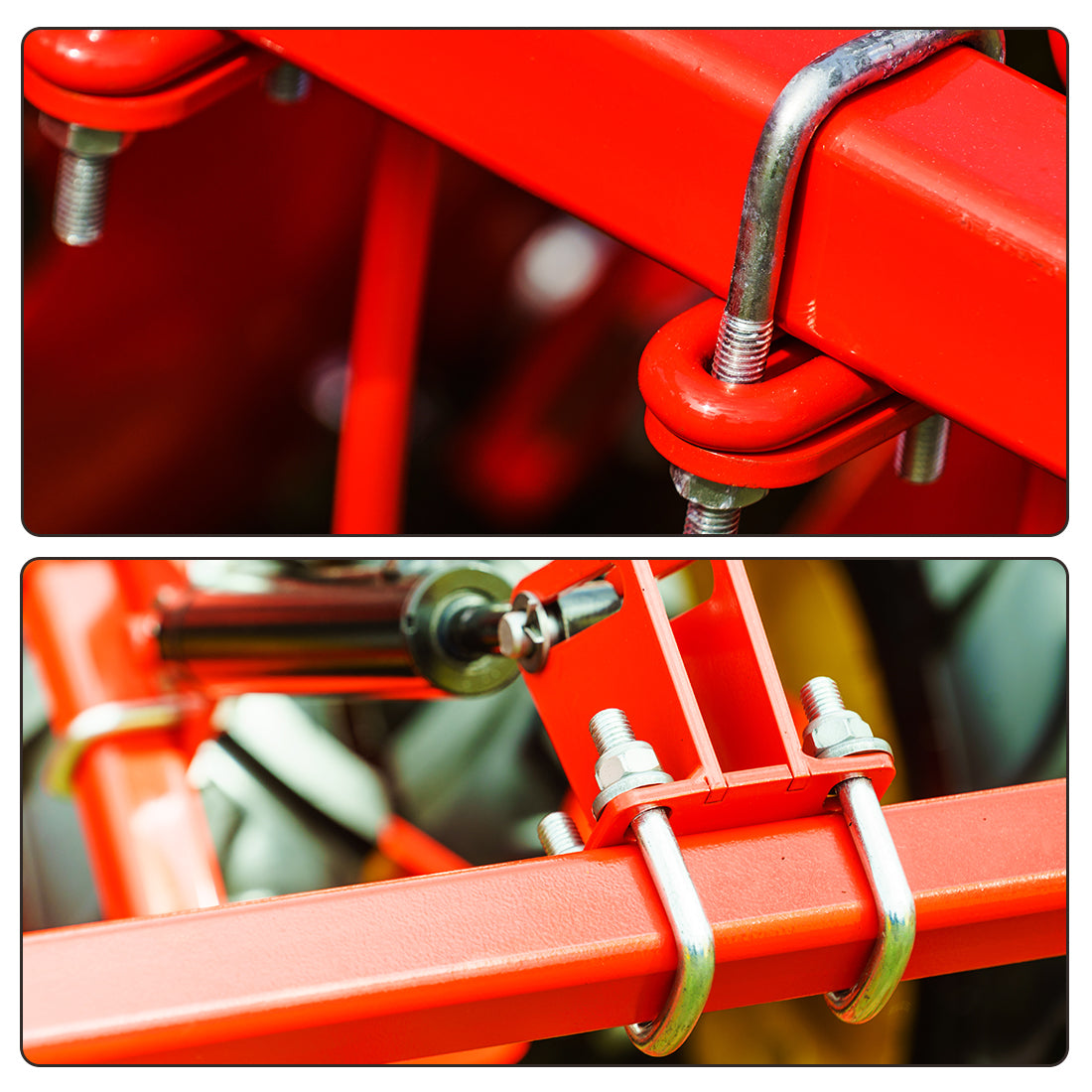

  • Application: U-bolt is used to fasten or attach locking components to pipes, wood, etc. Just insert and tighten the nuts at both ends. It is suitable for the connection of boats, pipelines, trailers, and industrial steel structure conduits.
  • Material: 304 stainless steel u bolt is anti-rust and corrosion-resistant, with strong tensile strength. Suitable for outdoor, wet environment use.

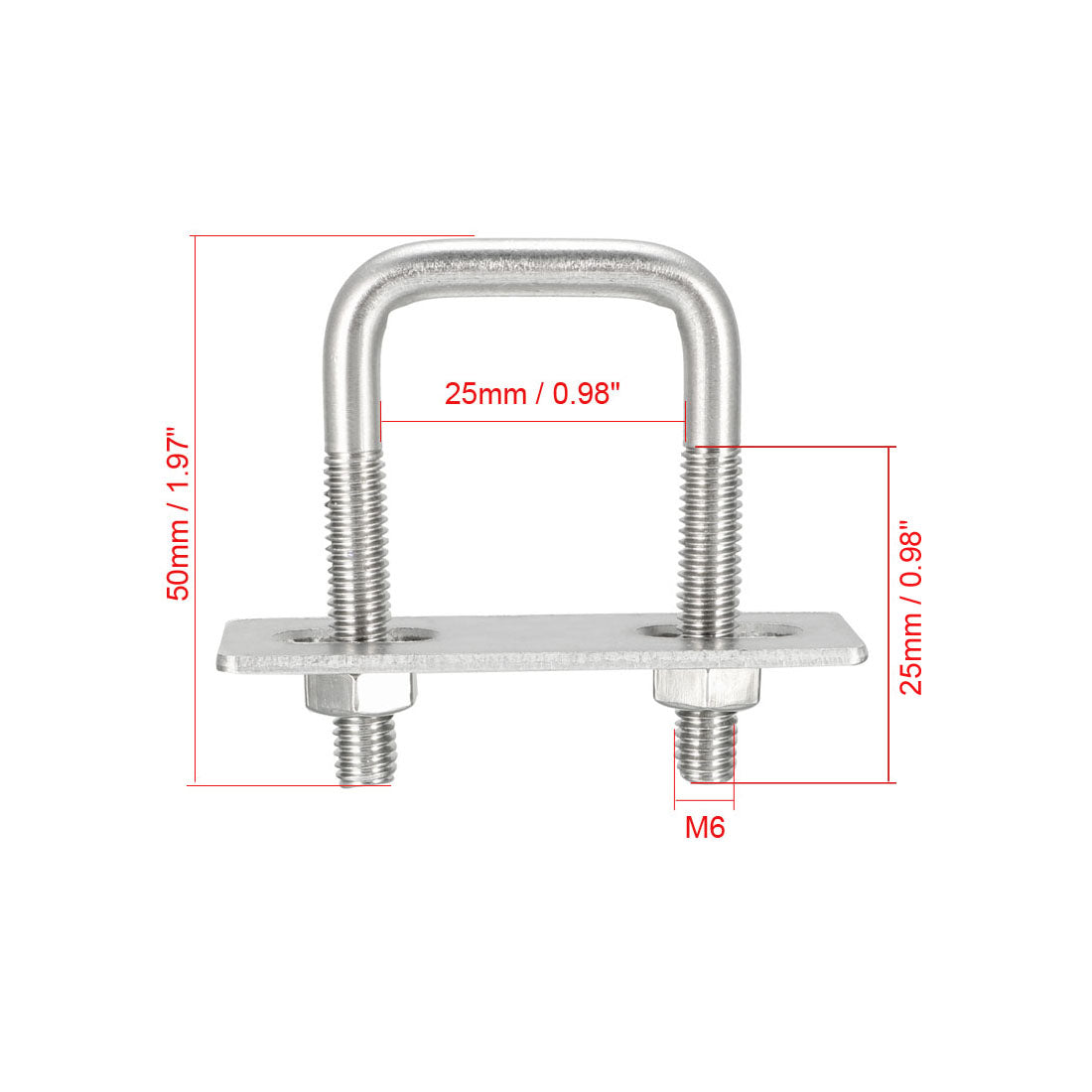

  • Thread: M6; Groove Width: 25mm / 0.98"; Overall Size: 50 x 38mm / 1.97" x 1.5"(L*W)
  • Rod Diameter: 5.2mm / 0.2; Hex Nut Width: 10mm / 0.39";Strength Grade: 6.8; Package Content: 2 x u-bolt, 4 x Nuts, 2 x Plates
  • Fit Square Rod Size: 25mm / 0.98"; Thread Length: 25(+/-5)mm / 0.98"; Center-Line Width: 31mm / 1.22"
  • In stock, ready to ship
Cart
Cart
About this item
  • Application: U-bolt is used to fasten or attach locking components to pipes, wood, etc. Just insert and tighten the nuts at both ends. It is suitable for the connection of boats, pipelines, trailers, and industrial steel structure conduits.
  • Material: 304 stainless steel u bolt is anti-rust and corrosion-resistant, with strong tensile strength. Suitable for outdoor, wet environment use.
  • Thread: M6; Groove Width: 25mm / 0.98"; Overall Size: 50 x 38mm / 1.97" x 1.5"(L*W)
  • Rod Diameter: 5.2mm / 0.2; Hex Nut Width: 10mm / 0.39";Strength Grade: 6.8; Package Content: 2 x u-bolt, 4 x Nuts, 2 x Plates
  • Fit Square Rod Size: 25mm / 0.98"; Thread Length: 25(+/-5)mm / 0.98"; Center-Line Width: 31mm / 1.22"
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:
1.304 stainless steel u bolt is anti-rust and corrosion-resistant, with strong tensile strength. Suitable for outdoor, wet environment use.
2.U-bolt is used to fasten or attach locking components to pipes, wood, etc. Just insert and tighten the nuts at both ends. It is suitable for the connection of boats, pipelines, trailers, and industrial steel structure conduits.

Specification:
Product Name: U-Bolt
Material: 304 Stainless Steel
Strength Grade: 6.8
Thread Dia.: M6
Thread Length: 25(+/-5)mm / 0.98"
Center-Line Width: 31mm / 1.22-inch
Fit Square Rod Size: 25mm / 0.98-inch
Rod Diameter: 5.2mm / 0.2-inch
Hex Nut Width: 10mm / 0.39-inch

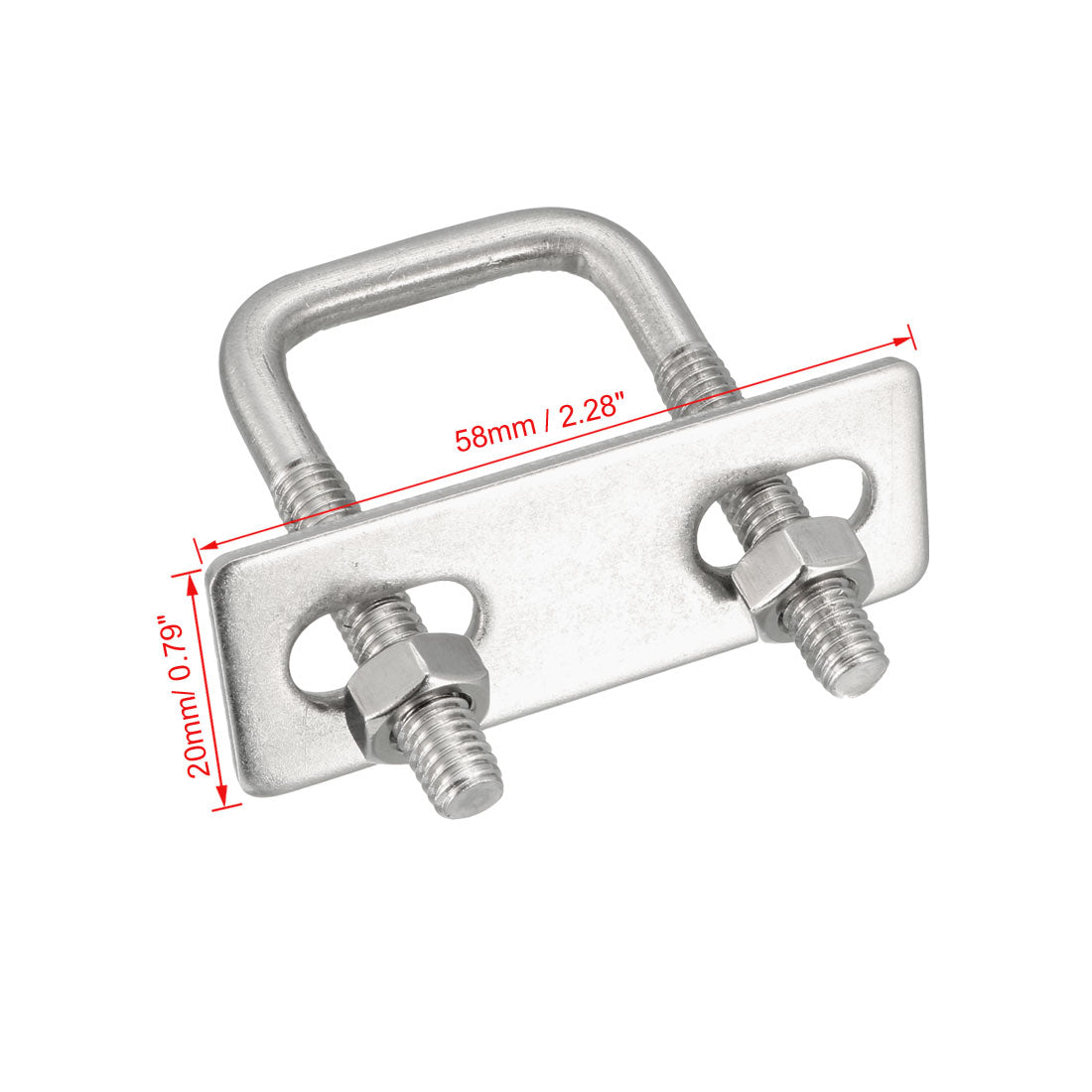

Plate Size: 58 x 20 x 1.8mm / 2.28-inch x 0.79-inch x 0.07-inch (L*W*T)
Overall Size: 50 x 38mm / 1.97-inch x 1.5-inch (L*W)
Main Color: Silver Tone
Weight: 78g

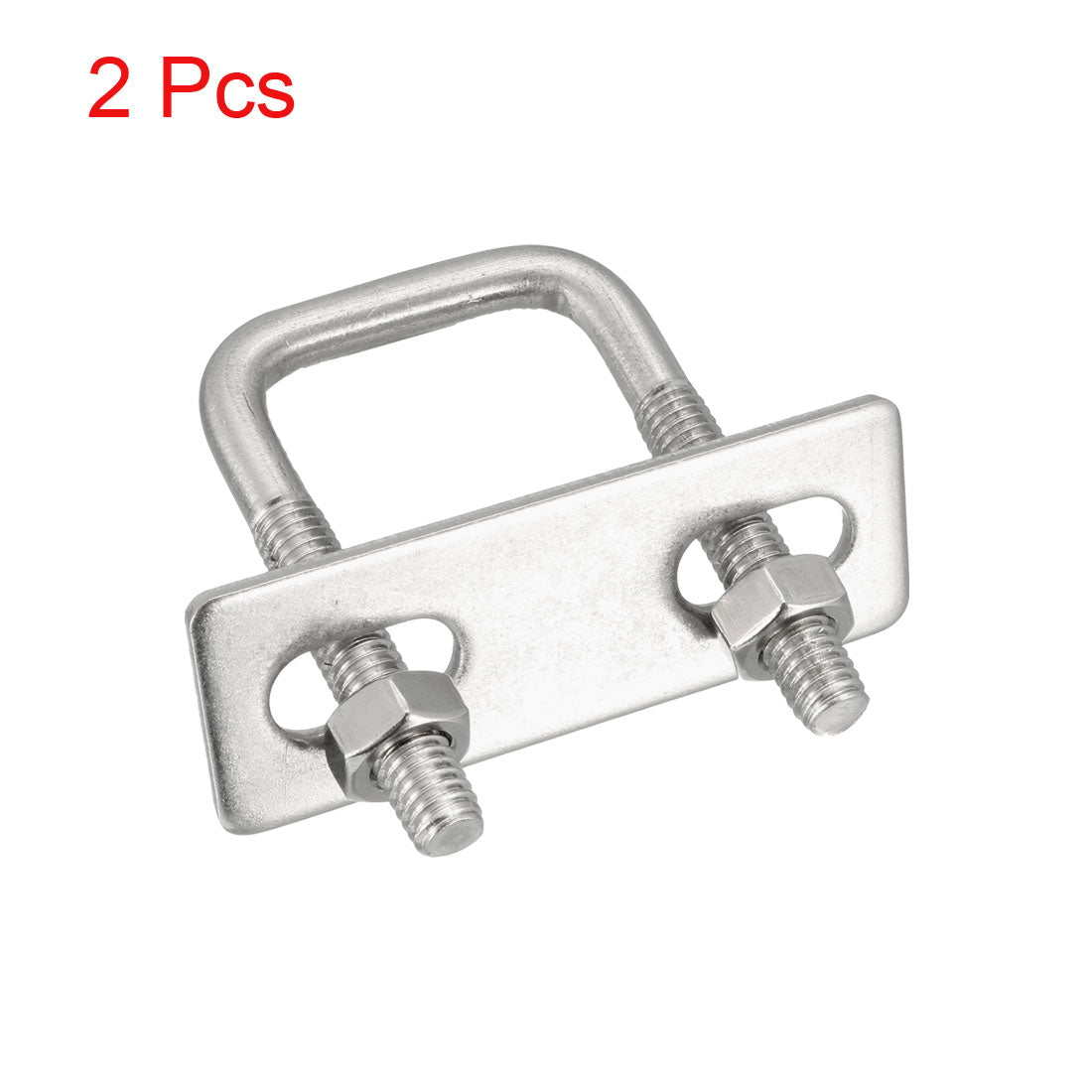

Package Content: 2 x U-Bolt, 4 x Nuts, 2 x Plates

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
CA$14.33 Regular price
CA/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description:
1.304 stainless steel u bolt is anti-rust and corrosion-resistant, with strong tensile strength. Suitable for outdoor, wet environment use.
2.U-bolt is used to fasten or attach locking components to pipes, wood, etc. Just insert and tighten the nuts at both ends. It is suitable for the connection of boats, pipelines, trailers, and industrial steel structure conduits.

Specification:
Product Name: U-Bolt
Material: 304 Stainless Steel
Strength Grade: 6.8
Thread Dia.: M6
Thread Length: 25(+/-5)mm / 0.98"
Center-Line Width: 31mm / 1.22-inch
Fit Square Rod Size: 25mm / 0.98-inch
Rod Diameter: 5.2mm / 0.2-inch
Hex Nut Width: 10mm / 0.39-inch
Plate Size: 58 x 20 x 1.8mm / 2.28-inch x 0.79-inch x 0.07-inch (L*W*T)
Overall Size: 50 x 38mm / 1.97-inch x 1.5-inch (L*W)
Main Color: Silver Tone
Weight: 78g

Package Content: 2 x U-Bolt, 4 x Nuts, 2 x Plates

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
