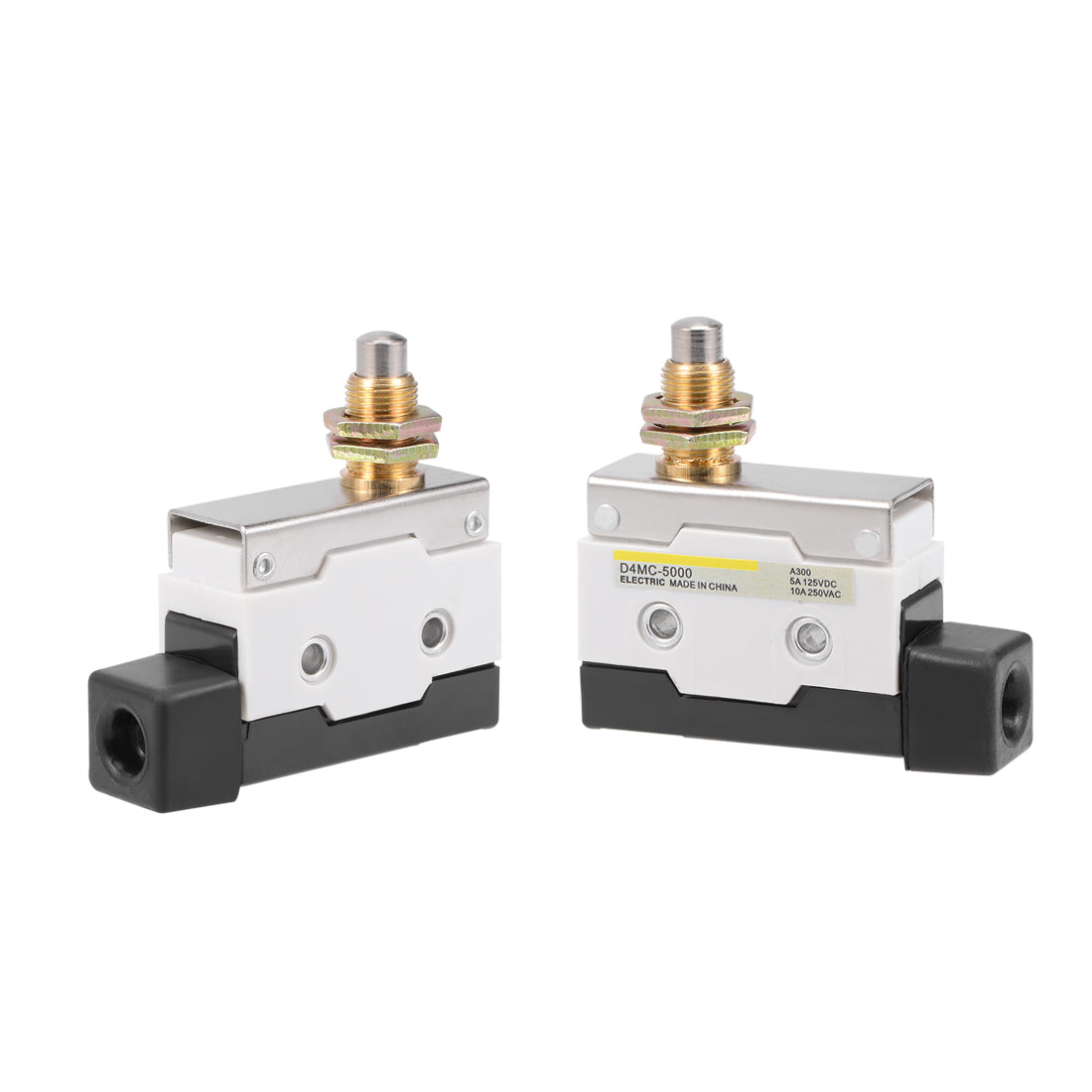

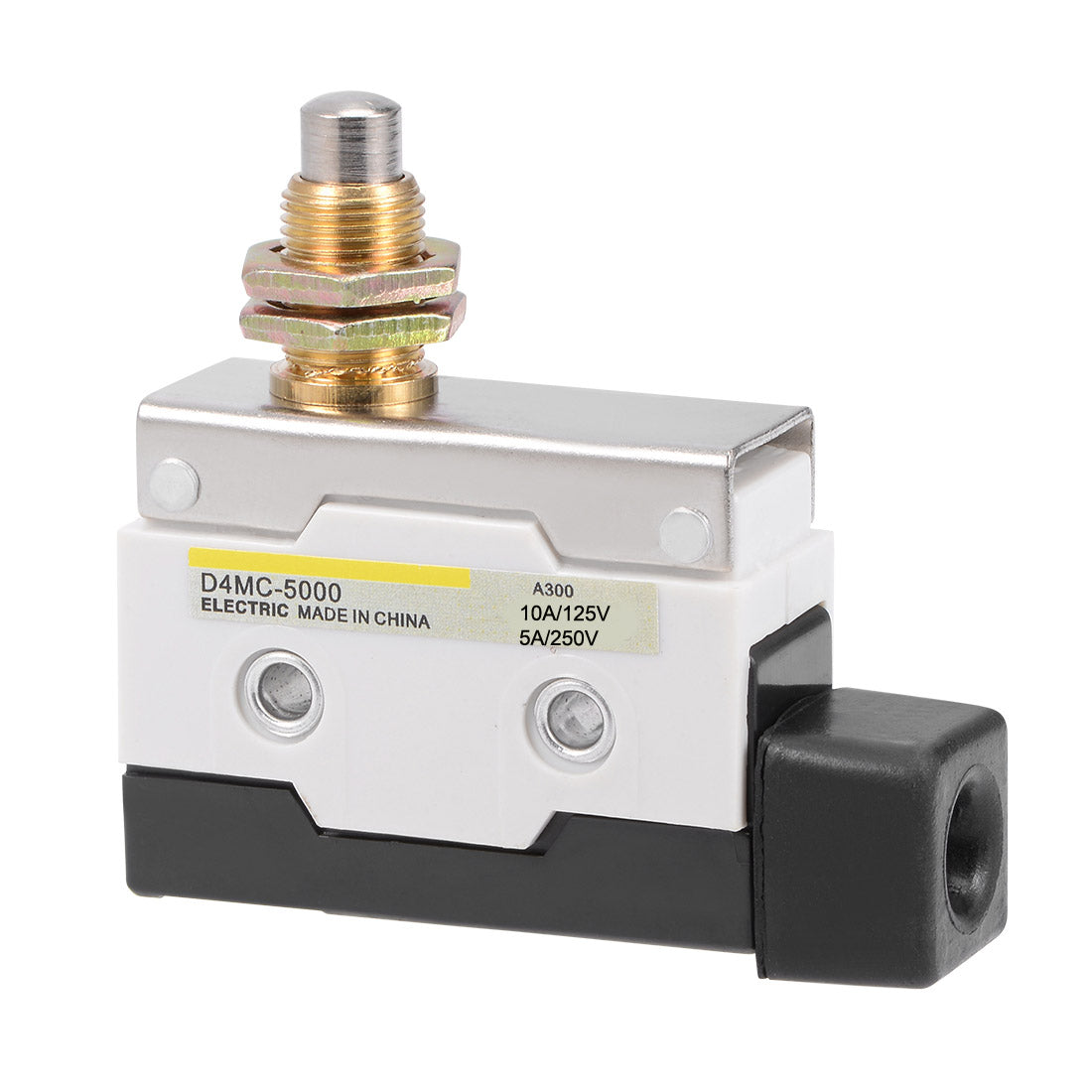

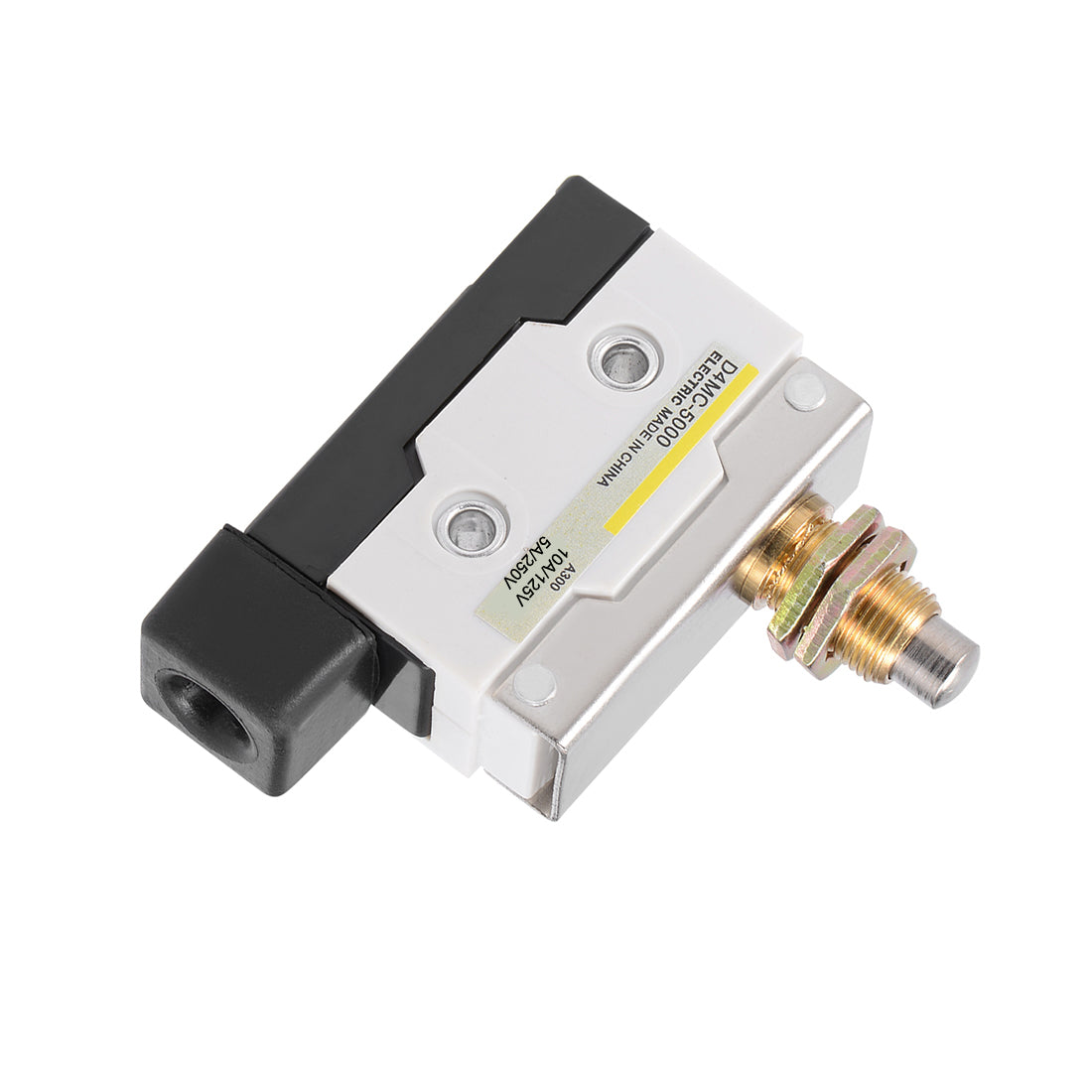

Harfington D4MC-5000 Roller Plunger Micro Limit Switch Momentary Panel Mount 1NC+1NO 7310

D4MC-5000 Roller Plunger Micro Limit Switch Momentary Panel Mount 1NC+1NO 7310

ID:
CA$12.20 Regular price
CA/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Model: D4MC-5000 (7310); Plunger Type
  • built-in basic switch with good electrical conductivity
  • Able to withstand some washdowns, shock and vibration
  • Easy-to-wire, smooth operation and reliable
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
  • In stock, ready to ship
Cart
Cart
About this item
  • Model: D4MC-5000 (7310); Plunger Type
  • built-in basic switch with good electrical conductivity
  • Able to withstand some washdowns, shock and vibration
  • Easy-to-wire, smooth operation and reliable
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Specification:

Product Name: Limit Switch

Model: D4MC-5000 (7310)

Actuator Type: Plunger Type

Rated Voltage: 10A 125VDC / 5A 250VAC

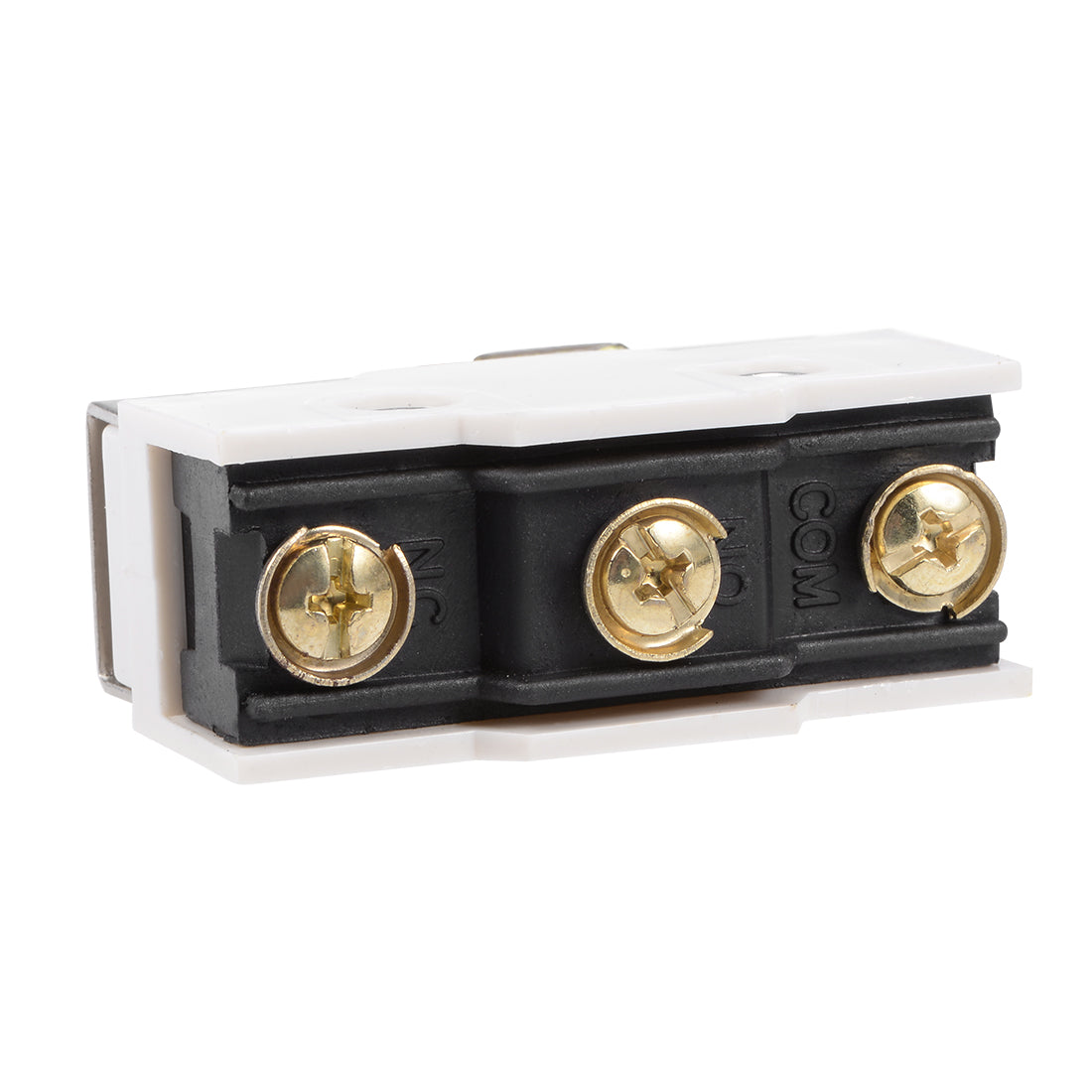

Contact Configuration: 1NC+1NO

Body Size: 54 x 42 x 21mm (L*W*T)

Mounting Hole Size: 4.2mm (D)

Mounting Hole Distance: 25.4mm

The plunger operated by hydraulic pressure or air cylinder power detects positions highly accurately.

The plunger must be installed according to the movement of the jaws to avoid applying incorrect loads to the plunger.

Operating Characteristics:

OF max.: 600g

RF min.: 100g

PT max.: 2.0mm

OT min.: 6.0mm

MD max.: 0.8mm

Description:

  • Incentive ABS plastic housing, sealed construction.
  • Panel mount, side fixed with better water-proof and oil-proof performance.
  • Smooth operation with OT.
  • Silver contacts. Easy-to-wire design.
  • This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
