Harfington 2pcs AXK2035 Thrust Needle Roller Bearings with Washers 20x35x2mm

2pcs AXK2035 Thrust Needle Roller Bearings with Washers 20x35x2mm

ID:
CA$9.04 Regular price
CA/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • [MODLE] - Bearing Model: AXK2035 (I.D.=20mm, O.D.=35mm, Thickness=2mm); Washer Model: AS2035
  • [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
  • [FEATURES] - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
  • [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
  • [CAPABILITY] - 45.6kN Static Load Capacity, 12.9kN Dynamic Load Capacity, 8500RPM Maximum Rotational Speed
  • In stock, ready to ship
Cart
Cart
About this item
  • [MODLE] - Bearing Model: AXK2035 (I.D.=20mm, O.D.=35mm, Thickness=2mm); Washer Model: AS2035
  • [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
  • [FEATURES] - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
  • [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
  • [CAPABILITY] - 45.6kN Static Load Capacity, 12.9kN Dynamic Load Capacity, 8500RPM Maximum Rotational Speed
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:

  • Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
  • These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.
  • AXK Thrust Bearings can be combined with washers in the AS series in applications where adjacent components cannot serve as raceways.
  • Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.
  • Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

Specification:

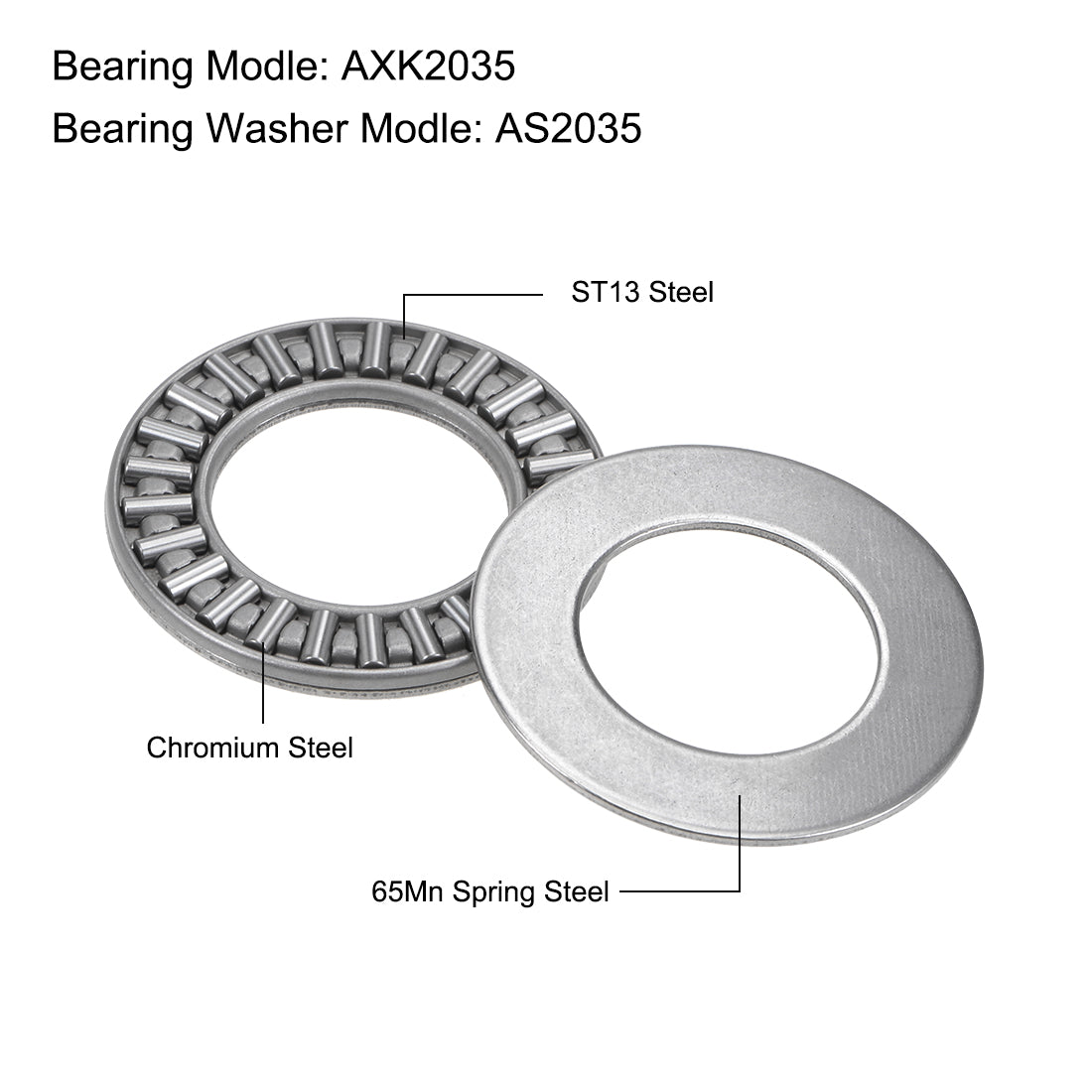

  • Bearing Modle: AXK2035
  • Bearing Washer Modle: AS2035
  • Needle Roller Meterial: Chromium Steel (GCr15)
  • Cage Meterial: ST13 Steel
  • Bearing Washer Meterial: 65Mn Spring Steel

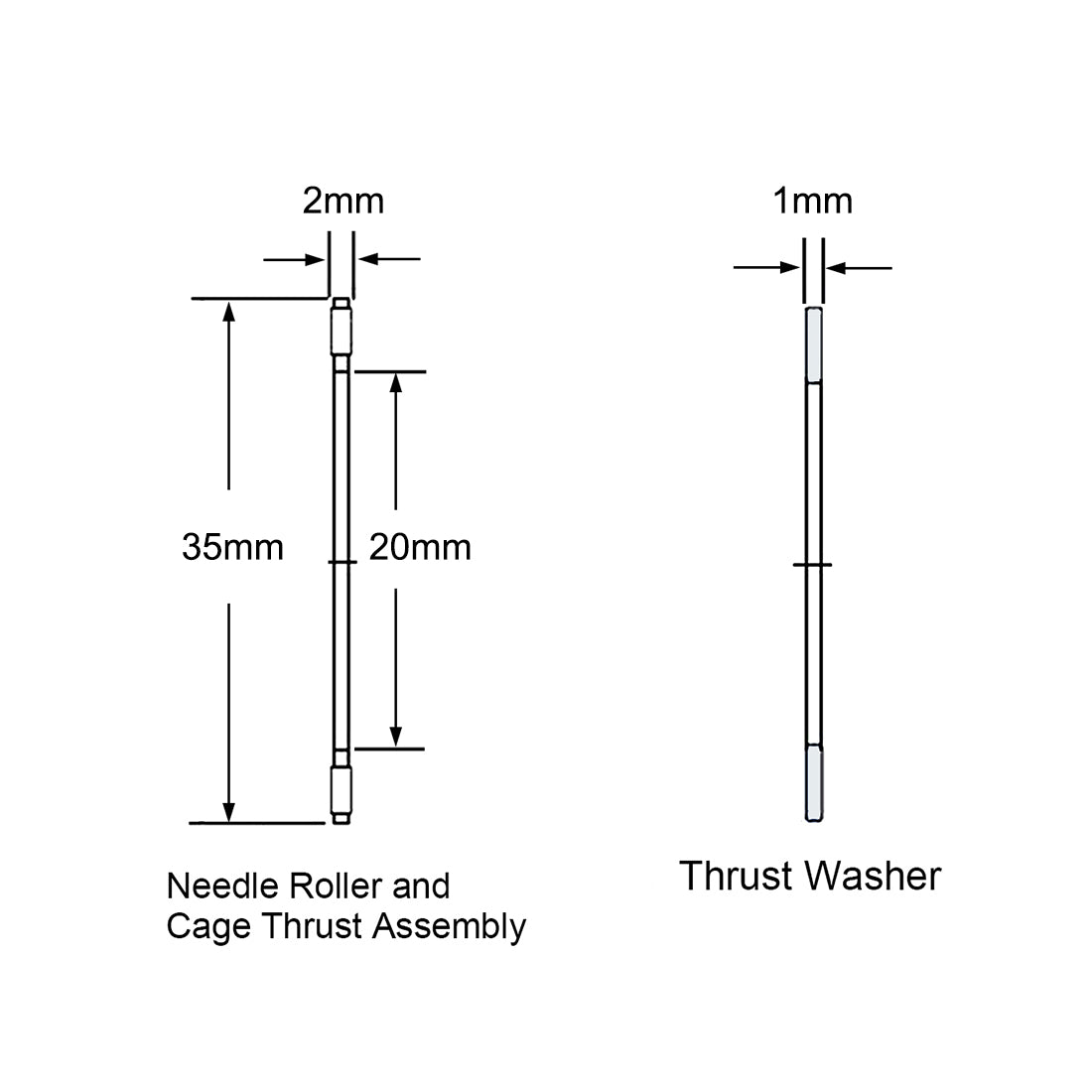

  • Bore Diameter (d): 20mm
  • Outside Diameter (D): 35mm
  • Bearing Thickness (T1): 2mm
  • Washer Thickness (T2): 1mm (Approx.)
  • Dynamic Load Capacity (Cr): 12.9kN
  • Static Load Capacity (Cor): 45.6kN
  • Limiting Speed (Oil): 8500RPM

Package Contents:

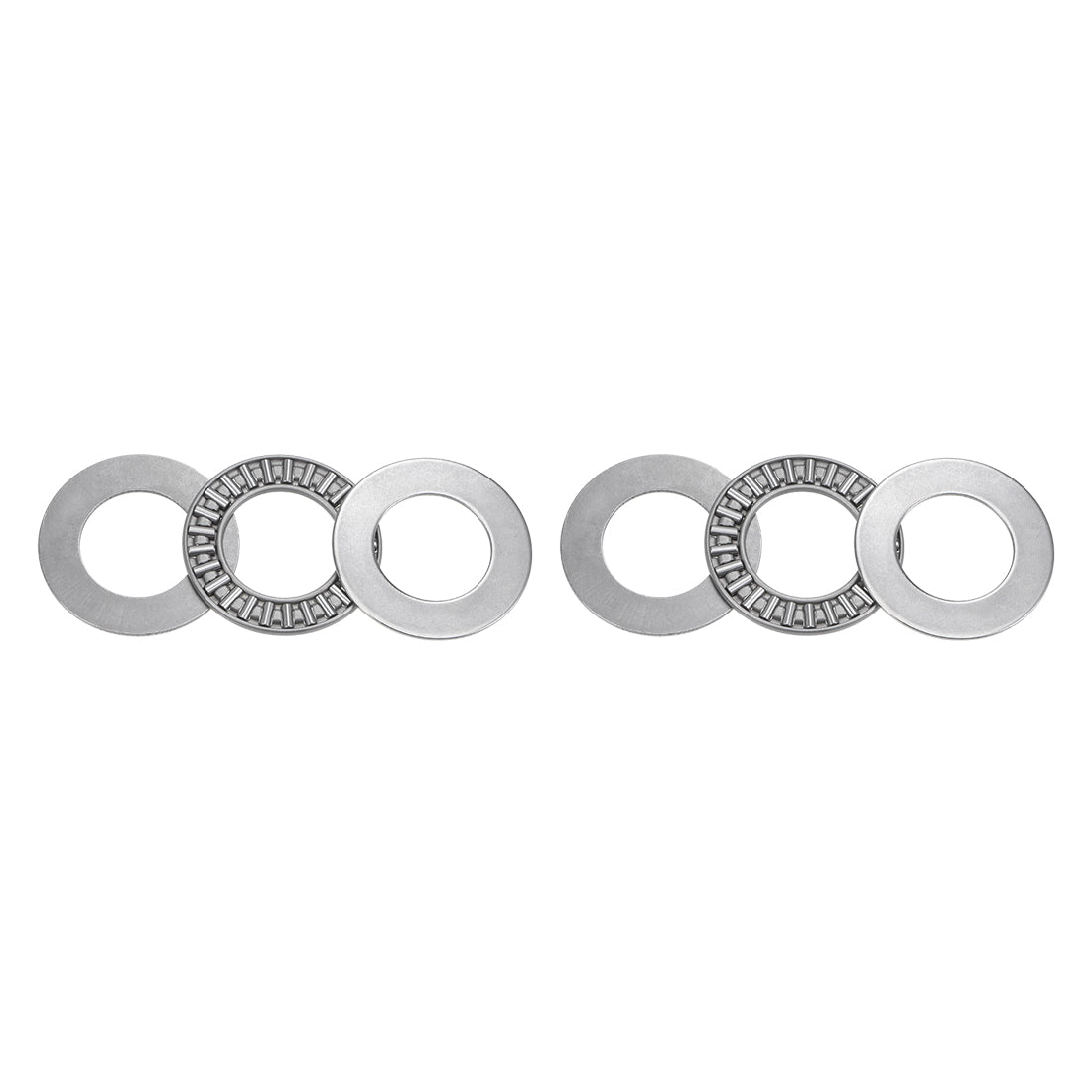

  • 2 x Bearings
  • 4 x Bearing Washers
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
CA$9.04 Regular price
CA/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description:

  • Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
  • These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.
  • AXK Thrust Bearings can be combined with washers in the AS series in applications where adjacent components cannot serve as raceways.
  • Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.
  • Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

Specification:

  • Bearing Modle: AXK2035
  • Bearing Washer Modle: AS2035
  • Needle Roller Meterial: Chromium Steel (GCr15)
  • Cage Meterial: ST13 Steel
  • Bearing Washer Meterial: 65Mn Spring Steel
  • Bore Diameter (d): 20mm
  • Outside Diameter (D): 35mm
  • Bearing Thickness (T1): 2mm
  • Washer Thickness (T2): 1mm (Approx.)
  • Dynamic Load Capacity (Cr): 12.9kN
  • Static Load Capacity (Cor): 45.6kN
  • Limiting Speed (Oil): 8500RPM

Package Contents:
  • 2 x Bearings
  • 4 x Bearing Washers
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
