Harfington Worm Gear Set 1M 20T, 1:20 304 Stainless Steel Worm, Brass Gear 6mm/6mm Bore

Worm Gear Set 1M 20T, 1:20 304 Stainless Steel Worm, Brass Gear 6mm/6mm Bore

ID:
AU$25.00 Regular price
AU/
Wholesale Price
20%OFF
Order $5000+
  • 25%OFF
    Order $5000+
  • 20%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Size & Package: The package includes a set containing one brass gear and one 304 stainless steel worm. (Featuring a 1 module, 20:1 reduction ratio, 20 teeth, gear 6mm bore, worm 6mm bore, 18mm center distance)

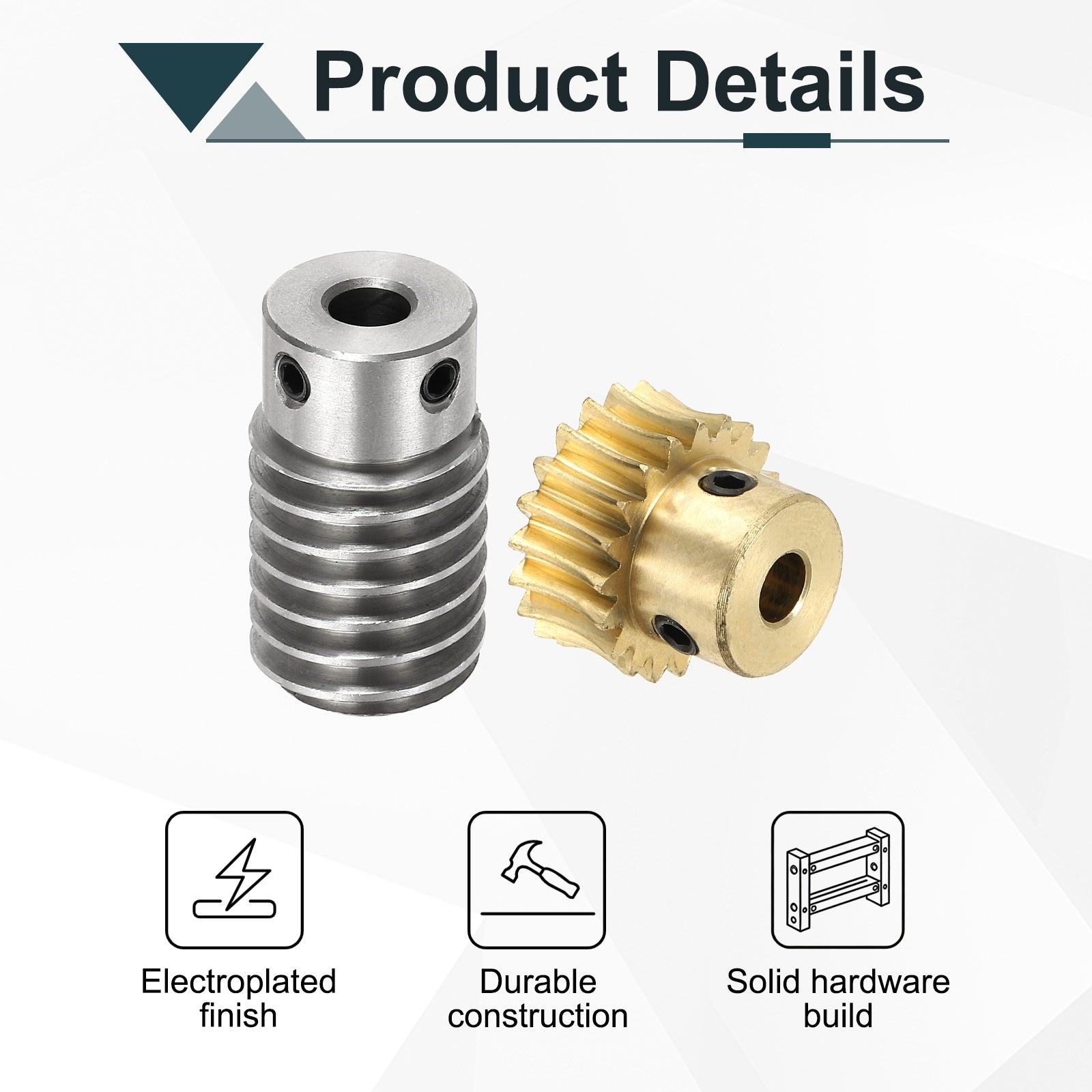

  • Durable Materials: The worm wheel is made of brass, which offers excellent wear resistance and a low friction coefficient for smooth engagement, while the worm shaft is crafted from 304 stainless steel, providing good strength, corrosion resistance, and toughness to ensure stable performance during long-term operation in demanding mechanical environments
  • Feature: The worm gear set features a self-locking design that enables reverse locking, allowing the motor to transfer rotation to the output shaft stably without maintaining load torque. Precision-machined teeth ensure smooth engagement and minimal backlash for accurate power transmission. Engagement clearance between the worm and the gear ensures smooth transmission without over-tightening or over-loosening
  • Flexible Load Matching: Featuring a 20:1 reduction ratio with a Gear Reducer in a B-type worm wheel and single screw lock hollow shaft design, it provides precise speed and torque control for engineers needing to optimize motor power and space
  • Application: Suitable for DIY mechanical projects, robot arms, automation equipment, 3D printers, CNC machinery, transmission systems, experimental setups, and various industrial and hobbyist applications requiring compact speed reduction with self-locking capability
  • In stock, ready to ship
Cart
Cart
About this item
  • Size & Package: The package includes a set containing one brass gear and one 304 stainless steel worm. (Featuring a 1 module, 20:1 reduction ratio, 20 teeth, gear 6mm bore, worm 6mm bore, 18mm center distance)
  • Durable Materials: The worm wheel is made of brass, which offers excellent wear resistance and a low friction coefficient for smooth engagement, while the worm shaft is crafted from 304 stainless steel, providing good strength, corrosion resistance, and toughness to ensure stable performance during long-term operation in demanding mechanical environments
  • Feature: The worm gear set features a self-locking design that enables reverse locking, allowing the motor to transfer rotation to the output shaft stably without maintaining load torque. Precision-machined teeth ensure smooth engagement and minimal backlash for accurate power transmission. Engagement clearance between the worm and the gear ensures smooth transmission without over-tightening or over-loosening
  • Flexible Load Matching: Featuring a 20:1 reduction ratio with a Gear Reducer in a B-type worm wheel and single screw lock hollow shaft design, it provides precise speed and torque control for engineers needing to optimize motor power and space
  • Application: Suitable for DIY mechanical projects, robot arms, automation equipment, 3D printers, CNC machinery, transmission systems, experimental setups, and various industrial and hobbyist applications requiring compact speed reduction with self-locking capability
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

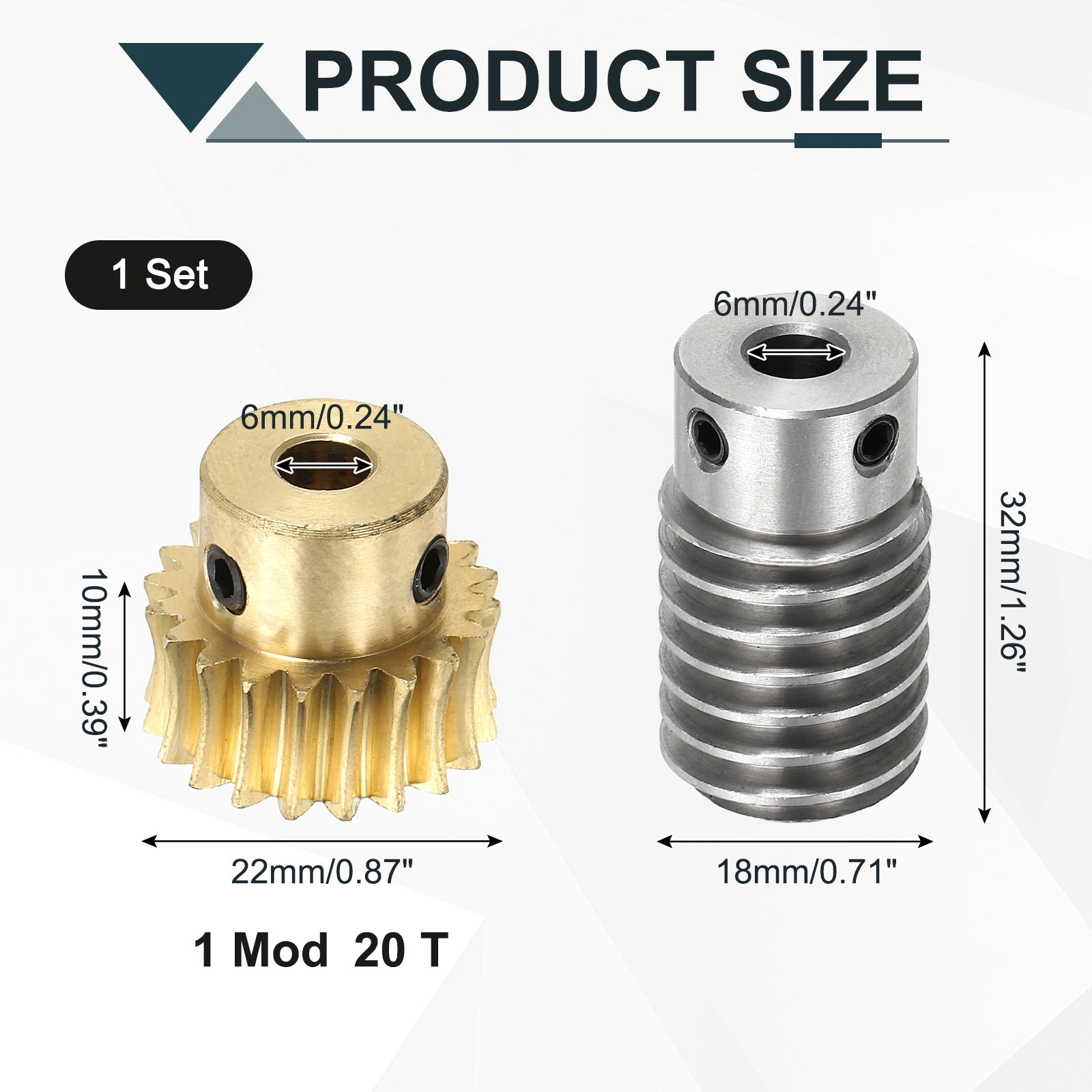

Specifications:
  • Modulus: 1
  • Gear Material: Brass
  • Worm Material:  304 Stainless Steel
  • Gear Bore: 6mm/0.24"
  • Worm Bore: 6mm/0.24"
  • Worm Outer Diameter: 18mm/0.71"
  • Gear Tooth Count: 20 Teeth
  • Worm Total Length: 32mm/1.26"
  • Gear Thickness: 10mm/0.39"
  • Gear Outer Diameter: 22mm/0.87"

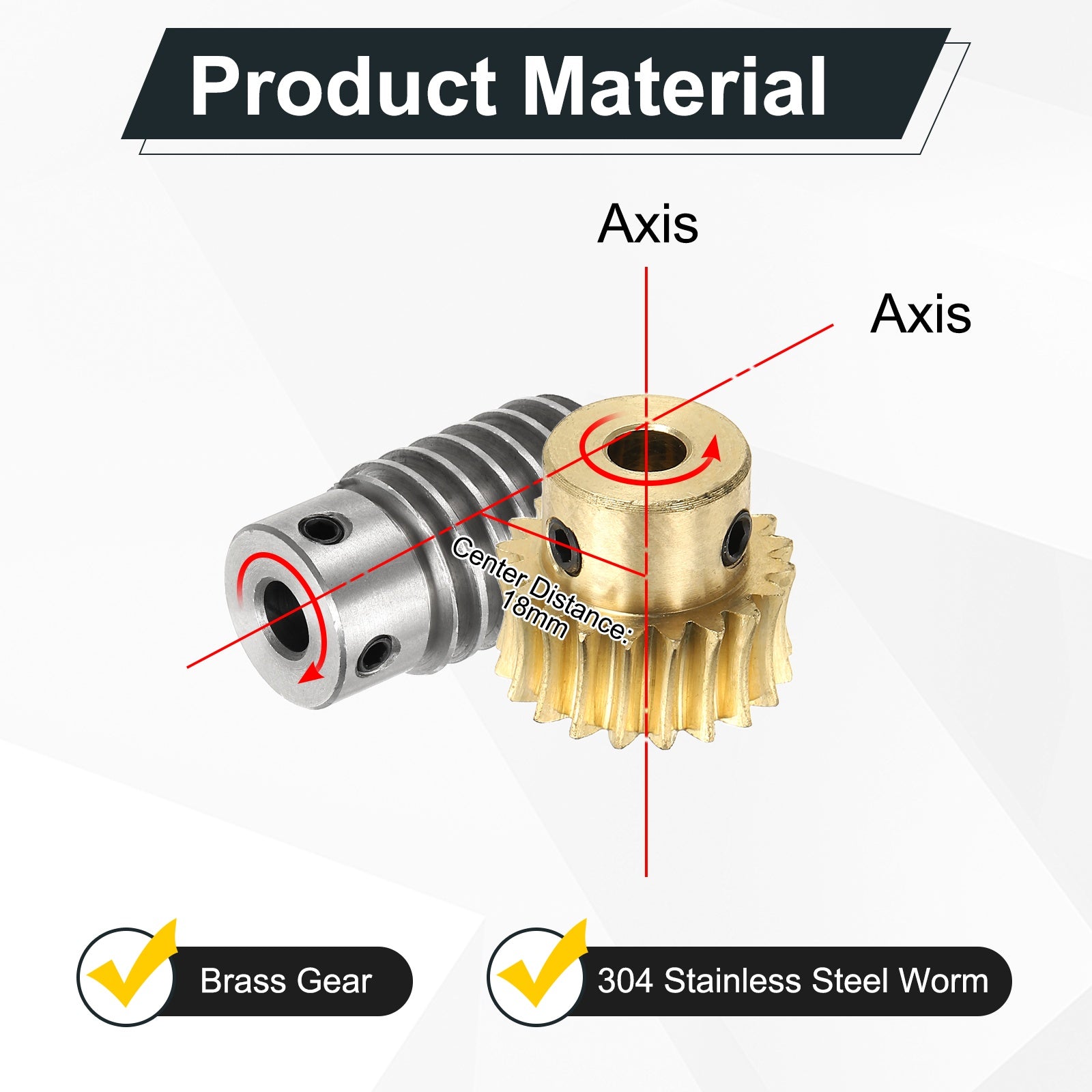

  • Center Distance: 18mm/0.71"
  • Reduction Ratio: 20:1
  • Package Includes: 1 Set x Worm Gear Set
Durable Materials: The worm wheel is made of brass, which offers excellent wear resistance and a low friction coefficient for smooth engagement, while the worm shaft is crafted from 304 stainless steel, providing good strength, corrosion resistance, and toughness to ensure stable performance during long-term operation in demanding mechanical environments.

Feature: The worm gear set features a self-locking design that enables reverse locking, allowing the motor to transfer rotation to the output shaft stably without maintaining load torque. Precision-machined teeth ensure smooth engagement and minimal backlash for accurate power transmission. Engagement clearance between the worm and the gear ensures smooth transmission without over-tightening or over-loosening.

Flexible Load Matching: Featuring a 20:1 reduction ratio with a Gear Reducer in a B-type worm wheel and single screw lock hollow shaft design, it provides precise speed and torque control for engineers needing to optimize motor power and space.

Application: Suitable for DIY mechanical projects, robot arms, automation equipment, 3D printers, CNC machinery, transmission systems, experimental setups, and various industrial and hobbyist applications requiring compact speed reduction with self-locking capability.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
AU$25.00 Regular price
AU/
Wholesale Price
20%OFF
Order $5000+
  • 25%OFF
    Order $5000+
  • 20%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20 Free upgraded to DHL over AU$300
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specifications:
  • Modulus: 1
  • Gear Material: Brass
  • Worm Material:  304 Stainless Steel
  • Gear Bore: 6mm/0.24"
  • Worm Bore: 6mm/0.24"
  • Worm Outer Diameter: 18mm/0.71"
  • Gear Tooth Count: 20 Teeth
  • Worm Total Length: 32mm/1.26"
  • Gear Thickness: 10mm/0.39"
  • Gear Outer Diameter: 22mm/0.87"
  • Center Distance: 18mm/0.71"
  • Reduction Ratio: 20:1
  • Package Includes: 1 Set x Worm Gear Set
Durable Materials: The worm wheel is made of brass, which offers excellent wear resistance and a low friction coefficient for smooth engagement, while the worm shaft is crafted from 304 stainless steel, providing good strength, corrosion resistance, and toughness to ensure stable performance during long-term operation in demanding mechanical environments.

Feature: The worm gear set features a self-locking design that enables reverse locking, allowing the motor to transfer rotation to the output shaft stably without maintaining load torque. Precision-machined teeth ensure smooth engagement and minimal backlash for accurate power transmission. Engagement clearance between the worm and the gear ensures smooth transmission without over-tightening or over-loosening.

Flexible Load Matching: Featuring a 20:1 reduction ratio with a Gear Reducer in a B-type worm wheel and single screw lock hollow shaft design, it provides precise speed and torque control for engineers needing to optimize motor power and space.

Application: Suitable for DIY mechanical projects, robot arms, automation equipment, 3D printers, CNC machinery, transmission systems, experimental setups, and various industrial and hobbyist applications requiring compact speed reduction with self-locking capability.
