Harfington 5 Pcs NPT Female 3/8 Inch OD x 1/2" NPT Thread Push to Connect Fittings, White

5 Pcs NPT Female 3/8 Inch OD x 1/2" NPT Thread Push to Connect Fittings, White

ID:
AU$25.00 Regular price
AU/
Wholesale Price
20%OFF
Order $5000+
  • 25%OFF
    Order $5000+
  • 20%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

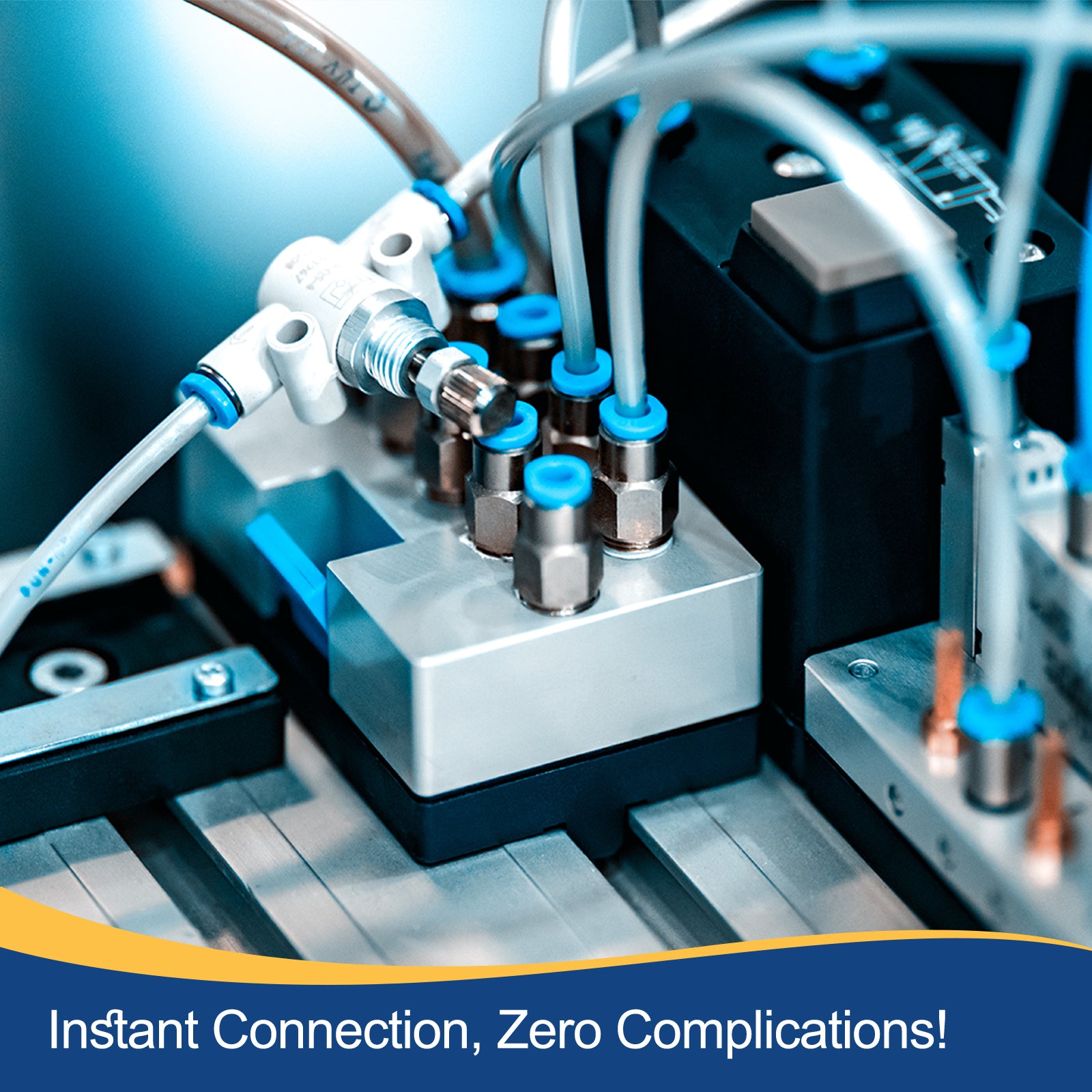

  • These push to connect fittings are widely used in pneumatic transmission equipment such as automotive cleaning, workshop automation equipment, printers, and pneumatic tools. Recommended air pressure 0-145psi, ambient temperature 0-60 Celsius (273-333K) Suitable for pneumatic hollow pipes: PU/PA/PE/PVC (pipe end face should be flat)

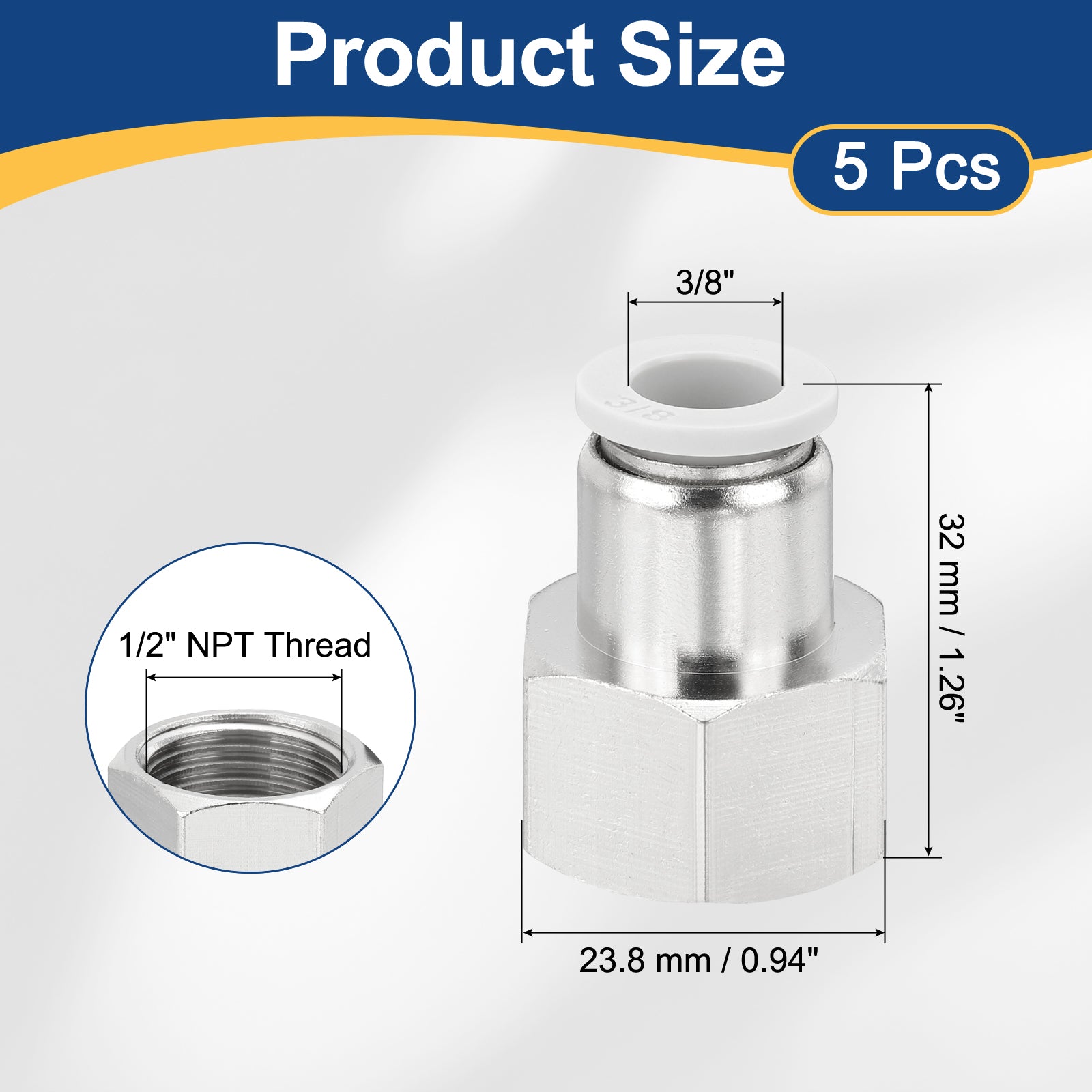

  • Color: White; Female Thread Size: NPT 1/2; Tube Inner Diameter: 3/8"; Length: 32 mm / 1.26 inch; Width: 23.8 mm / 0.94 inch; Material: Nickel-plated copper, PBT; In the package of: 5 Pcs x air quick connect fitting.

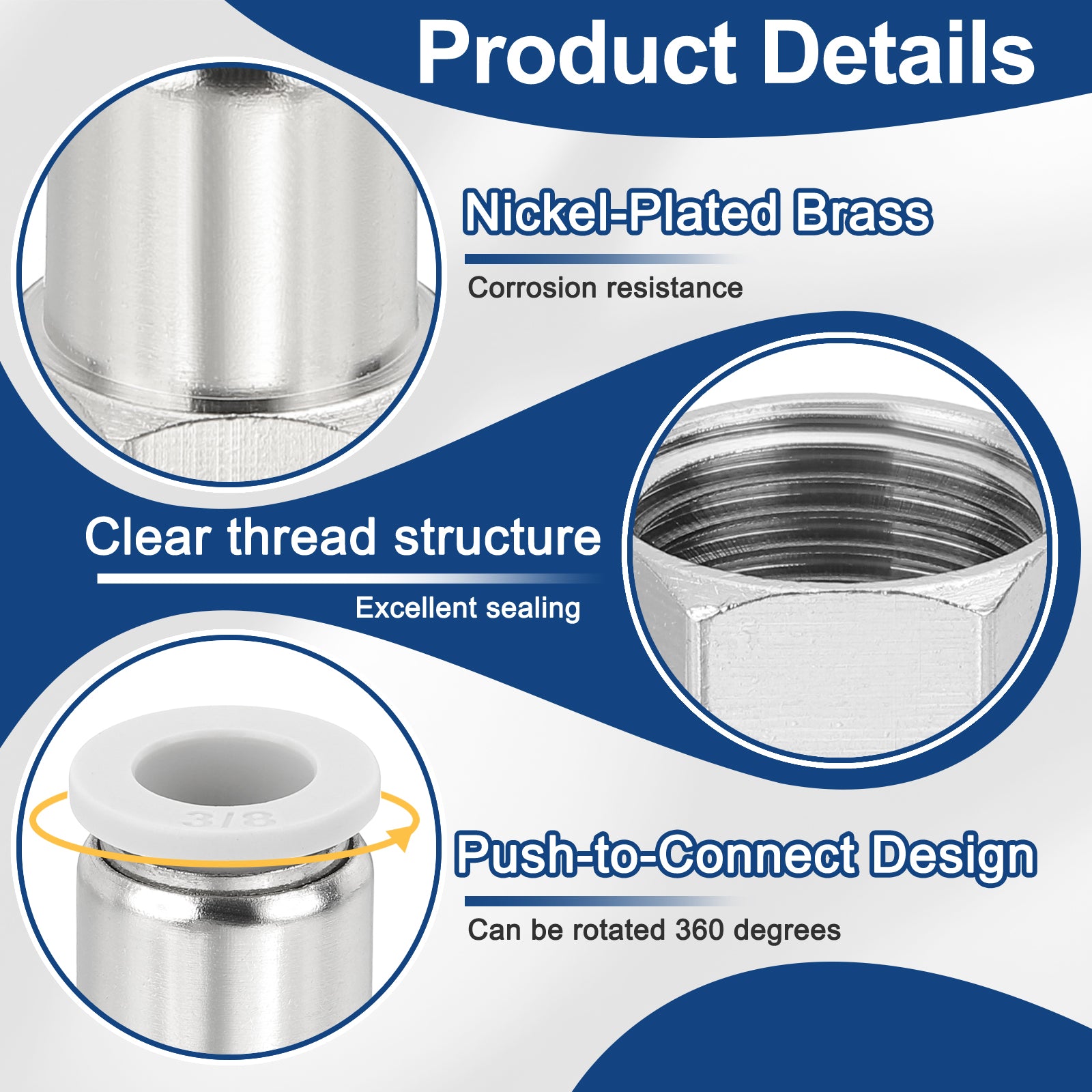

  • The air hose quick connect fittings are constructed with nickel-plated brass and PBT plastic. The brass ensures excellent wear resistance and thermal stability, while the PBT plastic provides superior strength and durability properties.

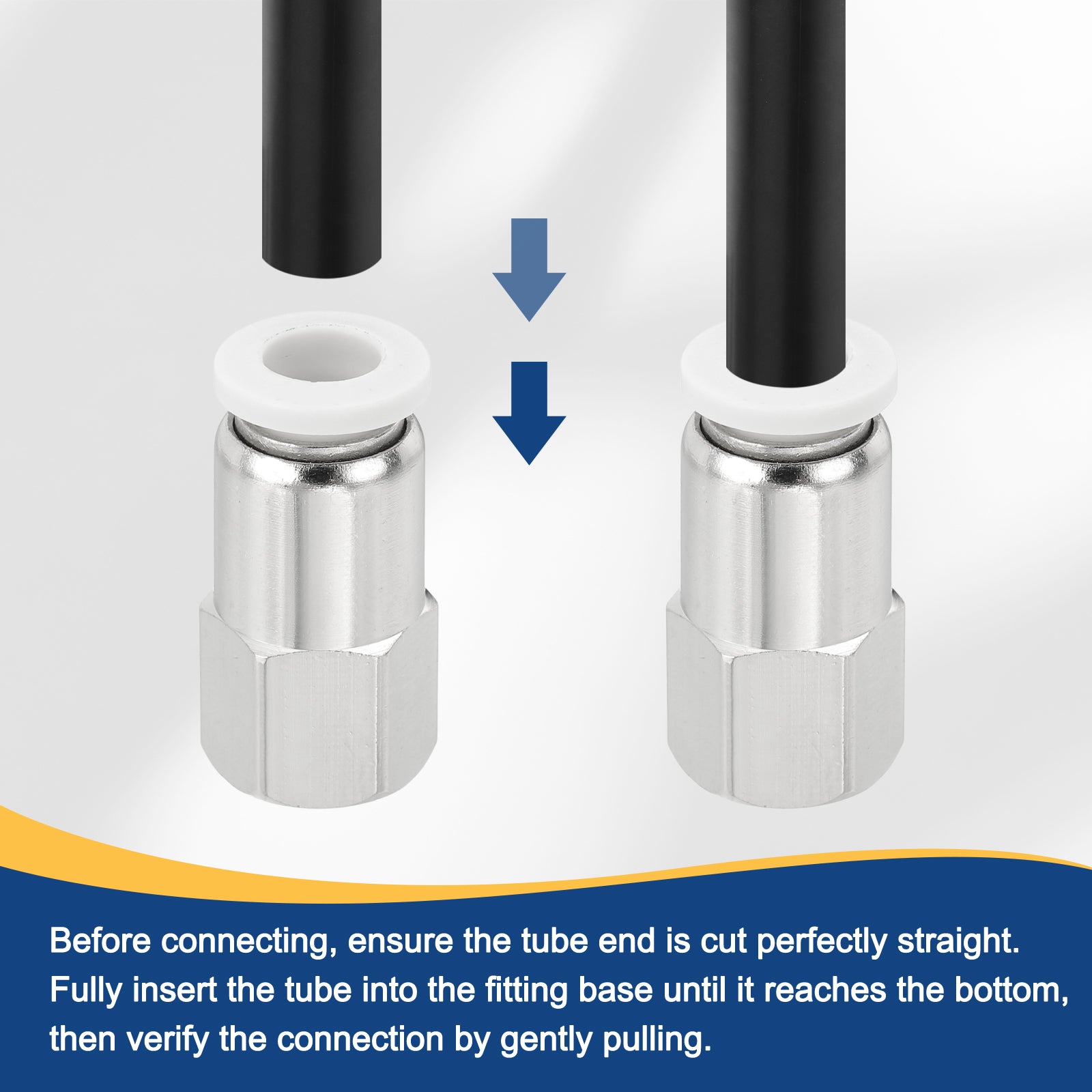

  • The 360° rotatable PBT interface requires proper tube installation to prevent air leaks. Before connecting, ensure the tube end is cut perfectly straight with no scratches. Fully insert the tube into the fitting base until it reaches the bottom, then verify the connection by gently pulling - a secure installation won't detach. Note that incomplete insertion or using damaged tubes will result in air leakage.
  • When purchasing, ensure proper compatibility by verifying both the thread specifications and the pipe's outer diameter measurements. Prior to installation, confirm the operating environment's temperature and pressure readings, and thoroughly inspect the pipe interior to ensure it is completely clean and free of any debris.
  • In stock, ready to ship
Cart
Cart
About this item
  • These push to connect fittings are widely used in pneumatic transmission equipment such as automotive cleaning, workshop automation equipment, printers, and pneumatic tools. Recommended air pressure 0-145psi, ambient temperature 0-60 Celsius (273-333K) Suitable for pneumatic hollow pipes: PU/PA/PE/PVC (pipe end face should be flat)
  • Color: White; Female Thread Size: NPT 1/2; Tube Inner Diameter: 3/8"; Length: 32 mm / 1.26 inch; Width: 23.8 mm / 0.94 inch; Material: Nickel-plated copper, PBT; In the package of: 5 Pcs x air quick connect fitting.
  • The air hose quick connect fittings are constructed with nickel-plated brass and PBT plastic. The brass ensures excellent wear resistance and thermal stability, while the PBT plastic provides superior strength and durability properties.
  • The 360° rotatable PBT interface requires proper tube installation to prevent air leaks. Before connecting, ensure the tube end is cut perfectly straight with no scratches. Fully insert the tube into the fitting base until it reaches the bottom, then verify the connection by gently pulling - a secure installation won't detach. Note that incomplete insertion or using damaged tubes will result in air leakage.
  • When purchasing, ensure proper compatibility by verifying both the thread specifications and the pipe's outer diameter measurements. Prior to installation, confirm the operating environment's temperature and pressure readings, and thoroughly inspect the pipe interior to ensure it is completely clean and free of any debris.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
What is this?
These push to connect fittings are widely used in pneumatic transmission equipment such as automotive cleaning, workshop automation equipment, printers, and pneumatic tools. Recommended air pressure 0-145psi, ambient temperature 0-60 Celsius (573-333K) Suitable for pneumatic hollow pipes: PU/PA/PE/PVC (pipe end face should be flat)

What will I get?
Color: White; Female Thread Size: NPT 1/2; Tube Inner Diameter: 3/8"; Length: 32 mm / 1.26 inch; Width: 23.8 mm / 0.94 inch; Material: Nickel-plated copper, PBT; In the package of: 5 Pcs x Push to Connect Fittings

Are there any advantages of the product?
The air pipe fittings are constructed with nickel-plated brass and PBT plastic. The brass ensures excellent wear resistance and thermal stability, while the PBT plastic provides superior strength and durability properties.

How to use it?
The 360 degree rotatable PBT interface requires proper tube installation to prevent air leaks. Before connecting, ensure the tube end is cut perfectly straight with no scratches. Fully insert the tube into the fitting base until it reaches the bottom, then verify the connection by gently pulling - a secure installation won't detach. Note that incomplete insertion or using damaged tubes will result in air leakage.

What should I notice?
When purchasing, ensure proper compatibility by verifying both the thread specifications and the pipe's outer diameter measurements. Prior to installation, confirm the operating environment's temperature and pressure readings, and thoroughly inspect the pipe interior to ensure it is completely clean and free of any debris.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
AU$25.00 Regular price
AU/
Wholesale Price
20%OFF
Order $5000+
  • 25%OFF
    Order $5000+
  • 20%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20 Free upgraded to DHL over AU$300
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

What is this?
These push to connect fittings are widely used in pneumatic transmission equipment such as automotive cleaning, workshop automation equipment, printers, and pneumatic tools. Recommended air pressure 0-145psi, ambient temperature 0-60 Celsius (573-333K) Suitable for pneumatic hollow pipes: PU/PA/PE/PVC (pipe end face should be flat)

What will I get?
Color: White; Female Thread Size: NPT 1/2; Tube Inner Diameter: 3/8"; Length: 32 mm / 1.26 inch; Width: 23.8 mm / 0.94 inch; Material: Nickel-plated copper, PBT; In the package of: 5 Pcs x Push to Connect Fittings

Are there any advantages of the product?
The air pipe fittings are constructed with nickel-plated brass and PBT plastic. The brass ensures excellent wear resistance and thermal stability, while the PBT plastic provides superior strength and durability properties.

How to use it?
The 360 degree rotatable PBT interface requires proper tube installation to prevent air leaks. Before connecting, ensure the tube end is cut perfectly straight with no scratches. Fully insert the tube into the fitting base until it reaches the bottom, then verify the connection by gently pulling - a secure installation won't detach. Note that incomplete insertion or using damaged tubes will result in air leakage.

What should I notice?
When purchasing, ensure proper compatibility by verifying both the thread specifications and the pipe's outer diameter measurements. Prior to installation, confirm the operating environment's temperature and pressure readings, and thoroughly inspect the pipe interior to ensure it is completely clean and free of any debris.
