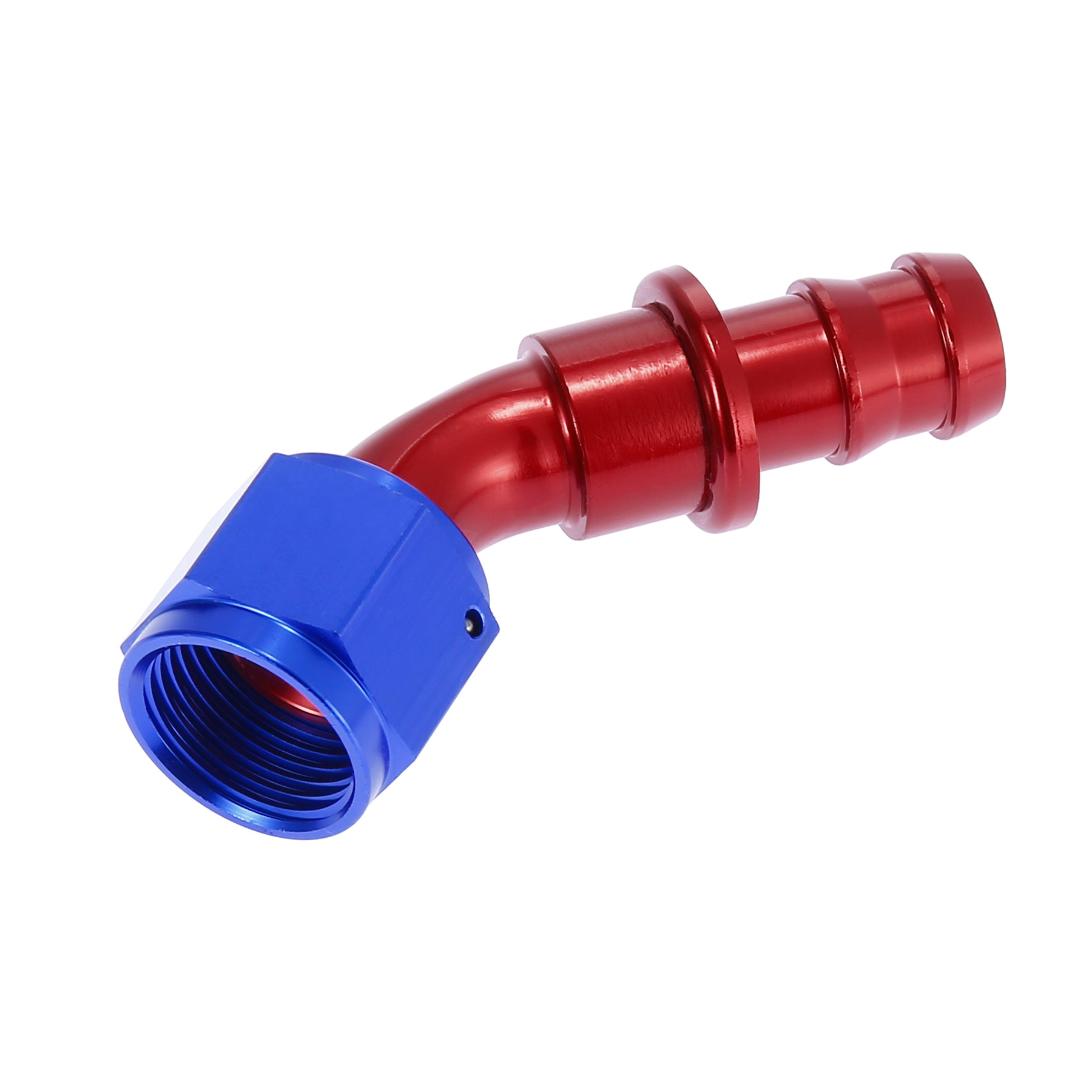

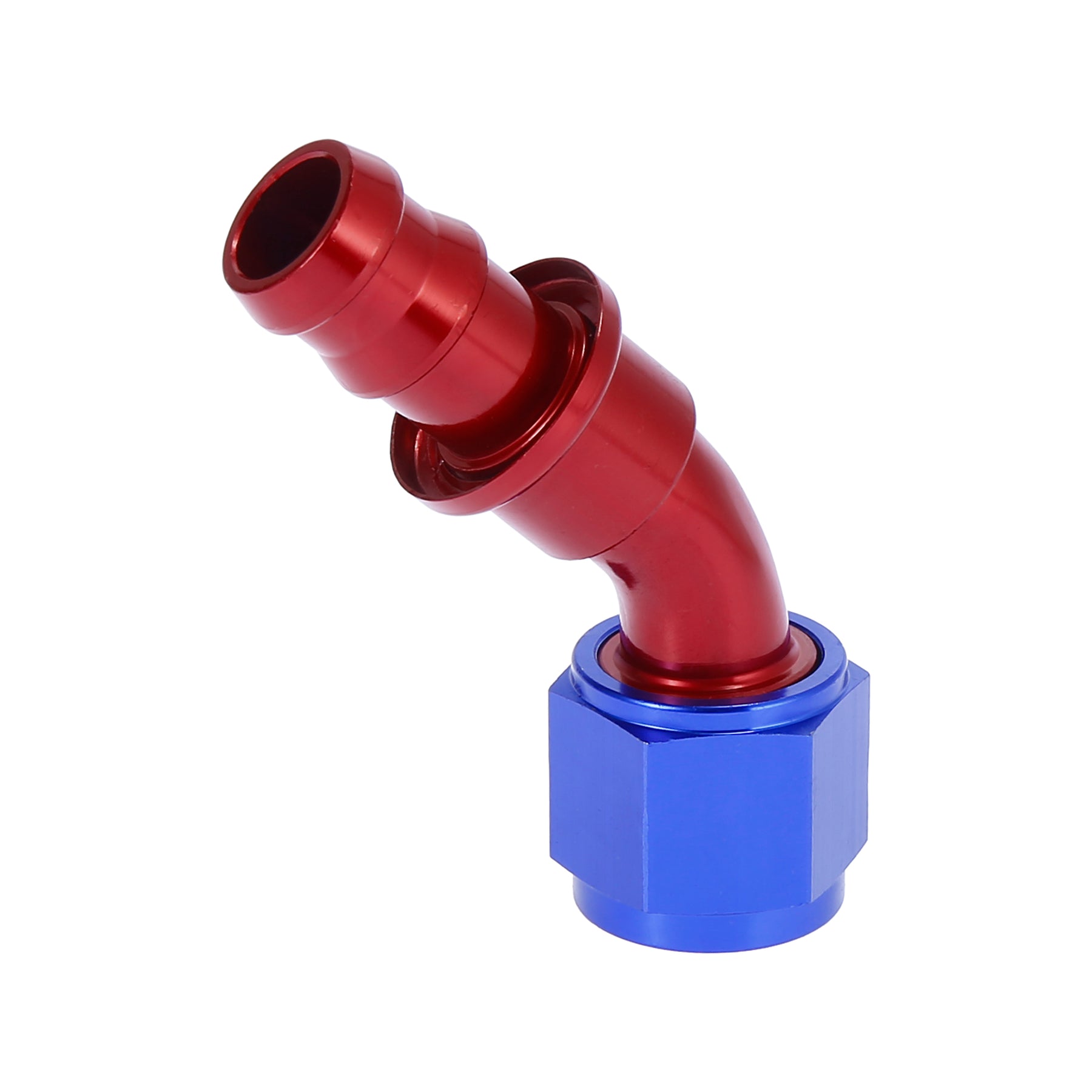

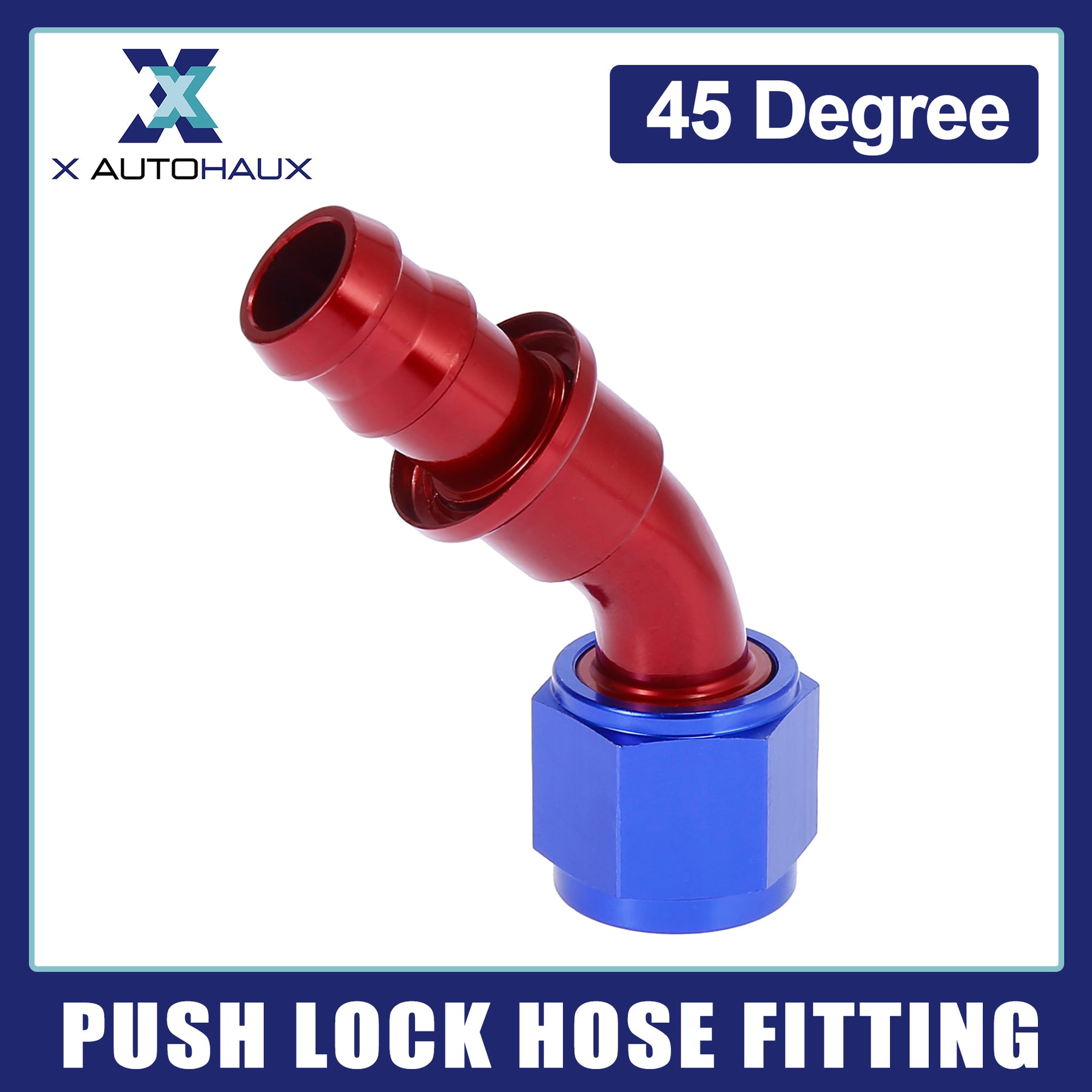

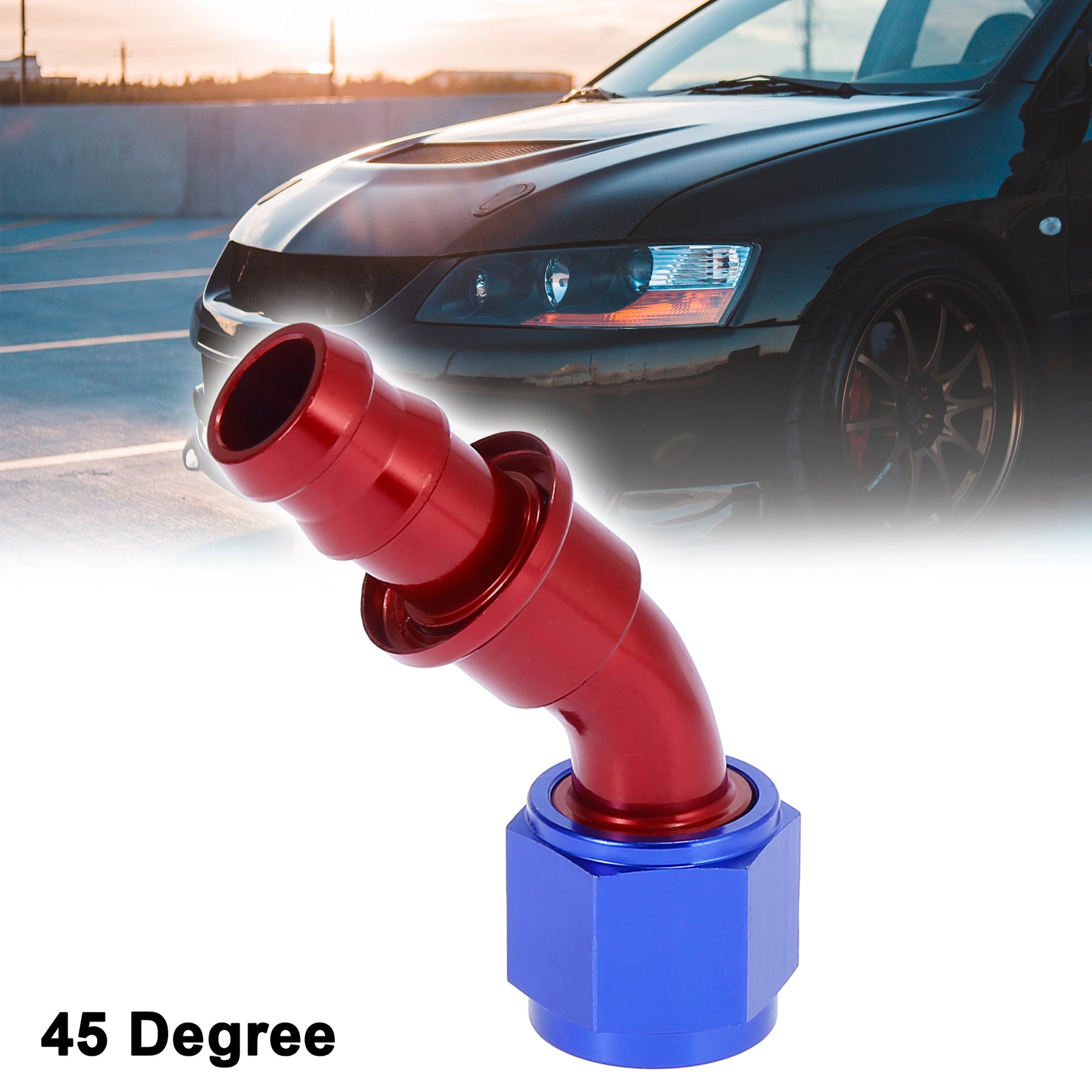

Harfington 10AN 45 Degree Push Lock Hose Fitting Barb End Adapter Fuel Oil Line Fitting Red Blue

10AN 45 Degree Push Lock Hose Fitting Barb End Adapter Fuel Oil Line Fitting Red Blue

ID:
AU$18.00 Regular price
AU/
About this item
  • Push lock fitting used for fuel oil line , fuel hose end fitting suitable for rubber push lock oil hose.Fit for Hose Inner Diameter: 5/8"; Thread Size:7/8-14
  • Push on lock fitting has three anti leakage designs, the first is push on with 45 degree mating angle which provided superior sealing. The second is the raised edges stop the hose from sliding and prevent leakage. The third is the aluminum alloy hose cover for hose sliding and protection of hose ends.
  • The AN10 45 degree push lock hose fitting end is made of quality 6061 aluminum alloy material for long service life, resistant high temperature and high pressure, durable and reusable.
  • Easy to install, we suggest that use a bit of assembly lube to push the hose onto the adapter. This weld free fitting that gives better fluid flow and integrity over the normal brazed together hose ends fitting.
  • Package Included: 1x Push Lock Hose Fitting
  • In stock, ready to ship
Cart
Cart
About this item
  • Push lock fitting used for fuel oil line , fuel hose end fitting suitable for rubber push lock oil hose.Fit for Hose Inner Diameter: 5/8"; Thread Size:7/8-14
  • Push on lock fitting has three anti leakage designs, the first is push on with 45 degree mating angle which provided superior sealing. The second is the raised edges stop the hose from sliding and prevent leakage. The third is the aluminum alloy hose cover for hose sliding and protection of hose ends.
  • The AN10 45 degree push lock hose fitting end is made of quality 6061 aluminum alloy material for long service life, resistant high temperature and high pressure, durable and reusable.
  • Easy to install, we suggest that use a bit of assembly lube to push the hose onto the adapter. This weld free fitting that gives better fluid flow and integrity over the normal brazed together hose ends fitting.
  • Package Included: 1x Push Lock Hose Fitting
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Feature:
  • Push lock fitting only works with push lock rubber oil hose.
  • Will not leak under high pressure.
  • Made of 6061 aluminum alloy material which is durable and can use for a long time.
Specification:

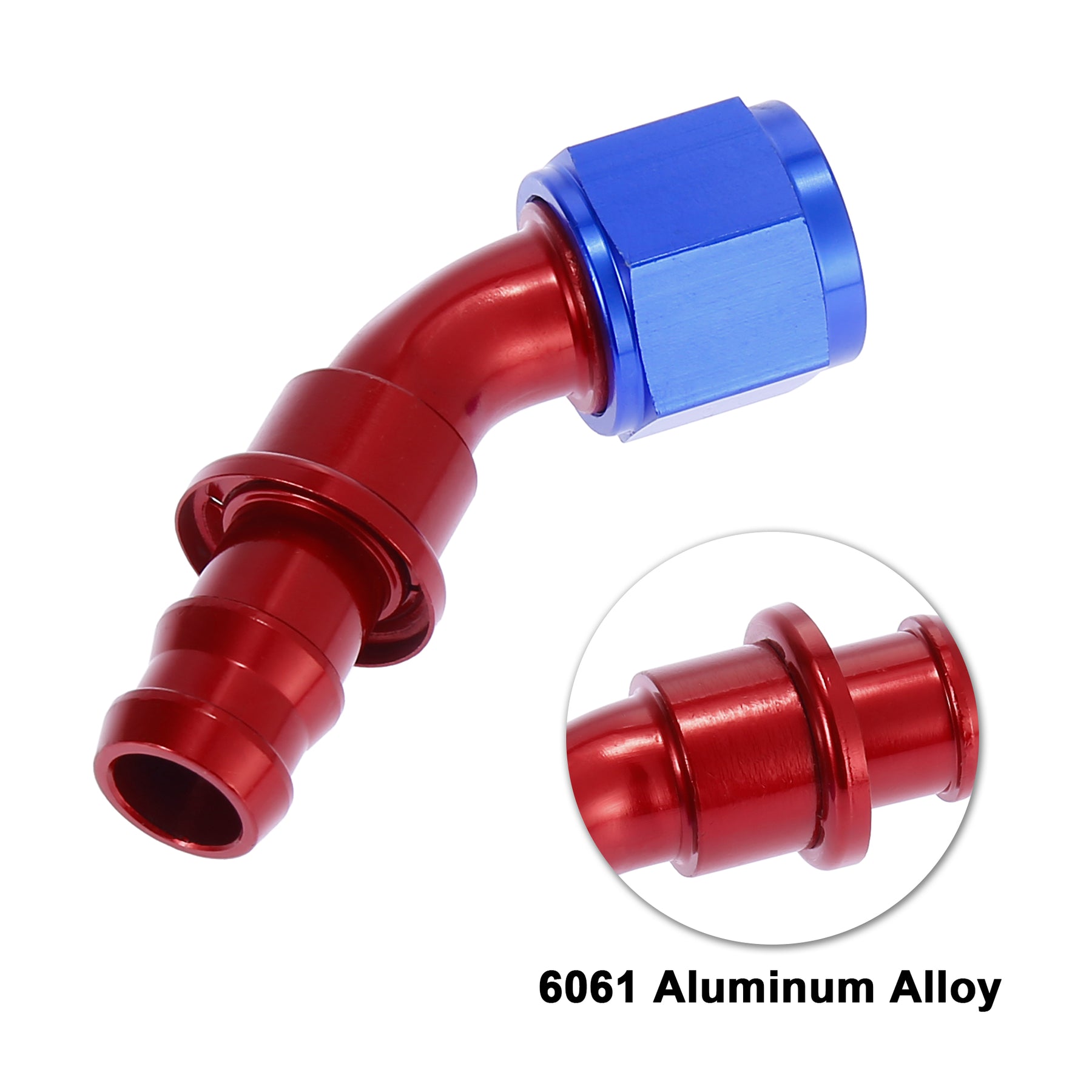

  • Material: 6061 Aluminum Alloy
  • Color: Red Blue

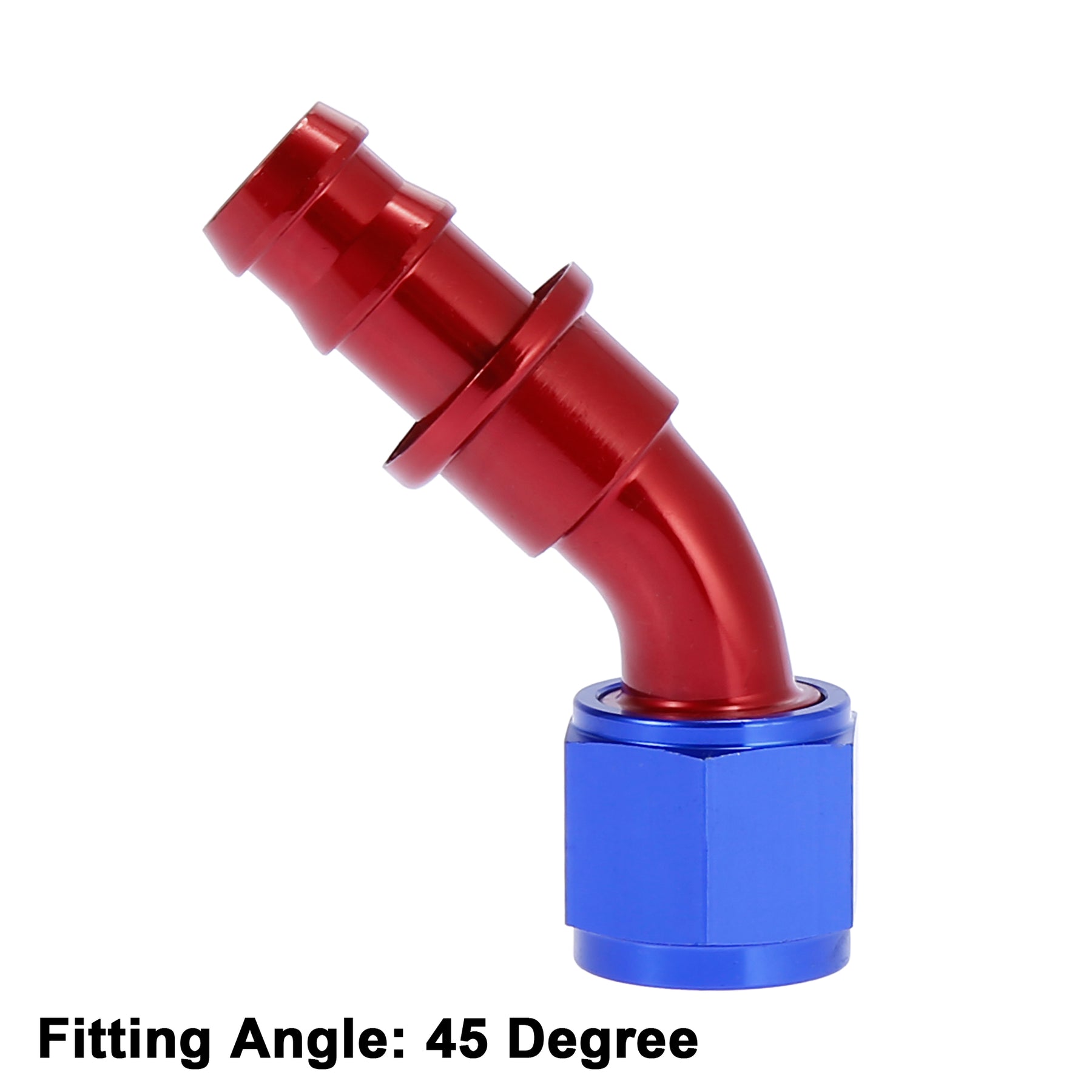

  • Fitting Angle: 45 Degree
  • Adapter Attachment: Female Threads

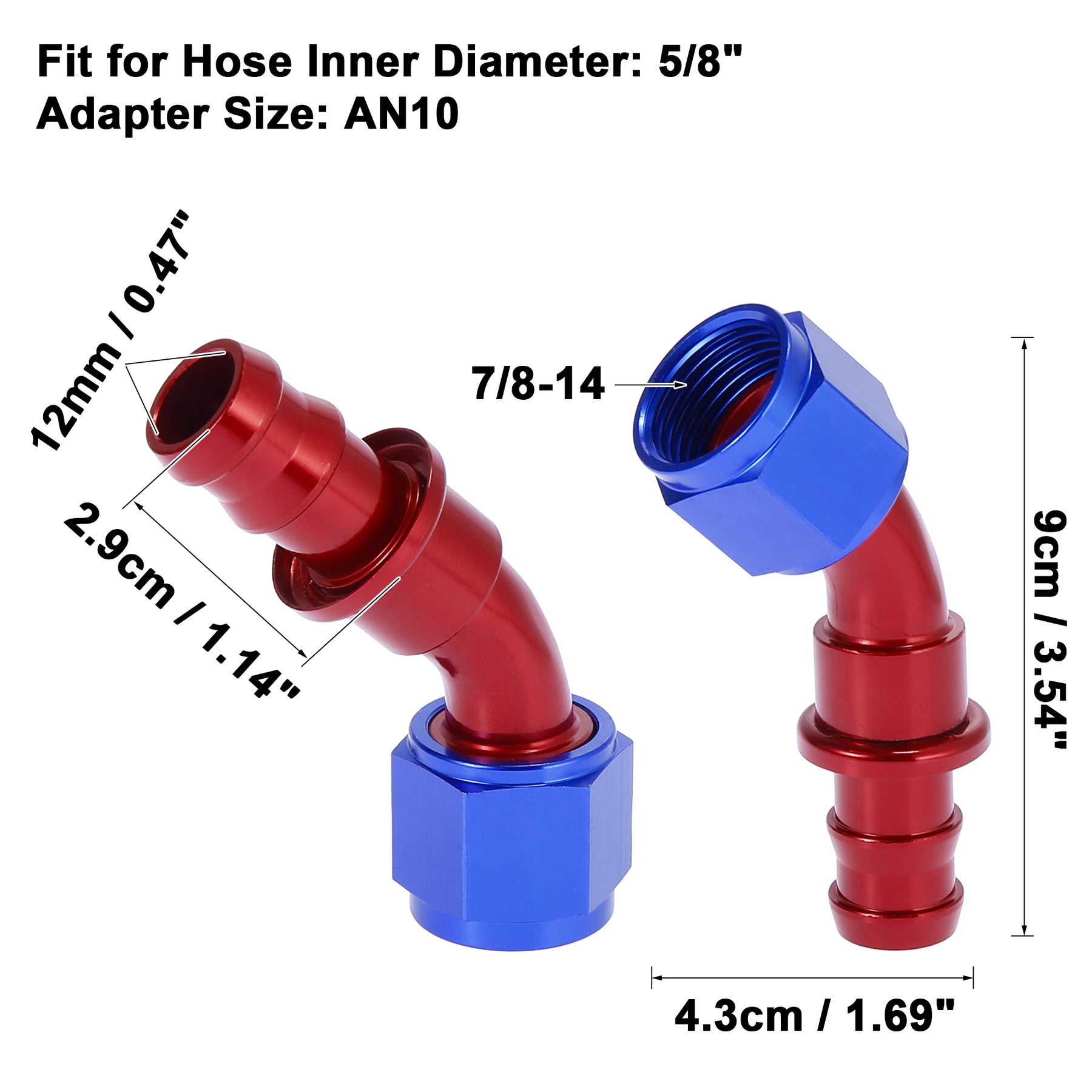

  • Adapter Size: AN10
  • Dimension: 9x4.3cm/3.54"x1.69" (Total Length*Width)
  • Length: 2.9cm/1.14"
  • Thread Size: 7/8-14
  • Inner Diameter: 12mm /0.47"
  • Fit for Hose Inner Diameter: 5/8"
Note:
  • The fitting are only for use with a hose for push on fittings. To ensure proper operation, the barbed end has to be pushed in all the way, with the hose end completely concealed by the ring. Push lock fitting no installation instructions, professional installation is highly recommended!
Package Included:
  • 1x Push Lock Hose Fitting

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
