Harfington 3 Circuits Screw Terminal Blocks, 300V 20A 9.5mm Pitch 3 Positions, Pack of 10

3 Circuits Screw Terminal Blocks, 300V 20A 9.5mm Pitch 3 Positions, Pack of 10

ID:
AU$20.00 Regular price
AU/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • These are double-row screw terminals made of flame-retardant PA66 material and copper alloy. They are designed to simplify wiring in electronic circuits, mechanical equipment, and other electrical devices.
  • Terminal Block rated voltage/current universal: 20A/300V; Poles: 3 Positions (Dual Rows); Size(LxW): 45mm x 21mm / 1.8inch x 0.83inch; Terminal Pitch:9.5mm / 0.37inch; Conductor material: copper alloy; Insulator material: PA66; Insulation material color: Black; Applicable wire gauge range: 22-12AWG; Packing List: 10 Pcs x Barrier Terminal Block Strips with Flat Head Screwdriver
  • Easy Installation: A screwdriver is included in the package. The terminals are easy to install, with two screw holes at each end for easy securing. Additionally, there is a mounting hole at each end to ensure a secure installation. Flexible and Neat Wiring: These terminal blocks allow you to neatly connect each power cord to various power sources, good for compact wiring projects. They also allow you to disconnect individual branches without disassembling the entire system.
  • 1. Use the included flat head screwdriver to loosen the screw of your target terminal position. 2. Strip a proper length of insulation from your wire, then insert the exposed metal part into the terminal hole. 3. Tighten the screw to secure the wire firmly. 4. Use the mounting holes to fix the terminal block at your desired location.
  • 1. Do not exceed the 300V/20A rated specifications. 2. Always turn off the power before wiring to prevent electric shock.
  • In stock, ready to ship
Cart
Cart
About this item
  • These are double-row screw terminals made of flame-retardant PA66 material and copper alloy. They are designed to simplify wiring in electronic circuits, mechanical equipment, and other electrical devices.
  • Terminal Block rated voltage/current universal: 20A/300V; Poles: 3 Positions (Dual Rows); Size(LxW): 45mm x 21mm / 1.8inch x 0.83inch; Terminal Pitch:9.5mm / 0.37inch; Conductor material: copper alloy; Insulator material: PA66; Insulation material color: Black; Applicable wire gauge range: 22-12AWG; Packing List: 10 Pcs x Barrier Terminal Block Strips with Flat Head Screwdriver
  • Easy Installation: A screwdriver is included in the package. The terminals are easy to install, with two screw holes at each end for easy securing. Additionally, there is a mounting hole at each end to ensure a secure installation. Flexible and Neat Wiring: These terminal blocks allow you to neatly connect each power cord to various power sources, good for compact wiring projects. They also allow you to disconnect individual branches without disassembling the entire system.
  • 1. Use the included flat head screwdriver to loosen the screw of your target terminal position. 2. Strip a proper length of insulation from your wire, then insert the exposed metal part into the terminal hole. 3. Tighten the screw to secure the wire firmly. 4. Use the mounting holes to fix the terminal block at your desired location.
  • 1. Do not exceed the 300V/20A rated specifications. 2. Always turn off the power before wiring to prevent electric shock.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
What is this?

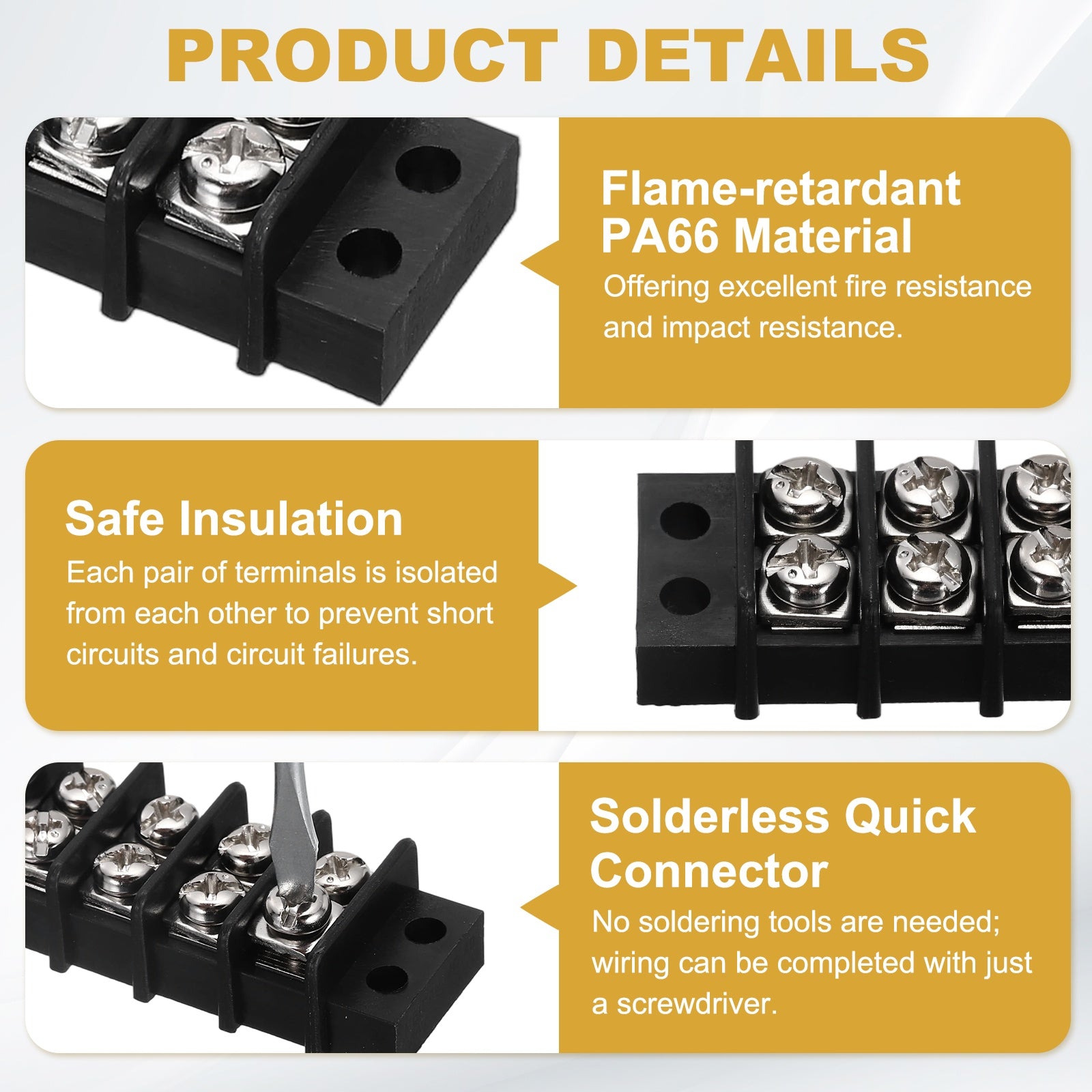

These are double-row screw terminals made of flame-retardant PA66 material and copper alloy. They are designed to simplify wiring in electronic circuits, mechanical equipment, and other electrical devices.

What will I get?

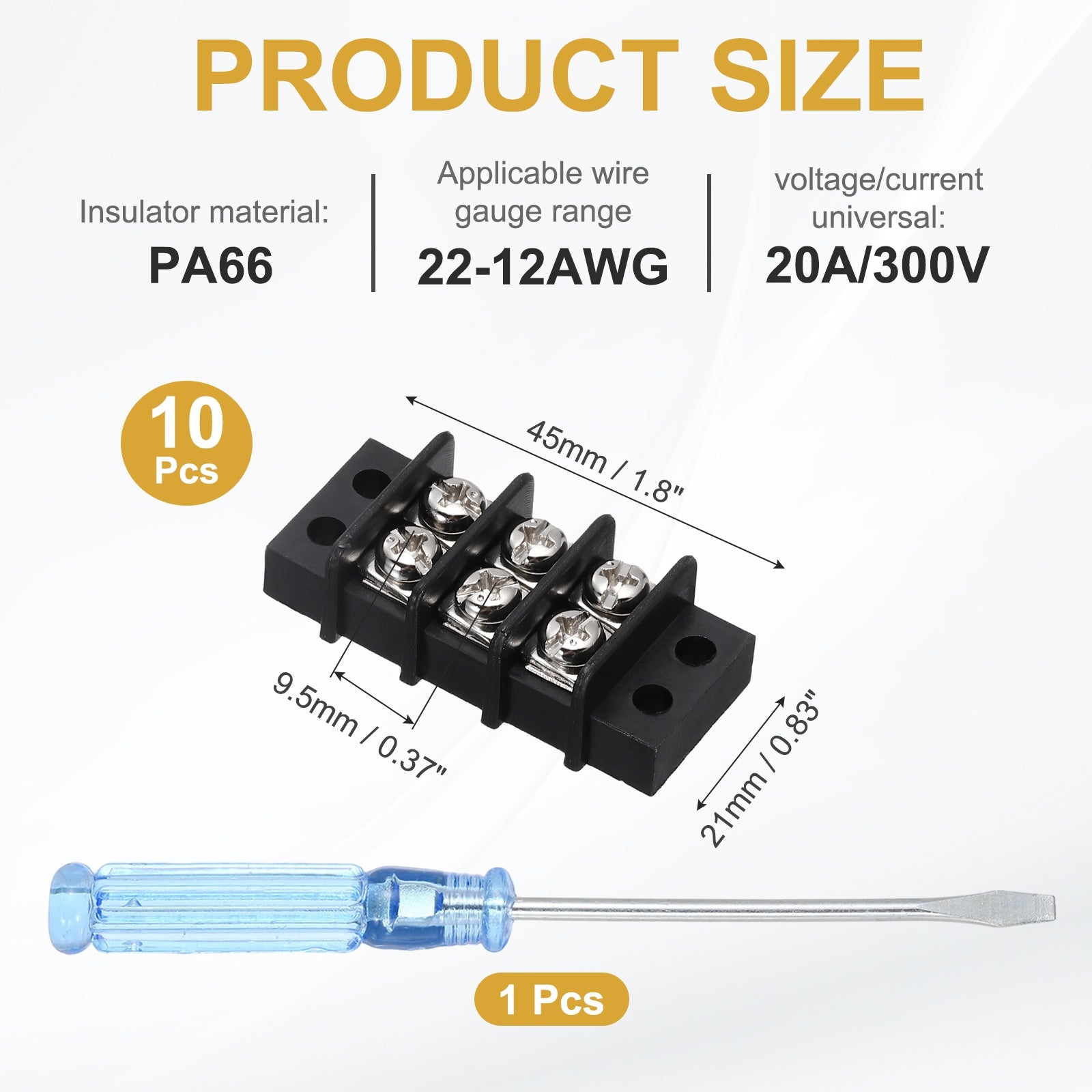

Terminal Block rated voltage/current universal: 20A/300V;
Poles: 3 Positions (Dual Rows);
Size(LxW): 45mm x 21mm / 1.8inch x 0.83inch;
Terminal Pitch:9.5mm / 0.37inch;
Conductor material: copper alloy;
Insulator material: PA66;
Insulation material color: Black;
Applicable wire gauge range: 22-12AWG;

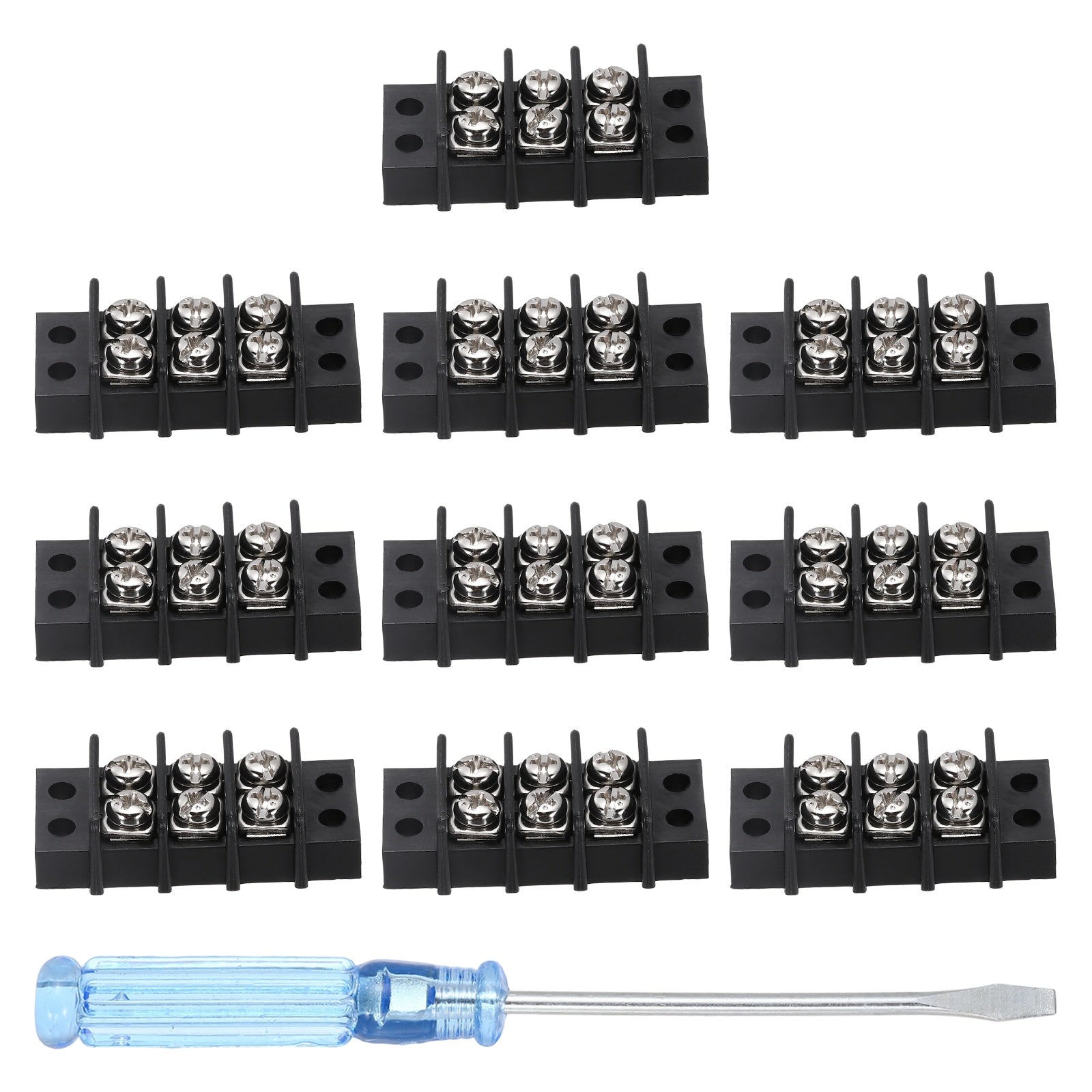

Packing List: 10 Pcs x Barrier Terminal Block Strips with Flat Head Screwdriver

Are there any advantages of the product?
Easy Installation: A screwdriver is included in the package. The terminals are easy to install, with two screw holes at each end for easy securing. Additionally, there is a mounting hole at each end to ensure a secure installation.

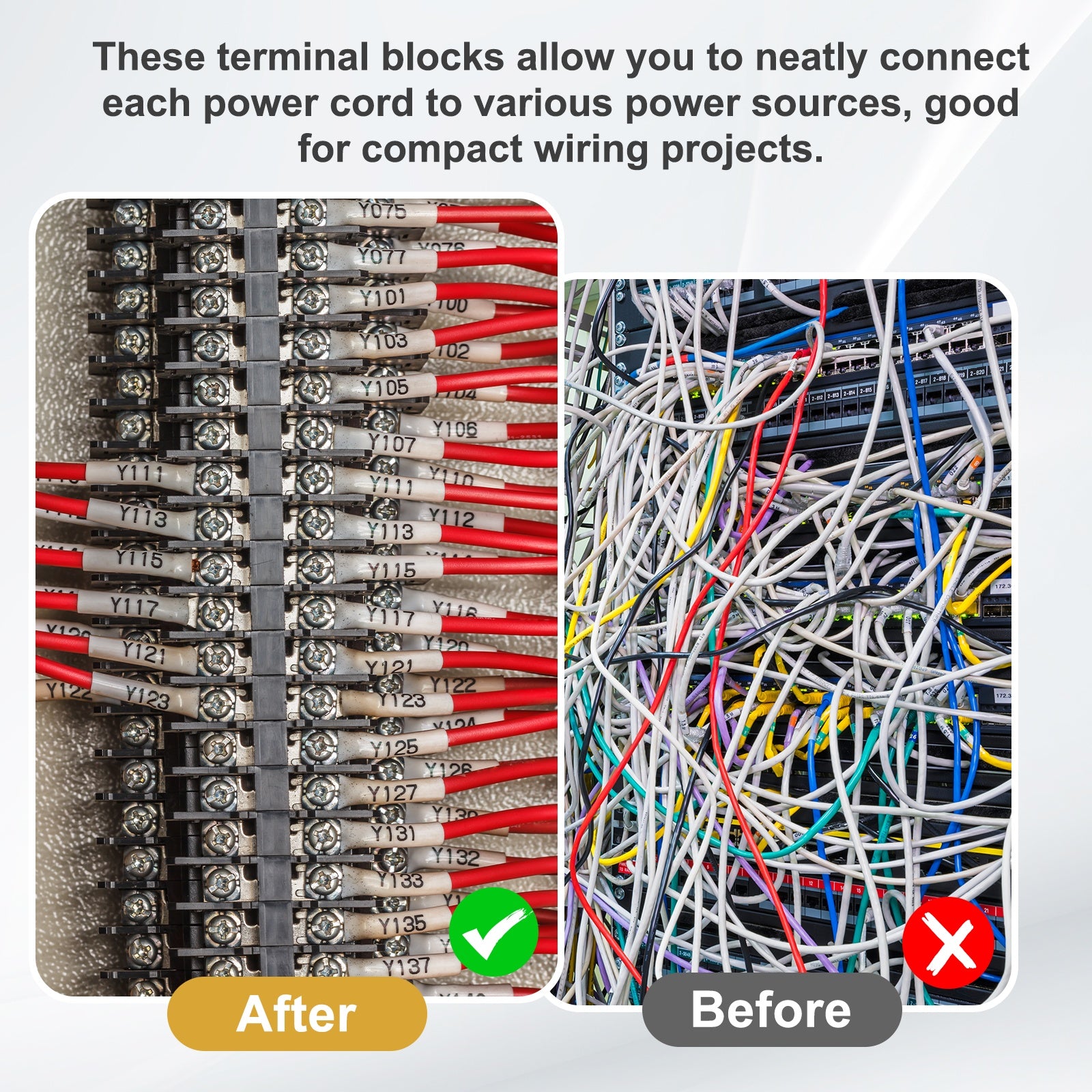

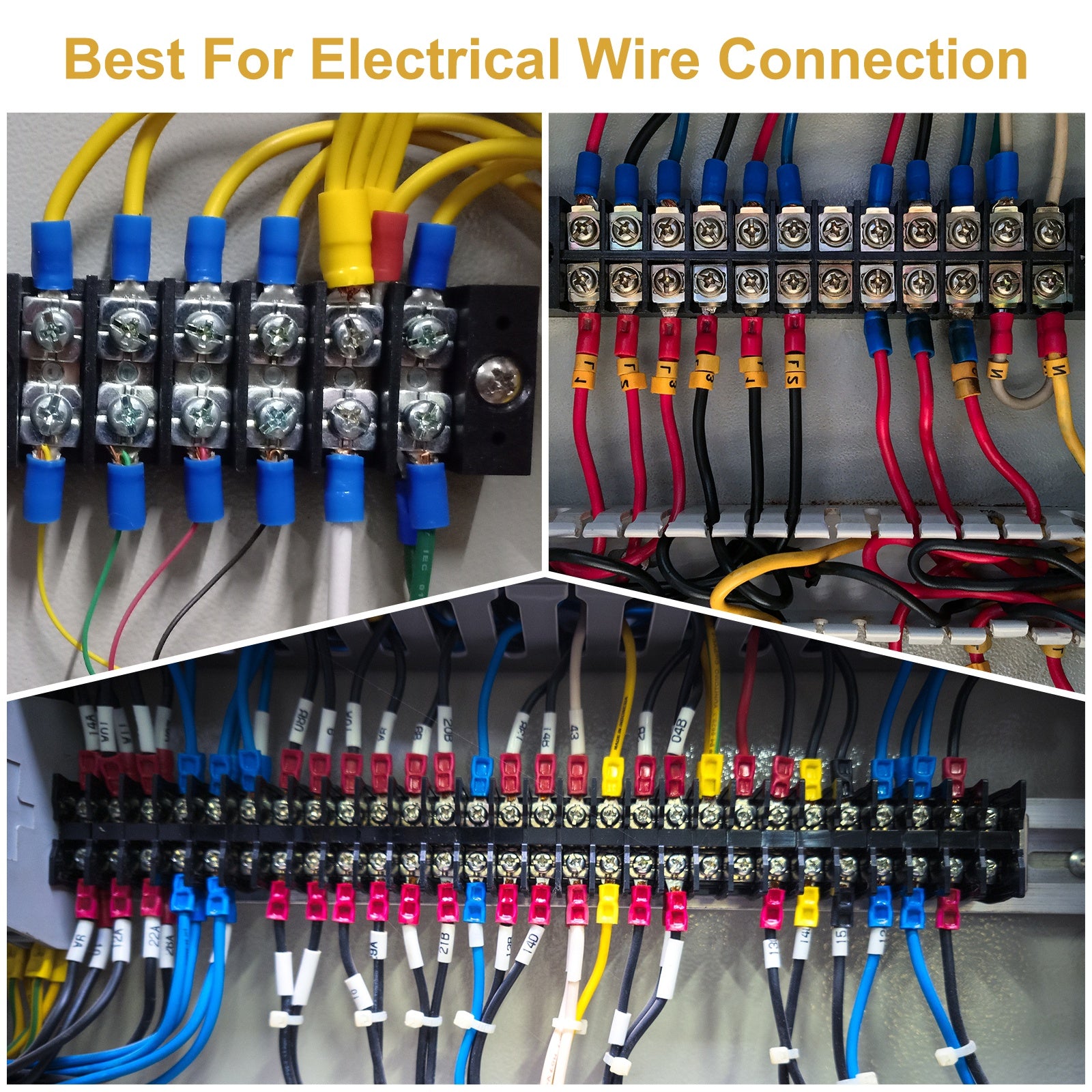

Flexible and Neat Wiring: These terminal blocks allow you to neatly connect each power cord to various power sources, good for compact wiring projects. They also allow you to disconnect individual branches without disassembling the entire system.

How to use it?

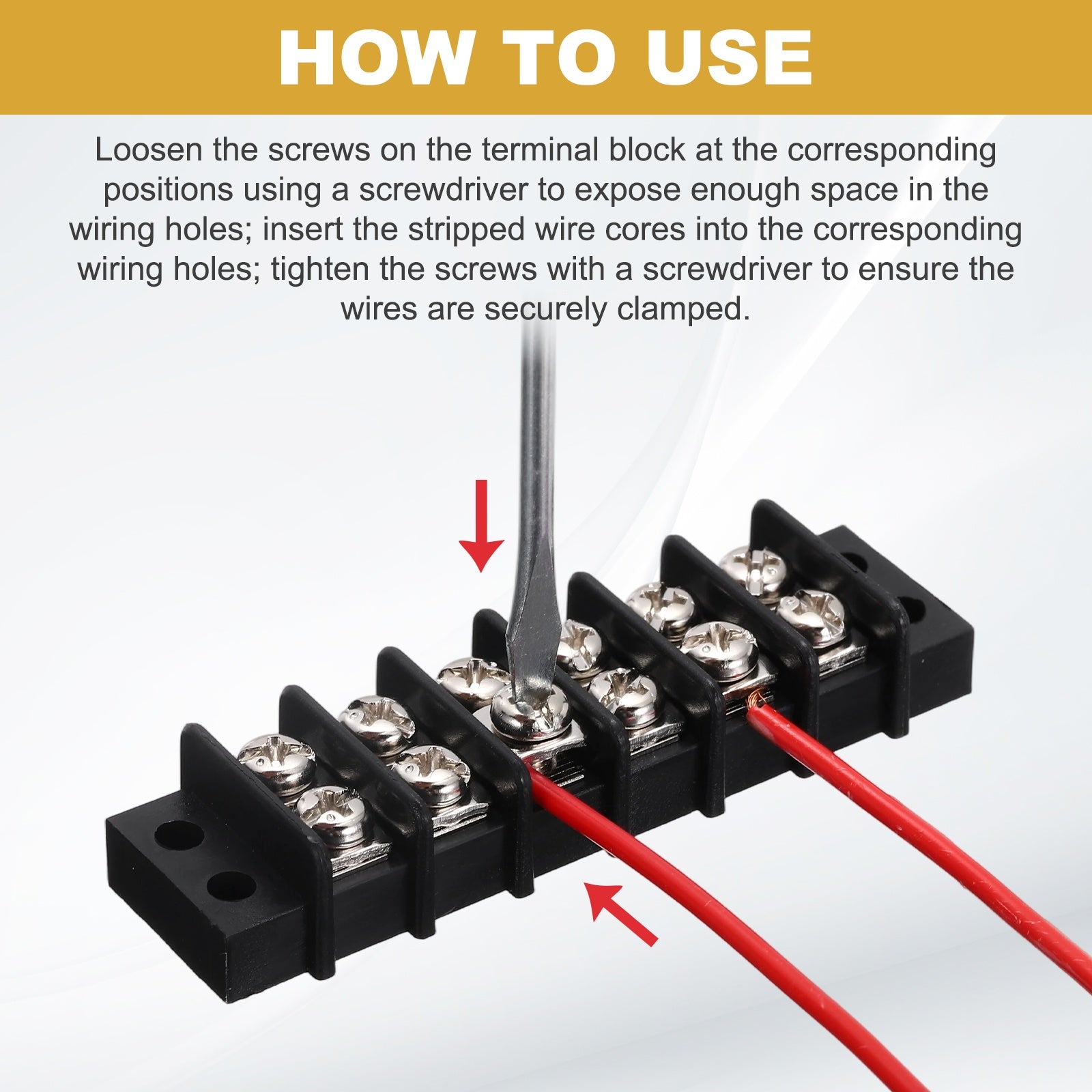

1. Use the included flat head screwdriver to loosen the screw of your target terminal position. 2. Strip a proper length of insulation from your wire, then insert the exposed metal part into the terminal hole. 3. Tighten the screw to secure the wire firmly. 4. Use the mounting holes to fix the terminal block at your desired location.

What should  I notice?
1. Do not exceed the 300V/20A rated specifications. 2. Always turn off the power before wiring to prevent electric shock.
